USER MANUAL DC15 DYSON

fully before using your DC15

Q F IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER When using an electrical appliance, basic precautions should always be followed, including the following:

WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

1 Do not leave plugged in. Unplug from electrical outlet when not in use and before servicing.

2 Do not use outdoors or on wet surfaces or to vacuum water or other liquids — electric shock could oceur.

3 Do not allow to be used as a toy. Close attention is necessary when used by or near children.

4 You are responsible for making sure that your vacuum cleaner is not used by anyone unable to operate it properly.

5 Use only as described in this manual. Use only with Dyson recommended attachments and accessories.

6 Check to ensure your electricity supply corresponds to that shown on the rating plate, which is located behind the bin. The machine must only be used as rated.

7 Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or immersed in liquid, contact the Dyson Helpline at 1-866-693-9766.

8 Do not pull or carry by the cord, do not use the cord as a handle, do not close a door on the cord or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces and open flames.

9 Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord. 10 Do not handle the plug or appliance with wet hands. 11 Do not use the appliance without the clear bin“ and filters in place.

12 Do not put any object into openings in the machine. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.

13 Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

14 Do not use the machine to pick up sharp hard objects, small toys, pins, paper clips etc. They may damage the machine.

15 The use of an extension cord is not recommended.

16 Store the machine indoors. Put the vacuum cleaner away after use with the cord coiled safely, to prevent tripping accidents.

17 Turn off all controls before unplugging.

18 Use extra care when cleaning on stairs; always work with the machine at the bottom of the stairs. Do not put the machine on chairs, tables etc. Keep on floor.

19 Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

20 Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

21 When vacuuming, certain carpets may generate small static charges in the clear bin or wand. These are entirely harmless and are not associated with the electricity supply. To minimize any effect from this, do not put your hand or insert any object into the clear bin unless you have first emptied it and rinsed it out with cold water.

22 Use only identical Dyson replacement parts.

23 Do not carry out any maintenance work other than that shown in this manual or advised by the Helpline.

SAVE THESE INSTRUCTIONS THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE ONLY Polarization instructions

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a

qualified electrician to install the proper outlet. Do not change the plug in any way.

Please read this guide carefully before using your DCI.

Using your Dyson Using your Dyson Using the tools Washing your filter Emptying the clear bin"

Warranty and customer care

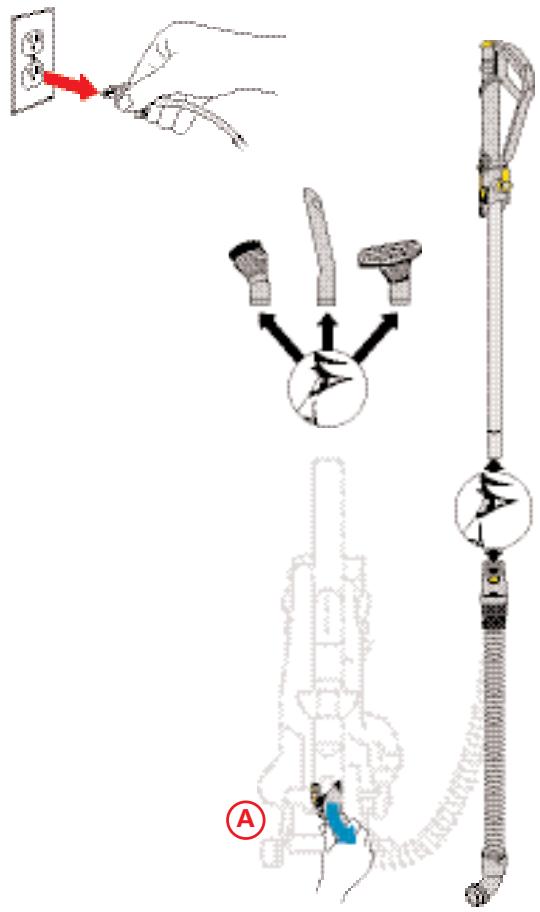

+ Ensure hose is straight when inserting wand.

+ If you have any questions, please call the Dyson Helpline toll free at 1-866-693-9766 or log onto www.dyson.com

2/18/05 3:58 PM Page 4

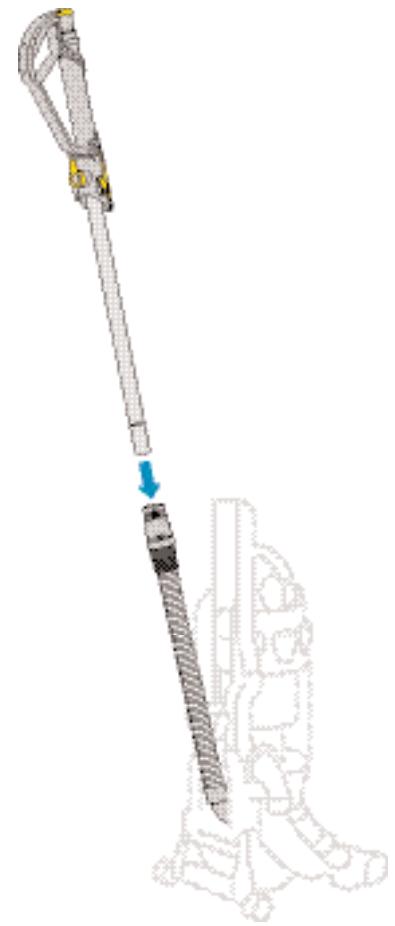

Slide wand down inside hose until it clicks.

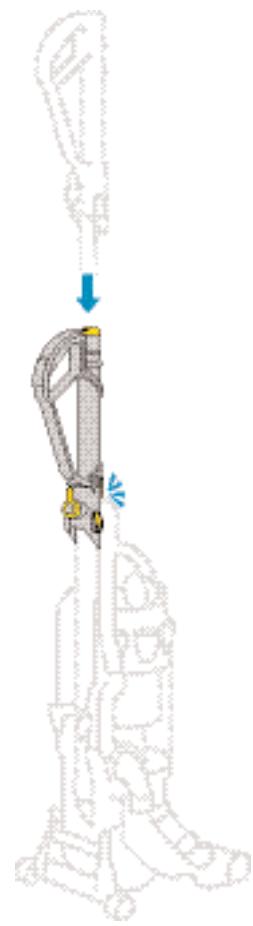

Slot wand into top of machine and click into place.

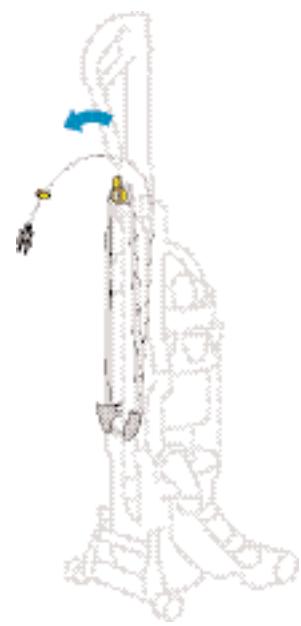

Wind cord counter-clockwise and

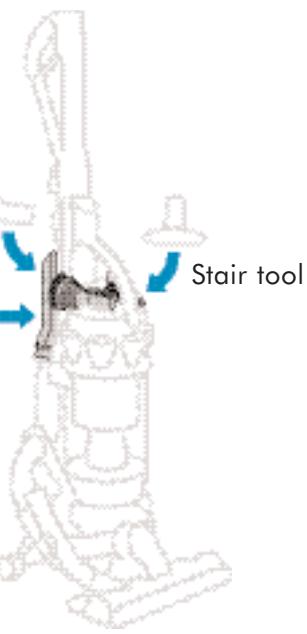

Click tools into place.

+ Please note: this machine is intended for domestic use only. Fine dust such as plaster dust or flour should only be vacuumed in very small amounts.

+ The brushbar will automatically stop if it becomes obstructed.

+ Do not press the cyclone release button while carrying the machine or it could fall and cause injury.

+ Ensure the cyclone is secured to the machine.

+ Do not shake the machine while carrying or it could fall and cause injury.

2/18/05 3:58 PM Page 5

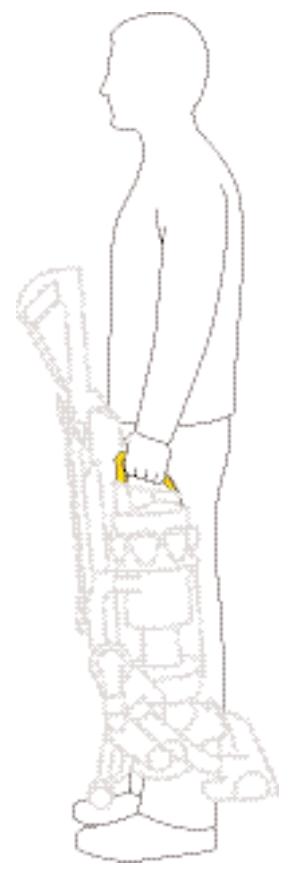

Ensure machine is upright before carrying.

Use the carry handle at the top of the cyclone to lift.

Using your Dyson Plug in and press ON/OFF switch.

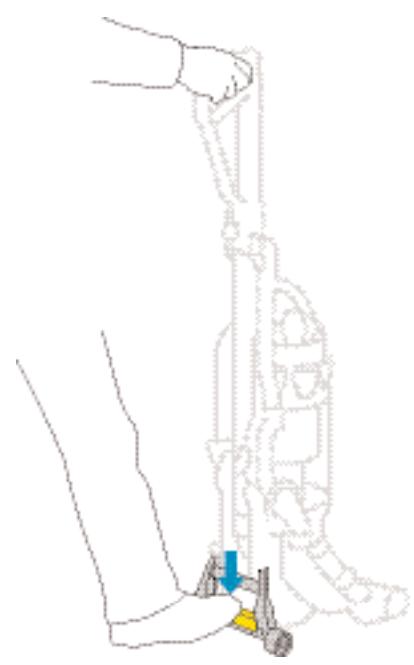

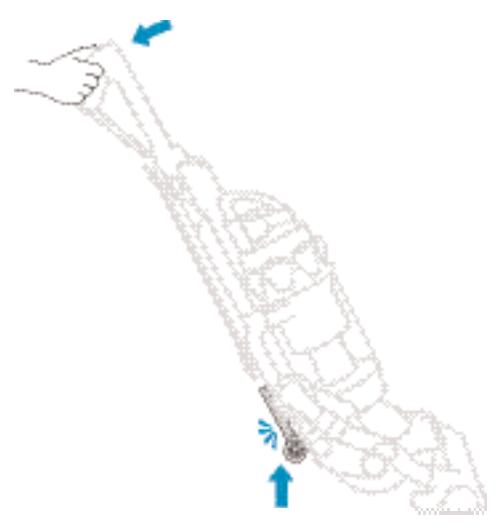

Press pedal firmly to release cleaner head and pull handle towards you.

À Use pedal only - do not stand directly on cleaner head.

Ensure stabilizing wheels are fully retracted or brushbar will not operate.

+ When you first start to vacuum, the brushbar is “ON”.

+ Press button to turn brushbar off for delicate rugs, berbers, and bare floors.

+ Ifthe brushbar stops during use, please refer to the blockages section.

+ Ensure stabilizing wheels are fully locked in place before releasing the cleaner.

2/18/05 3:58 PM Page 6

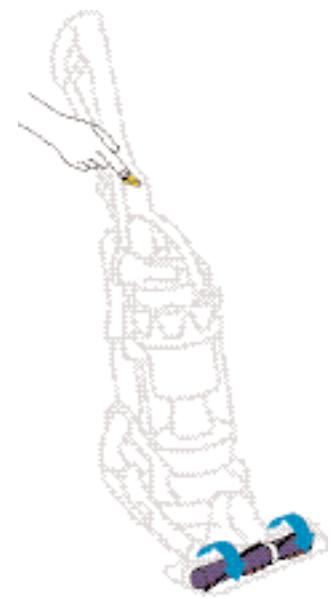

Press button to turn brushbar OFF for delicate rugs, berbers and bare floors; and again to restart for carpets.

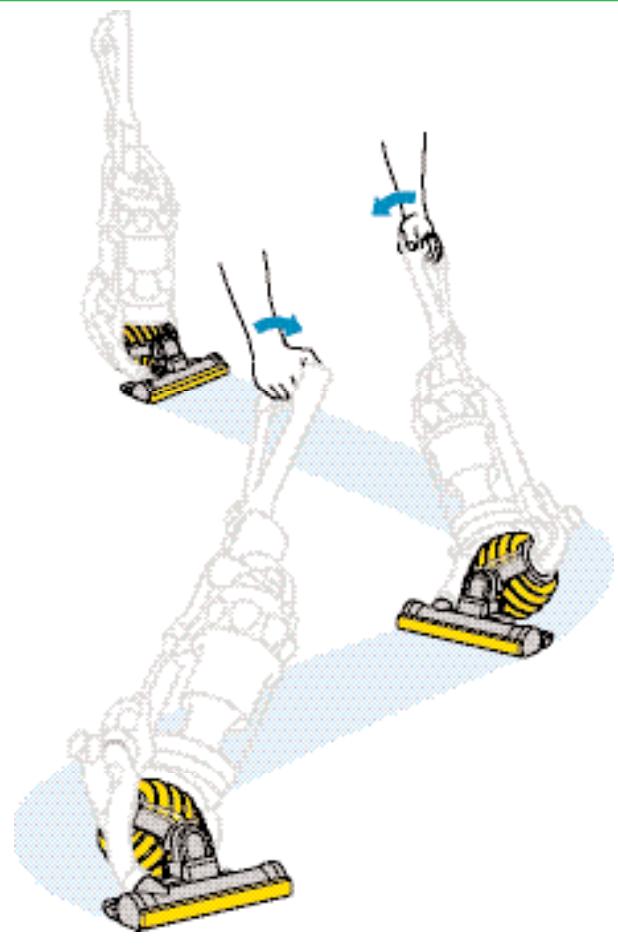

Small movements of the wrist will create a zigzag motion in the head, for easier cleaning around furniture.

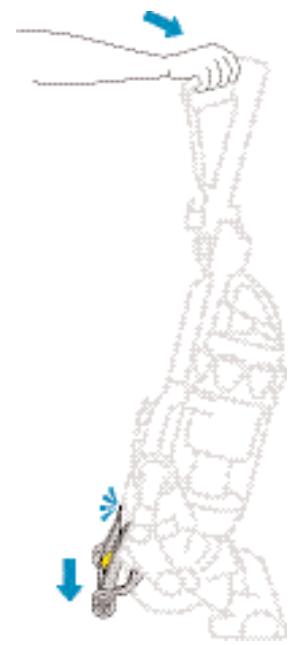

When finished, push the handlle firmly beyond the upright position to drop the stabilizing wheels.

À Ensure stabilizing wheels are fully locked in place before releasing the cleaner.

12438 _DC15 USA OP_MAN NE. p1-36

À IMPORTANT Ensure machine is in upright position before using tools.

To protect your floors, the brushbar will not rotate when the machine is in an upright position.

Ensure hair and loose clothing are kept clear of wand cap when machine is switched on.

Ensure wand cap is closed, unless using with tools.

Powerful suction can cause the hose to ‘pull back’ — please take care when cleaning stairs.

To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of the stairs.

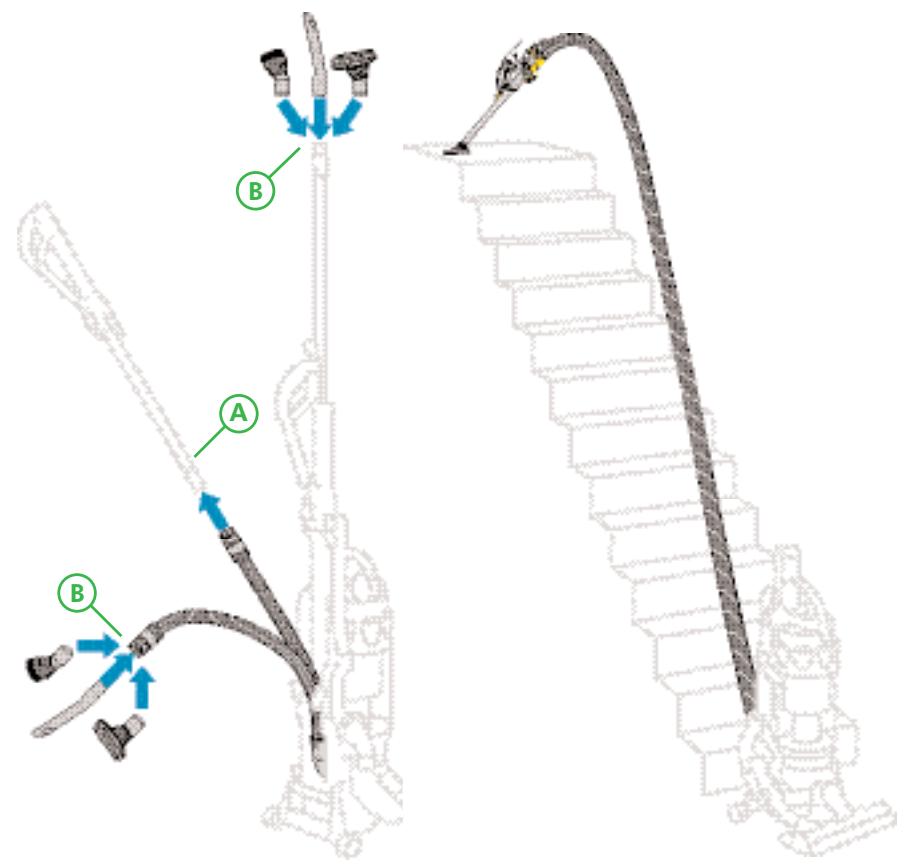

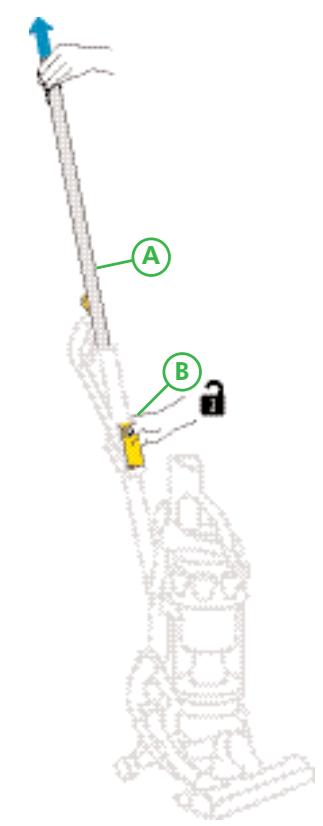

2/18/05 3:58 PM Page 7 & + Wand mode Hose mode Stair cleaning À Pull metal wand from inside handle until it clicks. A First extend the wand, then Always work with the B Press button to release hose and wand handle from machine. To push pe Fans ro remove machine at the bottom of wand back inside hose, ensure hose is straight. Press wand release wand handle from hose. he stoirs. button and push wand down into hose. B Tools can be fitted directly to the end of hose or wand.

12438 _DC15 USA OP_MAN NE. p1-36

5 Washing your filter

+ Check your filter regularly and wash at least every 6 months according to instructions to maintain performance.

+ Turn power off and unplug before washing the filter. Failure to do so could result in electric shock or personal injury.

The filter may require more frequent washing if vacuuming fine dust.

Do not use detergent to clean filter.

Do not put the filter in the dishwasher, washing machine, tumble dryer, microwave or near an open flame.

2/18/05 3:58 PM Page 8

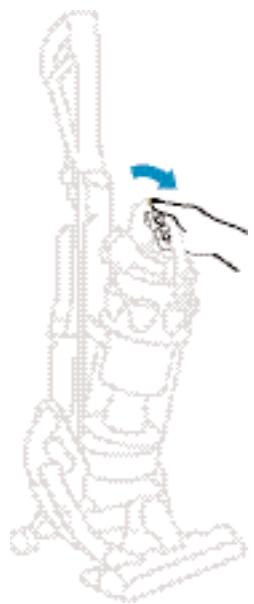

Press catch to release cyclone and bin from machine.

Lift filter release catch and remove filter.

Separate blue filter and yellow case.

Wash filter and case in cold water only. Repeat until water runs clear.

Air dry for at least 12 hours or overnight. Ensure filter is completely dry before refiting onto the machine.

12438 _DC15 USA OP_MAN NE. p1-36

6 Emptying the clear bin”

+ Turn power off and unplug before emptying the bin. Failure to do so could result in electric shock or personal injury.

+ Do not use the machine without the clear bin in place.

The British Allergy Foundation considers that this product may in proper use reduce exposure to both House Dust Mite (Der p 1) and Cat Allergen (Fel d 1). If is strongly recommended that a sensitive person should take care when emptying the clear bin. We recommend the manufacturer's emptying instructions should be stricily followed.

The British Allergy Foundation is a UK national charity (Charity Re. No. 1003726) founded in 1991 with the aim of improving awareness, prevention and treatment of allergies.

2/18/05 3:58 PM Page 9

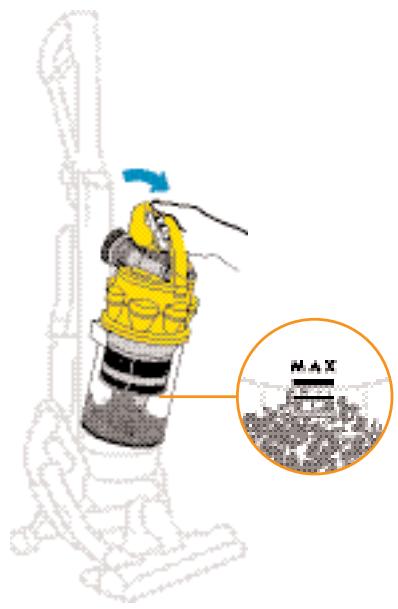

Empty bin as soon as the level of the MAX mark is reached at any point in the bin.

Press catch to release cyclone and bin from the machine.

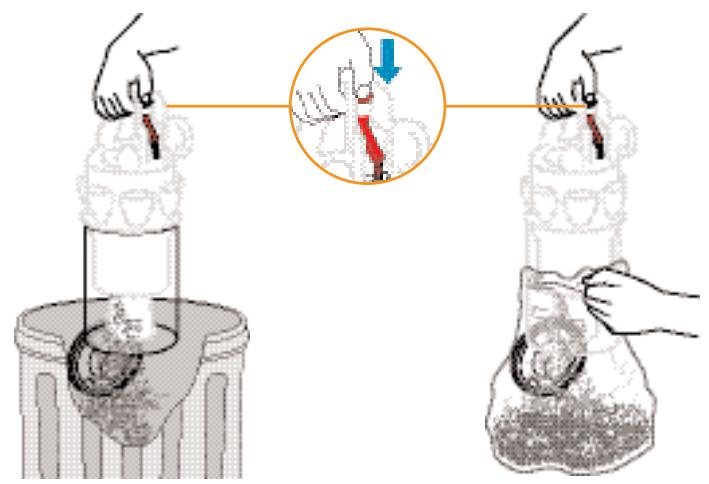

Option 1 Push the button as shown to empty directly into trash.

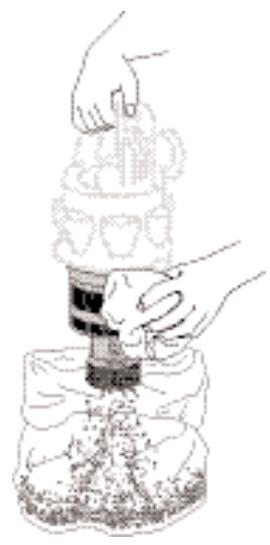

Option 2 Emptying into a bag is

recommended for allergy sufferers.

Place bin in bag and push button.

Let the dust settle and close bin base securely before removing from bag and refitting bin on machine.

12438 DC15 USA OP_ MAN NE. p1-36 2/18/05 3:58 PM Page 10

7 Cleaning the clear bin“

+ Do not use detergents, polishes or air fresheners to clean the clear bin.

+ Do not immerse the whole cyclone in water.

+ Ensure bin is completely dry before replacing.

Cleaning the shroud (piono) Ensure bin is empty (as detailed in section 6) and bin base is open.

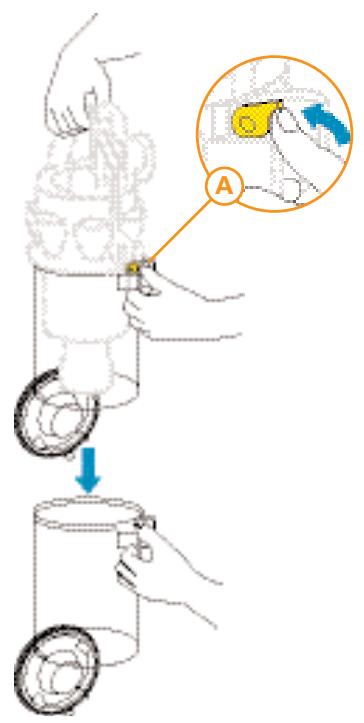

Press catch A to release the clear bin from the cyclone.

Clean shroud with a cloth or dry brush to remove lint.

Cleaning the clear bin” (opional)

Ensure bin is empty and bin base is open.

Rinse with cold water only.

Ensure bin is dry before replacing.

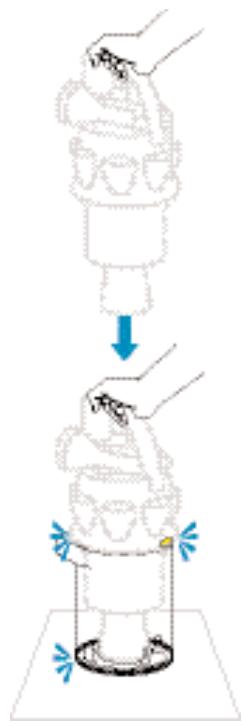

Re-assembling the clear bin"

Holding carry handle, fit cyclone assembly inside the clear bin”

Line up the front and rear guides and push down to secure.

12438 _DC15 USA OP_MAN NE. p1-36

8 Clearing blockages

+ Turn power off and unplug before checking for blockages. Failure to do so could result in electric shock or personal injury.

If any part of your machine becomes blocked, it may overheat and then automatically shut off. Unplug machine and leave to cool down.

For safety, please lie the machine on its side before checking for blockages.

Please note: clearing blockages is not covered by your machine's limited warranty.

Beware of sharp objects when clearing blockages.

Refit all parts of the machine securely before using it.

2/18/05 3:58 PM Page 11

Check to see if tools, wand and hose are clear of blockages.

A To remove the hose, rotate base of hose downwards until it clicks, then twist away from the machine.

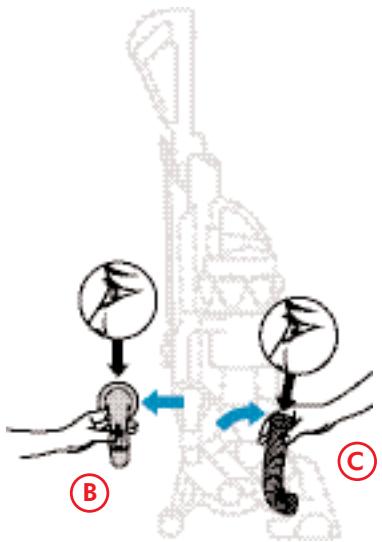

B Squeeze release catches to remove the airway

inspections and check inside.

€ Pull the top end of the tube away from machine

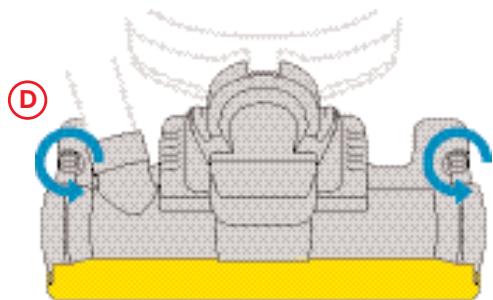

D Undo colored soleplate fasteners with a coin.

E Rotate endcaps and remove. F_ Pull out brushbar sections.

G Cut out debris blocking bristles.

12438 _DC15 USA OP_MAN NE. p1-36

2/18/05 3:58 PM Page 12

Limited 2 year household warranty

Terms and Conditions of the Dyson 2 year limited warranty

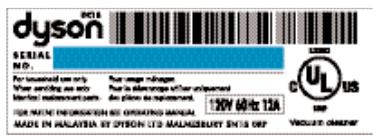

Your serial number can be found on the rating plate, which is located on the machine behind the bin.

Note your serial number for future reference:

pc15* Major teritores ony=

I you have a question about your Dyson vacuum cleaner, call the Dyson Helpline at 1-866-693-9766 with your serial number and details of where/when you bought the cleaner. Your serial number can be found on the rating plate, which is located on the machine behind the bin. Most questions can be solved over the phone by one of our Helpline staff. If your cleaner needs service, call the Dyson Helpline we will discuss with you the options available for service. If your machine is under warranty and it is a covered repair, your machine will be repaired at no cost. To reach the Dyson Helpline call at 1-866-693-9766, or visit Dyson online at www.dyson.com

Thank you for choosing to buy a Dyson. To help us ensure you receive prompt and efficient service, please register your purchase with us. There are two ways to do this:

+ You can register by completing and returning the enclosed form to us by mail. + Alternativelÿ, you can register on line at www.dyson.com

This will confirm your ownership of your Dyson in the event of an insurance loss, and enable us to contact you if necessary. If you have any questions about your

Dyson, please call our customer helpline at 1-866-693-9766, 7 days a week, or log on to our website at www.dyson.com

What is covered Your Dyson vacuum cleaner is warranted against original defects in material and workmanship for a period of iwo years from the date of purchase, when used for private household purposes in accordance with the Dyson Owner's Manual. This warranty provides, at no extra cost to you, all labor and paris necessary to ensure your vacuum cleaner is in proper operating condition during the warranty period. This warranty is subject to the following terms:

What is not covered Dyson, Inc. shall not be liable for costs, damages or repairs incurred as a result of:

+ Use of parts not assembled in accordance with the Owner's Manual.

+ Careless operation or handling, misuse and/or lack of maintenance or use not in accordance with the Owner's Manual.

+ External sources such as weather

+ Repairs or alterations carried out by unauthorized parties or agents.

+ Use of the vacuum cleaner other than for normal domestic household purposes within the United States, e.g. for commercial or rental purposes.

+ Normal wear and tear, including normal wearing parts such as belt, filter, brush bar, hose assembly and power cord [or where external damage or abuse is diagnosed).

+ Use of parts and accessories other than those produced or recommended by Dyson, Inc.

+ Please fill out and return the Product Registration Form, or register on line at www.dyson.com.

+ Before service can take place, the terms of the warranty require that you contact the Dyson Helpline with your model name/number, serial number, date and place of purchase. Please keep your purchase receipt in a safe place to ensure you have this information. The serial number is found on the vacuum cleaner’s rating plate, which is located on the machine behind the bin.

+ All work will be carried out by Dyson, Inc. or its authorized agents.

Any replaced defective parts will become the property of Dyson, Inc. +_ The fitling of replacement paris will not extend the period of this warranty.

If your machine is not funclioning properly, please call the Dyson Helpline at 1-866-693-9766. Most issues can be reclified over the telephone by our trained customer care staff. If this is not possible Dyson, Inc. will arrange for your vacuum cleaner to be repaired and retumed in full working order at no exira cost to yourself.

Warranty Limitations and Exclusions

+ Any implied warranties relating to your vacuum cleaner, including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty. This limitation is not allowed by some states and so this limitation may not apply to you

+ Your remedy for breach of this warranty is limited to the warranty service described above. Dyson, Inc. will not be liable for any consequential damages or incidental damages you may ineur in connection with your purchase and use of your vacuum cleaner. This limitation is not allowed by some states and so this limitation may not apply to you.

+_ This warranty gives you specific legal righis. You may also have other rights which vary by state.
