USER MANUAL ADVANTIX C750 KODAK

EASTMAN KODAK COMPANY

Rochester, NY 14650

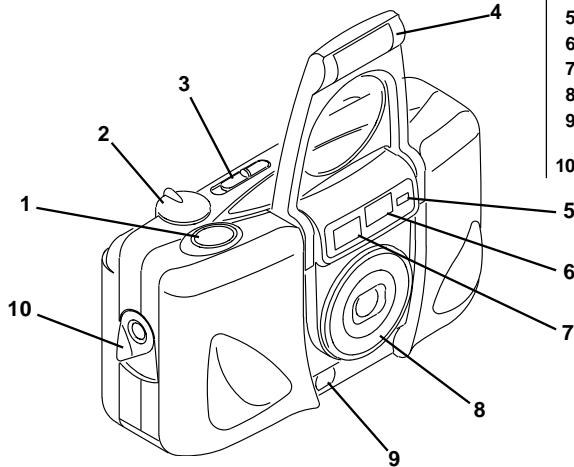

1 Shutter button
2 Zoom dial
3 Format selector switch
4 Lens cover/flash
5 Light sensor
6 Viewfinder
7 Auto-focus sensors
8 Lens
9 Red-eye-reduction/ self-timer lamp
10 Film-door lever

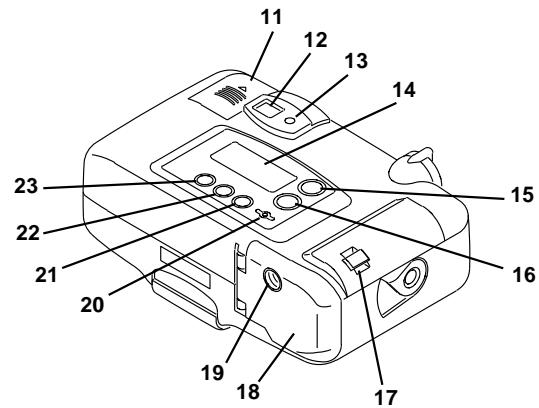

Camera Identification

11 Battery door
12 Viewfinder eyepiece
13 Flash/camera-ready lamp
14 LCD panel
15 Flash-mode button
16 Mode button
17 Strap post
18 Film door
19 Tripod socket
20 Mid-roll-change (MRC) button
21 Enter/self-timer button
22 Select button
23 Menu button

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Your model camera has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits provide reasonable protection against interference in residential use. The camera generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause interference to radio communications. There is no guarantee that interference will not occur. If this camera does cause interference to radio or television reception, which can be determined by turning the camera off and on, you may reduce the interference by the following:

Reorient or relocate the receiving antenna.
- Increase the separation between the camera and the receiver.
- Consult the dealer or an experienced radio/television technician for help.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations

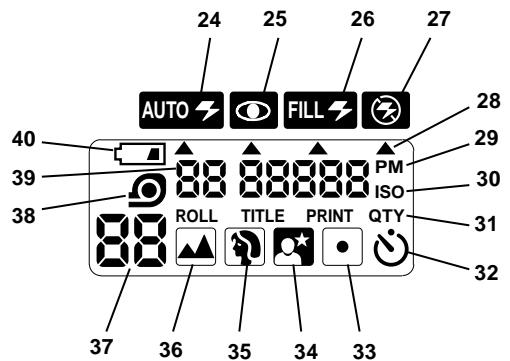

LCD Panel

24 Auto-flash indicator
25 Red-eye-reduction indicator
26 Fill-flash indicator
27 Flash-off indicator
28 Mode selector arrow
29 PMindicator
30 ISO film-speed display
31 Title/print-quantity display
32 Self-timer indicator
33 Spot-focus icon
34 Nightview icon
35 Portrait icon
36 Infinity-focus icon
37 Frame counter
38 Film-presence indicator
39 Date/time display
40 Battery symbol

KODAK ADVANTIX

C750 Zoom Camera

Welcome to the world of the Advanced Photo System! And thank you for buying this KODAK ADVANTIX Camera.

NEED HELP WITH YOUR CAMERA?

Go to our Web site at http://www.kodak.com (for US) or http://www.kodak.ca (for Canada) or call:

Kodak (USA only) from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday through Friday at 1 [phone].

Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time) Monday through Friday at 1 [phone], ext. 36100; for the Toronto area, call [phone], ext. 36100.

When you call, please have your camera available.

For warranty purposes, please keep your sales receipt as proof of the date of purchase.

CONTENTS

FEATURES AVAILABLE WITH

THIS CAMERA 3

GETTING STARTED 5

Loading the battery 5

Setting the language 6

List of languages 7

Date and time imprinting 8

Setting the date and time 8

ATTACHING THE STRAP 9

CONTROL-BUTION ACTUATOR 10

LOW-BATTERY INDICATOR 10

BATTERY TIPS 10

POWER SHUT-OFF 11

LOADING THE FILM 11

TAKING PICTURES 13

Typical print sizes (forms) 14

Using the focus lock. 15

Tips for better pictures 15

USING THE ZOOM LENS 16

TAKING FLASH PICTURES 17

Flash-to-subject distance 18

Flash/warning-lamp signals 18

FLASH MODES 19

Auto flash with red-eye reduction 19

Fill flash 19

Flash off 19

Auto flash without red-eye reduction 20

Selecting the flash modes 20

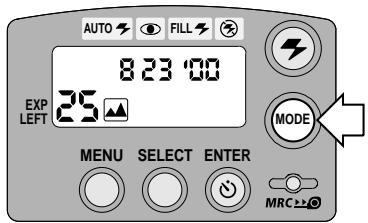

SPECIAL-OPTION MODES 20

Infinity-focus mode 21

Portrait mode 21

Nightview mode 21

Center-spot focus mode 21

Selecting the special-option modes.. 21

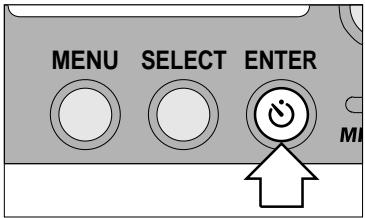

USING THE SELF-TIMER 23

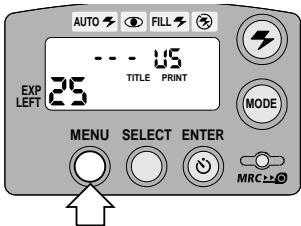

TITLE IMPRINTING 24

TITLE-SELECT LIST 24

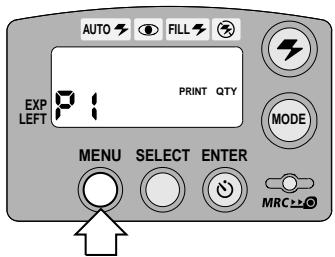

PRINT-QUANTITY SELECTION (PQS).. 26

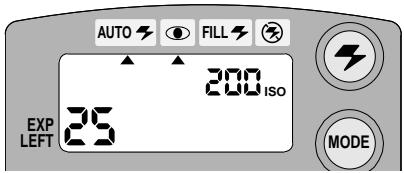

ISO FILM-SPEED DISPLAY 26

UNLOADING THE FILM 27

Automatic rewind 27

Mid-roll change (MRC) 27

CARING FOR YOUR CAMERA 28

TROUBLESHOOTING 29

SPECIFICATIONS 31

ADVANCED PHOTO SYSTEM FEATURES AVAILABLE WITH THIS CAMERA

Triple format selection

• You can take three different size pictures: Classic (C), Group/HDTV (H), and Panoramic (P) pictures from the same film cassette. The masking inside the viewfinder changes to match each format selection.

Date and time/title imprinting

• The date, time, and cassette ID number are printed on the back of your prints, which makes it easy to organize pictures and order reprints. You can choose from one of 41 pre-programmed titles (12 languages available) to print on the back of the prints. See your photofinisher for a full description of available services.

Double exposure protection (DEP)

• Don't worry about accidentally reexposing your film. Your camera reads the Film Status Indicator (FSI) on the film cassette to prevent double exposures.

Automatic Energy Saving Features

Flip flash plus

• This system automatically adjusts to provide just the right light in any situation. The flash system:
• provides extra red-eye reduction with the extension of the flip flash and the red-eye-reduction mode,
  -automatically turns on for dimly lit scenes,
  -deliversbrighterlightforclearer, morecolorfulpictures fordistance shots,
• provides softer light for more natural images for close-ups,
  -automatically provides fill-in light for more sparkle and clarity in harshly lit portraits, and
• recharges quickly so it is ready to capture those spontaneous peak moments.

Picture quality information exchange (PQix)

• This camera records vital scene data on the film's magnetic information strip and communicates that information to the photo lab to optimize lighting and color for better-looking prints.

Mid-roll change (MRC)

• You can remove your film in mid-roll and later reload it and continue taking pictures. MRC lets you:

-switch film speeds in mid-roll to match scene requirements,
- organize by dedicating individual film rolls to specific subjects, and
- share a family camera in which the members use their own roll of film.

Easy, drop-in loading

• Easy, drop-in loading is fast and virtually error-free, eliminating blank rolls and double exposures. The camera uses KODAK ADVANTIX Film. The film cassette, unlike the traditional 35mm cartridge, communicates the status of film and becomes the carrier and storage container for the processed film.

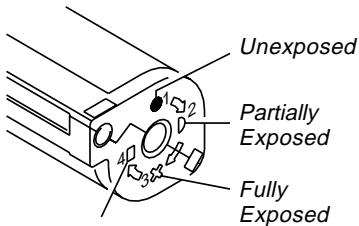

Film status indicator (FSI)

• A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette.

Processed Negatives

GETTING STARTED

Before you take pictures, you need to load the battery, set the language, and set the date and time.

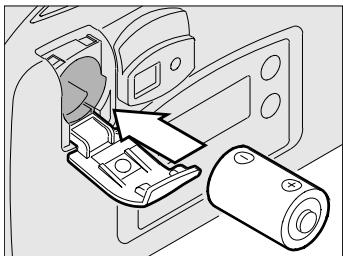

Loading the battery

This camera uses one 3-volt lithium KODAK KCR2 (or equivalent) Battery that supplies power for all camera operations.

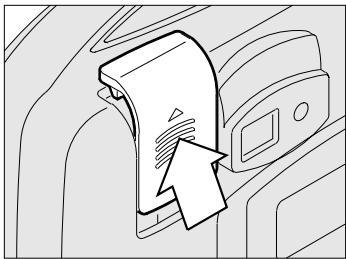

1. Slide the battery-door latch and lift to open the battery door (11).

1. Insert the battery into the battery chamber.

1. Snap the battery door closed.

After you load a new battery into the camera, reset the date and time.

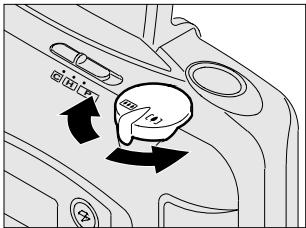

Setting the language

US English is initially set into the memory of this camera, but you can select another language (12 options available). See the table on page 7 for the List of languages and the LCD (Liquid Crystal Display) abbreviated codes.

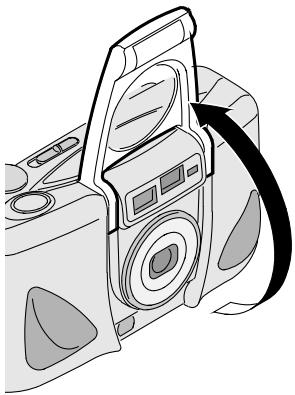

1. Completely lift up the lens cover/ flash (4) to uncover the lens (8) and to turn on the camera.

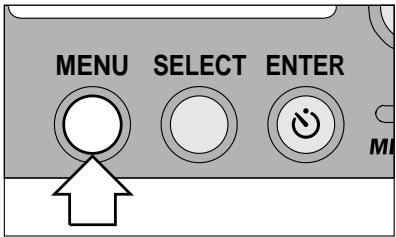

1. Press and hold the menu button (23) for approximately 4 seconds until US appears on the LCD panel (14).

• When you release the button, the language code "blinks."

• Press the right or left side of the zoom dial (2) or the select button (22) to cycle to your selection.

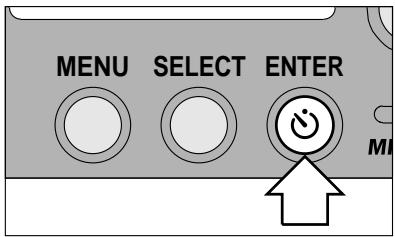

1. Press the enter/self-timer button (21) to complete your selection.

List of languages

Languages	LCD display
American English	US
UK English	Eng
German	dEU
French	FrA
Spanish	ESP
Japanese	JP
Danish	dEn
Finnish	FI
Italian	I
Norwegian	nor
Portuguese	P
Swedish	S

Date and time imprinting

Traditional cameras print date and/or time information directly onto the film. Your camera uses the film's magnetic data-recording capability to record date and time information, which your photofinisher can imprint only on the back of your photographs. This camera has a quartz clock and automatic calendar through the year 2099.

Setting the date and time

Choose from three formats: (month/day/year, day/month/year, or year/month/day) and time format (hour/minute) with PM display.

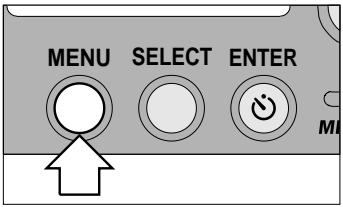

1. Repeatedly press the menu button (23) to scroll and select the desired function.

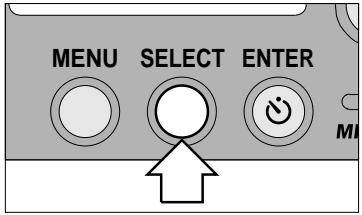

1. Press the select button (22).

• The first number(s) in the date- or time-option mode will "blink."

• Press the zoom dial (2) or select button (22) to change the number(s).

• Press the right side of the zoom dial to increase the number and the left side to decrease the number.

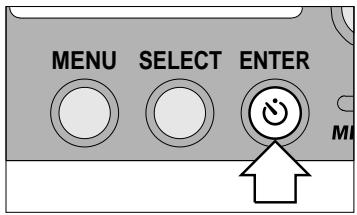

• Press the enter/self-timer button (21) to store the selected number(s) and to activate the next "blinking" number(s).

1. Follow steps 3 and 4 to continue your selection or press the enter/self-timer button again to stop the number(s) from blinking and to end your selection.

ATTACHING THE STRAP

1. Insert the shorter looped end of the strap behind the strap post (17).
2. Thread the longer end of the strap through the shorter loop.
3. Pull the strap tight.

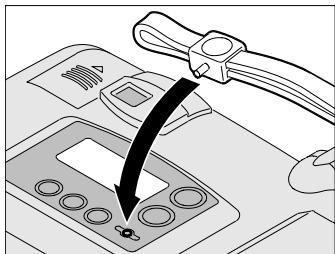

CONTROL-BUTIONACTUATOR

You can use the knob on the clasp of the camera strap to actuate the small control buttons on the camera.

LOW-BATTERY INDICATOR

It's time to replace the battery when

• the battery symbol (40) "blinks" on the LCD panel (14),
• none of the indicators, except for a steady battery symbol, appear on the LCD panel and the shutter button (1) cannot be operated, or
• the LCD panel is blank when the lens cover/flash (4) is up.

BATTERY TIPS

• Dispose of batteries according to local and national regulations.
• Keep a spare battery with you at all times.
• Read and follow all warnings and instructions supplied by the battery manufacturer.
• Keep batteries away from children.
• Do not try to take apart, recharge or short circuit the battery, or subject it to high temperature or fire.
• Store batteries in their original packaging prior to use.
• Do not use rechargeable batteries.
• Remove the battery from the camera when the camera is not going to be used for an extended length of time.

• In the unlikely event that battery fluid leaks onto your skin, contact Kodak Health, Safety and Environment Information at 1-716-722-5151 in the U.S.

• In the unlikely event that battery fluid leaks inside the camera, U.S. customers can contact the Kodak Information Center (KIC) at 1-800-242-2424. Customers outside the U.S. can contact their local Kodak Customer Service representative.

Automatic Energy Saving Features

POWER SHUT-OFF

To save battery power, the camera automatically goes into a sleep mode if it is not operated for more than 2 1/2 minutes. You can press almost any of the control buttons, except for the format selector switch (3), to awaken the camera. When the camera is not used for an extended time, close the lens cover/flash to completely turn off the camera.

LOADING THE FILM

You can load film into the camera with the lens cover/flash opened or closed.

1. Rotate the film-door lever (10) to open the film door (18).

• The film door opens only when the film chamber is empty or the film in the camera is completely rewound into the film cassette and the motor stops running.

• Insert the film cassette completely into the film chamber. Make sure the Film Status Indicator (FSI) on the film cassette is at (#1 position) for a new cassette or at (#2 position) for a partially exposed cassette.

• Do not force the film cassette into the film chamber.

• Close the film door to start the autofilm advance. The frame counter (37) on the LCD panel (14) shows the number of pictures remaining on the film cassette.

Look for this logo to be certain that the film you buy is made for this camera.

Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.

TAKING PICTURES

You can take Classic (C), Group/HDTV (H)^* and Panoramic (P) pictures on the same film cassette. See the table on page 14 for Typical print sizes (formats). Your photo-processing cost may be based on the format size(s) that you use to expose the film.

1. Completely lift up the lens cover/ flash (4) to uncover the lens (8) and to turn on the camera.

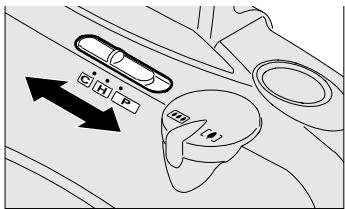

1. Slide the format selector switch (3) to select C, H, or P format. The viewfinder changes to show the selected field of view.

C

H

P

1. Look through the viewfinder eyepiece (12) placing the Auto Focus (AF) brackets on the subject. For a sharp picture, stand at least 2 ft (0.6m) from your subject.

2. Partially press down the shutter button (1) until the flash/camera-ready lamp (13) turns green. Fully press down the shutter button to take the picture.

Typical print sizes (formats)

C

H

P

Classic	Group (HDTV)	Panoramic
3.5 x 5 in. or 4 x 6 in.	3.5 x 6 or 4 x 7 in.	3.5 x 8.5 in. to 4 x 11.5 in.
(88.9 x 127 mm or 102 x 152 mm)	(88.9 x 152 mm or 102 x 178 mm)	(88.9 x 216 mm to 102 x 292.7 mm)

NOTE: Your photofinisher generally provides 4 x 6, 4 x 7, and 4 x 11.5 in. (102 x 152, 102 x 178, and 102 x 292.7 mm) sizes. Some local printers may offer 3.5 x 5, 3.5 x 6, and 3.5 x 8.5 in. (88.9 x 127, 88.9 x 152, and 88.9 x 216 mm) sizes.

Using the focus lock

This camera automatically focuses on whatever is within the Auto Focus (AF) brackets of the viewfinder eyepiece. To get a sharp picture, make sure the AF brackets are on your main subject. If you want to take a picture with the subject positioned outside the AF brackets, use the focus lock as follows:

1. Place the AF circle on the subject that you want focused in the picture.

Viewfinder

1. Partially depress and hold the shutter button (1) to lock the focus position and wait for the flash/camera-ready lamp (13) to turn green.

2. While still partially depressing the shutter button, move the camera until your subject is where you want it within the viewfinder eyepiece (12).

Viewfinder

1. Fully press down the shutter button to take the picture.

Tips for better pictures

• Move close enough to your subject so it fills the viewfinder but not closer than 2 ft (0.6 m).
• Take pictures at the subject's level.
  Kneel down to take pictures of children and pets.

• Hold your camera vertically to capture tall, narrow subjects, such as a waterfall, skyscraper, or a single person.

• Add interest to your picture by framing it with a tree branch, a window, or even the rails of a fence.

• Keep the sun behind you. This provides the best subject illumination.
• Stand at an angle to shiny surfaces like windows or mirrors to avoid flash reflection and bright spots in your pictures.
• Turn on all room lights and have your subject look at the red-eye-reduction lamp to reduce red eyes in flash pictures.

USING THE ZOOM LENS

This camera has a motorized-zoom lens that lets you select the ideal lens-focal length for taking pictures. When you turn on the camera, it is initially set to the wide-angle position.

1. Completely lift up the lens cover/ flash (4) to uncover the lens (8) and to turn on the camera.

2. Look through the viewfinder eyepiece (12).

3. Press the right side of the zoom dial (2) to zoom closer to the subject in the telephoto mode or the left side to zoom away from the subject in the wide-angle mode.

1. Press the shutter button (1) to take the picture.

2. The lens barrel automatically returns to the wide-angle position after 2 1/2 minutes.

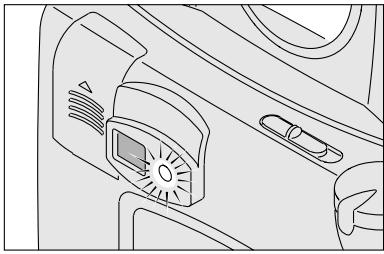

TAKING FLASH PICTURES

In dim light, such as indoors or outdoors in heavy shade, or on dark overcast days, you need flash. Your camera features an automatic flash that fires when you need it. The special flip-flash plus system of this camera shortens the flash duration in close-up pictures. This enhances your flash pictures and helps to conserve the battery life.

1. Completely lift up the lens cover/ flash (4) to uncover the lens (8) and to turn on the camera.
2. Keep the subject within the recommended distance range for the speed of film in your camera. Do not take pictures beyond the maximum distance or your pictures will be dark.

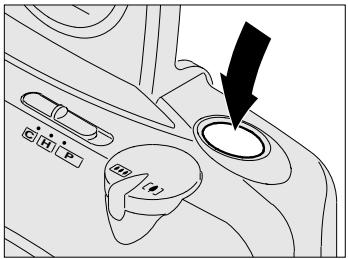

3. Partially press down the shutter button (1).

4. When the flash/camera-ready lamp (13) glows green, fully press down the shutter button to take the picture (see Flash/warning-lamp signals on page 18).

Flash-to-subject distance

ISO Film Speed	Wide (24 mm)	Tele (60 mm)
50	2 to 10 ft (0.6 to 3.0 m)	2 to 7 ft (0.6 to 2.1 m)
100	2 to 14 ft (0.6 to 4.3 m)	2 to 10 ft (0.6 to 3.0 m)
200	2 to 20 ft (0.6 to 6.1 m)	2 to 14 ft (0.6 to 4.3 m)
400	2 to 29 ft (0.6 to 8.8 m)	2 to 20 ft (0.6 to 6.1 m)
800	2 to 41 ft (0.6 to 12.5 m)	2 to 28 ft (0.6 to 8.5 m)
1600	2 to 57 ft (0.6 to 17.4 m)	2 to 39 ft (0.6 to 11.9 m)

Flash/warning-lamp signals

Lamp Indicator	Situation
Glows green	• Camera ready for picture-taking
Glows red	• Subject between 8 in. (20 cm) and 2 ft (0.6 m) from camera. Shutter button locks.
"Blinks" red	• Flash not fully charged • Camera movement • Beyond the flash range

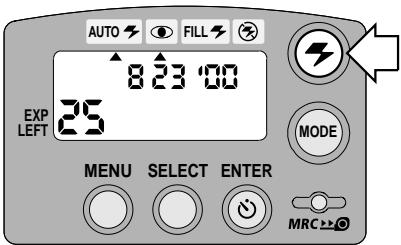

FLASH MODES

Besides the auto-flash mode with red-eye reduction (initial default setting of the camera), you can select fill flash, flash off, or auto-flash without red-eye reduction. Choose the flash mode that best suits your subject and surroundings.

Repeatedly press the flash-mode button (15) to view the choices on the LCD panel (14) and to make your selection.

Auto flash with red-eye reduction

Some people's eyes (and some pets') can reflect flash with a red glow. The extended flash and the red-eye-reduction lamp on the camera help to minimize red eyes in flash pictures.

Fill flash

When bright light indoors or outdoors comes from behind the subject (backlighting), dark shadows (especially on faces) may occur. Use fill flash to lighten these shadows.

Flash off

When you do not want to use the flash, especially indoors where flash is prohibited, or to capture the ambiance of existing light, use the flash-off feature. Use a tripod or place the camera on another firm support, and use high-speed film because the shutter speed in these situations will most likely be slow.

Auto flash without red-eye reduction

AUTO

Use this feature to take pictures of subjects other than people.

Selecting the flash modes

1. Completely lift up the lens cover/ flash (4) to uncover the lens (8) and to turn on the camera.
2. Repeatedly press the flash-mode button (15) until the mode selector arrow (28) points to the fill-flash indicator (26), flash-off indicator (27), auto-flash indicator (24) without red-eye reduction, or auto-flash indicator (24) and red-eye-reduction indicator (25).

3. Frame your subject within the viewfinder eyepiece (12).

4. Partially press down the shutter button (1). When the flash/camera-ready lamp (13) glows green, fully press down the shutter button to take the picture.

The fill-flash and flash-off modes cancel when you turn off the camera, select a different flash mode, or when the camera powers down. The autoflash modes remain selected in these instances.

SPECIAL-OPTION MODES

The special-option modes let you tailor the camera's fully automatic operation to provide optimal camera settings for infinity-focus, portrait, nightview, or center-spot focus.

Repeatedly press the mode button (16) to scroll through the selections.

Infinity-focus mode

Use this mode, to capture sharp, distant scenery when you take pictures outdoors during the day or through windows.

Portrait mode

Use this mode, to automatically zoom to provide suitable framing for portraits.

Nightview mode

Use this mode, to balance the flash and existing light exposure so that you can take beautiful pictures of people at sunset or at night. Use a tripod (tripod socket [19]) or place the camera on another firm support, and use high-speed KODAK ADVANTIX Film because the shutter speed at night will most likely be slow.

Center-spot focus mode

Use this mode, for extremely precise focus control of what you consider the most important parts of your subject.

Selecting the special-option modes

1. Completely lift up the lens cover/ flash (4) to uncover the lens (8) and to turn on the camera.

2. Repeatedly press the mode button (16) until the infinity-focus icon (36), portrait icon (35), night-view icon (34), or spot-focus icon (33) appears on the LCD panel (14).

3. In the infinity-focus mode, the camera is automatically set for flash off.

4. In the night-view mode, all flash options, except for flash off, are available.

5. In the portrait and spot-focus modes, all flash options are available.

6. Frame your picture in the viewfinder eyepiece (12).

7. Infinity-focus mode or night-view mode:

8. Simply press the shutter button (1) to take the picture.

Portrait mode:

• Press the shutter button halfway down until the zoom lens adjusts for suitable framing.
• Press the shutter button completely down to take the picture.

Center-spot focus mode:

• Place the AF circle within the viewfinder eyepiece (12) on your subject.
• Press the shutter button completely down to take the picture.

The special-option-mode selections cancel when you turn off the camera, select a different option mode, or when the camera powers down. The portrait mode automatically cancels after you take the picture.

USING THE SELF-TIMER

Use the self-timer feature when you want to include yourself in pictures.

1. Attach a tripod to the camera tripod socket (19) or place it on another firm support.
2. Completely lift up the lens cover/ flash (4) to uncover the lens (8) and to turn on the camera.
3. Press the enter/self-timer button (21).

• The self-timer indicator (32) appears on the LCD panel (14).

• Look through the viewfinder eyepiece (12) to compose the picture and to allow room for yourself in it.

• Press the shutter button (1).

• Quickly position yourself in the composed picture making sure that you see the self-timer lamp (9).

• The self-timer lamp on the front of the camera blinks for approximately 10 seconds before the picture is taken.

• To cancel the self-timer selection before the shutter releases, press the enter/self-timer button again or close the lens cover/flash.
• The self-timer automatically turns off after the shutter releases.

TITLE IMPRINTING

Choose a print title from the TITLE-SELECT LIST and/or a roll title for the entire roll of film. The titles are recorded on the film's magnetic data strip. At certified Advanced Photo System labs,

the selected titles are printed on the back of your photograph.

1. Press the menu button (23) until

"TITLE PRINT" or "ROLL TITLE"

appears on the LCD panel (14).

• The LCD panel displays "TITLE PRINT" or "ROLL TITLE" and "--" (for title-selection code) with the language designator.

• Press the select button (22).

• The title-selection codes "00" blink on the LCD panel.
• Press the right or left side of the zoom dial (2) or the select button (22) to select a title number. See the TITLE-SELECT LIST on page 25 for the title-number selections.
• Press the enter/self-timer button (21) to store the information.
• The print-title or roll-title selection continues through out the roll.
  To cancel the print title for subsequent pictures or roll title for the entire roll, follow steps 1 through 4, but for step 3, select Title "___" (None) or a different title.

TITLE-SELECT LIST

The following table indicates the title numbers for in-the-camera-stored titles.

Title Number	Title	Title Number	Title
00	Christmas	21	First day of School
01	Birthday	22	Tour
02	Vacation	23	New Year's
03	Honeymoon	24	Easter
04	Wedding	25	Happy New Year
05	Hanukkah	26	Reunion
06	Graduation	27	Father's Day
07	Family	28	Mother's Day
08	Party	29	Memories
09	Holiday	30	Baptism
10	Anniversary	31	Halloween
11	Friends	32	Happy Holiday
12	School Event	33	Independence Day
13	Trip	34	Thanksgiving
14	I Love You	35	Rosh Hashanah
15	Thank You	36	Yom Kippur
16	Season's Greetings	37	Memorial Day
17	Happy Birthday	38	Labor Day
18	Congratulations	39	Valentine's Day
19	Merry Christmas	40	Canada Day
20	Festival	--	None

PRINT-QUANTITY SELECTION

Before you take a picture, choose the number of prints, from 0 to 9, that you want. This service is dependent on the photofinisher's capability.

1. Repeatedly press the menu button (23) until "PRINT QTY" and "P 1" appears on the LCD panel (14).

1. Press the right or left side of the zoom dial (2) or the select button (22) to select the number of prints you want.

2. Press the enter/self-timer button (21) to store the information.

3. After you take the picture, the print quantity defaults to 1.

Remember you must select a print quantity before you take a picture.

ISO FILM-SPEED DISPLAY

View the ISO film speed of the film on the LCD panel (14) when you first turn on the camera. The LCD panel displays the ISO speed for approximately 3 seconds and then returns to the date display.

UNLOADING THE FILM

Automatic rewind

The camera automatically rewrites the film into the cassette after the last exposure.

1. Wait for the film to completely rewind into the film cassette and for the motor to stop running.
2. When the motor stops running, the frame counter (37) indicates "0" on the LCD panel (14).
3. Rotate the film-door lever (10) to open the film door (18).
4. Remove the film cassette from the camera and reload with new KODAK ADVANTIX Film.

• The FSI on the fully-exposed film cassette is at X (#3 position) and the frame counter indicates "E" on the LCD panel.

Mid-roll change (MRC)

You can remove your film in mid-roll and later reload it and continue picture-taking. The Film Status Indicator (FSI) on a partially exposed film cassette is set to (#2 position). When you reload the film cassette into the camera, the camera automatically advances the film to the first unexposed frame. Film can be rewound and reloaded until the last picture is taken. The camera automatically rewrites the film and sets the FSI to X (#3 position) when the last picture is taken.

1. Gently press the mid-roll-change button (20) with the control-button activator on the camera strap to start the auto-film rewind.

2. See Automatic rewind, steps 1-3.

3. Either reinsert the partially exposed film cassette into the camera to take more pictures or take it to your photo lab for processing.

CARING FOR YOUR CAMERA

• Protect the camera from dust, moisture, sudden impact, and excessive heat.

CAUTION: Do not use solvents or harsh or abrasive cleaners on the camera body.

• If the lens appears dirty, breathe on it to form a mist and wipe the surface gently with a soft, lintless cloth or lens-cleaning tissue. Never wipe a dry lens.

CAUTION: Use solvents or solutions designed for cleaning camera lenses. Do not use chemically treated tissues intended for cleaning eye glasses.

• Remove the battery when you store the camera for an extended time.

CAUTION: To prevent possible damage and electrical shock, do not attempt to disassemble or repair the camera or flash unit by yourself.

TROUBLESHOOTING

What happened	Probable cause	Solution
Camera will not operate	Battery weak, dead, missing, or improperly loaded	Replace or reload the battery
Film does not advance or rewind	Battery weak, dead, missing, or improperly loaded	Replace or reload the battery
LCD panel is blank	Battery weak, dead, missing, or improperly loaded	Replace or reload the battery
	Camera in sleep mode	Press mode selector button or close and reopen lens cover/flash
	Lens cover/flash closed	Open lens cover/flash
Flash/camera ready lamp “blinks” red	Flash not fully charged	Wait for lamp to glow green
	Camera movement	Hold camera steady
	Subject beyond the flash range	Move closer to subject
Flash/camera ready lamp glows red and shutter button locks	Subject between 8 in (20 cm) and 2 ft (0.6 m) from camera	Move back and recompose picture
Film door does not open	Film cassette loaded in film chamber	Press the mid-roll-change button. See Mid-roll-change (MRC) on page 27 or continue taking pictures
	Battery dead, missing, or improperly loaded	Replace or reload the battery
Print-quantity selection, print-title, or roll-title options will not operate	No film in camera	Load film in the camera

SPECIFICATIONS

Film type: KODAK ADVANTIX Film for color and black-and-white pictures

Lens: Aspheric lens, 24 - 60mm motorized zoom

Focus system: Passive, three-spots auto focus system, 140 zones

Flash range (ISO 100):

Wide: 2-14 ft (0.6 - 4.3 m)

Tele: 2-10 ft (0.6 - 3.0 m)

Viewfinder: Real image with C, H, & P format display

Film speed: DXIX (ISO) 50-1600 for color and black-and-white films

Flash unit: Flip-up, KODAK SENSALITE™ Flash

Apertures: f/5.6-f/8

Shutter: Programmed, 1/2-1/330 seconds

Power source: Main power: one 3 V lithium KODAK KCR2 (or equivalent) Battery

Dimensions: 108 × 64.5 × 40 ~mm

Weight: 6.4 oz. (180 g) without film or battery

0,6-3,0 m (2-10 pies)

Visor:
