USER MANUAL XQ 270 PARKSIDE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the

Features and Fitings … Page 6

liems supplied... Page 6

Technical data. Page 7 General safety advice for electrical power tools

1. Workplace safety Page 7

2. Electrical safety Page 7

3. Personal safety. Page 8

4. Carelul handling and use of electrical power tools Page 8

Safety advice relating specifically to random orbital sanders Page 9

Original accessories / to ..…………..POC0 10 Before use

Selecting the Grinding Disc. Page 10

Changing sanding sheets Page 10

Dust/ Swarf Removal by Suction Page 10 Commissioning

SWiNChING On ANA OH nnuu…POQC 1 Working instructions

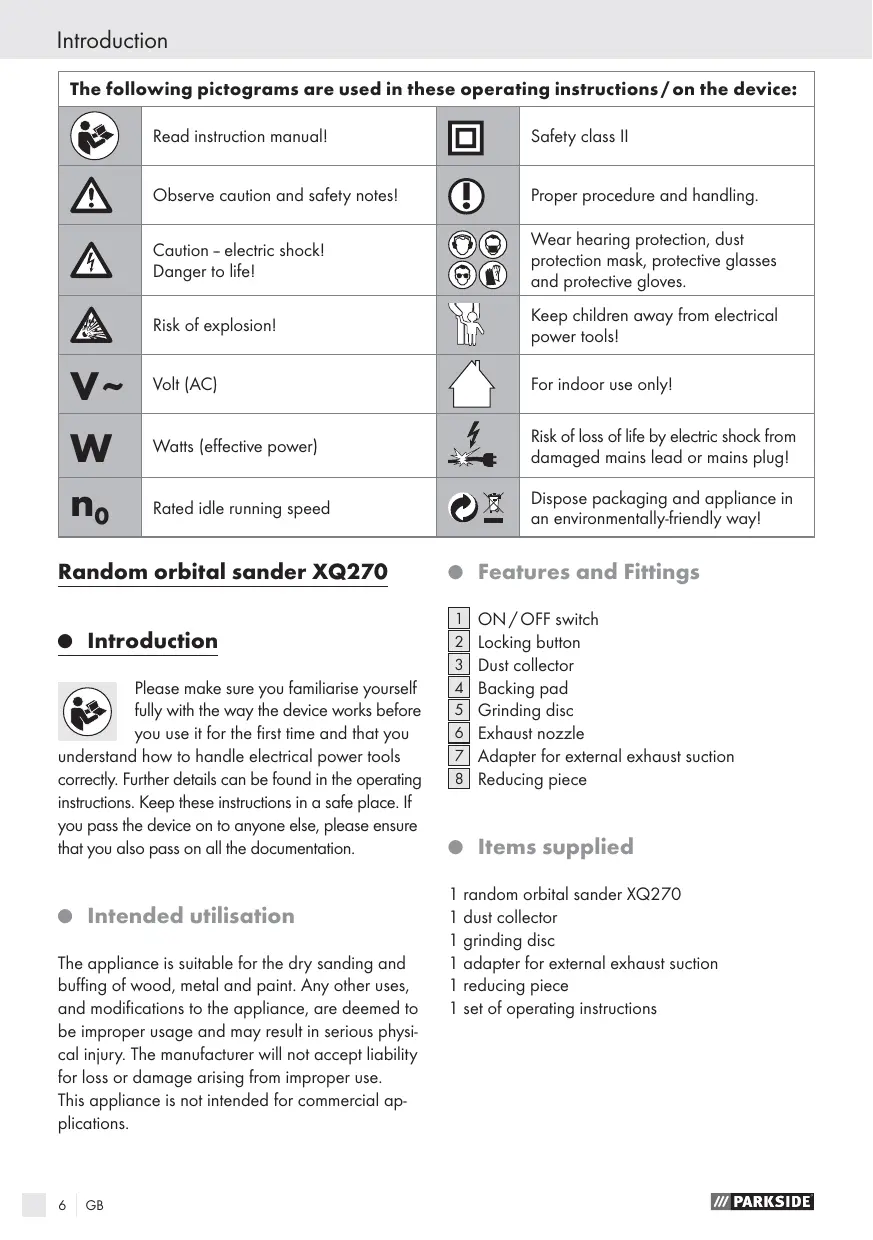

The following pictograms are used in these operating instructions / on the device:

Read instruction manuall

Observe caution and safety notes!

Proper procedure and handling.

Caution - electric shockl Danger to lifel

Wear hearing protection, dust protection mask, protective glasses and protective gloves.

Keep children awoy from electrical power tools!

For indoor use onlyl

Watts (effective power]

Risk of loss of fe by electric shock from damaged mains lead or mains plugl

Rated idle running speed

Dispose packaging and appliance in an environmentallÿ-friendly way!

L CE Random orbital sander XQ270

Please make sure you familiarise yourself fully with the way the device works before

you use it for the first time and that you understand how to handle electrical power tools correcily. Further details can be found in the operating instructions. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.

© Intended utilisation

The appliance is suitable for the dry sanding and buffing of wood, metal and paint. Any other uses, and modifications to the appliance, are deemed to be improper usage and may result in serious physi- cal injury. The manufacturer will not accept liability for loss or damage arising from improper use.

This appliance is not intended for commercial ap- plications.

Features and Fittings

ON/OFF switch Locking button Dust collector Backing pad Grinding disc [6] Exhaust nozzle

Adapter for external exhaust suction

1 adapter for external exhaust suction 1 reducing piece

1 set of operating instructions

MA PARKSIDE Introduction / General safety advice for electrical power tools

© Technical data General safety advice À for electrical power tools

Rated voltage: 230V- 50 Hz

Rated power: 270W FN LITE Read all the safety advice

Idling oscillation frequency: no 24000 min” and instructions! Failure to observe the safety

Idiing speed no 12000 min advice and instructions may result in electric shock,

Sanding plate: 9 125mm fire and / or serious injury.

Protection class: 1/5

KEEP ALL THE SAFETY ADVICE AND INSTRUC- Noise and vibration data: TIONS IN A SAFE PLACE FOR FUTURE REFER- Measured values for noise are determined in ac- ENCEI THE TERM “ELECTRICAL TOOL" USED cordance with EN 60745. The A-weighied noise IN THE SAFETY ADVICE REFERS TO ELECTRICAL

Wear ear protection!

Vibration total values determined according to a) Keep your working area clean and EN 60745: well lit. Untidy or poorly lit working areas Vibration emission value a, = 5m/s?, can lead to accidents. Uncertainty K< 1.5m/s2. b) Do not work with the device À in potentially explosive envi- EN CARE he vibration level given in these ronments in which there instructions has been measured in accordance with a are inflammable liquids, gases or standardised measurement procedure specified in dusts. Electrical power tools create sparks, EN 60745 and can be used to compare devices. which can ignite dusts or fumes.

fion levels and in many cases they may exceed the ple away while you are op- values given in these instructions. lt is easy to underes- erating the electrical tool. timate the vibration load if the electrical power tool is Distractions can cause you to lose control of used regularly in particular circumstances. the device.

Different uses of the device give rise to different vibra- ce k Keep children and other peo- Qu

Note: If you wish to make an accurate assessment of the vibration loads experienced during a partieu. 2. Electrical safety lar period of working, you should also take into ac-

count the intervening periods of time when the de- To avoid danger to

vice is switched off or is running but is not actually life from electric shock:

in use. This can result in a much lower vibration

load over the whole of the period of working a) The mains plug on the device must match

the mains socket. The plug must not be mod in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.

General safety advice for electrical power tools

Avoid touching earthed surfaces such as pipes, radiators, ovens and refrig- erators with any part of your body. There is an increased risk of electric shock if your body is earthed. Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

n Do not use the mains lead for

Ÿ any purpose for which it was ie not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock. When working outdoors with an elec- trical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock. Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury. © Wear personal protective c) equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of elec- trical power tool used and work undertaken, reduces the risk of injury. Avoid unintentional operation of the device. Check that the electrical pow-

er tool is switched off before you con- nect it to the mains, pick it up or carry it. Accidents can happen if you carry the de- vice with your finger on the ON/OFF switch or with the device switched on.

Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.

Avoid placing your body in an unnat- ural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.

Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of mov- ing parts. Loose clothing, jewellery or long hair can become trapped in moving parts.

If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices re- duces the hazard presented by dust

Careful handling and use of electrical power tools

Do not overload the device. Always use an electrical power tool that is intended for the task you are under- taking. By using the right electrical power tool for the job you will work more safely and achieve a better result

Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.

Pull the mains plug out of the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device.

When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone

MA PARKSIDE General safety advice for electrical power tools

use the device if he or she is not famil- iar with it or has not read the instruc- tions and advice. Electrical power tools are dangerous when they are used by inexperienced people.

Look after the device carefully. Check that moving parts are working prop- erly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have dam- aged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.

f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control

Use the electrical power tool, accesso- ries, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

Safety advice relating ÂA specifically to random orbital sanders

= When working in outside areas, pro- tect yourself against leakage current by fitting an FI protection switch with a max. activation rating of 30mA.

= Use exclusively an extension cable that is certified for use outdoors

= Secure the workpiece firmly. Use clamps or a vice to firmly hold the workpiece. This results in a safer grip than with your hand.

= Under no circumstances should you place your hands next to or in front of the appliance or on the area to be worked, you could be seriously injured if you slip or stumble.

In event of danger, immediately re- move the power plug from the socket. Always run the power cable away from the appliance to the rear. Ensure that nobody is endangered by flying sparks. Remove combustible materials from the immediate vicinity. Flying sparks are pro- duced when metals are ground.

CAUTION! DANGER OF FIRE!

VAN Ensure that the material being

ground and the grinder itself do not overheat. Always empty the dust container before taking a break from work. Grinding dust in the dust sack, microfilter, paper sack (or in the filter sack or filter of the vacuum cleaner) can ignite automatically under unfa- vourable conditions such as flying sparks when metal is being ground. There is a par-ticular hazard ifthe grinding dust is mixed with paint or polyurethane residues or other chemical sub- stances and the material being ground is hot af- ter being worked on for a prolonged period.

EN CZ roxic VAPOURS!

The working of materials that can produce harm- ful/ toxic dusts presents a health risk for the oper- ator and for people located in the close vicinity. Wear safety glasses and a dust protection mask! When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate external suction device. Provide for sufficient ventilation when working plastics, varnishes and paints. Do not soak materials or surfaces to be worked with liquids containing solvents. The electric tool must only be used for dry grinding. The penetration of water into the electric device increases the risk of an elec- tric shock. Avoid sanding lead-based paints or other materials that are hazardous to

g asbestos may not be worked. Asbestos is considered to be a carcinogen.

General safety advice for electrical power tools / Before use

# Avoid contact with the moving sand- ing sheet.

= Use the appliance only with a sanding sheet in place.

= Never use the appliance for purposes other than those intended and only with original components / accessories.

= Introduce the appliance to the work piece with it switched on. On task com- pletion, lift the appliance from the work piece and then switch it off.

= Permit the switched off appliance to come to a complete standstill before putting it down.

= The appliance must always be kept clean, dry and free of oil or grease.

= Keep your workplace clean. Material mixtures are particularly dangerous. Light met- al dust can burn or explode.

# Do not use the electric tool with a damaged lead. Do not touch the damaged lead and remove the mains plug if the lead be- comes damaged while you are working with the device. Damaged leads increase the risk of an electric shock.

al accessories /tools

m Use only the accessories detailed in the operat- ing instructions. The use of inserted tools or ac- cessories other than those recommended in the operating instructions could lead to you suffer- ing an injury.

© Before use © Selecting the Grinding Disc

Metal Removal and Surface:

The rate of metal removal and the surface quality

are determined by the grain size of the grinding disc.

D lease note that corresponding grinding discs with different grain sizes should be used for processing different materials.

© Changing sanding sheets EN CZ RISK OF INJURY! Before

carrying out work on the appliance, always re- move the plug from the power socket.

The rotary sander is fitted with a velcro rapid attach- ment, making possible a quick and easy exchange of sanding sheets.

the side and pull it off in order to remove it.

© Liftthe grinding disc from the backing pad Note: Before securing a new sanding shee remove all dust and dirt from the sander plate | 4 | D Ensure that the openings in the sanding sheel coneur wäth the boreholes ofthe sanding plate

© Dust/Swarf Removal by Suction m Please note the “Safety instructions” section.

Removal by Suction © Push the dust collector

D In order to empty the dust collector

Note: Empty the dust collector time and regularly in order to ensure the opti- mum removal of dust by suction.

External Exhaust Suction (see Illustration A): Connection: Push the adapter for external exhaust suctior on to the exhaust nozzle [6] and turn it clock- wise to fix it in place. If necessary, use the re- ducing piece [8]by pushing it into the adapter for external exhaust suction

D Push the hose of an approved suction device {e.g. a workshop vacuum cleaner] on to the adapter for external exhaust suction using

the reducing piece if necessary

© Pullthe hose of the suction device off adapter for external exhaust suc-tion

D Turn the adapter for external exhaust suctiot in an anticlockwise direction and pull it off with the reducing piece [8] if necessary.

MA PARKSIDE Commissioning / Working … / Maintenance …/ Service centre / Warranty

© Commissioning © Switching on and off

Notel Always switch the rotary sander on before applying it to the material to be worked, then make contact with it.

When operating the device you can select be- tween intermittent or continuous operation mode

To switch on intermittent operation mode: mn Press the ON/OFF switcl

To switch off intermittent operation mode: Hi Release the ON/OFF switch[1].

down and press the locking button

Switching off after sus: D Press the ON/OFF switcl

d operation: nd then release it.

g instructions # Wait until the electric tool has stopped moving before you put it down.

© Turn the electric tool on, place the entire grinding surface on the substrate that is to be worked on and move it with moderate pressure across the workpiece (see Illustration B, C, D).

Note: The rate of metal removal and the grinding pattern are essentially determined by the grinding disc that has been selected and ihe grinding pressure. Only grinding discs that are in perfect condition will provide good grinding performance.

D Please ensure that the grinding pressure is even. An excessive increase in the grinding pressure leads not only to a higher rate of met- al removal, but also greater wear and tear on ihe grinding disc.

© You should not use a grinding disc that has been used for working metal for other materials.

© Maintenance and Cleaning

FN TAXE RISK OF INJURY! Before

carrying out work on the appliance, always remove the plug from the power socket.

The rotary sander is maintenance free.

2 Clean the appliance regularly, preferably direct: ly on completion of the task.

m Use a dry cloth to clean the device. Under no circumstances should you use petrol, solvent or cleaners which attack plastic.

D Keep the ventilation openings clear at all times.

D ©—# Remove dust clinging to the sander == with a brush

= FN CZAIMEIHove your device re-

paired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.

= END the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

This appliance is guaranteed for 3 years from the date of purchase. It has been care- fully produced and meti-culously checked before delivery. Please keep your receipt as proof of purchase. Contact your service centre by telephone in case of questions pertaining to the warranty. Your goods can be transmitted free of cost only in this manner. This warranty applies only to the al purchaser and is non-transferable.

Warranty / Disposal / Declaration of Conformity / Manufacturer

The warranty covers only material or manufactur- ing faulis, not normal wear or damage to fragile parts such as switches or rechargeable batteries The appliance is intended solely for private, not commercial, use

IF this product has been subjected to improper or in-

appropriate handling, abuse, or interventions not carried out by one of our authorised sales and service oullets, the warranty will be considered void. This warranty does not affect your statutory rights.

GB DES UK LTD Tel: 0871 5000 700 (£ 0,10/minute) e-mail: support.uk@kompernass.com

The packaging is wholly composed of

environmentally-friendly materials that

can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance wilh European Directive 2002 /96/ EC

{covering waste electrical and electronic equipment) and its transposition into national legislation, worn

out electrical power tools must be collected separately

and taken for environmentally compatible recycling, Contact your local refuse disposal authority for

more details of how to dispose of your worn out electrical devices.

© Declaration of Conformity /

Manufacturer CE We, KompemnaB GmbH, the person responsible for documents: Mr Dennis Dohm, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006/42/EC)

EU Low Voltage Directive (2006/95 /EC)

We reserve the right to make technical modifications in the course of product development.
