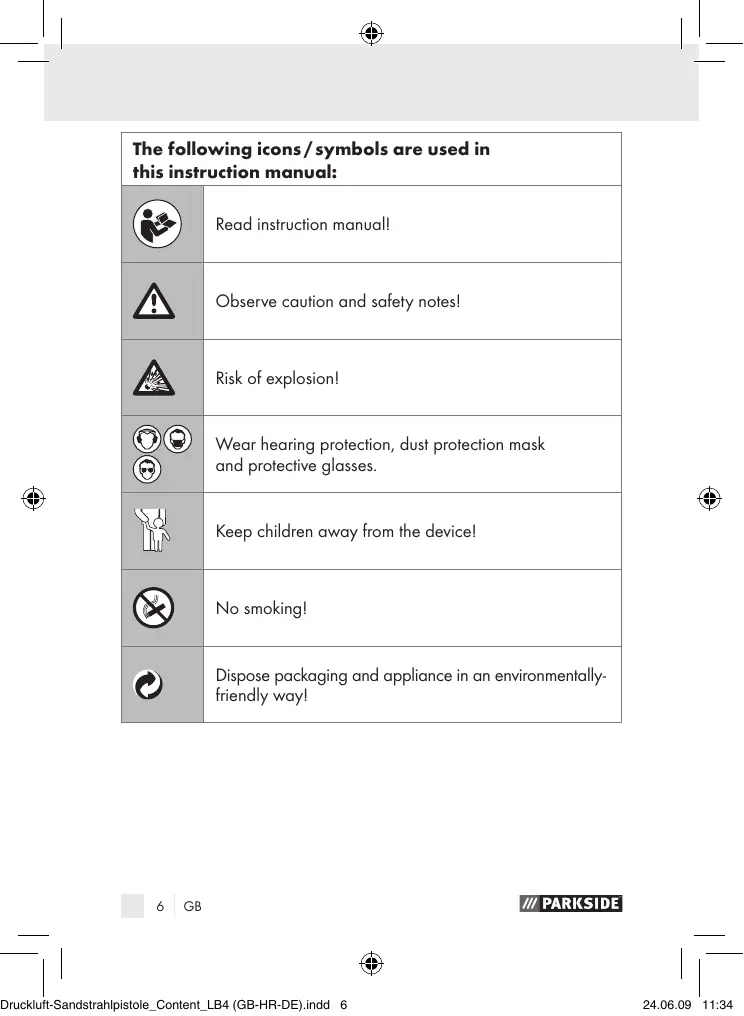

The following icons /symbols are used in this instruction manual: Read instruction manuall Observe caution and safety notes! Risk of explosion Wear hearing protection, dust protection mask and protective glasses. Keep children away from the devicel No smoking

friendly way! Dispose packaging and appliance in an environmentally- Druckluft-Sandstrahpistole_Content_LB4 (GB-HR-DE).indd 6 2406.09 11:34

Introduction Air sandblasting gun © Introduction Please make sure that you familiarise yourself fully with the way the air sandblasting gun works before you use it for the first time and that you understand how to handle compressed air sand blasting guns correct. To help you do this, please read the accompanying operating instructions. Keep these instructions in a safe place. If you pass the air sandblasting gun on to anyone else, please ensure that you also pass on all the documentation. Keep these instruc- tions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation. © Proper use This device is intended for the removal of rust and paint from metal surfaces. Any other use or modification to the device shall be considered as improper use and could give rise to considerable risk of accident. We will not accept liability for loss or damage arising from improper use. The device is intended for private, domestic use only. © Features and equipment Air sandblasting gun Trigger Plugin nipple for compressed air connection Blast medium container Blast nozzle

Introduction Accessory (see Figs. D): Cap for Ball needie Universal adapter, for valves with internal G of approx. 9 mm [9] Universal adapter, for valves with internal & of approx. 6mm Universal adapter Adapter for deflator valves © Included items 1 Air sandblasting gun 1 Operating instructions Valve adapter, e.g. for cycle tyre valves Adapter for screw valves, e.g. on inflatable dinghies & 1 Valve set [for use with a compressor) © Technical data Max. Working pressure: Recommended working air pressure: Compressed air consumption: Nozzle 9: Container capacity: Required air quality: Working settings: Druckluft-Sandstrahpistole_Content_LB4 (GB-HR-DE).indd 8 8bar

2,8mm 1000 ml Cleaned and oil-free Working air pressure setting at the pressure reducer max. 8bar. 2406.09 11:34

Safety advice VAN Safety advice EN CIE Reod all the safety advice and instructions. Even minor failures to observe the safety advice and instructions could lead to severe injury. KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN À SAFE PLACE FOR FUTURE REFERENCE. = Check the device for damage before bringing it into use. Do not use the device if you discover any defects. " \, 4 Keep children and other people away while |! \ you are operating the air sandblasting gun. 1 Distractions can cause you to lose control of the device. & È For your own safety, wear suitable personal profective equipment. Wear an approved dust mask / protective hood 0] © Wear protective glasses! C] RISK OF EXPLOSIONI Do not use the air sandblast- À ing gun [1 Jin environments containing gases, open flames, fires or gas-operated water heaters. C] ee) NO SMOKING! = Work in adequately ventilated spaces only.

Safety advice / Operation = Never use oxygen or other combustible gas as the energy source. = Never exceed the maximum working air pressure of 8bar. = DANGER OF INJURY! Disconnect the device from the compressed air source before carrying out any repairs or maintenance of the device or moving it to another location. = DANGER OF INJURY! Disconnect the device from the compressed air source before filling it with blast medium = Use only materials for the blast medium that are suit. able for the air sandblasting gun. Do not use quartz sand. There is ie danger of toxic silicon dust forming = Take precautions to ensure that other people are not contaminated (dust generation). # Ensure that the spent blast medium is trapped and & collected so that it can be disposed of in an environ- & mentally compatible manner. © Operation © Connecting the compressed air source NOTE: Operate the air sandblasting gun [1] only with cleaned, con- densate- and oilfree compressed air and never exceed the maximum working air pressure at the device of 8 bar. NOTE: The compressed air source must be fited with a (flter] / pres- sure reducer so that the air pressure can be regulated Connect the air sandblasting gun to a suitable compressed air source by connecting the quickrelease coupling of the air supply hose with the plugrin nipple locks itself in place automatically. 10 GB ni æ& In Druckluft-Sandstrahpistole_Content_LB4 (GB-HR-DE).indd 10 2406.09 11:34

Operation © Filling the blast medium container = Always use a suitable blast medium for your sand blasting work. NOTE: We recommend using a silica-free blast medium {e.g. ground blast fumace slag] with a grading of 0.2 mm - 0.8 mm. Ensure that the blast medium is completely dry and not too coarse. NOTE: The maximum particle size is 0.8 mm. Turn the bayonet cap of the blast medium container [4]to open it. Pull the blast medium container [4] off downwards. Fill the blast medium containe: ith the desired amount of blast medium. 1 Ensure that the maximum capacity of the container (1000 ml) is not exceeded. D Screw the blast medium container | 4] back on and lock it in place by inserting and turning it on to the container lid (see Figs. A).

© Using the air sandblasting gun (see Figs. B, C) D Carefully prepare the workpiece before sand blasting it. Clean it if necessary. NOTE: Deposis of dust and grease can have a considerably detrimental effect on the result. Carefully mask or tape off everything that is not to be sand blasted. Ensure that there is always a minimum distance of 20 cm between the air sandblasting gun [1] and the surface being sand blasted.

Operation / Cleaning / Service Switching off: D Release the trigger to stop operating the air sandblasting gui © After you finish work, disconnect the device from the compressed air source. NOTE: First disconnect the hose from the compressed air source and only then disconnect the compressed air supply hose from the device. This will ensure that the compressed air supply hose does not wave around in an uncon- trolled manner. © Cleaning = DANGER OF INJURY! Always disconnect the device from the compressed air source before you clean or maintain it. & Clean the air sandblasting gui nd blast medium container after you finish working. Blow out the air sandblasting gun [1] and the blast medium container [4] with compressed air. Store the air sandblasting gun [1] in a dry, enclosed room.

© Service = FN LAINE Have your air sandblasting gun re- paired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your air sandblasting gun remains safe to use. 12 GB 1 PARKSIDE Druckluft-Sandstrahpistole_Content_LB4 (GB-HR-DE).ndd 12 2406.09 11:34

Warranty © Warranty This appliance is guaranteed for 3 years from the date of purchase. lt has been carefully produced and meti-culously checked before delivery. Please keep your receipt as proof of purchase. Contact your service centre by telephone in case of questions pertaining to the warranty. Your goods can be transmitted free of cost only in this manner. This warranty applies only to the initial purchaser and is non-transferable. The warranty covers only material or manufacturing faults, not normal wear or damage to fragile parts such as switches or rechargeable batteries. The appliance is intended solely for private, not commercial, use. If this product has been subjected to improper or inappropriate & handling, abuse, or interventions not carried out by one of our author- & ised sales and service outlets, the warranty will be considered void. This warranty does not affect your statutory rights.

Disposal / Declaration of Conformity / Manufacturer © Disposal which you may dispose of at local recycling facilities. ) The packaging is made entirely of recyclable materials, Do not dispose of the device with household rubbish! For details of disposing of the appliance at the end of its useful life, please contact your district or city council. © Declaration of Conformity / Manufacturer CE

We, KompernaB GmbH, Burgstr. 21, D-44867 Bochum, Germany, declare that this product complies with the following EU directives: Machinery Directive (98/37/EC) Applicable harmonised standards: EN 1953:1998 Type/Device description: Ar sandblasting gun

Declaration of Conformity / Manufacturer Bochum, 30.06.2009 Hans KompernaB - Managing Director - We reserve the right to make technical modifications in the course of & further development.
