USER MANUAL BG-PM 46 P EINHELL

Assembly and Operating Instructions Petrol Lawn Mower

@ Read and follow the operating instructions and safety information before using for the first time.

Before starting the equipment

Cleaning maintenance, storage, transport and ordering of spare parts

Disposal and recycling

Troubleshooting guide

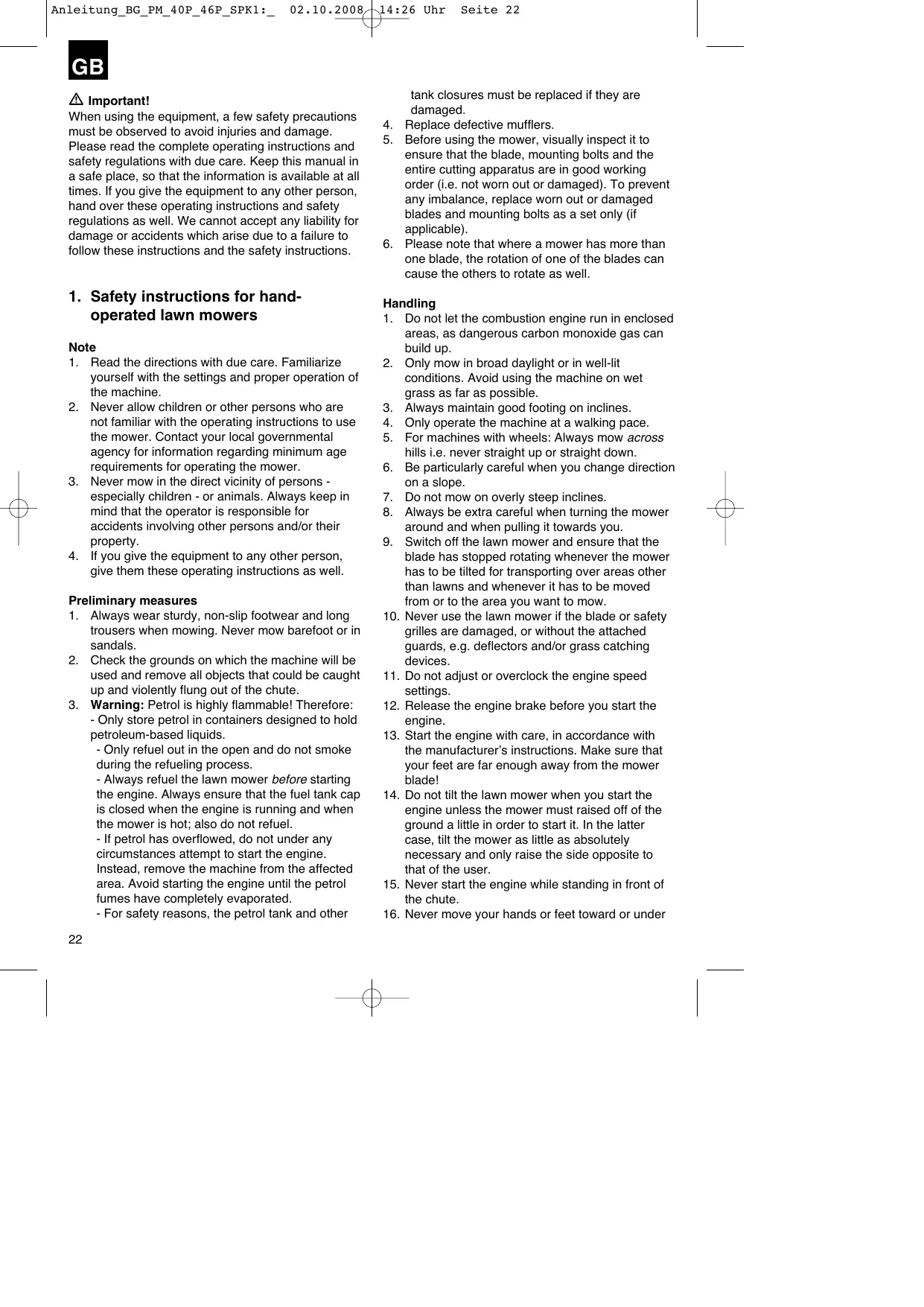

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety instructions for hand- operated lawn mowers

1. Read the directions with due care. Familiarize yourself with the settings and proper operation of the machine.

2. Never allow children or other persons who are not familiar with the operating instructions to use the mower. Contact your local governmental agency for information regarding minimum age requirements for operating the mower.

8. Never mow in the direct vicinity of persons - especially children - or animals. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.

4. If you give the equipment to any other person, give them these operating instructions as well.

Preliminary measures

1. Always wear sturdy, non-slip footwear and long trousers when mowing. Never mow barefoot or in sandals.

2. Check the grounds on which the machine will be used and remove all objects that could be caught up and violentiy flung out of the chute.

8. Warning: Petrol is highly flammable! Therefore: - Only store petrol in containers designed to hold petroleum-based liquids.

- Only refuel out in the open and do not smoke during the refueling process.

- Always refuel the lawn mower before starting the engine. Always ensure that the fuel tank cap is closed when the engine is running and when the mower is hot; also do not refuel.

- If petrol has overflowed, do not under any circumstances attempt to start the engine. Instead, remove the machine from the affected area. Avoid starting the engine until the petrol fumes have completely evaporated.

- For safety reasons, the petrol tank and other

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008! 14:26 Uhr Ne

tank closures must be replaced if they are damaged.

Replace defective mufflers.

Before using the mower, visually inspect it to

ensure that the blade, mounting bolts and the

entire cutting apparatus are in good working

order (.e. not worn out or damaged). To prevent

any imbalance, replace worn out or damaged

blades and mounting bolts as a set only (if

6. Please note that where a mower has more than one blade, the rotation of one of the blades can cause the others to rotate as well

1. Do not let the combustion engine run in enclosed areas, as dangerous carbon monoxide gas can build up.

2. Only mow in broad daylight or in well-it conditions. Avoid using the machine on wet grass as far as possible.

3. Always maintain good footing on inclines.

4. Only operate the machine at a walking pace.

5. For machines with wheels: Always mow across hills ie. never straight up or straight down.

6. Be particularly careful when you change direction

Do not mow on overly steep inclines.

Always be extra careful when turning the mower

around and when pulling it towards you.

9. Switch off the lawn mower and ensure that the blade has stopped rotating whenever the mower has to be tilted for transporting over areas other than lawns and whenever it has to be moved from or to the area you want to mow.

10. Never use the lawn mower if the blade or safety grilles are damaged, or without the attached guards, e.g. deflectors and/or grass catching devices.

11. Do not adjust or overclock the engine speed settings.

12. Release the engine brake before you start the engine.

18. Start the engine with care, in accordance with the manufacturer's instructions. Make sure that your feet are far enough away from the mower blade!

14. Do not til the lawn mower when you start the engine unless the mower must raised off of the ground a little in order to start it. In the latter case, til the mower as little as absolutely necessary and only raise the side opposite to that of the user.

15. Never start the engine while standing in front of the chute.

16. Never move your hands or feet toward or under

any rotating parts. Keep clear of the chute opening at all times.

Never lift or carry a lawn mower with the engine

. Switch off the engine and pull the spark plug

boot: - before you dislodge any blockages or clogs in the chute.

- before carrying out any checks, cleaning, maintenance or other work on the laun mower

- ifthe lawn mower strikes a foreign body, examine it for signs of damage and carry out any necessary repairs before restarting and continuing to work with the mower. If the lawn mower begins to experience exceptionally strong vibrations, immediately switch it off and check it.

. Switch off the engine:

- when you leave the lawn mower. - before you refuel.

When you switch off the engine, move the speed lever to the Off position. Close the petrol stopcock.

. Operation of the machine at higher than normal

speed can lead to an increased risk of accidents. Take care when carrying out installation work on the machine, and avoid trapping fingers between the moving cutting tool and the fixed parts of the machine.

Maintenance and storage

Make sure that all nuts, bolts and screws are tightened securely and that the machine is in safe working condition:

Keep all safety regulations and instructions in a safe place for future use.

Explanation of the symbols on the machine

1) Read the operating instructions

2) Important! Danger from catapulted parts. Keep a safe distance.

3) Important! Switch off the engine and pull the spark plug boot before doing any maintenance, repair, cleaning or adjustment work.

4) Fill with oil and fuel before starting the mower.

5) Caution! Wear ear protection and safety goggles.

6) Engine start/stop lever (I=Engine on; O=Engine off)

2. Layout (Fig. 1-3)

1 Engine start/stop lever (engine brake)

2 Control lever for engine adjustment (throttle lever)

9 Flap for the grass basket

12 Lawn mower with engine

2. Never store the mower (with petrol in the tank) 4 Boits for spark plug wrench inside a building in which petrol fumes could 15 Screw for cable holder come into contact with open flames or sparks. 16. 2x screws for installing the lower push bar

8. Alow the motor to cool before you put the lawn 17 2x screws for installing the upper push bar mower in an enclosed area. 18 2x star nuts

4. In order to avoid fire hazards, keep the engine, 19 Metal bracket for hooking on the starter cord exhaust and the area around the fuel tank free 20 2x nuts from grass, leaves and leaking grease (oil) 21 1x cable tie

5. Routinely check the grass basket for signs of wear and impaired functionality. .

6. For your own safety, replace worn or damaged 3. Proper operation parts without delay. . .

7. Ifthe fuel tank should require emptying this The petrol lawn mower is intended for private use i.e should only be done in the open air using a for use in home and gardening environments. petrol suction pump (available from DIY shops).

Private use of the laun mower refers an annual operating time generally not exceeding that of 50

À CAUTION hours, during which time the machine is primarily

Read all safety regulations and instructions. used to maintain small-scale, residential lawns and

Any errors made in following the safety regulations home/hobby gardens. Public facilities, sporting halls,

and instructions may result in an electric shock, fire and agricultural/orestry applications are excluded.

and/or serious injury.

Bitte beachten Sie, dass unsere Geräte bestimmungsgemäB nicht für den gewerblichen, handwerklichen oder industriellen Einsatz konstruiert wurden. Wir übernehmen keine Gewährleistung, wenn das Gerät in Gewerbe-, Handwerks- oder

Industriebetrieben sowie bei gleichzusetzenden Tätigkeiten eingesetzt wird.

The operating instructions as supplied by the manufacturer must be kept and referred to in order to ensure that the lawn mower is properly used and maintained. The instructions contain valuable information on operating, maintenance and servicing conditions.

Important! Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes, hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony-grown gras, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge clippings. Moreover, the laun mower may not be used as a power cultivator to level out high areas such as molehills.

For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind.

BG-PM 40 P Engine type:

Single cylnder four-stroke engine, 118 ccm Engine power: 2.6 KW/3,5 HP Working speed: 2800 min* Fuel: standard petrol Tank capacity approx. 1.31 Engine oil: approx. 0.4 1/ 15W40 Spark plug: FG RTC Electrode spacing: 0.6 mm

Cutting height adjustment: dezentral, (32/46/62 mm)

Cutting width: 400 mm L,A sound pressure level: 75 dE(A) Lx Sound power level 96 dE(A) Vibration à, 5.73 ns Weight 24 Kg 24

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008|14:26 Uhr Seite 24 Ne

Single cylinder four-stroke engine, 185 ccm

2.75 KW/3,75 HP Engine power:

Working speed: 2800 min° Fuel: standard petrol Tank capacity: approx. 1.31 Engine oil: approx. 0.6 1/ 15W40 Spark plug FG RTC Electrode spacing: 0.6 mm

Cutting height adjustment: dezentral, (32/46/62 mm)

Cutting width: 460 mm L,A sound pressure level: 86 dB(A) Lux Sound power level: 96 dE(A) Vibration a, 3.57 ms Weight: 25,7 kg

5. Before starting the equipment

5.1 Assembling the components

Some parts of the mower come disassembled. For

quick and easy assembly, read and follow the

Important! You will need the following additional

tools (not supplied) for assembly, and also for

‘An open-ended wrench (10 mm)

e Ating wrench (17 mm)

e Aratchet, extension, size 13 socket

‘An open-ended wrench (13 mm)

© Aflat oil drip tray (for changing the oil)

e A 1 liter measuring jug (oil/petrol resistant)

e A petrol can (5 liters is sufficient for approx. 6 operating hours)

« A funnel (suitable for the tank's petrol filer neck)

‘ Household wipes (to wipe up oil/petrol residue:; dispose of these at a filling station)

« A petrol suction pump (plastic, available from DIY stores)

‘ An oil can with hand pump (available from DIY stores)

© 1 liter of engine oil (15W-40)

Assembling the lawn mower

1. Take the mower and attachment parts out of the packaging and check that all parts are present (Fig. 2-3)

Fasten the lower push bar to the mounts on the mower housing (Fig. 4-5).

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008/|14:26 Uhr Seite 25 | Ne

8. Now screw the upper push bar to the lower push bar (Fig. 6-8). Pull the cords over the star nut so that they do not get kinked when the push bar is swung down (Fig. 7) and make sure that the starter cord guide (Fig. 8/Item 20) on the right faces inwards.

4. Then hook the starter cord in the starter cord guide (Fig. 9)

5. Fasten the cord holder to the lower push bar (Fig. 10).

6. Secure the cords to the upper push bar with the supplied cable tie (Fig. 11)

7... Hook the grass basket into the mounts on the mower (Fig. 15).

5.2 Setting the cutting height

Important! Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.

Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged. To prevent any imbalance, replace blunt and/or damaged blades as a set only (if applicable). To carry out this check, first switch off the engine and pull the spark plug boot.

e The cutting height is not adjusted at a single central point — instead, each of the 4 wheels have to be adjusted separately. Three different cutting heights are available. (As-delivered state: Medium cutting height)

Caution: AI 4 wheels have to be set to the same cutting height.

1. Lever out the wheel cap from the wheel by applying a screwdriver in the opening provided (Fig. 20)

2. Open the wheel bolt (Fig. 21)

Important: The wheel bolts have a right-handed thread on the right-hand side and a left-handed thread on the left-hand side.

Important: There is a metal washer between the wheel and the mower housing. Make sure that you fit this washer back in place between the wheel and the housing during reassembly.

We recommend that you first change both wheels on one side followed by both wheels on the other side.

8. Remove the wheel and screw it back on tightly in the desired position (Fig. 22)

Position 1: Low cutting height Position 2: Medium cutting height (As-delivered state (sufficient for normal use)). Position 3: High cutting height

4. Fitthe wheel cap back on again and follow the

same procedures to adjust the other 3 wheels to the same height and position.

Important! The engine does not come with oil in it. Therefore, ensure that you add 0.6 liters of oil before starting it up. Use normal, multigrade oil (10W40). The oil level in the engine must be checked each time before mowing. (see Checking the oil level).

In order to avoid any unintentional start-ups of the lawn mower, it comes equipped with an engine brake (Fig. 12/ltem A) which must be pulled back before the engine can be started. When the engine control lever is released it must return to its initial position, at which point the engine automatically switches off.

Before you start the lawn mower, open the petrol cock (Fig. 13, arrow = petrol cock open). Move the

speed lever (Fig. 14) to position “N”. Press the

engine brake lever (Fig. 12/Pos. A) together and

give the starter cord a vigorous pull. You can

control the rotation speed of the blade using the A speed lever (Fig. 14). er

Before you start mowing, you should run through this operation several times in order to ensure that the machine is working properly.

Whenever you need to perform any kind of adjust- ment and/or repair work on your lawn mower, wait until the blade has come to a complete stop.

Always switch off the engine before carrying out any adjustments, maintenance or repairs.

1. Engine brake (Fig. 12/Item A): Use the lever to stop the engine. When you release the lever the engine and the blade stop automatically (Fig. 12/Pos. A). To mow, hold the lever in the working position. Before you start to mow, check the start/stop lever several times to be sure that it is working properly. Ensure that the tension cable can be smoothly operated (Le. is not catching or kinking in any way).

2. Speed lever (Fig. 14): Move this lever in order to increase or decrease the engine speed. (Tortoise = Slow / Hare = Fast)

8. Caution: The blade begins to rotate as soon as the engine is started.

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008 14: Ne

Before you start the engine, move the motor brake several times to be sure that the stop cable is properly working. Note: The engine is factory set to a speed that is optimal for cutting and blowing grass into the basket and is designed to provide many years of use.

Check the oil level.

Fill the tank with approx. 1.1 liters of petrol whenever empty, using a funnel and measuring jug to do so. Ensure that the petrol is free of any. contaminants.

CES Note: Use only unleaded petrol as fuel.

Warning: Never use more than one safety petrol

can. Do not smoke when refueling. Switch off the

engine before refueling and allow the engine to cool down for a few minutes.

6. Ensure that the ignition cable is connected to the spark plug

7... Move the speed lever to position “N”.

8. Stand behind the mower. Place one hand on the engine start/stop lever. Place the other hand on the starter handle.

9. Start the engine using the reversing starter (Fig. 4/item 11). To do this pull the handle approx. 10 — 15 cm (until you feel a resistance) and then start the engine with a sharp pull. If the engine does not start, pull the handle again.

Important! Never allow the starter cord to snap back.

Note: In cold weather, it may be necessary to repeat the starting process several times.

. When the engine is at working temperature it can be started in the ‘Tortoise” setting.

Important: Attempting to start the engine when set at position “N” may cause the spark plug to become wet if the engine is at working temperature. Wait a few minutes before attempting to start the engine again.

Important information

1. Make sure that you are properly dressed when mowing. Wear sturdy, non-slip footwear; do not wear sandals or tennis shoes.

2. Inspect the blade. À blade that is bent or damaged in any other way must be immediately exchanged for a genuine Einhell replacement blade.

8. Do not fill the fuel tank indoors, but rather out in the open. Use a filling funnel and a measuring jug. Wipe off any spilled petrol.

4. Read and follow in the instructions in the operating manual as well as the information regarding the engine and accessory equipment.

Store the manual in a place where it can be readily accessed by other users of the machine.

5. Exhaust gas is dangerous. Only start the engine out in the open.

6. Make sure that all the guards are fitted and that they are in good working order.

7. The machine should only be operated by persons who are well informed with the way it works, and who are in reasonably good physical condition

8. It can be dangerous to mow the grass when it is wet. Try to ensure that you only mow the grass when it is dry.

9. Advise children and others to keep well away

from the lawn mower.

Never mow the grass in poor visibility.

Remove all loose objects from the lawn before

you start mowing the grass.

6.2 Tips for proper mowing

Important! Never open the chute flap when the catch bag has been detached (to be emptied) and the engine is still running. The rotating blade can cause serious injuries!

Always carefully fasten the chute flap and grass basket. Switch off the engine before emptying the À grass basket.

Always ensure that a safe distance (provided by the length of the long handies) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always mow along the incline (not up and down).

For safety reasons, the lawn mower may not be used to mowr inclines whose gradient exceeds 15 degrees.

Use special caution when backing up and pulling the lawn mower. Tripping hazard!

6.3 Mowing Oniy use a sharp blade that is in good condition. This will prevent the grass blades from fraying and the lawn from turning yellow.

Try to mow in straight lines for a nice, clean look. Insodoing, the mowing swaths should always overlap each other by a few centimeters in order to avoid bare strips.

Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008/|14:26 Uhr Seite 27 Ne

more difficult to start the mower: they decrease the quality of the cut and make it harder for the machine to bag the grass. Always mow along inclines (not up and down). Slightly turning the front wheels up the hill while mowing will prevent the mower from sliding out of the straight line. Select the cutting height according to the length of the grass. If the lawn has grown quite a bit, mow over it several times so that no more than 4 cm of grass are cut at one time.

Suitch off the engine before doing any checks on the blade. Keep in mind that the blade continues to rotate for a few seconds after the engine has been switched off. Never attempt to manually stop the blade.

Regularly check to see if the blade is securely attached, is in good condition and is sharp. Ifthe contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object, immediately switch off the lawn mower and wait for the blade to come to a complete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged.

Tips for proper mowing:

1. Pay attention to ensure that you do not run into or over anything that could damage the mower. The lawn mower could be damaged and/or the machine could inflict bodily injury.

2. A hot engine, exhaust or drive unit can burn the skin if touched. Thus, do not touch these parts unless the mower has been switched off for a while and you know that they have cooled down!

8. Use extra caution when mowing on inclines and steep grades.

4. Insufficient daylight or even a suficient level of artificial light is one reason not to mow.

5. Check the mower, the blade and other parts if they have struck a foreign object or if the machine vibrates more than usual.

6. Do not make any adjustments or repairs until the engine has been switched off. Pull the plug boot.

7. Pay special attention if you are mowing directly next to a street or are close by one (traffic). Always keep the grass chute pointed away from the street.

8. Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way. Before you back up, ensure that nobody is standing behind you (especially litle children, who are more difficult to see)

9. When mowing over thick, high gras, select the highest cutting level and mow at a slower speed! Before you remove any grass or blockages of any kind, switch off the engine and pull the plug

10. Never remove any safety-related parts.

11. Never fill the engine with petrol when it is hot or is running.

6.4 Emptying the grass basket As soon as grass clippings start to trail the lawn mower, it is time to empty the grass basket. Important! Before taking off the grass basket, switch off the engine and wait until the blade has come to a stop.

To take off the grass basket, use one hand to lift up the chute flap and the other to grab onto the basket handle (Fig. 15). Remove the basket.

For safety reasons, the chute flap automatically falls down after removing the grass basket and closes off the rear chute opening. If any grass remains in the opening, it will be easier to restart the engine if you pull the mower back approx. 1 meter.

Do not use your hands or feet to remove clippings in or on the mower housing, but instead use suitable tools such as a brush or a hand broom.

In order to ensure that the majority of grass clippings are picked up, the inside of both the catch bag and especially the air grill must be cleaned after each use.

Reattach the catch bag only when the engine is switched off and the blade is stopped

Using one hand, lift up the chute flap, while grabbing onto the basket handle with the other. Hang in the basket from the top.

1. Allow the engine to cool before you put the lawn mower in an enclosed area.

2. Remove grass, foliage, grease and oil before storing the mower. Do not place any objects on top of the mower.

3. Check all the screws and nuts once more before

you start to use the laun mower again. Tighten

Also be sure to empty the grass basket.

Pull the spark plug boot to prevent unauthorized

6. Ensure that you do not park the mower next to any source of danger. Petrol fumes can lead to explosions.

7. Only original parts or parts approved by the manufacturer may be used for repairs (see address on the warranty certificate).

8. Ifthe lawn mower is not going to be used for an

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008|14:26 Uhr Seite 28 Ne

extended period, empty the petrol tank using a petrol suction pump.

9. Tell your children not to use the mower. It is not a toy.

. Never place petrol near an ignition source.

Always use a can that is approved to store

petrol. Keep petrol away from children.

Oil and maintain the machine.

How to switch off the engine:

All you have to do to switch off the engine is

release the engine start/top lever (Fig.

12/tem A). Close the petrol cock and pull the

spark plug boot from the spark plug boot in order

to prevent the engine from restarting. Before you

start the engine again, check the cord for the

engine brake. Check that the cord is correctiy

fitted. If the cord is kinked or damaged, it should

7. Cleaning, maintenance, storage, transport and ordering of spare parts

Never work on or touch conducting parts on the ignition unit with the engine running. Always pull the spark plug boot from the spark plug before starting any work of care or maintenance. Never perform any work on the machine while it is running. Any work not described in these Operating Instructions must be performed by an authorized service workshop only.

7.4 Cleaning The lawn mower should be thoroughly cleaned after every use, especially the underneath and the blade mount. To do so, tip the lawn mower onto its left side {the opposite side to the oil filing socket).

Important: Before you tip the lawn mower onto its side, completely empty the fuel tank using a petrol suction pump. The lawn mower must never be tilted by more than 90 degrees. Dirt and grass is easiest to remove immediately after you have finished mowing the grass. Dried on grass and dirt can result in poorer mowing performance. Check that the grass chute is free of any residual grass. Remove any such residue. Never clean the lawn mower with a water jet or high-pressure cleaner. The engine must remain dry. Do not use aggressive cleaning agents such as cold cleaner or petroleum ether.

7.2 Maintenance 7.2.1 Wheel axles and wheel hubs These should be lightly greased once a season. To

do so, remove the wheel caps with a screwdriver and

slacken the fastening screws on the wheels.

7.2.2 Blade For safety reasons you should only ever have your blade sharpened, balanced and mounted by an authorized service workshop. For optimum results it is recommended that the blade should be inspected once a year.

Changing the blade (Fig. 27) Oniy ever use original spare parts when having the blade replaced. The marking on the blade must be matched with the number given in the list of spare parts. Never have any other model of blade fitted.

Damaged blades Should the blade, in spite of all precautions, come into contact with an obstruction, shut down the engine immediately and pull the spark plug boot. Tip the lawn mower onto its side and check the blade for damage. Damaged or bent blades must be replaced. Never attempt to bend a bent blade back to straight again. Never mow the lawn with a bent or heavily worn blade as this will cause vibrations and can lead to further damage to the lawn mower.

Important: There is a risk of injury if you work with a damaged blade. À

Resharpening the blade The blades can be resharpened with a metal file. In order to avoid imbalance, the blade should be resharpened by an authorized service workshop.

7.2.3 Checking the oil level Important: Never run the engine with no or too little oil. This could cause severe damage to the engine. Use only 15W40 engine oil

Checking the oil level: Stand the lawn mower on a flat level surface. Unscrew the oil dip stick (Ab. 16/Pos. A) by turning anticlockwise, pull out and wipe. Insert the dip stick back in the filing mount as far as the stop, but do not screw back in. Pull out the dip stick again and read off the oil level while holding horizontally. The oil level must be between the maximum (Fig. 17/ltem H) and the minimum (Fig. 17/1tem L). The moveable orange plastic part on the oil dip stick provides protection against oil foam.

Changing the oil Change the engine oil every year before the start of the season (in addition to the information in the petrol service manual) when the engine is warm.

© _ Use only engine oil (15W40).

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008/|14:26 Uhr Seite 29 | Ne

Place a flat oil drip tray beneath the mower.

Open the oil filer screw (Fig. 16/1tem A).

Open the oil drainage screw (18). Drain the

warm engine oil into a drip tray,

Close the drain screw again when all the used oil has been drained

Fill up with engine oil as far as the top mark on the dipstick.

e_ Important! Do not screw in the oil dipstick to check the oil level — only insert it as far as the thread.

e_Dispose of the used oil in accordance with

applicable regulations.

7.2.4 Care and adjustment of the cables Oil the cables at regular intervals and check that they move easily.

7.2.5 Maintenance of the air filter (Fig. 23-24) A soiled air filter will reduce the performance of the engine because it will prevent enough air getting to the carburetor. It is therefore imperative that regular checks are made. The air filter should be checked every 25 hours and cleaned if required. If the air is very dusty the air filter should be checked more regularly.

Important: Never clean the air filter with petrol or inflammable cleaning agents. Clean the air filter with compressed air or simply by knocking out any soiling.

7.2.6 Maintenance of the spark plug

Check the spark plug for dirt and grime after 10

hours of operation and if necessary clean it with a

copper wire brush. Thereafter service the spark

plug after every 50 hours of operation.

Pull off the spark plug boot (Fig. 25) with a twist.

Remove the spark plug with the supplied spark plug wrench:

e_Assemble in reverse order.

7.2.7 Repairs After any repair or maintenance work, check that all safety-related parts are in place and in proper working order.

All parts which may cause injury must be kept where they are inaccessible to children or others. Important: In accordance with product liability legislation we are not liable for any damages caused by improper repairs or the use of spare parts that are not original spare parts or parts approved by us. In addition, we are also not liable for any damages arising from improper repairs. Such work should be performed by a customer services workshop or authorized specialist, The same applies to accessory parts.

Lawn mowers are only permitted to be used on workdays between the hours of 7.00 a.m. and 7.00 p.m. Please comply with statutory regulations, which may vary from location to location

7.3 Preparing the mower for long-term storage Caution: Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes can cause explosions and fire.

1... Empty the petrol tank with a petrol suction pump.

2. Start the engine and let it run until any remaining petrol has been used up.

8. Change the oil at the end of every season. To do So, remove the used engine oil from a warm engine and refil with fresh oil.

4. Remove the spark plug from the cylinder head. Fillthe cylinder with approx. 20 ml of oil from an oil can. Slowiy pull back the starter handle, which will bathe the cylinder wall with oil. Screw the spark plug back in.

5. Clean the cooling fins of the cylinder and the housing.

6. Be sure to clean the entire machine to protect the paint.

Store the machine in a well-ventilated place.

7.4 Preparing the mower for transportation A

1. Empty the petrol tank (see item 7.3.1).

2. Always let the engine run until it has used up the

remainder of petrol in the tank.

Empty the engine oil from the warm engine.

Remove the spark plug boot from the spark plug

Clean the cooling fins of the cylinder and the

Remove the start tension cable from the hook

(Fig. 1/Pos. 11). Slacken the wing nuts and fold

down the upper push bar.

7. Wedge a few layers of corrugated cardboard between the upper and lower push bars and the engine in order to prevent any chafing,

7.5 Ordering replacement parts Please quote the following data when ordering replacement parts:

Article number of the machine ‘Identification number of the machine

_ Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008|14:26 Uhr Seite 30 Ne

8. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Anleitung_BG_PM 40P_46P_SPK1:_ 02.10.2008,

14:26 Uhr Seite 31 |

9. Faults and remedies for faults

Caution: Always switch off the engine and pull the ignition cable before starting any inspection or adjustment

Caution: If, after making an adjustment or repair to the engine, you let it run for a few minutes, remember that the exhaust and other parts will get hot. Thus, do not touch parts that emanate heat, as these may burn you.

Loud while running, machine vibrates heavily

- Screws are loose - Blade fasteners are loose - Blade is unbalanced

- Check screws - Check blade fasteners - Replace blade

Engine does not start

- Brake lever not pressed - Speed lever in wrong position - Spark plug is defective

- Fuel tank is empty

- Petrol stop cock is closed

- Press brake lever - Check setting

- Open petrol stop cock

Engine runs unsteadily

- Air filter is soiled - Spark plug is soiled

- Clean the air filter - Clean the spark plug

Uneven mowing results

- Blade is blunt - Cutting height is too low - Engine speed is too low

- Sharpen the blade - Set correct height - Set lever to max.

Unsatisfactory bagging of the grass

- Engine speed is too low - Cutting height is too low - Blade is worn

- Set speed lever to max.

© 1! motorolaj 15W-40

© 1! motomno ulje 15W-40

[X] 9837/EC [] 87404EEC [] 2006/5/EC =

Pq 2004108Ec [] 9554Ec: [] 90396/EEC DJ 9768/Ec:

[] 89/686/EEC R&TTED 1999/5/EC

e1*97/68SN3-11A"2004/26"0386"00

[X] 9837/EC [] 87404EEC [] 2006/5/EC =

Pq 2004108Ec [] 9554Ec: [] 90396/EEC DJ 9768/Ec:

[] 89/686/EEC R&TTED 1999/5/EC

= 93 dB; La = 96 dB ,75 KW; © = 46 cm

‘The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only

D GUARANTEE CERTIFICATE Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.

2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequentiy, the guarantee is invalidated ifthe equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

8. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

4. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. lt would help us if you could describe the nature of the problem in as much detail as possible. lfthe defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the

scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
