USER MANUAL HWR05XCK-L HAIER

HWR05XCK HWR05XCK-L

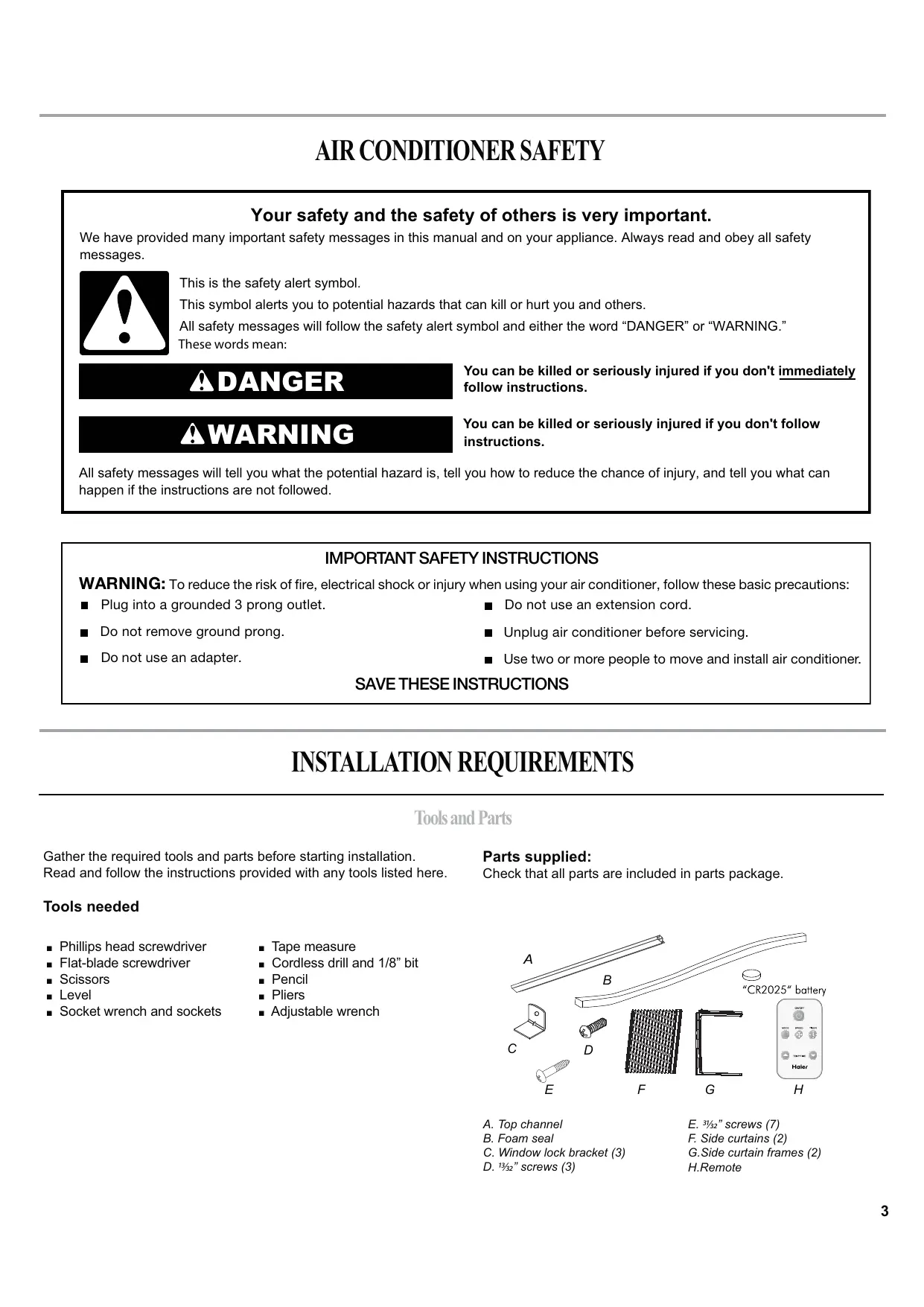

AIR CONDITIONER SAFETY

Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: DANGER You can be killed or seriously injured if you don't immediately follow instructions. WARNING You can be killed or seriously injured if you don't follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions: Plug into a grounded 3 prong outlet. Do not use an extension cord. Do not remove ground prong. Unplug air conditioner before servicing. Do not use an adapter. Use two or more people to move and install air conditioner.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Parts supplied: Check that all parts are included in parts package. Tools needed

Phillips head screwdriver Flat-blade screwdriver Scissors Level Socket wrench and sockets

Tape measure Cordless drill and 1/8” bit Pencil Pliers Adjustable wrench

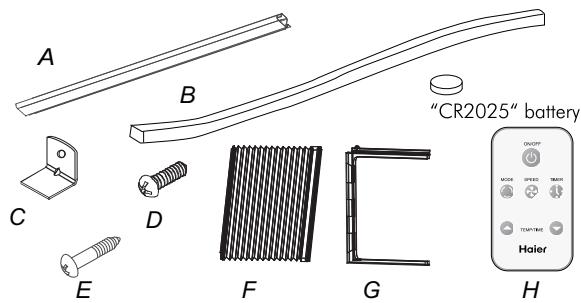

A. Top channel B. Foam seal C. Window lock bracket (3) D. 13⁄32” screws (3)

E. 31⁄32” screws (7) F. Side curtains (2) G.Side curtain frames (2) H.Remote

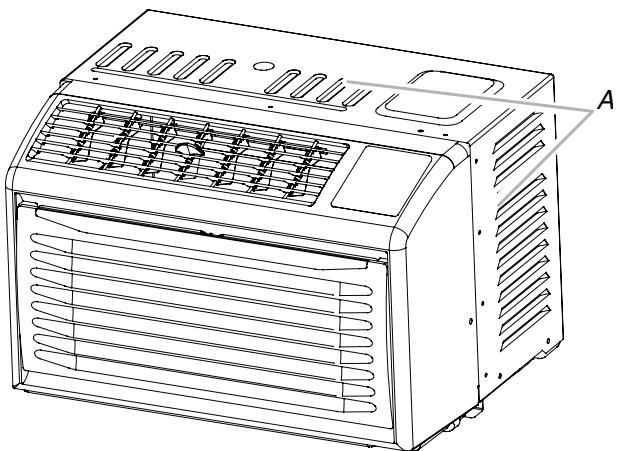

Electrical Requirements Location Requirements IMPORTANT: Observe all governing codes and ordinances. Check the location where the air conditioner will be installed. Make sure you have everything necessary for correct installation. The location should provide: ■ Grounded electrical outlet within 6 ft (183 cm) of where the power cord exits the air conditioner. NOTE: Do not use an extension cord. ■ Free movement of air in room to be cooled. ■ A large enough opening for the air conditioner. Installation parts are supplied for double-hung windows. ■ Adequate wall support for weight of air conditioner. Air conditioner weighs 36 lbs to 42 lbs (16.3 kg to 19.1 kg). NOTE: Cabinet louvers must not be obstructed. Air must be able to pass freely through the cabinet louvers.

The electrical ratings for your air conditioner are listed on the model and serial number label. The model and serial number label is located either on the side or back of the air conditioner cabinet or behind the front grille. Specific electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord. Power Supply Cord A. Cabinet louvers Wiring Requirements

15-amp time-delay fuse or circuit breaker

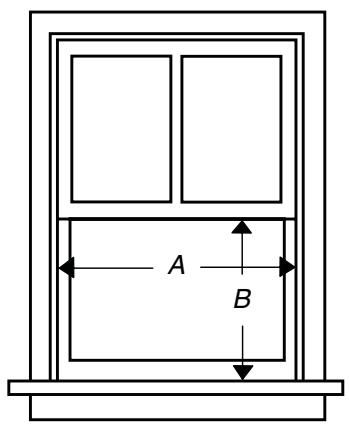

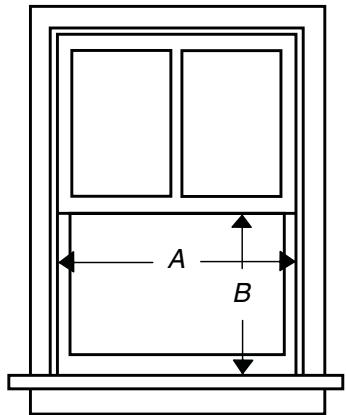

Use on single outlet circuit only. Window Installation Window opening measurements:

23¼” minimum to 36” (59.1 cm to 91.4 cm) maximum opening width. 123⁄8” (31.4 cm) minimum opening height. Recommended Grounding Method This air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a 3 prong grounding plug. The cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer’s responsibility to have a properly grounded 3 prong outlet installed by a qualified electrical installer. It is the customer’s responsibility:

To contact a qualified electrical installer. Power Supply Cord NOTE: Your air conditioner’s device may differ from the one shown.

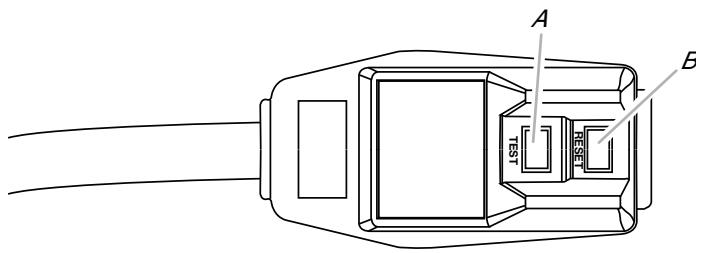

RESET TEST This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense current leakage. If the cord is crushed, the electronics detect current leakage and power will be disconnected in a fraction of a second. To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET (on some devices, a green light will turn on).

3. Press TEST (listen for click; Reset button will trip, and on

some devices, a green light will turn off).

4. Press and release RESET (listen for click; Reset button will

latch, and on some devices, a green light will turn on). The power supply cord is ready for operation. NOTES: ■ The Reset button must be pushed in for proper operation.

The power supply cord must be replaced if it fails to trip when the test button is pressed or fails to reset. Do not use the power supply cord as an off/on switch. A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired. The power supply cord contains no user serviceable parts. Opening the tamper-resistant case voids all warranty and performance claims. INSTALLATION INSTRUCTIONS Unpack the Air Conditioner Prepare Air Conditioner for Installation Install Top Channel

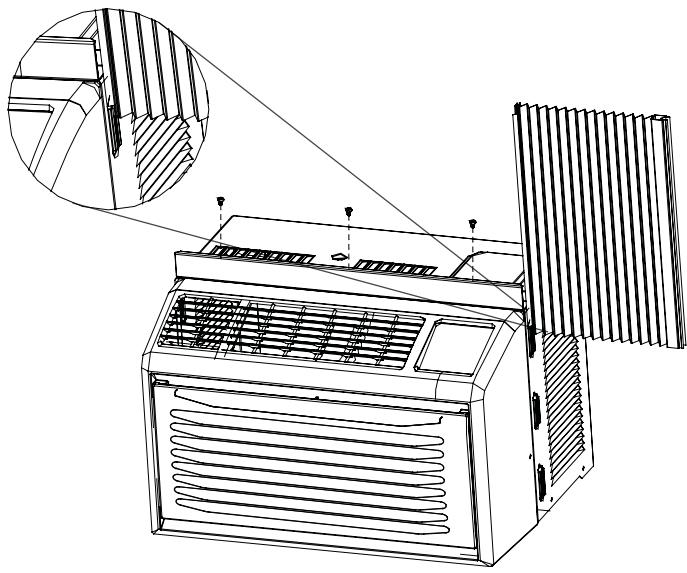

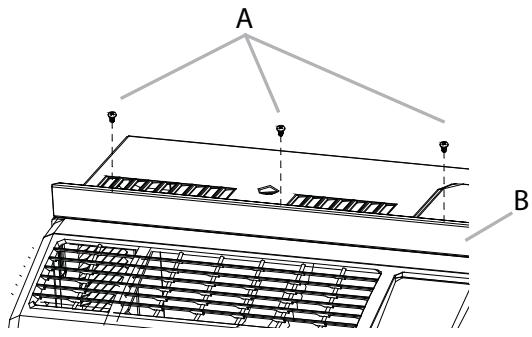

1. Place the top channel on the top of the air conditioner, lining up

the holes in the top channel with the holes in the top of the air conditioner.

2. Using three 13⁄32” screws, attach the top channel to the air

conditioner. Remove Packaging Materials

Remove and dispose of/recycle packaging materials. Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner. Handle the air conditioner gently.

A. 13⁄32” screws B. Top channel

NOTE: Your model may differ from the one shown.

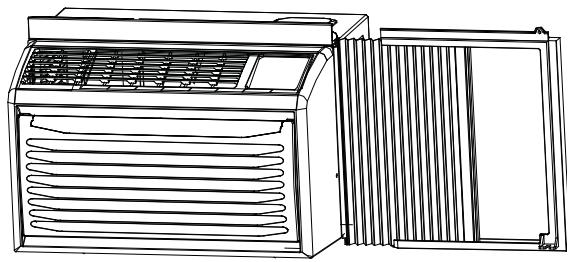

Slide the side curtain frame as close to the air conditioner as necessary to lock the side curtain to the frame.

Repeat above steps for the left-hand side curtain and frame. Install Side Curtains NOTE: Attach curtains to the air conditioner before placing the air conditioner in window.

Place the tabbed side of the side curtain in the track on the right-hand side of the air conditioner cabinet.

A. Tabbed side of side curtain B. Lock edge side of side curtain

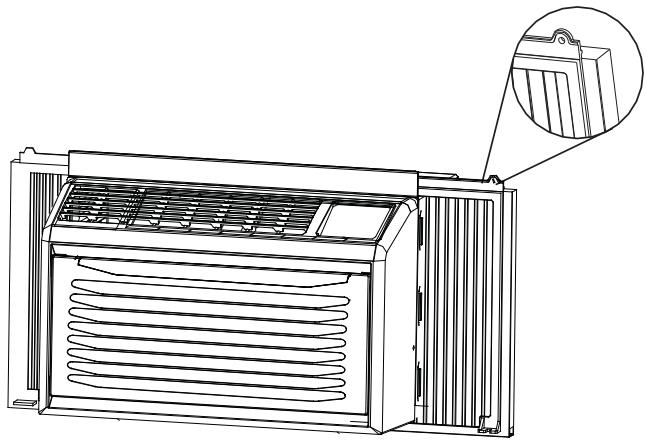

Slide the side curtain down the track until the curtain is aligned with the top and bottom of the air conditioner cabinet. Prepare Window for Installation

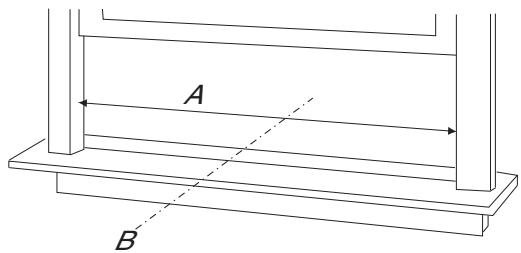

Measure the width of the window opening.

Mark the center line on the inside windowsill.

A. Width of window opening B. Center line

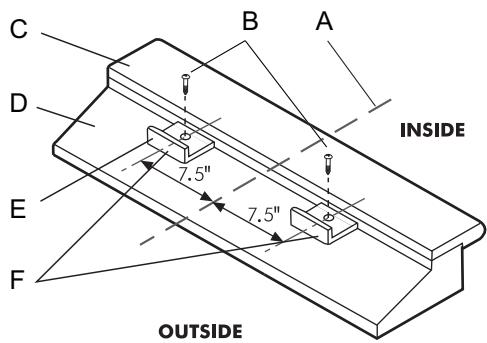

Install the Window lock bracket behind the inner windowsill, with the short side of Window lock bracket as shown.Use the 2 wood screws 31/32” provided. The Window lock bracket helps to hold unit securely in place.Be sure to place Window lock bracket edge flush against back of inner sill.

Slide the side curtain frame into the top channel on the top of the air conditioner and the track on the bottom of the air conditioner.

A. Center line B. 31⁄32” screws C. Inner sill

D. Outer sill E. Short side F. Window lock bracket Position Air Conditioner Attach Side Curtains to Window

1. Pull the left-hand curtain out until it fits into the window

2. Use a 1⁄8” drill bit to drill a starter hole through the top hole in

the side curtain and into the window sash. NOTES: ■ Handle the air conditioner gently. ■ Be sure your air conditioner does not fall out of the opening during installation or removal. ■ The place where the power cord exits the air conditioner should be no more than 6 ft (183 cm) from a grounded outlet. ■ Do not block the louvers in the front panel. ■ Do not block the louvers on the outside of the air conditioner. Insert one of the 31⁄32” screws through the top hole of the lefthand curtain and into the window sash.

4. Repeat for the right-hand curtain.

Top View Center the air conditioner in the window. Make sure the bottom guide of the air conditioner drops into the notches of the basepan angle.Lower the window sash behind the top channel to hold the cabinet in place NOTE: Your model may differ from the one shown.

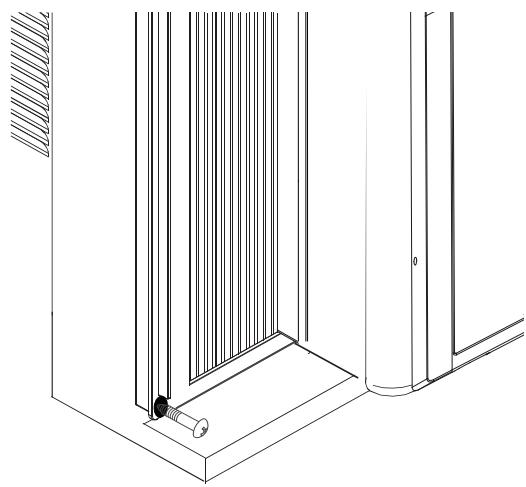

Use a 1⁄8” drill bit to drill a starter hole through the bottom hole in the side curtain and into the window frame.

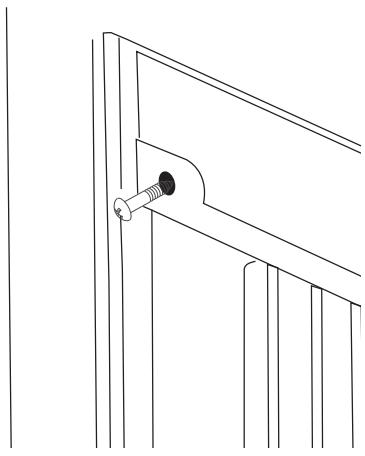

Insert one of the 31⁄32” screws through the bottom hole of the left-hand curtain and into the window frame.

Repeat for the right-hand curtain.

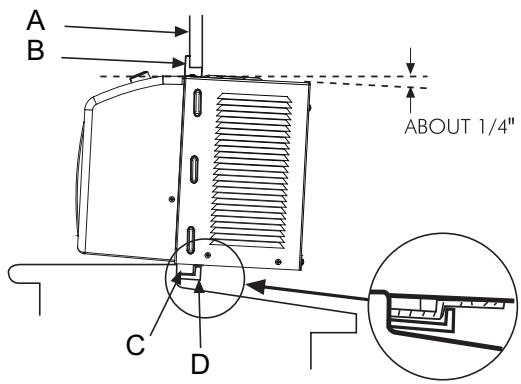

Bottom View A. Side curtain against window channel B. Window sash behind top channel C. Bottom channel in behind windowsill

A. Window frame B. Top channel

C. Bottom guide D. Window lock bracket

Complete Installation

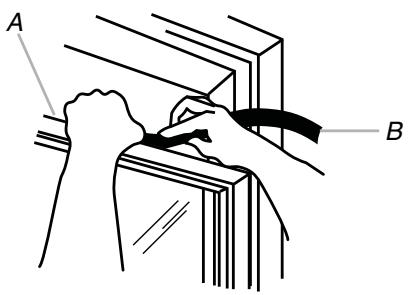

Insert the foam seal behind the top of the lower window sash and against the glass of the upper window.

A. Top of lower window sash B. Foam seal

2. Place the window lock bracket as shown. Use a 1⁄8” drill bit to

drill a starter hole through the hole in the window lock bracket and into the upper window.

3. Attach the window lock bracket to the upper window with one

31⁄32” screw to secure the window in place.

Plug into a grounded 3 prong outlet.

Press RESET on the power supply cord. See “Electrical Requirements.”

AIR CONDITIONER USE

Operating your air conditioner properly helps you to obtain the best possible results. This section explains proper air conditioner operation. IMPORTANT: ■ If you turn off the air conditioner, wait at least 3 minutes before turning it back on. This keeps the air conditioner from blowing a fuse or tripping a circuit breaker.

Do not try to operate your air conditioner in the Cool mode when outside temperature is below 61°F (16°C). The inside evaporator coil will freeze up, and the air conditioner will not operate properly. Starting Your Air Conditioner Mode

1. Press MODE until you see the indicator light glow for the

2. Choose Fan, Cool.

■ Fan—Only the fan runs. Press SPEED to select High or Low fan speed. The display shows the current room temperature. ■ Cool—Cools the room. Press SPEED to select High or Low fan speed. Press the TEMP/TIME up or down arrow button to adjust the temperature.

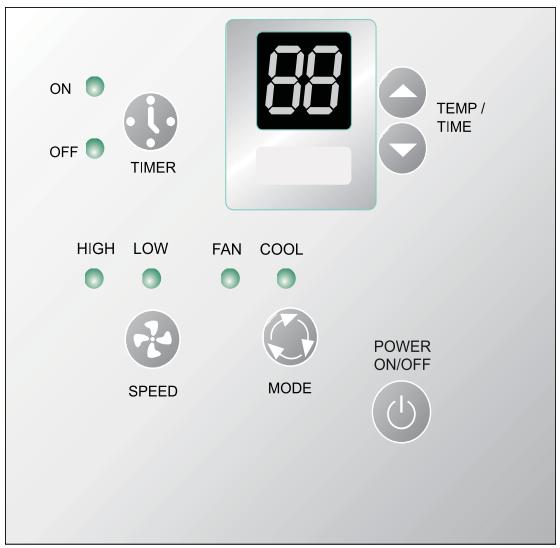

1. Remove the clear plastic film from the control panel.

2. Press POWER to turn on the air conditioner. The Power

indicator light will turn on. Fan Speed

1. Press FAN SPEED until you see the indicator light glow for

the desired setting.

2. Choose High or Low.

■ High—for maximum cooling ■ Low—for minimum cooling NOTE: When the air conditioner is plugged in, the LED display will show “88” for 3 seconds. After the air conditioner is turned on for the first time, the display will show the current room temperature and the fan is set to Low speed. After the unit is plugged in, but before the unit is turned on, press and hold the POWER button for 5 seconds to switch the temperature display between Fahrenheit (F)and Celsius(C) degrees.

3. Select mode. See “Mode.”

4. Select fan speed. See “Fan Speed.”

5. Set temperature. See “Temperature.”

Press the TEMP/TIME up arrow button to raise the temperature. Each time you press or hold the TEMP/TIME up arrow button, the temperature will go up 1ºF until it reaches 86°F (30°C). NOTE: After 5 seconds, the display will show the current room temperature. To set the Timer to turn on the air conditioner, changing the previous settings:

1. Turn on the air conditioner.

2. Adjust the mode to Fan, Cool.

3. For Fan or Cool mode, adjust the fan speed to High, Low.

4. Adjust the temperature between 61ºF and 86ºF (16ºC and

30ºC). NOTE: In Fan mode, the temperature cannot be set.

5. Press TIMER. Timer On indicator light will flash. Display will

show remaining hours before the air conditioner will turn on.

6. Press the TEMP/TIME up or down arrow button to change the

delay time from 1 hour to 24 hours.

7. Timer On indicator light will remain on.

To clear Timer delay program: NOTE: Air conditioner can be either on or off.

1. Press TEMP/TIME once after it has been programmed.

Display will show remaining time.

Press the TEMP/TIME down arrow button to lower the temperature. Each time you press or hold the TEMP/TIME down arrow button, the temperature will go down 1ºF until it reaches 61°F (16°C). NOTE: After 5 seconds, the display will show the current room temperature.

2. While the display is showing the remaining time, press TIMER

untill Timer indicator light turns off. To see or change the remaining time (in hours): Timer Off :

Display on the air conditioner control panel will show remaining time. Timer Delay

Press TIMER. Timer OFF indicator light will flash. Display will show remaining hours before the air conditioner will turn off. While the display is showing the remaining time, press the TEMP/TIME up or down arrow button to increase or decrease the time. To set the Timer for a 1-hour to 24-hour delay until the air conditioner turns off (the air conditioner must be On):

Press TEMP/TIME once after it has been programmed.

After 5 seconds, the display on the air conditioner control panel will show the current room temperature. Timer On :

Display on the air conditioner control panel will show remaining time. While the display is showing the remaining time, press the TEMP/TIME up or down arrow button to increase or decrease the time.

Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.

After 5 seconds, Timer OFF indicator light will remain on. Display will show the current room temperature. To set the Timer to turn on the air conditioner, keeping previous settings:

Turn on the air conditioner.

Press TIMER. Timer On indicator light will flash. Display will show remaining hours before the air conditioner will turn on.

Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.

Timer On indicator light will remain on.

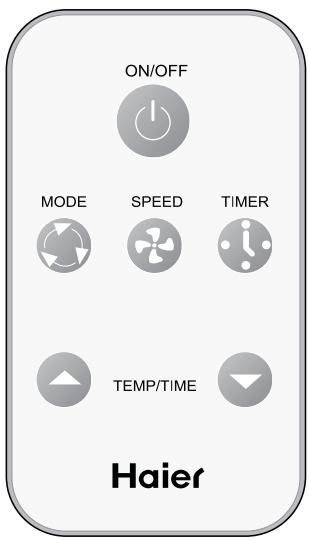

Using the Remote Control NOTE: Remote control may differ in appearance. Temperature NOTE: One CR2025 battery (included) powers the remote control. Replace battery after 6 months of use, or when the remote control starts to lose power.

Press the TEMP/TIME up arrow button to raise the temperature. Each time you press or hold the TEMP/TIME up arrow button, the temperature will go up 1ºF until it reaches 86°F (30°C).

Press the TEMP/TIME down arrow button to lower the temperature. Each time you press or hold the TEMP/TIME down arrow button, the temperature will go down 1ºF until it reaches 61°F (16°C). Timer Power To set the Timer for a 1-hour to 24-hour delay before the air conditioner is turned off (the air conditioner must be On): Press ON/OFF to turn on the air conditioner.

1. Press TIMER. Timer OFF indicator light on the air conditioner

control panel will flash. Mode

2. Press the TEMP/TIME up or down arrow button to change the

delay time from 1 hour to 24 hours.

3. After 5 seconds, Timer OFF indicator light on the air

Press MODE to choose Fan, Cool. conditioner control panel will remain on. To set Timer to turn on the air conditioner, keeping previous settings:

1. Turn on the air conditioner.

2. Press TIMER. Timer On indicator light on the air conditioner

control panel will flash. Speed

3. Press the TEMP/TIME up or down arrow button to change the

delay time from 1 hour to 24 hours. Press SPEED to choose High, Med or Low.

4. After 5 seconds, Timer On indicator light on the air

conditioner control panel will remain on. To set Timer to turn on the air conditioner, changing the previous settings:

1. Turn on the air conditioner.

2. Adjust the mode to Fan or Cool.

3. For Fan, Cool or Energy Saver mode, adjust the fan speed to

Adjust the temperature between 61ºF and 86ºF (16ºC and 30ºC). NOTE: In Fan mode, the temperature cannot be set.

Press TIMER. Timer On indicator light on the air conditioner control panel will flash. Display will show remaining hours before the air conditioner will turn on.

Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.

Timer On indicator light on the air conditioner control panel will remain on. Changing Air Direction Use the tab to direct the airflow right or left.

To clear Timer delay program: NOTE: Air conditioner can be either on or off.

Press TIMER once after it has been programmed. Display on the air conditioner control panel will show remaining time. A. Tab While the display is showing the remaining time, press TIMER untill Timer indicator light turns off. To see or change the remaining time (in hours): Normal Sounds Timer Off : When your air conditioner is operating normally, you may hear sounds such as:

Press TEMP/TIME once after it has been programmed.

Display on the air conditioner control panel will show remaining time. Droplets of water hitting the condenser, causing a pinging or clicking sound. The water droplets help cool the condenser.

Air movement from the fan. While the display is showing the remaining time, press

Clicks from the thermostat cycle. the TEMP/TIME up or down arrow button to increase or decrease the time.

Vibrations or noise due to poor wall or window construction.

A high-pitched hum or pulsating noise caused by the modern high-efficiency compressor cycling on and off.

After 5 seconds, the display on the air conditioner control panel will show the current room temperature. Timer On :

Display on the air conditioner control panel will show remaining time. While the display is showing the remaining time, press the TEMP/TIME up or down arrow button to increase or decrease the time.

AIR CONDITIONER CARE

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly.

3. Use a vacuum cleaner to clean air filter. If the air filter is very

dirty, wash it in warm water with a mild detergent. Do not wash the air filter in the dishwasher or use any chemical cleaners. Air dry the air filter completely before replacing to ensure maximum efficiency.

4. Replace the air filter.

Cleaning the Air Filter

5. Close the front panel.

The air filter is removable for easy cleaning. A clean filter helps remove dust, lint, and other particles from the air and is important for best cooling and operating efficiency. Check the filter every 2 weeks to see whether it needs cleaning.

6. Turn on the air conditioner.

NOTE: Do not operate the air conditioner without the filter in place. Cleaning the Front Panel

1. Turn off the air conditioner.

1. Turn off the air conditioner.

2. Remove the air filter by opening the front panel and removing

2. Clean the front panel with a soft, damp cloth.

3. Air dry the front panel completely.

4. Turn on the air conditioner.

Annual Maintenance Your air conditioner needs annual maintenance to help ensure steady, top performance throughout the year. Call your local authorized dealer to schedule an annual checkup. The expense of an annual inspection is your responsibility.

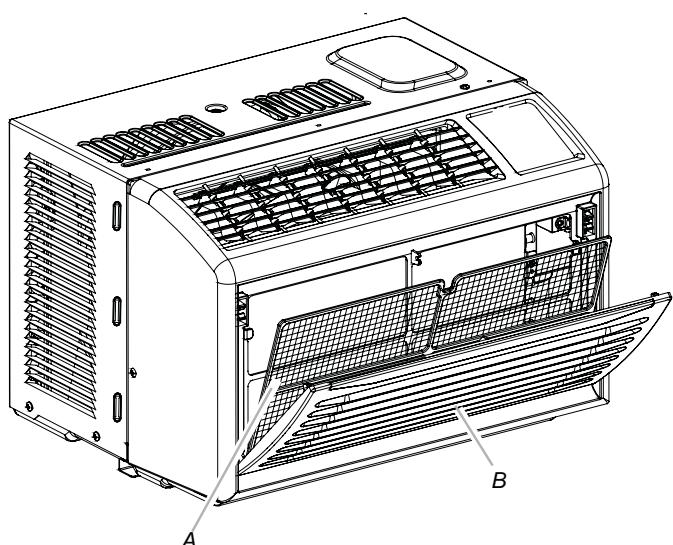

A. Air filter B. Front panel TROUBLE SHOOTING Before calling for service, try the suggestions below to see whether you can solve your problem without outside help. Air Conditioner Will Not Operate

The power supply cord is unplugged. Plug into a grounded 3 prong outlet. See “Electrical Requirements.”

A household fuse has blown, or circuit breaker has tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. See “Electrical Requirements.”

The Power button has not been pressed or the Mode control knob is turned to Off. Press POWER or turn the Mode control knob to an active setting.

The local power has failed. Wait for power to be restored.

The power supply cord has tripped (Reset button has popped out). Press and release RESET (listen for click; Reset button will latch and on some devices, a green light will turn on) to resume operation.

Air conditioner seems to run too much

The current air conditioner replaced an older model. The use of more efficient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less. Newer air conditioners do not emit the “blast” of cold air you may be accustomed to from older air conditioners, but this is not an indication of lesser cooling capacity or efficiency. Refer to the efficiency rating (EER) and capacity rating (in Btu/h) marked on the air conditioner.

The air conditioner is in a heavily occupied room, or heat producing appliances are in use in the room. Use exhaust vent fans while cooking or bathing and try not to use heatproducing appliances during the hottest part of the day. A higher capacity air conditioner may be required, depending on the size of the room being cooled. Air conditioner cycles on and off too much or does not cool room in cooling mode Air conditioner blows fuses or trips circuit breakers

Too many appliances are being used on the same circuit. Unplug or relocate appliances that share the same circuit.

Time-delay fuse or circuit breaker of the wrong capacity is being used. Replace with a time-delay fuse or circuit breaker of the correct capacity. See “Electrical Requirements.” An extension cord is being used. Do not use an extension cord with this or any other appliance.

You are trying to restart the air conditioner too soon after turning off the air conditioner. Wait at least 3 minutes after turning off the air conditioner before trying to restart the air conditioner. Air conditioner power supply cord trips (Reset button pops out)

Disturbances in your electrical current can trip (Reset button will pop out) the power supply cord. Press and release RESET (listen for click; Reset button will latch and on some devices, a green light will turn on) to resume operation.

Electrical overloading, overheating, cord pinching or aging can trip (Reset button will pop out) the power supply cord. After correcting the problem, press and release RESET (listen for click; Reset button will latch and on some devices, a green light will turn on) to resume operation. NOTE: A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.

The air conditioner is not properly sized for your room. Check the cooling capabilities of your room air conditioner. Room air conditioners are not designed to cool multiple rooms.

The filter is dirty or obstructed by debris. Clean the filter.

There is excessive heat or moisture (open container cooking, showers, etc.) in the room. Use a fan to exhaust heat or moisture from the room. Try not to use heatproducing appliances during the hottest part of the day.

The louvers are blocked. Install the air conditioner in a location where the louvers are free from curtains, blinds, furniture, etc.

The outside temperature is below 61°F (16°C). Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 61°F (16°C).

The temperature of the room you are trying to cool is extremely hot. Allow extra time for the air conditioner to cool off a very hot room.

Windows or doors to the outside are open. Close all windows and doors.

The Temperature control is not at a cool enough setting. Adjust the control to a cooler setting to reduce the temperature. Set the Fan Speed control to the highest setting. Water drips from cabinet into your house

The air conditioner is not properly leveled. The air conditioner should slope slightly downward toward the outside. Level the air conditioner to provide a downward slope toward the outside to ensure proper drainage. See the Installation Instructions. NOTE: Do not drill a hole into the bottom of the metal base and condensate pan.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. You can find this information on the model and serial number label. See “Electrical Requirements” for the location of the model and serial number label. Please record the model and serial number information below. Also, record the purchase date of your appliance and the store’s name, address, and telephone number. If you need replacement parts Model Number________________________________________ If you need to order replacement parts, we recommend that you use only factory-specified replacement parts. Factory-specified replacement parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory-specified replacement parts in your area, call your nearest designated service center. Serial Number ________________________________________ Please record your model’s information. Whenever you call to request service on your appliance, you need to know your complete model number and serial number. Purchase Date________________________________________ Store Name __________________________________________ Store Address ________________________________________ Store Phone _________________________________________ Keep this book and the sales slip together for future reference. In the U.S.A. Visit www.haieramerica.com or call Haier America toll free: 1-877-337-3639. Our consultants provide assistance with:

Features and specifications on our appliances. Installation information. Use and maintenance procedures. Repair parts sales. Referrals to repair parts distributors, and service companies. Manufacturer-authorized service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States. For Further Assistance If you need further assistance, you can write with any questions or concerns to: Haier America 1356 Broadway New York, NY 10018 Please include a daytime phone number in your correspondence. In Canada Visit www.haieramerica.com or call Haier America toll free: 1-877-337-3639. Our consultants provide assistance with:

Features and specifications on our appliances. Installation information. Use and maintenance procedures. Repair parts sales. Referrals to repair parts distributors, and service companies. Manufacturer-authorized service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the Canada. For Further Assistance If you need further assistance, you can write with any questions or concerns to: Haier America 1356 Broadway New York, NY 10018 Please include a daytime phone number in your correspondence.

ONE YEAR LIMITED WARRANTY

This warranty covers all defects in workmanship or material for the mechanical and electrical parts (including labor costs) contained in this product for a period of 12 months from the date of purchase. For commercial or rental application, the warranty is 90 days. You must keep and be able to provide your original sales receipt as proof of the date of purchase. FIVE YEAR LIMITED WARRANTY ON THE SEALED SYSTEM The sealed system and compressor (hermetic compressor, condenser and evaporator) contained in this product is for a period of 5 years from the date of purchase (excluding labor costs after the initial 12-month period). In commercial or rental use, the additional limited compressor warranty is for 1 year and 9 months (excluding labor costs after the initial 90-day period). You must keep and be able to provide your original sales receipt as proof of the date of purchase.

WHO IS COVERED

The original retail purchaser of this product.

WHAT WILL BE DONE

Haier America will repair or replace any mechanical, electrical part or the compressor, which proves defective in normal household use for a period of 12 months. Haier America will repair or replace (excluding labor costs) the sealed system and compressor (parts only) for an additional 4-year period.

HOW CAN YOU GET SERVICE

Contact your nearest manufacturer-authorized Service Depot. For the name of the Service Depot nearest you, contact Haier America at 1-877-337-3639. All service must be performed by a manufacturer-authorized Service Depot. Damages from improper installation. Damages in shipping. Defects other than manufacturing. Damages from misuse, abuse, accident, alteration, lack of proper care and maintenance or incorrect current or voltage. Damage from other than household use. Damages from service by other than an authorized dealer or service center. Decorative trims or replaceable light bulbs. Labor, service, transportation and shipping charges for the removal of defective parts and installation of replacement parts beyond the initial 12-month period. 9. Credit or refund for products over 30 days past date of purchase, or for any loss or injury caused by the product or defects to the product including but not limited to incidental or consequential damages. 10. Food loss for food spoiled as a direct result of mechanical failure of a product or of any delay in providing service, repair or replacement.

11. Refurbished product purchased as/like new or second-hand.

THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so this limitation may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty covers units within the continental United States, Canada and Puerto Rico.

CONSERVEZ CES INSTRUCTIONS
