USER MANUAL HDY6-1C HAIER

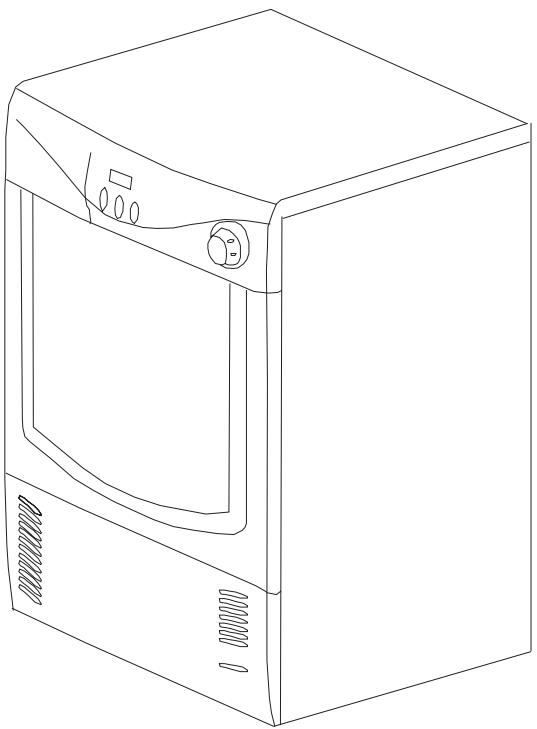

Front Load Electric Dryer

Sechuse Electrique a Chargement Frontal

Secadora electrica conarga frontal

User Manual

Model # HDY6-1 / HDY6-1C

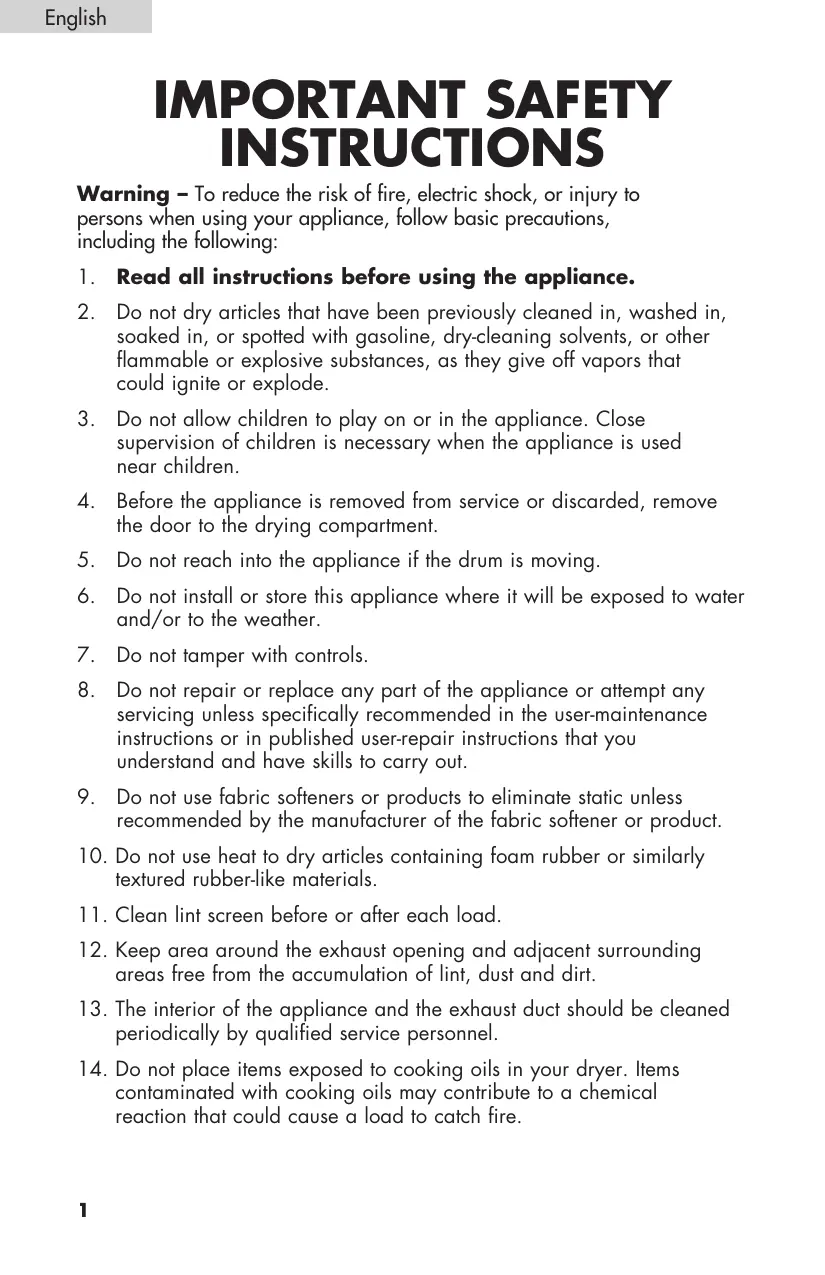

IMPORTANT SAFETY INSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. Read all instructions before using the appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to water and/or to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
10. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

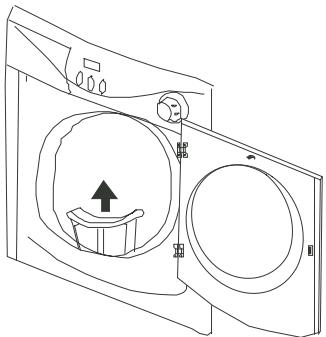

11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt.
13. The interior of the appliance and the exhaust duct should be cleaned periodically by qualified service personnel.

14. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

15. If material has been used with any flammable liquids or solids it should not be used in the dryer until all traces of the flammable liquids and its fumes have been removed.

16. This dryer must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
17. Proper grounding must be ensured to reduce the risk of electric shock and fire. Check with a qualified electrician or service personnel if you are in doubt as to whether the dryer is properly grounded.
18. Use the dryer only for its intended purpose, drying clothes.
19. Always disconnect dryer from electrical supply before attempting any service. Disconnect power cord by grasping the plug, not the cord.
20. Replace worn power cords and/or loose plugs.
21. To reduce the risk of electric shock or fire, do not use extension cords or adapters to connect dryer to electrical power source.

SAVE THESE INSTRUCTIONS For Future Use

DANGER

Risk of child entrapment. Before you throw away your old dryer, take off the door so that children may not easily get trapped inside.

Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use of your dryer.

Remember to record the model and serial number. They are on a label in back of the dryer.

Model number

Serial number

Date of purchase

Staple your receipt to your manual.

You will need it to obtain warranty service.

WARNING!

As dry cleaning solvents, gasoline, vegetable and cooking oils are highly hazardous materials, items soaked in or spotted with such should not be used in the dryer. Items may still contain a substantial amount of the hazardous material after being washed. When such items are exposed to heat they could ignite. As clothes are stacked and piled up in the dryer the heat cannot escape. Due to this, items become hot enough to possibly ignite. Washing in hot water with extra detergent would reduce but not eliminate the risk of fire.

TABLE OF CONTENTS

PAGE

SAFETY INSTRUCTIONS 1

PARTS AND FEATURES 5

INSTALLATION INSTRUCTIONS 6

Unpacking Your Dryer 6

Tools and Materials Required 6

Door Reversal 8

Location of Your Dryer 9

Installation in Mobile Home. 10

EXHAUST SYSTEM CONNECTION 11-16

Electrical Requirement. 11
3 Wire Cord Connection 15
4 Wire Cord Connection 16-17

ELECTRICAL REQUIREMENT FOR CANADA 18-19

GROUNDING INSTRUCTIONS 19

PREPARATION 20

Drying Tips. 21

OPERATING INSTRUCTIONS 22

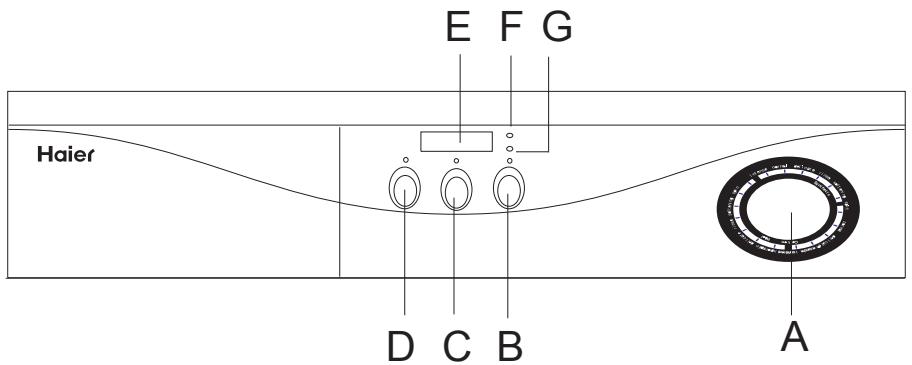

Control Panel 22-23

Programming Guide 24

OPERATIONAL STEPS 25

NORMAL OPERATING SOUNDS 26

ENERGY SAVINGS TIPS 26

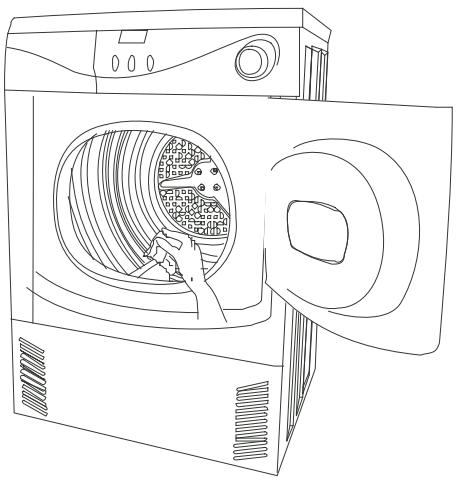

CLEANING AND MAINTENANCE 27

TROUBLESHOOTING 28-29

SPECIFICATIONS 29

LIMITED WARRANTY 30

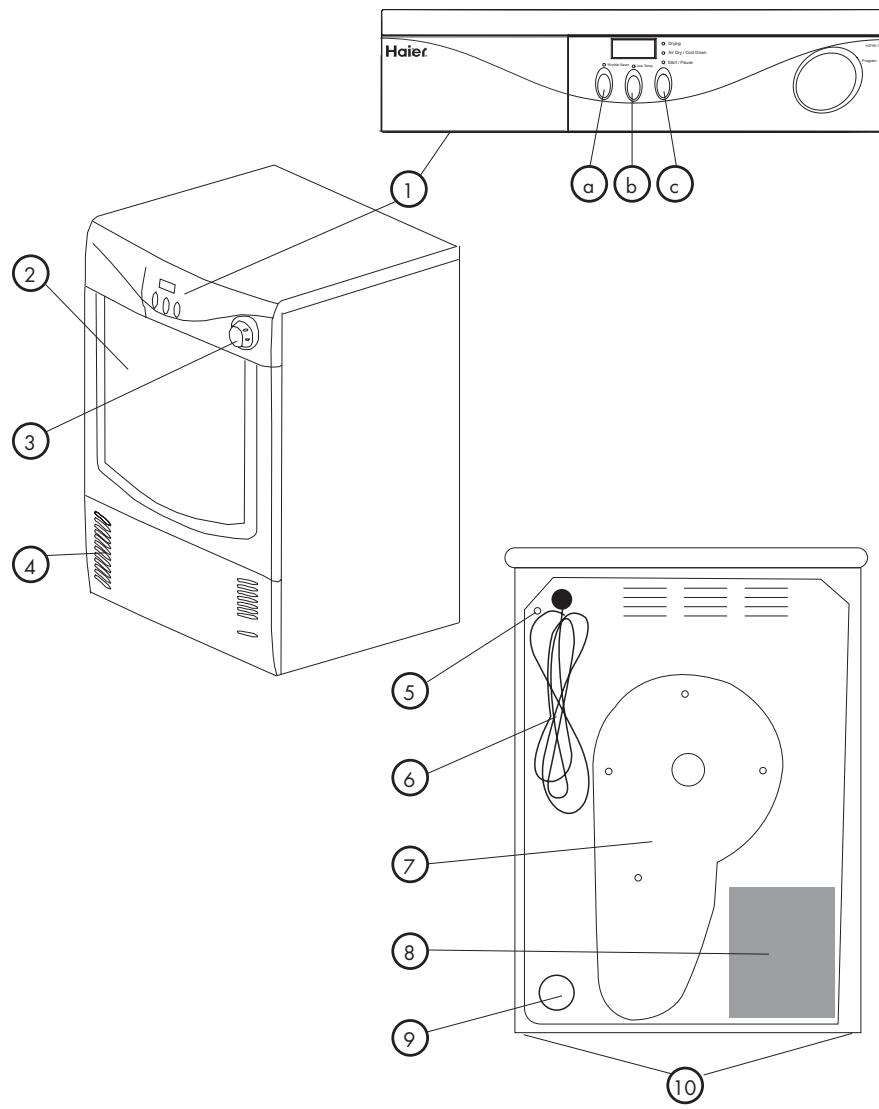

PARTS AND FEATURES

1. Control Panel a. Wrinkle Saver b. Low Temp c. Start / Pause
2. Door
3. Program Selector

4. Front Service Cover

5. Grounding Terminal Connection

6. Power Supply Cable (Canadian version only)
7. Back Plate
8. Back Cover Board
9. Vent Connection
10. Leveling Legs (not shown)

INSTALLATION INSTRUCTIONS

• Select a suitable location for the dryer on a hard, even surface away from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking appliances, etc. Any floor unevenness should be corrected with the leveling legs located on the bottom of the dryer.

Unpacking Your Dryer

1. Remove all packaging material. This includes the foam base and all adhesive tape holding the dryer accessories inside and outside.
2. Inspect and remove any remains of packaging, tape or printed materials before using the dryer.

Tools and Materials Required

• Phillips head and flathead screwdrivers
• Channel-lock adjustable pliers
• 1/2 inch open end wrench
• Carpenter's level
• Measuring tape (12ft. min.)
• Duct tape
• Rigid or flexible metal 4 inch (10.2 cm) duct

• Vent hood

• To ensure that the dryer is operating efficiently, attention must be paid to the following:

• The dryer must be horizontally installed. Its bottom is equipped with adjustable legs. Adjust these 4 legs to level before operation.
• Check whether there is any damage to the dryer during transportation. Any damaged dryer must not be installed.
• The dryer must be kept away from flammable or detonable substances.
• The surrounding environment must be dry and ventilated.
• Do not install the dryer on any carpet.
• To allow the dryer to perform better, the ambient temperature should not be lower than 50^ or higher than 95^ .

Packaging Accessories

Checklist of the accessories and materials provided with the machine:

Name	Owner's Manual	Certificate of Conformity	Hose Clip	Extension Hose	Connecting Sleeve
Quantity	1	1	1	1	1

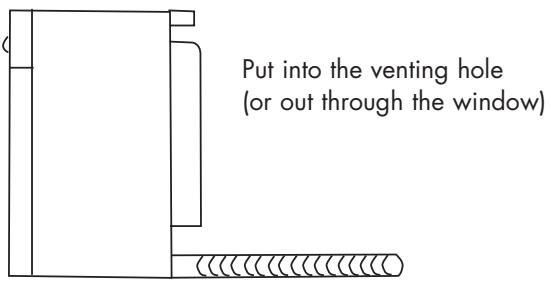

Connect Exhaust Pipe

It is recommended to extract the air outdoors if there is a venting hole where the dryer is installed. Please use the attached extension hose, connecting sleeve and hose clip. Before connecting the machine to the power supply, please connect the small-diameter end of the connecting sleeve to the air exit, and large diameter end of the sleeve to the air exit, and large diameter end of the sleeve to the extension hose, and tighten it up with a flat screwdriver. Stretch the extension hose to join it with the venting hole (if no venting hole is available, just stretch the extension hose out through the window). Keep the hose level and straight.

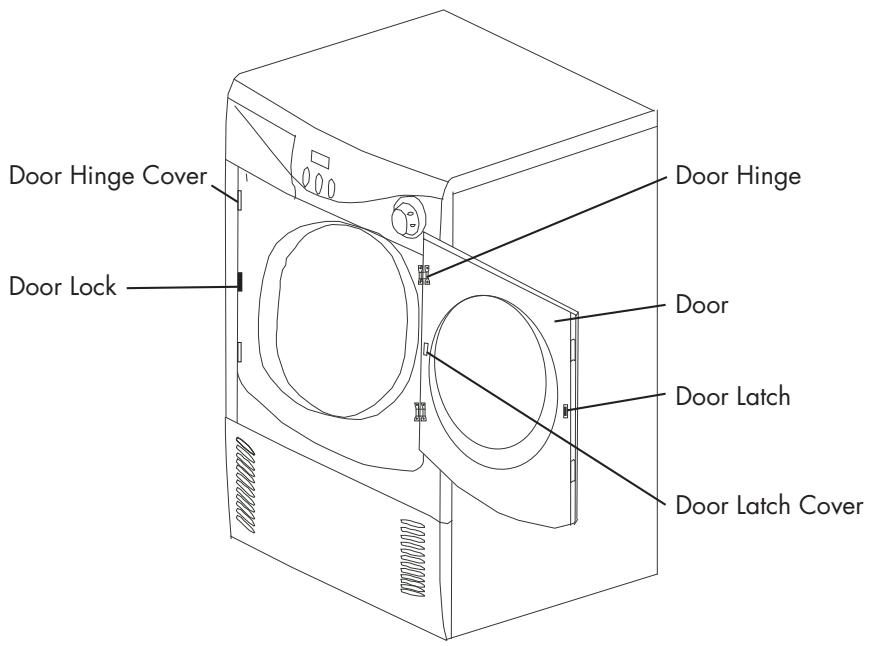

Door Reversal

• To reverse the door opening of your dryer, follow the below procedures.

a. Using a Phillips head screwdriver, remove the 4 screws that fix the door hinge to the cabinet. This will un-attach the door from the cabinet.
b. Now unscrew the 4 screws that attach the door hinge to the door.
c. Remove the 2 hinge covers from the opposite side of the door and in its place attach the just-removed door hinges.
d. Replace the hinge covers to the open slots of the original door hinge position on the door.
e. Unscrew the 2 screws that attach the door latch to the door, and fix it on the opposite side after removing the door latch cover.
f. Replace the door latch cover on the door in the place of the just-removed latch.
g. Using a putty knife, remove the 4 hinge screw covers.
h. Install these on the opposite side.
i. Install the door lock cover on the cabinet on the opposite side.
j. Screw the 4 screws attaching the 2 door hinges to the cabinet.

Location of Your Dryer

Do Not Install Your Dryer:

• In an area exposed to dripping water or outside weather conditions.
• In an area where it will come in contact with curtains, drapes, or anything that will obstruct the flow of combustion and ventilation air.
• On carpet. Floor must be solid with a maximum slope of 1 inch (2.54 cm).

Installation in Recess or Closet:

• A dryer installed in a bedroom, bathroom, recess or closet must be exhausted outdoors.
• Your dryer needs space around it for proper ventilation.
• A minimum of 120 square inches (774.2 square cm) of opening, equally divided at the top and bottom of the door, is required. Air openings are required to be unobstructed when a door is installed. A louvered door with equivalent air openings for the full length of the door is acceptable.

ROUGH-IN DIMENSIONS
REAR VIEW

SIDE VIEW

Installation in Mobile Home

• Dryer must be exhausted outside (outdoors, not beneath the mobile home) using metal ducting that will not support combustion. Metal ducting must be 4 inches (10.16cm) in diameter with no obstructions. Rigid metal duct is preferred.
• If dryer is exhausted through the floor and area beneath the mobile home is enclosed, the exhaust system must terminate outside the enclosure with the termination securely fastened to the mobile home structure.
  Refer to previous pages for other important venting requirements.
• Installation must conform to current Manufactured Home Construction & Safety Standard (which is a Federal Regulation Title 24 CFR-Part 32-80) or when such standard is not applicable, with American National Standard for Mobile Homes.

Warning: The dryer is designed under ANSI Z21.5.1 standard for home use only.

EXHAUST SYSTEM CONNECTIONS

Requirements and Instructions

WARNING!

The following are specific requirements for proper and safe operation of your dryer. Failure to follow these instructions can create excessive drying times and fire hazards.

1. Do not use plastic flexible duct to exhaust the dryer. Excessive lint can build up inside exhaust system and create a fire hazard and restrict air flow. Restricted air flow will increase dryer times. If your present system is made up of plastic duct or metal foil duct, replace it with a rigid or flexible metal duct. Ensure present duct is free of any lint prior to installing dryer duct.
2. If the dryer is not exhausted outdoors, some fine lint will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fire hazard. To reduce risk of fire, dryer MUST BE EXHAUSTED OUTDOORS.
3. Do not allow combustible material (for example: clothing, draperies/curtains, paper) to come in contact with exhaust system. The dryer must not be exhausted into a chimney, a wall, a ceiling, or any concealed space of a building which can accumulate lint, resulting in a fire hazard.
4. Exceeding the length of duct pipe or number of elbows allowed in the "Maximum Length" charts can cause an accumulation of lint in the exhaust system. Plugging the system could create a fire hazard, as well as increase drying times.
5. Do not screen the exhaust ends of the vent system, or use any screws or rivets to assemble the exhaust system. Lint can become caught in the screen, on the screws or rivets, clogging the duct work and creating a fire hazard as well as increasing drying times. Use an approved vent hood to terminate the duct outdoors, and seal all joints with duct tape. All male duct pipe fittings must be installed downstream with the flow of air.

Explosion hazard:

Do not install the dryer where gasoline or other flammables are kept or stored. If the dryer is installed in a garage, it must be minimum of 18 inches (45.7 cm) above the floor. Failure to do so can result in death, explosion, fire or burns.

Materials

Use only 4 inch (10.2 cm) diameter (minimum) rigid or flexible metal duct and approved vent hood that has a swing-out damper hat open when the dryer is in operation. When the dryer stops, the dampers automatically close to prevent drafts and the entrance of insects and rodents. To avoid restricting the outlet, maintain a minimum of 12 inches (30.5 cm) clearance between the vent hood and the ground or any other obstruction. The vent flap should be able to move freely.

MAXIMUM EXHAUST LENGTH

Number of 90° elbows	Rigid Metal Duct
	VENT HOOD TYPE (preferred)
	→4" (10.2 cm)	Louvered	→21/2" (6.35 cm)
0	60ft. (18.28 m)		48ft. (14.63 m)
1	52ft. (15.84 m)		40ft. (12.19 m)
2	44ft. (13.41 m)		32ft. (9.75 m)
3	32ft. (9.75 m)		24ft. (7.31 m)
4	28ft. (8.53 m)		16ft. (4.87 m)

Number of 90° elbows	Flexible Metal Duct
	VENT HOOD TYPE (preferred)
	→4" (10.2 cm)	Louvered	→2½" (6.35 cm)
0	30ft. (9.14 m)		18ft. (5.49 m)
1	22ft. (6.71 m)		14ft. (4.27 m)
2	14ft. (4.27 m)		10ft. (3.05 m)

INSTALL MALE FITTINGS IN THE CORRECT DIRECTION

After installation is completed, the following method must be used to determine if the exhaust system is acceptable:

1. Connect an inclined or digital manometer between the dryer and the point the exhaust connects to the dryer.
2. Set the dryer timer and temperature to air fluff (cool down) and start the dryer.
3. Read the measurement on the manometer.
4. The system back pressure must not be higher than 0.75 inches of water column. If the system back pressure is less than 0.75 inches of water column, the system is acceptable. If the manometer reading is higher than 0.75 inches of water column, the system is too restrictive and the installation is unacceptable.

Although vertical orientation of the exhaust system is acceptable, certain extenuating circumstances could affect the performance of the dryer:

1. Only the rigid metal duct work should be used.
2. Venting vertically through a roof may expose the exhaust system to down drafts causing an increase in vent restriction.
3. Running the exhaust system through an area not insulated may cause condensation and faster accumulation of lint.
4. Compression or crimping of the exhaust system will cause an increase in vent restriction.

The exhaust system should be inspected and cleaned a minimum of every 18 months with normal usage. The more the dryer is used, the more often you should check the exhaust system and vent hood for proper operation.

ELECTRICAL CONNECTIONS

Requirements and Instructions

WARNING!

The following are specific requirements for proper and safe electrical installation of your dryer. Failure to follow these instructions can create electrical shock and/or fire hazard.

1. This appliance must be properly grounded. Electrical shock can result if the dryer is not properly grounded. Follow the instructions in this manual for proper grounding.
2. Do not use an extension cored with this dryer. Some extension cords are not designed to withstand the amounts of electrical current this dryer utilizes and can melt, creating electric shock and/or fire hazard. Locate the dryer within reach of the receptacle for the length power cord to be purchased, allowing some slack in the cord. Refer to the electrical requirements in this manual for the power cord to be purchased.
3. A U.L. approved strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.
4. Do not use an aluminum wire receptacle with copper wired power cord and plug (or vice versa). A chemical reaction occurs between copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper wired power cord with a copper wired receptacle.

Note: Dryers operating on 208 Volt power supply will have longer drying times than operating on 240 Volt power supply.

Danger: Improper connection of the equipment-grounding conductor can result in

a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded. The dryer must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Power Supply:

3 or 4 wire, 240 Volt, 30 Amp, 60Hz, 1 Phase

Power Supply Cord Kit: (not supplied when sold in the United States) The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 type SRDT rated at 240 Volt AC minimum, 30 Amp., with 3 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. If being installed in a manufactured (mobile) home, the dryer MUST employ a 4-conductor power supply cord NEMA 14-30 type SRDT or ST (as required) rated at 240 Volt AC minimum, 30 Amp., with 4 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. See Electrical Connections for A 4-Wire System.

3-Wire Cord Connections

1. Remove the screws securing the terminal block access cover and the strain relief mounting bracket located on the back of the dryer upper corner.
2. Install a U.L. approved strain relief into the power cord entry hole of the mounting bracket. Finger tighten the nut only at this time.
3. Thread a U.L. Approved 30 Amp. power cord, NEMA 10-30 Type SRDT, through the strain relief.
4. Attach the power cord neutral (center wire) conductor to the silver-colored center terminal on the terminal block. Tighten the screw securely.
5. Attach the remaining two power cord outer conductors to the outer brass colored terminals on the terminal block. Tighten both screws securely. WARNING: Do not make a sharp bend or crimp wiring/conductor at connections.
6. Reattach the strain relief mounting bracket to the back of the dryer with two screws. Tighten screws securely.
7. Tighten the screws securing the cord restraint firmly against the power cord.
8. Tighten the strain relief nut securely so that the strain relief does not turn.
9. Reinstall the terminal block cover.

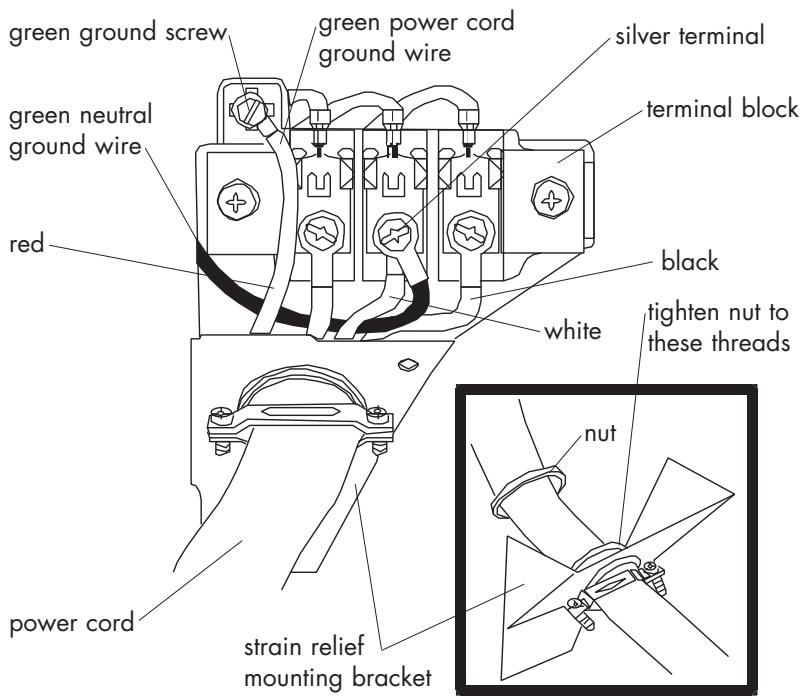

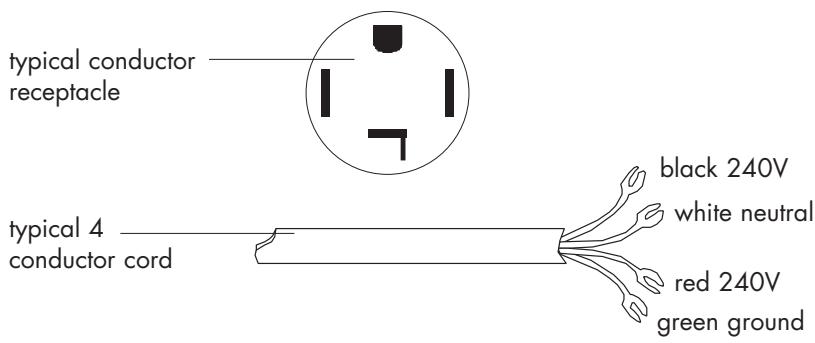

4-Wire Cord Connections

1. Remove the screws securing the terminal block access cover and the strain relief mounting bracket located on the back of the dryer upper corner.
2. Install a U.L. approved strain relief into the power cord entry hole of the mounting bracket. Finger tighten the nut only at this time.
3. Remove the green neutral ground wire from the green ground screw located above the terminal block.

30 AMP NEMA 14-30 TYPE SRDT OR ST

1. Thread a U.L. approved 30 Amp power cord, NEMA 14-30 type ST or SRDT through the strain relief.
2. Attached the green power cord ground wire to the cabinet with green ground screw.
3. Attached the white (neutral) power cord conductor from the power cord and the green ground wire from the dryer harness to the silver-colored center terminal on the terminal block. Tighten the screw securely.
4. Attached the red and black power cord conductors to the outer brass-colored terminals on the terminal block. WARNING: Do not make a sharp bend or crimp wiring/conductor at connections.
5. Tighten the screws securing the cord restraint firmly against the power cord.
6. Tighten the strain relief nut securely so that the strain relief does not turn.
7. Reinstall the terminal block cover.

Caution: Label all wires prior to disconnection, when servicing controls. Wiring errors can cause improper operations and be dangerous. Check unit for proper operation after servicing.

Warning: Discard or destroy the carton anbd plastic bags after the dryer is unpacked. Children should not be allowed to use them to play with. Cartons covered with rugs, bedspreads, or plastic sheets can become an airtight chamber and cause suffocation leading to death. Make all packing materials inaccessible to children.

Warning: The instructions in this manual and all other literature included with this dryer can not cover every possible condition and situation that may occur. Good safe practice and caution must be applied when installing, operating and maintaining any appliances. After installing, if you are in doubt, call a certified electrician to install and wire the dryer.

ELECTRICAL REQUIREMENTS (FOR CANADA)

(For Model HDY6-1C)

Warning

Electrical Shock Hazard

Plug into a grounded 4 prong outlet.

Failure to do so can result in death or electrical shock.

It is your responsibility

• To connect a qualified electrical installer.
• To be sure that the electrical connection is adequate and in conformance with CAN1-B149 (.1 or .2) installation codes and/or local codes.
• A 4 wire, single phase, 115/230 -volt, 60Hz , AC-only electrical supply is required on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect to an individual branch circuit.
• This dryer is equipped with a CSA International Certified Power Cord intended to be plugged into a standard 14-30R wall receptacle. The cord is 5 ft (1.52 m) in length. Be sure wall receptacle is within reach of dryer's final location.
• Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

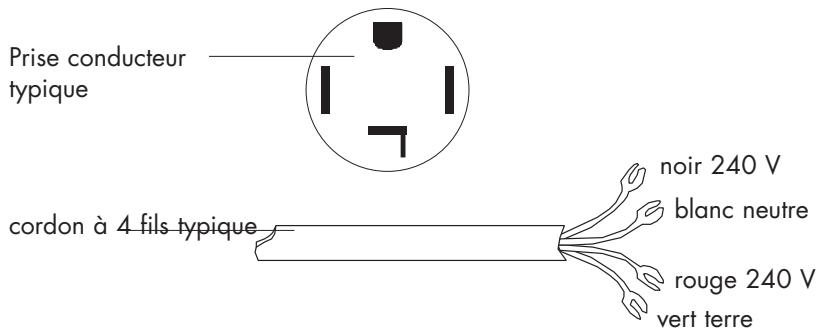

4-wire receptacle 14-30R

If using a replacement power supply cord, it is recommended that you use Power Supply Cord Replacement. For further information, please reference the service numbers located in the "Assistance or Service" section of this manual.

Replacement Power Supply Cord must be:

• UL Listed or CSA International Certified
• Marked for use with clothes dryers
• Rated 115/230 volt minimum
  30 amp
• Type SRD or SRDT
  4 Conductors
• At least 5 ft (1.52 m) long.

Grounding Instructions

• For a grounded, cord-connected dryer: This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric current. This dryer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Warning: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Save These Instructions

Preparation

Attention:

1. Before operation, clean inside the drum of the dryer by a wet towel.
2. Clean off debris on the filter screen and in the duct to increase the drying efficiency.

Turning on Power

Before turning on the power for the dryer, check:

• Whether the supply voltage is in accordance with the value indicated on the rating plate.
• Whether the supply receptacle can withstand the maximum power load to the dryer.
• Whether the supply receptacle is in accordance with the plug of the dryer. If not, replace the power supply cable or receptacle to make them accord with each other. The replacement of the power supply cable must be made by a state-certified electrician or our authorized service agent.
• The dryer must be grounded securely.

Drying Tips

Note: The average load will fill the drum 13 to 12 full. Clothes will need room to tumble freely for even drying and less wrinkling.

If you overload the dryer, you may cause damage to motor because it will not handle overloads and the dryer may not start at all. You may have to remove some portion of clothes and dry that separately. Your clothes may be wrinkled and take long time to dry. This may not be an efficient way to dry your clothes.

Preparing clothes for drying:

• Dry items of similar fabric, weight and construction in the same load.
• Separate dark-colored clothes from light-colored clothes.
• Separate clothes that shed lint from those that attract lint.
• Balance the dryer load evenly throughout the dryer for the best results.
• If your clothes have buckles, buttons and trim, make sure that they are HEATPROOF.
• To prevent snagging and tangling, make sure that you close zippers, fasten hooks, tie strings and sashes.
• Check if there are any stains on clothes that may not have been removed during washing. Sometimes dryer heat may permanently set some stains on clothes. Remove any stains prior to drying.
• When drying small items, place them in a heatproof mesh bag to prevent from tangling, getting stuck in small drum holes. This is very convenient for easy removal of small items.
• Always check that the lint filter is clean and in place properly to collect the lint from clothes.
• When drying large items such as blankets, bed sheets, draperies and curtains try to dry 2 to 3 at a time.
• Do not over dry clothes. It can cause wrinkling, shrinkage, stiffness and static electricity.

OPERATING INSTRUCTIONS

Control Panel

A - Program Knob

Turn this knob to choose the drying program you desire. This type of dryer has 15 program options available for you to choose. For description of specific programs, refer to the list of programs on Page 23. At the same time, this knob also serves as a power switch. When it is turned to "OFF" the power supply turns off; when the drying program is selected, the power supply turns on.

B - Start / Pause Button

After turning on the power, select the drying program you desire. Gently touch this button to start the dryer. Gently touch this button again during the operation of the dryer to pause. The indicator light and display screen will flash digits and the machine will be halted. Press the button again and the program will continue to operate.

C - Low Temp Button

Once this function is selected, the corresponding indicator light will be on and the low power heater will operate. During the operation of a program, the drying temperature will decrease so as to have a better care of the delicate laundry.

D - Wrinkle Saver Button

The dryer will start in the "Wrinkle Saver" Cycle. Here, after the drying cycle is complete, the dryers drum will rotate at a set interval to prevent wrinkles from setting in the clothes. To avoid using this feature press the wrinkle saver button before the program starts.

E - LED Screen

The screen displays the remaining time for a program, and other information.

Note: During the operation, with the variation of the factors such as the moisture content, the actual remaining time will be automatically adjusted until the preset drying result has been achieved and the program is complete.

F - Indicator Light for Drying

When this light is on, it indicates that the dryer is drying normally.

G - Indicator Light for Air Dry / Cool Down

When this light is on, it indicates that the dry cycles in the cold air cycle and will be complete soon.

C + D - Composite Button and Child Lock Function

During the operation of a program, you may press and hold down both buttons for 3 seconds to set up the child lock function if necessary. At this time, the display screen shows the remaining time and the lock alternatively, and the control panel will be locked. Press and hold down both buttons for 3 seconds once again and the child lock will release.

Programming Guide

AUTO DRY CYCLES	Program	Degree of Drying	Time	Recommended Laundry Type
	1	Very dry	2:00	Heavy cotton fabrics, sheets
	2	Dry	1:50	Cotton fabrics, sheets, coats
	3	Slightly damp	1:40	Ordinary cotton fabrics
	4	Ironing damp	1:30	Ordinary cotton fabrics
	5	Machine ironing damp	1:20	Ordinary cotton fabrics
	6	Very dry	1:00	Ordinary synthetic fabrics
	7	Dry	0:50	Ordinary synthetic fabrics
	8	Slightly damp	0:40	Ordinary synthetic fabrics
	9	Ironing damp	0:30	Ordinary synthetic fabrics
	10	Ironing damp	1:00	Blend fabrics
TIME DRY CYCLES	11	Timing drying for 20 minutes	0:20	Heavy fabrics, needing further drying
	12	Timing drying for 30 minutes	0:30	Heavy fabrics, needing further drying
	13	Timing drying for 40 minutes	0:40	Heavy fabrics, needing further drying
	14	Timing drying for 60 minutes	1:00	Heavy fabrics, needing further drying
	15	COLD	0:20	Delicate fabrics

Note:

1. Laundry drying time may extend or shorten depending on the following:

Fabric type
- Amount of loaded fabrics
- Degree of spinning dry of fabrics
- Ambient temperature

1. Before the laundry is dried, check the labels on the fabrics carefully. Do not put those that cannot be dried by a machine into the dryer to dry them, particularly delicate fabrics. Too high temperatures may cause damage to them.

Operational Steps

1. Turning on Power

Operating power supply is (220-240)V\~/60Hz.

2. Laundry Loading

Open the door and place the laundry into the drum of the dryer. To save energy and achieve a better drying result, please spin dry the laundry during washing as dry as possible. Place the laundry evenly into the drum after shaking it loose.

Note: Do not put excess laundry into the dryer to avoid damage to the dryer and laundry.

3. Setting Drying Program

Turn the program knob to set an optimal drying program according to the laundry type and the drying result desired to achieve.

4. Low Temp Setting

For delicate laundry that needs special care, choose this function. Once this function is selected, the drying program will operate with a low heating power and the drying temperature will be low too. The drying time will automatically increase by 20 minutes.

5. Wrinkle Saver Setting

You may choose this function to prevent wrinkles from setting in the clothes.

6. Program Operation

After a program is set, gently touch the Start/Pause button to start the program.

7. Program Completion

Before the drying program comes to an end, the dryer will enter in the cold air cycle where the heating will stop.

After the program is complete, the display screen will display "End" and a beeping sound will alert you. Open the door to remove the laundry.

When wrinkle saver function is chosen, if the laundry is not removed in time after the drying program is complete, the dryer will start in the anti-wrinkle protection cycle automatically.

In the anti-wrinkle protection cycle, the dryer's drum will run in a set interval to keep your laundry loose.

8. Turn off the Dryer

Turn the program knob to the "OFF" position to cut off the power supply and turn off the dryer.

Normal Operating Sounds

The following sounds are normally heard during the operation of the dryer:

• Tumbling sounds. This is normal as the heavy wet clothes in the dryer are continuously being tossed around.
• Air rushing noise. This happens as the dryer drum spins at very high RPM and the air is rushing through the dryer drum.
• Timer clicks may be heard.

Energy Saving Tips

• Keep the lint screen clean and exhaust the dryer properly.
• Sort load batches properly and select proper temperature and cycle settings.
• Avoid overloading, adding wet clothes to a partially dry load, or over drying.
• If you have multiple loads to dry, try to dry one load after another right away to take an advantage of a warm dryer. This way you already have a warm dryer and you save time for drying.
• Do not open door needlessly because it causes warm/hot air to escape which prolongs drying time.
• Use dryer during low humidity because it will be a normal drying time due to less moisture in the air, rather than during high humidity days where the air is very moist.

CLEANING AND MAINTENANCE

1. Cleaning the Surface

Wipe off the dust from the body of the dryer and the surface of the main control panel using a soft cleaning cloth. Remember not to use any organic solvent or corrosive agent in cleaning to avoid damage to the machine.

1. Cleaning theLint Filter

To ensure good ventilation during drying, the lint filter must be cleaned once every drying program is complete.

Open the door to remove the lint filter from the machine. Clean off the lint on the filter and handle using a wet towel. After cleaning, put the filter back in place.

1. Cleaning the Drum

After the dryer has operated for some time, fabric caring agents or calcium contained in the water will form an almost invisible segregation layer on the inside of the drum.

This makes the dryer not able to reliably and accurately identify the dryness of the laundry. So the inside of the drum, especially the stainless steel pieces on the blades, must be cleaned regularly by a wet cloth.

TROUBLESHOOTING

Dryer does not operate:

• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in "Pause" mode. Press Start button again.
• Check if door is open.

Dryer is working but not drying the clothes:

• Check if the proper drying settings have been selected.
• Unit may be over loaded. The dryer drum should only be half full.
• Check exhaust ducts and vent. Vent should be free of all obstructions.
• Duct should be lint and dust free. Ducts should be cleaned regularly.
• Dryer load needs to be resorted. Heavy clothes may need to be separated from regular clothes.
• Bulky clothes may require repositioning.
• If clothes dry unevenly a higher dry setting may be required or clothes in the dryer may need to be resorted.

Dryer making noise when drying:

• Coins, loose change, buttons and other heavy objects could make noise.
• Dryer may need to be leveled evenly. Read Operating Guide - Normal Operating Sounds.

Static:

• Caused by over drying. Adjust for shorter drying time.
• Mixed with synthetic fabric. Sort and separate different fabrics.
• Use a fabric softener.

The remaining time display is halted, or the remaining time displayed by skipping degradation:

• The remaining time will be adjusted and corrected continuously and automatically based on the following:

Type of laundry
- Loaded amount
- The degree of spinning dry of laundry
- Ambient temperature

• The automatic adjustment is a normal operation.

Prompt and Alarm Information

In case of an improper operation or trouble with the machine when it operates, the code corresponding to the problem will be displayed on the display screen:

Code	Category	Cause	Solutions
E1	Prompt Code	The door is not closed tightly	Shut the door tightly and restart the machine
E2	Trouble Code	There is no change in the temperatures of the laundry in the tub	Contact a professional serviceman
E3	Trouble Code	The laundry is not dried	Contact a professional serviceman
E5	Trouble Code	The thermal sensor open-circuited or short circuited	Contact a professional servicemen

Note: All information except for E1 requires turning off the power and then restarting the machine to cancel the code.

SPECIFICATIONS

Item / Type	HDY6-1 / HDY6-1C
Power Supply	(220-240)~/60Hz
Maximum Operating Current	15A
Drum Capacity	3.5 Cu. Ft.
Drying Program	15
Maximum Power	2800 Watts
Dimensions (HxDxW) inches	33-1/2 x 23-7/16 x 24-3/8
Weight (lbs.)	83.8
Waterproof Level	IPx4

LIMITED WARRANTY

Full ONE Year In-Home Warranty

For 12 months from the date of original retail purchase, Haier will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship.

Limited Warranty

After one year from the original retail purchase date, Haier will provide a part at no cost, as indicated below, to replace said part as a result of a defect in materials or workmanship. Haier is responsible solely for the cost of the part. All other costs such as labor, trip charge, etc are the responsibility of the owner.

Second Year

Haier will provide All Parts.

Third through Fifth Year

Haier will provide the drive motor or timer. Haier will provide the dryer drum should the drum rust through.

Third through Tenth Year

Haier will provide the cabinet assembly should the cabinet rust through.

NOTE: This warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service representative before warranty repairs are rendered.

Exceptions: Commercial or Rental Use Warranty

90 days labor from date of original purchase. Excludes in-home trip charge. 90 days parts from date of original purchase. No other warranty applies.

For Warranty Service

Contact your nearest authorized service center. All service must be performed by a Haier authorized service center. For the name and telephone number of the nearest authorized service center please call 1-877-337-3639.

Before calling please have available the following information:

Model number and serial number of your appliance (found on the rear of the unit on the upper left hand side).

The name and address of the dealer you purchased the unit from and the date of purchase.

A clear description of the problem.

A proof of purchase (sales receipt).

This warranty covers appliances within the continental United States, Puerto Rico and Canada.

What is not covered by this warranty:

Replacement or repair of household fuses, circuit breakers, wiring or plumbing A product whose original serial number has been removed or altered Premium service charges not specifically identified as normal, such as outside normal service area or hours.

Damage to clothing

Damage incurred in shipping

Damage caused by improper installation or maintenance

Damage from misuse, abuse accident, fire, flood, or acts of nature

Damage from service other than an authorized Haier dealer or service center

Damage from incorrect electrical current, voltage or supply

Damage resulting from any product modification, alteration or adjustment not authorized by Haier

Adjustment of consumer operated controls as identified in the owners manual Hoses, knobs, lint trays and all attachment accessories and disposable parts

Labor, service transportation, and shipping charges for the removal and replacement of defective parts beyond the initial 12-month period

Damage from other than normal household use

Any transportation and shipping charges.

THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTYES, EXPRESSD OR, INCLUDING THE WARRANTYS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies.

This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.

Haier America Trading

New York, NY 10018

CONSIGNES DE SECURITE IMPORTANTES

30 AMP NEMA 14-30 TYPE SRDT OR ST

El tiempo restante es parado, or the remaining time displayed by skipping regression:

If you have a problem with this product, please contact the "Haier Customer

Satisfaction Center" at 1-877-337-3639.

DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE

IMPORTANT
