USER MANUAL GDG 750 AW HAIER

Very More Normal Less Damp No Heat

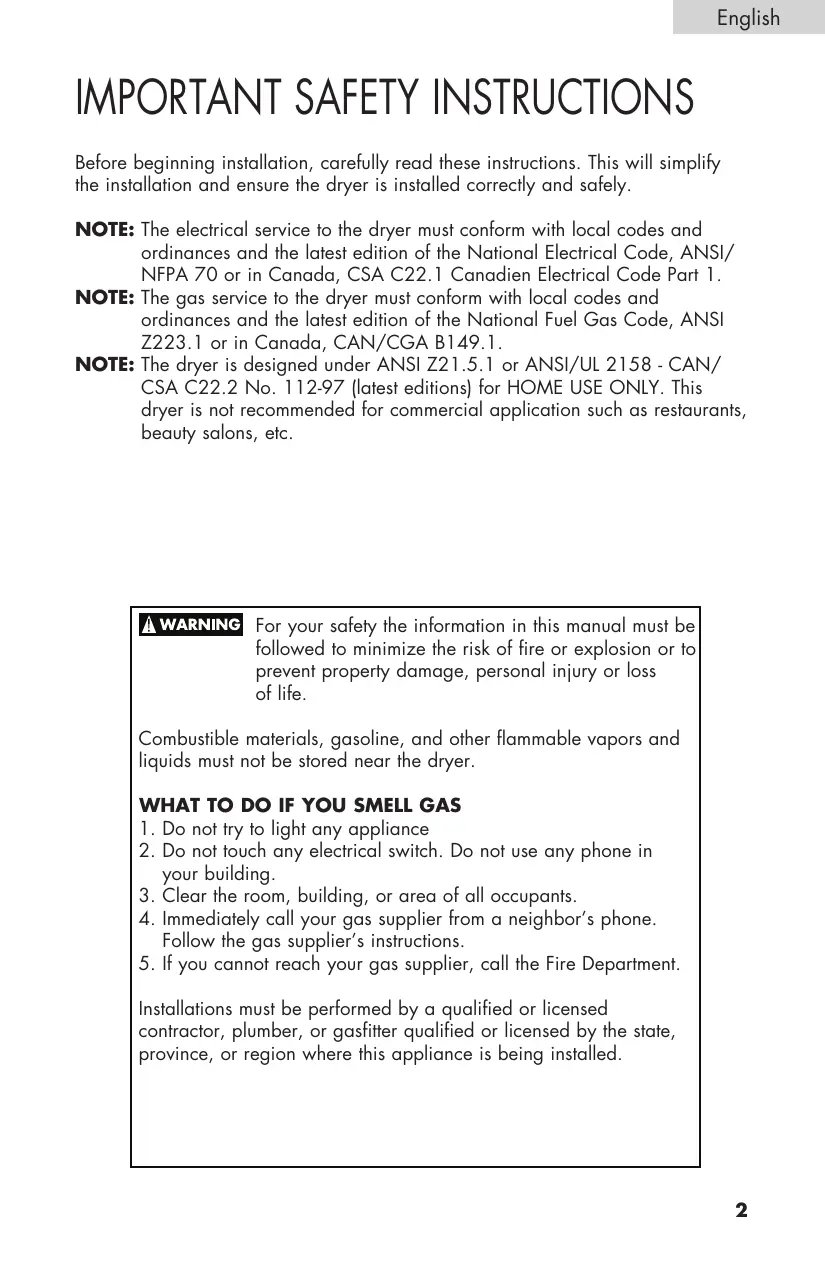

IMPORTANT SAFETY INSTRUCTIONS

Before beginning installation, carefully read these instructions. This will simplify the installation and ensure the dryer is installed correctly and safely. NOTE: T he electrical service to the dryer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/ NFPA 70 or in Canada, CSA C22.1 Canadien Electrical Code Part 1. NOTE: The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas Code, ANSI Z223.1 or in Canada, CAN/CGA B149.1. NOTE: The dryer is designed under ANSI Z21.5.1 or ANSI/UL 2158 - CAN/ CSA C22.2 No. 112-97 (latest editions) for HOME USE ONLY. This dryer is not recommended for commercial application such as restaurants, beauty salons, etc. For your safety theADVERTISSMENT information in this manual must be ADVERTENCIA followed minimize the risk of fire or explosion or to ADVERTENCIA prevent property damage, personal injury or loss ofPRECAUCIÓN life. ATTENTION PRECAUCIÓN PRECAUCIÓN Combustible materials, gasoline, and other flammable vapors and liquids must not be stored near the dryer. WHAT TO DO IF YOU SMELL GAS

1. Do not try to light any appliance

2. Do not touch any electrical switch. Do not use any phone in

3. Clear the room, building, or area of all occupants.

4. Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

5. If you cannot reach your gas supplier, call the Fire Department.

Installations must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the state, province, or region where this appliance is being installed.

English IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow the basic precautions, including the following:

Read all of the instructions before using this appliance.

2. Don’t dry articles that have been previously cleaned in, washed in,

soaked in, or spotted with gasoline, dry clean solvents or other flammable explosive sub stains as they give off vapors which could ignite or explode.

3. Do not allow children to play on or in the appliance. Close

supervision of children is necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove

the door to the drying compartment.

Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to

water and/or to the weather.

Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any

servicing unless specifically recommended in the user-repair instructions that you understand and have skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless

recommended by the manufacturers of the fabric softener or product.

10. Do not use heat to dry articles or products to eliminate static unless

recommended by the manufacturers of the fabric softener or product.

11. Clean lint screen before or after each load.

12. Keep area around the exhaust opening and adjacent surrounding

areas free from the accumulation of lint, dust and dirt.

13. Keep the dryer area clear and free from items that would obstruct

the flow of combustion and ventilation air through the louvered panel located on the rear of the dryer.

14. The interior of the appliance and the exhaust duct should be cleaned

periodically by qualified service personnel.

15. Do not place items exposed to cooking oils in your dryer. Items

contaminated with cooking oil may contribute to a chemical reaction than could cause a load to catch fire.

16. If material has been used with any flammable liquids or solids, it

should not used in the dryer until all terraces of flammable liquids and its fumes have been removed.

17. T his dryer must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the installations sections.

18. P

roper grounding must be ensured to reduce the risk of electric shock and force. Check with a qualified electrician or service personnel if you are in doubt as to whether the dryer is properly grounded.

19. Use the dryer only for its intended purpose: drying clothes.

20. A

lways disconnect dryer from electrical supply before attempting any service. Disconnect power cord by grasping the plug, not the cord.

21. Replace worn power cord and/or loose plugs.

22. T o reduce the risk of electric shock or fire, do not use extension cords

or adapters to connect dryer electrical power source. SAVE THESE INSTRUCTIONS DANGER Risk of child entrapment. Before you throw away your old dryer, take off the door so that children may not get trapped inside. Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use of your dryer. Remember to record the model and serial number. They are on a label in back of the dryer. Model number Serial number Date of purchase Staple your receipt to your manual. You will need it to obtain warranty service.

English ADVERTENCIA ADVERTISSMENT PRECAUCIÓN dryer installation must be performed by a qualified installer.

2. Install the clothes dryer according to the manufacturer’s

instructions and local codes.

3. T o reduce the risk of severe injury or death, follow all installation

SAVE THESE INSTRUCTIONS

Tools and materials required

Phillips-Head and flathead screwdrivers

Channel-lock adjustable pilers

1/2-inch open-end wrench

Measuring tape (12ft. min.)

Pipe thread sealer (Gas)

Rigid or flexible metal 4 inch (102cm) duct

Vent hood Safety Warning:

1. B

efore starting installation, make sure that the gas shut off valve is in the off position.

2. All old gas connectors and gas piping should be discarded.

(GDE750AW and GDE950AW) Circuit Individual 30 Amp branch circuit fused with 30 Amp time-delay fuses or circuit breakers. Use seperately fused circuits for washers and dryers, and DO NOT operate a washer and dryer on the same circuit. Power Supply 3 or 4 wire, 240 Volt, 1 Phase, 60Hz, AC (Canada - 240 Volt, 1 Phase, 60 Hz, AC) Power Supply Cord Kit (Not supplied when sold in US. Must be purchased to meet local electrical codes.) The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 Type SRDT rated at 240 Volt AC minimum, 30 Amp, with 3 open end spade lug connectors with

English upturned ends or closed loop connectors and marked for use with clothes dryers. (When sold in Canada - 4-wire power supply cord provided and attached on dryer) Dryers being installed in a manufactured (mobile) home MUST employ a 4wire power supply cord NEMA 14-30 type SRDT or ST (as required) rated to 240 Volt AC minimum, 30 Amp, with 4 open-end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. See Electrical Connections for more information on a 4-wire system. Outlet Receptacle NEMA 10-30R receptacle should be located so the power supply cord is accessible when the dryer is in the installed position. (Canada - NEMA 14-30R receptacle) (GDG750AW and GDG950AW) Circuit Individual 15 Amp branch circuit fused with 15-Amp maximum time delay fuse or circuit breakers. Power Supply 3 wire, 120 Volt, 1 Phase, 60Hz, AC Power Supply Cord The dryer is equipped with a 120 Volt 3-wire power supply cord. Note: T his dryer is equipped with a three-prong grounding plug for your protection against shock hazard and should be plugged into a properly grounded three-prong receptacle. Do not under any circumstance cut or remove grounding prong from plug. Unpacking Your Dryer

1. R

emove all packaging material. This includes the foam base and all adhesive tape holding the dryer accessories inside and outside.

2. Inspect and remove any remains of packaging, tape or printed materials

before using the dryer.

English WARNING The following are specific requirements for proper and safe operation of your dryer. Failure to follow these instructions can create excessive drying times and fire hazards.

1. D

o not use plastic flexible duct to exhaust the dryer. Excessive lint can build up inside exhaust system and create a fire hazard and restrict air flow. Restricted air flow will increase drying time. If your present system is made up of plastic duct or metal foil duct, replace it with a rigid or flexible metal duct. Ensure present duct is free of any lint prior to installing dryer duct.

2. T he dryer must not be exhausted into any gas vent, chimney, wall, ceiling or

any concealed space of a building. The dryer exhaust system MUST be exhausted to the outdoors. If the dryer is not exhausted outdoors, some fine lint will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fire hazard.

3. E

xceeding the length of duct pipe or number of elbows allowed in the “Maximum Length” chart can cause an accumulation of lint in the exhaust system. Plugging the system could create a fire hazard, as well as increase drying times.

4. D

o not screen the exhaust ends of the vent system. Lint can become caught in the screen, increasing drying time. Use an approved vent hood to terminate the duct outdoors, and seal all joints with duct tape.

5. All male duct pipe fittings must be installed downstream with the flow of air.

6. E

xhaust duct must not be connected or secured with screws or other fastening devices which extend into the interior of the duct.

7. D

o not allow combustible material (clothing, draperies/curtains, paper, etc.) to come in contact with exhaust system. xplosion hazard: Do not install the dryer where gasoline or other flammables are kept or stored. If the dryer is installed in a garage, it must be a minimum of 18 inches (45.7cm) above the floor. Failure to do so can result in death, explosion, fire or burns. Exhaust Requirements: se only 4 inch (10.2cm) diameter (minimum) rigid of flexible metal duct and approved vent hood which has a swing-out damper hat open when the dryer is in operation. When the dryer stops, the dampers automatically close to prevent drafts and the entrance of insects and rodents. To avoid restricting the outlet,

English maintain a minimum of 12 inches (30.5cm) clearance between the vent hood and the ground or any other obstruction. The vent flap should be able to move freely, although vertical orientation of the exhaust system is acceptable. Certain extenuating circumstances could affect the performance of the dryer:

1. Only rigid metal duct work should be used.

2. V

enting vertically through a roof may expose the exhaust system to down drafts causing an increase in vent restriction.

3. R

unning the exhaust system through an uninsulatedarea may cause condensation and faster accumulation of lint.

4. C

ompression of crimping of the exhaust system will cause an increase in vent restriction. T he exhaust system should be inspected and cleaned a minimum of every 12 months with normal usage. The more the dryer is used the more often you should check the exhaust system and vent hood for proper operation. Use only for short run installations Replace copper ADVERTISSMENT connecting pipe that is not plastic ADVERTENCIA coated. Stainless steel or plastic-coated brass MUST ADVERTENCIA be used. PRECAUCIÓN CAUTION MUST 1.Installation conform withATTENTION local codes. In the absence of local codes, installation conform with the National Fuel Gas Code, ANSI Z223.1 (latest PRECAUCIÓN PRECAUCIÓN CAUTION must edition) or in Canada, the current CAN/CGA B149.1

2. The gas supply line should be 1/2 inch (1.27cm) pipe.

3. If codes allow, flexible metal tubing may be used to connect your dryer to the

gas supply line. The tubing MUST be constructed of stainless steel or plasticcoated brass.

4. T he gas supply line MUST have an individual manual shutoff valve installed

within 6 feet (183cm) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54. In Canada, an individual manual shut-off valve MUST be installed in accordance with the B149.1, Natural Gas and Propane Installation Code.

5. A

1/8 inch (0.32cm) N.P.T. plugged tapping, accessible for test gauge connection, MUST be installed immediately upstream of the gas supply connection to the dryer.

6. T he dryer MUST be disconnected from the gas supply piping system during

any pressure testing of the gas supply piping system at test pressures in excess of 1/2 psig (3.45kPa).

7. T he dryer MUST be isolated from the gas supply piping system during any

pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.45 kPa).

LOCATION OF YOUR DRYER

Do Not Install Your Dryer:

1. In an area exposed to dripping water or outside weather conditions.

2. In an area where it will come in contact with curtains, thick carpet, or anything

that will obstruct the flow of combustion and ventilation air.

3. O

n carpet, floor must be solid with a maximum slope of 1inch (2.54 cm). Any floor unevenness should be corrected with leveling legs located on the bottom of the dryer. Installation in Alcove or Closet:

1. DO NOT install your dryer in a closet with a solid door.

2. A

dryer installed in a bedroom, bathroom, alcove or closet MUST be exhausted outdoors.

3. N

o other fuel burning appliance shall be installed in the same closet as the gas dryer.

4. R

efer to the images on this page to ensure the installation provides the minimum amount of clearance required for ventilation.

5. W

hen installing the dryer in a closet with a door, a minimum of 120 square inches (774.2 square cm) of ventilation in the door is required. Openings must be equally divided at the top and bottom of the door and airflow must be unobstructed. A louvered door with equivalent air openings for the length of the door is acceptable.

MANUFACTURED (MOBILE) HOME INSTALLATION

1. D

ryer MUST be exhausted outside (outdoors, not beneath the manufactured home) using metal ducting that will not support combustion. Metal ducting must be 4 inch (10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred.

2. If dryer is exhausted through the floor and area beneath the manufactured

home is enclosed, the exhaust system MUST terminate outside the enclosure with the termination securely fastened to the mobile home structure.

3. W

hen installing a gas dryer into a manufactured home, a provision must be made for outside make up air. This provision is to be not less than twice the area of the dryer exhaust outlet.

4. T his dryer MUST be fastened to the floor using P/N 0030807899

Manufactured Home Installation Kit. Follow the instructions supplied with the kit.

5. Refer to previous sections for other important venting requirements.

6. Installation must conform to current Manufactured Home Construction & Safety

Standard (which is a Federal Regulation Title 24 CFR-Part 32-80) or when such standard is not applicable, with American National Standard for Mobile Homes. In Canada, the CSA Z240 is applicable.

English ELECTRICAL INSTALLATION WARNING The following are specific requirements for proper and safe electrical installation of your dryer. Failure to follow these instructions can create electrical shock and/or fire hazard. ELECTRIC Dryer (GDE750AW and GDE950AW)

1. T his appliance must be properly grounded. Electrical shock can result if the

dryer is not properly grounded. Follow the instructions in this manual for proper grounding.

2. D

o not use an extension cord with this dryer. Some extension cords are not designed to withstand the amounts of electrical current this dryer utilizes and can melt, creating electric shock and/or fire hazard. Locate the dryer within reach of the receptacle for the length power cord to be purchased, allowing some slack in the cord. Refer to the electrical requirements in this manual for the proper power cord to be purchased.

3. A

UL approved strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.

4. D

o not use an aluminum wire receptacle with copper-wired power cord and plug (or vice versa ). A chemical reaction occurs between copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper-wired power cord with a copper-wired receptacle. Note: Dryers operating on 208 Volt power supply sill have longer drying times than operation on 240 Volt power supply. WARNING CAUTION ADVERTENCIA ADVERTISSMENT Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed ADVERTENCIA electrician if you are in doubt as to whether the appliance is properly grounded. (GDG750AW and GDG950AW)

1. G

as dryers are equipped with a factory installed three-prong 15 Amps ~120 Volts (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

English ELECTRICAL CONNECTIONS ELECTRIC Dryer (GDE750AW and GDE950AW) 3-Wire System (US models only)

1. R

emove the screws securing the terminal block access cover and the strain relief mounting bracket located on the back of the dryer’s upper corner.

2. Install a U.L. approved strain relief into the power cord entry hole of the

mounting bracket. Finger tighten the nut only at this time.

3. T hread a U.L. Approved 30 Amp. Power cord, NEMA 10-30 Type SRDT,

through the strain relief.

4. A

ttach the power cord neutral (center wire) conductor to the brass colored center terminal on the terminal block. Tighten the screw securely.

5. A

ttach the remaining two power cord outer conductors to the outer brass colored terminals on the terminal block. Tighten both screws securely.

Warning: Do not make a sharp bend or crimp wiring/conductor

6. R

eattach the strain relief mounting bracket to the back of the dryer with two screws. Tighten screws securely.

7. Tighten the screws securing the cord restraint firmly against the power cord.

8. Tighten the strain relief nut securely so that the strain relief does not turn.

9. Reinstall the terminal block cover.

Green Ground Screw Brass Terminal Terminal Block Neutral Ground Wire Nut Tighten Nut to These Threads Power Cord Strain Relief Mounting Bracket

English ELECTRIC Dryer (GDE750AW and GDE950AW) 4-Wire Cord Connections (US Models Only) Green Ground Screw Green Power Cord Ground Wire Brass Terminal Terminal Block Neutral Ground Wire Black Tighten Nut to These Threads White Red Nut Power Cord Strain Relief Mounting Bracket

1. R

emove the screws securing the terminal block access cover and the strain relief mounting bracket located on the back of the dryer upper corner.

2. Install a UL approved strain relief into the power cord entry hole of the

mounting bracket . Finger tighten the nut only at this time.

3. R

emove the green neutral ground wire from the green ground screw located above the terminal block. Typical Conductor Receptacle Black 240V White Neutral Typical 4 Conductor Cord Red 240V Green Ground

4. Thread a U.L. approved 30 Amp power cord. NEMA 14-30 type ST or SRDT

through the strain relief.

5. Attach the green power cord ground wire to the cabinet with green ground screw.

6. Attach the white (neutral) power cord conductors to the outer cord and the

green ground wire from the dryer harness to the brass-colored center terminal on the terminal block. Tighten the screw securely.

7. Attach the red and black power cord conductors to the outer brass-colored terminals

on the terminal block.

Warning: Do not make a sharp bend or crimp the wiring /conductor at

8. Tighten the screws securing the cord restraint firmly against the power cord.

9. Tighten the strain relief nut securely so that the strain relief does not turn.

10. Reinstall the terminal block cover.­

(GDG750AW and GDG950AW) NOTE: DO NOT connect the dryer to L.P. gas service without converting the gas valve. An L.P. Conversion Kit must be installed by a qualified gas technician.

1. Remove the shipping cap from gas pipe at the rear of the dryer.

2. C

onnect a 1/2 inch (1.27cm) I.D. semi-rigid or approved pipe from gas supply line to the 3/8 inch (0.96cm) pipe located on the back of the dryer. Use a 1/2 inch to 3/8 inch (1.27cm to 0.96cm) reducer for a connection. Apply an approved thread sealer that is resistant to the corrosive action of liquified gases on all pipe connections.

3. Open the shutoff valve in the gas supply line.

4. T est all connections by brushing on a soapy water solution. NEVER TEST FOR GAS

LEAKS WITH AN OPEN FLAME.

5. C

onnect the exhaust duct to the outside exhaust system. Use duct tape to seal all joints.

6. W

ith the dryer in its final position, adjust one or more of the legs until the dryer is resting solid on all four legs. Place a level on top of the dryer. THE DRYER MUST BE LEVEL AND RESTING SOLID ON ALL FOUR LEGS. ADVERTISSMENT

7. P

lug the power ADVERTENCIA cord into a grounded outlet. NOTE: check to ensure power is OFF at circuit breaker/fuse box before plugging the power cord into the outlet. WARNING ADVERTENCIA

8. Turn on the power at the circuit breaker/fuse box.

CAUTION CAUTION PRECAUCIÓN efore operating theATTENTION dryer, make sure the dryer area is clean and free from combustible materials, gasoline, and other flammable vapors. Also PRECAUCIÓN PRECAUCIÓN see that nothing (such as boxes, clothing, etc.) obstructs the flow of combustion and ventilation air through the louvered panel located on the rear of the dryer.

9. Run the dryer through a cycle check for proper operation.

NOTE: O n gas dryers, before the burner will light, it is necessary for the gas line to be bled of air. If the burner does not light within 45 seconds the first time the dryer is turned on, the safety switch will shut the burner off. If this happens, turn the dryer to “OFF” and wait 5 minutes before making another attempt to light. NOTE: Follow instructons supplied with kit.

English CONNECTING THE DRYER TO THE GAS SUPPLY A) Connect female 3/8” NPT elbow to gas inlet on dryer. Then connect 3/8” flare union adapter to female elbow. IMPORTANT: T o prevent the inlet from twisting, please use a pipe wrench to secure the dryer gas inlet. Affix Teflon® tape or pipe compound to adapter and gas inlet. B) A ttach the flexible metal gas line connector to the adapter. C) M ake sure flexible gas line seal is secure. Use two wrenches for the best possible connection. D) T o check gas inlet pressure, attach 1/8” NPT plugged tapping to dryer gas line shutoff valve. Then connect flare union adapter to plugged tapping. Affix Teflon® tape to the threads of the adapter and plugged tapping to ensure seal. E) U se two adjustable wrenches to tighten every connection. IMPORTANT: Do not overtighten! F) Open gas shut-off valve.

English REPLACEMENT PARTS ADVERTENCIA ADVERTISSMENT Replacement parts and accessories for US and Canada can be purchased WARNING ADVERTENCIA through Haier America at 1-800-313-8495 CAUTION CAUTION PRECAUCIÓN Label all wires priorATTENTION to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Check PRECAUCIÓN PRECAUCIÓN unit for proper operation after servicing. ADVERTENCIA iscard or destroyADVERTISSMENT the carton and plastic bags after the dryer is ADVERTENCIA unpacked. Children should not be allowed to use them to play with. Cartons covered in rugs, bedspreads or plastic sheets can become anPRECAUCIÓN airtight chamberATTENTION and cause suffocation leading to death. Make allPRECAUCIÓN packing materials inaccessible to children. PRECAUCIÓN ADVERTENCIA The instructions in ADVERTISSMENT this manual and all other literature included with ADVERTENCIA this dryer can not cover every possible condition and situation that may occur. Good safe practice and caution must be applied when installing, operating, and maintaining any appliance. If you are in PRECAUCIÓN ATTENTION doubt after installing, call a certified electrician to install and wire PRECAUCIÓN PRECAUCIÓN the dryer. English OP E R AT ING INS T R UC T IONS Understanding the C ontrol Panel G DE/ G DG 9 5 0 AW Super C apacity Heavy Duty Press Free High Dry N ormal Delicate W hites Touch Up Timed Dry C ustom Rack Dry W rinkle Saver C ool Down Bulky Auto Dry C ycles

Very More Remaining Time Timed Dry C ycles Less Time

Extended Tumble W rinkle Saver

Medium Louder Low Softer N o Heat O ff N ormal Less C ycle C ompleted Damp Sensor Dry Level

N o te : Features may vary per model. S ta r t/ P a u s e B u tto n : (1 )

• Press the button to turn the dryer O N . Press this button once to start the dry process. Press this button once again to pause the activity during the dry cycle. O ff B u tto n : (2 )
• Press the button to turn dryer off. S ig n a l B u tto n : (3 )
• Selects buzzing volume or turns off the buzzer. You can choose louder, softer, or off. Te m p B u tto n : (4 )
• Used to set drying temperature. There are 4 available drying temperatures: High, Medium, Low, and N o Heat (Air Dry). S e n s o r Dr y Le v e l B u tto n : (5 )
• Used to set drying level of auto-programs. If no auto-program is selected, pressing the button will cause the chime to sound. There are 5 selections: Very, More, N ormal, Less, Damp. W r in k le S a v e r B u tto n : (6 )
• This convenient feature helps keep wrinkles from setting when you cannot unload the dryer at the end of a cycle. The dryer will stop and then tumble for a brief period every few minutes. Press the wrinkle saver button to choose the number of hours required, from 3 to 2 4 . Stop the setting at any time by pressing the wrinkle saver button or opening the dryer door.
• If not set, the wrinkle saver indicator is off and remaining time indicator is on.
• The LED display indicates the remaining time of non-reserved program. If setting “ W rinkle Saver” in standby status, the LED display indicates 3 hr, which will increase by 1 hr with each press until 2 4 hours is reached It will then return to 3 . If held for 1 . 5 seconds, the LED display indicated value will increase continuously.

English More Time & Less Time Button: (7)

• Used to set time from 0 to 180 minutes when Timed Dry or Rack Dry cycle selected. Timed-Dry Cycles Button: (8)
• The “Timed-Dry Cycles” button will let you select your desired dry mode. Timed Dry: You can set status of “Temp”, “Signal” and dry time with “More Time” and “Less Time” by yourself. Rack Dry: This program is used to dry articles like sport shoes. Auto-Dry Cycles Button: (9)
• “Auto-Dry cycles” button will let you select your desired dry cycles. For your convenience, there are seven fabric care dry cycles programmed in this mode: Heavy Duty, Normal, Whites, Bulky, Press-Free, Delicate, Touch-up, and Custom. Heavy Duty Heavy weight material such as jeans or bath towels. Normal Normal drying Whites For clothes such as linens and sheets.. Bulky Drying bulky clothing, such as bed sheets. Press Free For wrinkle-free, permanent press, and knits.. Delicate Drying small quantity clothes and delicate fabric. Touch Up Used to select wrinkle-remove function. Custom The drying program defined by user and stored. Status lights: (10)
• Status lights note which part of the cycle the machine is in. Digital display: (11)
• Indicates the remaining time (min) during cycle operation. Also indicates remaining wrinkle saver time (hr). Note: If door is opened during running cycle, the display will show “E2” and sound an alarm. Function Light Indicator:
• The function “display light” indicates selected feature is “ON” or the cycle is about to begin.
• During the dry cycle, “flashing light” indicates current running program.
• Rapidly flashing light indicates that the dryer is not operating properly.

English GDE/GDG 750AW Cycle Select Off Timed D ry More No rmal Less

Softer Low Dry Level Clean Lint

Heavy Duty High Rack D ry Cool Down Off

Normal Drying W rinkle Saver

No Heat Signal Temp Touch Up Cycle Process Timed D ry Whites Delicates Timed Dry

Note: Features may vary per model. Dry Levels: (1)

• Used to set drying levels of auto programs. There are 3 selections: More, Normal, and Less Temp Button: (2)
• Used to set drying temperatures. There are four available drying temperatures to choose from: High, Medium, Low, and No Heat. Start/Pause,

• Select the from 4 Auto-Dry cycles (Heavy Duty, Normal, Whites and Delicates), Touch Up, Time Dry, or Rack Dry Cycle. Heavy Duty Heavyweight material such as jeans or bath towels. Normal Normal drying Whites For whites such as linens and sheets Delicate Drying small quantity clothes and delicate fabric. Touch Up Used to select wrinkle-remove function. Timed Dry: (4)
• When Cycle Select dial is on Time or Rack Dry, the “Timed Dry” button can be used to select the amount of time required for the dry program. Signal: (5)

• This feature selects the buzzing volume or turns off the buzzer entirely. There are three choices: Louder, Softer, or Off. Cycle Process: (6)

• This indicates the process the cycle is currently in. The “Clean Lint” indicator is lit when the dryer is powered on. This is a reminder to clean the lint filter before the dry program starts.

PREPARATIONS BEFORE DRYING

• Sort clothes of the same kind (cotton, synthetics, woolen) to dry. ark and light colored clothes should be separately dried. Fabrics prone to losing lint and those prone to adhering lint shall be separately dried. Clothes prone to falling lint should be turned inside out before putting into the dryer. ake sure buttons and ornaments on the clothes are high temperature resistant and won’t damage drum surface. Before loading, the clothes should have their zippers zipped up, buttons and hooks done up and belts tied so as to avoid entanglement or other obstacles.
• If possible, turn out the clothes pockets for uniform drying. heck if clothes remain soiled. If so, wash them again, otherwise soils may be permanently set. mall articles should be collected in a mesh bag before loading and drying, so as to avoid entanglement and ensure easy removal. ake sure the power socket is reliably grounded. The grounding terminal should not be connected to gas or tap water pipelines.
• Make sure exhaust duct has been properly connected. ake sure lint filter is clean and properly installed. If lint filter is not in place, tumbling items could enter the exhaust system and cause damage to the dryer. Note: Applies to Auto Dry cycle and Timed Dry cycle.
• F or Rack Dry cycle, remove the lint filter and assemble the drying rack with its rear end slightly downward inclined. The configuration is as shown in the following figure:

LOAD CLOTHES INTO DRYER

• T he appropriate load should be 1/3 ~ 1/2 of the drum volume. Avoid too much load, as space is needed to allow clothes free rotation for uniform and wrinkle-proof drying. hen drying big articles, only 2-3 pieces should be loaded at a time and supplemented with small and medium-sized articles.
• F or delicate clothes or less load, two towels may be added to get better drying and wrinkle-proof effects. o not excessively dry clothes to avoid wrinkles, shrinkage, roughness, electro-static charge accumulation, and/or more lint. Rack Dry cycle
• T his program is designed specially for articles like sport shoes. During drying, please make sure the articles are placed on the rack with no risk of entangling the baffles while the drum is rotating. Note: If drying rack is not in place, rolling inner tub could collide with drying rack and causes damage to the dryer and drying rack.

AUTO DRY CYCLE

GDE/GDG 950AW

1. Press any button except “Off” button to power on.

• T urn on the power switch. The computer board will beep once and the dryer will change from off status to the initial operating status (Heavy Duty program).
• If the “Start/Pause” button is not pressed in 5 min after powering on, it automatically cuts off power and returns to off status.
• T he dryer returns to off status immediately upon end of each cycle. Regardless, the status of the control panel, pressing OFF will stop all operations.
• The default status is “Heavy Duty” program. Super Capacity Heavy Duty Press Free High Dry Normal Whites Bulky Auto Dry Cycles Wrinkle Saver Very Remaining Time Normal More Delicate Cool Down Touch Up Timed Dry Custom Rack Dry Timed Dry Cycles Less Cycle Completed Less Time More Time Extended Tumble Wrinkle Saver Damp Sensor Dry Level Medium Louder Low Softer No Heat Off Temp Signal Start Pause Off

English Cycle Signal Softer Wrinkle Care Off Cycles Heavy Duty LED display Indicates current program remaining time. Initial display time is 60 minutes. This is subject to change depending on the moisture level in the dry load. Temp High Sensor Dry Level More Dry Timed/Cycles Auto-program

2. P

ress “Auto-Dry Cycles” button to select a suitable full automatic cycle.

• The Heavy Duty program will be automatically selected after powering on. If another full automatic program is desired, press “Auto-Dry Cycles” button until corresponding indicator turns on. Auto-Dry Cycles Heavy Duty Press Free Normal Delicate Whites Touch Up Bulky Custom

• To select your desired settings, the “Custom” function should be chosen.
• T he dryer can memorize programs defined by user and display the previous program upon next application of this function. Use details are as follows (Features may vary per model purchased): After powering on, press “Auto-Dry Cycles” until ”Custom” status, then set “Timed-Dry Cycles” to Timed Dry or Rack Dry and set status of other buttons. Press “Start/Pause” button or after half a minute, the program defined by user will be stored and will be directly displayed upon next use. Note: T he“Sensor Dry Level” button will be inactive during use of “Custom” function and “Touch Up” cycle.

3. Press “Sensor Dry Level” button to select a suitable drying level.

fter powering on, the clothes dryer automatically sets dryness at “very”, which means a longer drying time. If other drying level is desired, press “Sensor Dry Level” button to select.

4. Press “Temp” button to set a suitable drying temperature.

fter switching on, the dryer sets the corresponding temperature adapting to different cycles selected. If other drying temperature is wanted, press “Temp” button to enable such a selection. There are 4 available drying temperatures: High, Medium, Low, and No Heat.

5. Press “Signal” button, and the buzzer will sound upon end of a cycle.

fter switching on, the dryer automatically sets buzzer at “Softer”. The user may define three prompt sound conditions: “Louder”, “Softer” and “Off”.

6. Press the “Wrinkle Saver” button to select a suitable reserved drying program.

• T his convenient feature helps keep wrinkles from setting when you cannot unload the dryer at the end of a cycle. The dryer will stop and then tumble for a brief period every few minutes. Press the wrinkle saver button to choose the number of hours you want, from 3 to 24. Stop the setting at any time by pressing the wrinkle saver button or opening the dryer door.
• If not set, the wrinkle saver indicator will be off and remaining the time indicator will be displayed.
• T he LED display indicates remaining time of a non-reserved program. If setting “Wrinkle Saver” in standby status, the LED display indicates 3 hr, which will increase by 1 hr with each press (until 24 and return to 3). If held for 1.5 seconds, LED display indicated value will increase continuously.

7. Press “Touch Up” button to select wrinkle-proof drying mode.

se the “Touch Up” cycle to continue drying if clothes are still damp after the Automatic cycle. ou can also use the “Touch Up” cycle to remove wrinkles from clean clothes packed tightly in a suitcase or closet.

8. Press “Start/Pause” button

• When starting the machine, first close the door and then press this button.
• If pause is needed during machine operating, press this button. Pressing again will resume operation. Autodry Cycle Remain Time Start/ Pause 0-180 minutes

Sensor Dry Level Temp Signal Heavy Duty

very High Softer Normal

very High Softer Whites

very High Softer Bulky

very High Softer Press Free

very Medium Softer Delicate

very Low Softer Touch Up

N/A Low Softer Custom Timed Dry

N/A High Softer Pass for Rack Dry

N/A Air Dry Softer Wrinkle saver 3-24 hours Sensor Dry Levels: Very, More, Normal, Less, Damp Temp Levels: High, Medium, Low, No Heat Signal: Louder, Softer, Off

AUTO DRY CYCLE

GDE/GDG 750AW

1. T urn the knob to any program except “OFF” to power on. The control panel will beep

once and the dryer will change from “OFF” to the operating status.

2. S

et the cycle select dial to required auto dry cycle. The signal, temperature, and dry levels are preprogrammed. To change this setting:

• Press the “Dry Level” button to select suitable drying level after powering on the dryer. There are 3 options to choose from: More, Normal, or Less. ress the “Temp” button to set a suitable drying temperature.
• After powering on and selecting the cycle, the dryer selects the pre-programmed temperature. If a different drying temperature is required, press the “Temp” button to select. There are four available drying temperatures: High, medium, Low, and No Heat.
• Press the “Signal” button, and the buzzer will sound upon end of cycle.
• After switching on, the dryer automatically sets buzzer at “Softer”. The user can choose from Louder, Softer, or OFF. ress Start/Pause button.
• When starting the machine, close the door first, then press this button.
• If a pause is needed during drying, press this button. Pressing again will resume operation. Note: Your dryer has a preprogrammed wrinkle saver cycle. At the end of the autodry cycle, the beeper will signal that the load is dry. If ignored, the drum will turn for about one minute out of every five minutes, up to one hour. When the door is opened, the feature shuts off. Normal Whites Bulky Auto Dry Cycles Wrinkle Saver Very Remaining Time Normal More Delicate Cool Down Touch Up Timed Dry Custom Rack Dry Timed Dry Cycles Less Cycle Completed Less Time More Time Extended Tumble Wrinkle Saver Damp Sensor Dry Level Medium Louder Low Softer No Heat Off Temp Signal Start Pause Off

GDE/GDG 950AW

Press any button except “Off” button to power on.

Press “Timed-Dry Cycles” button and select “Timed Dry” cycle.

• After powering on, press “Timed-Dry Cycle” button to select “Timed Dry” program.

Press “More Time” and “Less Time” buttons to set a suitable time.

• After setting “Timed-Dry Cycle” to “Timed Dry,” you can press these two buttons to increase or decrease drying time as you desire. 4-6. P ress buttons “Temp,” “Cycle Signal,” and “Wrinkle Saver” to define your desired program.

English Note: For “Timed Dry” program, use of buttons “Temp,” “Cycle Signal,” and “Wrinkle Saver” is the same as for auto-programs. “Sensor Dryness Level” is inactive, and a beep will sound if pressed.

T IM E D DR Y C Y C L E Cycle Select Off Timed D ry More High No rmal Medium Less Low Heavy Duty Rack D ry Normal

Off Drying Cool Down W rinkle Saver

No Heat Dry Level Clean Lint

Cycle Process Signal Temp Touch Up Whites Timed D ry Delicates Timed Dry GDE/GDG Auto Dry 750AW

Turn the knob to any program except “OFF” to power on. The control panel will beep once and the dryer will change from “OFF” to the operating status. If Start/Pause button is not pressed five minutes after powering on, the dryer will automatically return to OFF status.

Set the cycle select dial to Timed Dry Cycle.

Press “Timed Dry” button to set the required drying time. 4-6. Press “Temp” and “Signal” to define the required programs. Note: For “Timed Dry” program use of “Temp” and “Signal” buttons is the same as for auto-programs. “Dry Level” is inactive. R AC K DR Y C Y C L E Super Capacity Heavy Duty Press Free High Dry Nor mal Delicate Whites Touch Up Timed Dr y Custom Rack Dr y W rinkle Saver Bulky Auto Dry Cycles Very More Cool Down Timed Dry Cycles Remaining T ime Less Cycle Completed Less Time Extended T More Time W rinkle Saver umble Medium Louder Low Softer No Heat Off Nor mal Damp Sensor Dry Level Temp Signal Start Pause Off

Press any button except “Off” button to power on.

Press “Timed-Dry Cycles” button and select “Rack Dry” cycle.

• After powering on, press “Timed-Dry Cycle” button to select “Rack Dry” program.

Press “More Time” And “Less Time” buttons to set a suitable time.

• After setting “Timed-Dry Cycle” to “Rack Dry”, you can press these two buttons to increase or decrease drying time as you desire. 4-7. Press buttons “Temp,” “Signal,” “Wrinkle Saver,” and “Touch Up” to define your desired program. Notes : For “Rack Dry” program, use of buttons “Temp,” “Signal,” “Wrinkle Saver,” and “Touch up” is the same as for auto-programs. “Sensor Dry Level” is inactive, and a beep will sound if pressed.

R AC K DR Y C Y C L E GDE/GDG 750AW Cycle Select Off Timed D ry Heavy Duty Clean Lint

Louder No rmal Medium

Off Less Low Dry Level Rack D ry Normal Drying Cool Down W rinkle Saver

No Heat Signal Temp Touch Up Whites Cycle Process Timed D ry Delicates Timed Dry GDE/GDG Auto Dry 750AW

Turn the knob to any program except “OFF” to power on. The control panel will beep once and the dryer will change from “OFF” to the operating status. If Start/Pause button is not pressed five minutes after powering on, the dryer will automatically return to OFF status.

Set the cycle select dial to Rack Dry Cycle.

Press “Timed Dry” button to set the required drying time. 4-6. Press “Temp” and “Signal” to define the required programs. Note: For “Rack Dry” program use of “Temp” and “Signal” buttons is the same as for auto-programs. “Dry Level” is inactive. Other Features Your dryer also has the following features for your convenience: Lint Filter:

• All dryers come with a lint filter that needs to be cleaned before or after every use (read “Care and Cleaning Guide” Section). Leveling Legs:
• Your dryer has four leveling legs which are located in the front and rear corners of your dryer. After installing your dryer in its final position, you can level your dryer.
• Leveling legs can be adjusted by turning them clockwise to raise your dryer or by turning them counterclockwise to lower your dryer.

NORMAL OPERATING SOUNDS

The following sounds are normal during the operation of the dryer.

• T umbling sound: this is normal as the heavy wet clothes in the dryer are continuously being tossed around. ir rushing noise: this happens as the dryer drum spins at very high RPM and the air is rushing through the dryer drum. Tips
• For best drying results, clean the lint filter before or after every use.
• Do not overload the dryer.
• Balance the dryer load evenly throughout the dryer for the best result. rying time depends on many variables: load size, type of fabric and moisture in it, heat and moisture in the room, electric voltage, length of the exhaust duct, etc.
• T o eliminate guessing and to conserve energy,it is recommend for certain clothes to dry on an auto-drying setting.
• Always follow the fabric care instructions supplied by the garment manufacturer.

CARE AND CLEANING GUIDE

• L int filter needs to be cleaned before or after each use for your unit to operate at optimum efficiency. The filter can be removed by pulling on the tabs located on the inside of the dryer door. The filter may be washed Lint Filter or vacuumed. Remove the excess water from the filter by gently shaking the filter. This will remove dust and particles trapped in the filter. Lint built up in screen will restrict airflows, which causes longer drying times. After cleaning, slide the filter back in place. Do not use your dryer without the lint filter.
• Do not use any type of spray cleaner when cleaning the interior. azardous fumes or electric shock could occur. If dryer drum becomes stained, clean the drum with damp cloth. Remove any residue before drying next load. lean the cabinet with mild soap and water. Do not use harsh or abrasive cleaners, as this could damage the dryer. lean the duct and the vent on a regular basis to avoid clogging which could affect the efficiency of the dryer.

English TROUBLESHOOTING Dryer does not operate:

• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage. heck if the circuit breaker needs to be reset, or if the fuse needs to be replaced.
• Check if the unit is in the “off” mode. Press start button again.
• Check if the door is open. Dryer is working but not drying the clothes:
• Unit may be overloaded. The dryer drum should be at most half full.
• Check exhaust ducts and vents. Vents should be free of obstruction.
• Duct should be dust - and lint - free, and cleaned regularly. ryer load need to be resorted. Heavy clothes may need to be separated from regular clothes.
• Bulk clothes may require repositioning.
• If the clothes dries unevenly a higher dry setting may be required, or clothes in the dryer need to be resorted. Dryer makes noise when drying: heck for coins, loose change, buttons and other heavy objects that could be causing the noise.
• Dryer may need to be leveled.
• Read operating guide for normal operating sounds. Static:
• Caused by over drying. Adjust for shorter drying time.
• Mixed with synthetics fabric. Sort and separate different fabric.
• Use a fabric softener.

English LIMITED WARRANTY Full ONE Year Warranty For 12 months from the date of original retail purchase, Haier will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Limited Warranty After only year from the original retail purchase date Haier shall provide a part at no cost, as indicated below, to replace said part as a result or a defect in materials or workman ship, Haier is solely responsible for the cost of the part. All other costs such as the cost of the part. All other costs such as labor trip charge, etc are the responsibility of the owner. Second through Fifth Year. NOTE: This warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service representative before warranty repairs are rendered. Exceptions: Commercial or Rental Use warranty. 90 days labor from date of original purchase. 90 days parts from date of original purchase NO OTHER WARRANTY APPLIES. For Warranty Service Contact your nearest authorized service center. All service must be performed by a Haier authorized service center. For the name and telephone number of the nearest authorized service center please call 1-877-337-3639. Before calling please have available the following information: Model number and serial number of your appliance( found on the rear of the unit on the upper left hand side). The name and address of the dealer you purchased the unit from and the date of purchase. A clear description of the problem. A proof of purchase (sales receipt). This warranty covers appliances within the continental united States. Puerto Rico and Canada . What is not covered by this warranty: Replacement or repair of household fuses, circuit breakers, wiring or plumbing. A product whose original serial number has been removed or altered. Any service charges not specifically identified as normal such as normal service area or hours. Damage to clothing. Damage incurred in shipping Damage caused by improper installation or maintenance. Damage from misuse, abuse accident, fire, flood, or acts of nature. Damage from service other than on authorized Haier dealer or service center. Damage from incorrect electrical current, voltage or supply. Damage resulting from any product modification, alteration or adjustment not authorized by Haier. Adjustment of consumer operated controls as identified in the owners manual. Hoses, knobs, lint trays and all attachments, accessories and disposable parts. Labor, service transportation, and shipping charges for the removal and replacement of detective parts beyond the initial 12-month period. Damage from other than normal household use. Any transportation and shipping charges. THIS LIMITED WARRANTY IS GIVEN IN LIEU

OF ALL OTHER WARRANTIES EXPRESSED

OR INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages so the above limitations may not apply to you .Some states do not allow limitations on how long on implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state. Haier America New York, NY 10018

Français Strain Relief Mounting Bracket Replacement parts and accessories for US and Canada can be purchased through Haier America at 1-800-313-8495 UCIÓN ATTENTION UCI ÓN PRECAUCI ÓN TENCIA ADVERTISSMENT Super Capacity Heavy Duty Press Free High Dry Nor mal Delicate Whites Touch Up Timed Dr y Custom Rack Dr y W rinkle Saver Cool Down Bulky Auto Dry Cycles

Very More Timed Dry Cycles

Remaining T ime Less Time Extended T More Time

umble W rinkle Saver

Medium Louder Low Softer No Heat Off Nor mal Less Cycle Completed Damp Sensor Dry Level Temp

750AW Cycle Select Off Timed D ry Clean Lint

Heavy Duty More High

Louder No rmal Medium

Softer Less Low Dry Level Rack D ry Cool Down Off

Normal Drying W rinkle Saver

No Heat Signal Temp Touch Up Whites Cycle Process Timed D ry Delicates Timed Dry

Wrinkle Saver Very More Cool Down Timed Dry Cycles Remaining Time Normal Less Cycle Completed Less Time More Time Extended Tumble Wrinkle Saver Damp Sensor Dry Level Medium Louder Low Softer No Heat Off Temp Signal Start Pause Off C Y C L E S ÉC HAG E M INUT É Super Capacity Heavy Duty Press Free High Dry Nor mal Delicate Whites Touch Up Timed Dr y Custom Rack Dr y W rinkle Saver Cool Down Bulky Auto Dry Cycles GDE/GDG Very More Remaining T ime Timed Dry Cycles Less Time Extended T More Time umble Damp Sensor Dry Level W rinkle Saver Medium Louder Low Softer No Heat Off Nor mal Less Cycle Completed Signal Temp Start Pause Off 950AW

T IM E D DR Y C Y C L E Cycle Select Off Timed D ry Heavy Duty High

Off Less Dry Level Rack D ry Normal Drying Cool Down W rinkle Saver

No Heat Signal Temp Touch Up Whites Delicates Timed Dry

More No rmal Auto Dry Timed D ry Cycle Process Français

GDE/GDG 750AW

Normal Whites Bulky Auto Dry Cycles Wrinkle Saver Very Remaining Time Normal More Delicate Cool Down Touch Up Timed Dry Custom Rack Dry Timed Dry Cycles Less Cycle Completed Less Time More Time Extended Tumble Wrinkle Saver Damp Sensor Dry Level Medium Louder Low Softer No Heat Off Temp Signal Start Pause Off

GDE/GDG 950AW

C Y C L E S E C HAG E E T AG E R E Français Cycle Select Off Timed D ry Heavy Duty Clean Lint

Louder No rmal Medium

Softer Less Low Dry Level Rack D ry Normal

Off Drying Cool Down W rinkle Saver

No Heat Signal Temp Touch Up Whites Cycle Process Timed D ry Delicates Timed Dry GDE/GDG Auto Dry 750AW Super Capacity Heavy Duty Press Free High Dry Nor mal W rinkle Saver Cool Down Whites Bulky Touch Up Timed Dr y Custom Rack Dr y Auto Dry Cycles Remaining T ime Less Time More Time

Extended T umble W rinkle Saver

Medium Louder Low Softer No Heat Off Nor mal Less Cycle Completed Timed Dry Cycles

Nota: Very More Delicate Damp Sensor Dry Level Temp

750AW Cycle Select Off Timed D ry No rmal

Softer Less Low Rack D ry Off

Normal Drying Cool Down W rinkle Saver

No Heat Dry Level Clean Lint

Heavy Duty High More Signal Temp Touch Up Whites Cycle Process Timed D ry Delicates Timed Dry

Normal Whites Bulky Auto Dry Cycles

Wrinkle Saver Very Remaining Time Normal More Delicate Cool Down Touch Up Timed Dry Custom Rack Dry Timed Dry Cycles Less Cycle Completed Less Time More Time Extended Tumble Wrinkle Saver Damp Sensor Dry Level Medium Louder Low Softer No Heat Off Temp Signal Start Pause Off Auto Dry Cycles GDE/GDG Very More Cool Down Remaining T ime Timed Dry Cycles Less Time Extended T More Time umble Damp Sensor Dry Level W rinkle Saver Medium Louder Low Softer No Heat Off Nor mal Less Cycle Completed Temp Signal Start Pause Off 950AW

750AW Cycle Select Off Timed D ry More High No rmal Medium Less Low Dry Level Heavy Duty Rack D ry Normal Clean Lint

Off Drying Cool Down W rinkle Saver

No Heat Signal Temp Touch Up Whites Cycle Process Timed D ry Delicates Timed Dry Auto Dry Auto Dry Cycles Wrinkle Saver Very Remaining Time Normal More Cool Down Timed Dry Cycles Less Cycle Completed Less Time More Time Extended Tumble Wrinkle Saver Damp Sensor Dry Level Medium Louder Low Softer No Heat Off Temp Signal Start Pause Off

C IC L OGDE/GDG

DE S750AW E C ADO E N R E J IL L A Cycle Select Off Timed D ry Heavy Duty Clean Lint

Louder No rmal Medium

Off Less Dry Level Rack D ry Normal Drying Cool Down W rinkle Saver

No Heat Signal Temp Touch Up Whites Cycle Process Timed D ry Delicates Timed Dry Auto Dry Do Not Return This Product To The Store If you have a problem with this product, please contact the “Haier Customer Satisfaction Center” at 1-877-337-3639. DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE IMPORTANT Haier America New York, NY 10018 Printed in China Issued: May 2008 Part # WD-9999-56

GDG/GDE750AW

GDG/GDE950AW

©2008 Haier America Trading, LLC. All Rights Reserved. 100647 0508.
