STENDY ELECTRIC PLUS - Electric heater DELTACALOR - Free user manual and instructions

Product Type	Electric Heater
Brand	DeltaCalor
Model	STENDY ELECTRIC PLUS
Power	1500 W
Power Supply	230 V / 50 Hz
Dimensions (L x H x D)	60 x 45 x 15 cm
Weight	5.5 kg
Heating Type	Convection with Fan
Thermostat	Adjustable Electronic Thermostat
Operating Modes	Eco, Comfort, Frost-Free
Timer Function	24h/7D Programming
Safety	Automatic shut-off in case of overheating and tipping
Protection Rating	IP21
Material	Metal and ABS plastic
Color	White
Maintenance and Cleaning	Unplug and clean with a damp, non-abrasive cloth
Spare Parts and Repairability	Available on the manufacturer's website - repair possible by a professional
Included Accessories	Feet, user manual, mounting screws
Energy Class	Class A

Frequently Asked Questions - STENDY ELECTRIC PLUS DELTACALOR

How to install the STENDY ELECTRIC PLUS heater?

Place the device on a flat, stable surface at least 1 meter away from curtains or furniture. Attach the provided feet using the screws. Plug into a 230 V socket.

What are the different heating modes?

The heater offers three modes: Eco (energy saving), Comfort (ideal temperature), and Frost-Free (anti-freeze protection at 7°C).

How to program the timer?

Press the 'Timer' button to access 24h/7D programming. Use the arrows to set the time slots (up to 4 per day).

What to do if the device turns off by itself?

Check that the air intake is not blocked. Automatic shut-off may be due to overheating or tipping. Upright the device and let it cool down before turning it back on.

How to clean the heater?

Unplug the device and wait for it to cool down. Use a soft, slightly damp cloth (no abrasive products). Clean the air vents with a vacuum cleaner.

The heater is making noise, is this normal?

A slight clicking while heating is normal (expansion). If the noise is loud or continuous, check that the feet are securely attached and the device is level.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, use a fully unrolled 3G2.5 extension cord suitable for the power (minimum 10 A).

How to set the desired temperature?

Turn the thermostat knob or use the +/- buttons on the panel. The temperature can be set from 7°C to 30°C in 1°C increments.

Where to find spare parts?

Spare parts (feet, grille, thermistor) are available on the official DeltaCalor website or from authorized dealers.

The indicator light is flashing, what to do?

A slow flash indicates standby mode. A fast flash signals an anomaly (overheating). Refer to the manual for the error code or contact customer service.

USER MANUAL STENDY ELECTRIC PLUS DELTACALOR

ELECTRIC HEATED TOWEL RAILS

INSTALLATION MANUAL

These instructions should be reading carefully for your safety and for ensuring the product operates properly.

Therefore, it is strongly recommend reading this instruction before starting on installation and keep them as future reference.

Contact a qualified personnel for assistance if you have any doubts about the product installation

Deltacalor cares about the planet.

The complete version of the instruction, use and maintenance manual is always available on the website:

www.deltacalor.com/en/download/

or, if prefer, you can scan the QR code here at the side with your mobile phone

SCALDASALVIETTE ELETTRICI

TOALLERO ÉLECTRICO

FRANÇAIS......[4]

ENGLISH......[9]

ITALIANO......[14]

ESPAÑOL......[19]

CONSIGNES DE SÉCURITÉ

UTILISATION CORRECTE

• Should damages be caused from breach of these regulations, the manufacturer's guarantee shall be invalidated.
• Do not use the appliance outdoors.
• Your appliance is intended for domestic use. It may not be used for other purposes.
• If the appliance has been dropped, has been damaged or does not function correctly, do not use it and ensure that the appliance power supply has been disconnected (fuse or switch).
• Do not dismantle the appliance. A poorly-repaired appliance can cause risks for the user. Contact your retailer for any problem.
• If the power lead has been damaged, it must be replaced by the manufacturer, after-sales service or another professional to avoid all danger.
• Warning: the power lead must not touch the heating body.
• Warning: to avoid a risk of overheating, do not cover the unit.
• If you do, the rise in temperature will activate the built-in protection device.
• This appliance is intended only to dry laundry washed with water.
• The heater must be installed in such a way that the switches and other control devices can not be affected by a person in the bathtub or under the shower (ref.: NF C15-100 standard).
• The heater must not be installed below a plug.
• The power supply circuit of this device must have a device om-nipolar cutoff (ref: NF C15-100 standard).

WARNING

In order to avoid any hazard to young children, it is recommended to install the unit so that the lower radiant bar is at least 600 mm above the floor.

WARNINGS FOR PEOPLE WITH DISABILITIES AND CHILDREN

• This equipment may not be used by people with reduced physical, sensory, or mental capacity, those without any knowledge of the equipment, or children over 8 years of age, unless supervised and instructed on safe use of the equipment, and aware of all the risks.
  • Children must not play with the equipment.
• Cleaning and maintenance tasks must not be done by children without supervision.
  • We recommend keeping the device out of reach of children below 3 years of age, unless under constant adult supervision.
• Children between 3 and 8 may only switch the device on and off, providing it is installed regularly in the stipulated position, that the children are under constant adult supervision or have been instructed in the safe use of the equipment, and that they fully understand potential dangers.
• Children between 3 and 8 must not set up, regulate or clean the device, nor undertake maintenance on it.

ATTENTION

Some parts of this product may overheat and cause burns. Be especially careful in the presence of children and vulnerable adults.

INSTALLING THE DEVICE

Before connecting the heater, turn off the electricity at the general circuit breaker.

• The heater is a class II appliance, so it can be installed in all rooms of the house including in volumes protection 2 and 3 of a bathroom (IP24). You should check the protection grade (IPXX) of your own appliance.
• The heater must be installed 15 cm minimum of any obstacle (shelves, curtains, furniture etc.).

POWER SUPPLY AND ELECTRICAL CONNECTIONS

• The power supply to the heater must be protected, according to the standards in force, by a 30 mA differential switch and a protection device against overcurrents adapted to the characteristics of the connecting line.
• Before the first use, check that the voltage used corresponds to to the one indicated on the device.
• This heater is a Class II appliance (double electrical insulation).
  • The connection to earth is prohibited.
• The three wires must be connected in one electrical connection box complies with the standards in force.
• For security issues, you must isolate the pilot wire if it is not used.
• Single phase power supply 230 V \~ ± 10% 50 Hz.
  • Blue / gray thread: Neutral
  • Brown Wire: Phase
• Black wire: Pilot wire

DIAGRAMM FOR THE CORRECT USE OF THE PILOT WIRE

Configuration in which the pilot wire is used.

Configuration in which the pilot wire is not used.

CORRECT USE

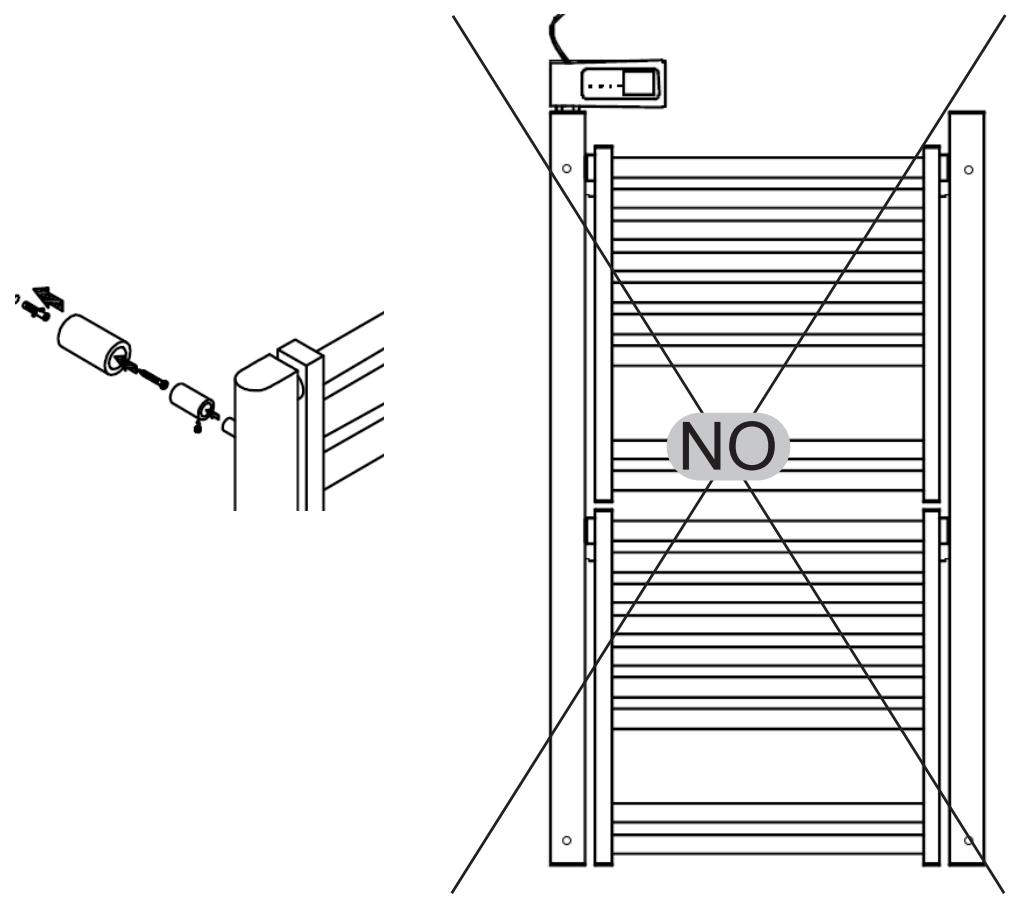

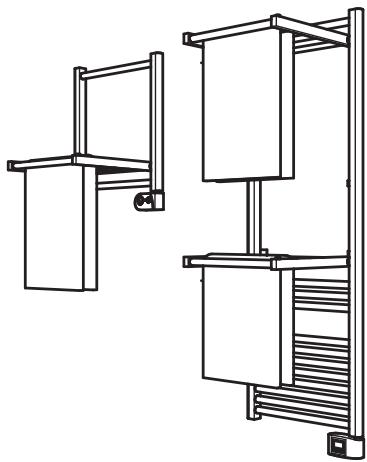

Use the product as shown in figure 1. Never cover the entire unit with towels or clothing (figure 2). The manifolds (vertical pipes) cannot be covered. Incorrect use can cause dangerous overheating, and compromise how the equipment works.

To clean the equipment, do not use chemical products, but only a non abrasive damp cloth.

l)

2)

IMAGES ARE PROVIDED FOR ILLUSTRATIVE PURPOSES ONLY. PRODUCTS MAY BE DIFFERENT.

The symbol ✉ placed on the device indicates the obligation to dispose of the device by entrusting to a specialized selective collection center, in accordance with Directive 2012/19 / EU. If the device needs to be replaced, it can be returned to the dealer. This device does not belong to the category of ordinary household waste. By eliminating it correctly you participate in protecting the environment and limiting the exploitation of natural resources.

Declaration of conformity: The manufacturer declares, under his exclusive responsibility, that the product concerned by this manual conforms to the prescriptions of the Low Voltage Directives 2014/35 / EU, EMC 2014/30 / EU and RoHS 2011/65 / EU.

UTILIZZO CORRETTO

USO CORRECTO

WALL MOUNTING THE FIXING KIT

ATTENTION

The screws and anchors are not supplied.

INSTALLATION

	WHITE
Power	300 W	500 W	750 W
L	455 mm	455 mm	455 mm
H	632 mm	1058 mm	1490 mm

FIXATIONS DES CONSOLES MURALES

REMARQUE

Présentation

ATTENTION

ATTENZIONE
