SLIM C ELECTRIC - Electric heater DELTACALOR - Free user manual and instructions

Product type	Electric heater
Brand	DeltaCalor
Model	SLIM C ELECTRIC
Power	1500 W
Supply voltage	220-240 V ~ 50 Hz
Dimensions (W x H x D)	100 x 60 x 10 cm
Weight	10 kg
Heating type	Convection and radiation
Thermostat	Adjustable electronic
Programming	Daily/weekly timer
Material	Aluminum and steel
Installation	Wall-mounted (brackets supplied)
Protection class	IP24 (bathroom)
Anti-freeze function	Yes
Window-open function	Yes (temperature drop detection)
Maintenance and cleaning	Dust with a soft, dry cloth
Safety	Automatic shut-off in case of overheating
Spare parts	Available on request (customer support)
Repairability	Repairability index: 7.5/10
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - SLIM C ELECTRIC DELTACALOR

How to install the SLIM C ELECTRIC heater?

Attach the supplied wall bracket using the plugs and screws. Hang the heater and plug it into a 220-240 V outlet. Ensure a minimum distance of 10 cm from the floor and walls.

The heater does not heat, what to do?

Check that the device is powered on and the thermostat is set above room temperature. If the problem persists, contact customer service.

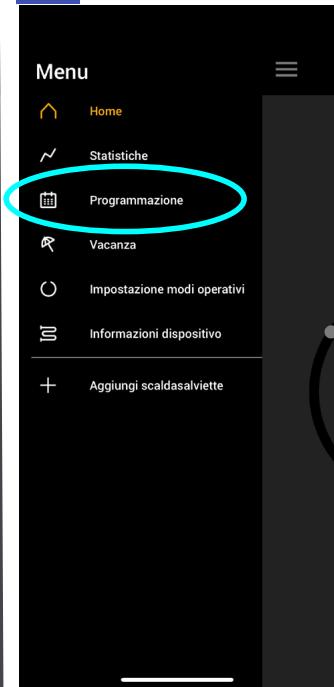

How to set the weekly programming?

Press the PROG button to access the menu. Use the arrows to set the desired time slots for each day. Confirm with OK.

Can I use this heater in a bathroom?

Yes, the IP24 protection rating allows it. Install it at least 60 cm from the bathtub or shower.

How to clean the heater?

Unplug the device and wait for it to cool down. Use a soft, dry cloth to remove dust. Do not use abrasive products or water.

What does the flashing indicator mean?

A flashing indicator generally indicates an anomaly. Consult the manual for the error code. For example, a slow flash may signal that the anti-freeze function is activated.

The heater makes a cracking noise, is this normal?

Yes, sounds from material expansion/contraction are normal during heating and cooling cycles. If the noise is abnormal, check the mounting.

How to activate the window-open function?

This function activates automatically when the heater detects a rapid temperature drop (e.g., window open). It goes into standby and resumes after the temperature rises.

What is the average power consumption?

With a power of 1500 W, consumption depends on usage duration. In programmable mode, it is optimized to reduce the bill.

Where to find spare parts?

Contact DeltaCalor customer service by phone or email. Provide the serial number of your device to order compatible parts.

USER MANUAL SLIM C ELECTRIC DELTACALOR

ELECTRIC HEATED TOWEL RAILS

INSTALLATION MANUAL

These instructions should be reading carefully for your safety and for ensuring the product operates properly.

Therefore, it is strongly recommend reading this instruction before starting on installation and keep them as future reference.

Contact a qualified personnel for assistance if you have any doubts about the product installation

Deltacalor cares about the planet.

The complete version of the instruction, use and maintenance manual is always available on the website:

www.deltacalor.com/en/download/

or, if prefer, you can scan the QR code here at the side with your mobile phone

SCALDASALVIETTE ELETTRICI

TOALLERO ÉLECTRICO

FRANÇAIS......[4]

ENGLISH......[9]

ITALIANO......[14]

ESPAÑOL......[19]

CONSIGNES DE SÉCURITÉ

UTILISATION CORRECTE

• Should damages be caused from breach of these regulations, the manufacturer's guarantee shall be invalidated.
• Do not use the appliance outdoors.
• Your appliance is intended for domestic use. It may not be used for other purposes.
• If the appliance has been dropped, has been damaged or does not function correctly, do not use it and ensure that the appliance power supply has been disconnected (fuse or switch).
• Do not dismantle the appliance. A poorly-repaired appliance can cause risks for the user. Contact your retailer for any problem.
• If the power lead has been damaged, it must be replaced by the manufacturer, after-sales service or another professional to avoid all danger.
• Warning: the power lead must not touch the heating body.
• Warning: to avoid a risk of overheating, do not cover the unit.
• If you do, the rise in temperature will activate the built-in protection device.
• This appliance is intended only to dry laundry washed with water.
• The heater must be installed in such a way that the switches and other control devices can not be affected by a person in the bathtub or under the shower (ref.: NF C15-100 standard).
• The heater must not be installed below a plug.
• The power supply circuit of this device must have a device om-nipolar cutoff (ref: NF C15-100 standard).

WARNING

In order to avoid any hazard to young children, it is recommended to install the unit so that the lower radiant bar is at least 600 mm above the floor.

WARNINGS FOR PEOPLE WITH DISABILITIES AND CHILDREN

• This equipment may not be used by people with reduced physical, sensory, or mental capacity, those without any knowledge of the equipment, or children over 8 years of age, unless supervised and instructed on safe use of the equipment, and aware of all the risks.
  • Children must not play with the equipment.
• Cleaning and maintenance tasks must not be done by children without supervision.
  • We recommend keeping the device out of reach of children below 3 years of age, unless under constant adult supervision.
• Children between 3 and 8 may only switch the device on and off, providing it is installed regularly in the stipulated position, that the children are under constant adult supervision or have been instructed in the safe use of the equipment, and that they fully understand potential dangers.
• Children between 3 and 8 must not set up, regulate or clean the device, nor undertake maintenance on it.

ATTENTION

Some parts of this product may overheat and cause burns. Be especially careful in the presence of children and vulnerable adults.

INSTALLING THE DEVICE

Before connecting the heater, turn off the electricity at the general circuit breaker.

• The heater is a class II appliance, so it can be installed in all rooms of the house including in volumes protection 2 and 3 of a bathroom (IP24). You should check the protection grade (IPXX) of your own appliance.
• The heater must be installed 15 cm minimum of any obstacle (shelves, curtains, furniture etc.).

POWER SUPPLY AND ELECTRICAL CONNECTIONS

• The power supply to the heater must be protected, according to the standards in force, by a 30 mA differential switch and a protection device against overcurrents adapted to the characteristics of the connecting line.
• Before the first use, check that the voltage used corresponds to to the one indicated on the device.
• This heater is a Class II appliance (double electrical insulation).
  • The connection to earth is prohibited.
• The three wires must be connected in one electrical connection box complies with the standards in force.
• For security issues, you must isolate the pilot wire if it is not used.
• Single phase power supply 230 V \~ ± 10% 50 Hz.
  • Blue / gray thread: Neutral
  • Brown Wire: Phase
• Black wire: Pilot wire

DIAGRAMM FOR THE CORRECT USE OF THE PILOT WIRE

Configuration in which the pilot wire is used.

Configuration in which the pilot wire is not used.

CORRECT USE

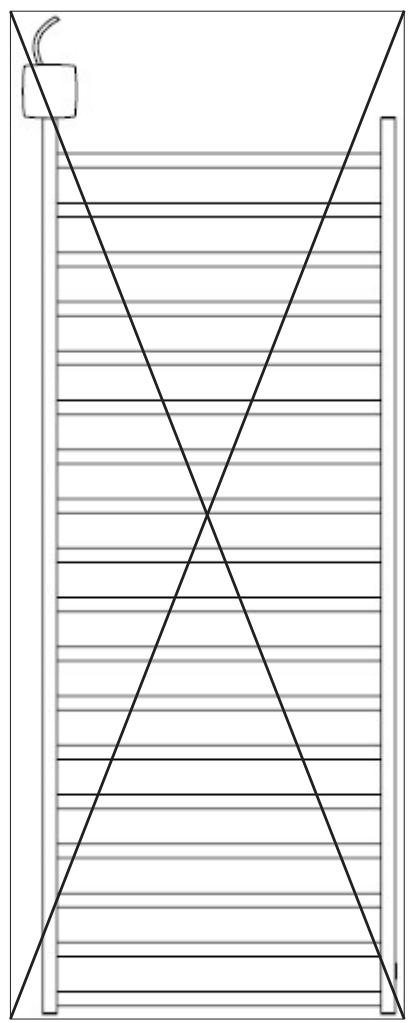

Use the product as shown in figure 1. Never cover the entire unit with towels or clothing (figure 2). The manifolds (vertical pipes) cannot be covered. Incorrect use can cause dangerous overheating, and compromise how the equipment works.

To clean the equipment, do not use chemical products, but only a non abrasive damp cloth.

l)

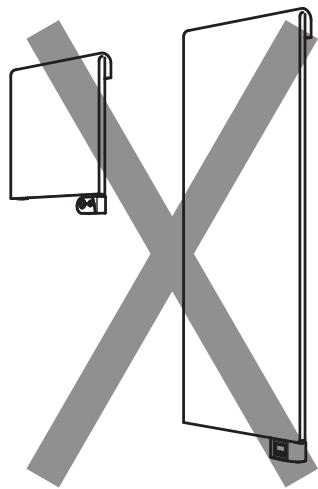

2)

IMAGES ARE PROVIDED FOR ILLUSTRATIVE PURPOSES ONLY. PRODUCTS MAY BE DIFFERENT.

The symbol ✉ placed on the device indicates the obligation to dispose of the device by entrusting to a specialized selective collection center, in accordance with Directive 2012/19 / EU. If the device needs to be replaced, it can be returned to the dealer. This device does not belong to the category of ordinary household waste. By eliminating it correctly you participate in protecting the environment and limiting the exploitation of natural resources.

Declaration of conformity: The manufacturer declares, under his exclusive responsibility, that the product concerned by this manual conforms to the prescriptions of the Low Voltage Directives 2014/35 / EU, EMC 2014/30 / EU and RoHS 2011/65 / EU.

UTILIZZO CORRETTO

USO CORRECTO

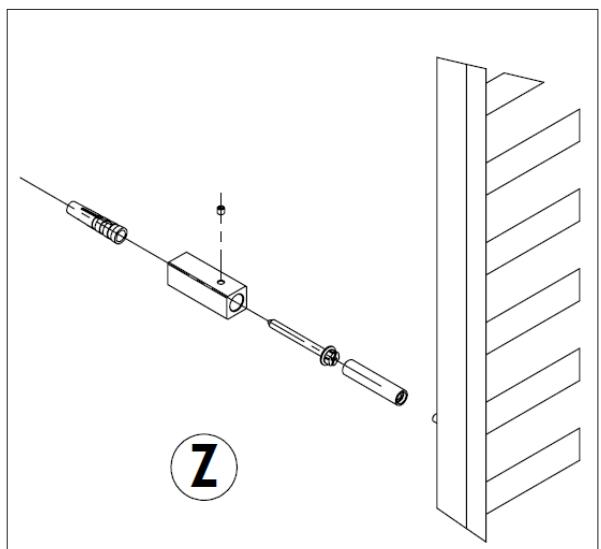

FIXATIONS DES CONSOLES MURALES WALL MOUNTING FIXING KIT

REMARQUE

The screws and an- chors are not supplied

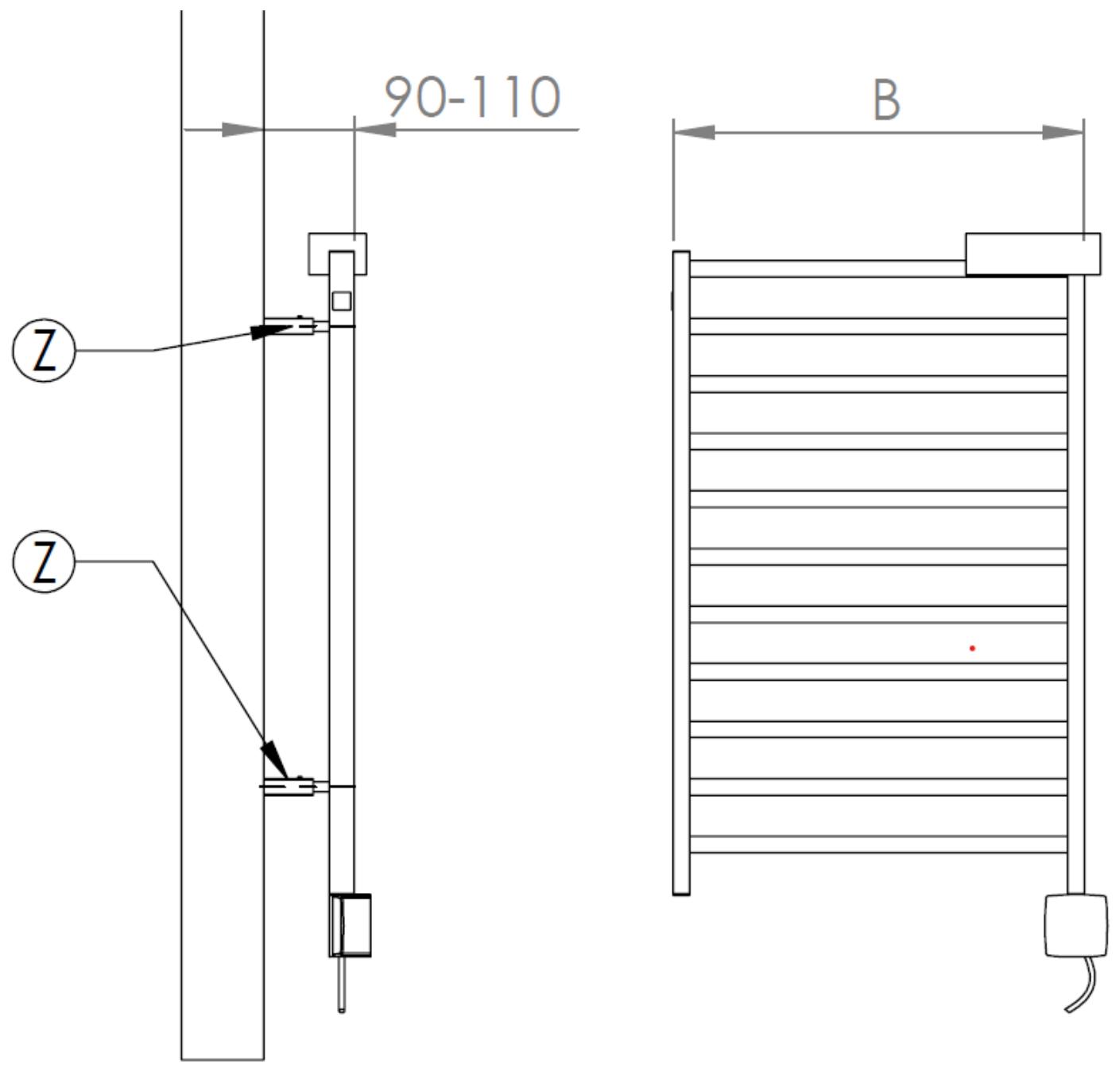

INSTALLATION

	WHITE
