Product type	Electric fluid inertia radiator
Brand	DeltaCalor
Model	ELECTRO PLUS
Dimensions (W x H x D)	60 x 45 x 8 cm
Net weight	8 kg
Power supply	230 V / 50 Hz
Nominal power	1500 W
Protection rating	IP24
Thermostat	Electronic, adjustable from 5 to 30 °C
Programming	Daily and weekly
Frost protection function	Yes, maintains 7 °C
Sleep mode	Yes, programmable
Wall mounting	Included
Maintenance and cleaning	Dust with a soft dry cloth
Safety	Overheat protection and tip-over switch
Spare parts	Heating element, thermostat, switch
Repairability	Repairability index 8.0/10

Frequently Asked Questions - ELECTRO PLUS DELTACALOR

How to install the ELECTRO PLUS heater?

Fix the provided wall mount to the wall using suitable plugs. Hang the heater and plug it into a 230 V socket. Make sure the appliance is level.

What is the power consumption of this heater?

Consumption depends on the power and duration of use. In 1500 W mode, it consumes 1.5 kWh per hour. The thermostat helps limit consumption.

How to set the desired temperature?

Use the dial or buttons on the thermostat to choose a temperature between 5 and 30 °C. The appliance automatically maintains this temperature.

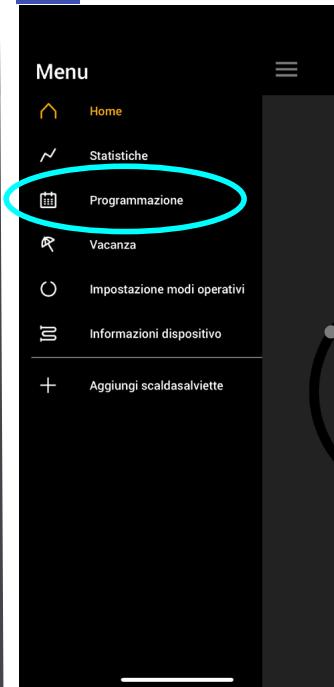

How to program the heater?

Access programming mode via the control panel. You can set time slots for each day of the week. Refer to the user manual for details.

What to do if the heater does not heat?

Check that the socket works and the thermostat is set above room temperature. If the problem persists, contact customer service.

How to clean the heater?

Unplug the appliance and wait for it to cool down. Wipe the surface with a soft dry cloth. Do not use abrasive cleaners or water.

Is the heater safe for a child's room?

Yes, it has overheat protection and a tip-over switch. However, supervise children and never cover the appliance.

Can I use the heater in a bathroom?

Yes, because it has an IP24 rating, which protects against water splashes. Install it more than 60 cm from the bathtub or shower.

How to reset the heater?

Unplug the appliance for 10 minutes, then plug it back in. Factory settings will be restored.

Where to find spare parts?

Parts such as the heating element or thermostat are available from the manufacturer or authorized dealers. Visit the DeltaCalor website for more information.

USER MANUAL ELECTRO PLUS DELTACALOR

WALL MOUNTING THE FIXING KIT

NOTE

The screws and anchors are not supplied.

INSTALLATION

	WHITE
Power	300 W	500 W	750 W	1000 W
L	300 mm	300 mm	300 mm	300 mm
H	444 mm	666 mm	925 mm	1554 mm

	CHROME
Power	300 W	500 W	750 W
L	300 mm	300 mm	300 mm
H	666 mm	925 mm	1554 mm

FIXATIONS DES CONSOLES MURALES

REMARQUE

ELECTRIC HEATED TOWEL RAILS

INSTALLATION MANUAL

These instructions should be reading carefully for your safety and for ensuring the product operates properly.

Therefore, it is strongly recommend reading this instruction before starting on installation and keep them as future reference.

Contact a qualified personnel for assistance if you have any doubts about the product installation

Deltacalor cares about the planet.

The complete version of the instruction, use and maintenance manual is always available on the website:

www.deltacalor.com/en/download/

or, if prefer, you can scan the QR code here at the side with your mobile phone

SCALDASALVIETTE ELETTRICI

TOALLERO ÉLECTRICO

FRANÇAIS......[4]

ENGLISH......[9]

ITALIANO......[14]

ESPAÑOL......[19]

CONSIGNES DE SÉCURITÉ

UTILISATION CORRECTE

• Should damages be caused from breach of these regulations, the manufacturer's guarantee shall be invalidated.
• Do not use the appliance outdoors.
• Your appliance is intended for domestic use. It may not be used for other purposes.
• If the appliance has been dropped, has been damaged or does not function correctly, do not use it and ensure that the appliance power supply has been disconnected (fuse or switch).
• Do not dismantle the appliance. A poorly-repaired appliance can cause risks for the user. Contact your retailer for any problem.
• If the power lead has been damaged, it must be replaced by the manufacturer, after-sales service or another professional to avoid all danger.
• Warning: the power lead must not touch the heating body.
• Warning: to avoid a risk of overheating, do not cover the unit.
• If you do, the rise in temperature will activate the built-in protection device.
• This appliance is intended only to dry laundry washed with water.
• The heater must be installed in such a way that the switches and other control devices can not be affected by a person in the bathtub or under the shower (ref.: NF C15-100 standard).
• The heater must not be installed below a plug.
• The power supply circuit of this device must have a device om-nipolar cutoff (ref: NF C15-100 standard).

WARNING

In order to avoid any hazard to young children, it is recommended to install the unit so that the lower radiant bar is at least 600 mm above the floor.

WARNINGS FOR PEOPLE WITH DISABILITIES AND CHILDREN

• This equipment may not be used by people with reduced physical, sensory, or mental capacity, those without any knowledge of the equipment, or children over 8 years of age, unless supervised and instructed on safe use of the equipment, and aware of all the risks.
  • Children must not play with the equipment.
• Cleaning and maintenance tasks must not be done by children without supervision.
  • We recommend keeping the device out of reach of children below 3 years of age, unless under constant adult supervision.
• Children between 3 and 8 may only switch the device on and off, providing it is installed regularly in the stipulated position, that the children are under constant adult supervision or have been instructed in the safe use of the equipment, and that they fully understand potential dangers.
• Children between 3 and 8 must not set up, regulate or clean the device, nor undertake maintenance on it.

ATTENTION

Some parts of this product may overheat and cause burns. Be especially careful in the presence of children and vulnerable adults.

INSTALLING THE DEVICE

Before connecting the heater, turn off the electricity at the general circuit breaker.

• The heater is a class II appliance, so it can be installed in all rooms of the house including in volumes protection 2 and 3 of a bathroom (IP24). You should check the protection grade (IPXX) of your own appliance.
• The heater must be installed 15 cm minimum of any obstacle (shelves, curtains, furniture etc.).

POWER SUPPLY AND ELECTRICAL CONNECTIONS

• The power supply to the heater must be protected, according to the standards in force, by a 30 mA differential switch and a protection device against overcurrents adapted to the characteristics of the connecting line.
• Before the first use, check that the voltage used corresponds to to the one indicated on the device.
• This heater is a Class II appliance (double electrical insulation).
  • The connection to earth is prohibited.
• The three wires must be connected in one electrical connection box complies with the standards in force.
• For security issues, you must isolate the pilot wire if it is not used.
• Single phase power supply 230 V \~ ± 10% 50 Hz.
  • Blue / gray thread: Neutral
  • Brown Wire: Phase
• Black wire: Pilot wire

DIAGRAMM FOR THE CORRECT USE OF THE PILOT WIRE

Configuration in which the pilot wire is used.

Configuration in which the pilot wire is not used.

CORRECT USE

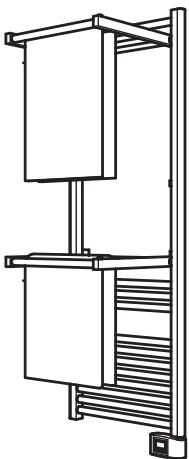

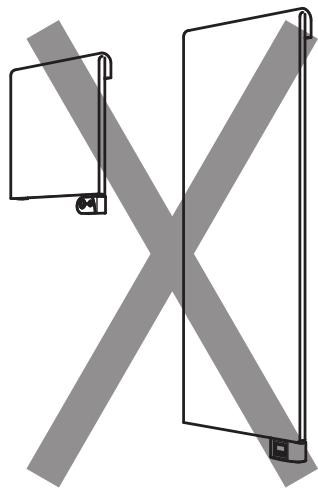

Use the product as shown in figure 1. Never cover the entire unit with towels or clothing (figure 2). The manifolds (vertical pipes) cannot be covered. Incorrect use can cause dangerous overheating, and compromise how the equipment works.

To clean the equipment, do not use chemical products, but only a non abrasive damp cloth.

l)

2)

IMAGES ARE PROVIDED FOR ILLUSTRATIVE PURPOSES ONLY. PRODUCTS MAY BE DIFFERENT.

The symbol ✉ placed on the device indicates the obligation to dispose of the device by entrusting to a specialized selective collection center, in accordance with Directive 2012/19 / EU. If the device needs to be replaced, it can be returned to the dealer. This device does not belong to the category of ordinary household waste. By eliminating it correctly you participate in protecting the environment and limiting the exploitation of natural resources.

Declaration of conformity: The manufacturer declares, under his exclusive responsibility, that the product concerned by this manual conforms to the prescriptions of the Low Voltage Directives 2014/35 / EU, EMC 2014/30 / EU and RoHS 2011/65 / EU.
