Product type	Supplementary heater
Brand	Eurom
Model	Golden 1500 Shadow
Nominal power	1500 W
Power supply	220-240 V ~ 50 Hz
Dimensions (L x W x H)	35 x 25 x 40 cm
Weight	2.3 kg
Heating type	Infrared radiation
Power levels	2 (750 W and 1500 W)
Integrated thermostat	Yes, adjustable
Overheating protection	Yes, automatic shutdown
Safety switch	Yes, tip-over switch
Body material	Lacquered steel
Color	Black/Silver
Protection rating	IP20
Maintenance and cleaning	Dust with a soft, dry cloth
Spare parts available	Yes, on order
Warranty	2 years
Included accessories	Power cord, instruction manual

Frequently Asked Questions - Golden 1500 Shadow Eurom

How to turn on the device?

Plug the device into a power outlet. Turn the power selection knob to the desired position (750W or 1500W). The device turns on immediately.

What is the maximum power consumption?

The maximum consumption is 1500 W at the high setting. Use a suitable outlet and do not plug other devices into the same power strip.

Can the device be used in a bathroom?

No, this heater is not designed for humid rooms. Use it only in dry, well-ventilated rooms.

How to clean the heater?

Unplug the device and let it cool down. Wipe the surface with a soft, dry cloth. Do not use abrasive products or water.

What to do if the device no longer heats?

Check the power outlet and the fuse. If the thermostat has tripped, wait for the device to cool down. If the problem persists, contact customer service.

Is there a risk of burns?

Yes, the surface can become very hot. Do not touch the heating panel and keep children and pets at a distance.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, use an extension cord in good condition, with sufficient cross-section (≥ 1.5 mm²) and fully unwound.

How to adjust the temperature?

Turn the integrated thermostat to select the desired temperature. The device automatically stops when the room reaches the set temperature.

Where to find spare parts?

Spare parts are available on request from your dealer or directly from Eurom. Have the exact model: Golden 1500 Shadow ready.

What to do in case of malfunction?

Unplug the device immediately. Refer to the manual for basic checks. If the problem persists, contact a qualified professional.

USER MANUAL Golden 1500 Shadow Eurom

Exterior view of a black EUROM heat exchanger with visible cooling fins and ventilation slots (no text or symbols on body)

Golden 1500 Shadow

Art.nr. 334425 / 334456 (Swiss plug)

Golden 2000 Shadow

Art.nr. 334432 / 334463 (Swiss plug)

Golden 2500 Shadow

Art.nr. 334449

Dank

Close-up of a black metal bracket with mounting holes and bolts (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Thank you very much for choosing for a Eurom device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your panel, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your heater in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Golden Shadow!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The images used may differ.

Symbol statement

Do not cover your device!

Be careful: hot surface!

Introduction

Your Eurom Golden Shadow infrared heater warms up not primarily the air in the room, but all objects before the heater. By means of that your infra red heater is effective and very qualified to be used in the open air as well.

The Euorm Golden Shadow has some serious pré's:

• the minimal glow. If your device operates at half capacity, it hardly diffuses any light. Even at full capacity, the glow is only minimal.
• high degree of water tightness (totally dust- and watertight, IP65)
• the special 'Golden Shadow tube' lamp: a superior lamp with an expected lifetime of 5000 working hours. Under normal circumstances it will not be necessary to change the lamp.

Use the infra red heater for the objective for which it is made: to heat (the object in/on) a room or terrace. Don't hang p.e. wet textile over the lamp to dry, but always notice the minimum distances to the equipment.

Technical details

Type	Golden 1500 Shadow	Golden 2000 Shadow	Golden 2500 Shadow
Voltage	220-240V~50Hz	220-240V~50Hz	220-240V~50Hz
Settings	750W - 1500W	1000W - 2000W	1250W - 2500W
Capacity	18m^2	22m^2	25 m^2
IP-protection	IP65	IP65	IP65
Remote control	+	+	+
Dimensions	60 x 11 x 11 cm	72 x 12 x 12 cm	77 x 12 x 12 cm
Weight	2,5 kg	3,0 kg	3,3 kg

Warnings regarding electrical terrace heaters

General safety warnings

1. Use the terrace heater only for the purpose for which it is designed: heating a terrace, garden or other outdoor domestic spaces and NOT for heating indoor spaces, outdoor non-domestic spaces or for drying textile and/or other materials.
2. Carefully read this entire manual before using and/or installing this appliance. Keep the manual in order to be able to consult it in the future and possibly to pass it on to other people.
3. Check this new appliance before you use it (including cable and plug) for any visible damage. Do NOT use a damaged appliance, but bring it to your supplier for replacement.
4. Improper use and/or installation entail risks of electric shocks and/or fire.

Warnings for installation and positioning

1. Use the terrace heater only outdoors or in a very large open space. Keep all flammable objects, such as tent cloths, parasols, branches, furniture/garden furniture, curtains, paper, etc. away from the appliance (minimum 1 metre, also when they are windblown!). Always take care of good ventilation!

2. Observe the following minimum distances when installing the appliance: Minimum distance from the ceiling /roof: 30 cm Minimum free distance at the front side: 100 cm Minimum distance to the sidewalls: 50 cm Minimum distance to the floor: 180 cm

3. The ceiling and wall that are used for mounting the appliance must be made from non-combustible or hardly combustible material. In any case, they should withstand a temperature of minimum 150°C without starting to singe, melt, deform or ignite. Check regularly whether the wall and ceiling do not become overheated, because this poses risks!

4. Some parts of the appliance become extremely hot or the protective grids do not provide sufficient protection. For safety reasons, the lowest point of the appliance must always be at a distance of 180 cm from the ground.

5. The air around the appliance should be able to circulate freely. Therefore, do NOT place it too closely to large objects. The minimum distances between large objects and the top, sides and bottom of the appliance are equal to the aforementioned distances to ceiling/roof, front side, sidewalls and floor.

6. The terrace heater is intended only for domestic use. Therefore, do NOT use it on construction sites, in greenhouses, sheds, stables, etc., even if these are largely open spaces. Usually, these spaces contain too many flammable substances.

7. Do NOT use this terrace heater for sauna heating, room heating, and heating of a kennel or another location in which there are animals.

8. If you use the appliance outdoors, it should be connected to a suitable, waterproof and earthed socket. All electrical connections must stay dry under all circumstances. The manufacturer, importer and supplier are not liable for incorrect connections!

9. Do NOT use this appliance before it is completely installed as described in the manual. NEVER use the appliance when it lays

down, leans or similar. Do NOT insert the plug into the wall socket before the appliance is correctly installed in its final place.

1. Do NOT place the appliance above a faucet, another source of water, etc. or within a distance of 1 metre from these objects. Do NOT install it in a humid environment, such as bathrooms, laundry rooms or similar indoor places. Be careful with water regardless of the fact that the appliance is splash-proof. Make sure that the appliance cannot fall into water and do NOT expose it to hard or brutal waterjets. Do NOT operate or touch it with wet hands. Install the appliance in such a manner that nobody can operate or touch it from a bathtub, shower or swimming pool.
2. Use the appliance only when it is firmly mounted. Make sure that you always use fasteners suitable for the substrate and if necessary, consult an expert.
3. If this appliance will be connected directly to the cabling of your electricity installation, an authorised specialist should install it while taking into account the applicable legislation, regulations and instructions.
4. Do NOT place the appliance near, under or pointing towards a socket and do NOT place it near open fire or heat sources.
5. Do NOT use the appliance near or pointing towards furniture/garden furniture, parasols, tent cloths, branches, flags, paper, clothing and other flammable objects. Maintain at least 1 metre distance between these objects and the appliance!
6. The inside of the appliance contains hot and/or glowing and sparking parts. Therefore, do NOT use the appliance in spaces for storing combustible liquids and/or gases such as fuels and paint. Do NOT use the appliance in locations where there is a risk of fire, such as near gas tanks, gas pipes or spray cans. That entails the risk of explosion or fire!
7. When selecting a place for the appliance, take into account that this place cannot be reached / accessed by children.

Warnings regarding use

1. Do NOT use additions/accessories in/on the appliance that are not recommended or supplied by the manufacturer.
2. Use the appliance only for the purpose for which it is designed and only in a manner as described in the user manual.
3. Some parts of this appliance become extremely hot and can cause burns. Special attention is needed when children,

vulnerable persons or pets are near the appliance. NEVER leave them alone if the appliance is operating!

1. Make sure that the infrared heater is always pointing down and NEVER towards the ceiling to prevent overheating the ceiling!

2. NEVER cover or block the appliance, which causes overheating and entails the risk of fire. NEVER hang or put objects such as clothing, blankets, pillows, etc. on the appliance. Always observe a minimum distance of 1 metre between the appliance and flammable materials. To prevent fire, ventilation openings must not be blocked. NEVER use the appliance for drying clothing and NEVER put something on it. Nothing may lean against the appliance!

3. Warning! NEVER leave an operating appliance without supervision. Do NOT put the appliance automatically into operation by means of a timer or any other device that switched on the appliance automatically. Always check that the appliance stands in safe conditions before using it! Do NOT use the appliance by means of a voltage regulator such as a dimmer or something similar; that is also dangerous!

4. Connection voltage and frequency stated on the appliance should correspond with the voltage and frequency of the wall socket that you are using. The wall socket must have an earth connection and the electrical installation should be protected using a 30mA residual-current circuit breaker. At all times, the wall socket used should be easily accessible in order to be able to remove the plug from the socket in case of an emergency.

5. To prevent overloading and blown fuses, other devices may not be connected to the same wall socket as the socket to which the appliance is connected.

6. Completely unwind the electric cable of the appliance before inserting the plug into the wall socket and ensure that the cable does not touch the hot parts of the appliance anywhere or can become hot in another manner. Do not put the electric cable under carpets, mats, runners, etc. and keep the cable out of the walkway. Make sure that no one steps on it and that garden furniture/furniture is not put onto it. Do not lead the cable around sharp corners and do not wind it too tightly after using it! Prevent the cable from making contact with oil, solvents and sharp objects. Regularly check the cable for damage. Do not twist or bend the electric cable or wind it around the appliance; these things can damage the insulation!

7. It is recommended not to use an extension cable, because that can cause overheating and fire. If using an extension cable is unavoidable, ensure that you use an undamaged and approved earthed extension cable with a minimum diameter of 3 × 2.5mm^2 and a minimally allowed power of 2000 Watt (Shadow 1500), 2500 Watt (Shadow 2000) and 3000 (Shadow 2500) Watt. Always unwind the extension cable completely to prevent overheating.

8. Connect the appliance only to a fixed wall socket. Do NOT use a junction box, power strip, etc.

9. The plug can feel lukewarm while the appliance is operating. This is normal, but if the plug gets very hot, then there is something wrong with the wall socket. Please contact your electrician.

10. Always switch off the appliance initially using the main switch and subsequently, remove the plug from the wall socket. NEVER switch off the appliance by removing the plug!

11. NEVER pull the electric cable to remove the plug from the wall socket or to move the appliance.

12. Prevent any strange objects from penetrating the radiation/ventilation openings. This can cause an electric shock, fire or damage.

13. NEVER stick fingers into the appliance through an opening.

14. NEVER leave an operating appliance without supervision; first, switch off the appliance and subsequently, remove the plug from the wall socket.

15. Always remove the plug from the wall socket, when the appliance is not operated. For this purpose, grasp the plug; NEVER pull the electric cable!

16. The housing and the front side of the appliance become extremely hot during its operation. Therefore, do NOT touch the appliance during or shortly after its operation: that causes burns! Pay attention that wind or other environmental factors do not bring flammable materials, such as branches, parasols, tent cloths, flags, plastic foils, etc., in the vicinity of the appliance. This can cause damage/singe damage or fire. Pay attention that these objects/materials do not cover or block the appliance.

17. Warning! This appliance is not equipped with a device to regulate room temperature. Do NOT use this appliance in small rooms, when these are used by persons that are not able to leave these rooms independently, unless there is continuous supervision.

18. NEVER operate the appliance with wet hands.

19. Warning! Some parts of this appliance become extremely hot and can cause burns. Special attention is needed when children, vulnerable persons or pets are near the appliance. NEVER leave them alone in case the appliance is operating!

Who is allowed to use the appliance?

1. Children, who are younger than 3 years old, should be kept away of the appliance, unless there is supervision.
2. Children between the ages of 3 and 8 are only allowed to switch the appliance on or off, if it is placed or installed in its normal workplace and if there is supervision or if they have received instructions for using the appliance safely and understand which risks are related to using it. Children between the ages of 3 and 8 are NOT allowed to insert the plug into the wall socket, regulate or clean the appliance and carry out maintenance.
3. This appliance can be used by children, who are over the age of 8, and by persons with reduced physical, sensory or mental skills or lack experience and knowledge, if there is supervision or if they have received instructions for using the appliance safely and understand which risks are related to using it.
4. Children are not allowed to clean and maintain the appliance without supervision.
5. Children are not allowed to play with the appliance.

Warnings regarding maintenance

1. NEVER change anything in the appliance, electric cable or plug.
2. Keep the appliance clean, because dust, dirt and/or sediment is often the reason for overheating. Make sure that such sediment is removed regularly.
3. NEVER submerge the appliance in water to clean it.

4. Always switch off the appliance, remove the plug from the wall socket and let the appliance cool down, when you:

5. Want to clean the appliance.

6. Want to carry out maintenance.

7. Want to touch or move the appliance.

8. Do NOT put the appliance into operation, if you observe damage to the appliance, electric cable or plug, or if it operates poorly, makes unusual noise, has fallen or if you smell something, see smoke or observe some other fault. Remove the plug from the wall socket immediately. Return the entire appliance to your supplier or a qualified electrician for a check and/or repair. Always demand original spare parts.

9. Only authorised and qualified persons are allowed to open and/or repair the appliance. Do not repair the appliance yourself; that can be dangerous! Repairs by unauthorised persons or changes to the appliance breach the water and dust tightness of the appliance and cause the warranty and liability of the manufacturer to be cancelled.

10. If the electric cable is damaged, it should be replaced by the manufacturer or its service employee or persons with similar qualifications to prevent risks.

Deviations of points <5>, <6>, and/or <7> can cause damage, fire and/or personal injury. This cancels the warranty and the manufacturer, importer and/or supplier do not accept any liability for the consequences.

Description

1. Casing
2. Grating
3. Lamp
4. Suspension bracket
5. Wall support
6. Indicator lights (LEDs) and reception point of the remote control
7. Button for manual operation
8. Main switch

The Eurom Golden Shadow

infrared radiator is delivered in five (5) parts:

• The actual radiator including the electricity cable and the plug
• Suspension bracket
• Wall support
• Remote control
• Fastening materials

Installing the heater

• Remove all package material, keep the packaging material out of the reach of children and check the appliance, supply cord and the plug for signs of damage.

• Attach the suspension bracket to the device. To that end, put the round parts of the suspension bracket in between the bracket of the device. Screw and tighten both sides using the large screws, nuts and washers (included in the delivery) through the large holes (see the illustration).

• Pay attention to the mounting place for your heater. The appliance has to be mounted on an incombustible foundation. That foundation has to be vibrationfree, exact vertical and stable enough for lastingly holding the appliance free of problems. Check or the provided (anchor bolts) are suitable, strong enough and qualified for the foundation. The material provided is identified for a brick wall; for another foundation please ask the specialist for suitable material.

• Before mounting, check whether the spot you have chosen complies with the minimum safety distances

from the environment. The distance between the bottom side of the heater and the floor must be at least 1.8 metre. The distance between the top side of the heater and the ceiling, roof, etc. must be at least 0.3 metre. However, if the ceiling or roof is made of flammable material (e.g., canvas), then the minimum distance is 1 metre. On both sides of the appliance, the minimum distance to walls, etc. must be 0.5 metre. If you mount the appliance outdoors, then make sure that it is not situated where it gets direct wind.

- Attach the Golden Shadow to the wall. The Golden Shadow can be attached to the wall in two ways:

A. Semi-permanently by means of the wall support
B. Permanently by attaching it directly to the wall

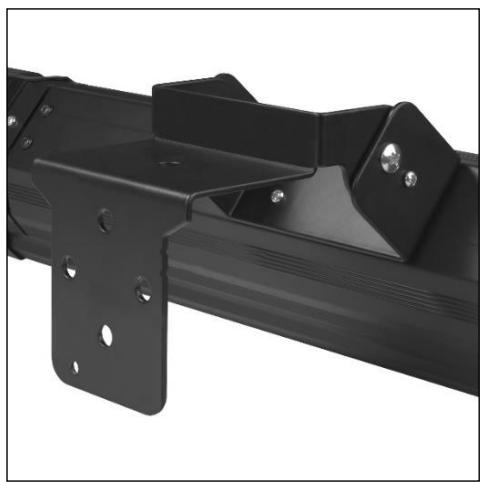

A. Attaching to the wall using the wall support:

• Attach the wall support horizontally to the wall using the four (4) cotter bolts included in the delivery.
• Hang the terrace radiator in the wall support using the suspension bracket. Slide the suspension bracket as far as possible through the wall bracket so that the small hole in the suspension bracket winds up under the wall support. Secure the terrace radiator by turning the wing nut (included in the delivery) as far as

possible in the small hole of the suspension bracket (see the illustration).

Close-up of a black metal bracket with mounting holes and bolts (no text or symbols visible)

B. Directly attaching to the wall:

- Attach the suspension bracket horizontally to the wall using the four (4) cotter bolts.

- Adjust the device to the required radiation angle. The radiator has three (3) positions: straight ahead, downwards under an angle (directed far away) and downwards under an angle (directed nearby). Secure the device in the required position by screwing the small screws (X) into the suspension bracket and radiator bracket.

• Fasten all screws another time firmly and scheck or the heater is firmly mounted. Now your infra red heater is ready for use.
• For personal protection the installation, to which the Eurom Golden Shadow is connected, has to be equipped with an earth fall device (max. 30 mAmp).

Under some circumstances it may be attractive to make a fast connection between the heater and the main supply, and to operate the heater with a switch. Because the Eurom Golden Shadow has a high water tightness (IP65) and for safety reasons, such a connection has to be made by a qualified electrician.

Note: The Golden Shadow is not suitable for ceiling mounting!

Working

Check for every use:

• or the appliance doesn't show signs of damage.
• or the appliance still is fastened firmly. Mechanical bearing pressure, oscillating duet o wind or rain could lead to loose.
• or there are no objects, canvas, sun screens etc. are inside the safety distances.
• or the socket you want to use gives the correct tension (220-240V\~50Hz) and is grounded.

If everything is all right you can insert the plug into the socket.

The Golden Shadow has a remote control that works with 2 AAA batteries (not oncluded). While using, point the remote control to the receiving point of the heater. If there are obstacles between remote control and the heater, it will not work!

Remove the batteries out of the season, that will extend the life of the remote control.

- Press the main switch (8) at the side of the device to 'I' (ON). The red indicator light (6) light up (standby-modus).

- Subsequently, press the red ON/OFF button on the remote control (X). The red indicator light (6) turns green and the device will operate at half capacity: it hardly diffuses light!

- If required, press the full-capacity button (Z). The second green light will also light up; the device will operate at full capacity and diffuses a minimal glow.

- To reverse to half capacity, press the half-capacity button (Y). The second green light will turn off and the device will operate at half capacity.

- By pressing the ON/OFF button again, you switch off the device (standby modus).

- The device can also be used without the remote control by using the 'manual operation' button (7). To that end, press the main switch to 'I'; each time you now press the 'manual operation' button, the device will switch from standby to half capacity to full capacity to standby to half capacity, etc. The corresponding indicator lights will light up.

- You only switch off the device permanently by resetting the main switch on the device to 'O' (OFF).

Warning! When you turn off the unit using only the remote control, the 'standby' remains. So turn it off using the remote control or the on/off-switch and remove the plug from the socket! Allow sufficient time for the device to cool down before you move or maintain it. Pull the plug out of the wall socket if you do not use the device.

When you use the appliance for the first time (or after a long time again), observe it during the first 10 till 15 minutes to be sure that is works trouble-free.

Cleaning - maintenance - service

Cleaning

This appliance consists of a robust and maintenance-free casing (aluminium with plastic) with a safety grill. Before cleaning remove the plug from the power outlet and wait until the appliance is sufficiently cooled off. Wipe the appliance only with a clean and lint-free cloth or a soft brush. Never use abrasive cleaners, scrubbing brushes and chemical cleaners for cleaning! Never use flammable cleaners such as benzene or spiritus. Give the appliance time to dry before you use it again.

To protect against electrical shock and danger of life, do not immerse cord, plug or any part of the appliance in water or other liquid.

Maintenance

Inside the Eurom Golden Shadow infra red heater are no user serviceable parts. The appliance is very good sealed (IP65) en may not be opened by not-qualified persons. The lamp is from the superior type 'Golden Shadow Tube'. It has an expected lifetime of 5000 working hours and in normal circumstances it will not be necessary to replace it. Very intensive use can lead to precocious aging of the lamp and of course an accident can break it. In that case, contact your dealer or a qualified electrician. The lamp has a special connection and it is not allowed to not-qualified people to remove or change it.

Service

Repairs must be carried out by authorised specialists (dealer or electrician), thus ensuring electrical safety. The warranty does not cover damage or failure which are the result of self-made reparations or alterations, accident, misuse, abuse, neglect, commercial use or improper maintenance.

Removal

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-declaration

See page 111.

Dank

Close-up of a black metal bracket with mounting holes and bolts (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a black metal bracket with mounting holes and bolts (no text or symbols visible)

Symbol of a trash bin crossed with no visible text or labels

Close-up of a black metal bracket with mounting holes and mounting holes (no text or symbols visible)

Symbol of a trash bin with no text or numbers present

Close-up of a black metal bracket with mounting holes and bolts (no text or symbols visible)

Symbol of a trash bin with no text or numbers present

Close-up of a black metal bracket with mounting holes and mounting holes (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a black metal bracket with mounting holes and bolts (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a black metal bracket with mounting holes and bolts (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

declares the following device in sole responsibility:

Product: Infrared Terrace heater

Brand name: EUROM

Model: Golden 1500 Shadow / Golden 2000 Shadow / Golden 2500 Shadow

Item number: 334425-334456 (Swiss plug) / 334432-334463 (Swiss plug) / 334449

Complies with the following harmonization rules:

Low Voltage Directive: LVD 2014/35/EU

Electromagnetic compatibility Directive: EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive:2011/65/EU&(EU)2015/863

Applied harmonized standards:

EN 60335-2-30:2009+A11:2012

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

Genemuiden, 16-12-2020

W.J. Bakker, alg. Dir.

Eurom

Kokosstraat 20

8281 JC Genemuiden

The Netherlands

[e-mail]

www.eurom.nl
