Product type	Patio heater for parasol
Brand	Eurom
Model	Parasol Heater 1500
Power	1500 W
Supply voltage	220-240 V ~ 50/60 Hz
Heating type	Infrared radiation
Heating area	Approximately 10-15 m² depending on installation
Recommended installation height	2.1 - 2.5 m
Reflector dimensions	Diameter approx. 60 cm
Net weight	Approximately 3.5 kg
Material	Steel and aluminum
Protection	IPX4 (splash resistant)
Ignition	Electronic push-button ignition
Energy types	Electric (mains cable)
Cable length	Approximately 1.5 m
Mounting	Mounts on parasol (clamp included)
Maintenance	Clean with a soft dry cloth; do not use abrasive products
Spare parts available	Reflector, heating element, mounting clamp
Warranty	2 years (parts and labor)
Safety standard	CE certified, automatic shut-off in case of tipping

Frequently Asked Questions - Parasol Heater 1500 Eurom

How to install the Eurom Parasol Heater 1500 patio heater?

Attach the mounting clamp around the parasol tube at a height of at least 2.1 meters. Tighten the screws to secure the device. Plug it into a suitable mains socket.

What is the heating area covered by this device?

The Parasol Heater 1500 heats an area of approximately 10 to 15 m², depending on installation height and outdoor conditions.

Can I use this heater in light rain?

The device is rated IPX4, meaning it is splash resistant. However, avoid direct exposure to rain or prolonged humidity.

How to turn the heater on and off?

Use the electronic ignition button on the housing. Press once to turn on, hold to turn off. Wait a few seconds for the element to heat up.

What to do if the heater does not turn on?

First check the electrical connection and circuit breaker. Make sure the parasol is properly deployed and the tip-over sensor is not activated. Contact customer service if the problem persists.

Is it safe to leave the device on unattended?

It is not recommended to leave any heating appliance unattended. However, the Parasol Heater 1500 is equipped with a tip-over protection that automatically cuts off power in case of tipping.

How to clean the reflector?

Unplug the device and wait for it to cool down. Clean the reflector with a soft dry cloth. Never use solvents or abrasive cleaners.

Can I use this heater with a parasol of any diameter?

The mounting clamp is compatible with parasol tubes with a diameter of 25 to 50 mm. Check the diameter of your parasol before installation.

What is the power consumption of this device?

The maximum power is 1500 W. At full load, consumption is approximately 1.5 kWh per hour of use.

Where can I find spare parts?

Spare parts such as the reflector, heating element, and mounting clamp are available from Eurom after-sales service. Consult the manual for references.

USER MANUAL Parasol Heater 1500 Eurom

Three black-and-white streetlight headcases with visible mesh patterns and a 'Do not cover' label (no other text or symbols)

Parasol heater 1500

Art.nr. 333329

Dank

Symbol of a trash bin with no text or numbers present

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning. To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment. Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Parasol heater 1500!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol Explanation

To prevent overheating: Do not cover the device!

Be careful: hot surface!

Introduction and description

Your Eurom Parasol Heater 1500 terrace heater is designed for household use outdoors. It must be installed around the post of a parasol and used under this unfolded parasol, so that the heat does not dissipate immediately. When activated, the terrace heater rapidly spreads pleasant heat. Use the terrace radiator only for the purpose for which it has been designed: the heating of a terrace, garden or other household outdoor space, and not for the heating of an indoor space, a non-household outdoor space or the drying of textiles or other materials. Do not use the terrace heater in wet or damp conditions and do not leave it outside unused in these conditions. The Parasol Heater 1500 terrace heater is fitted with three halogen heating light bulbs that are switched on and off simultaneously.

Technical specifications

Supply Voltage	230V – 50Hz
Capacity	3x500 Watt
Insulation class	IP23
Length of electrical cable	1,8 meter
Height	13 cm
Diameter	48 cm
Weight	2,38 kg

Important safety instructions

- Check before every use:

• That the device does not show any signs of damage.
• That the device is still assembled firmly and securely.
• That the socket that you wish to use:

* is earthed
* supplies the correct Voltage (230V-50Hz)
* has a minimum 10 Amp fuse
* is secured with a 30 mA earth leakage switch
* is located in a safe, dry place

- Warning! Never leave a device that is in operation unattended. This means that you must not use a programmer, timer or other device that automatically switches on the terrace heater. In addition, do not use the device with an external Voltage regulator such as a dimmer or similar device. This also causes danger!

- Avoid, if possible, using an extension cable. If this is unavoidable, choose an extension cable with sufficient capacity and that is suitable for the correct Voltage. Extension cables and distribution boxes must

comply with legal regulations. If you use a reel, roll the cable off completely!

- Make sure that the cord not hangs over (sharp) edges, not makes strong curves, not can be pulled along and not touches hot surfaces. Do not wrap it around the device.

- Keep all flammable objects such as tarpaulins, parasols, branches, curtains, paper, etc. away from the heating lights (at least 1 metre!). The distance to walls must also be at least 1 metre. The distance between the back of the light and the parasol fabric must be at least 30 cm.

- Do not place the device in the immediate vicinity of a bath, laundry room, swimming pool or other water facility, and ensure that the terrace heater can never fall into water. Do not operate it with wet hands and never submerge the terrace heater, electricity cable or plug in water or any other liquid.

- Keep highly flammable liquids or materials such as paint, benzene, gas tanks, etc. away from the working terrace heater. Do not use the device at locations where there may be corrosive or volatile substances, dust, steam or gas in the air, and not in an environment where there is a danger of fire, such as near gas tanks, gas pipes or aerosol cans. This creates the risk of explosion and fire!

- Do not place the device immediately above or below a socket.

- Do not cover the terrace heater in any way during use. This will make it overheat and/or cause a fire risk.

- Never hang or place objects such as clothing, blankets, cushions, curtains, paper, etc. over or near to the device. Also not to dry.

- The terrace heater becomes extremely hot during use and requires some time to cool down. So do not touch it during or immediately after use!

- Close supervision is necessary when the product is used near children or incapacitated persons. The device is not suitable for use by persons (including children) with a physical, sensual or mental limitation or a lack of experience and knowledge, irrespective of whether they are being supervised or have been issued with instructions in relation to the use of the device by a person who is responsible for their safety. Always ensure that children cannot play with the device.

- Keep the device out of reach of children and pets and do not permit them to play with it. Never leave them with the device unsupervised.

- If the appliance, by whatever which reason, produces cracks or breaks, if you during the operation establish imperfection or interruption, or if the aluminum casing or any other part, or the cord or plug show flaws, discontinue the operation of the appliance and take the plug from the socket. Contact your supplier, the manufacturer or a qualified service point. Do not try to repair the appliance by yourself, to avoid a hazard. Repairs by unqualified persons or changing's to the appliance break the water tightness of the equipment and let expire the guarantee and the liability of the manufacturer.

- Remove the plug from the socket and allow the device to cool before you touch, install, adjust, relocate, clean or service it.

- Prevent vibrations and heating and always handle the device with care!

Setting up and connecting

Remove all of the packaging material and keep the packaging material away from children. Check that all parts are present.

Check the device, the electricity cable and the plug for damage. Never use a damaged device, but take it to your dealer or a recognised electrician.

1. Now insert the bulbs in the contacts. To do this, unscrew the wing nut of the light, remove the screw with a Philips head screwdriver and fold the grill away. Take the halogen bulb out of the packaging and place it in the light holder fitted with a spring. Ensure that it is connected completely horizontally. It is important that the end caps of the halogen bulb make firm contact with the light holder. Ensure that you do not touch the surface of the halogen bulb with your bare skin, but use a cloth or similar item if necessary. If this occurs accidentally, the surface must be thoroughly cleaned with methylated spirits on a fluff-free cloth. Scorched fingerprints shorten the life span of the light! Finally, screw the grill back into position in front of the bulb. Never use the terrace heater without the protective grill for the bulbs!

2. Check that the parasol is complete, robust and undamaged. Are all of the ribs fastened correctly? Ensure that the parasol is firm and stable in a correctly fitting, sufficiently heavy parasol base. The base must be standing on a solid, flat and horizontal surface.

3. Choose a position on the parasol post to fit the terrace heater. Do this at a height such that sufficient space is heated: the higher the position, the larger the circle of radiated heat. However, do not fit the heater between the ribs and the top of the parasol! When fastening, ensure that the light is not pointing

towards a flammable surface, that the light is at least 2 metres above the ground and that the back of the light remains at least 30 cm away from the parasol fabric. Flammable objects must be kept at least one metre away from the lights.

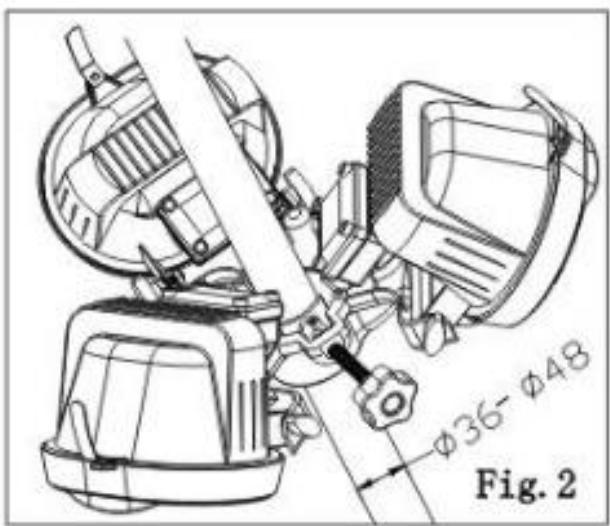

1. Slide the terrace heater to the selected position around the post of the parasol. Screw the terrace heater firmly into position on the post of the parasol with the button that tightens the post clamp. The parasol post must have a diameter between 36 and 48 mm.

1. Wind the electricity cable around the post of the parasol, leading the other end of the electricity cable to a 230 V socket in such a way that it is not heated and there is no danger of tripping, dragging, kicking, etc!
2. To activate the terrace heater you insert the plug into an earthed 230V socket that is indoors or IP54 watertight. To switch the terrace heater off again you remove the plug from the socket.
3. To change the height of the terrace heater you use the button to unscrew the clamp, slide the terrace heater to the desired height and then screw the clamp tight again. Ensure that the electricity cable does not become trapped!
4. Use the buttons on the side of the light to set the direction of the radiation. Never point it at flammable surfaces and firmly tighten the buttons before using the device again! The packaging contains three heat-insulated handles that you can attach to the lights between the wing nuts on the lights (see photo on cover

of booklet). You can make subsequent minor adjustments to the direction with these handles. Always remove the plug from the socket and wait until the terrace heater has cooled before changing the height or direction of heat radiation!

Cleaning & maintenance

Cleaning

Before cleaning remove the plug from the power outlet and wait until the appliance is sufficiently cooled off. Wipe the appliance only with a clean and lint-free cloth or a soft brush. You can use a moist (not wet!) cloth with a rather mild cleaning product. Ensure that the lamp is fully dry before you return it to operation!

Never use abrasive cleaners, scrubbing brushes and chemical cleaners for cleaning! Never use flammable cleaners such as benzene or spiritus. Give the appliance time to dry before you use it again.

You can clean the grill with a small brush. Ensure that you do not touch the bulbs. Halogen bulbs are extremely vulnerable!

To protect against electrical shock and danger of life, do not immerse cord, plug or any part of the appliance in water or other liquid.

Service

The only service that you can and are permitted to perform on the terrace heater is the replacement of a bulb. To do this, first remove the plug from the socket and ensure that the light is completely cool. Now follow the procedure described under 'Setting up and Connecting'. With normal use the terrace heater will not require any further maintenance. Contact your dealer or a recognised electrician in the case of faults or damage and always ask for original parts. Never execute repairs independently. Independent repairs and/or changes to the device will nullify the guarantee and the manufacturer's liability.

Removal

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-statement

See page 42.
