USER MANUAL LM1000A-2 CHAMBERLAIN

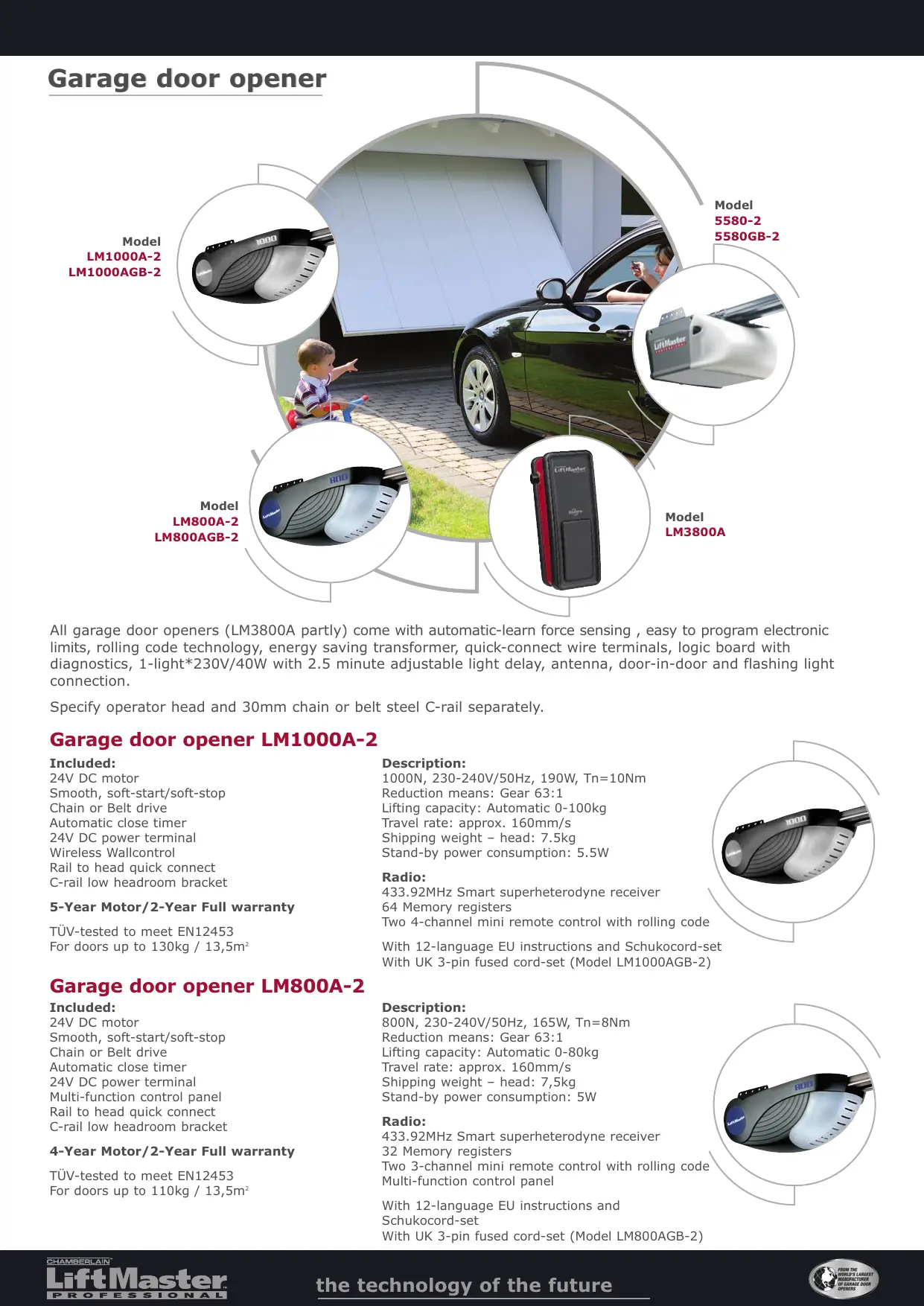

Residential Garage Door Opener Systems

All garage door openers (LM3800A partly) come with automatic-learn force sensing , easy to program electronic limits, rolling code technology, energy saving transformer, quick-connect wire terminals, logic board with diagnostics, 1-light*230V/40W with 2.5 minute adjustable light delay, antenna, door-in-door and flashing light connection.

Specify operator head and 30mm chain or belt steel C-rail separately.

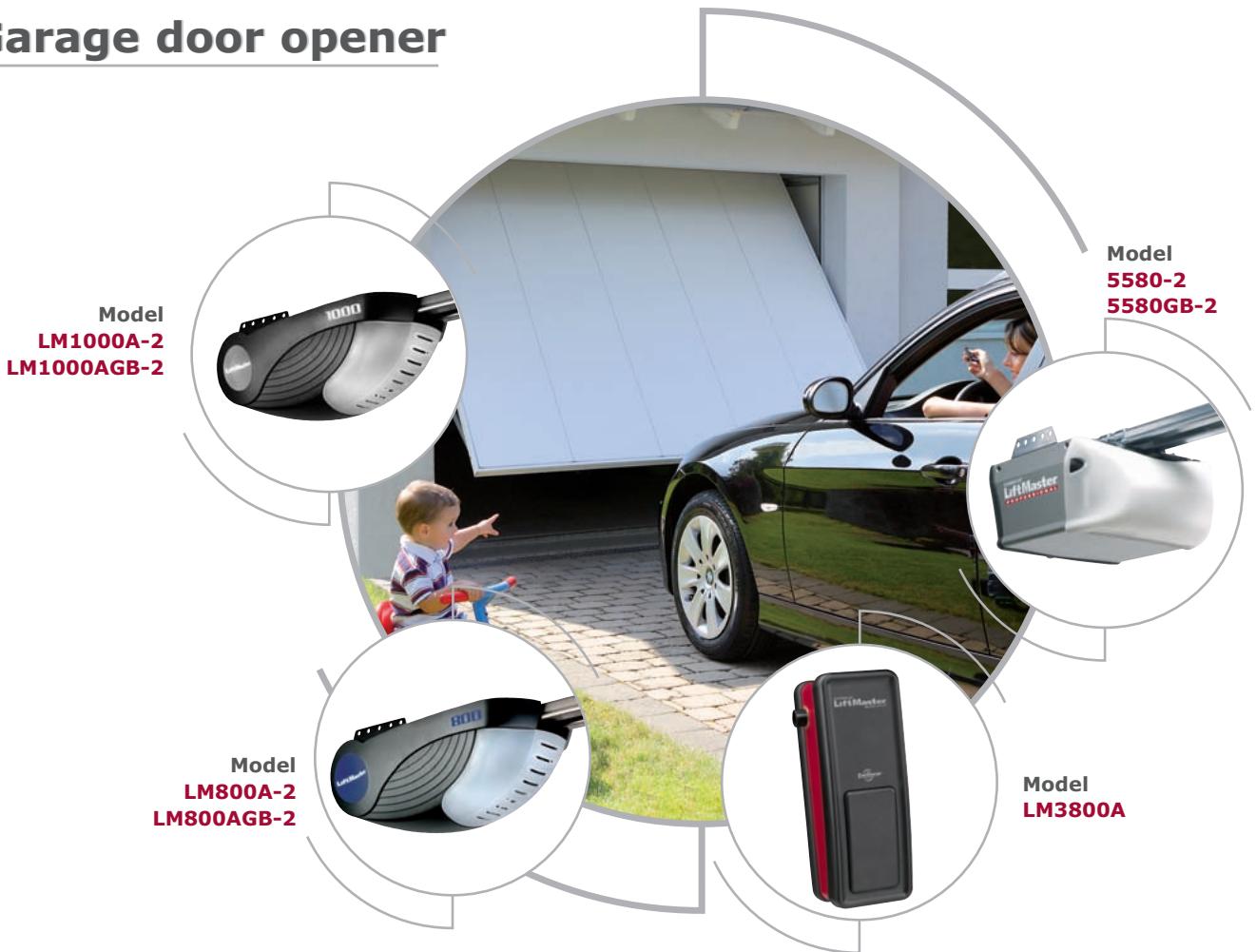

Garage door opener LM1000A-2

Included: 24V DC motor Smooth, soft-start/soft-stop Chain or Belt drive Automatic close timer 24V DC power terminal Wireless Wallcontrol Rail to head quick connect C-rail low headroom bracket

433.92MHz Smart superheterodyne receiver 64 Memory registers Two 4-channel mini remote control with rolling code

5-Year Motor/2-Year Full warranty

TÜV-tested to meet EN12453 For doors up to 130kg / 13,5m2

Garage door opener LM800A-2

Included: 24V DC motor Smooth, soft-start/soft-stop Chain or Belt drive Automatic close timer 24V DC power terminal Multi-function control panel Rail to head quick connect C-rail low headroom bracket

4-Year Motor/2-Year Full warranty

TÜV-tested to meet EN12453 For doors up to 110kg / 13,5m2

1000N, 230-240V/50Hz, 190W, Tn=10Nm Reduction means: Gear 63:1 Lifting capacity: Automatic 0-100kg Travel rate: approx. 160mm/s Shipping weight – head: 7.5kg

Stand-by power consumption: 5.5W With 12-language EU instructions and Schukocord-set

With UK 3-pin fused cord-set (Model LM1000AGB-2) Description: 800N, 230-240V/50Hz, 165W, Tn=8Nm Reduction means: Gear 63:1 Lifting capacity: Automatic 0-80kg Travel rate: approx. 160mm/s Shipping weight – head: 7,5kg

Stand-by power consumption: 5W Radio:

433.92MHz Smart superheterodyne receiver 32 Memory registers Two 3-channel mini remote control with rolling code Multi-function control panel With 12-language EU instructions and Schukocord-set With UK 3-pin fused cord-set (Model LM800AGB-2)

the technology of the future

Garage door opener 5580-2

Included: Heavy-duty AC motor Chain drive Flip down light lens Illuminated push button C-rail low headroom bracket

800N, 230-240V/50Hz, 400W, 2,5A Reduction means: Gear 16:1 Lifting capacity: Automatic 0-80kg Travel rate: approx. 133mm/s Shipping weight – head: 12,2kg Stand-by power consumption: 2,6W

2-Year Full Warranty

433.92MHz Smart superheterodyne receiver 8 Memory registers Two 3-channel mini remote control with rolling code

TÜV-tested to meet EN12453

For doors up to 110kg / 13,5m2

With 12-language EU instructions and Schukocord-set

With UK 3-pin fused cord-set (Model 5580GB-2)

Garage door opener LM60A Included:

24V DC motor Smooth, soft-start/soft-stop Chain drive Illuminated push button

1 bulb 24V/21W Description:

600N, 230-240V/50Hz, 100W, Tn=5Nm Reduction means: 63:1 Lifting capacity: Automatic 0-60kg Travel rate: approx. 160mm/s Shipping weight – head: 12,5kg Stand-by power consumption: 4W

2-Year Full Warranty

433.92MHz Smart superheterodyne receiver 12 Memory registers One 3-channel mini remote control with rolling code

TÜV-tested to meet EN12453

For doors up to 90kg / 10,7m2

With 17-language EU instructions and Euro-contact pin

Garage door opener LM3800A Included:

24V shaft operator Smooth, soft-start/soft-stop Electronic control included Clutch for 1” inch shafts Slack rope switch with cable Wall mounting bracket Automatic close

10Nm (max. 40Nm), 230-240V/50Hz, 190W Lifting capacity: Automatic Travel rate: approx.: 24 & 36 rpm Shipping weight – head: 13kg Stand-by power consumption: 5W Backup Battery possible Radio: 433.92MHz Smart superheterodyne receiver 64 Memory registers Two 3-channel mini remote control with rolling code

2-Year Full Warranty

GS tested and tested to meet EN12453

For doors up to 130kg/13,5m2

With multilingual EU instructions and Schukocord-set

Premium accessories included

4-channel mini remote control

Wireless wallcontrol

the technology of the future

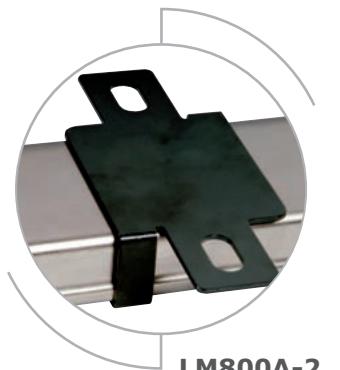

C-rail low headroom bracket

For LM1000A-2, LM800A-2 and 5580-2. LM60A, chain only

Specify operator head and rail separately. All rails come with automatic chain or belt tensioner device. Required headroom clearance: C-rail - 30mm CHAIN Model

1-piece C-rail, chain, chain, for 2.5m door

7030CR3 7223CR3 7423CR3 7010CR3

1-piece C-rail, chain, for 2.3m door

1-piece C-rail, chain, for 3.0m door 2-piece C-rail, chain, for 2.3m door 4-piece C-rail, chain, for 2.3m door

1.0m C-rail extension kit, chain, master links, splice

1-piece C-rail, belt, for 2.5m door

1-piece C-rail, belt, for 2.3m door

1-piece C-rail, belt, for 3.0m door 2-piece C-rail, belt, for 2.3m door 4-piece C-rail, belt, for 2.3m door 4-piece C-rail, belt, for 3.0m door

1.0m Extension kit for C-rail 8030CR3, replacement belt for 4.0m door, splice

the technology of the future

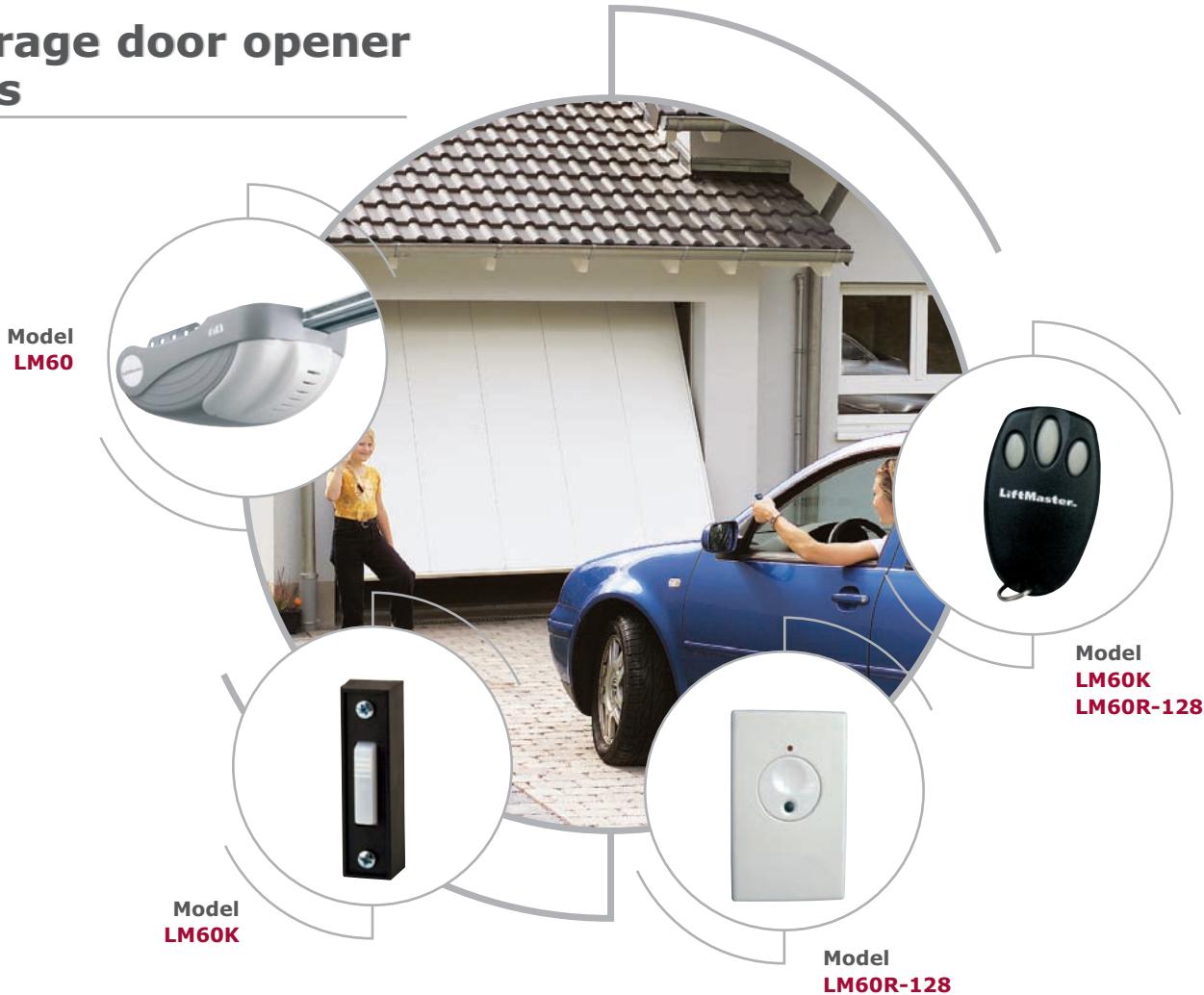

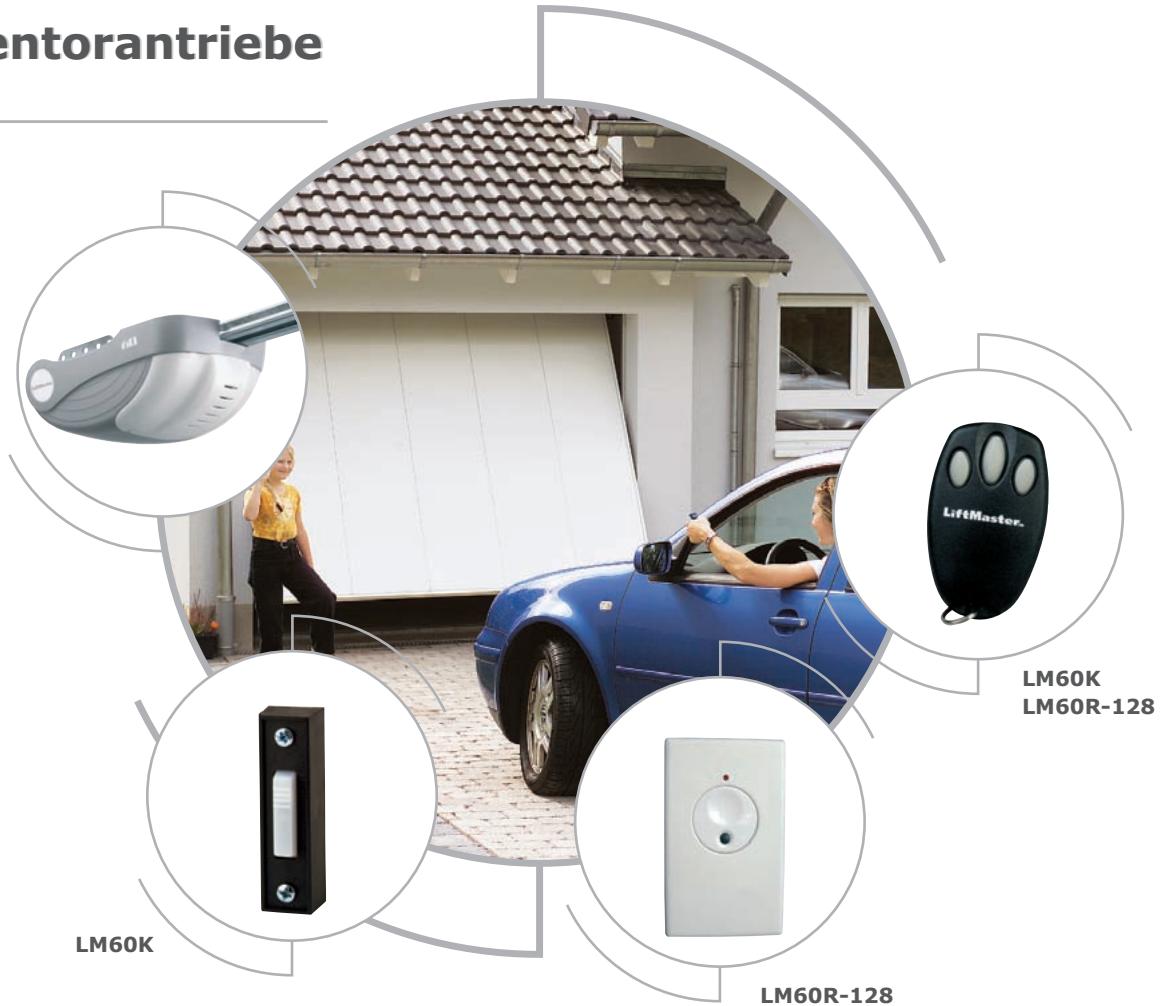

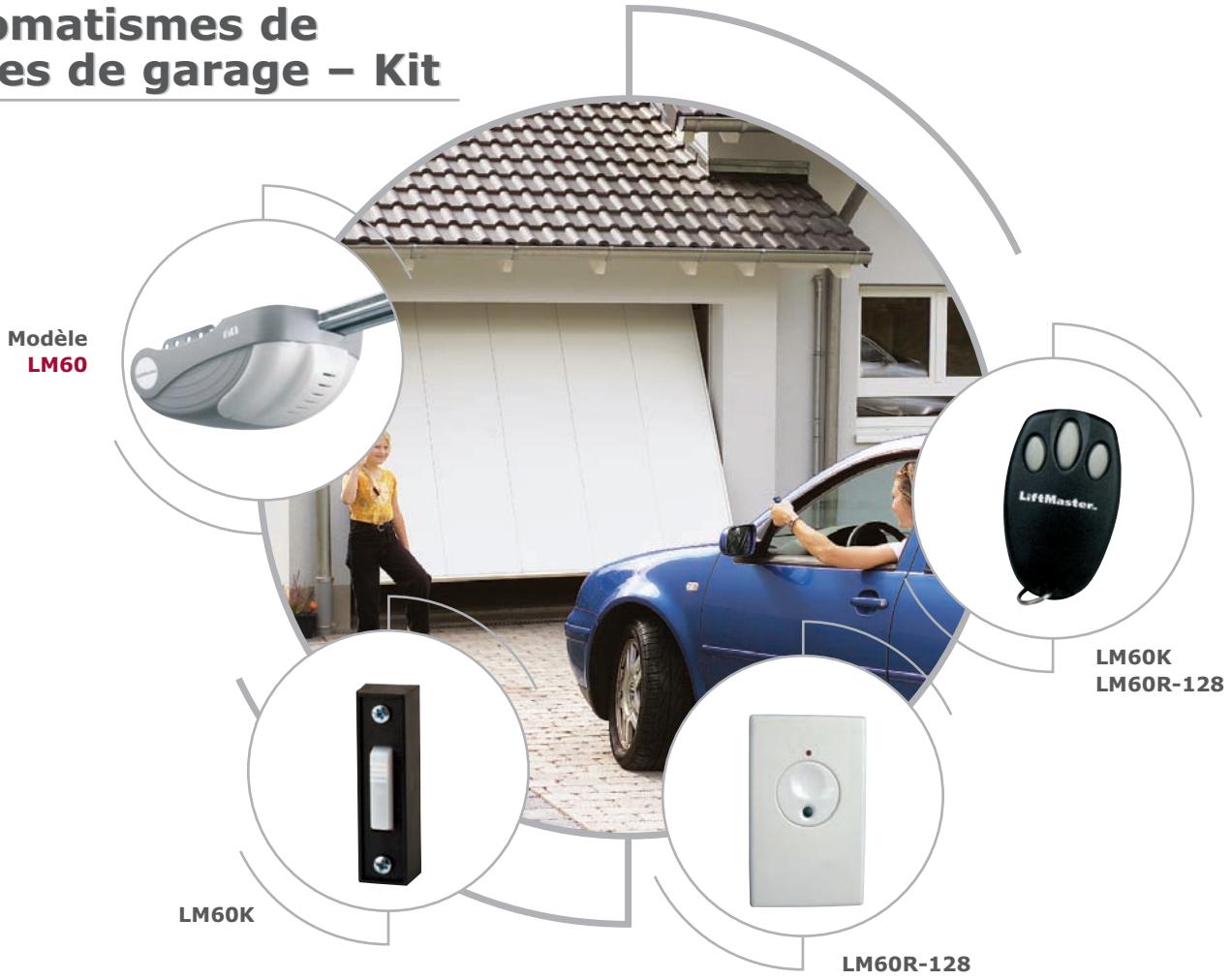

LM60K Garage door opener Kit LM60K Included:

24V DC motor Smooth, soft-start/soft-stop Chain drive Illuminated push button 4-piece C-rail for door up to 2.3m 1 bulb 24V/21W 2-Year Full Warranty

TÜV-tested to meet EN12453

For doors up to 90kg / 10,7m2

600N, 230-240V/50Hz, 100W, Tn=5Nm Reduction means: Gear 63:1 Lifting capacity: Automatic 0-60kg Travel rate: approx. 160mm/s Shipping weight – head: 18kg

Stand-by power consumption: 4W Radio:

433.92MHz Smart superheterodyne receiver 12 Memory registers One 3-channel mini remote control with rolling code

With 17-language EU instructions and Euro-contact pin

Garage door opener Kit LM60R-128

Included: 24V DC motor Smooth, soft-start/soft-stop Belt Wireless wallcontrol 4-piece C-rail for door up to 2.3m 1 bulb 24V/21W 2-Year Full Warranty

TÜV-tested to meet EN12453

For doors up to 90kg / 10,7m2

600N, 230-240V/50Hz, 100W, Tn=5Nm Reduction means: Gear 63:1 Lifting capacity: Automatic 0-60kg Travel rate: approx. 160mm/s Shipping weight – head: 18kg

Stand-by power consumption: 4W Radio:

433.92MHz Smart superheterodyne receiver 12 Memory registers One 3-channel mini remote control with rolling code With 17-language EU instructions and Euro-contact pin

the technology of the future

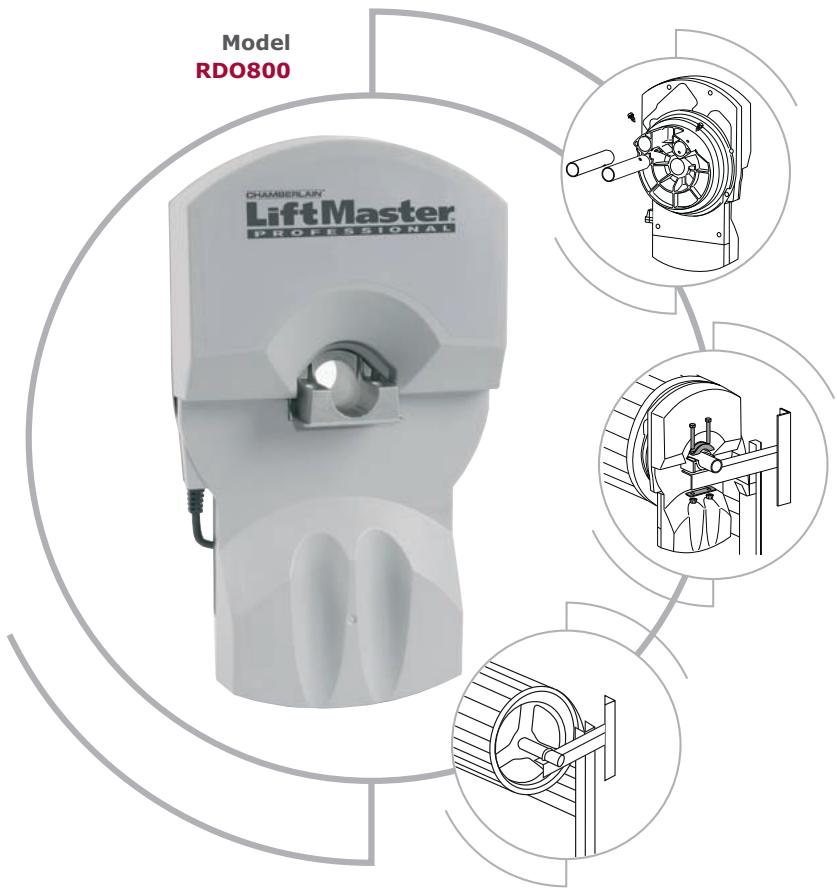

Rolling door operator RDO800

Included: 24V DC motor, 433MHz For single and double car garage doors Soft-start/soft stop Automatic force adjustment 2-Year Full Warranty

TÜV-tested to meet EN12453

For doors up to 100kg / 12m2 Description: 550 N (nominal), Tn=18Nm, 230-240V/50Hz, 90W Lifting capacity: Automatic 0-55kg Max. door height: 4,5m Shipping weight: 10kg Stand-by power consumption: 5,5W Backup Battery possible Radio: 433.92MHz Smart superheterodyne receiver 64 Memory registers Two 3-channel mini remote control with rolling code

With instructions in english and british 3-PIN plug.

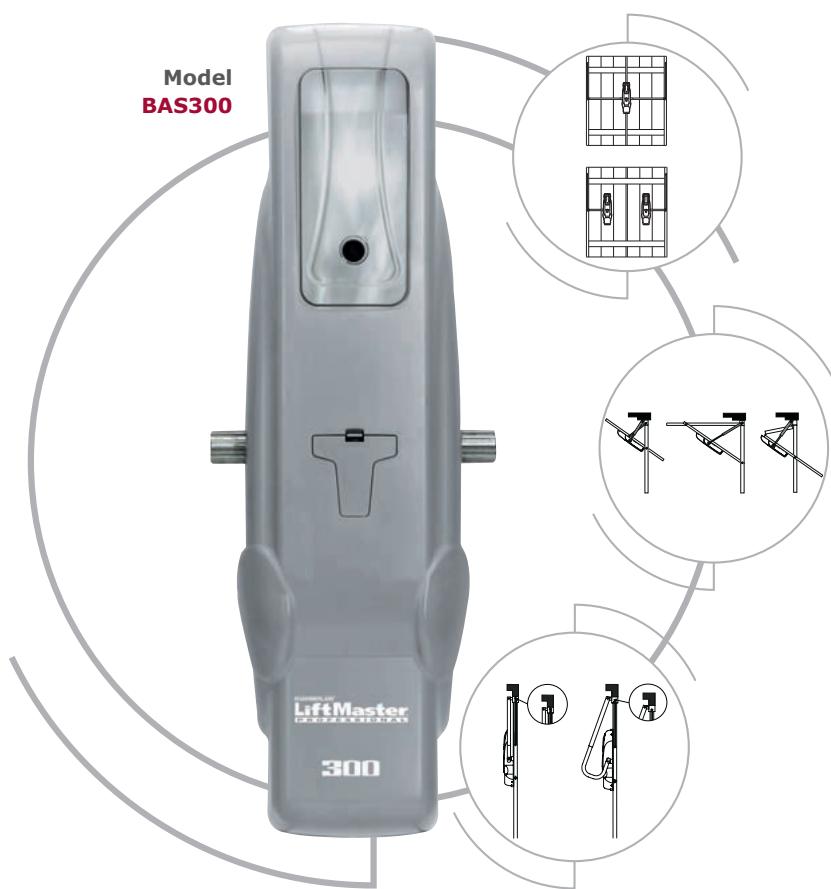

“Porte basculante” operator

BAS300 Included: • Heavy-duty AC motor • Built-in garage light • Push button on cover • Manual release with key • Water resistant enclosure

BAS300K With 1x 3-channel mini-transmitter (94335E), IRSensors (771E), limit switches, RPM-sensor, control board (CB3), 433MHz Superheterodyne rolling code radio

For dual operator use

350Nm 230-240V/50Hz, 400W, 1,8A Reduction means: Gear 700:1

Lifting capacity: 1 motor 8m2, 2 motoren 14m2 Degree of protection: IP44 Travel rate: approx.: 14 sec (90°) 1 light: 1x230V/40W Shipping weight - head: 11,5kg Stand-by power consumption: 6W Nemko tested to meet EN12453 with IR sensors on doors up to 14.0m2

the technology of the future

LiftMaster Operator General Specifications

Convenience/Safety Emergency quick release Automatic trolley reconnect Trolley disconnect mode setting Ventilation/pet opening Safety stop and full reverse Up: Safety stop Automatic close (dependent on model) Flashing light connection (dependent on model) Door-in-door switch (dependent on model)

Door Linkage: Adjustable door arm Logic Type: Solid-state microprocessor with built-in surge suppressor Solid-state light delay Force Adjustment: Segmented - Automatic learn Length of line cord: 1.2m Digital Radio controls Logic boards feature the exclusive Smart Button for programming transmitter codes to receiver memory. RF Module: 433.92MHz - AM Superheterodyne Rolling Code or Billion Code decoding Operating Temperature: -30°C to +65°C Battery (Remote Control): 2x3V or 1x3V (94335E) Remote control may be programmed from operator or control panel. Remote control may be programmed to control the opener light. Remote control may be programmed to an open/close/stop function. 2-1/2 minute light timing adjustable to 1-1/2, 2-1/2, 3-1/2, 4-1/2 minutes. Operator light may be programmed to turn on when IR beam is broken.

In order to gurantee a smooth operation, we help you to diagnose in case of a failure.

Through simple flashing signals you will know what to do quickly. Example: LM1000A-2, LM800A-2, LM60 1 Flash: 2 3 4 5

Flashes: Flashes: Flashes:

7 Flashes: 9 Flashes: Rapid Flashing:

The Protector System™ open, misaligned or an object has broken IR beam for more than 4 seconds.

The Protector System™ wire shorted or connected backwards. Door or wall control button wire shorted. IR sensor slightly misaligned (dim or flashing sensor LED) or partially blocked. No RPM in the first second of travel. Motor has stalled or the electronics did not see the RPM signal. The unit will stop or reverse in 1 second. RPM caused a reversal (low force setting). Bad logic board (Unplug and reconnect operator). No passpoint detected during travel. Transmitter code being received. (Operator not necessarily programmed to respond)

Install all operators to EN12453 and/or IEC60335-95-2

All LiftMaster operators meet or exceed all applicable EU regulations. All trolley operator impact forces, force sensing, door, weight, and size ratings have been tested and verified by TÜV-Rheinland. All operators carry TÜV approval and CE marking. All operators are HomeLink compatible.
