Product Type	Refrigerator with freezer (NoFrost)
Brand	Vestfrost
Model	VCF 20180 NoFrost
Energy Class	E (typical for this model)
Annual Energy Consumption	Approximately 275 kWh/year
Total Net Capacity	336 L (fridge: 232 L, freezer: 104 L)
Freezer Capacity	104 L
NoFrost Technology	Yes, automatic defrost in freezer
Cooling System	Static cooling in refrigerator, fan-assisted in freezer
Temperature Control	Electronic, with separate control for fridge and freezer
Dimensions (H x W x D)	1850 x 595 x 640 mm
Weight	Approximately 68 kg
Power Supply	220-240 V, 50 Hz
Climate Class	SN-T (ambient 10°C to 43°C)
Noise Level	Approximately 40 dB(A)
Reversible Door	Yes
Number of Shelves	5 adjustable glass shelves in fridge, 3 baskets in freezer
Door Compartments	4 door balconies for bottles and jars
Lighting	LED interior light
Defrosting	Automatic in freezer (NoFrost), manual in refrigerator
Cleaning	Clean with mild detergent and soft cloth; avoid abrasive cleaners
Spare Parts Availability	Available for at least 7 years after purchase
Repairability Index	7.5/10 (typical for this class)
Safety Features	Child lock, overheat protection, door open alarm

Frequently Asked Questions - VCF 20180 NoFrost VESTFROST

How do I set the temperature on my Vestfrost VCF 20180 NoFrost?

Use the electronic control panel. Press the 'Fridge' or 'Freezer' button to adjust temperature. Recommended: fridge at 4°C, freezer at -18°C.

What does NoFrost mean?

NoFrost means the freezer automatically defrosts, preventing ice buildup. It uses a fan to circulate cold air, keeping temperature stable and reducing manual defrosting.

How do I clean the refrigerator?

Unplug the appliance. Remove shelves and drawers. Clean interior with warm water and mild detergent. Wipe dry with a soft cloth. Do not use harsh chemicals.

Why is my refrigerator making noise?

Normal sounds include humming from the compressor, gurgling from refrigerant, and clicking from temperature controls. If loud or unusual, check if level and stable.

How can I save energy with this refrigerator?

Place it away from heat sources and direct sunlight. Keep doors closed. Allow hot food to cool before storing. Defrost regularly (manual fridge). Set temperature as recommended.

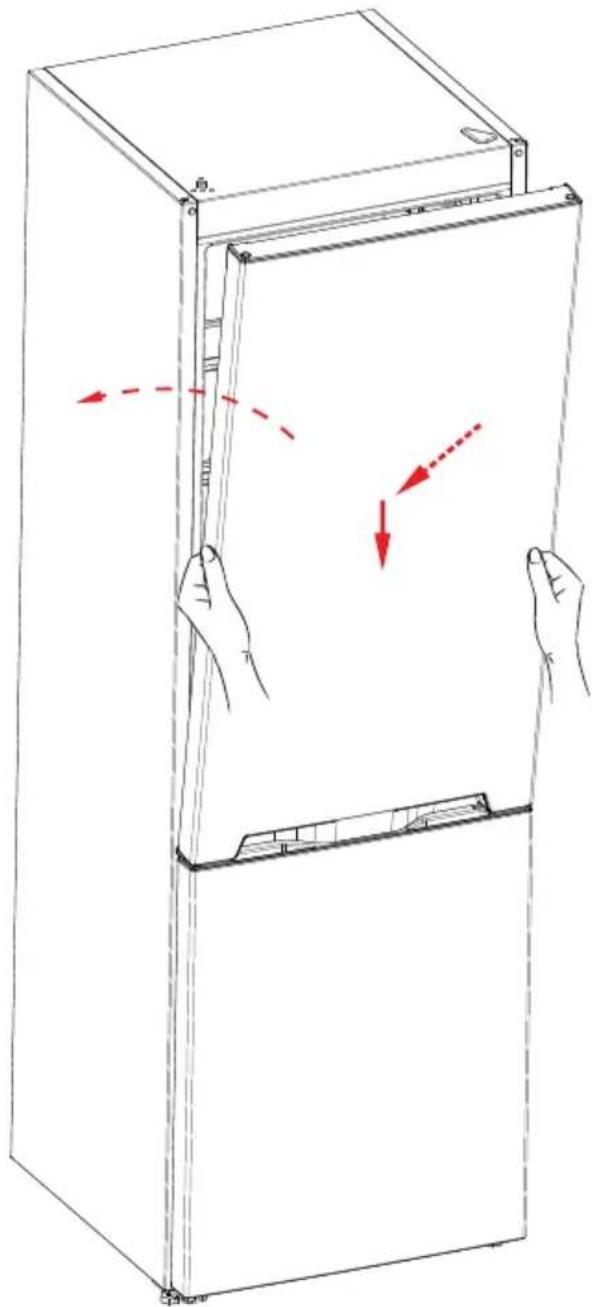

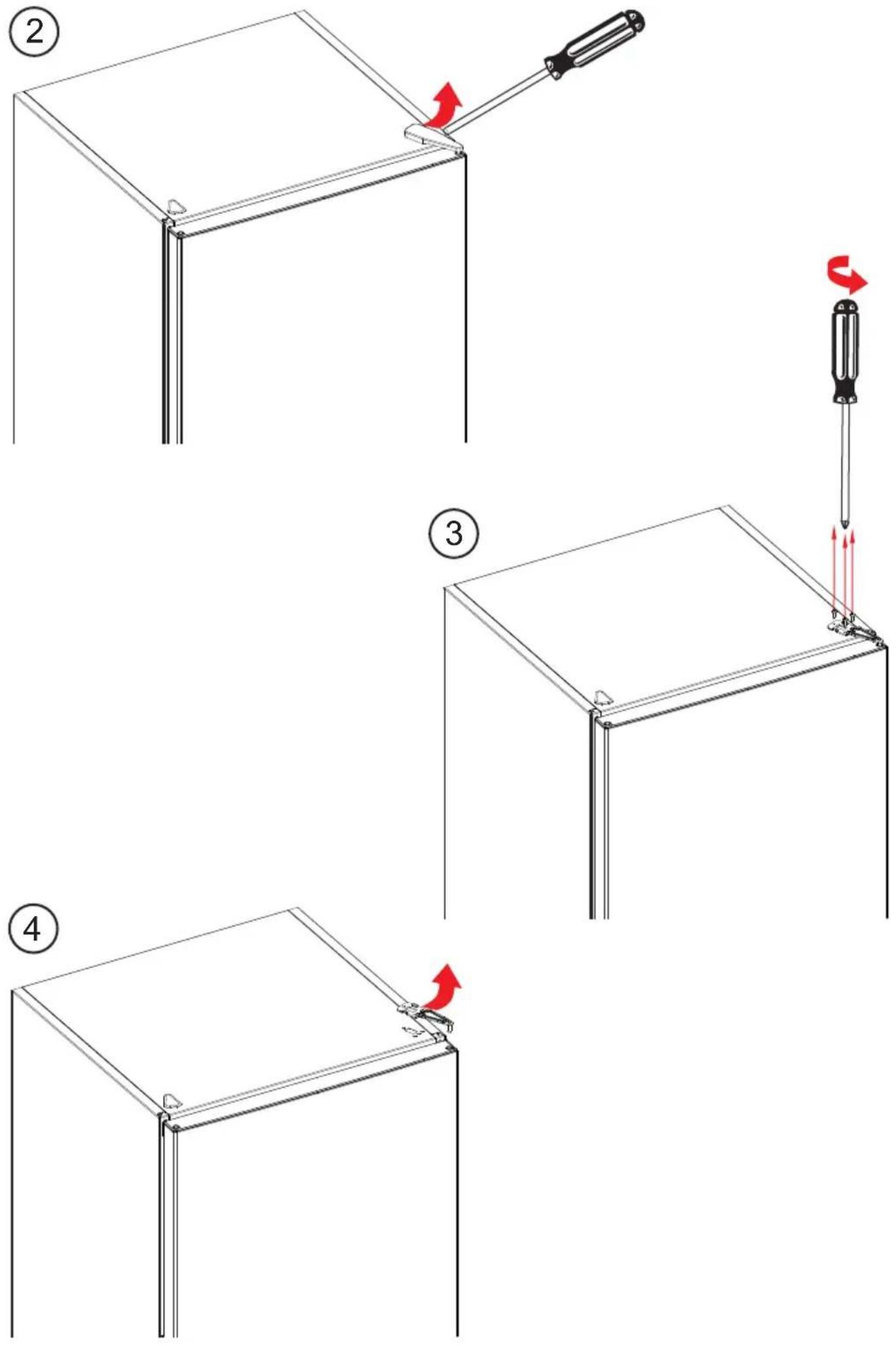

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You may need a screwdriver and assistance.

What should I do if the refrigerator is not cooling?

Check plug and power supply. Ensure temperature settings are correct. Clean condenser coils at the back. If still not cooling, contact service.

How do I replace the interior light bulb?

The VCF 20180 uses an LED light. If it fails, contact a technician for replacement. LEDs are not user-serviceable.

What is the warranty period?

Typically 2 years for parts and labor. Check your purchase receipt or contact Vestfrost support for exact terms.

Can I store fresh food in the freezer?

Yes, but for best quality, freeze food at -18°C or below. Wrap food properly to prevent freezer burn.

USER MANUAL VCF 20180 NoFrost VESTFROST

VCF 20180 NoFrost

VCF 20180 - L NoFrost

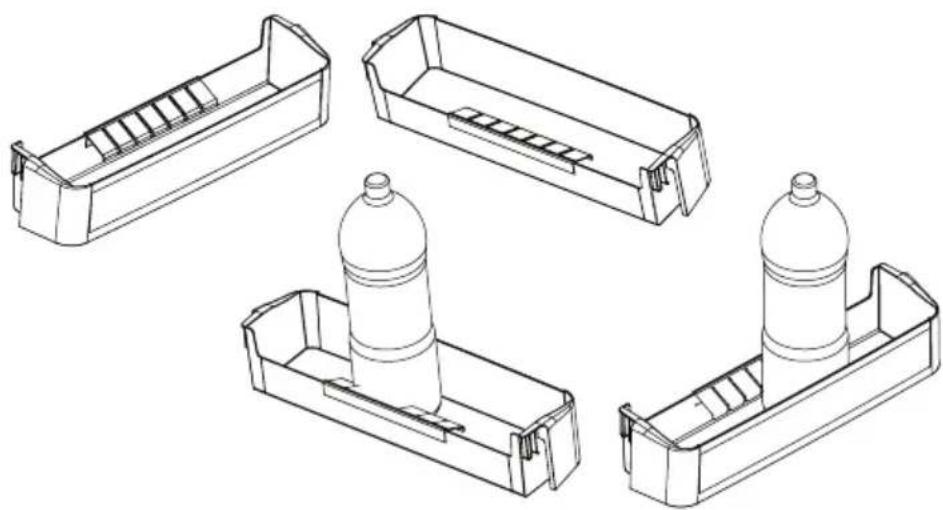

2.4.2 Bottle holder (On certain models)

6 BEFORE CALLING SERVICE PERSONNEL

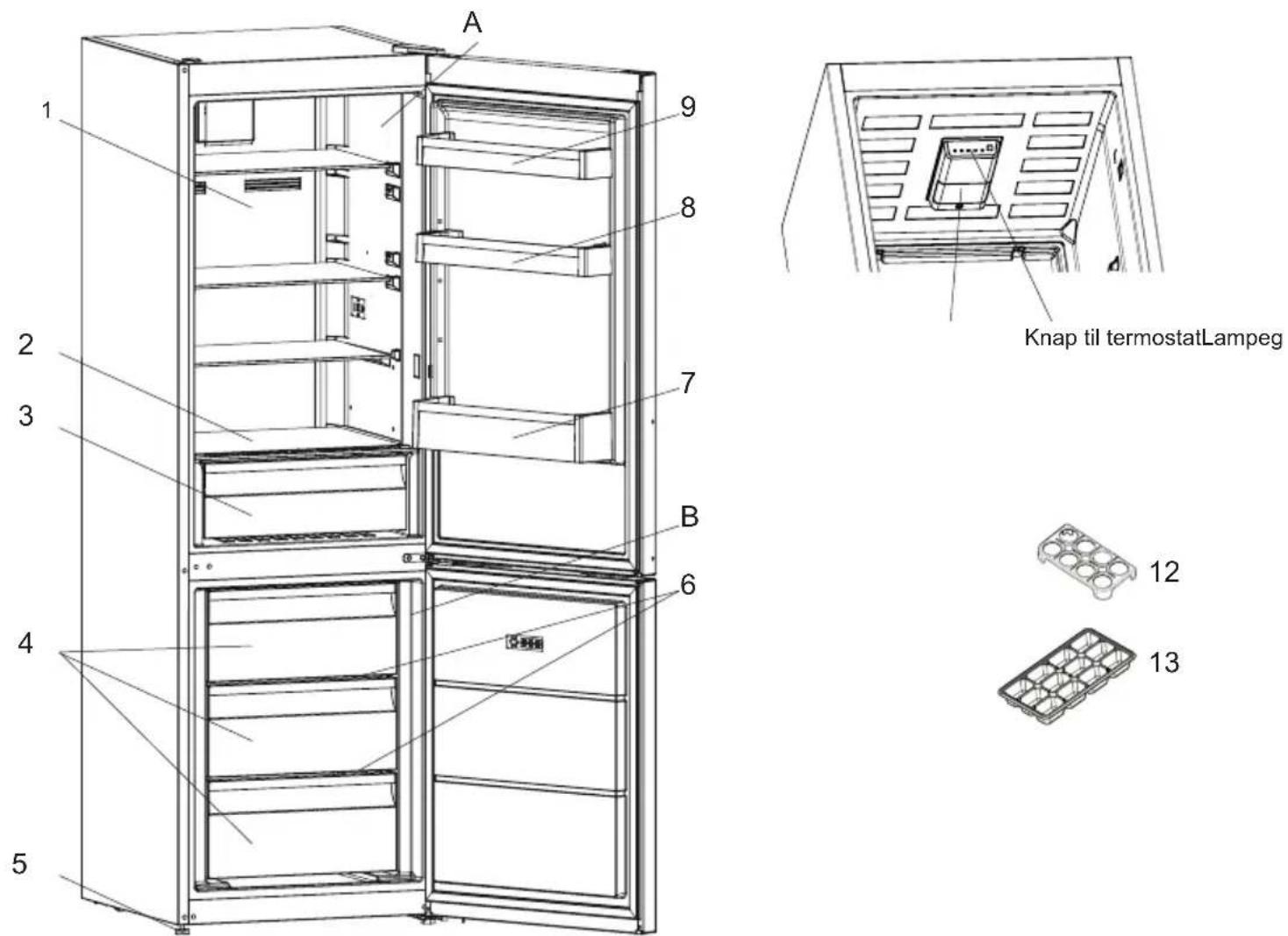

7 PARTS AND COMPARTMENTS OF THE APPLIANCE

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

Index

1 BEFORE USING THE APPLIANCE 28

1.1 General warnings ......28 1.1.1 Old and out-of-order fridge-/freezers 32 1.2 Safety warnings....32 1.3 Installing and operating your fridge-/freezer 33 1.3.1 Before using your fridge-/freezer 34 1.4 Information about New Generation Cooling Technology ....34

2 HOW TO OPERATE THE APPLIANCE....35

2.1 Display and Control Panel 35 2.2 Operating your fridge-/freezer 35 2.2.1 Temperature Set Button....35 2.2.2 Temperature Settings 35 2.2.3 Super Freeze Mode....35 2.2.4 Super Cooling Mode....35 2.2.5 Stand-By Mode....36 2.2.6 Door Open Alarm Function....36 2.3 Warnings about temperature adjustments....36 2.4 Accessories 37 2.4.1 Ice tray....37 2.4.2 Bottle holder (Only some models)....37

3 FOOD STORAGE IN THE APPLIANCE....38

3.1 Refrigerator Compartment....38 3.2 Freezer Compartment 39 4.1 Defrosting 42 4.2 Replacing LED lighting 43

4 CLEANING AND MAINTENANCE 42

5 TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 43

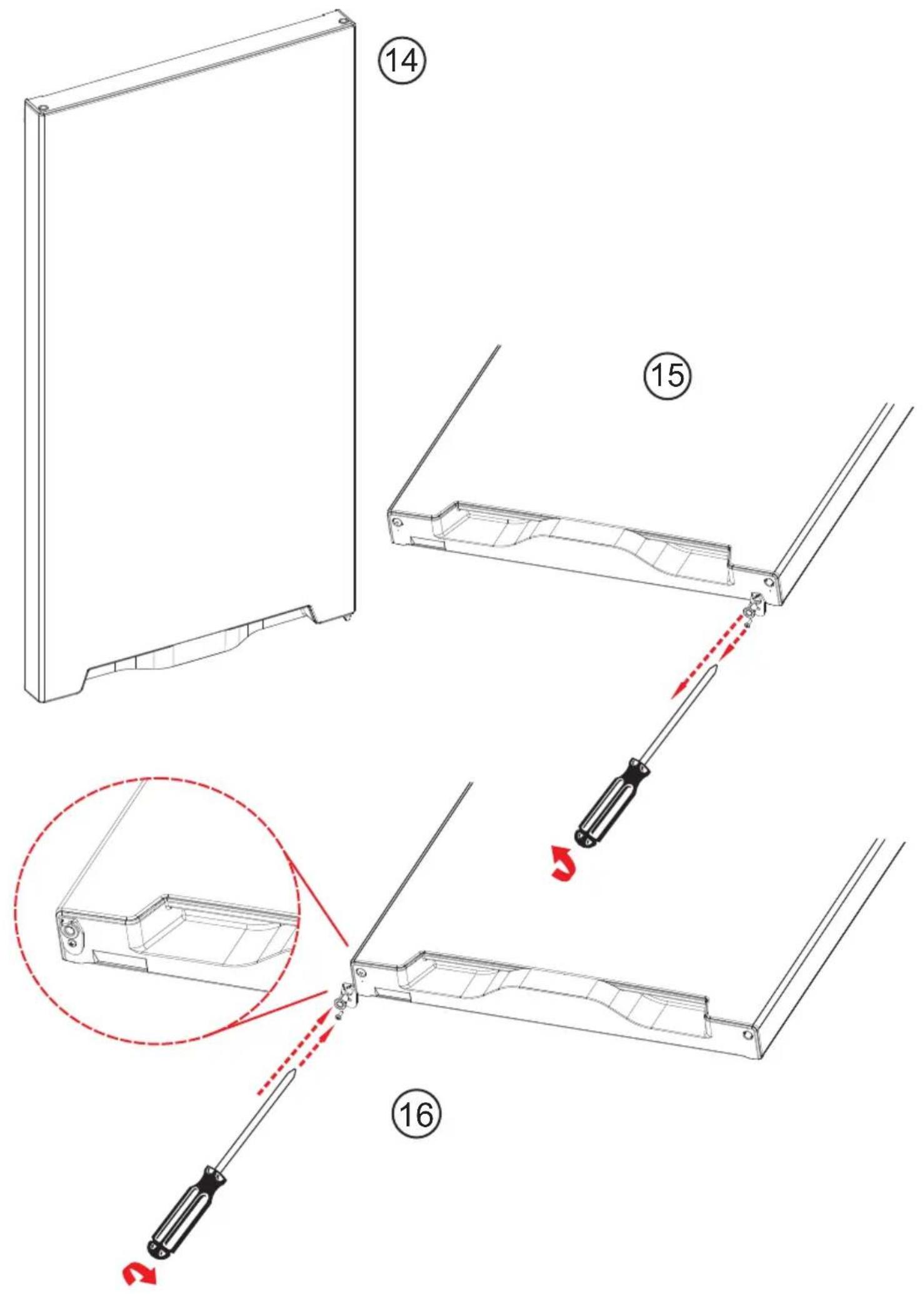

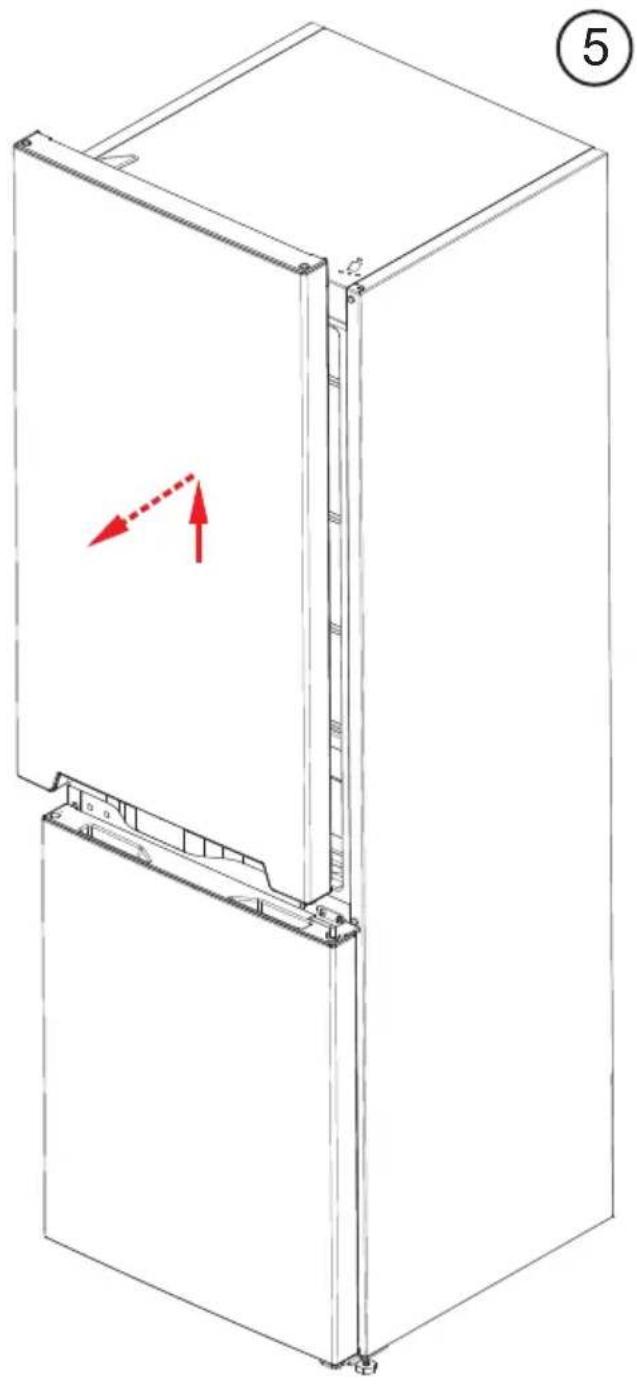

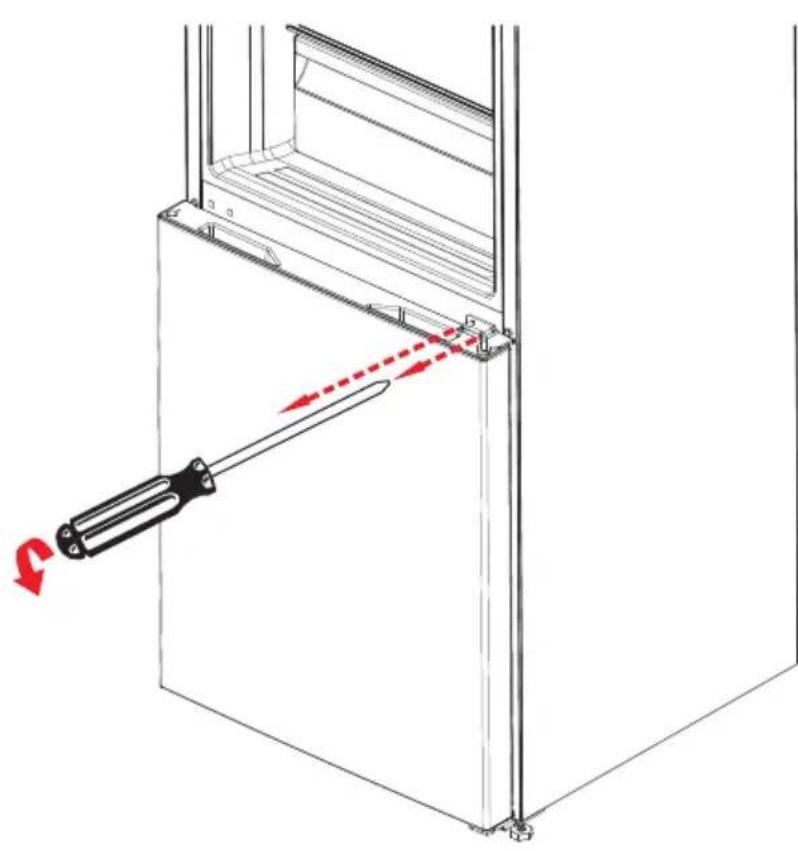

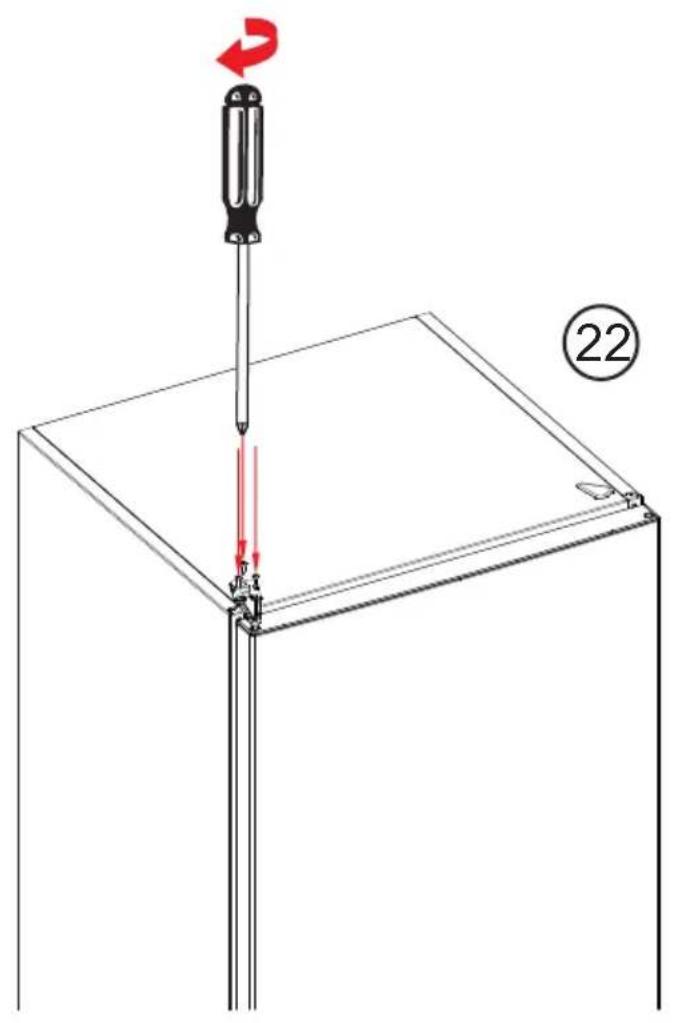

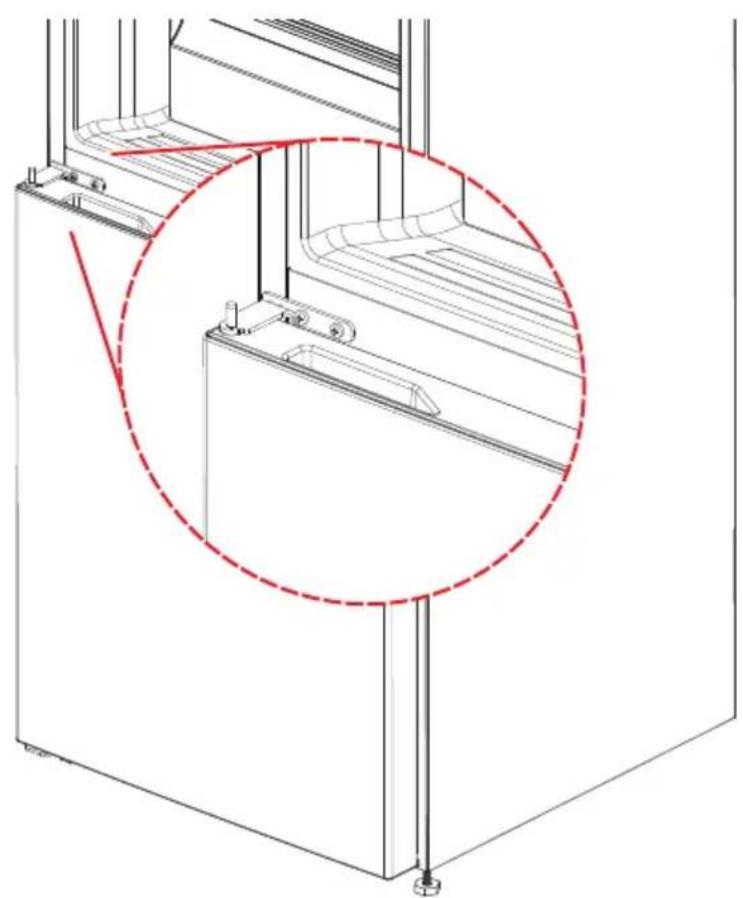

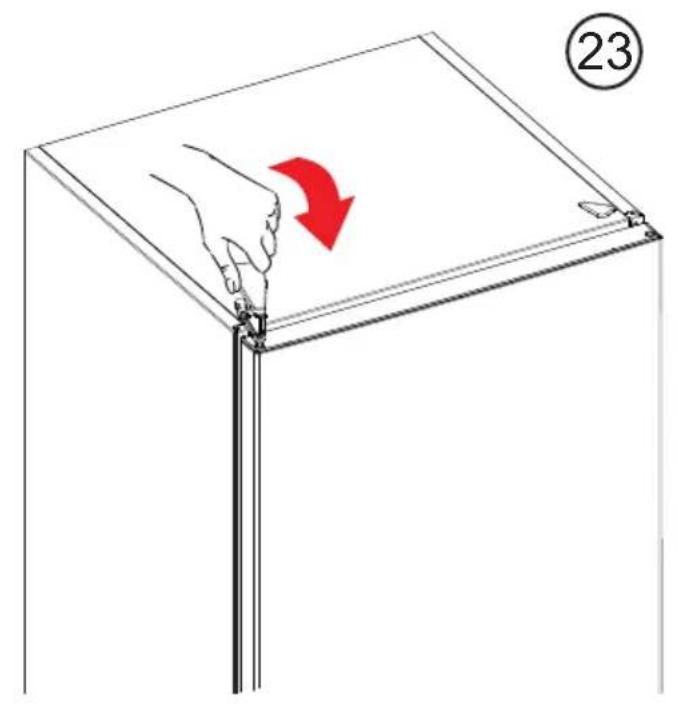

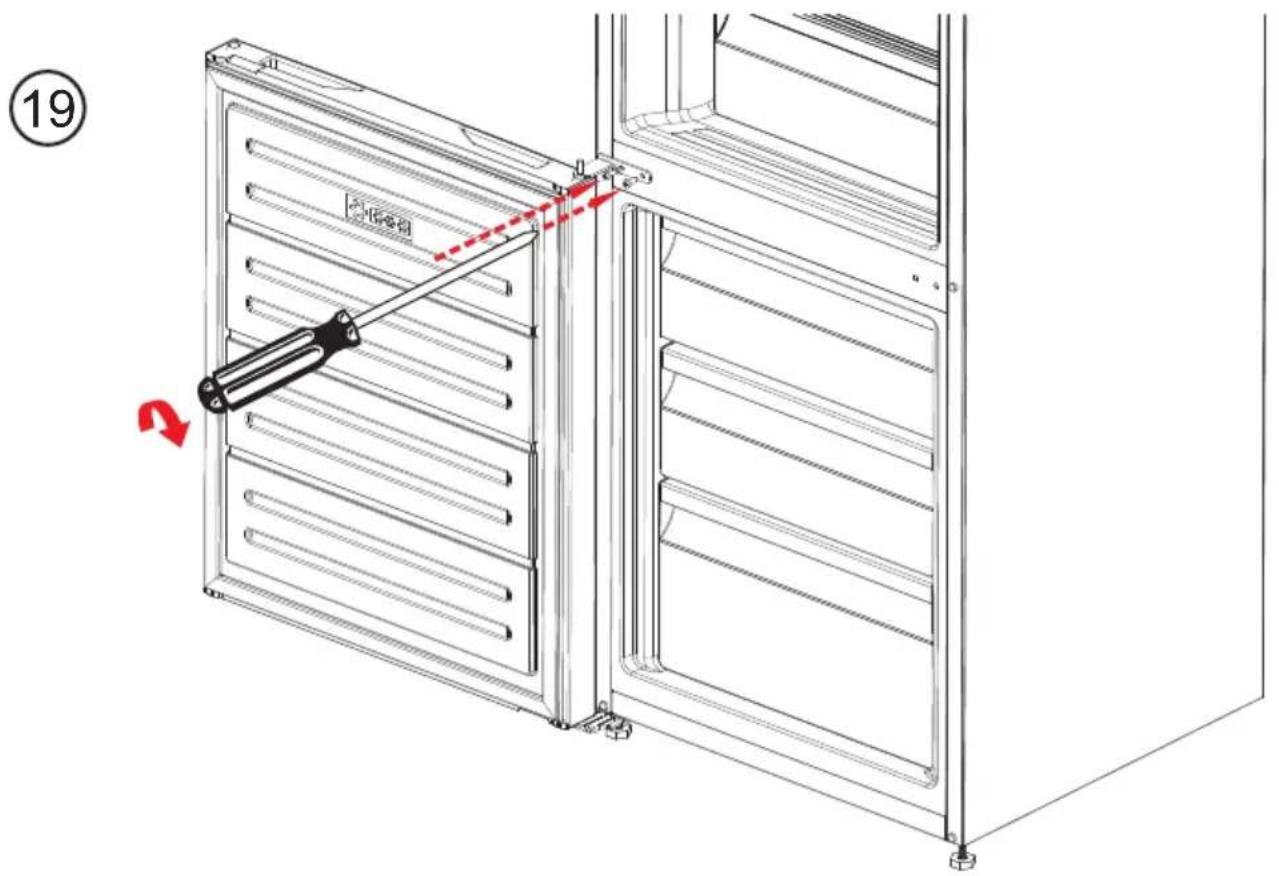

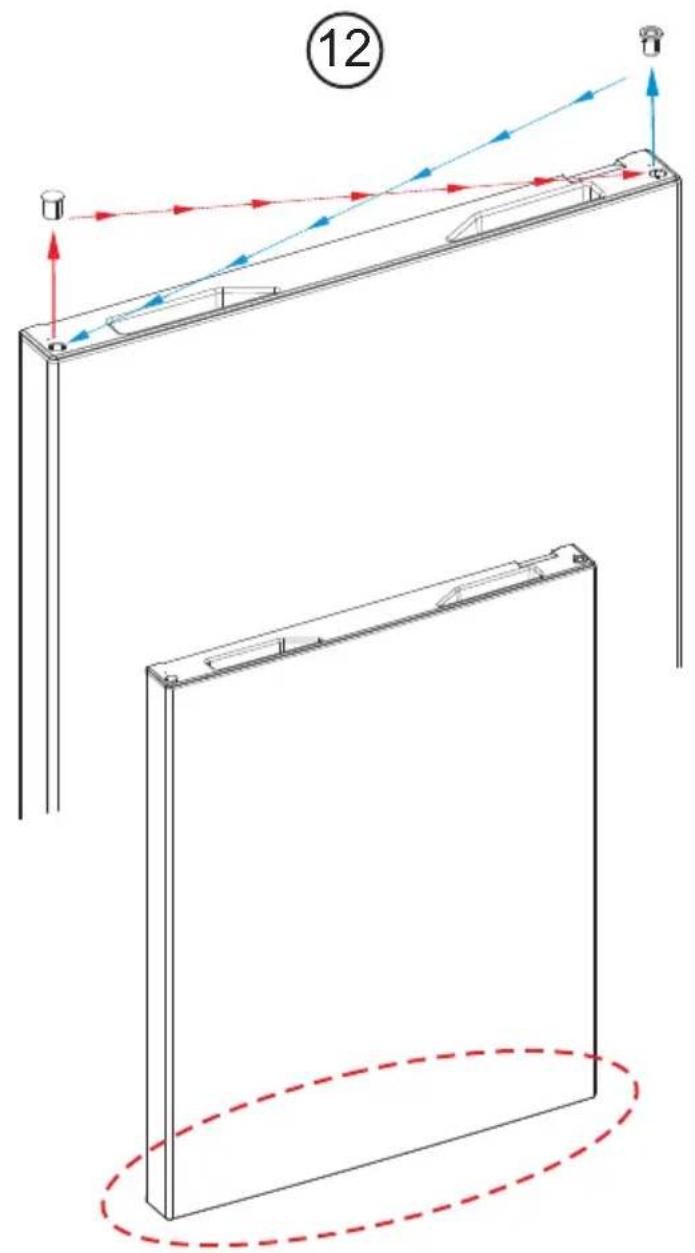

5.1 Transportation 43 5.2 Repositioning the door 43

6 BEFORE CALLING FOR AFTER SALES SERVICE 44

6.1 Tips for saving energy 45

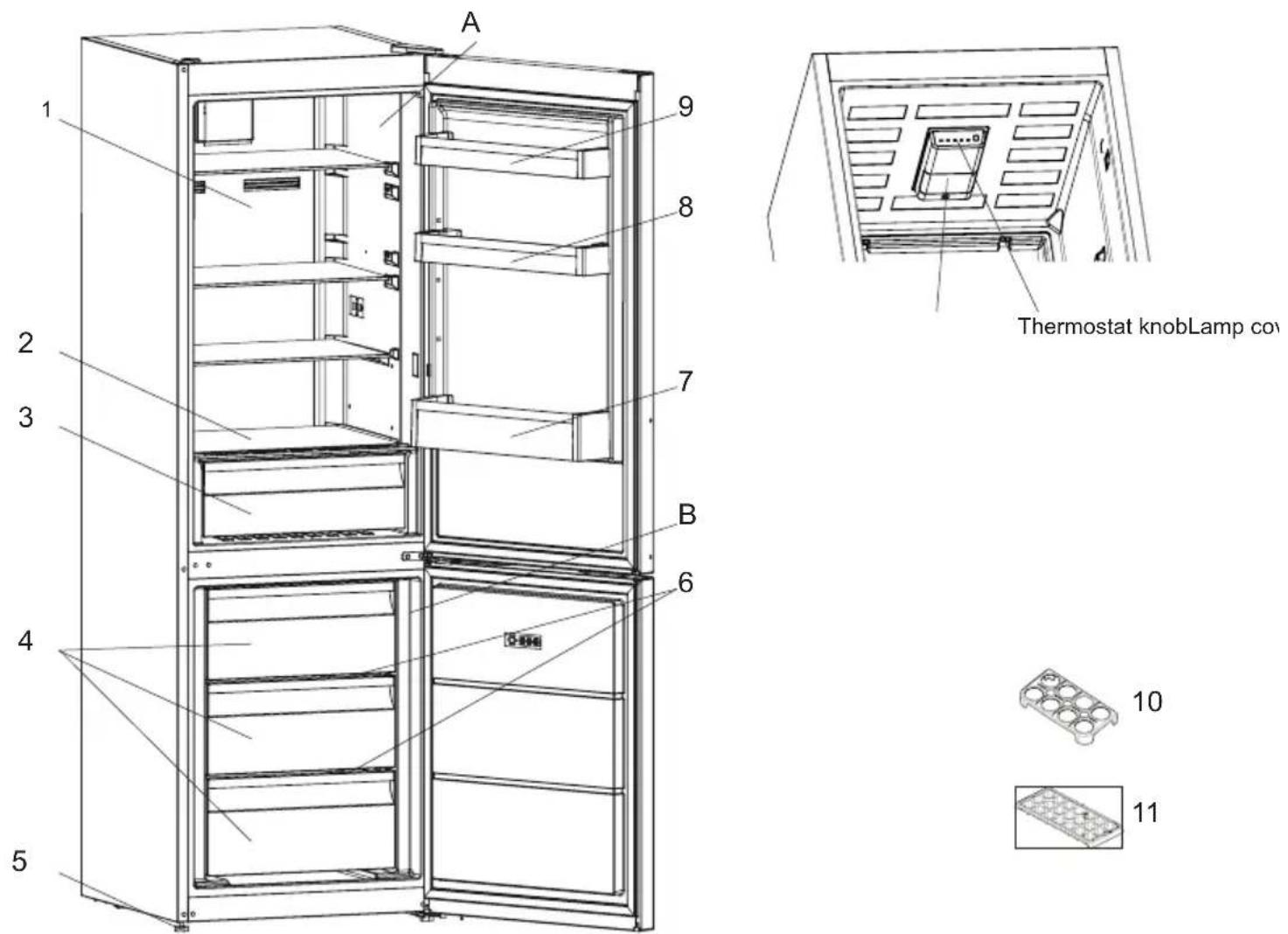

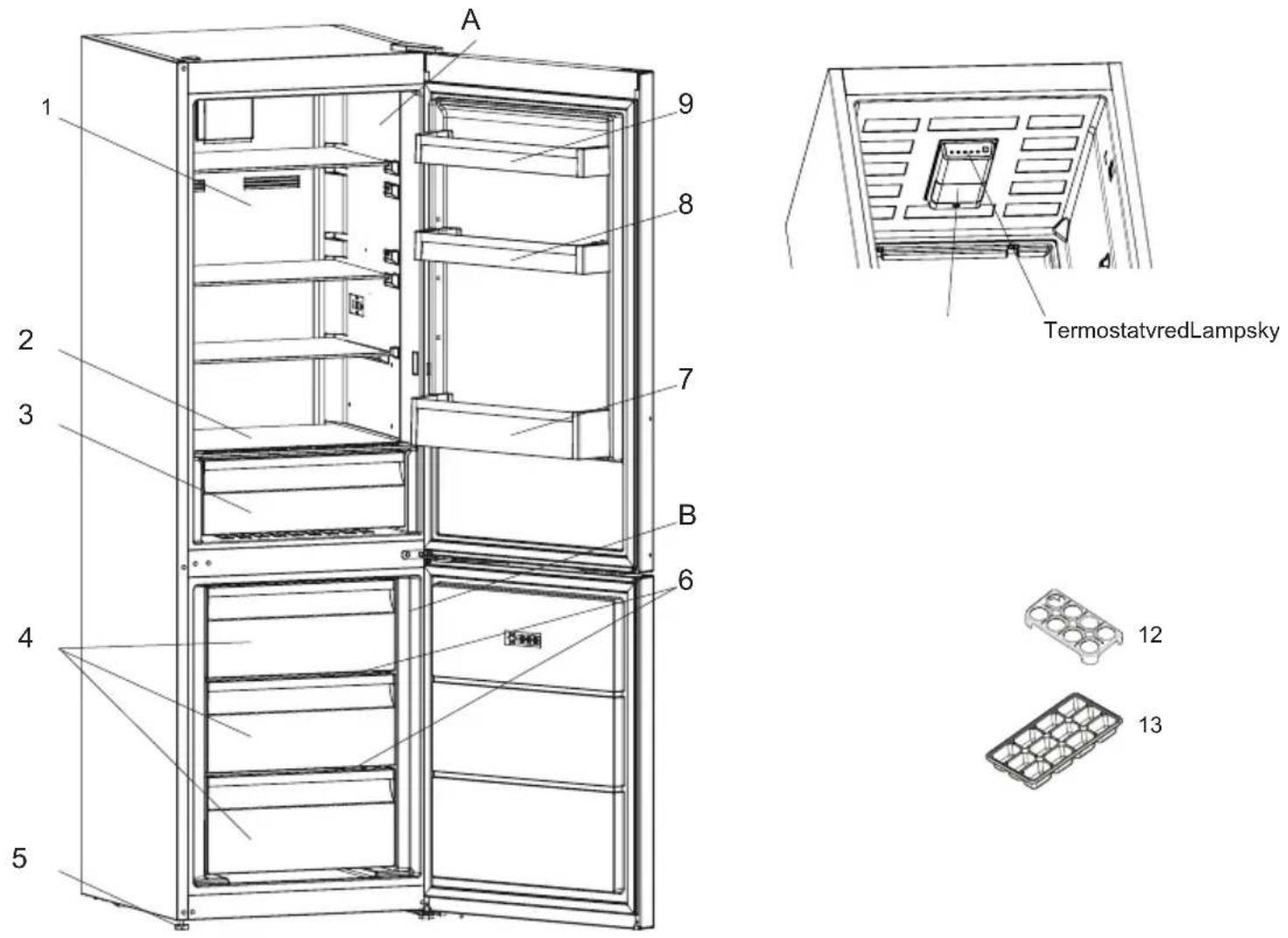

7 PARTS OF THE APPLIANCE AND THE COMPARTMENTS 46

7.1 Dimensions 47

8 TECHNICAL DATA 48

9 INFORMATION FOR TEST INSTITUTES 48

10 CUSTOMER CARE AND SERVICE 48

1 BEFORE USING THE APPLIANCE

1.1 General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

⚠ WARNING: Do not damage the refrigerant circuit.

⚠ WARNING: To avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

SYMBOL ISO 7010 W021

Warning: Risk of fire / flammable materials

- If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements

from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge-/freezer away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge-/freezer, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

-bed and breakfast type environments;

-catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent, or similarly qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorized electrician.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance. Very young children (0-3 years old) are not expected to use appliances. Young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given. Older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

If the supply cord is damaged, it must be replaced by the manufacturer, an authorized service agent, or similar qualified persons in order to avoid a hazard.

This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
• One-, two-, and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Prevent mould developing within the appliance.

1.1.1 Old and out-of-order fridge-/freezers

• If your old fridge/freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers may contain insulation material and refrigerant with CFC or HFC. Therefore, take care not to harm the environment when you are discarding your old fridge/freezer.

Please ask your municipal authority about the disposal of the WEEE for reuse, recycling, and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for damage caused by misuse.
• Follow all instructions on your appliance and in the instruction manual, and keep this manual in a safe place to resolve problems that may occur in the future.
• This appliance is produced for home use and can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled, and our company will not be responsible for losses incurred.
• This appliance is produced for use in houses and is only suitable for cooling/storing food. It is not suitable for commercial or common use and/or for storing substances other than food. Our company is not responsible for losses incurred in the contrary case.

1.2 Safety warnings

• Do not connect your fridge/freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn, or old plugs.
• Do not pull, bend, or damage the cord.

• This appliance is designed for use by adults; do not allow children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the freezer compartment as they can burst when the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.
• When removing ice from the freezer compartment, do not touch it. Ice can cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes

immediately after you have taken them out of the freezer department!

- Do not cover the body or top of fridge-/freezer with lace. This affects the performance of your fridge-/freezer.

- Secure any accessories in the fridge-/freezer during transportation to prevent damage to the accessories.

- Do not use plug adapter.

1.3 Installing and operating your fridge-/freezer

Before starting to use your fridge-/freezer, you should pay attention to the following points:

- The operating voltage for your fridge-/freezer is 220-240 V at 50Hz.

- The plug must be accessible after installation.

- Your fridge-/freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge-/freezer starts to cool.

- Before connecting your fridge-/freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

- We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge/freezer where it will not be exposed to direct sunlight.

- Your fridge/freezer should never be used outdoors or exposed to rain.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- When your fridge/freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).

- The installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

- Before using your fridge/freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in

the fridge/freezer after cleaning.

- Install the plastic distance guide (the part with black vanes at the rear) by turning it 90 degrees (as shown in the figure) to prevent the condenser from touching the wall.

- The refrigerator should be placed against a wall with a free space not exceeding 75 mm.

1.3.1 Before using your fridge/freezer

- When using your fridge/freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

1.4 Information about New Generation Cooling Technology

Fridge/freezers with new generation cooling technology have a different working system than static fridge/freezers. In normal fridge/freezers, humid air that enters into the refrigerator and the water vapor that comes out from the foods accumulates frost formation in the freezer compartment. In order to melt this frost, in other words defrost, the fridge/freezer has to be stopped. During the stopping period, to keep the foods cold, the user has to extract the food to outside of the fridge/freezer and the user has to clear the ice during this period.

In the fridge/freezers with new generation cooling technology, the situation in the freezer compartment is completely different. With the aid of a fan, cold and dry air is blown out through many points into the freezer compartment. As a result of the homogeneously blown cold air, even in the spaces between shelves, foods are frozen equally and correctly. On the other hand, there will be no frost formation.

In the refrigerator compartment, there will be nearly the same configuration as the freezer compartment. Air that is emitted with the fan, located at the top of the refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, air is blown out through the holes on the air duct so that the cooling process is successfully completed in the

refrigerator compartment. Holes on the air duct are designed such that the air distribution becomes homogeneous in this compartment.

As there is no air passage between the freezer and refrigerator compartments, there will be no odor mixing.

As a result of these, your fridge/freezer with new generation cooling technology gives you ease of use beside the huge volume and aesthetic appearance.

2 HOW TO OPERATE THE APPLIANCE

2.1 Display and Control Panel

2.2 Operating your fridge/freezer

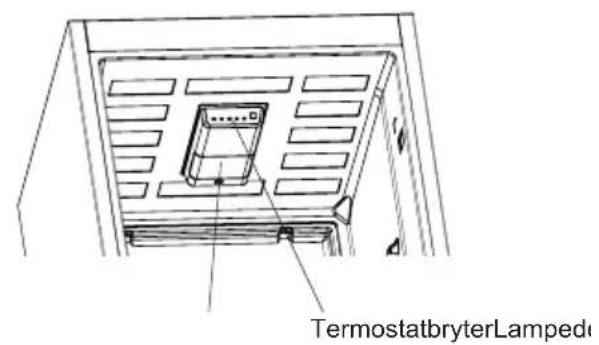

Lighting

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

2.2.1 Temperature Set Button

This button allows setting the temperature of the fridge and freezer. In order to set values for the fridge and freezer partitions, press this button.

2.2.2 Temperature Settings

• Every time you press the button, the setting temperature will decrease.
• Settings display and you do not press any button within the following 3 seconds.

2.2.3 Super Freeze Mode

When would it be used?

• To freeze huge quantities of food. • To freeze fast food. • To freeze food quickly. • To store seasonal food for a long time.

2.2.4 Super Cooling Mode

When would it be used?

• To cool huge quantities of food. • To cool fast food. • To cool food quickly. • To store seasonal food for a long time.

How to use?

• Hold down the temperature set button for 5 seconds to activate super mode when set to MAX.
• All lights will be lit constantly.

During this mode:

If you hold down the set button for 5 seconds, super mode will be deactivated.

The super mode will be cancelled automatically after a maximum of 48 hours.

Note: Some appliances may have a stand-by mode.

2.2.5 Stand-By Mode

How to Activate?

Hold down the set button for 5 seconds when it is set for "Min". All LEDs will blink three times. How It Works?

In stand-by mode, all components will be disabled. If the user pushes the set button while in stand-by mode, all LEDs will blink three times to show that stand-by mode is active.

How To Deactivate?

Push and hold the set button until the display returns to normal working.

2.2.6 Door Open Alarm Function

If the refrigerator door is left open for more than 2 minutes, the interior lighting (if available) will start flashing.

2.3 Warnings about temperature adjustments

• It is not recommended that you operate your fridge/freezer in environments colder than 16°C in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge/freezer.
• Your fridge/freezer should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open the doors of your fridge/freezer frequently and do not place much food inside it in this period.
• A 5-minute delaying function is applied to prevent damage to the compressor of your fridge/freezer when you take the plug out and then plug it in again to operate it or when an energy breakdown occurs. Your fridge/freezer will start to operate normally after 5 minutes.
• Your fridge/freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge/freezer out of the stated temperature value limits in terms of cooling effectiveness.
• This appliance is designed for use at an ambient temperature within the 16°C - 43°C range.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

2.4 Accessories

2.4.1 Ice tray

• Fill the ice tray with water and place in the freezer compartment. After the water has completely turned into ice, you can twist the tray as shown below to get the ice cubes.

2.4.2 Bottle holder (only on some models)

To prevent bottles from slipping or falling over, you can use the bottle holder. This also helps to reduce noise from bottles when opening or closing the door.

All written and visual descriptions in the accessories may vary depending on the appliance model.

3 FOOD STORAGE IN THE APPLIANCE

3.1 Refrigerator Compartment

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, over time, your appliance will require more frequent defrosting.
• Cooked dishes must remain covered when kept in the fridge. Do not place warm foods in the fridge. Place them when they are cool; otherwise, the temperature and humidity inside the fridge will increase, reducing the fridge's efficiency.
• Make sure no items are in direct contact with the rear wall of the appliance, as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and fresh fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

Do not allow food to come into contact with the temperature sensor, which is located in the refrigerator compartment, in order to keep the refrigerator compartment at optimum temperature.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4°C.
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food Maximum storage time How and where to store
Vegetables and fruits	1 week Vegetable bin
Meat and fish 2 - 3 days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3 - 4 days On the designated door shelf
Butter and margarine	1 week On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month On the designated egg shelf
Cooked food 2 days All shelves

NOTE:

Potatoes, onions and garlic should not be stored in the refrigerator.

3.2 Freezer Compartment

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags. For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided, food should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.
• If the freezer door has been left open for a long time or not closed properly, frost will form and can prevent efficient air circulation. To resolve this, unplug the freezer and wait for it to defrost. Clean the freezer once it has fully defrosted.
• The freezer volume stated on the label is the volume without baskets, covers, and so on.
• Do not refreeze thawed food. It may pose a danger to your health and cause problems such as food poisoning.

NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish Preparation		Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if it has a membrane 1 - 3
Chicken and turkey	Wrap in foil 4 - 6
Goose and duck	Wrap in foil 4 - 6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 - 4
Shellfish	Clean and in a bag	4 - 6
Caviar	In its packaging, or in an aluminium or plastic container	2 - 3
Snails	In salty water, or in an aluminium or plastic container	3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water	10 - 13
Beans	Hull, wash and boil in water	12
Cabbage	Clean and boil in water	6 - 8
Carrot	Clean, cut into slices and boil in water	12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Vegetables and Fruits Preparation		Maximum storage time (months)
Spinach Wash and boil in water 6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut into pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry, sourberry Wash and hull the stems		8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread	4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5	5-8 (190-200 °C)
Pastry	1 - 3	2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 - 4	15-20 (200 °C)

Dairy products	Preparation	Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet	2 - 3 Pure Milk – in its own	packet
Cheese - excluding white cheese	In slices	6 - 8	Original packaging may be used for short-term storage.Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6

4 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not clean the appliance by pouring water on it.

• Make sure that no water enters the lamp housing and other electrical components.
• The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not clean them in the dishwasher.

Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, connect the plug to the mains supply with dry hands.

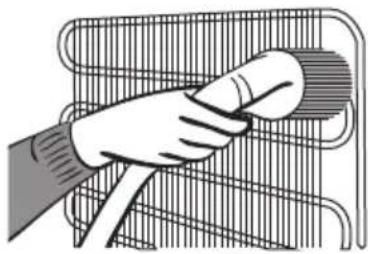

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

THE POWER SUPPLY MUST BE DISCONNECTED.

4.1 Defrosting

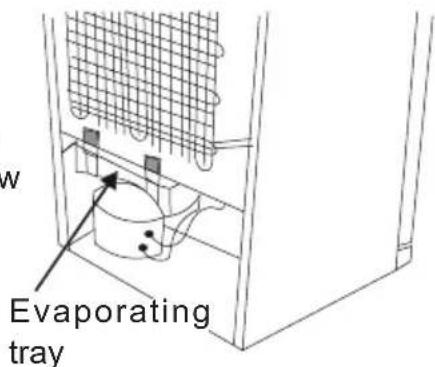

Your fridge/freezer has fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container below the condenser and evaporates there.

4.2 Replacing LED lighting

If your refrigerator has LED lighting, contact the help desk as this should be changed by authorized personnel only.

If product equipped with LED lamp

This product contains a light source of energy efficiency class .

If product equipped with LED Strip(s) or LED card(s)

This product contains a light source of energy efficiency class < F> .

5 TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

5.1 Transportation

- The original packages and foamed polystyrene (PS) can be retained if required. - During transportation, the appliance should be secured with a wide string or a strong

rope. The instructions written on the corrugated box must be followed while transporting.

- Before transporting or changing the installation position, all the moving objects (i.e., shelves, crisper, etc.) should be taken out or fixed with bands in order to prevent them from getting damaged.

! Carry your fridge/freezer in the upright position.

5.2 Repositioning the door

- It is possible to change the opening direction of the unit's doors. - Follow the instructions on page 118.

6 BEFORE CALLING FOR AFTER SALES SERVICE

If your fridge-/freezer is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is no power,
• The general switch in your home is disconnected,
• The socket is not faulty. To check this, plug the appliance in to another socket which you know is working.

What to do if your appliance performs poorly

Check that:

• You have overloaded the appliance,
• The thermostat setting is on position "1" (if so set the thermostat dial to a suitable value). • The doors are closed properly, • There is no dust on the condenser,
• There is enough space at the rear and side walls.

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting. - When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally. The compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air blowing noise (Normal fan noise): This noise can be heard in NoFrost refrigerators during normal operation of the system due to the circulation of air.

If there is water in the lower part of the refrigerator:

Check if:

The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

Important notes:

• In case of a sudden power loss or disconnecting and reconnecting of the plug to the electrical socket, the compressor protective thermal element will be opened as the pressure of the gas in the cooling system of your refrigerator has not yet been balanced. 4 or 5 minutes later, your fridge/freezer will start to operate; this is normal.
• If you won't be using your fridge/freezer for a long time (such as on summer holidays), please disconnect the plug from the socket. Clean your fridge/freezer as per Part 4 of this document and leave the door open to prevent any humidification or odor formation.

If there is still a problem with your fridge/freezer although you have followed the instructions in this book, please consult your nearest authorized service center.

6.1 Tips for saving energy

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker, etc.). Otherwise, use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.
4. Cover drinks or other liquids when placing them in the appliance. Otherwise, humidity increases in the appliance. Therefore, the working time gets longer. Also, covering drinks and other liquids helps to preserve smell and taste.
5. Try to avoid keeping the doors open for long periods or opening the doors too frequently, as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (crisper, chiller, etc.) closed.
7. Door gasket must be clean and pliable. Replace gaskets if worn.
8. Energy consumption of your appliance is declared without drawers and fully loaded in freezer compartment.
9. For saving energy, do not use the volume between the load limit and the door, along the load limit line. The load limit line is also used in the energy consumption declaration.

7 PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Fridge compartment B) Freezer compartment

1) Fridge shelves

2) Crisper cover

3) Crisper

4) Freezer baskets

5) Levelling feet 6) Freezer glass shelves * 7) Bottle shelf 8) Adjustable door shelf / Door shelf 9) Door shelf 10) Egg holder 11) Ice tray

* In some models

General notes:

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

Freezer Compartment (Freezer): Most efficient use of energy is ensured in the configuration with the drawers and bins on stock position.

7.1 Dimensions

Overall dimensions1

H1 mm 1800,0

W1 mm 540,0

D1 mm 595,0

1 the height, width and depth of the appliance without the handle.

Space required in use2

H2 mm 1850,0

W2 mm 560,0

D2 mm 692,8

2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air.

Overall space required in use3

W3 mm 650,2

D3 mm 1137,9

3 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment.

8 TECHNICAL DATA

The technical information is located on the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.

ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

9 INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 7. Please contact the manufacturer for any other further information, including loading plans.

10 CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. Subject to change without notice.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website

www.eico.eu

6 INNAN FÖRSÄLJNINGSSERVICE TILLKALLAS....67

-bed and breakfast bostäder;

1.3 Installationsinformation

1.4 Information om den nya generationens kylteknik

2 OLIKA FUNKTIONER OCH MÖJLIGHETER

2.4.2 Flaskhållare (På vissa modeller)

SE TILL ATT APPARATEN ÄR BORTKOPPLAD FRÅN VÄGGUTTAGET.

4.1 Avfrostning

7 FRYS- OCH KYLSKÅPETS DELAR OCH UTRYMMEN

12

13

8 TEKNISET TIEDOT....94

9 TIETOJA TESTAUSLAITOKSILLE 94

10 CUSTOMER SERVICE AND MAINTENANCE 94

1 BEFORE USING THE APPLIANCE

THE POWER CORD MUST BE UNPLUGGED FROM THE WALL OUTLET BEFORE CLEANING.

4.1 Defrosting

Crushing ice:

• During automatic defrosting - when the appliance cools or warms (due to expansion of the appliance's material) - a sound is heard when the thermostat turns the compressor on/off

Compressor sound

• Normal motor noise. This sound means the compressor is operating normally.
• The compressor may make more noise for a short while when it is activated.

7 REFRIGERATOR/FREEZER COMPARTMENTS AND PARTS

7

13

20

21

52495720
