USER MANUAL D901 ZIBRO

G CONDITIONS DE GARANTIE

for at slukke for apparatet.

BEMAERKNINGER

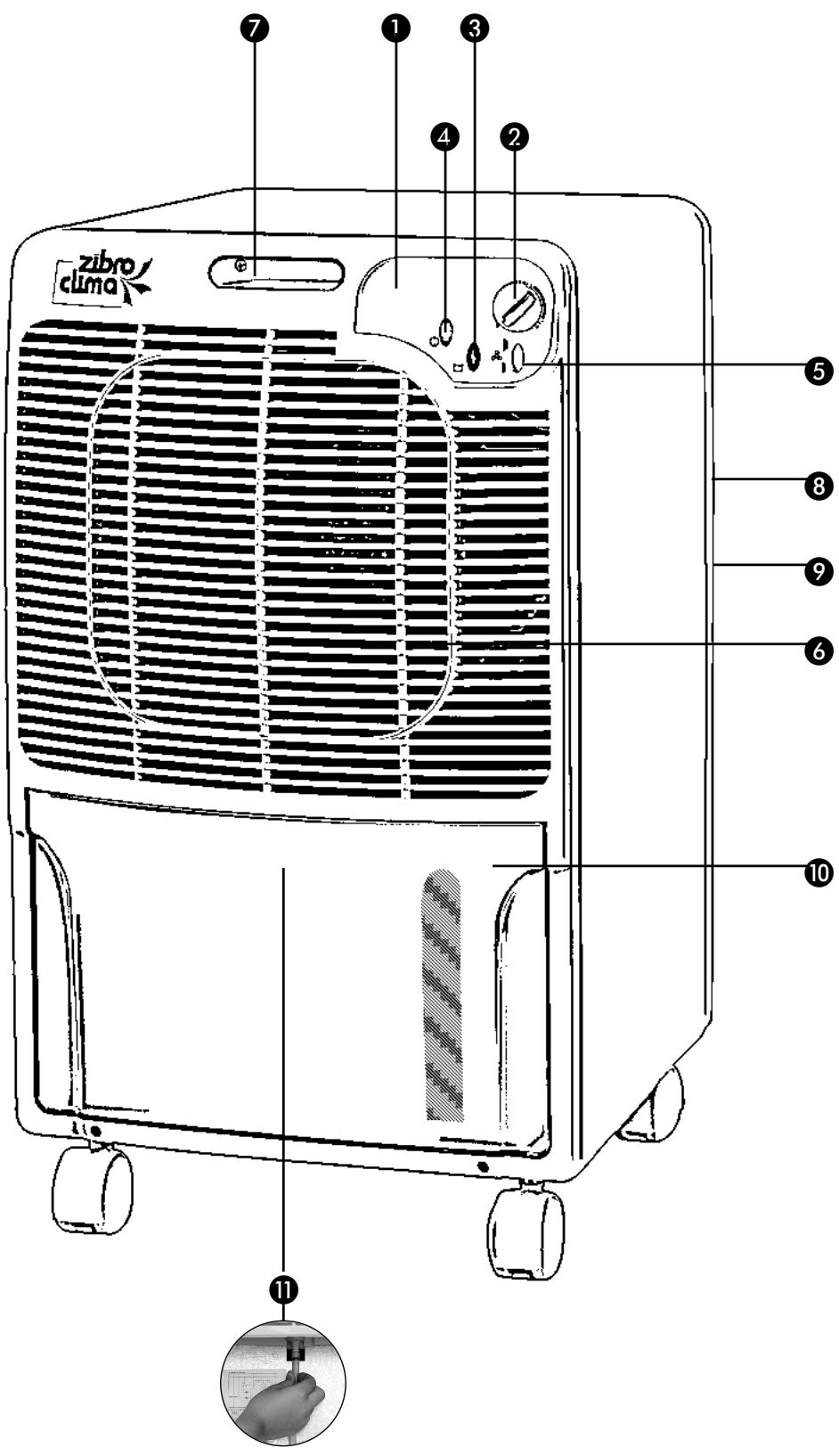

control panel
control button/ moisture meter
red warning light 'reservoir full'
on/off light
ventilator speed selector knob
6 dry air exhaust
7 handle
inlet for humid air
9 air filter
10 removable reservoir
drainage spout with plug

DEHUMIDIFIER INSTRUCTIONS FOR USE

To guarantee maximum safety and optimum efficiency, we strongly recommend that you read these instructions carefully before installing and operating the dehumidifier.

THE DEHUMIDIFIER

The function of the machine is to reduce the level of humidity in the room where it is installed. The dehumidifier is specifically intended for rooms where an undesirably high humidity level is created, e.g. kitchens, bathrooms, washrooms, basements, etc.

The machine is fitted with wheels and handles for convenient transportation.

Studies have revealed that environments with a relative humidity between 45% and 60% are ideal for both humans and animals, and the preservation of objects.

A INSTALLATION

Place the machine in the room in which the humidity must be reduced. Leave a gap of at least 50~cm . around the machine to ensure effective circulation.

Check the following before activating the machine:

Do you have the correct mains voltage, as stated in the "Technical specifications"?
Is the plug suitable for the wall socket? If this is not the case, the plug may only be replaced by a qualified individual.
Are you using an earthed socket?

B OPERATION

1 Connect the machine to the socket with the mains cable. The on/off light ④ will switch on, indicating that the machine is connected.
2 Check that the red warning light ③ is off. This indicates that the reservoir does not need to be emptied.

3 Turn the control button 2 to:

'Normal' setting

for automatic operation based on a normal humidity level (between 45% and 60% ). The machine will switch off automatically when a humidity level of 50% is reached, and switch on again when the humidity level increases.

'Max' setting

for continuous operation in specific situations, such as drying clothes, etc.

4 Select the ventilator speed:

▶ Silent Mode

The dehumidifier operates on reduced power at this setting (180 m³/h).

Standard Mode

The dehumidifier can be set for normal operation by pressing the selector button (300m^3 /h)

5 Turn the control button 2 to:

'0' setting

to switch the machine off.

ATTENTION

Adjusting the ventilator speed reduces the noise level. However, this also causes a slight loss of capacity as the machine works with reduced power at this setting.
We recommend that the machine be set to operate on reduced power if the humidity level is lower than 60% in order to generate the optimum power consumption/benefit ratio.

C WATER DRAINAGE

The red light ③ will switch on when the reservoir is full. A safety system ensures that the machine then switches itself off. Simply remove the reservoir to drain the water (fig. A).

EXTERNAL DRAINAGE

If desired, it is possible to fit a drainage hose to the machine. Follow the steps below:

1 Remove the reservoir from the machine.
2 Remove the plug from the end of the drainage spout.
3 Connect the drainage hose to the spout (fig. B). The drainage hose is available at your dealer's.

The hose is led away through the hole in the bottom of the machine.
5 Re-install the reservoir into the machine.

Seal the drainage spout with the appropriate plug when you wish to operate the machine normally again, without a drainage hose.

D MAINTENANCE

Remove the plug from the socket before carrying out any maintenance or cleaning work on the machine. For safety reasons it is forbidden to use large amounts of water while cleaning:

Clean the outside with a slightly damp cloth followed by a dry cloth.
Do not use alcohol or cleaning products when cleaning.
- Clean the air filter every week. Remove the filter from the back of the machine and clean it with a vacuum cleaner (fig. C).

E STORAGE

Take the following steps if you do not intend to use the machine for an extended period of time:

Remove the plug from the socket and empty the reservoir.
Clean and/or replace the air filter. Filters are available at your supplier.
Store the machine in a dust-free environment, e.g. in a plastic bag.

To ensure that you get the best service from your Zibro Clima do not place the dehumidifier next to a radiator or other heat source as this will reduce the performance of your dehumidifier.
The machine was designed to dehumidify excessively humid rooms. You should not use it for any other purpose.
It is dangerous and forbidden to modify the machine.
Always contact your supplier if repairs are required.
It is forbidden for children to play with the machine. The machine may only be used by adults.
The machine must always be connected to the mains with an earthed connection.
Always switch the machine off before carrying out maintenance or cleaning work.
- Do not install the machine near heat sources or near flammable installations/materials (e.g. curtains), explosive environments.
Whenever you disconnect the machine, you must always wait at least three minutes before reconnecting it.
It is forbidden to cover the machine or to insert foreign objects into the machine in connection with the risk of overheating or fire.
The machine may not become wet.
The machine must always be placed vertically, particularly during transport. Always empty the water reservoir before transporting the machine.

G GUARANTEE CONDITIONS

The dehumidifier has a 24-month guarantee period, commencing on the purchase date. All material or manufacturing defects will be repaired free of charge within this period. The following rules apply:

1 We expressly refute all further damage claims, including consequential damage.
2 Any repairs or replacement of components during the guarantee period will not result in an extension of the guarantee period.
3 The guarantee will be invalidated if any alterations have been made, not genuine components have been fitted or if the dehumidifier has been repaired by a third party.
4 Components subject to normal wear, such as the air filter, are not covered by the guarantee.
The guarantee is only valid on presentation of the original, unaltered and dated purchase invoice.
The guarantee does not cover damage caused by actions that deviate from those in the instructions for use or by neglect.

To prevent unnecessary expenses, we recommend that you always first carefully read the instructions for use. If this does not provide a solution, take the dehumidifier to your distributor for repairs.

D901 D1001

H TECHNICAL SPECIFICATIONS

Mains voltage (V,Hz)	230V-50Hz	230V-50Hz
Power consumed (W)	260	260
Amperage (A)	1,47	1,47
Minimal quantity of moisture removed per 24 hours (L) (Under normal circumstances 32°C 80%)	10	12
Coolant	R 134 a	R 134 a
Automatic thaw	yes	yes
Control button/ moisture meter	yes	yes
Dimensions wхhxd (mm)	320x540x395	320x540x395
Net weight (kg)	26,5	26,5
Resevoir capacity (L)	6,5	6,5
Operating range: temperature	2-35 °C	2-35 °C
Operating range: humidity	40-95%	40-95%
CFC-free	yes	yes

MALFUNCTION, CAUSES AND SOLUTIONS

Check the following before requesting technical assistance:

MALFUNCTION	CAUSES	SOLUTIONS
The machine does not operate.	The plug is not in the socket.	Put the plug in the socket.
	The control button is at the lowest setting.	Turn the control button to the desired setting.
	The reservoir is full.	Drain the water from the reservoir.
	The reservoir has not been installed properly.	Install the reservoir correctly.
The machine does not reduce humidity.	The air filter is dirty.	Clean the air filter.
	The temperature or humidity in the room where the dehumidifier has been placed is too low.	It is normal that the dehumidifier does not reduce humidity under exceptional conditions (see Technical specifications).
The dehumidifier operates, but does not reduce humidity.	The room is too big.	We recommend that you place more dehumidifiers.
	There are too many sources of humidity.	We recommend that you place more dehumidifiers.

The manufacturer reserves the right to alter this information without prior notice.
