USER MANUAL SB2E 705 PLUS AEG

SBE 600 R SB2E 680 R SB2-700

SB2E 700 R SB2E 700 RS SB2E 705 PLUS SB2E 750 R SB2E 760 R GB Instructions for use

D Gebrauchsanleitung

F Instruction d’utilisation

I Please read and save these instructions.

TR Kullanøm kølavuzu

You have high standards and expect to purchase quality goods – quality offered by

Atlas Copco. We have built a durable and reliable electric power tool for you. Please read the instructions for use before first operation so you can handle your power tool effectively and safely. We are sure that buying an AEG Electric Power Tool from Atlas Copco was the right choice!

Advice for your safety

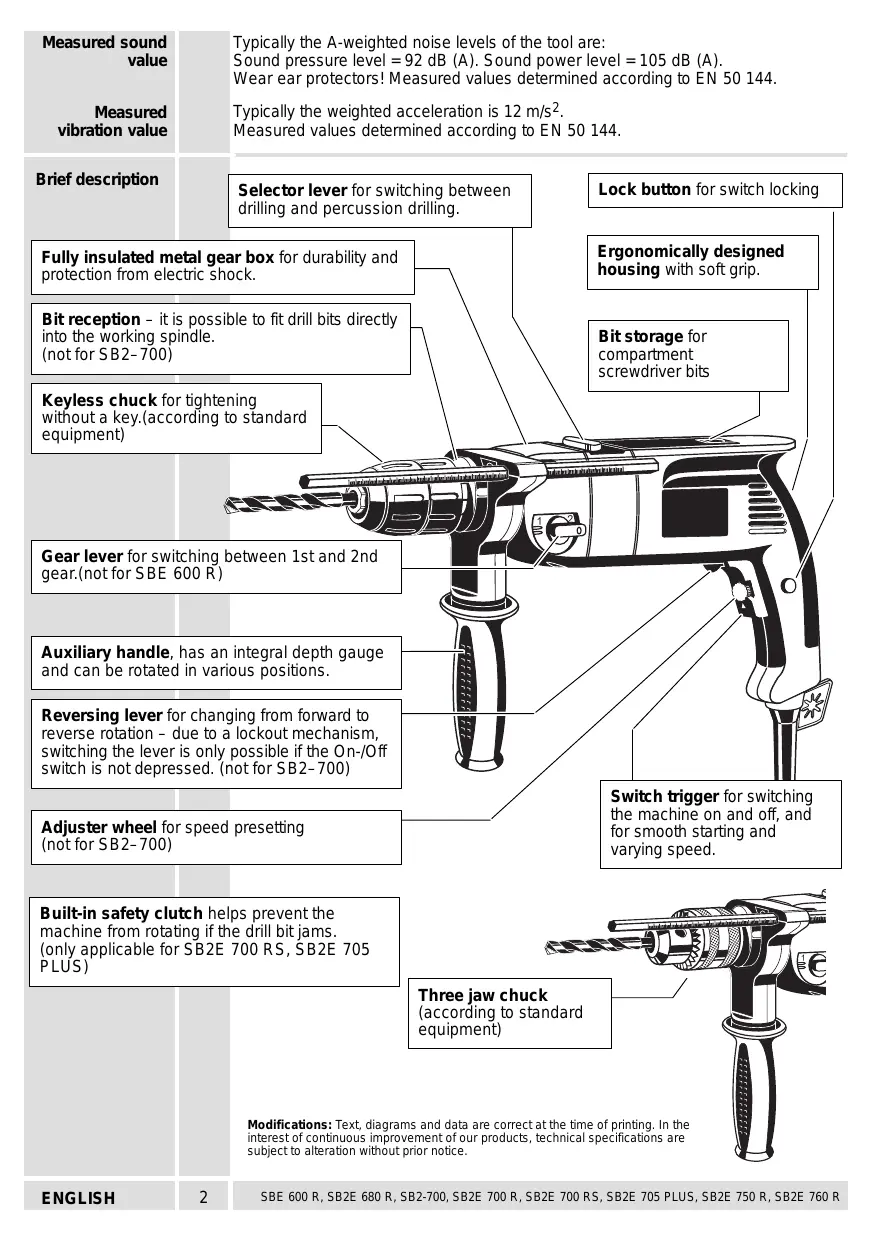

SBE 600 R, SB2E 680 R, SB2-700, SB2E 700 R, SB2E 700 RS, SB2E 705 PLUS, SB2E 750 R, SB2E 760 R Typically the A-weighted noise levels of the tool are:

Sound pressure level = 92 dB (A). Sound power level = 105 dB (A). Wear ear protectors! Measured values determined according to EN 50 144.

Measured sound value

Typically the weighted acceleration is 12 m/s2.

Measured values determined according to EN 50 144.

Measured vibration value

Lock button for switch locking

Selector lever for switching between drilling and percussion drilling.

Ergonomically designed housing with soft grip.

Fully insulated metal gear box for durability and protection from electric shock.

Bit reception – it is possible to fit drill bits directly into the working spindle. (not for SB2–700)

Bit storage for compartment screwdriver bits

Keyless chuck for tightening without a key.(according to standard equipment)

Gear lever for switching between 1st and 2nd gear.(not for SBE 600 R)

Auxiliary handle, has an integral depth gauge and can be rotated in various positions.

Reversing lever for changing from forward to reverse rotation – due to a lockout mechanism, switching the lever is only possible if the On-/Off switch is not depressed. (not for SB2–700) Switch trigger for switching the machine on and off, and for smooth starting and varying speed.

Adjuster wheel for speed presetting

Built-in safety clutch helps prevent the machine from rotating if the drill bit jams.

(only applicable for SB2E 700 RS, SB2E 705 PLUS)

(according to standard equipment)

Modifications: Text, diagrams and data are correct at the time of printing. In the interest of continuous improvement of our products, technical specifications are subject to alteration without prior notice.

SBE 600 R, SB2E 680 R, SB2-700, SB2E 700 R, SB2E 700 RS, SB2E 705 PLUS, SB2E 750 R, SB2E 760 R Mains connection

Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Connection to sockets without earth protection is possible as the appliance features protective insulation to DIN 57 740/ VDE 0740 and CEE 20. Radio suppression complies with the European standard EN 55014.

When fitting the plug, make sure that the brown (live) wire of this appliance is connected to the plug terminal marked L or coloured red, and the blue (neutral) wire of this appliance is connected to the plug terminal marked N or coloured black. Under no circumstances must the wires of this appliance be connected to the earth terminal of the plug marked either E, with the earth symbol or coloured green or green/yellow.

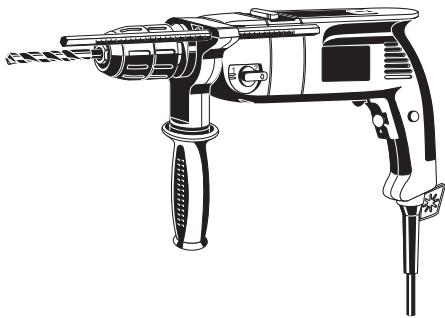

The electronic drill/screwdriver can be universally used for drilling, percussion drilling, screwdriving and cutting screw threads.

Do not use this product in another way as stated for normal use.

(according to standard equipment) Changing the keyless drill chuck

Always disconnect the plug from the socket before carrying out any work on the machine.

1. Usually, the chuck can be removed by hand: steady the drill spindle with a fork wrench and unscrew the chuck by turning it anti–clockwise.

2. Should the chuck be stuck on the drill spindle, fit another fork wrench to the chuck and the drill spindle (see illustration) or fix an Allen key in the chuck.

If necessary, hit the key shaft lightly with a plastic hammer.

3. Mount the chuck in reverse order.

Under high strain in anti–clockwise operation, the chuck might become loose. Please use the bit reception to loosen screws in anti–clockwise operation. (not for SB2–700) Inserting the tool

Completely insert the tool shaft into the open chuck.

Hold the grip and firmly tighten the chuck by turning the sleeve in the ”GRIP” direction. After the clamping jaws have tightened around the tool shaft, turn the chuck a further 1/4 in order to let the chucking power retention engage. Only than can the tool itself be chucked by vigorously turning the sleeve in the “GRIP” direction (it engages audibly with a grating noise.) The chucking power retention is mainly needed for percussion drilling. When the chuck is opened with a strong jerk as far as it will go, it is possible that it can’t be closed anymore. Instead, ”grating” can be felt (as if the chuck were over–tightened). In this case turn the sleeve once more in the ”RELEASE” direction; now it can be closed again. The chuck is not damaged by this ”grating”. When percussion drilling in stone the drill bit should be checked for tight seat in the chuck after first use. If necessary, re–tighten the chuck by hand.

SBE 600 R, SB2E 680 R, SB2-700, SB2E 700 R, SB2E 700 RS, SB2E 705 PLUS, SB2E 750 R, SB2E 760 R Removing the tool

Hold the grip and open the chuck by turning the sleeve in the ”RELEASE” direction.

When turning the sleeve the chucking power retention is released, after 1/4 turn the clamping jaws open and release the clamped tool.

Due to the high power potential of the percussion drill the chuck might get stuck at very high load and can not be opened by hand.

In this case, please steady the chuck head with a fork wrench and loosen the front sleeve of the chuck with aid of a footprint anti–clockwise (see illustration). The use of a footprint will not cause any damage to the chuck. Always disconnect the plug from the socket before carrying out any work on the machine.

(according to standard equipment) Changing the three jaw chuck

1. Hold the drive shank with the open-jaw spanner.

2. Insert the drill chuck key in the drill chuck and loosen the drill chuck to the left by tapping it lightly with a rubber hammer.

3. Mount the chuck in reverse order.

The chuck can be used for drill bits or screwdriver bits. For this purpose, open the chuck, insert the selected bit and secure by tightening the chuck with the chuck key.

To remove tools insert chuck key into one of the three holes at the chuck mouth and turn anti- clockwise.

Setting the depth gauge

ENGLISH For drilling to specific depth, slide the depth gauge into the hole provided in the handle and fasten it at the required drilling depth.

SBE 600 R, SB2E 680 R, SB2-700, SB2E 700 R, SB2E 700 RS, SB2E 705 PLUS, SB2E 750 R, SB2E 760 R Positioning the auxiliary handle

The auxiliary handle can be positioned as required. Loosen the clamping by twisting the auxiliary handle, bring the auxiliary handle into the required position and re–fasten the handle.

(according to standard equipment)

Switching over drilling percussion drilling

Turn changeover lever to symbol percussion drilling.

Turn the switch to position in metal, plastic, and wood, and for screwdriving.

The gears can be changed when the machine is switched off or is running under no load.

Gear change lever in position 1: 1st gear Gear change lever in position 2: 2nd gear

F = highest r.p.m. The speed can be controlled in infinitely variable steps up to the speed preselected at the speed dial, according to the finger pressure on the On-/off switch. During continuous operation with switch locked in the position the machine will run at the pre–selected speed.

Switching between forward and reverse rotation

Select direction of rotation with reversing lever.

Due to a lockout mechanism, the reversing lever can only be switched when the On-/off switch is not depressed.

Only change direction of rotation when the machine has stopped.

Switching the machine on and off

Switching on: Press On-/off switch Switching off: Release On-/off switch Continuous use Switching on: Press the On-/off switch and then the locking button, after that release on-off switch. Switching off: Press the On-/off switch and then release. The speed can be controlled in infinitely variable steps up to the speed preselected at the speed dial, according to the finger pressure on the On-/off switch.

SBE 600 R, SB2E 680 R, SB2-700, SB2E 700 R, SB2E 700 RS, SB2E 705 PLUS, SB2E 750 R, SB2E 760 R Bit storage

To open the bit storage compartment insert index finger in recess (as illustrated) and pull locking lever in direction of spindle.

The bit compartment holds a maximum of 6 screwdriver bits.

Advice for operation

Tips on drilling in masonry

Take the drill out of the hole from time to time to remove dust.

Switch to percussion-drilling for concrete, hard bricks and tiles, stone, hard cement, and marble (but not when drilling the surface of marble). For tiles, paving-stones, soft bricks and tiles, soft cement, breeze-block and plaster, switch to normal drilling. Use percussion carbide tipped masonry drill-bits. When drilling a hard, smooth surface (e.g. tiles), cover the point to be drilled with adhesive tape in order to prevent the drill tip from skidding.

Tips on drilling in metal

Center punch the point you have marked for drilling.

Always hold sheet metal firmly in a vice. Lay a block of wood under thin metal to prevent it from distorting. Use HSS spiral drill bits. (For white cast iron, use drill bits with special tips.) Before drilling large-diameter holes, first drill a small pilot hole. Use lubricant: Steel: Oil Aluminium: Turpentine, paraffin Brass, copper, cast iron: no lubricant, but take the drill out of the hole frequently to cool it off. Center punch the point you have marked for drilling. To prevent the wood from splintering when the drill bit tip breaks through, lay a piece of scrap wood underneath it, or drill from both sides.The maximum drill-diameter can only be reached with a Forstner–drill bit.

Tips on drilling into wood

Use screwdriver bits of the appropriate size and shape.

Suitable screws can be driven into softwood without pre-drilling. Pre-drill into hardwood or for screws of large diameter. Pre-drill further for countersunk screws. For woodscrews threaded less than their full length, pre-drill approx. half the length of the screw. Under high strain in anti–clockwise operation, the chuck might become loose. Please use the bit reception to loosen screws in anti–clockwise operation. (not for SB2–700).

Tips for screw-driving

The ventilation slots of the machine must be kept clear at all times.

If the machine is mainly used for percussion drilling, regularly remove collected dust from the chuck. To remove the dust hold the machine with the chuck facing down vertically, and completely open and close the chuck. The collected dust will fall from the chuck.

It is recommended to regularly use cleaner (Id.No. 4932 6217 19) for the clamping jaws and the clamping jaw borings. In order to guarantee constant readiness for operation, the machine should be checked for worn carbon brushes at one of the AEG after–sales service agencies. Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses). If needed, an exploded view of the tool can be ordered. Please state the ten–digit No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Atlas Copco Electric Tools GmbH, Postfach 320, D–71361 Winnenden. The range of accessories with part numbers is shown in our catalogue.
