USER MANUAL A85280-GA AEG

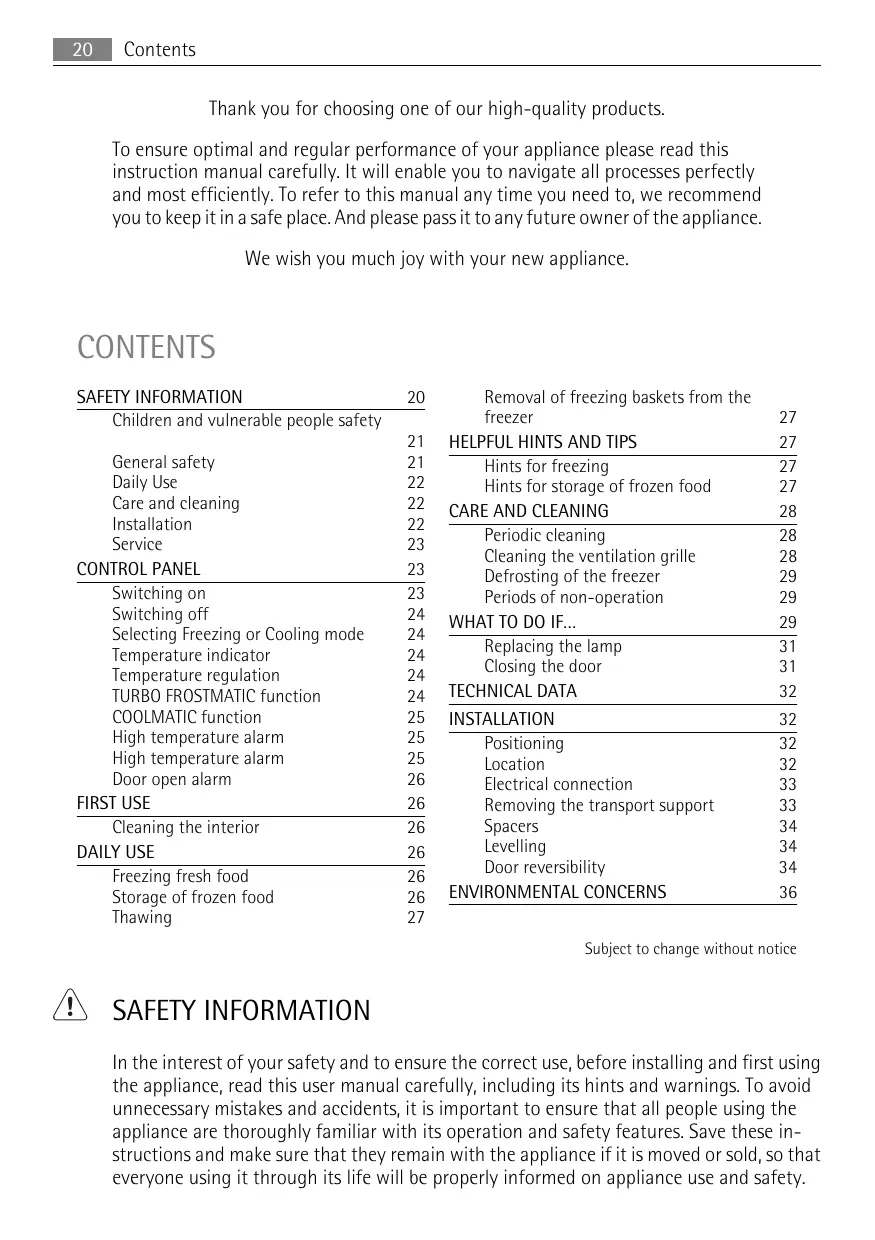

Contents Thank you for choosing one of our high-quality products. To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. We wish you much joy with your new appliance. CONTENTS SAFETY INFORMATION Children and vulnerable people safety General safety Daily Use Care and cleaning Installation Service CONTROL PANEL Switching on Switching off Selecting Freezing or Cooling mode Temperature indicator Temperature regulation TURBO FROSTMATIC function COOLMATIC function High temperature alarm High temperature alarm Door open alarm FIRST USE Cleaning the interior DAILY USE Freezing fresh food Storage of frozen food Thawing

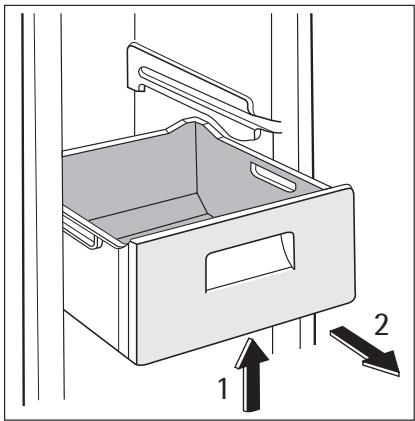

Removal of freezing baskets from the freezer

HELPFUL HINTS AND TIPS

Hints for freezing Hints for storage of frozen food

Periodic cleaning Cleaning the ventilation grille Defrosting of the freezer Periods of non-operation

Subject to change without notice SAFETY INFORMATION In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. Safety information

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety CAUTION! Keep ventilation openings clear of obstruction.
• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged. If the refrigerant circuit should become damaged: – avoid open flames and sources of ignition – thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock. WARNING! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the

appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of

electric shock or fire.

6. You must not operate the appliance without the lamp cover5) of interior lighting.

This appliance is heavy. Care should be taken when moving it. Do not remove nor touch items from the freezer compartment if your hands are damp/ wet, as this could cause skin abrasions or frost/freezer burns. Avoid prolonged exposure of the appliance to direct sunlight. Bulb lamps6) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination. Daily Use

Do not put hot pot on the plastic parts in the appliance. Do not store flammable gas and liquid in the appliance, because they may explode. Do not place food products directly against the air outlet on the rear wall.7) Frozen food must not be re-frozen once it has been thawed out. Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance. Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Never use a hair drier or other heating appliances to speed up defrosting. Excessive heat may damage the plastic interior, and humidity could enter the electric system making it live. Installation For electrical connection carefully follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

5) If the lamp cover is foreseen

6) If the lamp is foreseen

7) If the appliance is Frost Free

• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only.8) Service
• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used. Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol are recyclable. CONTROL PANEL TURBO FROSTMATIC ON/OFF

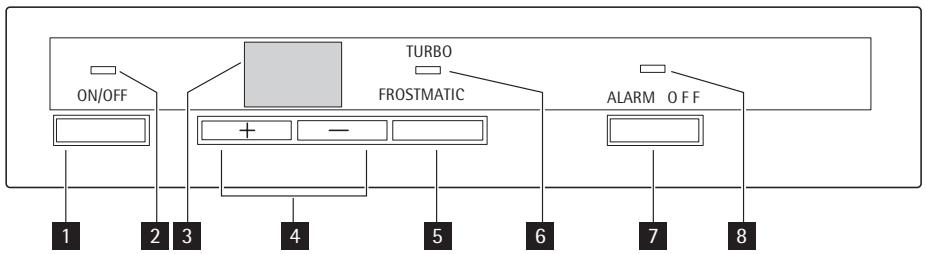

ON/OFF button Pilot light Temperature indicator Temperature regulator, + and - buttons. TURBO FROSTMATIC button (even for COOLMATIC-function) TURBO FROSTMATIC light (even for COOLMATIC-function) Alarm reset button Alarm light Switching on Insert the plug into the wall socket. If the pilot light and the display is not illuminated, press ON/OFF button. Select a temperature according to "Temperature regulation". If the door remains open for some minutes, the light will turn off automatically. The light is reset by closing and opening the door.

8) If a water connection is foreseen

Control panel Switching off Press the ON/OFF button until a countdown is completed from -3 -2 -1. The temperature indicator and the Pilot light switches off. Selecting Freezing or Cooling mode The appliance can be used as a freezer or a refrigerator compartment.

• To switch over from "Freezing" to "Cooling" mode, press the Alarm reset button and Temperature regulator - button for a few seconds. The Temperature indicator shows FC (approx. 5 sec). The changed mode is indicated with a beep and the DESIRED temperature shows.
• To switch over from "Cooling" to "Freezing" mode, press the Alarm reset button and Temperature regulator - button for a few seconds. The temperature indicator shows CF (approx. 5 sec). The changed mode is indicated with flashing temperature, flashing alarm light, an acoustic alarm and the DESIRED temperature shows. When switching from "Cooling" to "Freezing" mode the high temperature alarm will go on. Refer to "High temperature alarm" Temperature indicator
• During normal operation, the temperature indicator shows the current temperature inside the appliance (ACTUAL temperature).
• During temperature adjusting operation, the temperature indicator flashes the appliance temperature currently set (DESIRED temperature). Temperature regulation To operate the appliance, proceed as follows:

1. Set the required temperature by pressing the corresponding temperature regulator. The

temperature indicator flashes the DESIRED temperature.

2. Each time the temperature regulator is pressed the DESIRED temperature is adjusted

by 1 °C. The DESIRED temperature is reached within 24 hours. Once the DESIRED temperature has been set, after a short period (approx. 5 sec.) the temperature indicator will show again the ACTUAL temperature inside the compartment. The temperature indicator will change from flashing to continuous illumination. For a correct storage of the food the following temperature should be set:

• -18 °C in freezing mode
• +5 °C in cooling mode TURBO FROSTMATIC function When the appliance is used as a freezer The TURBO FROSTMATIC function accelerates the freezing of fresh food and , at the same time, protects foodstuffs already stored from undesirable warming. To activate the function, do these steps:

1. Press the TURBO FROSTMATIC button.

2. The TURBO FROSTMATIC indicator will light up and the Temperature indicator shows

SF (approx. 5 sec). To deactivate the function, do these steps: Control panel

1. Press the TURBO FROSTMATIC button.

2. The TURBO FROSTMATIC indicator goes out.

The TURBO FROSTMATIC function stops automatically after about 52 hours. COOLMATIC function When the appliance is used as a fridge. The maximum performance is obtained by setting the COOLMATIC function. It's recommended when loading large quantities of food. To activate the function, do these steps:

1. Press the TURBO FROSTMATIC button.

2. The TURBO FROSTMATIC indicator will light up and the Temperature indicator shows

IC. To deactivate the function, do these steps:

1. Press the TURBO FROSTMATIC button.

2. The TURBO FROSTMATIC indicator goes out.

The COOLMATIC function stops automatically after about 6 hours. High temperature alarm When the appliance is used as a freezer: Temperature increase in the freezing mode (for example due to an earlier power failure or door is open) is indicated by:

• Alarm light flashing
• flashing temperature
• sounding of buzzer When normal conditions are restored:
• the acoustic alarm stops
• the temperature value continues to flash
• the Alarm light continues to flash When you press the Alarm reset button to deactivate the alarm, the highest temperature for some seconds. reached in the compartment appears on indicator Then it returns on the normal operation showing the temperature of the selected compartment. During the alarm phase, the buzzer can be switched off by pressing the Alarm reset button. High temperature alarm When the appliance is used as a fridge: Temperature increase in the cooling mode (for example due to an earlier power failure or door is open) is indicated by:
• Alarm light flashing
• flashing temperature
• sounding of buzzer When normal conditions are restored:
• the acoustic alarm stops
• the temperature value stops flash
• the Alarm light stops During the alarm phase, the buzzer can be switched off by pressing the Alarm reset button.

First use Door open alarm An acoustic alarm will sound if the door is left open for a few minutes. The door open alarm conditions are indicated by:

• Alarm light flashing
• acoustic buzzer Press the Alarm reset button to cancel the acoustic alarm. When normal conditions are restored (door closed) the Alarm will stop automatically. FIRST USE Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brandnew product, then dry thoroughly. Do not use detergents or abrasive powders, as these will damage the finish. DAILY USE Freezing fresh food The freezer compartment is suitable for freezing fresh food and storing frozen and deepfrozen food for a long time. To freeze small amount of fresh foods it is not necessary to change the present setting. To freeze fresh food activate the TURBO FROSTMATIC function at least 24 hours before placing the food to be frozen in the freezer compartment. Place the fresh food to be frozen in all compartments except the bottom drawer. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate , a label located on the inside of the appliance. The freezing process lasts 24 hours: during this period do not add other food to be frozen. Storage of frozen food When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours. The freezer drawers ensure that it is quick and easy to find the food package you want. If large quantities of food are to be stored, remove all drawers except for the bottom drawer which needs to be in place to provide good air circulation. On all shelves it is possible to place food that protrude until 15 mm from the door. In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling). Helpful hints and tips

Thawing Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer. Removal of freezing baskets from the freezer The freezing baskets have a limit stop to prevent their accidental removal or falling out. At the time of its removal from the freezer, pull the basket towards yourself and, upon reaching the end point, remove the basket by tilting its front upwards. At the time of putting it back, slightly lift the front of the basket to insert it into the freezer. Once you are over the end points, push the baskets back in their position.

HELPFUL HINTS AND TIPS

Hints for freezing To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time. Hints for storage of frozen food To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

CAUTION! Unplug the appliance before carrying out any maintenance operation. This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians. Periodic cleaning The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly. Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour. Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save energy consumption. Take care of not to damage the cooling system. When moving the cabinet, lift it by the front edge to avoid scratching the floor. Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason use a soft cloth rinsed in warm water and neutral soap emulsion for cleaning external surfaces. Do not use detergents or abrasive paste as these will damage the paint, or stainless steel anti finger print coating. After cleaning, reconnect the equipment to the mains supply. Cleaning the ventilation grille The ventilation grille can be removed for washing. Make sure the door is open and then: What to do if…

1. Loosen the upper edge of the grille by

pulling outward/downward.

2. Pull the grille straight out to completely

3. Vacuum clean under the cabinet.

Defrosting of the freezer The freezer compartment of this model, on the other hand, is a "no frost" type. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods. The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan. Periods of non-operation When the appliance is not in use for long periods, take the following precautions:

1. disconnect the appliance from electricity supply

3. clean the appliance and all accessories

4. leave the door/doors open to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

During operation of the appliance some smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart information is given about them to avoid unnecessary charges on service. The operation of the appliance goes with certain sounds (compressor and circulating sound). This not means a trouble, but a normal operation. The appliance operates discontinuously, so the stopping of compressor does not mean being no current. That is why you must not touch the electrical parts of the appliance before breaking the circuit. Problem The appliance is noisy. Possible cause Solution The appliance is not supported properly. Check if the appliance stands stable (all feet and wheels should be on the floor). Refer to "Levelling". The cushion spacers located be- Put them back in place again. tween the back of the cabinet and the pipes come loose.

What to do if… Problem The buzzer sounds. The Alarm light flashing. Possible cause Solution The temperature in the freezer is Refer to "High Temperature too high. Alarm". The door is not closed correctly. Refer to "Door open alarm". upper or lower square An error has occurred in measis shown in the tempera- uring the temperature. ture display Call your service representative (the cooling system will continue to keep food products cold, but temperature adjustment will not be possible). Only temperatures above The appliance is in the operation Select Freezing mode. Refer to Cooling mode. "Selecting Freezing or Cooling 0 °C can be set. mode". Only temperatures below The appliance is in the operation Select Cooling mode. Refer to Freezing mode. "Selecting Freezing or Cooling 0 °C can be set. mode". The compressor runs con- The Temperature regulator may be set incorrectly. tinuously. Set a warmer temperature. The door is not closed correctly. Refer to "Closing the door". There is too much frost and ice. The door has been opened too frequently. Do not keep the door open longer than necessary. The food temperature is too high. Let the food temperature decrease to room temperature before storage. The room temperature is too high. Decrease the room temperature. The door is not closed correctly. Refer to "Closing the door". The door gasket is deformed or dirty. Refer to "Closing the door". The temperature in the appliance is too cold. The Temperature regulator may be set incorrectly. Set a warmer temperature. The temperature in the appliance is too warm. The Temperature regulator may be set incorrectly. Set a colder temperature. The door is not closed correctly. Refer to "Closing the door". The temperature in the freezer is too warm. The food temperature is too high. Let the food temperature decrease to room temperature before storage. Food is too near to each other. Store food so that there is cold air circulation. Large quantities of food to be frozen were put in at the same time. Insert smaller quantities of food to be frozen at the same time. What to do if… Problem The appliance does not operate. Possible cause The appliance is switched off.

Solution Switch on the appliance. The mains plug is not connected Connect the mains plug to the to the mains socket correctly. mains socket correctly. The appliance has no power. Connect another electrical appliThere is no voltage in the mains ance to the mains socket. Check socket. fuse. Contact a qualified electrician. The lamp does not work. The lamp is defective. Refer to "Replacing the lamp". The door has been open to long. Close the door. Door interferes with ven- The appliance is not levelled. tilation grill. Refer to "Levelling". Misaligned door. Refer to "Levelling". The appliance is not levelled. As much as the advice does not lead to result, call the nearest brand-mark service. Replacing the lamp

1. Disconnect the appliance from the power socket.

2. Press the spring and at the same time pull

the cover downwards.

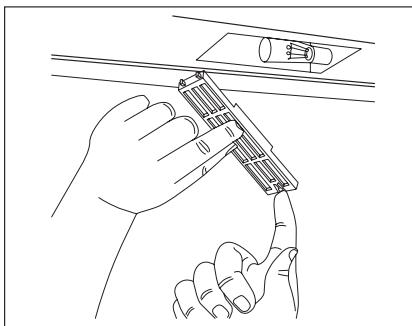

3. Replace the bulb (E14 socket) with one of

the same power and specifically designed for household appliances. (the maximum power is shown on the light diffuser).

4. Reconnect the appliance.

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

Technical data TECHNICAL DATA A85280GA A85320GA Dimension Height 1650 mm 1850 mm Width 660 mm 660 mm Depth 680 mm 680 mm 25 h 25 h Rising Time The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label. INSTALLATION WARNING! Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance. Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: Climate class Ambient temperature

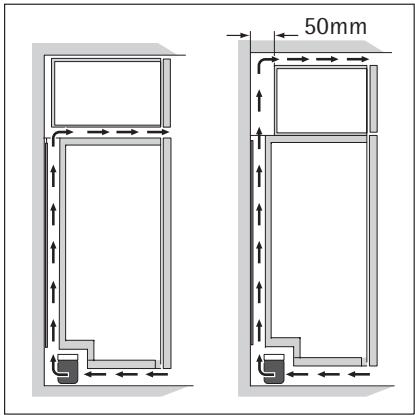

+16°C to + 43°C Location To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 40 mm . Ideally, however, the appliance should not be positioned below overhanging wall units. If the cabinet is placed in a corner and the side with the hinges facing the wall, the distance between the wall and the cabinet must be at least 10 mm to allow the door to open enough so that the equipment can be removed. Installation The ventilation space can be:

• directly above the appliance
• behind and above the top cupboard. In this case, the space behind the top cupboard must be at least 50 mm deep.

50mm Electrical connection Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives. Removing the transport support Your appliance is equipped with transport support to secure the door during transportation. To remove them do these steps:

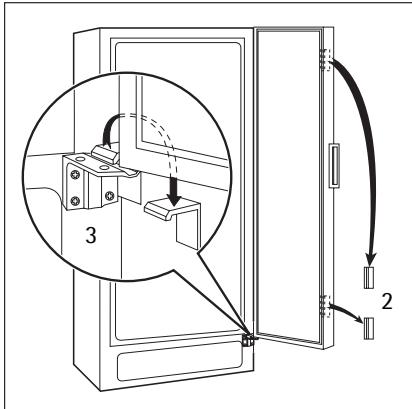

2. Remove the transport support from the

3. Remove the transport support from the

lower hinge (some models). Some models are fitted with a silencing pad under the cabinet. Do not remove this pad.

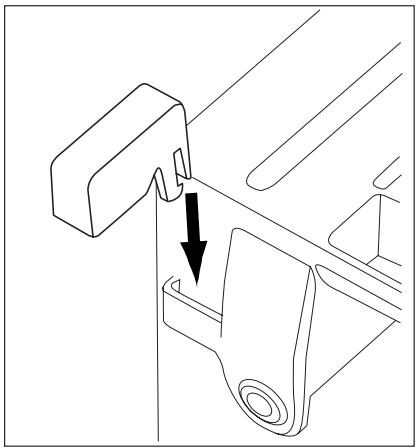

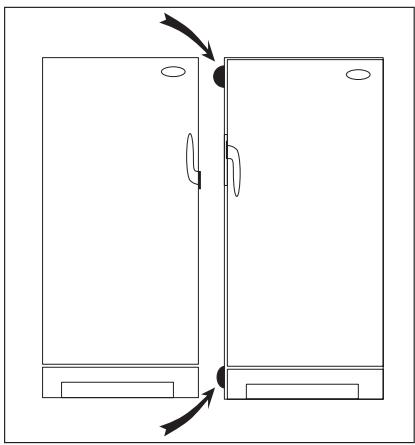

Installation Spacers Install the spacers provided within the accessory bag as shown in the figures. When two appliances are placed beside each other, attach the adhesive spacers between the appliances. Install the spacers on the back side of the panel. Levelling When placing the appliance ensure that it stands level. If necessary adjust the feet using the adjustment spanner supplied. Door alignment is dependent on proper levelling. Door reversibility To change the opening direction of the door, do these steps:

1. Remove the plug from the power.

2. Remove the ventilation grille. Remove the filling an install it on the opposite side of

3. Lay down the appliance back side down on a wooden support.

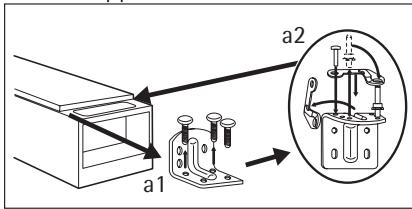

4. Unscrew the lower hinge (a1).

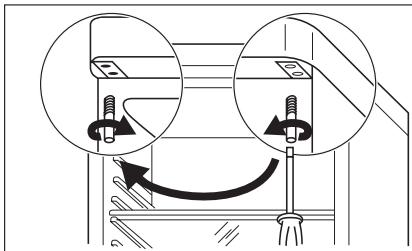

Remove the door closure device from the hinge and move the pin to the other side (a2). Re-screw the door closure device provided within the accessory bag on the opposite side.

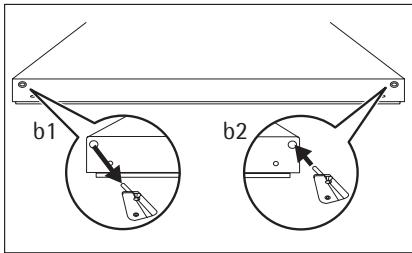

5. Remove the door closure device on the

door (b1). Re-screw the door closure device provided within the accessory bag on the opposite side (b2).

Unscrew and move the pin to the opposite side.

7. Re-insert the door.

Re-screw the lower hinge. Raise the appliance and install the ventilation grille.

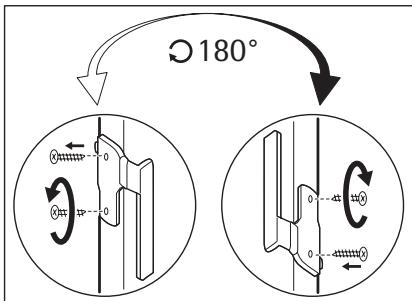

8. Unscrew the handle. On the opposite side

remove the hole covers by driving a 3-4 mm drift or drill into them. Install the handle. Fit the handle on to the opposite side by turning it on half circle. Install the hole covers provided within the accessory bag.

9. Put the cabinet in position.

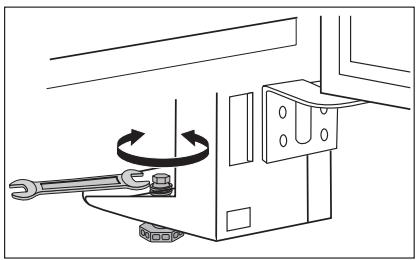

180° WARNING! Reposition, level the appliance, wait for at least four hours and then connect it to the power socket. Do a final check to make sure that:

• All screws are tightened.
• The edges of the doors run parallel to the side edge of the appliance.
• The magnetic seal adheres to the cabinet.
• The door opens and closes correctly.

Environmental concerns WARNING! If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket. ENVIRONMENTAL CONCERNS The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Sommaire
