Product Type	Freestanding Cooker
Brand	Point
Model	POCO350IFW5
Color	White
Dimensions (H x W x D)	850 x 500 x 600 mm
Weight	50 kg
Power Supply	220-240 V ~ 50 Hz
Total Power	9.5 kW
Oven Type	Electric Conventional
Oven Capacity	65 L
Oven Functions	Bake, Grill, Fan
Hob Type	Electric Ceramic
Number of Cooking Zones	4
Control Type	Rotary Knobs
Energy Efficiency Class	A
Oven Cleaning	Easy-Clean Enamel
Safety Features	Child Lock, Automatic Shut-Off
Warranty	2 Years

Frequently Asked Questions - POCO350IFW5 Point

How do I install the cooker?

Ensure the cooker is installed by a qualified technician. It must be connected to a 220-240V supply with a dedicated circuit. Leave at least 50 mm clearance around the cooker for ventilation.

How do I clean the ceramic hob?

Use a ceramic hob scraper for burnt-on residues and a soft cloth with a suitable cleaner. Avoid abrasive sponges.

What do the oven symbols mean?

Common symbols: a fan for fan-assisted cooking, a line at top for grill, a light bulb for oven light, and a triangle for defrost. Refer to the manual for full details.

How do I set the oven timer?

Turn the timer knob to the desired cooking time. The oven will switch off automatically when the timer reaches zero. A buzzer may sound.

Why is the oven not heating?

Check the power supply and ensure the oven is properly plugged in. Verify that the timer is set. If the problem persists, the heating element may need replacement.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire rack as it can restrict heat circulation. Do not let foil touch the heating elements.

How do I replace the oven light bulb?

Disconnect the cooker from the power supply. Remove the glass cover and replace the bulb with a new one of the same type (usually 25W, 300°C resistant).

What is the maximum load for the oven shelf?

Each shelf can typically hold up to 10 kg evenly distributed. Avoid overloading to prevent damage.

How do I activate the child lock?

Press and hold the child lock button (usually marked with a key symbol) for 3 seconds. The lock symbol will appear on the display.

Can I cook with the door open?

No, cooking with the oven door open may damage the appliance and is not recommended. Always close the door during operation.

USER MANUAL POCO350IFW5 Point

Control panel

Drip tray

Baking tray

Grill rack

Height 900 mm

A=104 mm

B=147 mm

230V 1N~50Hz 50A H05VVF-3G4

400V 3N~50Hz 3x16A H05VVF-5G2,5

Oven light bulb

CLEANING AND MAINTENANCE

Control panel

Baking tray / Drip pan

Grill rack

Height 900 mm

A=104 mm

B=147 mm

230V 1N~50Hz 50A H05VVF-3G4

400V 3N~50Hz 3x16A H05VVF-5G2,5

< – sensor for lower setting

Use only cookware made of ferromagnetic materials such as:

and an oven temperature control knob – turn the knob to the desired temperature.

Recommended setting for ECO heating

Type matrett Ovnsfunksjoner Temperatur ( °C) Nivå Tid i minutter
Sukkerbrød		180 - 200 2 - 3	50 - 70
Gjærbakst / formkake		180 - 200 2 50	- 70
Fisk 190 - 210 2 - 34 60
Storfe 200 - 220 2 90 0
Svin 200 - 220 2 90 -
Kylling 180 - 200 2 80 00

Oven lighting

CLEANING AND MAINTENANCE

Control panel

Oven pan

Baking tray

Grill rack

Placement of the hob

Height 900 mm A = 104 mm B = 147 mm

Information for installers

230V 1N~50Hz

50A

H05VVF-3G4

400V 3N~50Hz

3x16A

H05VVF-5G2,5

Before commissioning

Oven lighting

CLEANING AND MAINTENANCE

TABLE OF CONTENTS

Safety instructions....36

Control panel

Baking tray

Baking trays

Stainless steel grill grate

Height 900 mm

A = 104 mm

B = 147 mm

Information for the installer

230V 1N~50Hz 50A H05VVF-3G4

400V 3N~50Hz 3x16A H05VVF-5G2,5

Oven lighting

CLEANING AND MAINTENANCE

The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy.

Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Caution!

Do not use the cooker until you have read this instruction manual.

The cooker is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

TABLE OF CONTENTS

Safety instructions .... 4

Description of the appliance 9

Installation....11

Operation....13

Baking in the oven – practical hints 22

Test dishes....25

Cleaning and maintenance 27

Technical data....32

Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Warning: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Warning: Danger of fire: do not store items on the cooking surfaces.

Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Metallic objects, such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

After use, switch off the hob element by its control and do not rely on the pan detector.

During use the appliance becomes hot. Care should be taken

to avoid touching heating elements inside the oven.

Warning: Accessible parts may become hot during use. Young children should be kept away.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

You should not use steam cleaning devices to clean the appliance.

During the pyrolytic oven cleaning process the oven chamber can reach a very high temperature. Consequently, the appliance outer surfaces can heat up more than usual, so keep children away at all times.

Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.

Caution: The cooking process has to be supervised. A short-term cooking process has to be supervised continuously.

Warning: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable, or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

● Always keep children away from the cooker. While in operation, direct contact with the cooker may cause burns! - Ensure that small items of household equipment, including connection leads, do not touch the hot oven or the hob, as the insulation material of this equipment is usually not resistant to high temperatures. - Do not leave the cooker unattended when frying. Oils and fats may catch fire due to overheating or boiling over. - Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface of the hob. This refers in particular to sugar, which can react with the ceramic hob and cause irreversible damage. Any spillages should be cleaned up as they happen. - Do not place pans with a wet bottom on the warmed-up heating zones, as this can cause irreversible changes to the hob (irremovable stains). - Use pans that are specified by the manufacturer as designed for use with a ceramic hob. - If any defects, deep scratches, cracks, or chips appear on the ceramic hob, stop using the cooker immediately and contact the service centre. - Do not switch on the hob until a pan has been placed on it. - Do not use pans with sharp edges that may cause damage to the ceramic hob. - Do not look directly at the halogen heating zones (not covered by a pan) when they are warming up. - Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25 kg on the hob. - Do not use harsh cleaning agents or sharp metal objects to clean the door, as they can scratch the surface, which could then result in the glass cracking. - Do not use the cooker in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person. - In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired. - Never allow children to remain unattended near the cooktop nor to play with the control panel. - People with life function support implants (such as a heart pacemaker, an insulin pump, or a hearing aid) must make sure that the operation of these devices is not disturbed by the induction plate (induction plate frequency range is 20 to 50 kHz). - The appliance has been designed only for cooking. Any other use (for example, for heating) does not comply with its operating profile and may cause danger.

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

- Use proper pans for cooking.

Pans with thick, flat bases can save up to 1/3 on electric energy. Remember to cover pans if possible, otherwise you will use four times as much energy!

- Match the size of the saucepan to the surface of the heating zone.

A saucepan should never be smaller than a heating zone.

- Ensure heating zones and pan bases are clean.

Soils can prevent heat transfer – and repeatedly burnt-on spillages can often only be removed by products which cause damage to the environment.

- Do not uncover the pan too often (a watched pot never boils!).

Do not open the oven door unnecessarily often.

Switch off the oven in good time and make use of residual heat.

For long cooking times, switch off heating zones 5 to 10 minutes before finishing cooking. This saves up to 20% on energy.

Only use the oven when cooking larger dishes.

Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob.

● Make use of residual heat from the oven.

If the cooking time is greater than 40 minutes, switch off the oven 10 minutes before the end time.

Important! When using the timer, set appropriately shorter cooking times according to the dish being prepared.

● Only grill with the ultrafan after closing the oven door.

●Make sure the oven door is properly closed.

Heat can leak through spillages on the door seals. Clean up any spillages immediately.

- Do not install the cooker in the direct vicinity of refrigerators/freezers.

Otherwise energy consumption increases unnecessarily.

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

DESCRIPTION OF THE APPLIANCE

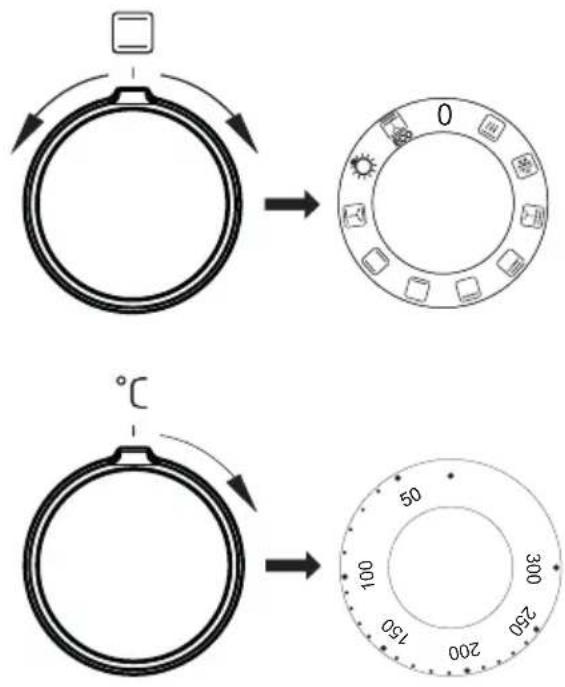

1 Temperature control knob 2 Oven function selection knob 3 Temperature regulator signal light 4 Oven operation signal light 5 Door lock indicator light 6 Oven door handle 1 Temperature control knob 2 Oven function selection knob 3 Temperature regulator signal light 4 Oven operation signal light 5 Door lock indicator light 6 Oven door handle

DESCRIPTION OF THE APPLIANCE

Booster induction cooking zone (rear right)

Booster induction cooking zone (rear left)

Booster induction cooking zone (front left)

Booster induction cooking zone (front right)

Control Panel

1. On/off sensor
2. Higher heat setting selector
3. Cooking zone indicator
4. Lower heat setting selector
5. Cooking zone selection sensor
6. Timer sensor
7. Child lock sensor
8. Timer indicator light
9. Child lock indicator light
10. Timer display

Cooker fittings:

Roasting tray Baking tray

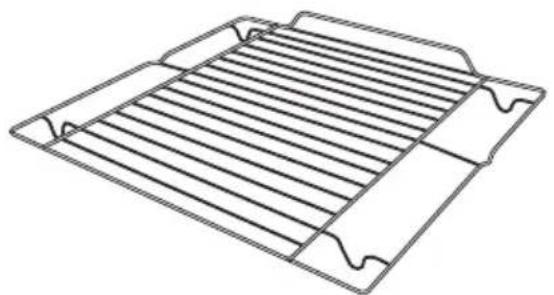

Grill grate (drying rack)

Installing the cooker

• The kitchen should be dry and airy and have effective ventilation according to the existing technical provisions.
• The room should be equipped with a ventilation system that pipes away exhaust fumes created during combustion. This system should consist of a ventilation grid or hood. Hoods should be installed according to the manufacturer's instructions. The cooker should be placed so as to ensure free access to all control elements.
• Coating or veneer used on fitted furniture must be applied with a heat resistant adhesive (100°C). This prevents surface deformation or detachment of the coating. If you are unsure of your furniture's heat resistance, you should leave approximately 2 cm of free space around the cooker. The wall behind the cooker should be resistant to high temperatures. During operation, its back side can warm up to around 50°C above the ambient temperature.
• The cooker should stand on a hard, even floor (do not put it on a base).
• Before you start using the cooker it should be leveled, which is particularly important for fat distribution in a frying pan. To this purpose, adjustable feet are accessible after removal of the drawer. The adjustment range is +/- 5 mm.

Important:

Whilst every care is taken to eliminate burrs and raw edges from this product, please take care when handling - we recommend the use of protective gloves during installation.

Mounting the overturning prevention bracket.

The bracket is mounted to prevent overturning of the cooker. When the overturning prevention bracket is installed, a child who climbs on the oven door will not overturn the appliance.

Cooker, height 900 mm

A=104 mm

B=147 mm

Installation information

The cooker is designed to be connected to a one-phase 230V 1N~ mains power supply. Before connecting the appliance to the mains power supply, the user must ensure that the mains data corresponds to the information given on the manufacturer's data plate, which can be found on either the back or the right-hand side of the cooker, or on the copy of this plate enclosed with this guidance.

The cooker is equipped with a power supply cable. Before connecting the cooker to the power supply, it is important that you read the information given below.

Connecting the cooker to the mains

• Installation must only be carried out by an authorised electrician. This will ensure that the applicable regulations in the “Heavy Current Regulation” are complied with.
• The installation must comply with any special requirements issued by the local electricity supply company. ● The cooker must be connected to a separate power supply circuit.
• Adapting the cooker to operate with a three-phase 400V 3N~ mains power supply is possible by appropriate bridging in the connection box. ● The connection must only be established according to the connection diagrams below.
• When connecting or replacing the power cable, at least one H05VV-F3G4 / H05VV-F5G2.5 conduit or equivalent must be used.
• Important: To ensure compliance with the applicable safety requirements, a switch must be fitted which isolates all terminals and has a contact distance of at least 3 mm. (Can be a master switch).

230V 1N~50Hz 50A H05VVF-3G4

400V 3N~50Hz 3x16A H05VVF-5G2,5

Before first use

• Remove packaging, empty the drawer, clean the interior of the oven and the hob.
• Take out and wash the oven fittings with warm water and a little washing-up liquid.
• Switch on the ventilation in the room or open a window.
• Heat the oven (to a temperature of 250°C, for approx. 30 min.), remove any stains and wash carefully; the heating zones of the hob should be heated for around 4 min. without a pan.

Important!

The inside of the oven should only be washed with warm water and a small amount of washing-up liquid.

Important!

In ovens equipped with the electronic programmer Ts, the time "0.00" will start flashing in the display field upon connection to the power supply.

The programmer should be set with the current time. (See Electronic programmer). If the current time is not set operation of the oven is impossible.

The electronic programmer Ts is equipped with electronic sensors which are switched on by touching or pressing the sensor surface for at least one second.

Each sensor reaction is confirmed by the beep. Keep the sensor surface clean at all times.

Operate the control panel

MENU — select the mode of operation

— higher setting sensor

< — lower setting sensor

— appliance on indicator

— Kitchen timer — Duration

Set current time

When the appliance is plugged into the electrical mains supply, or when power is restored after power outage, the digital display will show flashing 0.00

• Touch and hold MENU (or simultaneously touch < / > ) until you see 📄 on the display and the dot below the symbol is flashing.
• Touch < / > within 7 seconds to set the current time.

To store the new time setting, wait approximately 7 seconds after time has been set. The dot below the 🔒 symbol will stop flashing.

You can adjust the time later. To do this, touch < / > simultaneously and adjust the current time while the dot below the symbol is flashing.

Note:

The oven can be turned on when you see the symbol on the display.

Kitchen Timer

You can activate the Kitchen Timer at any time, regardless of the status of other functions. The Kitchen Timer can be set from 1 minute up to 23 hours and 59 minutes.

To set the Kitchen Timer:

- Touch MENU, then the display will show blinking

• Use the < / > sensors to set the Kitchen Timer. The display will show the set time and Kitchen Timer symbol 📐. Once the set time elapses, an alarm sounds and the 🔊 icon flashes.
• Touch and hold MENU or simultaneously touch and hold < and > to mute the alarm. The 📄 will be off and the display will show the current time.

Note!

If no button is touched, the alarm will turn off automatically after approximately 7 minutes.

Timed operation

To set the appliance to switch off after a specific duration:

• Set the operation mode knob and the temperature control knob to your preferred settings.
• Touch MENU repeatedly until the display shows 'dur' (duration) briefly and the symbol will be flashing.

• Set the desired duration from 1 minute to 10 hours using the < / > sensors.

The set duration will be memorized after about 7 seconds. The display will show the current time and the symbol.

Once the duration time has elapsed, the oven will turn off automatically. You will hear an alarm and the symbol will be flashing.

• Set the oven function selector knob and the temperature selector knob to the off position.
• Touch and hold MENU or simultaneously touch and hold < / > to mute the alarm. The symbol will turn off and the display will show the current time.

Cancel settings

Timer and timed operation settings may be cancelled at any time.

To cancel timed operation settings:

- Simultaneously touch and hold the < / > sensors.

To cancel timer settings:

• Touch the MENU sensor to select the Kitchen Timer, then simultaneously touch the < / > sensors.

Change the beep tone

You can change the beep tones as follows:

● Simultaneously touch the < / > sensors. Touch MENU repeatedly to select the ton (tone). The display will be flashing:

- Use the < / > sensors to select your preferred tone:

Use > to select the setting 1 to 3

Use < to select the setting 3 to 1

Adjust display brightness

You can adjust display brightness 1 to 9, where 1 is the darkest and 9 is the brightest. The brightness setting applies to an inactive control panel, i.e. when no controls are touched for 7 seconds.

You can adjust display brightness as follows:

• Simultaneously touch the < / > sensors.
• Touch MENU repeatedly to select the bri (brightness) setting — the settings can be accessed in sequence ton (tone) and bri (brightness).

- Use the < / > sensors to select your preferred brightness:

Use > to select the setting 1 to 9

Use < to select the setting 9 to 1

Note:

The display is at its brightest setting when active, i.e. a control was touched within the last 7 seconds.

Night Mode

The display is dimmed during the night hours 22:00 — 06:00.

Before using the appliance for the first time

• thoroughly clean your induction hob first. The induction hob should be treated with the same care as a glass surface.
• switch on the ventilation in the room or open a window, as the appliance could emit an unpleasant smell during first use.
• operate the appliance while observing all safety guidelines.

Induction cooking zone operation principle

Electric oscillator powers a coil placed inside the appliance. This coil produces a magnetic field, which induces eddy currents in the cookware.

These eddy currents induced by the magnetic field cause the cookware to heat up.

This requires the use of pots and pans whose base is ferromagnetic, in other words susceptible to magnetic fields.

Overall, induction technology is characterized by two advantages:

• the heat is only emitted by the cookware and its use is maximised,
• there is no thermal inertia, since the cooking starts immediately when the pot is placed on the hob and ends once it is removed.

Certain sounds can be heard during normal use of the induction hob, which do not affect its correct operation.

• Low-frequency humming. This noise arises when the cookware is empty and stops when water is poured or food is placed in the cookware.
• High-frequency whizz. This noise arises in cookware made of multiple layers of different materials at maximum heat setting. The noise intensifies when using two or more cooking zones at maximum heat setting. The noise will stop or reduce when heat setting is reduced.
• Creaking noise. This noise arises in cookware made of multiple layers of different materials. The noise intensity depends on how the food is cooked.
• Buzzing. Buzzing can be heard when electronics cooling fan operates.

The noises that can be heard during the normal appliance operation are the result of the cooling fan operation, cooking method, cookware dimensions, cookware material and the heat setting. These noises are normal and do not indicate a fault.

The protective device:

If the hob has been installed correctly and is used properly, any protective devices are rarely required.

Fan: protects and cools controls and power components. It can operate at two different speeds and is activated automatically. Fan runs until the electronic system has sufficiently cooled down regardless of the appliance or the cooking zones being turned on or off.

Temperature sensor: Temperature of electronic circuits is continuously monitored by a temperature sensor. If temperature is raised beyond a safe level, this protection system will reduce cooking zone heat setting or shut down the cooking zones adjacent to the overheated electronic circuits.

Pan detection: allows the hob to detect pans placed on a cooking zone. Small objects placed on the cooking zone (eg, spoon, knife, ring ...) will not be recognised as pans and the hob will not operate.

Pan detector

Pan detector is installed in induction hobs. Pan detector starts heating automatically when a pan is detected on a cooking zone and stops heating when it is removed. This helps save electricity.

• When an suitable pan is placed on a cooking zone, the display shows the heat setting.
• Induction requires the use of suitable cookware with ferromagnetic base (see Table).

If a pan is not placed on a cooking zone or the pan is unsuitable, the symbol is displayed. The cooking zone will not operate. If a pan is not detected within 10 minutes, the cooking zone will be switched off.

Switch off the cooking zone using the touch control sensor field rather than by removing the pan.

Pan detector does not operate as the on/off sensor.

The induction hob is equipped with electronic touch control sensor fields, which are operated by touching the marked area with a finger.

Each time a sensor field is touched, an acoustic signal can be heard.

When switching the appliance on or off or changing the heat setting, attention should be paid that only one sensor field at a time is touched. When two or more sensor fields are touched at the same time (except timer and child lock), the appliance ignores the control signals and may trigger a fault indication if sensor fields are touched for a long time.

When you finish cooking, switch off the cooking zone using touch control sensor fields and do not rely solely on the pan detector.

The high-quality cookware is an essential condition for efficient induction cooking.

Select cookware for induction cooking.

Cookware characteristics.

• Always use high quality cookware with a perfectly flat base. This prevents the formation of local hot spots where food might stick. Pots and pans with thick steel walls provide superior heat distribution.
• Make sure that the cookware base is dry: when filling a pot or when using a pot taken out of the refrigerator, make sure its base is completely dry before placing it on the cooking zone. This is to avoid soiling the surface of the hob.
• A lid prevents heat from escaping and thus reduces heating time and lowers energy consumption.
• To determine if cookware is suitable, make sure that its base attracts a magnet.
• The cookware base has to be flat for optimal temperature control by the induction module.
• A concave base or a deep embossed logo of the manufacturer interferes with the temperature induction control module and can cause overheating of the pot or pan.
• Do not use damaged cookware such as cookware with a deformed base due to excessive heat.
• When you use large ferromagnetic base cookware, whose diameter is less than the total diameter of the cookware, only the ferromagnetic base heats up. This results in a situation where

Situation where it is not possible to uniformly distribute the heat in the cookware. If the ferromagnetic area is reduced due to inclusion of aluminium parts, then the effective heated area can be reduced. Problems with the detection of the cookware could arise, or cookware may not be detected at all. To achieve optimum cooking results, the diameter of the ferromagnetic base should match that of the cooking zone. If cookware is not detected in a given cooking zone, it is advisable to try it in a smaller cooking zone.

For induction cooking, use only ferromagnetic base materials such as:

• cast iron
• special stainless steel cookware designed for induction cooking.
• The smallest useful diameter of cookware for a cooking zone:

Marking of kitchen cookware		Check for marking indicating that the cookware is suitable for induction cooking.
	Use magnetic cookware (enamelled steel, ferrite stainless steel, cast iron). The easiest way to determine if your cookware is suitable is to perform the „magnet test”. Find a generic magnet and check if it sticks to the base of the cookware.
Stainless Steel Cookware	is not detected
	With the exception of the ferromagnetic steel cookware
Aluminium Cookware is not detected
Cast iron High efficiency
	Caution: cookware can scratch the hob surface
Enamelled steel High efficiency
			Cookware with a flat, thick and smooth base is recommended
Glass Cookware is not detected
Porcelain Cookware is not detected
Cookware with copper base	Cookware is not detected

The smallest useful diameter of cookware for a cooking zone:

Cooking zone diameter The minimum diameter of the bottom of an enamelled steel cookware
(mm) (mm)
160 - 180	110
180 - 200
210 - 220	125220 x 190
260 - 280

The minimum diameter of cookware made of materials other than enamelled steel may vary.

Immediately after the appliance is connected to electrical mains, all displays will light up briefly. Your induction hob is then ready for use.

• Immediately after the appliance is connected to the electrical mains, all displays will light up briefly. Your induction hob is then ready for use.
• The induction hob is equipped with electronic touch control sensor fields, which are operated by touching with a finger for at least 1 second.
• Touching a sensor field is accompanied by an acoustic signal to acknowledge.

No objects should be placed on the sensor fields (this could cause an error). Touch sensor fields should be always kept clean.

To switch on the appliance touch and hold the on/off sensor field (1) for at least 1 second. All displays (3) will show the number "0".

To switch on the appliance, touch and hold the on/off sensor field (1) for at least 1 second. All displays (3) will show the number "0".

If none of the sensor fields is touched within 10 seconds, the appliance switches itself off.

Switch on the cooking zone

Once the appliance is switched on using the on/off touch sensor (1), select a cooking zone (5) within the next 10 seconds.

1. When a cooking zone selection sensor field (5) is touched, "0" on the corresponding heat setting indicator display will pulsate.
2. Set the desired heat setting using the "+" (2) or "-" (4) sensor fields.

If none of the sensor fields is touched within 10 seconds of switching on the appliance, the cooking zone switches off.

A cooking zone is active when its display shows a digit or a letter. This indicates the cooking zone is ready for the heat setting to be set or changed.

Selecting the cooking zone heat setting

When the cooking zone display (3) shows pulsating "0", start setting the desired heat setting using the "+" (2) or "-" (4) sensor field.

Switch off cooking zones

• A given cooking zone must be active. Heat setting display pulsates.
• To switch off a cooking zone touch the on/off sensor field or touch the sensor (5) for 3 seconds.

Switch off the appliance

• The appliance operates when at least one cooking zone is on.
• To switch off the appliance touch the on/off sensor (1).

If a cooking zone is still hot, the relevant display (3) will show the letter "H" to indicate residual heat.

Booster function "P"

The Booster Function increases the nominal power of the ∅ 210-220 mm cooking zone from 2000W to 3000W,

∅ 160-180 mm cooking zone from 1200W to 1400W,

In order to activate the Booster function, select the cooking zone, set the heat setting to "9" and then touch the "+" (2) sensor field again. The letter "P" will be shown on the display.

To deactivate the Booster function, touch the "-" (4) sensor field to reduce the heat setting or lift the cookware from the cooking zone.

For 210-220 mm and 160-180 mm cooking zones, operation of the Booster function is limited to 10 minutes. Once the Booster function is automatically deactivated, the cooking zone continues to operate at its nominal power.

The Booster function can be reactivated, provided the appliance electronic circuits and induction coils are not overheated.

When the pot is lifted from the cooking zone when the Booster function is in operation, it remains active and the countdown continues.

When the appliance electronic circuits or induction coils overheat when the Booster function is in operation, it is automatically deactivated. The cooking zone continues to operate at its nominal power.

Booster function control

Depending on the model, the cooking zones are paired vertically or crosswise. Total power is shared within the paired cooking zones.

If you attempt to enable the Booster function for both cooking zones simultaneously, the maximum power available would be exceeded. In that case the heat setting of the first activated cooking zone will be reduced to the highest level available.

The child lock function

The Child Lock function protects the appliance from inadvertent operation by children. The appliance can be operated once the child lock function has been released.

The Child Lock function can be set when the appliance is turned on or off.

Turn Child Lock on/off

Touch and hold sensor (7) for 5 seconds to turn Child Lock on/off. Indicator light (9) is on when the Child Lock function is on.

The Child Lock function remains set until it is released, even after the appliance has been switched off and then switched on again. Disconnecting the appliance from the electrical mains deactivates the Child Lock.

Residual heat indicator

Heat energy that remains accumulated in the cooking zone after cooking is called the residual heat. The appliance displays two different levels of residual heat. When a cooking zone temperature is above 60°C and the cooking zone or the appliance is switched off, the relevant cooking zone display will show the letter "H". Residual heat indication is displayed as long as the cooking zone temperature exceeds 60°C. When a cooking zone temperature is between 45°C and 60°C, the relevant cooking zone display will show the letter "h" indicating low residual heat. When a cooking zone temperature is below 45°C, the residual heat indication is turned off.

When the residual heat indicator is on, do not touch the cooking zone as there is a risk of burns, and do not place any items sensitive to heat on it.

During a power supply failure, the "H" residual heat indicator is not displayed. However, cooking zones may still be hot!

Limiting the operating time

In order to increase efficiency, the induction hob is fitted with an operating time limiter for each of the cooking zones. The maximum operating time is set according to the last heat setting selected.

If you do not change the heat setting for a long time (see table), then the associated cooking zone is automatically switched off and the residual heat indicator is activated. However, you can switch on and operate individual cooking zones at any time in accordance with the operating instructions.

Cooking heat setting	Maximum operating time (hours)
U	8
1	8
2	8
3	5
4	5
5	5
6 1,5
7 1,5
8 1,5
9 1,5
P 0,16

Automatic warm-up function

• Touch sensor (5) to activate the selected cooking zone.
• Then touch "+" (2) or "-" (4) to set the desired heat setting in the 1-8 range, and then touch sensor (5) again.
• The display will alternate between the letter A and the heat setting.

After a certain time of operation at boosted power, the cooking zone switches back to the heat setting set, which will be shown on the display.

Cooking heat setting	The duration of the automatic warm-up function (minutes)
	-
1 0,8
2 1,2
3 2,3
4 3,5
5 4,4
6 7,2
7	2
8 3,2

If a pot is lifted from the cooking zone and replaced before the warm-up countdown is completed, the warm-up function will resume and countdown will continue until completed.

Timer

Timer function makes cooking easier by making it possible to set Duration. It can also be used as a Kitchen Timer.

Set the Timer

Timer function makes cooking easier by making it possible to set Duration. It can also be used as a Kitchen Timer.

• Touch cooking zone selection sensor field (5) to select a cooking zone. The number "0" will pulsate.
• Touch "+" (2) or "-" (4) sensor field to set the desired heat setting ranging from 1 to 9.
• Then activate timer by touching (6) sensor fields within 10 seconds.
• Touch "+" (2) or "-" (4) sensor field to set the desired cooking time (01 to 99 minutes).
• Timer indicator light (8) of a relevant cooking zone will be on.

Timer countdown can be set independently for all cooking zones.

If more than one timer is set the shortest duration is displayed. Timer indicator light (8) of a relevant cooking zone will flash.

Change Timer Duration

Timer Duration setting can be changed at any time.

• Touch cooking zone selection sensor field (5) to select a cooking zone. The display will pulsate.
• Then activate the timer by touching sensor fields (6) within 10 seconds.
• Use the "+" (2) or "-" (4) sensor field to adjust the timer setting.

Check Timer Duration

To check the progress of the timer countdown at any time, touch the timer sensor field (6). The timer indicator light (8) of the relevant cooking zone will flash.

Stop the Timer

When the set time has elapsed, an acoustic signal is sounded, which can be muted by touching any sensor field. If no sensor field is touched, the acoustic signal will stop automatically after 2 minutes.

To stop the timer countdown before the set duration has elapsed:

• Touch cooking zone selection sensor field (5) to select a cooking zone. The display will become bright.
• Then touch and hold sensor (6) for 3 seconds or adjust the duration using the "+" (2) or "-" (4) down to "00".

Kitchen Timer

When no cooking zones are in use, the Timer function can be used as a regular kitchen timer.

Set Kitchen Timer

When the appliance is off:

• Switch on the appliance by touching the on/off sensor (1).
• Then touch sensor (6) to activate kitchen timer.
• Use "+" (2) or "-" (4) sensor field to adjust the Kitchen Timer setting.

Stop Kitchen Timer

When the set Duration has elapsed an acoustic signal is sounded, which can be muted by touching any sensor field. If no sensor field is touched, the acoustic signal will stop automatically after 2 minutes.

To stop the timer countdown before the set Duration has elapsed:

• Touch and hold sensor (6) for 3 seconds or adjust duration using the "+" (2) or "-" (4) down to "00"
• Kitchen Timer function does not affect cooking zone operation.

Kitchen timer is reset when the timer function is activated.

Keeping food warm

Keep warm function allows for keeping food warm on a cooking zone. The selected cooking zone operates at a low heat setting. Cooking zone's heat setting is automatically adjusted so that food temperature is kept at a temperature of about 65°C. Thanks to this, ready to serve, warm food retains its taste and does not stick to the pot's bottom. This function can be also used to melt butter or chocolate.

For the keep food warm function to operate correctly, use a flat base pot or frying pan, so that base temperature is accurately measured by the temperature sensor fitted in the cooking zone.

The Keep Warm function can be activated for any cooking zone.

Due to a risk of the growth of microorganisms, it is not recommended to keep food warm for a long time, so the Keep Warm function is switched off after 2 hours.

Keep warm setting is an additional heat setting available between "0" and "1" and is indicated on the display as "L".

Keep warm setting is activated in the same way as described in the section

Switch on the cooking zone

The keep warm setting is deactivated in the same way as described in the section

Switch off cooking zones

Oven functions and operation.

Oven with automatic air circulation (including a fan and top and bottom heaters)

The oven can be warmed up using the bottom and top heaters, as well as the grill. Operation of the oven is controlled by the oven function knob – to set a required function you should turn the knob to the selected position, as well as the temperature regulator knob – to set a required function you should turn the knob to the selected position.

The oven can be switched off by setting both of these knobs to the position “●”/“0”.

Caution!

When selecting any heating function (switching a heater on etc.) the oven will only be switched on after the temperature has been set by the temperature regulator knob.

0 Oven is off

Rapid Preheating

Top and bottom heater, roaster and fan on. Use to preheat the oven.

Defrosting

Only fan is on and all heaters are off.

Fan and combined grill on

When the knob is turned to this position, the oven activates the combined grill and fan function. In practice, this function allows the grilling process to be speeded up and improves the taste of the dish. You should only use the grill with the oven door shut.

Enhanced roaster (super roaster)

In this setting both roaster and top heater are on. This increases temperature in the top part of the oven's interior, which makes it suitable for browning and roasting of larger portions of food.

Roaster on.

Roasting is used for cooking of small portions of meat: steaks, schnitzel, fish, toasts, Frankfurter sausages, (thickness of roasted dish should not exceed 2-3 cm and should be turned over during roasting).

Bottom heater on

When the knob is set to this position the oven is heated using only the bottom heater. Baking of cakes from the bottom until done (moist cakes with fruit stuffing).

Top and bottom heaters on

Set the knob in this position for conventional baking. This setting is ideal for baking cakes, meat, fish, bread and pizza (it is necessary to preheat the oven and use a baking tray) on one oven level.

Top heater, bottom heater and fan are on.

This knob setting is most suitable for baking cakes. Convection baking (recommended for baking).

When the ☐ functions have been selected but the temperature knob is set to zero only the fan will be on. With this function you can cool the dish or the oven chamber.

Independent oven lighting

Set the knob in this position to light up the oven interior.

ECO Heating

This is an optimised heating function designed to save energy when preparing food. At this knob position, the oven lighting is off.

Switching on the oven is indicated by two signal lights, 7, 8, turning on. The 8 light turned on means the oven is working. If the 7 light goes out, it means the oven has reached the set temperature. If a recipe recommends placing dishes in a warmed-up oven, this should be not done before the 7 light goes out for the first time. When baking, the light will temporarily come on and go out (to maintain the temperature inside the oven). The 8 signal light may also turn on at the knob position of "oven chamber lighting".

Use of the grill

The grilling process operates through infrared rays emitted onto the dish by the incandescent grill heater.

In order to switch on the grill you need to:

• Set the oven knob to the position marked grill ☐,
• Heat the oven for approx. 5 minutes (with the oven door shut).
• Insert a tray with a dish onto the appropriate cooking level; and if you are grilling on the grate insert a tray for dripping on the level immediately below (under the grate).
• Close the oven door.

For grilling with the function grill and combined grill the temperature must be set to 210° C, but for the function fan and grill it must be set to a maximum of 190° C.

Warning!

When using function grill it is recommended that the oven door is closed. When the grill is in use accessible parts can become hot.

It is best to keep children away from the oven.

Baking

• we recommend using the baking trays which were provided with your cooker;
• It is also possible to bake in cake tins and trays bought elsewhere, which should be put on the drying rack. For baking, it is better to use black trays, which conduct heat better and shorten the baking time. Shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters); use of such tins can result in undercooking the base of cakes.
• Before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready, the stick should come out dry and clean after being inserted into the cake). After switching off the oven, it is advisable to leave the cake inside for about 5 minutes.
• The baking parameters given in the table are approximate and can be corrected based on your own experience and cooking preferences.
• If information given in recipe books is significantly different from the values included in this instruction manual, please apply the instructions from the manual.

Roasting meat

• Cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the cooker.
• Use heatproof ovenware for roasting, with handles that are also resistant to high temperatures.
• When roasting on the drying rack or the grate, we recommend that you place a baking tray with a small amount of water on the lowest level of the oven.
• It is advisable to turn the meat over at least once during the roasting time, and during roasting you should also baste the meat with its juices or with hot salty water – do not pour cold water over the meat.

ECO heating

• ECO heating is an optimised heating function designed to save energy when preparing food.
• You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended.
• Do not change the temperature setting and do not open the oven door during cooking.

Recommended setting for ECO heating

Type of dish	Oven functions	Temperature (°C)	Level Time	in minutes
Sponge cake		180 - 200 2 - 3	50 - 70
Yeast cake/ Pound cake		180 - 200 2 50	- 70
Fish 190 - 210 2 - 3 , [8TDB] 60
Beef 200 - 220 2 90 . )
Pork 200 - 220 2 90 . )
Chicken 180 - 200 2 8( 00

Oven with automatic air circulation (including a fan and top and bottom heaters)

Type of dish	Type of heating	Temperature (°C)	Level Time	(min.)
Sponge cake		160 - 200 2 - 3	30 - 50
Sponge cake		150 3 25 - 35
Yeast cake/ Pound cake	[HKBX]	160 - 170 1)	3 25 - 40	2)
Yeast cake/ Pound cake		155 - 170 1)	3 25 - 40	2)
Pizza 220 - 240	[K2AS]	1)	2 15 - 25
Fish 210 - 220	2 45 - [SZXX]
Fish		190 2 - 3 60	- 70
Sausages	[38OX]	210 4 14 - 18
Beef 225 - 250	2 120 [ABWX] 50
Pork 160 - 230	2 90 - [CRAS]
Chicken		180 - 190 2 70	- 90
Chicken		160 - 180 2 45	- 60
Vegetables 190	- 210 2 , 50
Vegetables	[K4H5]	170 - 190 3 40	- 50

The times apply to a dish that is placed into a cold oven. For a preheated oven, the times should be reduced by about 5-10 minutes.

1) Preheat 2) Baking smaller items

Note: The figures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.

Baking

Type of dish Accessory Level Type			of heating	Temperature (°C)	Baking time 2) (min.)
Small cakes	Baking tray 3		[CYXB]	160 - 170 1)	25 - 40 2)
	Baking tray 3	155 - 170		1)	25 - 40 2)
	Baking tray 3	155 - 170		1)	25 - 40 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		155 - 170 1)	25 - 50 2)
Shortbread	Baking tray 3			150 - 160 1)	30 - 40 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		160 - 175 1)	25 - 35 2)
Fatless sponge cake	Wire rack + black baking tin diameter 26cm	3		170 - 180 1)	30 - 45 2)
Apple pie	Wire rack + 2 black baking tins diameter 20cm	2 black baking tins placed after the diagonal, back right, front left	[STYK]	180 - 200 1)	50 - 70 2)

1) Preheat, do not use Rapid preheat function. 2) The times apply to a dish that is placed into a cold oven. For a preheated oven, the times should be reduced by about 5-10 minutes.

TEST DISHES. According to standard EN 60350-1.

Grilling

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
White bread toast	Wire rack 4			210 1)	1,5 - 2,5
	Wire rack 4 2	10	[x67W]	2)	2 - 3
Beef burgers	Wire rack + roasting tray (to gather drops)	4 - wire rack 3 - roasting tray		210 1)	1st side 10 - 15 2nd side 8 - 13

1) Preheat for 5 minutes, do not use Rapid preheat function.

2) Preheat for 8 minutes, do not use Rapid preheat function.

Roasting

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
Whole chicken	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 70	- 90
	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 80	- 100

The times apply to a dish that is placed into a cold oven. For a preheated oven, the times should be reduced by about 5-10 minutes.

By ensuring proper cleaning and maintenance of your cooker you can have a significant influence on the continuing fault-free operation of your appliance.

Before you start cleaning, the cooker must be switched off and you should ensure that all knobs are set to the “●”/“0” position. Do not start cleaning until the cooker has completely cooled.

Ceramic hob

• The hob should be cleaned regularly after each use. If possible, it is recommended that the hob is washed while still warm (after the heating zone indicator goes off). Do not allow the hob to get heavily stained; particularly from burnt-on spillages from boiled over liquids.
• When cleaning, do not use cleaning agents with a strong abrasive effect, such as scouring powders containing abrasives, abrasive compounds, abrasive stones, pumice stones, wire brushes, and so on. They may scratch the hob surface, causing irreversible damage.
• Large spillages that are firmly stuck to the hob can be removed with a special scraper; but be careful not to damage the ceramic hob frame when doing this.

Caution! The sharp blade should always be protected by adjusting the cover (just push it with your thumb). Injuries are possible, so be careful when using this instrument – keep out of reach of children.

Appropriate light cleaning or washing products are recommended, such as any kind of liquids or emulsions for fat removal. If the recommended products are not available, it is advisable to use a solution of warm water with a little washing-up liquid or cleaning products for stainless steel sinks.

Oven

• The oven should be cleaned after every use. When cleaning the oven, the lighting should be switched on to enable you to see the surfaces better.
• The oven chamber should only be washed with warm water and a small amount of washing-up liquid.

- Steam Cleaning function:

- Pour 250 ml of water (1 glass) into a bowl placed in the oven on the first level from the bottom, - close the oven door, - set the temperature knob to 50°C, and the function knob to the bottom heater position ☐ - heat the oven chamber for approximately 30 minutes, - open the oven door, wipe the chamber inside with a cloth or sponge and wash using warm water with washing-up liquid.

Caution!

Do not use cleaning products containing abrasive materials for the cleaning and maintenance of the glass front panel.

Replacing the halogen bulb in the oven

Before replacing the halogen bulb, make sure the appliance is disconnected from the electric mains to avoid a possible electric shock.

1. Unplug the appliance
2. Remove shelves and trays from the oven.
3. Unscrew and wash the lamp cover, then wipe it dry.
4. Pull the halogen bulb out using a cloth or paper. If necessary, replace the halogen bulb with a new one.
5. Voltage: 230V
6. Power: 25W
7. Replace the halogen bulb in its socket.
8. Screw in the lamp cover.

Note: Make sure not to touch the halogen bulb directly with your fingers!

Wire shelf supports

(Telescopic guides do not appear in all oven models)

Wire shelf supports are easy to remove for washing. Pull the front catch, then tilt the support and remove from the rear catch.

Removing wire shelf supports

Installing wire shelf supports

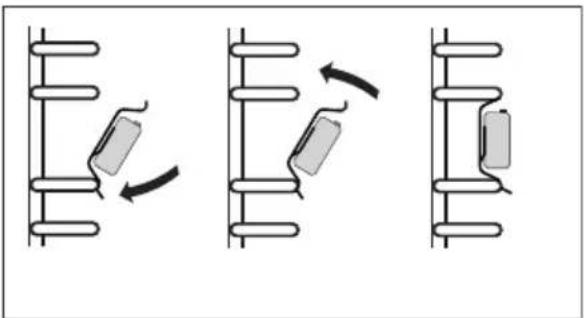

The runners should be taken out and washed along with the side racks. Before putting trays on the telescopic runners, they should be pulled out (if the oven is warmed up, the runners should be pulled out by hooking the back edge of trays on the bumpers in the front part of the telescopic runners) and then insert them together with a tray.

Door removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (fig. A). Close the door lightly, lift and pull it out towards you. In order to fit the door back onto the cooker, do the inverse. When fitting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder. After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set, it may cause damage to the hinge when closing the door.

Tilting the hinge safety catches

Removing the inner panel

1. Using a flat screwdriver, unhook the upper door slat, prying it gently on the sides (fig. B).
2. Pull the upper door slat loose (fig. B, C).

1. Pull the inner glass panel from its seat (in the lower section of the door).

See fig. D.

1. Clean the panel with warm water and a little cleaning agent.

To reassemble the inner glass panel, follow the same steps in reverse order. Its smooth surface should face upwards.

Important! Do not force the upper strip in on both sides of the door at the same time. To correctly fit the top door strip, first place the left end of the strip on the door, then press the right end in until you hear a "click". Then press the left end in until you hear a "click".

Removal of the internal glass panel. 3 glass panel.

Regular inspections

Besides keeping the cooker clean, you should:

- Carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired, have a technical inspection of the cooker carried out at a service centre at least once every two years.

• Fix any operational faults, and carry out periodical maintenance of the cooking units of the cooker.

Caution!

All repairs and regulatory activities should be carried out by the appropriate service centre or by an appropriately authorised fitter.

OPERATION IN CASE OF EMERGENCY

In the event of an emergency, you should:

• switch off all working units of the cooker
• disconnect the mains plug
• call the service centre
• Some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre, check the following points that are presented in the table.

PROBLEM REASON ACTION
1. The appliance does not work.	Break in power supply. Check the household fuse box; if there is a blown fuse replace it with a new one.
2. The oven lighting does not work.	The bulb is loose or damaged. Tighten up or replace the blown bulb (see ‘Cleaning and Maintenance’).

Voltage rating 230~50Hz

Power rating max.10,9 kW

Cooker dimensions H/W/D 90 / 50 / 60 cm

Power consumption in standby mode [W] 0,8

Power consumption in off-mode [W] -

Power consumption in networked standby mode [W] -

Automatic standby/off time [min] 1

The product meets the requirements of European standards EN 60335-1; EN60335-2-6.

The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1. These values are defined with a standard workload and with the functions active: bottom and top heaters (conventional heating) and fan assisted heating (forced air heating), if these functions are available.

The energy efficiency class was assigned depending on the function available in the product in accordance with the priority below:

Forced air circulation ECO (ring heater + fan)
Forced air circulation ECO (bottom heater + top + roaster + fan)
Conventional mode ECO (bottom heater + top)

During energy consumption test, remove the telescopic runners (if the product is fitted with any).

point®

IO-CFS-3151 / 9520381

(04.2025 / v1)
