USER MANUAL FRA 102 MPMAN
Please read and save this for future reference.
THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF "DANGEROUS VOLTAGE INSIDE THE PRODUCT.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OF BACK). NO USER-SERVICEABLE PARTS INSIDE,REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT.
SET MARKING ON BOTTOM / BACK OF PRODUCT
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZRD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use.
-Read these instructions.
-Keep these instructions.
-Heed all warnings.
-Follow all instructions.
-Do not use this apparatus near water.
-Clear only with dry cloth.
-Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
-Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)that produce heat.
-Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Electrical power information
Input voltage:AC 110-240V\~,50/60Hz
Energy consumption in operation: < 4W
Energy consumption in standby mode: < 0.5Wh
This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.
This is to certify that the FRA102 is conformity with council directive 2004/108/EC(EMC Directive)
Applicable Standard(s):
EN55013:2001+A1:2003+A2:2006
EN61000-3-2:2006+A1:2009+A2:2009
EN61000-3-3:2008
EN55020:2007/A11:2011
For more information please visit our website
www.mpmaneurope.com
General controls
Before you begin, plug in for power by connecting the power plug. Turning on the unit, it defaults in clock mode.

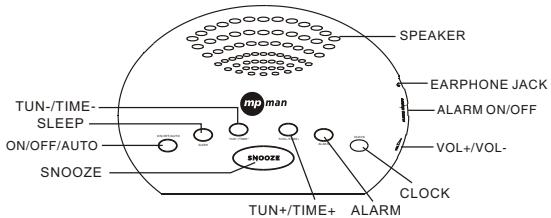

Top View
ON/OFF/AUTO: Long-pressing this key to enter standby mode, if in standby mode, long-pressing this key to awaken the unit to work. In clock or alarm modes, press "ON/OFF/AUTO" shortly to switch radio mode, press this key shortly again to search radio channel automatically.in the search process short press to stop the channel search.
TUN+ / TIME+: In the radio mode, press the key "TUN+ / TIME+" shortly to increase the radio frequency, long-pressing to search for next available station. In the clock mode, pressing this key to adjust the time with "CLOCK" button.
TUN-/- TIME - In the radio mode, press the key "TUN-/- TIME-" shortly to reduce the radio frequency, long-pressing to search for previous available station. In the clock mode, press this key to adjust the time with "CLOCK" button.
SNOOZE: In the radio mode, press the key "SNOOZE" shortly to switch next radio station, long-pressing to store current radio channel. When alarm clock wakes up, press this key to stop the alarm, and after 5 minutes alarm will ring again.long-pressing "SNOOZE" to stop the alarm.
SLEEP: The regular shutdown button, press the key "SLEEP" shortly to enter time setting mode, it displays a fixed minutes: 0, 10, 20, 30, 45, 60, 90, 120. 0 is to close regular shutdown function, other numbers are regular shutdown minutes. In FM and clock mode, long-pressing to view current setting time.
VOL+/VOL-: Increase or reduce the volume.
ALARM ON/OFF: if turn on, the red indicator light on display will be light , and alarm will awaken at the alarm time, if turn off, the red indicator light on display will not be light , and alarm will not awaken at the alarm time
Clock:
Setting clock
- In radio mode, press the key "CLOCK" shortly to check the time, long-pressing to switch to clock mode.
- In the clock mode, press the key "CLOCK" shortly to enter the clock setting mode, the hour digital is in the flicker, then press "TUN+ / TIME +" or "TUN- / TIME -" to adjust the hours.
- Press the "CLOCK" key again, minute digital flashing, press "TUN+ / TIME+" or "TUN-/TIME-" key to adjust minutes.
- Finally press the "CLOCK" key to finish the clock setting.
Alarm:
Setting alarm
- In radio mode, press the key "ALARM" shortly to check the alarm time, long-pressing to switch to alarm mode.
- In the alarm mode, press the key "ALARM" shortly to enter the alarm setting mode, the hour digital is in the flicker, then press "TUN+ / TIME +" or "TUN- / TIME -" to adjust the hours.
- Press the "ALAR" key again, minute digital flashing, press "TUN+ / TIME+" or "TUN- / TIME-" key to adjust minutes
- Finally press the "ALARM" key, the alarm setting is finished. To turn on or off alarm by key "ALARM ON/OFF".
During adjusting clock time or alarm time, if without any operation within about 5 seconds, it will store display clock or alarm time automatically.
Radio:
Listening to the radio
In clock or alarm modes, press "ON / OFF / AUTO" shortly to switch radio mode, press this key shortly again to search radio channel automatically.
To tune frequency and store a station
- Press "TUN+ / TIME +" / "TUN- / TIME -" shortly, the selected frequency shows on the display.
- Press and hold "TUN+ / TIME +" / "TUN- / TIME -"to search for next/previous available station.
- Press "SNOOZE" shortly to switch next radio station, long-pressing to store current radio station.
- TUN-/TUN+: Press TUN-/+ to select a new channel you want to save, and then long-pressing the button "SNOOZE" to insert the new channel.
FM Antenna
This unit is equipped with an FM antenna at the back. Uncoil the antenna to its full length for best reception. Tape the end of the antenna onto the wall if possible to improve reception.
man
FRA102
RADIO REVEIL FM
Mode d'emploi
RISQUE D' ELECTROCUTION NE PAS OUVRIR
ATTENTION:POUR REDUIRE LE RISQUE D' ELECTROCUTION, NE PAS RETIRER LE COUVERCLE (OU LE PANNEAU ARRRIERE). AUCUNE PIECE REPARABLE PAR L'UTILISATEUR A'INTERIEUR, CONFIER LA MAINTENANCE A UN PROFESSIONNEL.
LE POINT
D'EXCLAMATION A
L'INTERIEUR DU
TRIANGLE EST UN
PICTOGRAMME
ATTIRANT VOITE
ATTENTION SUR LA
PRESENCE DE
CONSIGNES
IMPORTANTES
ACCOMPAGNANT LE
PRODUIT.
NUMERO DE LOT A LA BASE/ARRIERÉ DU PRODUIT
ATTENTION: POUR EVITER LES INCENDIES OU LE RISIQUE D'ELECTROCUTION, CE PRODUIT NE DOIT PAS ETRE EXPOSE A LA PLUIE OU A LA MOISSURE.
EN55020:2007/A11:2011
Commands
EN55020:2007/A11:2011
EN55020:2007/A11:2011
Generale Controles
Standard Applicable:
EN55013:2001+A1:2003+A2:2006
EN61000-3-2:2006+A1:2009+A2:2009
EN61000-3-3:2008
EN55020:2007/A11:2011
EN55020:2007/A11:2011
Controlos Gerais
Antes de partir, liue a energia atraves da conexao da ficha. Ligue a unidade e aparece o mode de relgo.
