FS-C5030N - Color laser printer KYOCERA - Free user manual and instructions

Product type	Color laser printer
Brand	KYOCERA
Model	FS-C5030N
Dimensions (W x D x H)	385 x 345 x 470 mm
Weight (without toner cartridge)	Approx. 23 kg
Power supply	220-240 V ~ 50/60 Hz
Power consumption (automatic standby)	21 W (70 W max)
Print speed (A4, color/monochrome)	Up to 24 ppm
Print resolution	600 dpi
Standard / maximum memory	128 MB / 1024 MB
Paper capacity (cassette)	500 sheets (80 g/m²)
Paper capacity (multipurpose tray)	100 sheets (80 g/m²)
Output tray capacity	250 sheets (face down)
Standard interfaces	USB Hi-Speed, Parallel IEEE1284, Network 10/100 Base-TX
Compatible operating systems	Windows 95/98/Me/2000/XP, NT 4.0, Mac OS 9, Mac OS X
Print method	Electrophotographic four-color (CMYK)
Warm-up time (on power)	80 seconds max
First print (standby)	12 seconds max
Noise level printing / standby	55 dB(A) / 36 dB(A)
Operating conditions (temperature)	10 to 32.5 °C
Operating conditions (humidity)	20 to 80 % RH
Certifications	ENERGY STAR, FCC Class B, CE, GEEA
Routine maintenance	Replacement of toner cartridges, waste toner bottle, cleaning of charger and transfer unit
Spare parts	Toner kit (black, cyan, magenta, yellow), waste toner bottle, cleaning unit
Safety	Use a grounded outlet; do not open the device; do not place near heat sources
Manual	88 pages in PDF format, available in French

Frequently Asked Questions - FS-C5030N KYOCERA

How to replace the toner cartridge?

Open the top cover. Slide the blue locking lever towards you to unlock the used cartridge, then remove it. Shake the new cartridge horizontally 5 to 6 times to distribute the toner. Insert it into the slot corresponding to the color, push until it clicks, then lock the lever. Close the cover.

What to do in case of a paper jam?

The 'Paper Jam' message appears with the location. Open the indicated cover (cassette, multipurpose tray, rear cover, etc.) and gently remove the jammed paper. Avoid tearing the paper. Refer to the 'Clearing Paper Jams' section of the manual for more details.

How to clean the primary charger components?

Open the left side cover. For the wire, gently pull the green tab back and forth 2 to 3 times. For the grid, use the cleaning unit provided in the toner kit: attach it to the charger, pull the handle back and forth. Properly replace each component after cleaning.

What does the 'Replace toner' message mean?

The message 'Replace toner C, M, Y, K' indicates that one or more toner cartridges are empty. Immediately replace the affected cartridge(s) with a new toner kit. After replacement, clean the chargers and transfer unit as indicated in the manual.

How to perform color calibration?

To calibrate colors, turn the printer off and then on, or use the control panel: press [MENU], navigate to 'Other > Service > Drum', then press [ENTER] twice. The operation takes about 3 minutes.

What types of paper are supported by the multipurpose tray?

The multipurpose tray accepts plain paper, transparencies, labels, envelopes, cards, thick paper, etc. Sizes range from A6 to A4, Legal, and custom. Refer to the 'Specifications' section for the complete list.

How to install the printer driver?

Turn on the computer and printer. Insert the provided CD-ROM. If the installation does not start, run Setup.exe from the CD. Follow the on-screen instructions. The KX driver is installed automatically. Ensure that the connection (USB, parallel, or network) is established.

What to do if printing is pale or blurry?

Clean the primary charger components and the beam matrix lenses (see manual). Check the toner level and replace if necessary. Perform color calibration. Make sure the paper type is correctly set in the settings.

How to replace the waste toner bottle?

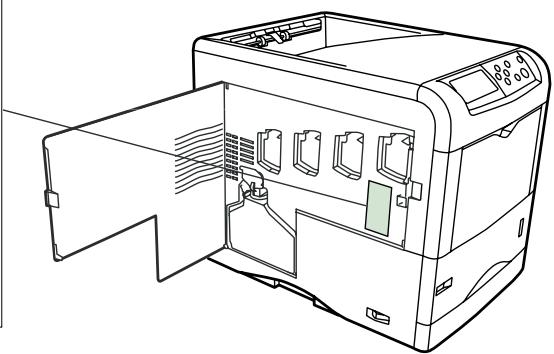

Open the left side cover. Remove the used bottle by gently pulling it. Close the cap of the used bottle to prevent leaks. Insert the new bottle until it clicks. Close the cover. The 'Check waste toner bottle' message disappears.

What to do in case of a 'Memory full' message?

The message 'Memory full' indicates that the internal memory is full. Press [GO] to resume printing or [CANCEL] to cancel. Delete unnecessary downloaded fonts and macros. If the problem persists, increase memory (DIMM modules).

USER MANUAL FS-C5030N KYOCERA

IBM Program Licence Agreement

THE DEVICE YOU HAVE PURCHASED CONTAINS ONE OR MORE SOFTWARE PROGRAMS ("PROGRAMS") WHICH BELONG TO INTERNATIONAL BUSINESS MACHINES CORPORATION ("IBM"). THIS DOCUMENT DEFINES THE TERMS AND CONDITIONS UNDER WHICH THE SOFTWARE IS BEING LICENSED TO YOU BY IBM. IF YOU DO NOT AGREE WITH THE TERMS AND CONDITIONS OF THIS LICENSE, THEN WITHIN 14 DAYS AFTER YOUR ACQUISITION OF THE DEVICE YOU MAY RETURN THE DEVICE FOR A FULL REFUND. IF YOU DO NOT SO RETURN THE DEVICE WITHIN THE 14 DAYS, THEN YOU WILL BE ASSUMED TO HAVE AGREED TO THESE TERMS AND CONDITIONS.

The Programs are licensed not sold. IBM, or the applicable IBM country organization, grants you a license for the Programs only in the country where you acquired the Programs. You obtain no rights other than those granted you under this license.

The term "Programs" means the original and all whole or partial copies of it, including modified copies or portions merged into other programs. IBM retains title to the Programs. IBM owns, or has licensed from the owner, copyrights in the Programs.

1. License

Under this license, you may use the Programs only with the device on which they are installed and transfer possession of the Programs and the device to another party.

If you transfer the Programs, you must transfer a copy of this license and any other documentation to the other party. Your license is then terminated. The other party agrees to these terms and conditions by its first use of the Program.

You may not:

1 use, copy, modify, merge, or transfer copies of the Program except as provided in this license;
2 reverse assemble or reverse compile the Program; or
3 sublicense, rent, lease, or assign the Program.

2. Limited Warranty

The Programs are provided "AS IS."

THERE ARE NO OTHER WARRANTYES COVERING THE PROGRAMS (OR CONDITIONS), EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some jurisdictions do not allow the exclusion of implied warranties, so the above exclusion may not apply to you.

3. Limitation of Remedies

IBM's entire liability under this license is the following;

For any claim (including fundamental breach), in any form, related in any way to this license, IBM's liability will be for actual damages only and will be limited to the greater of:

1 the equivalent of U.S.$25,000 in your local currency; or
2 IBM's then generally available license fee for the Program

This limitation will not apply to claims for bodily injury or damages to real or tangible personal property for which IBM is legally liable.

IBM will not be liable for any lost profits, lost savings, or any incidental damages or other economic consequential damages, even if IBM, or its authorized supplier, has been advised of the possibility of such damages. IBM will not be liable for any damages claimed by you based on any third party claim. This limitation of remedies also applies to any developer of Programs supplied to IBM. IBM's and the developer's limitations of remedies are not cumulative. Such developer is an intended beneficiary of this Section. Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

4. General

You may terminate your license at any time. IBM may terminate your license if you fail to comply with the terms and conditions of this license. In either event, you must destroy all your copies of the Program. You are responsible for payment of any taxes, including personal property taxes, resulting from this license. Neither party may bring an action, regardless of form, more than two years after the cause of action arose. If you acquired the Program in the United States, this license is governed by the laws of the State of New York. If you acquired the Program in Canada, this license is governed by the laws of the Province of Ontario. Otherwise, this license is governed by the laws of the country in which you acquired the Program.

Agfa Monotype License Agreement

1 "Software" shall mean the digitally encoded, machine readable, scalable outline data as encoded in a special format as well as the UFST Software.
2 You agree to accept a non-exclusive license to use the Software to reproduce and display weights, styles and versions of letters, numerals, characters and symbols ("Typefaces") solely for your own customary business or personal purposes at the address stated on the registration card you return to Agfa Japan. Under the terms of this License Agreement, you have the right to use the Fonts on up to three printers. If you need to have access to the fonts on more than three printers, you need to acquire a multi-user license agreement which can be obtained from Agfa Japan. Agfa Japan retains all rights, title and interest to the Software and Typefaces and no rights are granted to you other than a License to use the Software on the terms expressly set forth in this Agreement.
3 To protect proprietary rights of Agfa Japan, you agree to maintain the Software and other proprietary information concerning the Typefaces in strict confidence and to establish reasonable procedures regulating access to and use of the Software and Typefaces.
4 You agree not to duplicate or copy the Software or Typefaces, except that you may make one backup copy. You agree that any such copy shall contain the same proprietary notices as those appearing on the original.
5 This License shall continue until the last use of the Software and Typefaces, unless sooner terminated. This License may be terminated by Agfa Japan if you fail to comply with the terms of this License and such failure is not remedied within thirty (30) days after notice from Agfa Japan. When this License expires or is terminated, you shall either return to Agfa Japan or destroy all copies of the Software and Typefaces and documentation as requested.
6 You agree that you will not modify, alter, disassemble, decrypt, reverse engineer or decompile the Software.
7 Agfa Japan warrants that for ninety (90) days after delivery, the Software will perform in accordance with Agfa Japan-published specifications, and the diskette will be free from defects in material and workmanship. Agfa Japan does not warrant that the Software is free from all bugs, errors and omissions.

8 THE PARTIES AGREE THAT ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY, ARE EXCLUDING.
9 Your exclusive remedy and the sole liability of Agfa Japan in connection with the Software and Typefaces is repair or replacement of defective parts, upon their return to Agfa Japan.
10 IN NO EVENT WILL AGFA JAPAN BE LIABLE FOR LOST PROFITS, LOST DATA, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES CAUSED BY ABUSE OR MISAPPLICATION OF THE SOFTWARE AND TYPEFACES.
11 New York, U.S.A. law governs this Agreement.
12 You shall not sublicense, sell, lease, or otherwise transfer the Software and/or Typefaces without the prior written consent of Agfa Japan.
13 Use, duplication or disclosure by the Government is subject to restrictions as set forth in the Rights in Technical Data and Computer Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or subparagraph (c)(1)(ii), as appropriate. Further use, duplication or disclosure is subject to restrictions applicable to restricted rights software as set forth in FAR 52.227-19 (c)(2).
14 YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT, AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS. NEITHER PARTY SHALL BE BOUND BY ANY STATEMENT OR REPRESENTATION NOT CONTAINED IN THIS AGREEMENT. NO CHANGE IN THIS AGREEMENT IS EFFECTIVE UNLESS WRITTEN AND SIGNED BY PROPERLY AUTHORIZED REPRESENTATIVES OF EACH PARTY. BY OPENING THIS DISKETTE PACKAGE, YOU AGREE TO ACCEPT THE TERMS AND CONDITIONS OF THIS AGREEMENT.

FS-C5020N 120V KYOERA MITA CORPORATION

Cted To Comply With EPC Contract

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC Rules. One can obtain a high-quality, well-designed

Operation is Subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation. This Class B digital apparatus complies

Cot anseril numicovia

• REMOVE POWER CORD BEFORE SERVICE AND FUSE REPLACEMENT

AND FUSE REPLACEMENT, POUR PREVENIR LES CHOICES

ELECTRIQUES, COUPER ALLIMENTATION AVANT DE REMPLACER LE FUSIBLE

AVANT DE AMPIERCE LE POSICUUM PRIMA DI CAMIARE I FIESIBILI O

DI ESEGURE RIPAZAIONSTACCADEIL CADOILAL

ABS< MADE IN JAPAN

Concentration d'ozone

(): recommendations du programme ENERGY STAR

Group for Energy Efficient Appliances (GEEA)

This machine has passed all quality controls and final inspection
