Product Type	Dual Basket Air Fryer
Brand	Prixton
Model	Cook Organics Dual
Number of Baskets	2
Total Capacity	7 L (2 x 3.5 L)
Power	1500 W
Temperature Range	80 °C to 200 °C
Timer	0 to 60 minutes
Display	Digital Touch Screen
Coating	Non-stick
Housing Material	ABS Plastic
Dimensions (W x D x H)	33 x 30 x 32 cm
Weight	5.2 kg
Power Supply	220-240 V, 50/60 Hz
Cable Length	1 m
Main Functions	Frying, cooking, roasting, grilling, reheating
Sync Cooking	Yes, keep warm
Cleaning	Baskets and grills dishwasher safe
Safety	Auto shut-off, cool-touch handles, overheat protection
Included Accessories	2 baskets, 2 reversible grills, user manual
Spare Parts Available	Baskets and filters sold separately
Repairability	Repairability index 7.9/10

Frequently Asked Questions - Cook Organics Dual Prixton

How to use the sync cooking function with two baskets?

Sync cooking allows you to launch two different programs at the same time. First select a program for each basket, then press Sync to synchronize them. Both baskets will stop at the same time.

What are the recommended cooking times for frozen fries?

For frozen fries, preheat 3 min at 200 °C, then cook 15-20 min stirring halfway. Adjust according to quantity and thickness.

How to clean the baskets and grills?

The baskets and grills are dishwasher safe. For hand washing, use a non-abrasive sponge and warm soapy water. Avoid metal utensils.

Can I use parchment paper in the basket?

Yes, you can place parchment paper at the bottom of the basket to make cleaning easier. Make sure it does not stick out and does not obstruct air circulation.

What to do if the touch screen does not respond?

Try unplugging the appliance for 30 seconds then plugging it back in. If the problem persists, make sure your fingers are dry. Contact customer service if necessary.

Is it possible to cook frozen foods without thawing?

Yes, the air fryer accepts frozen foods. Simply increase the cooking time by 2 to 5 minutes and monitor the cooking.

How to set the temperature to cook a whole chicken?

For a whole chicken of about 1.2 kg, set 180 °C for 40-50 minutes. Turn halfway. Check doneness with a thermometer (75 °C inside).

Do the handles get hot during use?

The handles are designed to stay cool to the touch. However, the surrounding area may become hot; always use the handles and avoid touching the hot baskets.

Where can I find spare parts like baskets?

Spare parts are available on the official Prixton website or from authorized retailers. Look for the reference Cook Organics Dual for filters and baskets.

How to resolve error code E1?

Error code E1 indicates a temperature sensor problem. Turn off the appliance, unplug it, let it cool for 30 minutes, then restart. If the error persists, contact technical support.

USER MANUAL Cook Organics Dual Prixton

Cook Organics Dual 8L with Window

FREIDORA SIN ACEITE AIR FRYER

INDEX

ES 3
EN 12
FR 21
IT 30
DE 39
PT 48
NL 57

- SOLO PARA USO DOMÉSTICO EN INTERIORES -

Please read this manual carefully before you use the appliance and save it for future reference.

SAVE THESE INSTRUCTIONS

This appliance is not intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces.

3. To protect against electric shock do not immerse cord, plugs, or base in water or other liquid.

4. WARNING: This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. Since temperatures are differently perceived by different persons, this equipment shall be used with CAUTION. The equipment shall be touch only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to the cool down before getting touched

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts

6. Type Y: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors

9. Do not let cord hang over edge of table or counter, or touch hot surfaces

10. Do not place on or near a hot gas or electric burner, or in a heated oven

11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

12. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet

13. Do not use appliance for other than intended use.

14. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are old than 8 and supervised.

1. Keep the appliance and its cord out of reach of children less than 8 years.

2. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

INTRODUCTION

This all now Hot-air fryer provides an easy and healthy way of preparing your favorite ingredients. By using hot rapid air circulation and a top grill, it is able to make numerous dishes. The best part is that the Hot-air fryer heats food at all directions and most of the ingredients do not need any oil.

TECHNICAL DATA:

----Voltage:220-240V\~50Hz/60Hz
----Wattage:2000Watts
----Capacity of 8L
----Adjustable temperature:80_°C -200_°C
---- Timer (1-60min)

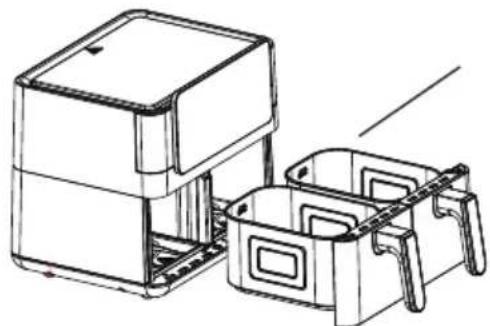

GENERAL DESCRIPTION (Fig.1)

1. Control panel
2. Pot handle
3. Pot 5. Air outlet
4. Main housing
   6.Fried plate

Important

Danger

-This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

-Keep the appliance and its cord out of reach of children less than 8 years
- Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse it under the tap.
-Do not let any water or other liquid enter the appliance to prevent electric shock
-Always put the ingredients to be fried in the pot, to prevent it from coming into contact with the heating elements.
-Do not cover the air inlet and the air outer openings while the appliance is operating.
-Do not fill the pot with oil as this may cause a fire hazard
-Never touch the inside of the appliance while it is operating.

The temperature of accessible surfaces may be high when the appliance is operating

WARNING

-Check if the voltage indicated on the appliance fits the local mains voltage
-Do not use the appliance if there is any damage on plug, mains cord or other parts.
-Do not go to any unauthorized person to replace or fix damaged main cord.
-Keep the mains cord away from hot surfaces.
-Do not plug in the appliance or operate the control panel with wet hands..
-Do not place the appliance against a wall or against other appliances. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance.

Do not place anything on top of the appliance

-Do not use the appliance for any other purpose than described in this manual

-Do not let the appliance operate unattended

-During hot air frying, hot steam is released through the air outlet openings, Keep your hands and face at a safe distance from the steam and from the air outlet openings.

Also be careful of hot steam and air when you remove the pot from the appliance

-Any accessible surfaces may become hot during use

-Immediately unplug the appliance if you see dark smoke coming out of the appliance.

Wait for the smoke emission to stop before you remove the pot from the appliance.

Caution

-Ensure the appliance in placed on a horizontal, even and stable surface.

-This appliance is designed for household use only. It may not suitable to be safely used in environments such as staff kitchens, farms, motels, and other non-residential environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.

-If the appliance is used improperly or for professional or semi-professional purposes or it is not used according to the instructions in the user manual, the guarantee becomes invalid and we could refuse any liability for damage caused.

-Always unplug the appliance while not using

-The appliance needs approximately 30 minutes to cool down for handle or cleaning safely

Before first use

1. Remove all packaging materials.

2. Remove any stickers or labels from the appliance

3.thoroughly clean the fried plate and pot with hot water, some washing-up liquid and a non abrasive sponge.

1. Wipe inside and outside of the appliance with a moist cloth.

This is an oil-free fryer that works on hot air, Do not fill the pot with oil or frying fat directly.

Notice: When your air fryer is heated for the first time, it may emit slight smoke or odor.

This is normal with many heating appliances. This does not affect the safety of your appliance.

Preparing for use

1. Place the appliance on a stable, horizontal and even surface Do not place the appliance on non-heat-resistant surface.

2. Place the fried plate in the pot

Do not fill the pot with oil or any other liquid.

Do not put anything on top of the appliance, the airflow will be disrupted and affects the hot air frying result.

USING THE APPLIANCE

The oil-free can prepare a large range of ingredients.

Hot air frying

1. Connect the mains plug into an earthed wall socket.

2. Carefully pull the pot out of the Hot-air fryer.

3. Put the ingredients in the pot.

4. Slide the pot back into the Hot-air fryer.

Noting to carefully align with the guides in the body of the fryer

Caution: Do not touch the pot during and some time after use, as it gets very hot. Only hold the pot by the handle.

1. Determine the required preparation time for the ingredient (see section 'Settings' in this chapter).

2. Some ingredients require shaking halfway through the preparation time (see section "Settings" in this chapter). To shake the ingredients, pull the pot out of the appliance by the handle and shake it. Then slide the pot back into the air fryer

3. When you hear the timer buzzer, the set preparation time has elapsed. Pull the pot out of the appliance

Note: You can also switch off the appliance manually. To do this, set the time to 1

Tip: You can adjust temperature or time according to your taste during use. Your settings will be kept for about 10 mins after you pull the pot out of the body

1. Check if the ingredients are ready.

If the ingredients are not ready yet, simply slide the pot back into the appliance and set the timer to a few extra minutes.

1. To remove ingredients (e.g. fries), pull the pot out of the Hot-air fryer and place it on trial framework, lift the fried plate out of the pan.

Do not turn the fried plate upside down with the pot still attached to it, as any excess oil that has collected on the bottom of the pot will leak onto the ingredients.

The pot and the ingredients are hot. Depending on the type of the ingredients in the air fryer, steam may escape from the pot.

-Empty the pot into a bowl or onto a plate.

-When a batch of ingredients is ready, the Hot-air fryer is instantly ready for preparing another batch.

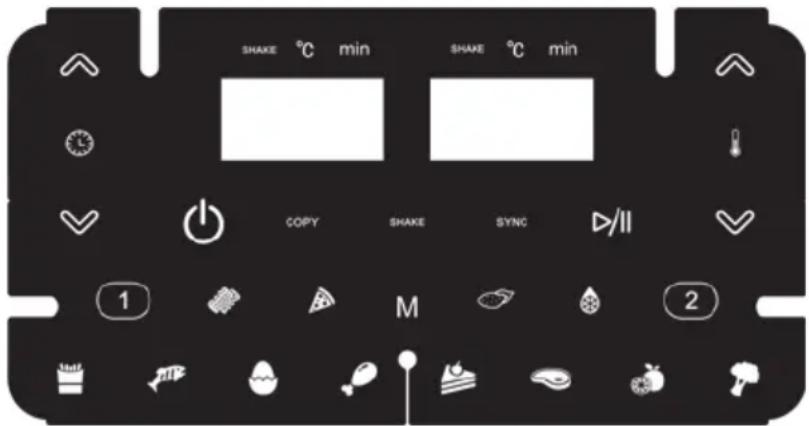

CONTROL PANEL INSTRUCTIONS

Operation Instructions:

1. After power on the machine, all pilot lamp and nixie tube are on and blink for 3 seconds and then turn off, the buzzer sounded three times at the same time, then the power ⏻ light is always on;

2. Power on by pressing the power button ⏻ for 0.5 seconds, after startup, the temperature and time symbols are not lit, SYNC, COM two lights not bright, all other lights are on normally, both displays say"----"

3. At this time, consumers choose pot ① or pot ② according to their needs, after selecting ①, ① and ⚪ light flicker, the corresponding menu indicator blinks, pot ① corresponding to the display light, show default menu 180°C/15min or 360°F/15min, temperature and time are displayed alternately, the left and right indicator lights of the display display accordingly; pot ② the corresponding display screen displays "----".

4. Press ≡ to select the menu, which menu to select, the corresponding menu indicator blinks, other menu lights are always on, the display displays the temperature corresponding to the menu, no operation is performed after 3 seconds, temperature and time are displayed alternately; adjust the temperature and time if required, select the temperature time select key first ⚫, the corresponding indicators on both sides of the display light up, press ⊕ ⊖ at this time to adjust the temperature and time, after adjustment, press the start pause button ⚗️, ⚗️ indicator is on, after startup, select menu light is on, other menu lights off, the machine goes into operation mode, the display alternates temperature and time, after work, the menu select key ≡ can no longer be selected;

5. When choosing pot, repeat steps 3 and steps 4;

6. When the pot ① menu is selected well, not starting work, now, copy light COPY on, when selecting pot ②, ① indicator is on, the corresponding display screen of the pot ① alternately displays the menu temperature and time, sync light SYNC on. Follow the same steps 3 and steps 4 for pot ② selection, press the start pause button after selecting ⏻, both pots enter working mode at the same time, the display alternates the temperature time for each menu; if pot ② is chosen well, also want to adjust the pot ①, press pot ① first, enter the pot ① adjustment mode adjustment, adjust and press the start button ⏻, both pots enter working mode at the same time;

7. In machine work, press the start pause button ⏻, ⏻ lamp, the corresponding menu light and pot number light blink, other menu lights are on, machine heat suspension, fan delay 20 seconds stop, both pots are working, so pause them at the same time; if want to pause the pot ①, need to select pot first after ① key, press the Start pause button again ⏻ pot ① pause, to adjust, when the pause, the corresponding display alternately displays the program temperature and time; the same goes for pot ② pause.

8. In machine work, hold down the power button ⏻ for 2 seconds, the machine gave a long cry, both pots stop working at the same time, the display screen shows OFF, power light ⏻ on, all other lights go out; if want to turn off pot 1 or pot 2 separately, first choose the corresponding ① or ②, then press and hold the power button ⏻ for 2 seconds, corresponding pot stop working, the corresponding display screen shows OFF;

9. Machine working state, if temperature adjustment is necessary, Choose ① or ② first, then select the temperature and time selection keys respectively Ⓤ adjust the temperature and time, exit the debugging mode 5 seconds after adjustment without any operation;

10. Buzzer sound prompts, conventional key operation, short press short ring, long press long ring; the program end buzzer has 5 sounds, the corresponding screen displays OFF, corresponding light off, same not working mode;

11. After selecting pot ① or pot ②, Long press the corresponding ① or ② button to cancel.

12. Memory function: the machine has a memory function, such as the use of the machine pot ② with the chicken wing menu, temperature set to 390° F, time set to 18 min, after the end of use, the machine did not power off, when the next use, select pot ②, the chicken wing menu will be directly displayed, the temperature is 390° F, the time is 18 min; this memory function disappears when the machine is powered off for an hour;

13. Two pots working at the same time, ① button indicator light and the corresponding menu indicator light of the pot ① blink once 6/seconds at the same time, extinguish time < 0.5 seconds, after 3 seconds, ② button indicator light and the corresponding menu indicator light of the pot ① blink 3 seconds. Once 6/seconds at the same time, extinguish time < 0.5 seconds, the left and right flashes alternately, with an interval of 3 seconds

14. End of sync function: after starting up, select the menu of pot ① and pot ② respectively, when the two pot menus bake at different times. Press the SYNC button, the SYNC indicator blinks, press the start key at this time, and the pot with a long time starts to work, Short time pot display display "HOLD", don't start working for a while, the remaining time of the first working pot is the same as the time of this pot, the two pots began to work together a) When there is only one pot to choose from, the synchronization key indicator is off, when both pots are selected, the synchronization key indicator blinks, always light up after pressing the sync key, then press the power button to start work, and HOLD is displayed for a short time;

b) After synchronous mode starts to work, adjust the working time of the two pots, when the original shorter time is longer than the original longer time, exit sync mode, synchronous light off;

c) Double pot at work, the sync key can no longer operate, the sync key indicator is off; d) Double pot end function mode, the pot has a pull out, two pots should stop working at the same time, pull out to show OPEN, the other one says HOLD.

1. Copy menu function: set the menu temperature and time of a pot after turning it on, press the COPY button again, COPY indicator blinking, at the same time, another unset pot sets the corresponding menu according to the set pot, at this point, press the start key ☑, and the two pots start working with the same men.

a) When only one pot is selected, the copy key indicator lights up, when both pots are selected, the replication key indicator is off, this key function is invalid;

b) After starting work, the copy key indicator is off, this key function is invalid;

Memory function: the machine has a memory function, such as the use of the machine pot ② with the chicken wing menu, temperature set to 390°F, time set to 18 min, after the end of use, the machine did not power off, when the next use, select pot ②, the chicken wing menu will be directly displayed, the temperature is 390°F, the time is 18 min; this memory function disappears when the machine is powered off for an hour, after 1 hour, power on and select ② pot, the initial state will be displayed;

Blackout memory: unexpected power failure while the machine is in use, as long as the power is restored within 30 minutes, the machine will return to the state before the power failure;

Mistake: the sensor exception screen must display the corresponding code, E1:sensor open circuit E2: sensor short circuit

Settings

This table below will help you to select the basic settings for the ingredients

Note : Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients Because the Rapid Air technology instantly reheats the air inside the appliance instantly

Pull the pot briefly out of the appliance during hot air frying barely disturbs the process.

Tips

-Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.

-A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.

-Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients.

-Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you added the oil.

-Do not prepare extremely greasy ingredients such as sausages in the Hot-air fryer

-Snacks that can be prepared in a oven can also be prepared in the Hot-air fryer

-The optimal amount for preparing crispy fries is 500 grams

-Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough

-Place a baking tin or oven dish in the Hot-air fryer pot if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients

-You can also use the Hot-air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150 "C for up to 10 minutes.

Settings

This table below will help you to select the basic settings for the ingredients

Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients

Because the Rapid Air technology instantly reheats the air inside the appliance instantly

Pull the pot briefly out of the appliance during hot air frying barely disturbs the process.

Tips

-Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.

-A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.

-Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients.

-Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you added the oil.
-Do not prepare extremely greasy ingredients such as sausages in the Hot-air fryer
-Snacks that can be prepared in a oven can also be prepared in the Hot-air fryer
-The optimal amount for preparing crispy fries is 500 grams.
-Use pre-made dough to prepare filed snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
-Place a baking tin or oven dish in the Hot-air fryer pot if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients
-You can also use the Hot-air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150 °C for up to 10 minutes.

	Min-Max Amount (g)	Time (min)	Temperature (°C)	Shake	Extra information
Bacon		12	180100-400	Shake
Pizza	100-400	15	200
Potato	100-400	35	200	Shake	Add 1/2 tbsp of oil
Thaw	100-400	5	180
Frozen french fries	100-400	20	200	Shake
Fish	100-400	18	180	Shake
Nuts	100-400	15	200
Chicken leg	100-400	20	200	Shake
Cake	100-400	35	160
Steak	100-400	15	200	Shake
Dried fruit	100-400	240 60
Vegetable	100-400	18	160

Note: Add 3 minutes to the preparation time when you start frying while the Hot-air fryer is still cold, When both pans work at the same time, please extend the working time by 5 minutes.

Cleaning

Clean the appliance after every use.

The pot and the non-stick coating fried plate. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.
   Note: Remove the pot to let the Hot-air fryer cool down more quickly.
2. Wipe the outside of the appliance with a moist cloth.
3. Clean the pot and fried plate with hot water, some washing-up liquid and a non-abrasive sponge.
   You can use degreasing liquid to remove any remaining dirt
   Tip: If dirt is stuck to the fried plate or the bottom of the pot, fill the pot with hot water with some washing-up liquid. Put the fried plate in the pot and let the pot and the fried plate soak for approximately 10 minutes.
4. Clean the inside of the appliance with hot water and non-abrasive sponge
5. Clean the heating element with a cleaning brush to remove any food residues

Storage

1 Unplug the appliance and let it cool down. 2 Make sure all parts are clean and dry.

Environment

Do not throw away the appliance with the normal household waste when it is exhausted,, but hand it in at an official collection point for recycling. By doing this, you help to

preserve the environment

Guarantee and service

If you need service or information or if you have a problem, please contact your local authorized service centre

Troubleshooting

Problem

The Hot-air fryer does not work.

Possible cause

The appliance is not plugged in.

You have not set the timer.

Solution

Put the mains plug in an earthed wall socket.

Set the timer key to the required preparation time to switch on the appliance.

Problem

The ingredients fried with the air fryer are not done.

Possible cause

The amount of ingredients in the pot is too big.

The set temperature is too low.

The preparation time is too short.

Solution

Put smaller batches of ingredients in the pot. Smaller batches are fried more evenly.

Set the temperature key to the required temperature setting (see section 'settings' in chapter 'Using the appliance').

Set the timer to the required preparation time (see section 'Settings' in chapter' Using the appliance")

Problem

The ingredients are fried unevenly in the air fryer.

Possible cause

Certain types of ingredients need to be shaken halfway through the preparation time.

Solution

Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time. See section 'Settings' in chapter 'Using the appliance'.

Problem

Fried snacks are not crispy when they come out of the air fryer

Possible cause

You used a type of snacks meant to be prepared in a traditional deep fryer

Solution

Use oven snacks or lightly brush some oil onto the snacks for a crispier result.

Problem

I cannot slide the pan into the appliance properly.

Possible cause

There are too much ingredients

Solution

Do not fill the beyond the MAX indication.

Problem

White smoke comes out of the appliance

Possible cause

You are preparing greasy ingredients .

Solution

When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pot.

The oil produces white smoke and the pot may heat up more than usual. This does not affect the appliance or the end result.

Problem

Fresh fries are fried unevenly in the air fryer.

Possible cause

You did not use the right potato type.

You did not rinse the potato sticks properly before you fried them.

Solution

Rinse the potato sticks properly to remove starch from the outside of the sticks.

Problem

Fresh fries are not crispy when they come out of the air fryer.

Possible cause

The crispiness of the fries depends on the amount of oil and water in the fries.

Solution

Make sure you dry the potato sticks properly before you add the oil.

Cut the potato sticks smaller for a crispier result.

Add slightly more oil for a crispier result.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling

WARRANTY POLICY

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form. These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

SIMPLIFIED EU DECLARATION OF CONFORMITY

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL	DESCRIPTION	CATEGORY
Prixton	Cook 8L	Air Fryer	Home

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

- POUR USAGE DOMESTIQUE EN INTÉRIEUR UNIQUEMENT -

Important

Danger

Note: Add 3 minutes to the preparation time when you start frying while the hot air fryer is still cold. When both pans are working simultaneously, please extend the working time by 5 minutes.

Nettoyage

Correct Disposal of this product
