USER MANUAL N-com M951 R Nolan

Microfono con clip

Line drawing of a mechanical component with no visible text or symbols

Adattatori tastiera

N87, N100-5 (1x); N80-8 (1x); N120-1 (1x); N100-6 (1x)

Simple line drawing of a rectangular block with a curved cable attached to its top (no text or symbols)

Batteria

Line drawing of a coiled electrical plug with a terminal connector (no text or symbols)

Cavo USB-C

Simple line drawing of a bent pipe or rod (no text or symbols)

Chiave

Nolan N-com M951 R - 5
Spugnetta microfono

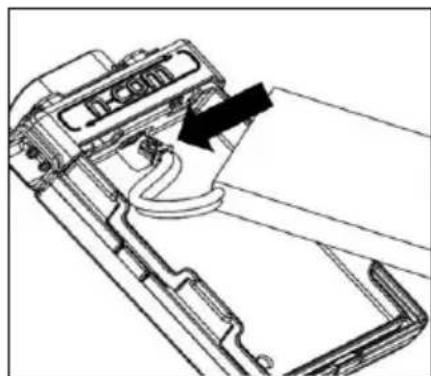

Fig. 1

Technical line drawing of a device casing with internal components and a black arrow indicating a component (no text or symbols present)

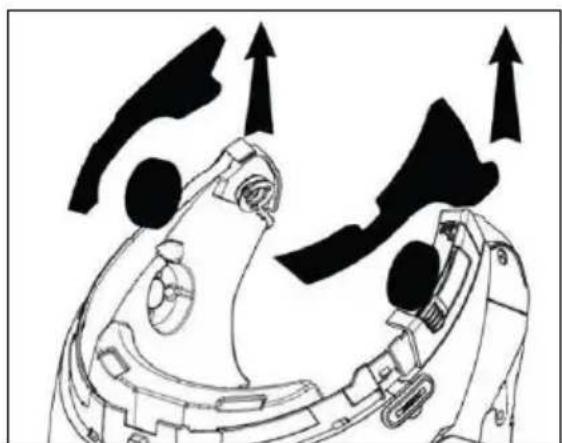

Fig. 2

Line drawing of a device casing with an arrow indicating upward motion (no text or symbols)

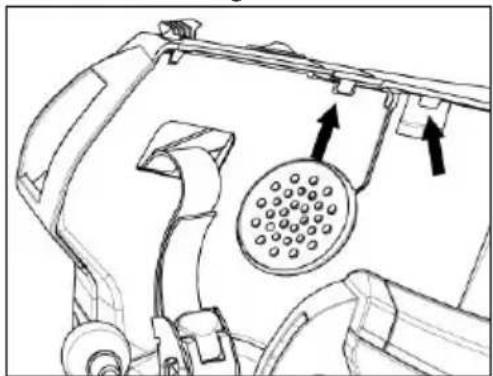

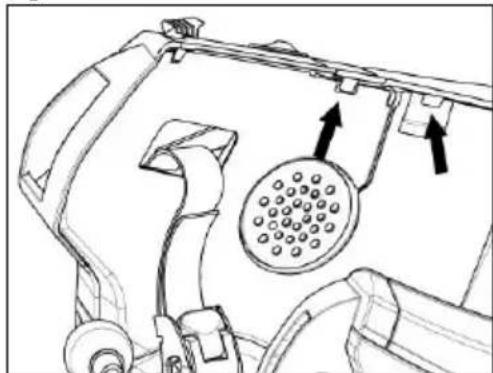

Fig. 3

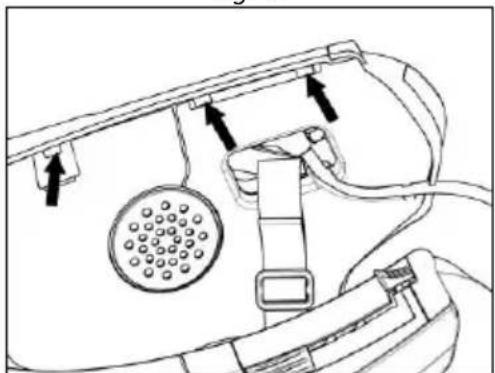

Fig. 4

Technical line drawing of a mechanical bracket component with two arrows indicating direction (no text or symbols)

Fig. 4B - SOLO PER CASCO N80-8, N87 e N100-5

Technical diagram of a car head panel with numbered components and directional arrows indicating assembly or movement.

Fig. 4C - SOLO PER CASCO N100-6, N120-1

Opzione 1

Diagram of a mechanical device with two arrows indicating upward motion or force direction (no text or symbols present)

Opzione 2

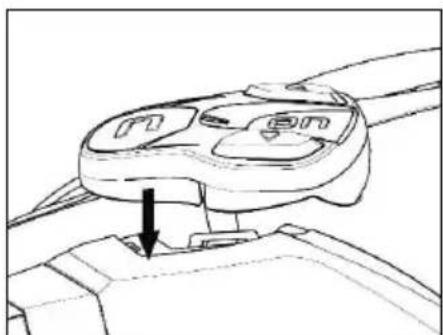

Fig. 5

Line drawing of a robotic arm with sensors and control panel (no text or symbols)

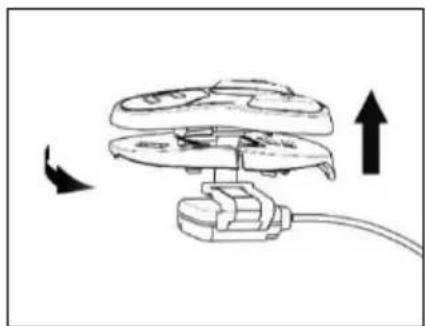

Fig. 6
Technical line drawing of a mechanical assembly with no visible text or symbols

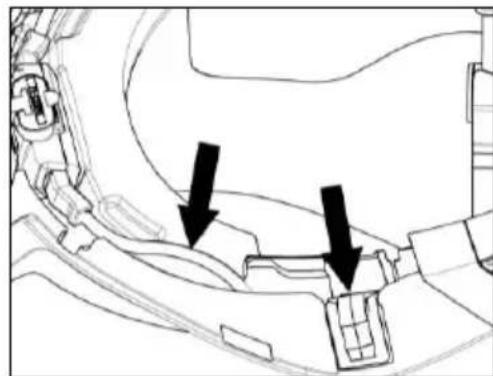

Fig. 7
Line drawing of a mechanical device with attached components (no text or symbols)

Fig. 8

Fig. 9

Fig. 10

Line drawing of a motorcycle seatbelt mechanism (no text or symbols)

Fig. 11

Line drawing of a robotic arm with attached sensors and a circular head (no text or symbols)

Fig. 12

Technical line drawing of a mechanical component with three black arrows pointing to features (no text or symbols present)

Fig. 13

Technical diagram of a handheld device with labeled parts and directional arrows indicating movement (no text or symbols present)

Fig. 14

Fig. 15

Technical line drawing of a mechanical component with two black arrows pointing to features (no text or symbols present)

Fig. 16

Technical line drawing of a mechanical component with a circular component and directional arrows (no text or symbols)

Fig. 17

Fig. 18

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Fig. 19

Line drawing of a mechanical assembly with no visible text or symbols

Fig. 20

Technical line drawing of a mechanical component with a downward arrow indicating a process (no text or symbols present)

Fig. 21

Line drawing of a mechanical device with no visible text or symbols

Fig. 22

Line drawing of a helmet with front and side views (no text or symbols)

Fig. 23

Fig. 24

Diagram of a cable or cable connector with directional arrows indicating motion (no text or symbols)

Fig. 25

Simple line drawing of a cable being inserted into a connector (no text or symbols)

Fig. 26

Fig. 28

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Fig. 29

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 30

Fig. 31

B. Auto On / Off* (cap. 4.2)

Fig. 35

USER INSTRUCTIONS AND SAFETY

Thank you for buying an N-Com product.

N-Com M951 was made using the most advanced technology and top-quality materials. Long-running tests and thorough system development have made it possible to achieve the highest audio quality.

Please read the user instructions before using the product.

For further information on the M951 and video tutorials and information on installing the latest Firmware version, please visit www.nolan-helmets.com

Nolan N-com M951 R - USER INSTRUCTIONS AND SAFETY - 1
MANUALS

Nolan N-com M951 R - USER INSTRUCTIONS AND SAFETY - 2
TUTORIALS

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.; any use of such marks by N-Com is under license. Other trademarks and trade names are those of their respective owners.

Contents

1. WARNINGS AND SAFETY 37

1.1.Road safety 37
1.2.Switching on the system in safe environments 37
1.3.Interferences 38
1.4. Appropriate use .... 38
1.5.Qualified personnel 38
1.6.Accessories and batteries 38
1.7.Disposal....39

2. CONTENT OF THE PACKAGING 40

3. INSTALLATION ON THE HELMET 41

3.1.Battery connection....41
3.2.Initial steps....41
3.3.Installing the M951 system on the helmet....43
3.4.Adjusting the microphone 48
3.5.Removing the M951 system from the helmet 49

4. BASIC FUNCTIONS....50

4.1.Volume adjustment 50
4.2.Auto On / Off function 50
4.3.Multi-language voice messages....50
4.4.N-Com EASYSET 51
4.5. Updating the firmware 51

5. Pairing Menu....52

6. CONFIGURATION MENU....53

7. MOBILE PHONE / MP3 PLAYER PAIRING....54

8. SECOND MOBILE PHONE PAIRING....54

9. MOBILE PHONE....55

9.1.Speed dial 55
9.2.Smart Navi System....56

10. MUSIC VIA BLUETOOTH....56

11. NAVIGATOR PAIR UP 56

12. AUDIO MULTITASKING....57

12.1.Intercom-audio Overlay Sensitivity....57
12.2.Audio Overlay Volume Management....57

13. MESH INTERCOM TM 57

13.1.Open Mesh™ 58
13.2.Group Mesh TM 58
13.2.1.Creating a new Group Mesh™ 59
13.2.2 Joining an existing Group Mesh TM 59
13.2.3.Group MeshTM Activation....60
13.3.Activating/disabling the microphone 60
13.4.Mesh Reach-Out request....60

14. REMOTE CONTROL....61

15. BATTERY AND RECHARGE 61

15.1.Low battery signal....61
15.2 Checking the Battery Level 61
15.3.Charging the system....61

16. SUMMARY TABLE OF CONTROLS 63

17. WARRANTY 64

17.1.Warranty coverage and validity....64
17.2.Exclusions and limitations of coverage 64
17.3.Procedure for submitting claims 65
17.4.Product identification....65

1. WARNINGS AND SAFETY

Product compliant with EU Directive 2014/53/EU (RED). Complete compliance statement downloadable at www.nolan-helmets.com

This device can be operated in at least one Member State without infringing applicable requirements on the use of radio spectrum.

• RF Range: 2402 – 2480MHz (Bluetooth) / 2410 – 2475MHz (MESH)
- Output Power (E.I.R.P.) for Bluetooth: 6 dBm (Nominal)
• Output Power (E.I.R.P.) for MESH: 12 dBm (Nominal)

Read this User Manual carefully, as well as the simple rules listed below. Failure to comply with these rules may lead to dangerous situations.

Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and the like.

Caution: Installation of the N-Com system results in a weight increase of approximately 100-120 g, which is added to the weight of the helmet and of the other accessories.

Warning: The electronic components of the N-Com system mounted inside the helmet are not waterproof. Consequently, make sure the inside of the helmet, including the comfort padding, does not get wet in order to avoid damage to the system. If water seeps into the helmet, remove the comfort padding from the helmet and allow to air dry.

1.1. Road safety

Always obey all Traffic Regulations in force. While riding your motorcycle, your hands should always be engaged in actually riding the vehicle. Any operation to the N-Com system must be carried out with the motorcycle stopped. Specifically:

  • Set your cell phone on automatic answer (see the cell phone instructions to do this).
  • If your cell phone is not equipped with this function, first stop your vehicle in a safe area, in compliance with Traffic Regulations and then answer the call.
  • Do not make any calls while riding. Stop your vehicle in a safe place in compliance with Traffic Regulations and then make the call.
  • Adjust the volume so that it does not cause a disturbance or distraction while riding and at the same time allows you to hear background noises clearly.
  • Do not operate your cell phone or other devices connected to the N-Com system while riding your motorcycle.
  • In all cases, obey the Traffic Regulations and remember that riding the motorcycle has absolute priority over any other manoeuvre.

1.2. Switching on the system in safe environments

  • When using the N-Com system, comply with all limitations and instructions related to the use of cell phones.
  • Do not turn on your cell phone or the N-Com system whenever their use is forbidden or when these devices can cause interference or dangerous situations.
  • Turn off while refuelling. Do not use the N-Com system at filling stations. Do not use the device near combustible materials or chemical products.
  • Turn off when near explosive materials.

1.3. Interferences

All phones and devices with wireless signal transmission are subject to interferences that may affect the performance of the device connected to them. These interferences are not ascribable to a defect of the N-Com system.

1.4. Appropriate use

Use the device only in the normal position, as described in the product documentation. Do not attempt to disassemble, tamper with, or modify any part of the N-Com system.

Caution: Adjust the volume of the N-Com system and of the audio sources connected to it before you use the system on the road.

Caution: Adjusting the volume to exceedingly high levels may cause damage to your hearing.

Caution: Incorrect installation of the system in the helmet may alter the aerodynamic and safety characteristics of the helmet itself, thus creating dangerous conditions. Install the N-Com system according to the instructions provided in the product documentation. In case of doubt, please contact your local N-Com dealer.

Warning: Listening to other equipment should not interfere with riding your motorcycle, which must be the top priority at all times. Carry out all operations on the electronic equipment and on the N-Com system with the vehicle stopped, in compliance with Traffic Regulations.

1.5. Qualified personnel

  • Only qualified personnel can carry out technical assistance on this product. In case of any malfunction, always turn to your local dealer.
  • The helmet is a safety device. Tampering with it and/or with the electronic system inside the helmet can result in dangerous situations, in addition to invalidating the product warranty.

1.6. Accessories and batteries

  • Only use the type of batteries, battery chargers and accessories approved by Nolangroup for the specific model.
  • Using a battery type different from the recommended one may lead to dangerous situations and invalidate the warranty.
  • Contact your local dealer to see about the availability of approved accessories.
  • When disconnecting the power supply cable of any accessory or of the battery charger, always grab and pull the plug, not the cable.
  • Do not use batteries for purposes other than the prescribed ones.
  • Never use batteries or battery chargers that turn out to be damaged.
  • Do not short-circuit the battery.
  • Keep the battery at a temperature between +10°C / +45°C (charging): -10°C / +55°C (in use).
  • Danger of fire or explosion: do not throw the batteries into a fire or expose them to high temperatures!
  • Do not throw out batteries together with household refuse. The batteries should be disposed of in compliance with local regulations
  • Do not wear the helmet while the battery is recharging.
  • The helmet should never be left within the reach of unsupervised children in order to prevent damage to their health caused by access to the batteries.

1.7. Disposal

Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the system from the helmet. Once the system has been disassembled, dispose of it according to the following instructions:

Nolan N-com M951 R - Disposal - 1

  • The presence of a crossed-out wheelie bin indicates that in the European Union the product is subject to separate collection at the end of its useful life.
  • Do not dispose of these products together with undifferentiated urban waste.

  • The proper disposal of obsolete equipment contributes to preventing possible negative consequences on people's health and on the environment.

  • Within the European Union, the dealer, when supplying the new equipment, ensures that the used equipment will be collected free of charge, provided it is equivalent to a ratio of one to one.
  • For more detailed information on the disposal of obsolete equipment, contact your municipality, a waste disposal service, or the store where the product was purchased.

2. CONTENT OF THE PACKAGING

The N-Com M951 package contains:

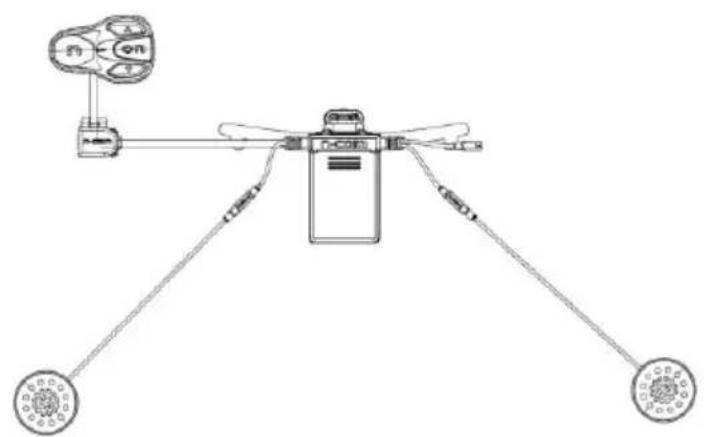

Diagram of a drone with labeled components and wiring connections, showing flight path and sensor placements.

N-Com M951 R system

Line drawing of a laboratory probe with a loop handle and clamp (no text or symbols)

Microphone with clip

Line drawing of a mechanical component with no visible text or symbols

Keypad adapters
N87, N100-5 (1x); N80-8 (1x); N120-1 (1x); N100-6 (1x)

Simple line drawing of a rectangular block with a curved cable or wire attached to its top (no text or symbols)

Battery

Line drawing of a coiled electrical plug (no text or symbols)

USB-C Cable

Simple line drawing of a bent pipe or rod (no text or symbols)

Key

Nolan N-com M951 R - CONTENT OF THE PACKAGING - 7
Microphone foam

Nolan N-com M951 R - CONTENT OF THE PACKAGING - 8
Flat head screwdriver

Two identical square plates with circular holes, no text or symbols present

Adhesive strips for loudspeakers

3. INSTALLATION ON THE HELMET

Important: Prior to installing the N-Com system, it is recommended to write down the identification code affixed to the product (see chapter 17.4).

The installation video can be found in the support section at www.nolan-helmets.com

3.1. Battery connection

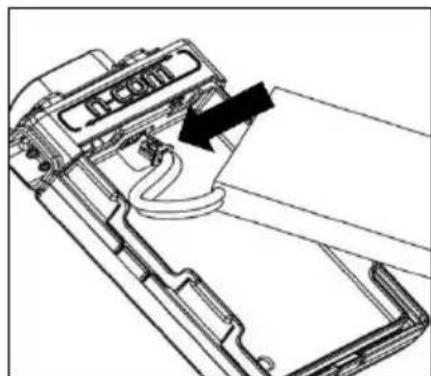

  • Open the e-box (Fig. 1).
  • Connect the battery to the port (Fig. 2), taking care to insert it correctly. If necessary use the provided flat head screwdriver to insert the battery connector fully into the port.
  • Close the e-box (Fig. 3).

Line drawing of a device casing with an arrow indicating direction (no text or symbols)

Fig. 1

Technical line drawing of a mechanical component with an arrow indicating a process or assembly (no text or symbols present)

Fig. 2

Line drawing of a device casing with an arrow indicating direction (no text or symbols)

Fig. 3

3.2. Initial steps

  • Before you install the M951 system on the helmet, make sure it turns on properly. Press the "ON" key for about 2 seconds, until the blue LED on the keypad lights up and you hear a beep in the headset. Proceed with the installation.
  • Remove the cheek padding (see helmet instructions).
  • Remove the helmet edge gasket using the special tool (Fig. 4).
    Note for N120-1 and N100-6 helmets: In addition to the screw on the back of the helmet rim, the screws on the left and right sides of the rim seal must also be unscrewed to remove the rim seal. To do this, the caps on the left and right side of the rim seal must be removed, using the supplied flat-head tool (Fig. 4C). Keep the right-hand cap, as it will need to be put back on once installation is complete.
    • Completely remove the gasket as shown in Fig. 4; by doing so you also remove the padding.
  • Remove the "N-Com" plugs found at the back of the shell gasket and on the left side of the helmet.

Technical line drawing of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Fig. 4

Technical line drawing of a mechanical component with two arrows indicating directional movement (no text or symbols)

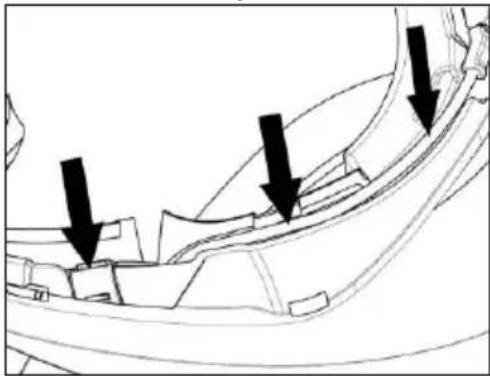

Fig. 4B - ONLY FOR N87, N80-8, N100-5 HELMETS

Technical diagram of a helmet assembly with numbered parts and directional arrows indicating components

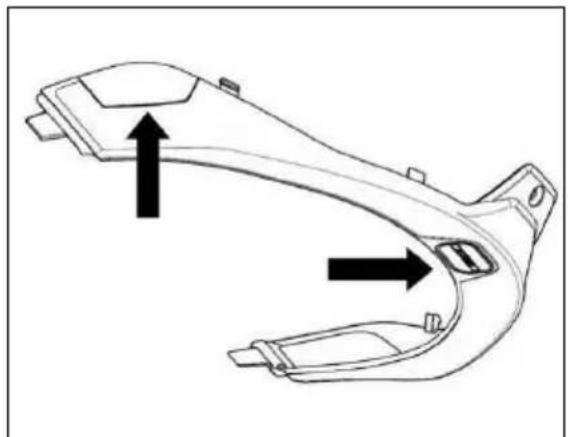

Fig. 4C - ONLY FOR N100-6, N120-1 HELMETS

- Prior to installing the N-Com system, remove any filling foam material, if present, from the helmet (refer to the user manual for your specific helmet).

Technical line drawing of a mechanical component with directional arrows indicating motion or assembly (no text or symbols)

Option 1

Diagram of a mechanical device with two arrows indicating upward motion or force direction (no text or symbols present)

Option 2

NB: keep the helmet padding and the caps in case you choose to use the helmet without the N-Com system installed.

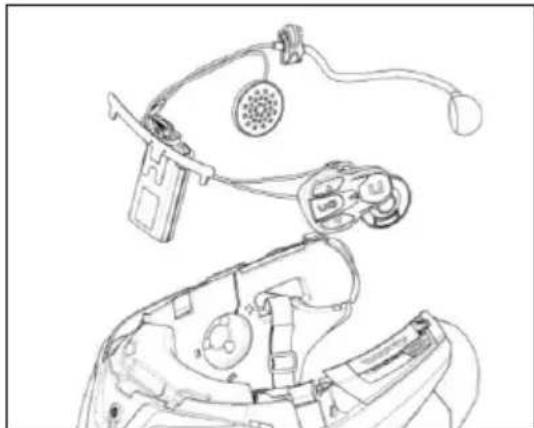

3.3. Installing the M951 system on the helmet

Diagram showing two connected electronic components with directional arrows indicating movement (no text or symbols)

Fig. 5

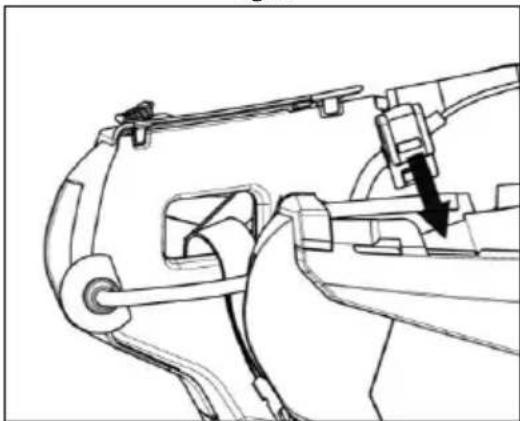

- Hook up the microphone connector (blue) to the other end, following the directions of the arrows (Fig. 5).

N.B.: You can adjust the position of the microphone. For instructions on how to do this, please see chapter. 3.4.

Line drawing of a robotic device with labeled parts (no text or symbols)

Fig. 6

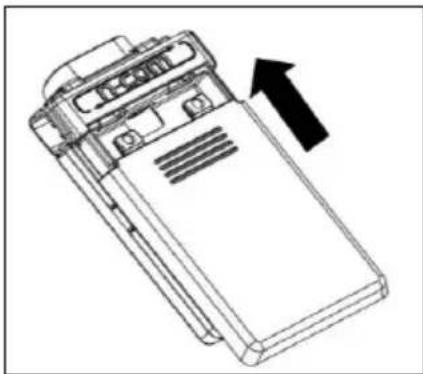

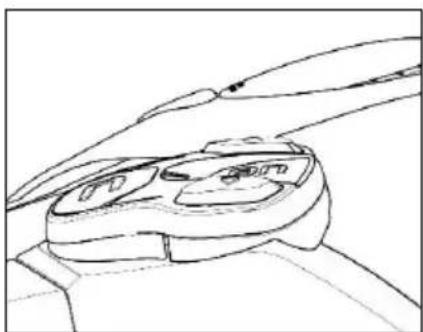

- Place the system in the special housing in the back of the helmet, pushing it all the way into the groove (Fig. 6).

- Fold the antenna back inside the shell.

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 7

N.B.: For positioning of the wiring and of the microphone in the N100-5, N100-6, N120-1 helmet, follow the instructions provided in the dedicated box.

- Fix the cable inside the helmet and make sure the right fixing clip snaps into its housing (Fig. 7).

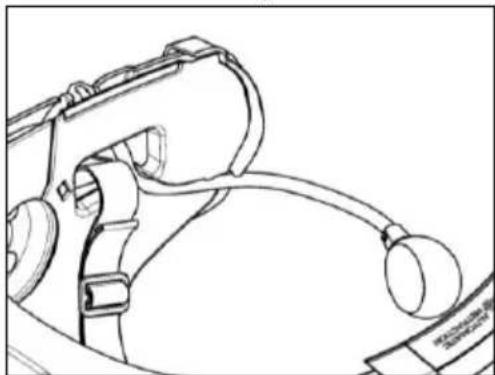

- Position the microphone in the housing on the right of the helmet, inserting the metal boom in the groove found in the chin guard coupling frame (Fig. 8).

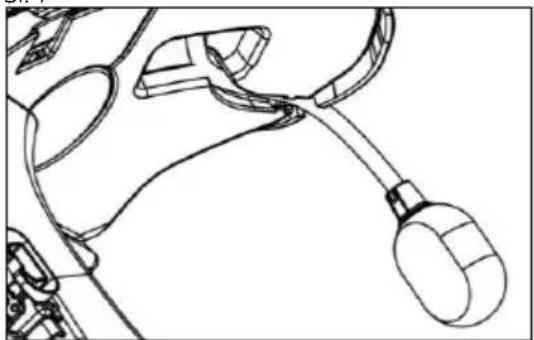

Line drawing of a mechanical device with attached components (no text or symbols)

Fig. 8

Caution: make sure that the side of the microphone support with the writing "n" is facing inward.

Line drawing of a car interior component with a black arrow pointing to a handle (no text or symbols)

Fig. 9

N.B.: For positioning of the keypad in helmets N87, N80-8 and N100-5, N100-6, N120-1 follow the instructions provided in the dedicated box.

  • Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing.
  • Hook up the keypad to the helmet by clicking in the relevant hooks.

  • Open the rubber cap of the M951 system.

  • Reassemble the gasket and secure it with the specific screw.

ONLY FOR HELMET N100-5, N100-6, N120-1 – positioning of wiring and microphone

Positioning the right side wiring and the microphone:

- Lift up the plastic lining of the cheek padding (Fig. 10). - Insert the microphone into the eyelet (Fig. 11) and position it in the special housing, then inserting the boom pole of the microphone in the groove found in the chin guard coupling frame (Fig. 12).

Caution: make sure that the side of the microphone support with the writing "n" is facing inward.

- Fix the cable inside the helmet and make sure the right fixing clip snaps into its housing (Fig. 13).

- Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks (Fig. 14).

Mechanical assembly diagram showing a lever mechanism with rotating components and a belt buckle (no text or symbols)

Fig. 10

Line drawing of a vehicle's seatbelt assembly with no text or symbols

Fig. 11

Line drawing of a robotic arm with attached sensors (no text or symbols)

Fig. 12

Technical line drawing of a mechanical component with two black arrows pointing to features (no text or symbols present)

Fig. 13

Diagram of a device's internal components with arrows indicating connection points (no text or symbols present)

Fig. 14

ONLY FOR HELMET N100-5, N100-6, N120-1 – positioning of wiring and microphone

Positioning the left side wiring:

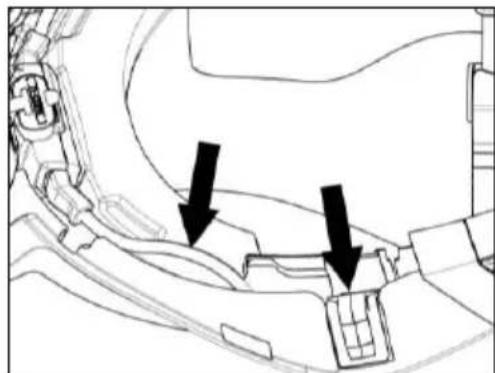

  • Lift up the plastic lining of the cheek padding (Fig. 15).
    • Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. 16).
  • Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks (Fig. 17).

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 15

Technical line drawing of a mechanical assembly with two black arrows pointing to specific components (no text or symbols present)

Fig. 16

Technical line drawing of a mechanical component with a circular component and directional arrows (no text or symbols)

Fig. 17

FOR N120-1, N100-6, N100-5, N80-8, N87 HELMENTS ONLY – positioning the keypad Important: Installation of the keypad on the N120-1, N100-6, N100-5, N80-8, N87 helmets requires the use of the "KEYPAD ADAPTER" accessory, which is included in the package.

LETTER ON THE ADAPTERCOMPATIBLE HELMETS
AN100-5/PLUS, N87/PLUS
CN80-8
EN120-1
HN100-6
  • Insert the support specific for your helmet in the flex cable of the keypad (Fig. 18).

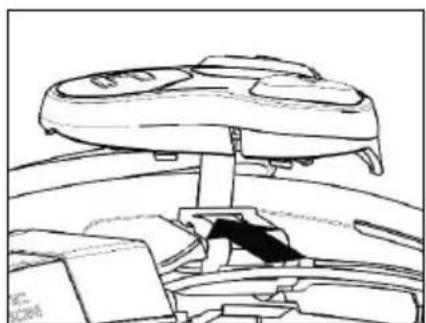

  • Rotate the keypad support so as to position it like in Fig. 19, then hook it to the keypad.
    • Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. 20).
  • Open the rubber cap of the M951 system.

- Reassemble the gasket and secure it with the specific screw. N.B. for N120-1 and N100-6 helmets: tighten all three screws and reattach the cap on the right side of the rim seal on the shell.

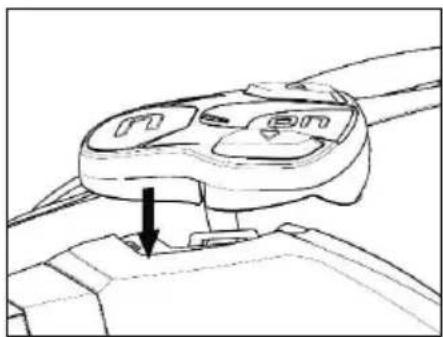

- Hook up the keypad to the helmet by clicking in the relevant hooks (Fig. 21).

- The proper positioning of the keypad is illustrated in Fig. 22,23.

Line drawing of a mechanical device with a lever and cable, no text or symbols present

Fig. 18

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Fig. 19

Line drawing of a mechanical assembly with no visible text or symbols

Fig. 20

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Fig. 21

Line drawing of a robotic head with visible joints and control buttons (no text or symbols)

Fig. 22

Line drawing of a helmet with front and side views (no text or symbols)

Fig. 23

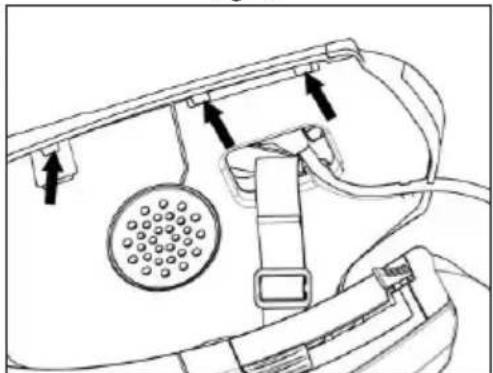

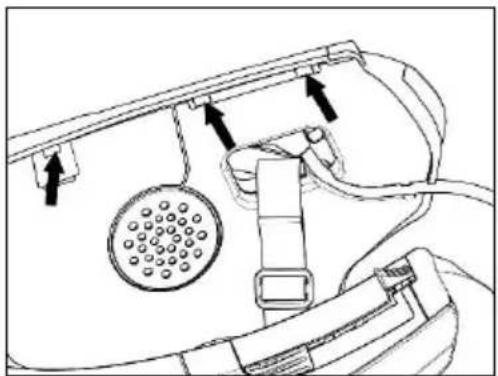

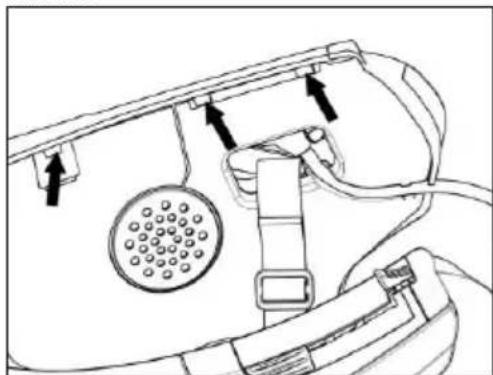

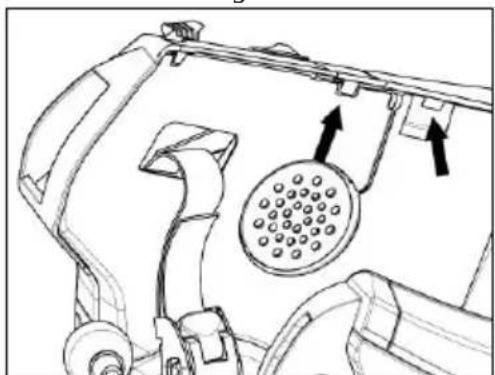

  • Position the left and right speakers in the respective housing obtained in the polystyrene cheek padding. If necessary, rotate the speakers slightly in their housing. If necessary, secure them using the adhesive strips supplied as standard equipment.
  • Reassemble the padding.

3.4. Adjusting the microphone

The M951 system makes it possible to adjust the position of the microphone in order to facilitate its positioning in the different helmet models. Proceed as follows:

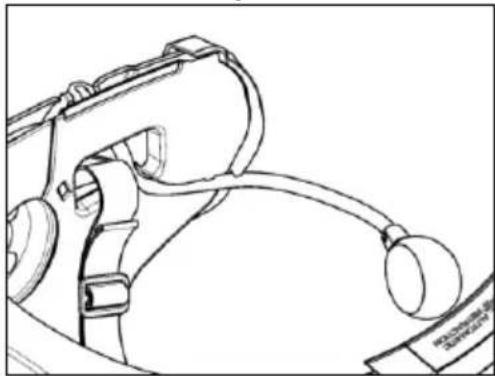

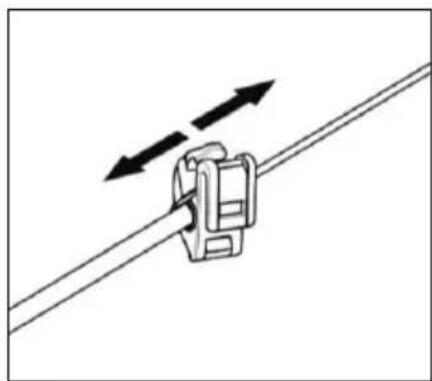

  • Open the clip positioned on the microphone boom, operating as indicated in Fig. 24. If necessary, use the flat head screwdriver provided to help open the clip.

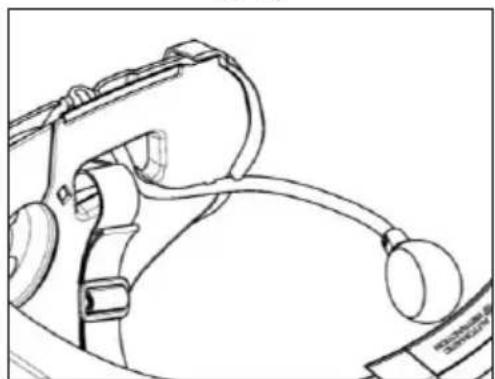

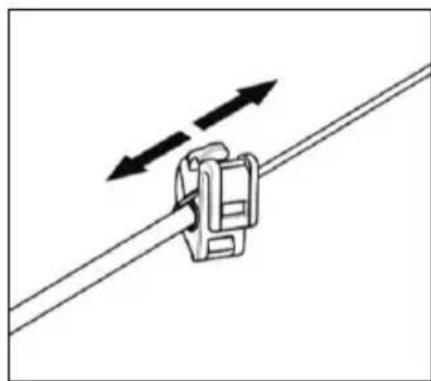

  • Adjust the microphone (Fig. 25).
  • Close the clip (Fig. 26).

Simple line drawing of a cable or wire being inserted into a connector (no text or symbols)

Fig. 24

Diagram of a cable clamp securing a wire with two opposing arrows indicating tension (no text or symbols)

Fig. 25

Simple line drawing of a cable being inserted into a connector (no text or symbols)

Fig. 26

To ensure good voice transmission quality, it is recommended to position the microphone sponge at the side of your mouth.

3.5. Removing the M951 system from the helmet

UO

Fig. 27

Proceed as follows to remove the M951 system from the helmet:

  • Remove the cheek padding and the shell gasket.
  • Remove the keypad from the shell, as shown in Fig. 27.

FOR N87, N80-8, N100-5, N100-6 and N120-1 HELMENTS ONLY – removing the keypad

  • Remove the keypad from the shell, as indicated in Fig. 28.

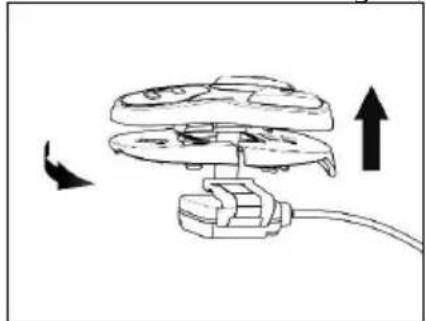

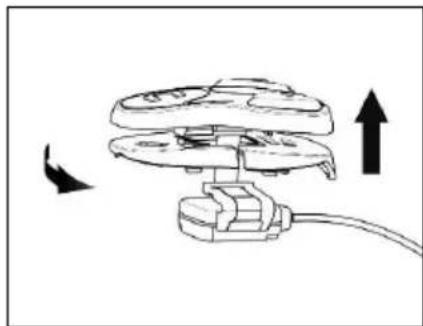

  • Rotate the keypad in a counterclockwise direction (Fig. 29).
  • Remove the cheek padding and the shell gasket.

Line drawing of a car interior with directional arrows indicating movement or force (no text or symbols)

Fig. 28

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Fig. 29

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 30

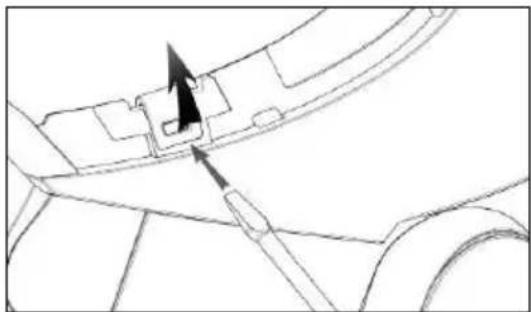

- Unhook the right and left clips from the shell, levering upward using a flat head screw (or a similar tool), as shown in figure 30.

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Fig. 31

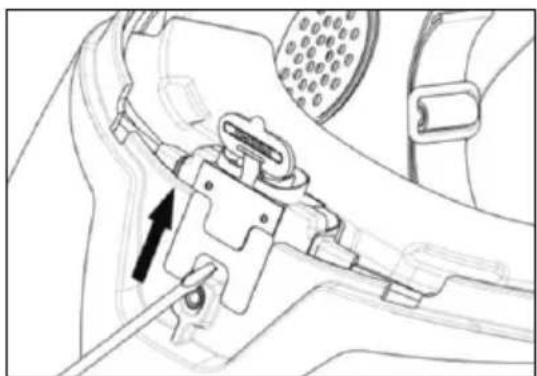

- Completely remove the M951 system from helmet using a flat head screwdriver (or similar tool) and re-install the cheek padding and the edge gasket.

4. BASIC FUNCTIONS

Note: Before using the N-Com device for the first time, recharge the battery completely for at least 10 hours. To obtain best performances from the battery, it is recommended to completely recharge the battery the first few times. Afterwards, you can recharge the battery for shorter periods. Whenever possible, it is best to recharge the battery completely.

System ONPress and hold the “ON” key for about 2 seconds, until the LEDs turn on and you hear the voice prompt.
System OFFPress and hold the “ON” key for about 4 seconds, until the LEDs turn off and you hear the voice prompt.

4.1. Volume adjustment

You can easily adjust the volume by tapping the "▲" or the "▼" key. You will hear a beep when the volume reaches the maximum or minimum level.

Some volume parameters can be adjusted through the N-Com EASYSET APP for smartphone or the N-Com EASYSET computer program (chapter 4.4).

N.B.: The volume level set during the trip is not stored when the system is turned off. Each time the N-Com system is switched on, the audio goes back to the set default volume level.

4.2. Auto On / Off function

If the helmet does not move for more than 120 seconds, the M951 system goes into "deep sleep" mode. The system is completely turned on as soon as movement is detected.

If the system is in "deep sleep" mode for more than 3 days, it turns off completely. To turn it back on, the "ON" key needs to be pressed.

The "Auto On / Off" function is enabled by default on the device.

You can enable / disable the function from the Configuration Menu (Chapter 6).

4.3. Multi-language voice messages

The N-Com system offers voice prompts providing system information and confirmation of which functions are activated or disactivated. The default language is English.

It is possible to change the language as follows:

Via the N-Com system

  • Select Configuration Menu: with the N-Com already switched on, press and hold the “▲” and “▼” keys simultaneously, until the red LED light appears.
  • Press the "▲" key until you find "Language" mode.
  • Press the "ON" key to access the list of available languages.
  • Press the “▲” and “▼” keys to navigate between the various languages. When you find the language you require, press the “ON” key to confirm your choice. A voice prompt in your chosen language will confirm its selection.

Via the smartphone N-Com EASYSET app

- Access the Basic Settings menu and under "Language" select your chosen language from the dropdown menu.

Via your computer using the N-Com EASYSET program

  • Connect the N-Com system to the N-Com EASYSET program.
  • Select the Settings menu and under the heading "Language", select your chosen language from the drop-down menu.

Available languages: English, Italian, French, German, Spanish, Dutch, Polish, Slovenian.

Nolan N-com M951 R - Via your computer using the N-Com EASYSET program - 1

Nolan N-com M951 R - Via your computer using the N-Com EASYSET program - 2

The default function is enabled on the device.

You can enable / disable the "VOICE PROMPTS" function by using the N-Com EASYSET program or the N-Com EASYSET APP.

4.4. N-Com EASYSET

Nolan N-com M951 R - N-Com EASYSET - 1

"N-Com EASYSET" is the application that can be used to manage and configure the N-Com system. The program can be downloaded from the Internet site www.nolan-helmets.com, in the "Support/Download" section. The functions that can also be managed from the N-Com EASYSET are listed here below with the specific icon.

Nolan N-com M951 R - N-Com EASYSET - 2

The N-Com system can be managed from the dedicated App "N-Com EASYSET", which makes it possible to configure the N-Com system directly from your Smartphone.

The N-Com APP can be downloaded free of charge from Google Play or Apple Store. For additional details, please visit the website www.nolan-helmets.com.

The functions that can also be managed from the N-Com EASYSET App are listed here below with the specific icon.

4.5. Updating the firmware

Firmware updates for the N-Com system can be installed using the N-Com EASYSET program on your computer, or the N-Com EASYSET app on your smartphone.

Via your computer with the N-Com EASYSET program

  • Download the N-Com EASYSET program from the N-Com website – in the "Support"/"Download"/"Software" section.
  • Hook up the N-Com system to the computer and open the N-Com EASYSET program.
  • Follow the directions until the program recognises the N-Com system.
  • From the screen "FIRMWARE UPDATE", select the desired language from the drop-down menu.
  • Click on "DOWNLOAD" and save the file in the computer.
  • Click on "UPDATE" and wait for the firmware update to end.

Via the N-Com EASYSET app for smartphones

  • Download and install the N-Com EASYSET app from Google Play or Apple Store.
  • Pair and connect the telephone to the N-Com system (section 7).
  • On opening, the app recognizes the firmware version installed on the N-Com system. If an update is available, follow the directions provided by the app.

The release notes of the last Firmware version can be found on the website www.nolan-helmets.com – in the "Support"/"Download"/"Software" section.

5. PAIRING MENU

All the Bluetooth and Mesh pairings are carried out using this menu.

In order to access the Pairing function, starting with the N-Com system switched off, press and hold the "ON" key for 4 seconds, until the red LED light appears.

Once in the "Pairing" menu, press the "▲" and "▼" keys to scroll through the various menu items.

The following items make up the "Pairing" menu:

A. Mobile phone pairing (chapter 7)
B. Group Mesh TM pairing (chapter 13.2.1)
C. Second mobile phone pairing (chapter 8)
D. GPS pairing (chapter 11)
E. Remote control pairing (chapter 14)

F. Delete Group Mesh TM

In order to delete all Group Mesh TM pairings stored in the device, press the “▲” or “▼” key until you hear the voice prompt “Delete Group Mesh”.

Press the "ON" confirmation key to delete all Mesh devices stored in memory.

G. Delete Bluetooth Pairings

In order to delete all Bluetooth pairings stored in the device, press the key "▲" or "▼" until you hear the voice announcement "Delete Bluetooth Pairings".

Press the "ON" confirmation key to delete all Bluetooth devices stored in memory.

H. Exiting the configuration

To exit the "Pairing up" menu, press the key "▲" or "▼" until you hear the voice announcement "Exit the configuration".

Press the "ON" confirmation key to exit the "Pairing up" menu.

If no key is pressed within 15 seconds, the device automatically exits the "Pairing" menu.

All the settings of the N-Com system are managed in this mode.

To access the Configuration Menu starting with the N-Com switched on, press and hold the “▲” and “▼” keys simultaneously for 4 seconds, until the red LED light appears.

Once in the "Configuration" menu, press the "▲" and "▼" keys to scroll through the various menu items.

In the items marked with an “*”, it is possible to enable / disable the function by pressing the “ON” key to confirm.

The following items make up the "Configuration" menu:

A. Speed dial (chapter 9.1)

To save speed dial numbers, refer to chapter 9.1 of the manual.

B. Auto On / Off* (chapter 4.2)

C. Audio boost*

By enabling the "Audio boost", all the audio sources inside the device will be reproduced at a higher and potentially less clear volume.

Press the "ON" confirmation key to enable / disable the function, which is not enabled by default on the device.

D. Language

To change the language in which the system provides voice prompts, please see section 4.3 of the Manual.

E. Reset

To reset the device to factory settings, press the "▲" or "▼" keys until you hear a voice prompt "Factory reset". Press the "ON" key to reset all factory settings on the device and to remove all Bluetooth and Mesh pairings. The system will shut down automatically.

F. Exiting the configuration

To exit the "Configuration" menu, press the "▲" or "▼" key until you hear the voice prompt "Exit configuration".

Press the "ON" confirmation key to exit the "Configuration" menu.

If no key is pressed within 15 seconds, the device automatically exits the "Configuration" menu.

7. MOBILE PHONE / MP3 PLAYER PAIRING

• Make sure the M951 is turned off.
- Put the system in "Pairing" mode: press and hold the "ON" key for 4 seconds, until the red LED light appears.
- Press the "▲" key until "Phone pairing" appears.
- Activate the search of Bluetooth devices on the mobile phone.
- Select the N-Com device. If a password is requested, enter 0000 (four zeros).
- Connection between the two devices is established after a few seconds.

N.B.: The affiliation is stored in the helmet and in the cell phone and it is not lost when the two devices are turned off. As a result it needs to be carried out only once.

Automatic ConnectionOnce the Bluetooth device has been paired, connection is automatic when the system is turned on.
Manual ConnectionIn case connection is not automatically initiated after a few seconds, you can connect from the Bluetooth device or by pressing and holding the “ON” key for about 2 seconds.

8. SECOND MOBILE PHONE PAIRING

The M951 system can be hooked up to two phones at the same time. The second phone (secondary device) can receive calls but not make them.

To pair the second Bluetooth phone (secondary device):

• Make sure the M951 is turned off.
- Put the system in "Pairing" mode: press and hold the "ON" key for 4 seconds, until the red LED light appears.
- Press the "▲"key until you hear the voice prompt "Second mobile phone pairing".
- Activate the search of Bluetooth devices on the mobile phone.
- Select the N-Com system from the list. If a password is requested, enter the code 0000 (four zeros).
• After a few seconds, the connection between the two devices is activated.

Once the Bluetooth device has been paired, connection is automatic when the system is turned on.

N.B.: The affiliation is stored in the helmet and in the cell phone and it is not lost when the two devices are turned off. As a result it needs to be carried out only once.

9. MOBILE PHONE

To pair a mobile phone to the M951 system, follow the procedure illustrated in Chapter 7.

Answering a phone callBriefly press any key when you hear the incoming call signal.
Vocal answer (VOX phone)When you hear the ringtone, say any word out loud.You can enable / disable the “VOX phone” function by using the N-Com EASYSET program or the N-Com EASYSET APP.The function is not active during the intercom connection.
Voice assistantPress and hold “ON” key for about 2 seconds.
Hanging up/rejecting a phone callPress and hold “ON” key for about 2 seconds.
Manual phone connectionPress and hold “ON” key for about 2 seconds.

9.1. Speed dial

Nolan N-com M951 R - Speed dial - 1

Nolan N-com M951 R - Speed dial - 2

Using the N-Com EASYSET program or the N-Com EASYSET App, you can store up to 3 of your favourite numbers, which you will be able to dial from the "Speed Dial" menu.

Saving the Speed Dial numbers

To assign one or more speed dialling numbers:

  • Select Configuration Menu: with the N-Com system already switched on, press the "▲" e "▼" keys simultaneously for 4 seconds, until the red LED light appears.
  • Press the "▲" or "▼" key until you hear the voice prompt "Speed dial".
  • Press the "ON" confirmation key. You will hear the voice prompts "Speed dial 1" and "Phone connected".
  • Press the “▲” or “▼” keys to select the speed dialling number to be assigned. The saved position is confirmed by the voice prompt “Speed dial 1” / “Speed dial 2” / “Speed dial 3”.
  • On your own mobile phone (paired and connected to the N-Com system), call the phone number you wish to assign to the selected speed dialling position. The call is interrupted before it goes through, and the selected number will be saved; at this point you will hear the special voice prompt confirming the selection ("Save Speed Dial 1" / "Save Speed Dial 2" / "Save Speed Dial 3").

Using the stored numbers

To access the "Speed Dial" menu, press simultaneously the "ON" and "n" keys ("Speed Dial"), then use the "▲" and "▼" keys to scroll through the menu items.

Then press the "ON" key to confirm the selection of one of the following items:

• Last number redial
- Speed Dial 1
- Speed Dial 2
- Speed Dial 3
- Exit

If you wish to exit the "Speed Dial" menu, press and hold the "▲" and "▼" keys until you hear the command "Exit", then press "ON" to confirm.

N.B.: If no key is pressed within 15 seconds, the system exits the "Speed Dial" menu.

9.2. Smart Navi System

The "SMART NAVI SYSTEM" function allows you to listen to navigator directions coming from the smartphone even during Open Mesh™ and Group Mesh™.

To pair a mobile phone or an Mp3 device to the M951 system, follow the procedure illustrated in Chapter 7.

Play music (Play)Briefly press “ON”.
Pause function (Pause)When the player is connected and playing music, briefly press “ON”.
Next track (Skip)When the player is playing music, press “▲” for about 2 seconds.
Previous track (Rew)When the player is playing music, press “▼” for about 2 seconds.

11. NAVIGATOR PAIR UP

M951 system is compatible with the most common satellite navigators for motorcycles. For a list of compatible models and additional details, visit the website www.nolan-helmets.com.

• Make sure the M951 is turned off.
- Put the system in the "Pairing up Menu": press the "ON" key and keep it pressed for 4 seconds, until you hear the voice announcement "Pairing up Menu" and red LED lights up.
- Press the "▲" key until you reach the option "GPS Pairing".
- Activate the search of Bluetooth devices on the navigator.
- Select the N-Com system from the list. If a password is requested, enter the code 0000 (four zeros).
• After a few seconds, the connection between the two devices is activated.

N.B.: The pair up is stored by both the helmet and the navigator hence it is not lost when they are switched off. This means that this procedure needs to be carried out only once. Once the Bluetooth device has been paired up, connection is automatic when the system is turned on.

N.B.: If your sat nav is not equipped with A2DP (high quality audio profile) or this function is disabled, the Mesh conversation is automatically interrupted at every sat nav instruction and then reinstated once it ends.

However where A2DP is activated on the sat nav, the Audio Multitasking function supplied on the M951 is able to overlay the audio of the GPS instructions with the audio of the Mesh conversation. For more information on the Audio Multitasking function, please refer to chapter 12 "Audio Multitasking".

12. AUDIO MULTITASKING

The Audio Multitasking function allows you to listen to A2DP (high quality audio) from various external sources during a Mesh conversation, such as music or any multimedia audio from your smartphone or GPS instructions from a satnav equipped with A2DP audio transmission.

When a Mesh conversation is in progress, audio from the external source is played in the background at a reduced volume and then returns to normal volume when the Mesh conversation ends.

The Audio Multitasking function is always active and can be configured via "Intercom-Audio Overlay Sensitivity" and "Audio Overlay Volume Management", using the N-Com EASYSET programme or the N-Com EASYSET app.

12.1. Intercom-audio Overlay Sensitivity

The sensitivity of the Mesh conversation can be adjusted to activate the background sound mode. Level 1 indicates the lowest sensitivity and level 5 the highest sensitivity.

N.B.: This function is preset to level 3.

N.B.: If the voice doesn't exceed the selected sensitivity level, external source audio will not be reduced.

Nolan N-com M951 R - Intercom-audio Overlay Sensitivity - 1

Nolan N-com M951 R - Intercom-audio Overlay Sensitivity - 2

The "Intercom-audio Overlay Sensitivity" function can be adjusted using the N-Com EASYSET programme or the N-Com EASYSET app.

12.2. Audio Overlay Volume Management

If the Audio Overlay Volume Management function is activated, audio from the external source will constantly play in the background at reduced volume, even when the Mesh conversation ends.

N.B.: This function is disabled on the device by default.

Nolan N-com M951 R - Audio Overlay Volume Management - 1

Nolan N-com M951 R - Audio Overlay Volume Management - 2

The "Audio Overlay Volume Management" function can be activated/disabled using the N-Com EASYSET programme or the N-Com EASYSET app.

13. MESH INTERCOM TM

The N-Com M951 system allows intercom connection via Mesh with other N-Com M951 systems and with systems of other brands, which are equipped with Sena's Mesh technology.

Mesh technology allows a conversation to be set up in an open group (Open Mesh TM ) with a potentially unlimited number of users, or in a private group (Group Mesh TM ) with up to 24 users.

When the Mesh conversation is initiated between the users, a dynamic network of connections is established. This network is able to optimise its organisation according to the conditions of use and the relative distances between participants. This ensures optimal quality and stability of conversation. As a result, if one user leaves the group or disables their Mesh, communication will not be interrupted for the other users.

N.B.: M951 systems are only compatible for Mesh Intercom TM communications with other systems equipped with Sena's Mesh technology. Therefore, M951 is not compatible with N-Com brand Bluetooth intercom systems (including N-Com B902, B802, B602 and earlier) and other brands.

13.1. Open Mesh TM

Open Mesh TM is an open group intercom function that requires no pairing or pre-grouping procedure. The user can choose one of nine available channels and communicate freely with all users on the same channel.

In Open Mesh TM mode, M951 can connect with a virtually unlimited number of users in each channel.

Note: a maximum of six users can talk simultaneously. The other users will participate in the conversation in listen-only mode.

To activate Open Mesh TM , press the "n" key twice. The N-Com system will provide an activation voice prompt and confirm the number of the last Open Mesh TM channel used.

Once Open Mesh TM has been activated, you can move to one of the nine available channels.

N.B.: To participate in an Open Mesh TM conversation, it is necessary for all users to activate it on their system.
N.B.: It is necessary that all users you wish to communicate with are tuned to the same Open Mesh channel.

Activating Open MeshTMPress the "n" key twice.
Disabling Open MeshTMPress the "n" key twice.
Selecting Open MeshTM channelPress and hold the "n" key for 3 seconds;Use the “▲” and “▼” keys to move between the various channels;Press the "ON" key to select the channel.

Nolan N-com M951 R - Open Mesh TM - 1

With the N-Com EASYSET app, you can:

  • activate/disable Open Mesh TM ;
  • select the Open Mesh™ channel;
  • activate/disable the microphone.

13.2. Group Mesh TM

Group Mesh TM is a closed group intercom function in which users can communicate privately once they have created a group.

It is possible to create a private Mesh group, join an existing group or add new users to a group in which you are already a member.

The Mesh group can have a maximum of 24 participants.

N.B.: A maximum of six users can talk simultaneously. The other users will participate in the conversation in listen-only mode.

13.2.1. Creating a new Group Mesh TM

To conduct a private conversation through the Group Mesh TM function, you must first follow the procedure for creating a Mesh group.

A Mesh group is first created by two users equipped with M951 and then any additional users can join the Mesh group by following the procedure set out in "Joining an existing Group Mesh™" (paragraph 13.2.2).

Group Mesh TM can be created either starting from the systems off or on.

Creating a Group Mesh TM with the system switched off:

  • Check that the systems are switched off.
  • Go to the systems' "Pairing" menu: press and hold the "ON" key for 4 seconds until the red LED lights up and you hear the voice prompt "Pairing Up Menu".
  • On both systems, press the “▲” key until you find the "Group Mesh™ Pairing" mode.
  • After a few seconds, the systems will recognize each other and the Group Mesh™ is activated.

Creating a Group Mesh TM with the system switched on:

  • Check that the systems are switched on
  • Go to the systems' "Group Mesh™ Pairing" mode: press and hold the "n" key for 5 seconds until you hear the voice prompt "Group Mesh™ Pairing".
  • After a few seconds, the systems will recognize each other and the Group Mesh TM is activated.

N.B.: the "Group Mesh™ Pairing" phase can be interrupted by pressing the "n" key.

In both the procedures described above, the connection between the two systems is automatically. activated at the end of the pairing procedure.

13.2.2. Joining an existing Group Mesh TM

It is possible to join an existing Group Mesh TM or to add other users to groups where you are already a member.

To do so, one of the members of an existing Group Mesh and the person wishing to join the group must follow either of the procedures set out in paragraph 13.2.1.

Nolan N-com M951 R - Joining an existing Group Mesh TM - 1

You can create a Group Mesh TM or join an existing group via the N-Com EASYSET app.

13.2.3. Group Mesh TM Activation

After creating or joining a Group Mesh TM , it can be activated by briefly pressing the "n" button, after which you will hear the activation voice prompt.

N.B.: To participate in a Group Mesh TM conversation, it is necessary for all users to activate it on their system.

Activating Group MeshTMBriefly press “n”.
Disabling Group MeshTMBriefly press “n”.

Nolan N-com M951 R - Group Mesh TM Activation - 1

With the N-Com EASYSET app it is possible to:

  • create a new Group Mesh TM ;
  • join or add a user to an existing Group Mesh™;
  • activate/disable Group Mesh™;
  • activate/disable the microphone.

13.3. Activating/disabling the microphone

Whether in Open Mesh TM or Group Mesh TM mode, it is possible to activate/disable the microphone to participate in conversations, either actively or in listen-only mode.

Microphone activatingWhen a Mesh conversation is ongoing, hold and press the “n” and “▼” keys simultaneously for 2 seconds. You will hear a confirmation message.
Microphone disablingWhen a Mesh conversation is ongoing, hold and press the “n” and “▼” keys simultaneously for 2 seconds. You will hear a confirmation message.

13.4. Mesh Reach-Out request

When the Mesh Reach-Out is activated, you can send or receive requests to join a Mesh to/from other users in the vicinity (maximum distance 100 m).

To send a Mesh Reach-Out request, the user must be in either Open Mesh TM or Group Mesh TM mode. Press the "n" key 3 times to send a request, following which you will hear a confirmation message.

Nearby users whose systems are switched on with the function activated will receive a request to join the Mesh. Having received the request, the users may activate Open Mesh TM or Group Mesh TM as described above.

N.B.: this function is disabled by default on the device.
N.B.: if the Mesh Reach-Out function is disabled, it is not possible to send or receive requests to join Mesh.
N.B.: it is possible to send Mesh Reach-Out requests to other N-Com systems and systems of other brands based on Sena's Mesh technology which are provided with and have activated the Mesh Reach-Out function.

Nolan N-com M951 R - Mesh Reach-Out request - 1

Nolan N-com M951 R - Mesh Reach-Out request - 2

The "Mesh Reach-Out" function can be activated/disabled using the N-Com EASYSET program or the N-Com EASYSET app.

14. REMOTE CONTROL

The M951 device can be controlled by using a remote control (sold separately), so that you do not have to take your hands off the handlebars to use the keypad.

The N-Com system is compatible with the RC4 Remote Control by SENA.

The following table shows the correspondence of the keys:

N-COM SYSTEMONn
SENA RC4+-CENTRAL KEYMULTI-FUNCTION KEY

Proceed as follows to pair up the N-Com system to the RC4 Remote Control:

  • Make sure the RC4 is switched off.
  • Put the RC4 in pair up mode: press the key "+" and keep it pressed for about 8 seconds.
    • Make sure the M951 is switched off.
  • Switch the M951 system to "Pairing Menu": press and hold the "ON" key for 4 seconds until the red LED lights up, and you will hear the voice prompt "Pairing Menu".
  • Press the "▲" key to access the "Remote control pairing" mode.
  • Press the "ON" key on the N-Com system keypad.
  • After a few seconds, the connection between the two devices is confirmed by the voice announcement "Remote control connected".

N.B.: The affiliation is saved by both the helmet and the remote control and it is not lost when the two systems are turned off. Hence this procedure must only be carried out once.

15. BATTERY AND RECHARGE

15.1. Low battery signal

During its operation, the system alerts the user with a voice message when the battery is low. From the first message, the system has a 1-hour autonomy. Warning is given every 10 minute.

15.2. Checking the Battery Level

LED Indicator

When the system is powering on, the blue LED flashes rapidly indicating the battery level.

4 flashes = High, 70 \~ 100%

3 flashes = Medium, 30 \~ 70%

2 flashes = Low, 0 \~ 30%

15.3. Charging the system

Technical line drawing of a helmet with an arrow indicating a component or connection (no text or symbols present)

Fig. 35

To charge the system, connect the system to a charger or USB plug using the USB-C cable supplied.

The charge will take place as follows:

M951 system turned offWhen the M951 system is connected to the battery charger, the blue LED starts to flash quickly. When the battery is charged, the blue LED becomes steady.
M951 system turned onWhen the M951 system is connected to the battery charger, the blue LED starts to flash quickly. When the battery is charged, the blue LED goes back to its standard flashing.

N.B.: In case you are not planning on using the N-Com system for a long time, you need to fully recharge the device before storing it away.

N.B.: In case the device is not used for a long time, carry out a complete recharging cycle of the device at least once every 6 months to avoid possible damage to the battery.

N.B.: In case the N-Com system is left for more than 6 months without ever being recharged, the device may not switch on; in this case, recharge the N-Com system for at least 24 hours (even if the blue signalling LED is not flashing), then try to switch on the device again.

16. SUMMARY TABLE OF CONTROLS

KeynON
Basic FunctionsTurning on2 sec
Turning off4 sec
Increase VolumeX
Decrease VolumeX
Pairing up Menu (with system switched off)4 sec
Configuration Menu** (with system switched on)4 sec4 sec
Reset** (with system switched on)5 sec5 sec
Bluetooth DevicesAnswer phone call*XXXX
Voice call2 sec
Speed Dialling Menu**XX
Hang up/reject a phone call2 sec
Manual Device Connection2 sec
Bluetooth MusicPlay music (Play)X
Pause Function (Pause)X
Next track (FFW)2 sec
Previous track (REW)2 sec
Mesh IntercomTMOpen MeshTM Activationx2
Open MeshTM Disablingx2
Open MeshTM channel selection3 sec
Group MeshTM ActivationX
Group MeshTM DisablingX
Group MeshTM Pairing5 sec
Microphone Activation **2 sec2 sec
Microphone Disabling **2 sec2 sec
Mesh Reach-Out Request (with Mesh enabled)x3

*Press any key on the N-Com keypad.
**Press the keys at the same time.

17. WARRANTY

With this WARRANTY CERTIFICATE, Nolangroup warrants to the purchaser that the product, at the time of purchase, is free from defects in materials and workmanship.

We kindly ask you to:

  • Read the warnings for safety and proper use.
  • Read the warranty terms and conditions.
  • Keep the original purchase receipt. This receipt must be presented in case of repairs under warranty. In these cases, the product must be sent to the dealer where the purchase was made.

17.1. Warranty coverage and validity

If any defect covered by this Warranty Certificate is detected within the period listed on the website (Support/Instructions Manuals) and based on the country in which the product has been purchased (proof will be the purchase date on the receipt), Nolangroup will repair or replace the defective product through its distribution network and after having verified the defect. Nolangroup will provide all material and labour reasonably necessary to remedy the claimed defect, except in the cases where damage is caused by one of the items listed in the following paragraph "Exclusions and limitations of coverage".

17.2. Exclusions and limitations of coverage

This warranty covers only defects in materials and workmanship.

Nolangroup cannot be held liable for product defects attributable in whole or in part to any other cause, including but not limited to:

  • Defects or damage resulting from use of the Product in conditions other than the usual ones.
  • Damage caused by improper use and not in compliance with normal operation as indicated in the instructions for use and maintenance of the product provided by Nolangroup.
  • Neglect and normal wear and tear of internal and external parts.
  • Any damage resulting from an accident.
  • Any modification or tampering made to the helmet or to the N-Com system by the user or third parties.
  • Use of incompatible accessories not approved by Nolangroup for the purchased N-Com device model.
  • Consumable parts considered to be subject to wear and tear, such as the rechargeable battery and the connection cables between N-Com systems and other devices.
  • The proper functioning of the product/peripheral device combination when the product is used together with accessories or equipment for which Nolangroup has not verified compatibility.
  • All specific and subjective situations that may arise during actual use of the helmet, such as, for example, problems related to comfort while riding or aerodynamic noise.

Under no circumstances shall Nolangroup be liable for any incidental or consequential damages (including, without any limitation whatsoever, injuries to one or more persons) resulting from failure to fulfil the obligations arising from this warranty regarding Nolangroup products.

17.3. Procedure for submitting claims

In order to submit any claim covered by this warranty, the purchaser must notify directly the dealer where the N-Com system was purchased of the alleged defect, presenting at the same time the product which is the object of the claim and a copy of the sales receipt.

PRIOR TO CONTACTING THE DEALER, WE RECOMMEND THAT YOU CAREFULLY READ THE INSTRUCTIONS FOR USE ENCLOSED WITH THE PRODUCT.

THE WARRANTY IS EFFECTIVE EXCLUSIVELY FROM THE DATE OF PURCHASE UNTIL THE PERIOD INDICATED FOR THE COUNTRY WHERE THE PRODUCT WAS PURCHASED - see list available on the website (Support/ Instructions manuals).

Any repairs or other jobs carried out under warranty do not extend the period of the warranty itself.

Hence, in case the product or one of its components is replaced, this does not mean the start of a new warranty period, as the purchase date of the original product will be taken into account for warranty purposes.

Only for repairs or replacements of electronic components, if Nolangroup repairs or replaces the product, the product will have a warranty period equal to the remaining part of the original warranty or ninety (90) days from the date of repair (whichever is longer).

Repair or replacement may also be carried out using regenerated components with equivalent functions. Replaced parts or components will become the property of Nolangroup.

NOLANGROUP RESERVES THE RIGHT TO CHANGE CHARACTERISTICS, FUNCTIONALITY, COMPATIBILITY AND SOFTWARE AT ANY TIME, WITH NO NEED FOR ADVANCE NOTICE.

This warranty does not affect the customer's legal rights under applicable national jurisdiction and the consumer's rights vis-à-vis the dealer under the purchase/sale agreement.

17.4. Product identification

N-Com products are identified by means of a code that allows their traceability and identification. The identification code (S/N) can be found on the adhesive label.

SÉCURITÉ ET MODE D'EMPLOI

Adaptateurs clavier N87, N100-5 (1x); N80-8 (1x); N120-1 (1x); N100-6 (1x)

Simple line drawing of a rectangular block with a coiled cable attached at the top (no text or symbols)

Batterie

Line drawing of a coiled electrical plug with a terminal connector (no text or symbols)

Cordon USB-C

Simple line drawing of a bent pipe or rod (no text or symbols)

Clé

Nolan N-com M951 R - SÉCURITÉ ET MODE D'EMPLOI - 4
Mousse microphone

Nolan N-com M951 R - SÉCURITÉ ET MODE D'EMPLOI - 5
Outil à tête plate

Two identical square plates with circular holes, no text or symbols present

Fig. 1

Technical line drawing of a mechanical component with an arrow indicating a process or assembly (no text or symbols present)

Fig. 2

Line drawing of a device casing with an arrow indicating upward motion (no text or symbols)

Fig. 3

Fig. 4

Technical line drawing of a mechanical bracket component with two directional arrows indicating movement or force (no text or symbols present)

Fig. 4B – POUR N87, N80-8, N100-5 SEULEMENT

Technical diagram of a helmet assembly with numbered parts and directional arrows indicating components

Fig. 4C – POUR N100-6, N120-1 SEULEMENT

Option 1

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols present)

Option 2

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Line drawing of a car interior showing a control panel with a black arrow pointing to a button (no text or symbols present)

Fig. 9

Fig. 10

Line drawing of a vehicle's seatbelt assembly with no text or symbols

Fig. 11

Line drawing of a robotic arm with attached sensors and a circular head (no text or symbols)

Fig. 12

Technical line drawing of a mechanical component with three black arrows pointing to specific features (no text or symbols present)

Fig. 13

Technical line drawing of a mechanical device with labeled components and arrows indicating assembly or connection (no text or symbols present)

Fig. 14

Fig. 15

Technical line drawing of a mechanical component with two black arrows pointing to features (no text or symbols present)

Fig. 16

Technical line drawing of a mechanical component with a circular component and two arrows indicating assembly or force (no text or symbols present)

Fig. 17

Fig. 18

Diagram of a mechanical device with upward and downward arrows indicating motion or force (no text or symbols)

Fig. 19

Line drawing of a mechanical assembly with no visible text or symbols

Fig. 20

Technical line drawing of a mechanical component with an arrow indicating a step or insertion (no text or symbols present)

Fig. 21

Line drawing of a mechanical device with no visible text or symbols

Fig. 22

Line drawing of a helmet with front and side panels, no text or symbols present

Fig. 23

Fig. 24

Diagram of a cable clamp securing a wire with two opposing arrows indicating motion (no text or symbols)

Fig. 25

Simple line drawing of a cable being inserted into a connector (no text or symbols)

Fig. 26

Fig. 27

Fig. 28

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Fig. 29

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 30

Fig. 31

13.2. Group Mesh TM

Fig. 35

N-Com M951 R -System

Line drawing of a medical or laboratory instrument with a long rod and handle (no text or symbols)

Mikrophon mit Clip

Line drawing of a mechanical component or housing with no visible text or symbols

Adapter Tastenvorrichtung N87, N100-5 (1x); N80-8 (1x); N120-1 (1x); N100-6 (1x)

Simple line drawing of a rectangular block with a curved cable attached to its top (no text or symbols)

Batterie

Line drawing of a coiled electrical plug with a terminal connector (no text or symbols)

USB-C Kabel

Simple line drawing of a right-angle pipe fitting (no text or symbols)

Schlüssel

Abb. 1

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Abb. 2

Line drawing of a device casing with an arrow indicating upward motion (no text or symbols)

Abb. 3

Abb. 4

Technical line drawing of a mechanical component with two arrows indicating directional movement (no text or symbols)

Abb. 4B – NUR FÜR N87, N80-8, N100-5 HELM

Technical diagram of a car head panel with numbered components and directional arrows indicating assembly or movement.

Abb. 4C - NUR FÜR N100-6, N120-1

Option 1

Diagram of a mechanical device with two views showing upward force arrows (no text or symbols)

Option 2

Abb. 5

Line drawing of a mechanical device with labeled components (no text or symbols)

Abb. 6

Technical line drawing of a mechanical assembly with no visible text or symbols

Abb. 7

Line drawing of a mechanical device with attached tubing and connectors (no text or symbols)

Abb. 8

Abb. 9

Abb. 10

Line drawing of a motorcycle seatbelt mechanism (no text or symbols)

Abb. 11

Line drawing of a robotic arm with attached sensors and a device (no text or symbols)

Abb. 12

Technical line drawing of a mechanical component with three black arrows pointing to specific features (no text or symbols present)

Abb. 13

Technical diagram of a device with labeled components and directional arrows indicating movement (no text or symbols present)

Abb. 14

Abb. 15

Technical line drawing of a mechanical component with two black arrows pointing to specific parts (no text or symbols present)

Abb. 16

Technical line drawing of a mechanical component with a circular component and directional arrows (no text or symbols)

Abb. 17

Fig. 18

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Fig. 19

Line drawing of a mechanical assembly with no visible text or symbols

Fig. 20

Technical line drawing of a mechanical component with an arrow indicating a step or insertion (no text or symbols present)

Fig. 21

Line drawing of a mechanical component with no visible text or symbols

Fig. 22

Line drawing of a helmet with front and side views (no text or symbols)

Fig. 23

Abb. 24

Diagram of a cable clamp securing a wire with two opposing arrows indicating tension (no text or symbols present)

Abb. 25

Pure electrical circuit lines without any symbols

Abb. 26

Abb. 28

Technical line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

Abb. 29

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Abb. 30

Abb. 31

Abb. 35

Micrófono con clip

Line drawing of a mechanical component or housing with no visible text or symbols

Adaptador teclado N87, N100-5 (1x); N80-8 (1x); N120-1 (1x); N100-6 (1x)

Simple line drawing of a rectangular block with a curved cable attached to its top (no text or symbols)

Batería

Line drawing of a coiled electrical plug with a terminal connector (no text or symbols)

Cable USB-C

Simple line drawing of a bent pipe or rod (no text or symbols)

Llave

Nolan N-com M951 R - Group Mesh TM - 33
Esponja Micrófono

Fig. 1

Technical line drawing of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

Fig. 2

Line drawing of a device casing with an arrow indicating upward motion (no text or symbols)

Fig. 3

Fig. 4

Technical line drawing of a mechanical bracket component with two arrows indicating direction (no text or symbols)

Fig. 4B - SOLO PARA EL CASCO N87, N80-8, N100-5

Technical diagram of a helmet assembly with numbered components and directional arrows indicating parts of the body.

Fig. 4C - SOLO PARA EL CASCO N100-6, N120-1

Opción 1

Technical line drawing of a mechanical component with two arrows indicating upward motion (no text or symbols)

Opción 2

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Line drawing of a vehicle's seatbelt assembly with no text or symbols

Fig. 11

Line drawing of a robotic arm with attached sensors and a bulb (no text or symbols)

Fig. 12

Technical line drawing of a mechanical component with three black arrows pointing to specific features (no text or symbols present)

Fig. 13

Technical diagram of a mechanical device with labeled components and directional arrows (no text or symbols)

Fig. 14

Fig. 15

Technical line drawing of a mechanical component with two black arrows pointing to features (no text or symbols present)

Fig. 16

Technical line drawing of a mechanical component with a circular component and two arrows indicating assembly or force (no text or symbols present)

Fig. 17

Fig. 18

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Fig. 19

Line drawing of a mechanical assembly with no visible text or symbols

Fig. 20

Technical line drawing of a mechanical component with a downward arrow indicating a cut or assembly (no text or symbols present)

Fig. 21

Line drawing of a mechanical component with no visible text or symbols

Fig. 22

Line drawing of a helmet with front and side views (no text or symbols)

Fig. 23

Fig. 24

Diagram of a cable or connector with two opposing arrows indicating direction (no text or symbols)

Fig. 25

Simple line drawing of a cable being inserted into a connector (no text or symbols)

Fig. 26

Fig. 28

Line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

Fig. 29

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 30

Fig. 31

B. Auto On / Off* (cap. 4.2)

Fig. 35

Sistem N-Com M951 R

Line drawing of a laboratory probe with a loop and clamp (no text or symbols)

Mikrofon z zaponko

Line drawing of a mechanical component or housing with no visible text or symbols

Podstavek tipkovnice
N87, N100-5 (1x); N80-8 (1x); N120-1 (1x); N100-6 (1x)

Simple line drawing of a rectangular block with a curved cable or wire attached at the top (no text or symbols)

Baterija

Line drawing of a coiled electrical plug with a terminal connector (no text or symbols)

Kabel USB-C

Simple line drawing of a bent pipe or rod (no text or symbols)

Ključ

Nolan N-com M951 R - Group Mesh TM - 59
Gobica mikrofona

Nolan N-com M951 R - Group Mesh TM - 60
Izvijač s ploščato glavo

Two identical square plates with circular holes, no text or symbols present

Nalepki za slušalki

Sl. 1

Technical line drawing of a mechanical component with an arrow indicating a process or assembly (no text or symbols present)

Sl. 2

Line drawing of a device casing with an arrow indicating upward motion (no text or symbols)

Sl. 3

3.2. Začetni koraki

Sl. 4

Technical line drawing of a mechanical component with two arrows indicating directional movement (no text or symbols)

SI. 4B – SAMO ZA ČELADE N87, N80-8, N100-5

Technical diagram of a helmet assembly with numbered parts and directional arrows indicating components

SI. 4C – SAMO ZA ČELADE N100-6, N120-1

Možnost 1

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Možnost 2

Sl. 5

Line drawing of a mechanical device with labeled parts (no text or symbols)

Sl. 6

Technical line drawing of a mechanical assembly with no visible text or symbols

Sl. 7
Line drawing of a mechanical device with attached components (no text or symbols)

Sl. 8

Sl. 9

Sl. 10

Line drawing of a motorcycle seatbelt mechanism (no text or symbols)

Sl. 11

Line drawing of a robotic arm with attached sensors and a paper sheet (no text or symbols)

Sl. 12

Technical line drawing of a mechanical component with three black arrows pointing to specific features (no text or symbols present)

Sl. 13

Technical diagram of a device with labeled components and directional arrows indicating movement (no text or symbols present)

Sl. 14

SAMO ZA ČELADE MODELOV N100-5, N100-6, N120-1 – namestitev kablov in mikrofona

Sl. 15

Technical line drawing of a mechanical component with two black arrows pointing to features (no text or symbols present)

Sl. 16

Technical line drawing of a mechanical component with a circular component and two arrows indicating assembly or insertion (no text or symbols present)

Sl. 17

SAMO ZA ČELADE MODELOV N120-1, N100-6, N100-5, N80-8, N87 – namestitev tipkovnice

Sl. 18

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Sl. 19

Line drawing of a mechanical assembly with no visible text or symbols

Sl. 20

Technical line drawing of a mechanical component with a downward arrow indicating a process (no text or symbols present)

Sl. 21

Line drawing of a mechanical component or device with no visible text or symbols

Sl. 22

Line drawing of a helmet with front and side views (no text or symbols)

Sl. 23

Sl. 24

Diagram of a cable clamp securing a wire with two opposing arrows indicating tension (no text or symbols)

Sl. 25

Simple line drawing of a cable being inserted into a connector (no text or symbols)

Sl. 26

Za dobro kakovost prenosa zvoka je priporočljivo, da gobico z mikrofonom namestite čim bližje kustom, najbolje ob strani.

Sl. 28

Line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

Sl. 29

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Sl. 30

- Z izvijačem (ali podobnim orodjem) odpnite desno in levo zaponko, ki sta nameščeni na školjki čelade (Sl. 30).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Sl. 31

Sl. 35

Systém N-Com M951 R

Line drawing of a long rod with a circular end cap and a central hub (no text or symbols)

Mikrofon s klipem

Line drawing of a mechanical component with no visible text or symbols

Adaptéry klávesnice
N87, N100-5 (1x); N80-8 (1x); N120-1 (1x); N100-6 (1x)

Simple line drawing of a rectangular block with a coiled cable attached at the top (no text or symbols)

Baterie

Line drawing of a coiled electrical plug with a terminal connector (no text or symbols)

Kabel USB-C

Simple line drawing of a bent pipe or rod (no text or symbols)

Klíč

Nolan N-com M951 R - SAMO ZA ČELADE MODELOV N120-1, N100-6, N100-5, N80-8, N87 – namestitev tipkovnice - 16
Pěnový mikrofon

Nolan N-com M951 R - SAMO ZA ČELADE MODELOV N120-1, N100-6, N100-5, N80-8, N87 – namestitev tipkovnice - 17
Plochý šroubovák

Two identical square plates with circular holes, no text or symbols present

Obr. 1

Technical line drawing of a mechanical component with a curved arrow indicating motion or assembly (no text or symbols)

Obr. 2

Line drawing of a device casing with an arrow indicating upward motion (no text or symbols)

Obr. 3

Obr. 4

Technical line drawing of a mechanical bracket component with two directional arrows indicating movement or force (no text or symbols present)

Obr. 4B - POUZE PRO PRILBY N87, N80-8, N100-5

Technical diagram of a car head with labeled parts and directional arrows indicating motion or assembly.

Obr. 4C - POUZE PRO PRILBY N100-6, N120-1

Možnost 1

Diagram of a mechanical device with two views showing internal components and upward arrows indicating motion (no text or symbols)

Možnost 2

Obr. 5

Obr. 6

Obr. 7

Obr. 8

Obr. 9

Obr. 10

Technical line drawing of a mechanical assembly with no visible text or symbols

Obr. 11

Line drawing of a robotic arm with articulated joints and a curved handle (no text or symbols)

Obr. 12

Technical line drawing of a car interior showing structural components and directional arrows (no text or symbols)

Obr. 13

Technical line drawing of a telephone handset with buttons and a circular component (no text or symbols)

Obr. 14

Obr. 15

Technical line drawing of a mechanical component with two black arrows pointing to specific parts (no text or symbols present)

Obr. 16

Technical line drawing of a mechanical component with a circular component and directional arrows (no text or symbols)

Obr. 17

Obr. 18

Diagram of a mechanical device with upward and downward arrows indicating motion or force (no text or symbols)

Obr. 19

Technical line drawing of a mechanical assembly or assembly (no visible text or symbols)

Obr. 20

Technical line drawing of a mechanical component with an arrow indicating a process or assembly (no text or symbols present)

Obr. 21

Line drawing of a drone's head and fuselage (no text or symbols)

Obr. 22

Line drawing of a helmet with front and side views (no text or symbols)

Obr. 23

Obr. 24

Diagram of a cable clamp securing a wire with two opposing arrows indicating direction (no text or symbols)

Obr. 25

Simple line drawing of a cable or wire connection with a mechanical clamp (no text or symbols)

Obr. 26

Obr. 27

Obr. 28

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Obr. 29

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Obr. 30

Obr. 31

Obr. 35

Certification and Safety Approvals FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antennae
  • Increase the separation between the equipment and the receiver
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
  • Consult the dealer or an experienced radio/TV technician for help.

FCC RF Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. The antenna used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures.

When equipped, the distance between antenna and one's head surface is 30.63mm.

FCC Caution

Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user's authority to operate the equipment.

POUR LE MARCHE US ET CANADIEN UNIQUEMENT: MISE EN GARDE SPECIALE

Industry Canada (IC) Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

  1. this device may not cause interference, and
  2. this device must accept any interference, including interference that may cause undesired operation of the device.
Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Nolan

Model : N-com M951 R

Category : Headset
