Instructions for use

HD 280-13

HD 280 pro

HD 280 silver

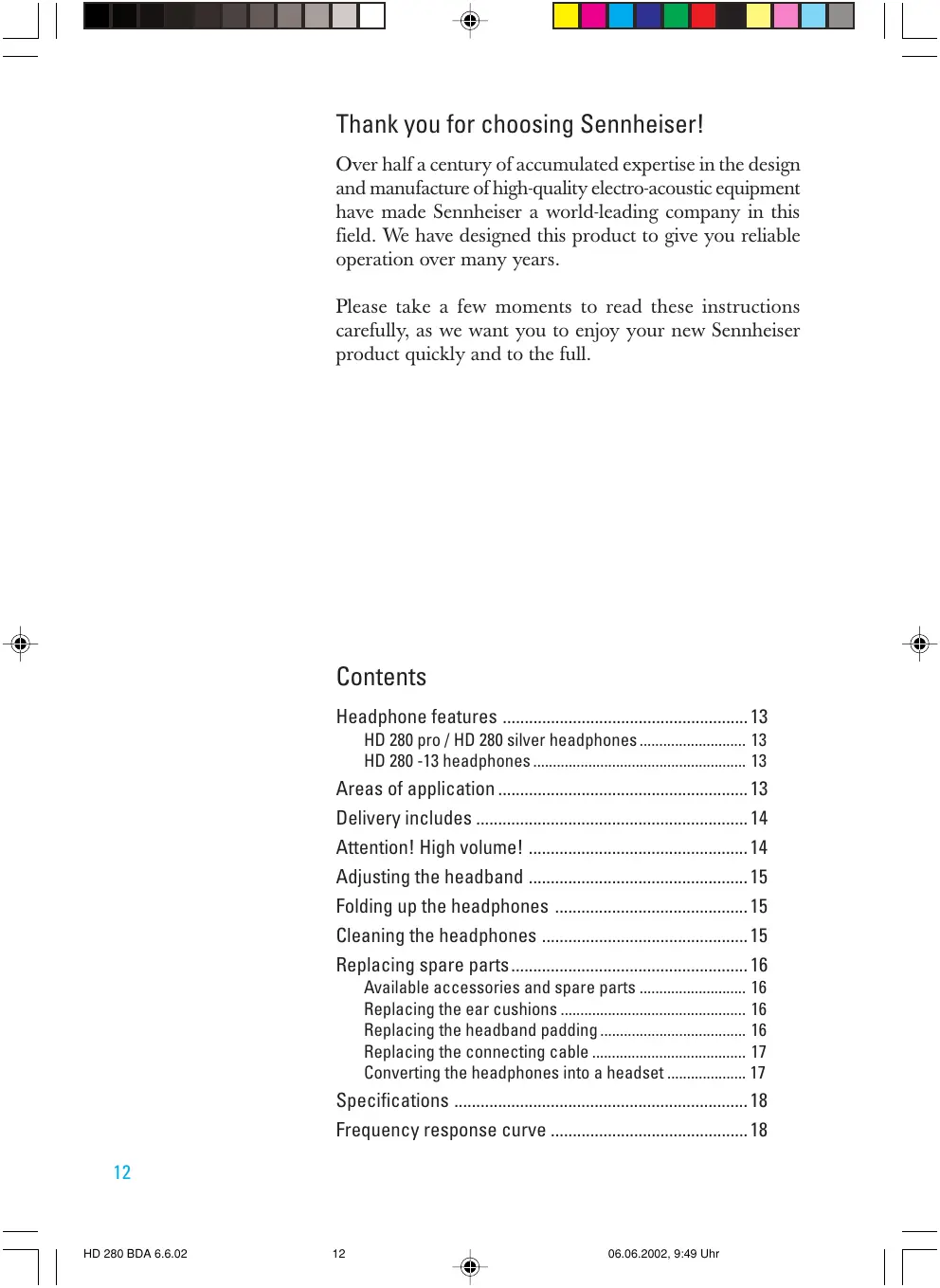

Thank you for choosing Sennheiser!

Over half a century of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field. We have designed this product to give you reliable operation over many years.

Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser product quickly and to the full.

Contents

Headphone features 13

HD 280 pro / HD 280 silver headphones 13

HD 280-13 headphones 13

Areas of application 13

Delivery includes 14

Attention! High volume! 14

Adjusting the headband 15

Folding up the headphones 15

Cleaning the headphones 15

Replacing spare parts. 16

Available accessories and spare parts 16

Replacing the ear cushions 16

Replacing the headband padding 16

Replacing the connecting cable 17

Converting the headphones into a headset 17

Specifications 18

Frequency response curve 18

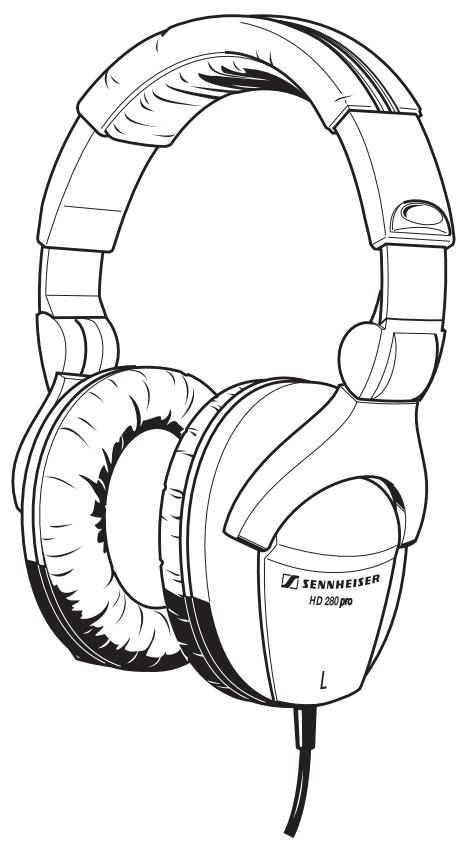

Headphone features

HD 280 pro / HD 280 silver headphones

• Closed dynamic headphones
• Accurate, linear sound reproduction for critical monitoring applications
• Low impedance headphones (64 Ω impedance)
• Space-saving design features collapsible, rotating earcups
• Up to 32 dB of ambient noise attenuation
• Neodymium magnets for high maximum SPL (113 dB / 1 V_rms)

• Very comfortable, even if used for long periods due to

• very light weight

• soft, circum-ural ear cushions

• padded, adjustable headband

• Single-sided, coiled cable with 3.5 ~mm jack plug and lockable adapter to 1 / 4'' (6.3 mm) jack plug

• Very rugged with user-replaceable parts

HD 280 -13 headphones

As HD 280 pro, but high impedance variant (300 Ω impedance).

Areas of application

The headphones not only effectively attenuate external noise but also minimise spillage from the headphones to the outside world. They are especially suitable for

• use as monitoring headphones in a noisy environment
• broadcast and TV applications
• film and theatre applications
• recording applications

Delivery includes

• Headphones
• Adapter to 1/4'' (6.3 mm) jack plug
• Instructions for use

Attention! High volume!

This is a professional pair of headphones. Commercial use is subject to the rules and regulations of the trade association responsible. Sennheiser, as the manufacturer, is therefore obliged to expressly point out possible health risks arising from use.

This system is capable of producing sound pressure exceeding 85dB(A) . 85dB(A) is the sound pressure corresponding to the maximum permissible volume which is by law (in some countries) allowed to affect your hearing for the duration of a working day. It is used as a basis according to the specifications of industrial medicine. Higher volumes or longer durations can damage your hearing. At higher volumes, the duration must be shortened in order to prevent damage.

The following are sure signs that you have been subjected to excessive noise for too long a time:

A You can hear ringing or whistling noise in your ears!
You have the impression (even for a short time only) that you can no longer hear high frequencies!

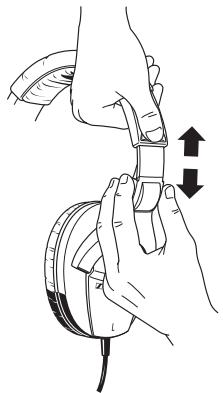

Adjusting the headband

For good transmission quality and best possible comfort, the headband has to be adjusted to properly fit your head. To do so, adjust the headband via its snap-in locking mechanism.

A

B

Folding up the headphones

For space-saving transportation, the headphones can be folded up in three different ways:

1. To fold up the headphones as compact as possible, tuck the earcups between the headband (variant A and B).

Note:

To fold up the headphones as shown in variant B, pull out the headband completely.

1. To fold up the headphones as flat as possible, the earmups can be rotated by 90^ .

Cleaning the headphones

To clean the headphones, use a soft, damp cloth. If necessary, the headphones can be cleaned with soapy water (use a mild cleanser such as washing-up liquid).

Note:

Never use solvent-containing cleansers.

Replacing spare parts

Available accessories and spare parts

• Ear cushions
• Headband padding
• Connecting cable

Replacing the ear cushions

Grasp behind the ear cushions and pull them up and away from the earcups. Slide the new ear cushions onto the earcups.

Replacing the headband padding

Pull the Ziploc type fastening strips of the headband padding apart, as shown in the diagram on the left, and remove the worn headband padding.
Put the new headband padding around the headband.
Pull the two edges of the headband padding together so that the fastening strips slightly overlap.
Join the fastening strips.

Replacing the connecting cable

Replace the connecting cable if it is damaged. To do so, please proceed as follows:

Remove the ear cushion. Grasp behind the ear cushion and pull it up and away from the earcup.

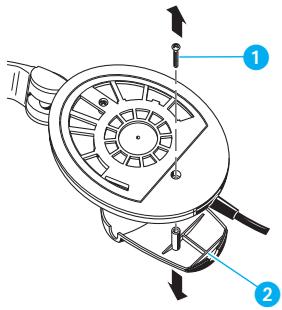

Loosen the screw 1 and remove it.
Remove the cover from the earcup 2.

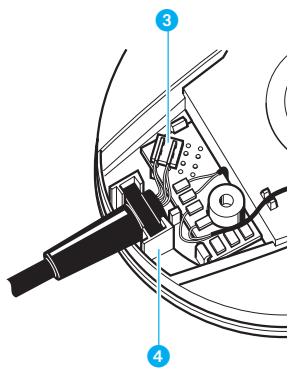

Pull the connector 3 out of the socket.
Remove the antikink protection of the connecting cable from the holding device 4.
Insert the antikink protection of the new connecting cable into the holding device.
Plug the connector 3 of the new connecting cable into the socket as shown in the diagram on the left.
Put the cover back onto the earcup 2.
Replace the screw 1 and tighten it.
▶ Slide the ear cushion onto the earcup.

Converting the headphones into a headset

If you wish to convert your headphones into a headset, please contact your Sennheiser service partner who will equip the headphones with a microphone.

Specifications

HD 280 pro

HD 280 silver

HD 280-13

Classification

(as per IEC 268-7)

Transducer principle

Impedance

Long-term max. input power

Ear coupling

Frequency response

(-10dB referred to 1kHz)

Sound pressure level

Ambient noise attenuation

THD

Weight

Contact pressure

Length of coiled cable

268-7-IEC-DCSC-64R0-2

268-7-IEC-DCSC-03R2-2

dynamic

dynamic

64 Ω (as per IEC 268-7)

300 (as per IEC 268-7)

0.5 W (as per IEC 268-7)

0.5 W (as per IEC 268-7)

circum-aural

circum-ural

8Hz - 25kHz

8Hz - 25kHz

102 dB (as per IEC 268-7)

102 dB (as per IEC 268-7)

113 dB/1 Vrms

107 dB / 1 Vms

max. 32 dB

max. 32 dB

<0.1% (at 51 kHz, 100 dB SPL)

< 0.1% (at 1kHz 100 dB SPL)

approx. 285 g

approx. 285g

approx. 6N

approx. 6N

min. 1

min. 1

max. 3m

max. 3m

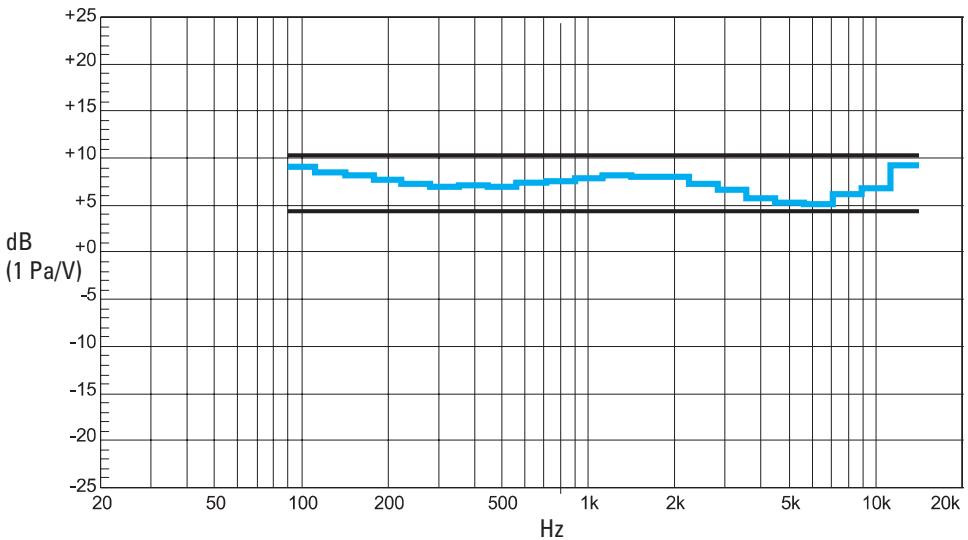

Frequency response curve

Diffuse field frequency response

Notice d'emploi

HD 280-13

HD 280 pro

HD 280 silver

(secondary IEC 268-7)

Trasduttore

Impedenza

300 (secondo IEC 268-7)

circumaurale

Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations.
