Product Type	Massage device
Brand	Therabody
Model	JetBoots Prime
Category	Air compression massage
Dimensions (L x W x H)	55 x 25 x 15 cm (per boot)
Total weight	2.5 kg (both boots)
Power supply	Rechargeable Li-ion battery 7.4 V
Battery life	Approximately 2 hours per charge
Charging time	2 hours
Materials	Breathable fabric, nylon sleeves
Intensity levels	3 levels (gentle, medium, strong)
Massage modes	Sequential compression, vibration
Massaged areas	Calves, ankles, feet
Maintenance	Clean with a damp cloth and mild soap
Usage precautions	Do not use on irritated or damaged skin
Warranty	2 years
Included accessories	USB-C charger, user manual
Repairability	Repairability index: 8/10 (spare parts available)
Certifications	CE, FCC

Frequently Asked Questions - JetBoots Prime THERABODY

How to use the JetBoots Prime?

Put on the boots, turn on the device and select the desired intensity. Use the button to switch to compression or vibration mode. The session lasts automatically 20 minutes.

How to charge the JetBoots?

Plug the provided USB-C cable into each boot and connect to a power adapter (5V/2A). The light flashes during charging and stays steady when done.

Can I use the JetBoots while walking?

No, the boots are designed for use while sitting or lying down. Walking with them could damage the device and reduce massage effectiveness.

What types of massage does this device offer?

The JetBoots Prime offer sequential air compression massage from the foot to the calf, as well as a vibration mode to relax muscles.

How many intensity levels are there?

There are 3 levels: gentle (for light relaxation), medium (moderate massage), and strong (deep massage suited for athletes).

How to clean the JetBoots?

Unplug the device, wipe the exterior surfaces with a damp cloth and mild soap. Do not immerse in water. Allow to air dry.

Are the JetBoots suitable for pregnant women?

It is not recommended to use this type of massage during pregnancy without medical advice, especially on abdominal or vein areas.

What is the warranty of the product?

The manufacturer's warranty is 2 years against manufacturing defects. It does not cover normal wear.

Can I use the JetBoots if I have a leg injury?

In case of fracture, thrombosis, wound, or inflammation, consult a doctor before use. Avoid massaging directly on an injured area.

Are the boots repairable?

Yes, Therabody offers spare parts (sleeves, connectors) and the repairability index is 8/10.

USER MANUAL JetBoots Prime THERABODY

1. Product Overview
2. What's in the Box
3. Getting to Know the Device
4. Using the Device
5. How the Device Works
6. Care, Cleaning, and Charging

EN 3-16
DE 17-30
FR 31-44
IT 45-58
ES 59-72
RU 73-86
FRCA 87-102

JetBoots Prime

1. Product Overview

Refresh and recover your legs with Therabody JetBoots Prime device—wireless, ultra-portable and uniquely designed to fold up like a pair of pants so you can take the science-backed benefits of pneumatic compression anywhere. Customize your treatment time and pressure to your body's needs, accelerating recovery, reducing muscle soreness and improving performance with maximum comfort and control. The device features our proprietary TruGrade Technology that delivers precise, sequential pressure to optimize circulation and remove metabolic waste more safely and effectively than competitors. So you can just sit back, relax and recharge your legs.

Intended Use

The Therabody JetBoots Prime device is an air compression therapy device intended to provide graduated pressure to the legs. The device is indicated for the temporary relief of minor muscle aches and pains, and for a temporary increase in blood circulation to the treated area in people who are in good health. The device simulates kneading and stroking of tissues by using an inflatable garment.

2. What's in the box

A Two connected compression boots

C Drawstring travel backpack

B 2 meter USB-C to USB-C charging cable Note: A power adapter is not included with this device. For best performance, use a USB-C power adapter of at least 20W power capacity. Ensure it is from a certified manufacturer and has not suffered any structural damage.

D Instruction manual

Figure 1. What's in the box

3. Getting To Know Your Device

1 Lead Compression Boot
2 Support Compression Boot
3 Console and Control Panel

a Navigation buttons (power, start/pause, pressure, time)
b Indicators
c USB-C Charging Port

4 Fabric Bridge
5 External pockets
6 Main Zippers
7 Pulling/Hanging Loops

Figure 2. the JetBoots Prime and control panel

4. Use the device

1. Put on your boots. It is recommended that you wear shorts or thin pants while using the device. Reach a comfortable position, either sitting upright or lying down with your legs straight and feet in line with your waist. Unzip the compression boots completely and place each leg and foot inside each boot. Your legs should be in the center of each boot with your feet as close to the bottom as possible.

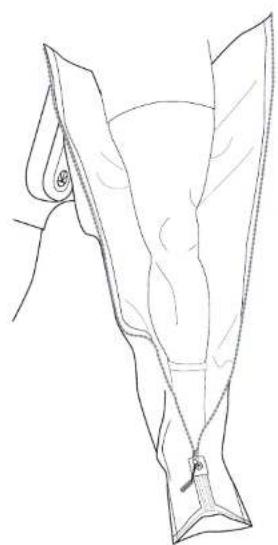

2. Zip up the boots and keep them flat. Keep your legs straight and flat to prevent kinks and folds. Only hold the boots' edges when handling them. Avoid holding the device by the control panel. Zip both boots up.
   **Do not use the device while standing or walking.

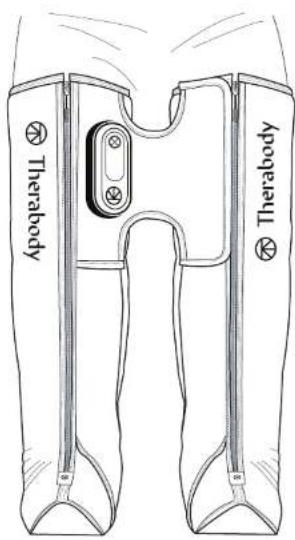

Figure 3. How to position oneself in the boots

1. Turn on the device. To power on your device, press and hold the power button on the control panel. The LED indicators on the control panel will light up when the boots are on.
2. Select your pressure intensity. Press the pressure button to toggle through four pressure intensity options: 25 mmHg, 50 mmHg, 75 mmHg, 100 mmHg. The pressure setting used in your last treatment will become the default setting for your next treatment. You can also add or subtract pressure during your treatment if desired.
3. Select your treatment time. Press the time button to toggle through four time options: 20 minutes, 40 minutes, 60 minutes, or continuous. The time setting used in your last treatment will become the default setting for your next treatment.
4. Start, pause, and exit treatment. Begin your treatment by pressing the start button. Press the pause button at any point during your treatment to pause and deflate the boots. Press the start button again to resume the treatment.
5. Turn off the device. Press and hold the power button on the control panel to turn off the device. The device will automatically shut off after 10 minutes of inactivity, including completed or paused treatments. Unzip the compression boots fully and store.
6. Lock the device. When not in use or during transport, lock the device to prevent turning it on accidentally. Turn off the device to activate the lock function. Quickly press the power button three times to initiate the lock function. Each LED light will flash sequentially to indicate that the device is locked. Quickly press the button three times again to unlock. Each LED light will flash sequentially (in the opposite direction) to indicate that the device is unlocked.

Buttons Indicators

Power Button

Start/Pause/Stop Button

Time Button

Pressure Button

4-time intervals (20, 40, 60, and continuous)

Battery Indicator

3 dots indicate full battery level
2 dots indicate mid battery level
1 dot indicates low battery level

Figure 4. UI for settings

5. How the Device Works

Pneumatic compression applies controlled pressure to the legs. The pressure applied through sequential inflation and deflation increases circulation, which enhances the body's natural healing processes, delivering more oxygen and nutrients to the muscles and transporting waste products from exercise away from the muscle. This increase in circulation also helps reduce swelling and fluid buildup, so you feel less stiff and sore, making this an effective method for recovery, particularly after physical activity.

JetBoots Prime TruGrade Technology

TruGrade Technology uses advanced, innovative technology to deliver precise pressure gradually up your legs, starting from your feet moving up to your thighs. Each of the JetBoots Prime compression boot's four air chambers overlap so pressure is delivered up the leg sequentially, without the risk of harmful pressure gaps. This optimizes circulation and removes metabolic waste more safely, and effectively. No matter the size of your leg, you will experience the same amount of pressure when selecting the same treatment setting as someone of a different size. Other systems deliver a set amount of pressure regardless of the leg size, which can lead to dangerous over-constriction and numbness. Our precise pressure control not only optimizes recovery, but provides a safer massage experience.

How the Sequential Cycle Works

During a sequential cycle, pressure is applied directionally, starting at the base (feet) and progressing upwards (torso). Once Chamber 1 inflates and reaches its preset pressure level, it holds the pressure and begins inflating Chamber 2. The device continues to hold pressure in each subsequent chamber until all four chambers are inflated. Once all four chambers are inflated, the device releases pressure.

Figure 5. Sequential cycle

6. Care, Cleaning, and Charging

Device Maintenance

The following maintenance instructions are important to ensure that your device continues to work as it was designed. Failure to follow these instructions may cause your device to stop working.

Cleaning the Device

The JetBoots Prime compression boots have non-porous medical grade material that helps prevent bacteria buildup and provides a resistant surface. The internal overlapping chambers provide a smooth surface to clean, meaning no chamber flaps where bacteria and odors can build up.

1. Unzip the boots completely and lay them on a flat surface.
2. Use a 70% isopropyl alcohol (IPA) cleaning solution to gently clean the inside of the boots. Never use oil-based cleaning products.
3. Wipe down the device's exterior using a soft cloth that is free of debris to reduce surface contaminants.
4. Ensure there is no remaining debris after fully cleaning the device.
5. Once you have fully cleaned the device, fully pat dry the surface and hang to dry completely before continuing use.

Note: This product is NOT waterproof. Do not submerge the device in water or clean it under running water. Do not allow the device to come into contact with corrosive solutions, which can damage the device's appearance and function.

Charging the Device

1. The device is USB-C enabled and comes with a 6.5 feet (2-meter) USB-C charging cable. The device can charge while the device is powered on or off.
2. Connect one end of the charging cable to the USB-C charging port on the device. It is located on the side of the control panel. Plug the other side into a 20 W USB-C power adapter for optimal performance. Using a power adapter with less capacity may not allow you to use the device while charging.
3. When the device is on, the LED indicators will show the battery status when the device is on or charging. Turn on the device to check the battery status.

• 1 LED: Low battery
• 2 LEDs: Medium battery
• 3 LEDs: High battery

1. The battery life of the device is approximately 180 minutes.

**Note: If using a charger from a third party, ensure that it is from a certified manufacturer and has not suffered any structural damage.

Store and Transport the Device

1. Lay the device flat with the control panel facing up and allow compression boots to fully deflate.
2. Fold the right boot over the left boot, like you would a pair of pants. Align all edges of the boots, so it looks like a single boot.
3. Starting at the feet, fold them up 1/3 of the way up the leg.
4. Fold once more, so that the fold reaches the top of the boots. DO NOT fold the boots too tight as this can damage the hoses and connection points.
5. Slide the folded device into the drawstring bag. Pull the side strings outward to close the bag and wear as a backpack or pull the top strings to use as a carrying bag.

Ensure the device is clean and dry before storing. To store and transport the device, keep the device in its drawstring travel backpack, and handle it gently. Store the device in a cool and dry place (Temperature: -4-158°F (-20°C - 70°C, Relative humidity: 10\~93% RH), atmospheric pressure 190.0-1060 hPa. Do not store the device where temperatures may exceed 45°C/158°F, such as in direct sunlight or in a vehicle.

Figure 6. Folding Instructions

Troubleshooting

SCENARIO POTENTIAL CAUSES POTENTIAL SOLUTIONS
Device does not turn on.	No electric power and no battery power in the device.	1. Use the provided USB-C charging cable and a 20W USB-C power adapter to connect the device to a power outlet. Verify the device is charging or turning on. Note: using power adapters of lower power capacity will only allow the device to either charge or work, but not both simultaneously.2. Check that the power adapter, charging cable, and the console are all properly connected.3. If the device is not charging after verifying all of the above, the power adapter or the device may be damaged. If using another power adapter does not solve the issue, contact Therabody for further assistance. Visit https://www.therabody.com/us/en-us/support/support.html for the available contact methods.
	Power adapter or USB-C charging cable damaged
	Internal malfunction
Device automatically turns off and starts charging when connected to a USB-C power adapter.	The power adapter in use does not provide enough power to work and charge simultaneously	Check that the USB-C power adapter can provide at least 20W. If lower, allow the device to charge before using it. Contact Therabody for further assistance if the issue persists. Visit https://www.therabody.com/us/en-us/support/support.html for the available contact methods.
One or both compression boots do not fully inflate, and the device stops working. One yellow light is displayed.	Air leakage at the air hose connection or bladders.	1. Inspect the air hose connections. Open the black zipper in the external pockets located in the internal side of the boots (under the "bridge").2. Check the air hoses are well connected to the air bladder nozzles. If loose, push and connect the air hose to the nozzle and check if the issue has been solved.3. If the issue persists, the air bladders may be damaged. Contact Therabody for further assistance. Visit https://www.therabody.com/us/en-us/support/support.html for the available contact methods.
One or both boots do not fully inflate, and the device stops working. Two yellow lights are displayed.	Air cannot move through the air hoses or air bladders (kinking)	1. Ensure both boots are worn properly and the legs are fully extended. Check that the device is not kinked, folded, or twisted. Note that if the size is too long, the device may kink and fold, leading to discomfort.2. Check the “bridge” area is not folded while in use. Please adjust the “bridge” or your sitting position to ensure it is not folded. This may lead to air hose kinks.3. Inspect the air hose connections for air hose kinks. Open the black zipper in the external pockets located on the internal side of the boots (under the “bridge”).4. Contact Therabody for further assistance if the issue persists. Visit https://www.therabody.com/us/en-us/support/support.html for the available contact methods.
Device stops working and displays two yellow lights blinking.	Internal components are overheating	1. Check the environmental conditions are within the specified range. Operating Temperature: 32-95°F (0-35°C); Relative Humidity: 30-85% RH; Atmospheric Pressure: 700-1060 hPa.2. Stop using the device and allow it to cool down for 15 to 20 mins.3. Contact Therabody for further assistance if the issue persists. Visit https://www.therabody.com/us/en-us/support/support.html for the available contact methods.
Device stops working and displays three yellow lights blinking.	Battery is overheating
Device stops working and displays three yellow lights.	Internal component malfunction	Contact Therabody for further assistance. Visit https://www.therabody.com/us/en-us/support/support.html for the available contact methods.

DO NOT attempt to troubleshoot by disassembling the device as this will void the warranty and may cause injury.

Warnings and Guidance (Precautions and Contraindications)

Background

Therabody products are designed to unlock the body's natural ability to achieve health and well-being. Through science and technology, the Therabody portfolio of products allows people to access the therapeutic benefits of different natural phenomena to meet both their needs and preferences. There will be times when it is advisable to modify how devices are used (precautions) or times when it is not appropriate to use certain devices (contraindications). Read the following safety information for the device in its entirety prior to use.

Important Safety Information

General device Use

This device is intended for use by people in good health. This device is contraindicated against and should not be used by or on anyone with a history of epilepsy, seizures or cardiopathy.

The the device is not recommended for anyone with an electronic implanted device (such as a pacemaker), cardiac arrhythmia, tumors, or acute episodes of inflammatory diseases. The device is not recommended for those who have arteriosclerosis, thromboses, or implants in the body region being treated.

Please consult your physician prior to using the device if you are pregnant and/or nursing. Immediately stop using the device at the first sign of discomfort. The device IS NOT a toy. If you have any medical considerations please consult your doctor before using the device.

Safety, Precautions, and Contraindications

Specific Therapies

These recommendations are derived from consultation with medical experts and published research regarding precautions and contraindications as of the printing date. For up-to-date information, please visit us online at https://www.therabody.com/us/en-us/precautions-and-contraindications.html.

Precautions:

Due care is required in these circumstances and device use may need to be modified. Consult with a medical professional if you currently have or suspect you may have any of the following conditions or if you have any questions.

• Hypertension (controlled)
- Osteopenia
- Osteoporosis
- Pregnancy
- Diabetes
- Varicose veins

• Bony prominences or regions
• Abnormal sensations (e.g., numbness)
• Sensitivity to pressure
• Recent injury or surgery
• Scoliosis or spinal deformity
• Medications that may alter client sensations
- Due to movement of fluids in the body when using the device, use with caution on patients with heart disease. High pressure is not recommended for patients who have peripheral occlusion disease.

Contraindications:

The following are circumstances where the potential risks may outweigh the benefits. Consult a medical professional before use.

• Skin rash, open wounds, blisters, local tissue inflammation, bruises, or tumors
  • Deep vein thrombosis, osteomyelitis
  • Bone fracture or myositis ossificans
  • Hypertension (uncontrolled)
  • Acute or severe cardiac, liver, or kidney disease
• Neurologic conditions resulting in loss or altered sensation
• Direct application to the face, throat, or genitalia
• Bleeding disorders
  • Recent surgery or injury
• Connective tissue disorders
  • Peripheral vascular insufficiency or disease
  • Medications that thin the blood or alter sensations
• Direct pressure over surgical site or hardware
• Direct pressure over eyes or throat
  • Extreme discomfort or pain felt by client
  • Severe scoliosis or spinal deformity
  • Pacemaker, ICD, or history of embolism
• Allergy to device material (Nylon)
  • Pregnancy/ nursing
  • Abnormal sensations (ex. numbness)
  • Cancer/tumors
• Epilepsy
  • Cardiopathy (heart disease

Limited Warranty and Customer Service

For full warranty information, please visit www.therabody.com/warranty.

Customers who are in need of product support should visit

https://www.therabody.com/us/en-us/support/support.html for the available contact methods.

FDA-Cleared

Limited Warranty Only With Authorized Retailer Purchase

© 2024 Therabody, Inc. All Rights Reserved.

Patents at www.therabody.com/patents

Manufactured and Distributed by:

Therabody, Inc.

1640 S Sepulveda, Suite 300

Los Angeles, CA 90025

In the Australian market, the JetBoots Prime warranty is 1 year.

For Australian Market Only: The purchase of this device is accompanied by a limited warranty. For complete details about the rights afforded to you under this warranty, visit https://therabody.com/anz/en-au/warranty-support/.

Imported and Distributed By:

Therabody Australia Pty Ltd

Waterman Business Centre

175 Maroondah Highway

Suite 16, C307, Level 3

Ringwood Vic 3134 Australia

Importers:

Therabody International Limited

5th Floor, 40 Mespil Road,

DO4C2N4 Dublin, Ireland

Therabody UK Limited

Portsoken House 155-157

The Minorities, London,

United Kingdom, EC3N1LJ

UNIT WARNINGS

READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL, ON THE CHARGER, AND ON THE DEVICE BEFORE USING OR CHARGING THE Therabody JetBoots Prime DEVICE AND ITS ACCESSORIES.

When using the device, the following basic precautions should always be adhered to:

1. USE ONLY AS INSTRUCTED. Use the device as described in the Therabody JetBoots Prime User Manual only. The device is intended for over-the-counter use. The device is not intended to diagnose, cure, or prevent diseases. Use only Therabody recommended accessories and replacement parts. The device is an advanced mechanical tool with electric components. If the device and its accessories are

not used or maintained properly, there is a risk of fire, electric shock, or injury. Failure to use and maintain the device and corresponding attachments in accordance with the instructions outlined in this manual will void the warranty and may result in product damage or physical injury. The device is intended for commercial and home use.

1. NOT FOR CHILDREN. The device and its accessories are not intended for use by anyone under the age of 18. The device and accessories are not intended for use by individuals with reduced physical, sensory, or reasoning capabilities or lack of experience and knowledge, unless given supervision or instruction concerning use of the device by a person responsible for their safety. The device is not a toy. Advise children not to play with the device or accessories.

2. DO NOT STAND WHILE USING THE DEVICE. Do not attempt to stand up while using the device. Standing up while using the device can lead to discomfort, falling, and damage to the device's internal components.

3. CHARGING. If your device doesn't turn on or the battery indicator displays a low battery level, please charge before first use. Charge the battery using the USB-C cable (included). When you use the charging cable (included), make sure its USB-C connector is fully inserted into a compatible power adapter before you plug the adapter into a power outlet. You can also charge the battery with third party cables that are compliant with USB-C and with applicable country regulations and international and regional safety standards. Other adapters may not meet applicable safety standards, and charging with such adapters could pose a risk of death or injury. Do not force the cable into place. Fully charge the device at least once every six months to prevent device and battery damage. Unplug the power adapter and charging cable when not in use.

4. DO NOT OVERCHARGE. Do not leave the device connected to the power adapter for more than one hour after the battery has been fully charged. The battery includes a protection system to avoid the risk of overcharging. However, overcharging may reduce its life over time.

5. CHARGING LOCATIONS. Charge the device with a power adapter and charging cable. Avoid skin contact when the USB-C is plugged into a power source as it may cause discomfort or injury. Do not sleep or sit on the USB-C connector. The device should be charged indoors in a well-ventilated, dry location. Do not charge the device outdoors, in a bathroom, or within 10 feet (3.1 meters) of a bathtub or pool. Do not use the device or charger on wet surfaces, and do not expose the charger to moisture, rain, or snow. Do not use the device or its compatible charger in the presence of explosive atmospheres (gaseous fumes, dust, grain, metal powders, or flammable materials). Sparks may be generated, possibly causing a fire.

6. UNPLUGGING THE CHARGER AND CARE. Pull the plug, not the cord, to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord. Keep the cord away from heat, oil, and sharp edges. Do not stretch the charger cord or place the cord under strain. Do not handle the charger, terminals, or the device with wet hands. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. Store cable to ensure it is not stepped on, tripped over, or otherwise subjected to damage or stress. Do not use a power adapter or charging cable that has received a sharp blow, been dropped, run over, or damaged in any way. For long-term storage, store with a fully charged battery.

7. USAGE. Discontinue use of the device if you are feeling pain or discomfort. If at any point during the treatment you feel pain or discomfort beyond what's expected from a compression device or a massage, stop the treatment immediately and remove the device. Discontinue use of the device if it overheats or becomes uncomfortably hot. Do not place any objects between your skin and the device.

8. DO NOT OPERATE UNDER BLANKET AND PILLOW. Excessive heating can occur and cause fire, electric shock, or injury.

9. DEVICE CARE AND SERVICE. Handle the device with care. The device contains electronic components that can be damaged if dropped, burned, punctured, or crushed. Do not disassemble

the device or attempt to repair the device yourself. Disassembling the device may damage it and may cause injury. If the device is damaged or if malfunctions occur, contact Therabody Customer service. The warranty will be void if the device, batteries, or charger are disassembled or if any parts have been removed. Do not use if damaged as these may cause injury. Do not puncture or damage the device. Puncturing the device can lead to incorrect operation. The device is NOT waterproof. The device is not machine washable. Do not place or store the device where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid. Do not reach for an appliance that has fallen into or come into contact with water. Unplug immediately. Clean the device according to the instructions found in the "Cleaning" section in the User Manual.

1. BATTERY CHEMICALS CAUSE SERIOUS BURNS. Never allow the internal battery to come into contact with the skin, eyes, or mouth. If a damaged battery leaks chemicals, use rubber or neoprene gloves to dispose of it. If skin is exposed to battery fluids, wash with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately flush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.
2. DO NOT SHORT CIRCUIT. A battery will short circuit if a metal object makes a connection between the positive and negative contacts on the battery or the 16V connector. Do not place a battery near anything that may cause a short circuit, such as coins, keys, or nails in your pocket. A short-circuited battery may cause fire and personal injury.
3. STORING THE DEVICE AND ACCESSORIES. Store in a cool, dry place. Only charge the device when the ambient temperature is between -4-158°F (-20°C - 70°C). Do not store the device, or charging cable where temperatures may exceed 158°F (45°C), such as in direct sunlight, in a vehicle, or in a metal building during the summer. Avoid tightly rolling the device, as this may damage the device's internal components.
4. DEVICE DISPOSAL. This device contains a lithium-ion battery, and care must be taken upon disposal of the device. Before disposal of this device, please review your local laws and requirements surrounding Lithium-Ion Battery disposal. The preferred method of disposal is recycling the whole device.

Reporting adverse events to FDA

MedWatch is the Food and Drug Administration's (FDA) program for reporting serious reactions, product quality problems, therapeutic inequivalence/failure, and product use errors with human medical products, including drugs, biologic products, medical devices, dietary supplements, infant formula, and cosmetics. If you think you or someone in your family has experienced a serious reaction to a medical product, you are encouraged to take the reporting form to your doctor. Your health care provider can provide clinical information based on your medical record that can help the FDA evaluate your report. However, we understand that for a variety of reasons, you may not wish to have the form filled out by your healthcare provider, or your health care provider may choose not to complete the form. Your health care provider is not required to report to the FDA. In these situations, you may complete the Online Reporting Form yourself.

You will receive an acknowledgement from the FDA when your report is received. Reports are reviewed by FDA staff. You will be personally contacted only if we need additional information.

Submitting adverse event reports to FDA

Use one of the methods below to submit voluntary adverse event reports to the FDA:
1. Report Online at: www.accessdata.fda.gov/scripts/medwatch/index.cfm?action=reporting.home
2. Consumer Reporting Form FDA 3500B. Follow the instructions on the form to either fax or mail it in for submission. For help filling out the form, see MedWatchLearn. The form is available at: www.fda.gov/downloads/aboutFDA/reportsmanualsforms/forms/ucm349464.pdf
3. Call FDA at 1-800-FDA-1088 to report by telephone.

1. Reporting Form FDA 3500 commonly used by health professionals. The form is available at: www.fda.gov/downloads/aboutFDA/reportmanualsforms/forms/ucm163919.pdf

GARMENT CARE

Meanings of symbols

Labels

SYMBOLS DESCRIPTION LOCATION

IP 22 Degree of protection against ingress of water On rating label
	Read instructions before use On rating label
	Level of protection type BF applied part On rating label
	Therabody, Inc.1640 S. Sepulveda Blvd. Suite 300Los Angeles, CA 90025	On rating label
[xwyy]	Unique Device Identification (UDI)	On rating label and packaging
	Separate collection for waste electrical and electronic equipment.Note: For more information about disposal of equipment, its parts and accessories, please contact your local distributor.	On rating label

This device is type BF applied equipment. It complies with Medical Electrical Safety Standards (IE(60601-1)).

This device also complies with Medical EMC Standard (IEC 60601-1-2). The has been tested and found to comply with the electromagnetic compatibility (EMC) limits for medical devices to IEC 60601-1-2: 2014. These limits are designed to provide reasonable protection against harmful interference in atypical medical installation.

WARNING:

1* WARNING: Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.

2* WARNING: Use of accessories, transducers and cables other than those specified or provided by the manufacturer this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in proper operation.

3* WARNING: Portable RF communications equipment (Including peripherals such as antenna cables) should be used no closer than 30 cm (12 inches) to any part of the ME EQUIPMENT, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result

GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC EMISSION

The JetBoots Prime is intended for use in the electromagnetic environment specified below. The customer or the user of JetBoots Prime should assure that it is used in such an environment.
EMISSIONS TEST COMPLIANCE ELECTROMAGNETIC ENVIRONMENT - GUIDANCE
RF emissionsCISPR 11	Group 1	The JetBoots Prime uses RF energy only for its internal function. There for, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissionsCISPR 11	Class B	The JetBoots Prime suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissionsIEC 61000-3-2	Class A
Voltage function / flicker emissionsIEC 61000-3-3	Complies

GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC IMMUNITY

The JetBoots Prime is intended for use in the electromagnetic environment specified below. The customer or the user of the JetBoots Prime should assure that it is used in such an environment.
IMMUNITY TEST IEC 60601 TEST LEVEL	COMPLIANCE LEVEL ELECTROMAGNETIC ENVIRONMENT - GUIDANCE
Electrostatic discharge (ESD)IEC 61000-4-2	±8 kV contact±2 kV, ±4 kV, ±8 kV, ±15 kV air	±8 kV contact±2 kV, ±4 kV, ±8 kV, ±15 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Electrostatic transient / burstIEC 61000-4-4	±2kV for power supply lines±1kV for input/output lines	N/A	Mains power quality should be that of a typical commercial or home environment.
SurgeIEC 61000-4-5	±1kV differential mode±2kV common mode	N/A	Mains power quality should be that of a typical commercial or home environment.
Voltage dips, short interruptions and voltage variations on power supply input linesIEC 61000-4-11	0% UT; 0,5 cycle g) At 0°, 45°, 90°, 135°, 180°, 225°, 270° and 315°0% UT; 1 cycle and 70% UT; 25/30 cycles Single phase: at 0°0% UT; 250/300 cycle	N/A	Mains power quality should be that of a typical commercial or home environment. If the user of the JetBoots Prime requires continued operation during power mains interruptions, it is recommended that the JetBoots Prime be powered from an uninterruptible power supply or a battery.
Power frequency (50/60 Hz magnetic fieldIEC 61000-4-8	30 A/m 30 A/m Power frequency magnetic fields should be at levels		characteristic of a typical location in a typical commercial or home environment.
NOTE Ur is the a.c. mains voltage prior to application of the test level.

The JetBoots Prime is intended for use in the electromagnetic environment specified below. The customer or the user of the JetBoots Prime should assure that it is used in such an environment.

IMMUNITY TEST	IEC 60601 TEST LEVEL COMPLIANCE LEVEL ELECTROMAGNETIC ENVIRONMENT - GUIDANCE
Conducted RF IEC 61000-4-6	3 Vrms150kHz to 80MHz6 V In ISM and amateur radio bands between 0,15 MHz and 80 MHz	3 Vrms150kHz to 80MHz6 V In ISM and amateur radio bands between 0,15 MHz and 80 MHz	Portable and mobile RF communications equipment should be used no closer to any part of the JetBoots Prime, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distance: d = [ 3.5/V1 ] d = [ 12/V2 ] d = [ 3.5/E1 ] d = [ 7/E3 ] 80 MHz to 800 MHz 800 MHz to 2.7 GHzwhere p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m). b Field strengtha from fixed RF transmitters, as determined by an electromagnetic site survey should be less than the compliance level in each frequency range. c Interference may occur in the vicinity of equipment marked with the following symbol: ((●)) \\ ▲ NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic is affected by absorption and reflection from structures, objects and people.
Radiated RF IEC 61000-4-3	10 V/m80MHz to 2.5GHz385MHz-5785MHzTest specifications for ENCLOSURE PORTIMMUNITY to RF wireless communication equipment(Refer to table 9 of IEC 60601-1-2.2014)	10 V/m80MHz to 2.5GHz385MHz-5785MHzTest specifications for ENCLOSURE PORTIMMUNITY to RF wireless communication equipment(Refer to table 9 of IEC 60601-1-2.2014)

a The ISM (industrial, scientific and medical) bands between 150 kHz and 80 MHz are 6,765 MHz to 6,795 MHz; 13,553 MHz to 13,567 MHz; 26,957 MHz to 27,283 MHz; and 40,66 MHz to 40,70 MHz. The amateur radio bands between 0.15 MHz and 80 MHz are 1.8 MHz to 2.0 MHz; 2.5 MHz to 2.6 MHz; 5.2 MHz to 5.4 MHz; 7 MHz to 7.3 MHz; 10.1 MHz to 10.15 MHz; 12 MHz to 14.2 MHz; 19.07 MHz to 19.17 MHz; 21.4 MHz to 21.4 MHz; 24.80 MHz to 24.98 MHz; 29.0 MHz to 29.7 MHz and 50.0 MHz to 54.0 MHz.

b Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the JetBoots Prime is used exceeds the applicable RF compliance level above, the JetBoots Prime should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary such as remodeling or relocating the JetBoots Prime.

c. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3W/m.

Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM - for EQUIPMENT and SYSTEMS

Recommended separation distances between portable and mobile RF communications equipment and the JetBoots Prime

The JetBoots Prime is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the JetBoots Prime can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the JetBoots Prime as recommended to below, according to the maximum output power of the communications equipment
Rated maximum output of transmitter W	Separation distance according to frequency of transmitter m
	150 kHz to 80 MHz outside ISM and amateur radio bands d = [ 3.5/V1 ]	150 kHz to 80 MHz In ISM and amateur radio bands d = [ 12/V2 ]	80 MHz to 800 MHz d = [ 12/V2 ]	80 MHz to 800 MHz d = [ 7/E1 ]
0.01 0.12 0.20 0.035 0.07
0.10.38 0.63 0.11 0.22
1	1.2	2.00	0.35	0.70
10	3.8	6.32	1.10	2.21
100	12	20.00	35	70

For transmitters rated at a maximum output power not listed above the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

JetBoots Prime

1. Produktübersicht

A

JetBoots Prime TruGrade Technology

Kammer 4

Kammer 3

Kammer 2

Kammer 1

Fehlerbehebung

Therabody International Limited

5th Floor, 40 Mespil Road,

DO4C2N4 Dublin, Ireland

Therabody UK Limited

Portsoken House 155-157

The Minorities, London,

United Kingdom, EC3N1LJ

WARNHINWEISE

Unique Device Identification (UDI)

JetBoots Prime TruGrade Technology

Chambre 4

Chambre 3

Chambre 2

Chambre 1

Illustration 6. Instructions de pillage

Dépannage

Therabody International Limited

Therabody UK Limited

Portsoken House 155-157

A

JetBoots Prime TruGrade Technology

Therabody International Limited

5th Floor, 40 Mespil Road,

DO4C2N4 Dublin, Irlanda

Therabody UK Limited

Portsoken House 155-157

The Minorities, Londra,

D

A

JetBoots Prime TruGrade Technology

Therabody International Limited

5th Floor, 40 Mespil Road,

DO4C2N4 Dublín, Irlanda

Therabody UK Limited

Portsoken House 155-157

The Minorities, Londres,

D

A

JetBoots Prime TruGrade Technology

Камера 4

Камера 3

Камера 2

Камера1

Therabody UK Limited

TruGrade Technology de JetBoots Prime

Chambre 4

Chambre 3

Chambre 2

Chambre 1

Figure 6. Instructions de pillage

Dépannage

Therabody International Limited

5th Floor, 40 Mespil Road,

DO4C2N4 Dublin, Ireland

Therabody UK Limited

Portsoken House 155-157

The Minorities, London,

United Kingdom, EC3N1LJ

MISES EN GARDE DE L'UNITÉ

LIRE TOUTES LES INSTRUCTIONS ET LES MISES EN GARDE DANS CE MANUEL, SUR LE CHARGEUR ET SUR L'APPAREIL, AVANT D'UTILISER OU DE CHARGER L'APPAREIL Therabody JetBoots Prime ET SES ACCESSOIRES.

www.fda.gov/downloads/aboutFDA/reportsmanualsforms/forms/ucm349464.pdf

www.fda.gov/downloads/aboutFDA/reportmanualsforms/forms/ucm163919.pdf

ENTRETIEN DES VÊTEMENTS.

Born in Los Angeles, CA. Designed for everybody.

@Therabody
