USER MANUAL PX4D KORG

E F G 1 Precautions Location Using the unit in the following locations can result in a malfunction.

• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic fields Power supply Please connect the designated AC adapter to an AC outlet of the correct voltage. Do not connect it to an AC outlet of voltage other than that for which your unit is intended. Interference with other electrical devices Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

Handling To avoid breakage, do not apply excessive force to the switches or controls. Care If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner, or cleaning compounds or flammable polishes. Keep this manual After reading this manual, please keep it for later reference. Keeping foreign matter out of your equipment Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown, fire, or electrical shock. Be careful not to let metal objects get into the equipment. If something does slip into the equipment, unplug the AC adapter from the wall outlet. Then contact your nearest Korg dealer or the store where the equipment was purchased. CE mark for European Harmonized Standards THE FCC REGULATION WARNING (for U.S.A) CE mark which is attached to our company’s products of AC mains operated apparatus until December 31, 1996 means it conforms to EMC Directive (89/336/EEC) and CE mark Directive (93/68/EEC). And, CE mark which is attached after January 1, 1997 means it conforms to EMC Directive (89/336/ EEC), CE mark Directive (93/68/EEC) and Low Voltage Directive (73/23/EEC). Also, CE mark which is attached to our company’s products of Battery operated apparatus means it conforms to EMC Directive (89/336/EEC) and CE mark Directive (93/68/EEC). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Unauthorized changes or modification to this system can void the user’s authority to operate this equipment.

1. Select the effect that you wish to edit

3. Reloading the factory programs ... 28

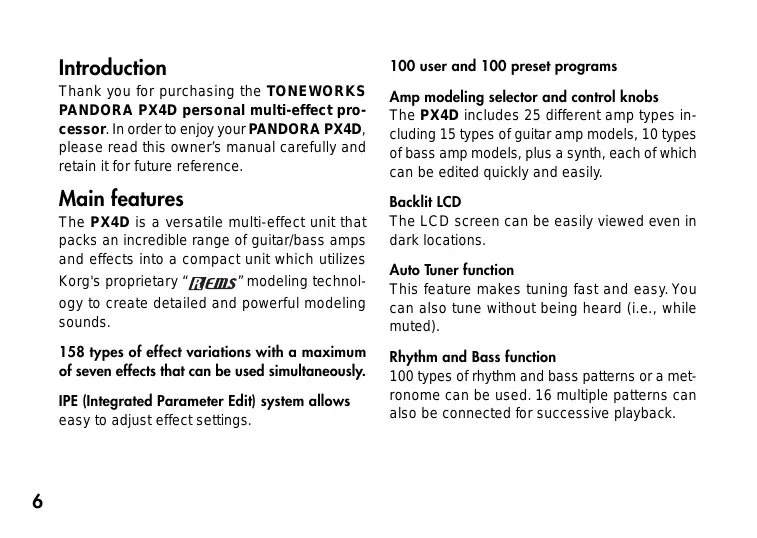

Introduction 100 user and 100 preset programs Thank you for purchasing the TONEWORKS PANDORA PX4D personal multi-effect processor. In order to enjoy your PANDORA PX4D, please read this owner’s manual carefully and retain it for future reference. Amp modeling selector and control knobs The PX4D includes 25 different amp types including 15 types of guitar amp models, 10 types of bass amp models, plus a synth, each of which can be edited quickly and easily. Main features Backlit LCD The LCD screen can be easily viewed even in dark locations. The PX4D is a versatile multi-effect unit that packs an incredible range of guitar/bass amps and effects into a compact unit which utilizes Korg's proprietary “ ” modeling technology to create detailed and powerful modeling sounds. 158 types of effect variations with a maximum of seven effects that can be used simultaneously. IPE (Integrated Parameter Edit) system allows easy to adjust effect settings.

Auto Tuner function This feature makes tuning fast and easy. You can also tune without being heard (i.e., while muted). Rhythm and Bass function 100 types of rhythm and bass patterns or a metronome can be used. 16 multiple patterns can also be connected for successive playback. AUX pitch function You can transpose audio from a CD player or other device connected to the AUX jack of the PX4D, and “erase” the bass from a song for play along purposes with Bass Cancel function. Phrase Trainer function Audio from a CD player, guitar or bass can be recorded (maximum of 31.7 seconds), and then played back as a loop. The playback speed can also be slowed down without affecting the pitch of the audio. The rhythm selected in Rhythm & Bass mode and the effect output can also be recorded simultaneously. What is (Resonant structure and Electronic circuit Modeling System) is KORG’s proprietary sound modeling technology which precisely reproduces the complex character and nature of both acoustic and electric instruments as well as electronic circuits in real world environments. emulates a wide variety of sound generation characteristics including instrument bodies, speakers & cabinets, acoustic fields, microphones, vacuum tubes, transistors, etc. TAP button You can easily set the Delay Time or the tempo of the Rhythm & Bass function to match the tempo of the song. Value dial This lets you rapidly select programs or edit the effects.

Turning on the power Remove the battery cover located on the bottom of the PX4D by sliding it in the direction of the arrow. Insert four AAA alkaline batteries as shown in the illustration. Be sure to insert the batteries observing the correct polarity. An AC adapter is not included with this product. It must be purchased separately. Using the strap holder

1. Pass your strap through the strap holder.

Battery Low display When the battery begins to run low, the Low Battery icon will light. When this icon lights, replace the batteries as soon as possible. Programs and other data (except for the data being edited) will not be lost even if the battery is removed and changed.

Batteries that have run down must be removed from the PX4D. If you leave dead batteries in the unit, malfunctions (battery leakage, etc.) may occur. You should also remove the batteries when you do not expect to use the PX4D for an extended period of time.

2. Slide the protrusion (A) of the strap holder

into the attachment slot (B) on the rear of the PX4D.

3. Press in the direction of the

arrow (a) until locking tab (C) clicks into place.

4. Shake the PX4D lightly to verify that it does not fall off.

1. Press the strap holder locking

tab (C) in the direction of arrow (b) to release the lock.

2. With the lock released, slide

the PX4D in the opposite direction from when attaching it, and remove it from the holder. Controls and connectors

These knobs control the gain, tone, and volume of the amp models and synth parameters.

This button is used to switch an effect on/off, or to start recording in Phrase Trainer mode.

6. Input level switch

Use this to adjust the input level depending on the output level of your guitar or bass.

7. Amp Modeling selector

Selects the amp models.

Use these buttons to select programs and edit effects.

Connect this jack to your guitar amp, bass amp, or headphones etc.

14. Power switch/Backlight switch

This switch turns the power on/off, and also turns the backlight on/off. If you are operating the PX4D on batteries, the operating time will be shorter if the backlight is on.

Use this to adjust the master level, edit effects, and select programs.

Connect your guitar or bass to this jack.

Use this button to set the delay time or the tempo in Rhythm & Bass mode.

11. AUX jack (stereo)

Connect this jack to a CD player or other audio source.

Use these buttons to enter Rhythm & Bass, Phrase Trainer, or AUX Pitch modes.

The separately sold AC adapter (DC4.5V should be connected here.

Use these buttons to select the parameter that you wish to edit, and to operate the Phrase Trainer function.

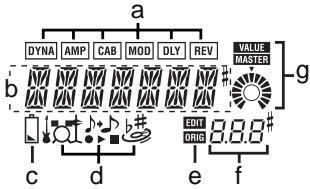

LCD screen d. Mode icons These icons will light when you are in AUX Pitch, Phrase Trainer, or Rhythm & Bass modes.

a. Effect chain This area indicates the on/off status of the DYNA, AMP, CAB, MOD, DLY, and REV effects. b. Program name/Effect type display This area shows the program name or effect type. When the PX4D is bypassed or muted, this will function as the tuner. c. Low Battery icon This icon will light when the batteries run low. e. Edit/Original icons The EDIT icon will light when you enter Edit mode. If the parameter or value being edited matches the value that is written in the program, the ORIG icon will light. f. Program number / value display This displays the program number. When you change the Master Level, its value will be displayed here for several seconds. During editing, this displays the parameter values. g. Master/Value icons, bar graph When MASTER is lit, the master level of the program is indicated graphically. When VALUE is lit, the value of the parameter is indicated graphically.

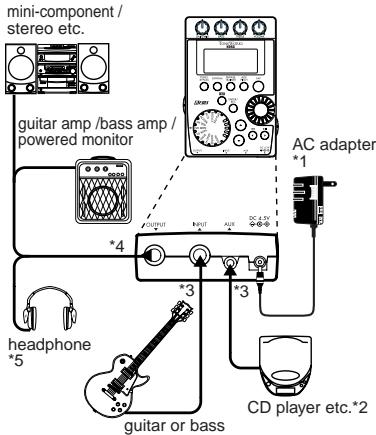

Making connections *1 Be sure to use only the specified AC adapt- When connecting an external device (ie-guitar amp, bass amp, CD player, ac adapter, etc.) be sure to turn the unit off. mini-component / stereo etc. er (DC4.5V

*2 If a CD player or other audio source is connected to the AUX jack, you can play along with your guitar or bass. However the volume must be adjusted from the connected device. *3 Connecting cables are sold separately. guitar amp /bass amp / powered monitor AC adapter

headphone CD player etc.*2 guitar or bass

*4 PX4D’s output jack is stereo. If you use a standard mono cable to connect it to a guitar or bass amp etc., only the L (left) output will be heard. *5 PX4D’s output level and sound quality will vary depending on which headphones are used. We recommend using good quality low impedance headphones, 32 Ohms or less with a sensitivity rating near 100dB/mW or above. Many headphones sold for use with portable CD or cassette players will work just fine. Initial Settings

1. When you finish making connections, set the

power switch to the “ON” position. (This setting is referred to as Play mode.) Use the ▲/▼ buttons to select a program.

2. Set the input level switch for the output level

of your guitar or bass. Hi: High-output pickups (e.g., humbucking pickups or pickups with a preamp) Lo: Low-output pickups (e.g., single-coil type pickups)

3. Set the volume control of your guitar or bass

to its usual position. Use the Value dial to adjust the master level. Quick Edit In each mode (except when Mute/Bypass or Key Lock are active), you can use the Amp Modeling selector to quickly change the amp modeling type, or use the control knobs to adjust the gain, tone, or volume of amp modeling. When you use the amp model selector to change the amp model type, the cabinet type will automat- ically change to the recommended type. When you move a control knob, the parameter name and value will appear for several seconds in the value display. If the setting matches the original setting, the ORIG icon will light. The Delay Time can also be set by pressing the TAP button twice at the desired interval (except when in Rhythm & Bass mode). To check the Delay Time that was specified, press and hold the TAP button for two seconds or longer. Amp gain, tone, and volume Program name Program number Set the delay time Input level switch Amp selection Master level adjustment Program selection

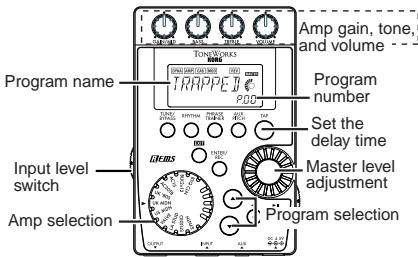

Settings that you make using Quick Edit will return to the original saved settings if you change programs or turn off the power before Writing (see p.28). Play mode Play mode is the mode in which you will normally use the PX4D.

1. Selecting a program

You can choose from 100 user programs ( U 0 0 . . . U 9 9 ) a n d 1 0 0 p r e s e t p r o gra m s (P00...P99). Use the ▲/▼ buttons to select a program. Programs can be selected even when you are in Rhythm & Bass mode, AUX Pitch mode, or Phrase Trainer mode (except while recording).

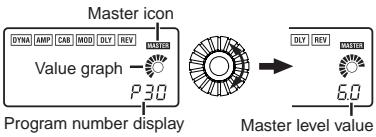

When the MASTER icon is lit, the value graph will indicate the master level. When you turn the Value dial to adjust the master level, the master level value will be shown in

the program number / value display for several seconds. The master level is remembered even when the power is turned off. Master icon Value graph Program number display Master level value You can also adjust the settings so that the ▲/ ▼ buttons will adjust the master level. (See p.16)

When you press the TUNE/BYPASS button, the PX4D will be bypassed, and the original sound will be dry (no effect). The effect chain will blink, and the display will indicate “BYPASS” for approximately one second. If you press and hold the TUNE/BYPASS button for longer than one second, the output signal will be muted. The effect chain will blink rapidly, and the display will indicate “MUTE” for approximately one second. Bypass/mute will be turned off when you press the TUNE/BYPASS button once again. You can also return to Play mode by pressing the EXIT button. Bypass or Mute can also be entered from modes other than Play mode. The display area will act as a meter to show the pitch. Tune each string of your guitar or bass so that the indicator above the center mark is lit. The tuner (bypass/mute) will be turned off when you press either the TUNE/BYPASS button. You can also return to Play mode by pressing the EXIT button.

Calibration (frequency of the standard A = 440 pitch) You can use the Value dial to adjust calibration in the range of A = 438 Hz...445 Hz. The calibration setting you make will be valid until the power is turned off. Once the power is turned off, calibration will be reset to A = 440 Hz. The tuner will operate when you bypass or mute. meter sharp note name calibration center mark Play a single string on your guitar or bass. The LCD will show the note name and the calibration. If the pitch is more than a semitone higher than the note name, a sharp symbol will appear at the upper right of the note name.

Dial You can specify the function that the Value dial will perform in Play mode. In Play mode, hold down the EXIT button and press either the √ button or the ® button to assign the following functions. ● Hold down the EXIT button and press the √ button. The LCD will indicate “MASTER” for approximately one second. The Value dial will adjust the master level, and the ▲/▼ buttons will select programs. You can use the Value dial to adjust the master level quickly. Each time the power is turned on, this setting will be in effect. Adjust the master level Select a program

● Hold down the EXIT button and press the ® button. The LCD will indicate “PROGRAM” for approximately one second. The Value dial will select programs, and the ▲/▼ buttons will adjust the master level. You can use the Value dial to select programs quickly. Select a program Adjust the master level If you want to change the function of the Value dial so that it will adjust the master level, again, hold down the EXIT button once and press the √ button, or turn on the power.

6. Key Lock function

Rhythm & Bass mode By activating the Key Lock function, you can disable all operations except for selecting programs. This is a convenient way to prevent accidental operation during a live performance. ● Hold down the EXIT button and press the TUNE/BYPASS button. The LCD will indicate “KEYLOCK” for approximately one second. The ▲/▼ buttons will select programs, and the other buttons and Value dial will not function. To enter Rhythm & Bass mode, press the RHYTHM button once when in Play mode (except for mute/bypass or key lock), AUX Pitch mode, or Phrase Trainer mode. When you enter this mode, the Rhythm Pattern selection screen will appear, the selected rhythm will start, and the Rhythm & Bass mode icon will light. The indication of the value graph will change according to the pattern or tempo. This mode contains the following five parameters. Use √/® buttons to select parameters, and use the Value dial and the ENTER/REC button to set the value of each parameter. Only program selection is possible If you select “CHAIN” as the rhythm pattern, there will be more chain pattern settings. (Refer to p.19, “Chain pattern settings”) The Key Lock function will be cancelled when the power is turned off. You can also cancel the Key Lock function by performing “5. Specifying the function of the Value Dial.” (p.16).

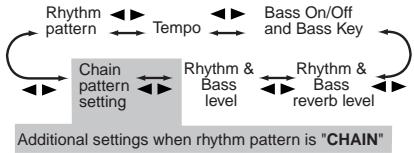

Rhythm pattern Tempo Rhythm & Bass level Chain pattern setting Bass On/Off and Bass Key Rhythm & Bass reverb level Additional settings when rhythm pattern is "CHAIN" If you select “JAM” as the recording mode in Phrase Trainer mode, the rhythm will sound with the pattern and tempo that you specify here. The settings you select here are remembered even when the power is turned off.

Set the tempo in the range of 40–208 bpm. You can also set the tempo by pressing the TAP button twice at the desired rhythm. For a 6/8 time signature, the tempo can be set in a range of =40–208. tempo display

3. Bass On/Off & Bass Key

Here you can switch the bass on/off, and specify the key in which the bass will play. If you press the ENTER/REC button in this screen, the bass will play in time with the rhythm. Depending on the rhythm pattern that you have selected, some bass lines will include a chord progression. When the bass note is on, you can use the Val ue dial to set the key in a range of C, C ...A , B, allowing you to practice your guitar or bass in a scale that matches that key.

5. Rhythm & Bass Level

key display Use the Value dial to set the level of Rhythm & Bass sound. The bass note will be affected only if Bass is turned on. If “METRONM” – “METRO7”(metronome) is selected as the rhythm pattern, there will be no bass notes, and this screen will not appear. When using Chain Patterns, the Bass Key setting will be ignored.

4. Rhythm & Bass Reverb Level

Use the Value dial to set the amount of Reverb for the Rhythm & Bass. Reverb level This uses the same reverb as the program effect. This parameter has no effect if you have selected a program that does not use reverb modeling, or if the reverb effect level is “0.” Rhythm & Bass level

6. Chain Pattern settings

These parameters are added only if you select “CHAIN” as the rhythm pattern. Press the ENTER/REC button to access the Chain Parameter Select screen. Use the √/® buttons to select the location (1...16) for which you want to change the pattern, and use the Value dial to select the pattern (p.46) that will be used at that location. Use the ▲/▼ buttons to specify the bass key of the selected pattern. Pattern location Key

Up to 16 patterns can be connected. If you want to create a chain of 15 or fewer patterns, select “PTN END” for the last pattern. Press the ENTER/REC button to exit the Chain Pattern Select screen. If you change the pattern location by turning the value dial while holding down the √ or ® button, the pattern at which you were located will be copied to the destination pattern location. This function is convenient when you want to place the same pattern again. Phrase Trainer mode An audio source from the AUX jack or a phrase you play on your guitar or bass can be recorded, and played back repeatedly as a loop. This provides a convenient way to practice by playing along with the repeating phrase. You can slow down the playback speed without affecting the pitch, which can help you to learn difficult phrases.

If you select “JAM” as the recording mode, the rhythm you specified in Rhythm & Bass mode will be recorded simultaneously with the guitar or bass input, and looped.

1. Select the recording mode

In Play mode (except during bypass/mute or key lock), Rhythm & Bass mode, or AUX Pitch mode, press the PHRASE TRAINER button to enter Phrase Trainer mode. When you enter this mode, the recording mode and time select screen will appear, and the Phrase Trainer icon will blink. In this screen, the PX4D will be ready to record. Recording mode Recording time Phrase Trainer icon The recording mode will cycle through the following choices each time you press the PHRASE TRAINER button. AUX Records only the AUX input GTR/BAS Records only the guitar or bass AUX+G/B Records both the AUX input and guitar or bass JAM Records the guitar or bass together with the rhythm that was last selected in Rhythm & Bass mode Use the value dial to select the recording time (for “JAM,” the number of measures).

1, 2, 3… Approximately 7.9 seconds Approximately 15.8 seconds Approximately 31.7 seconds Number of measures If the recording mode is “JAM,” the recording quality will be set automatically, based on the tempo and the specified number of measures. If the tempo of the rhythm is extremely slow, it will not be possible to record a large number of measures. Please re-specify the tempo in Rhythm & Bass mode (maximum length is approximately 31.7 seconds) Start playback on your CD or other audio source, and at the point where you wish to begin recording, press the ENTER/REC button. Recording will begin. If the recording mode is “JAM,” recording will begin after precount. If, after recording, you want to change the recording mode or recording time, press the PHRASE TRAINER button while playback is paused. The recorded content will be lost when the power is turned off. If you select a long recording time (16 or 32), the audio quality of the recording will be lower.

When you begin recording, the recording time will be indicated as a numerical value and by a value graph. The recorded phrase will playback as a loop. During playback or while paused, you can use the ▲/▼ buttons to select programs. Recording time display When you want to stop recording, press the ENTER/REC button or the [®❙❙]. Recording will stop, and loop playback will begin automatically. If you do not stop recording, recording will continue until the selected recording time has elapsed, and loop playback will begin automatically. If the recording mode is “JAM,” recording will end automatically at the specified number of measures, and will switch to loop playback. The phrase will be recorded and played back in mono.

playback time display playback speed(%) Rotating the Value dial toward the left will slow down the playback speed without affecting the pitch. You can choose from six levels of playback speed: 100%, 90%, 80%, 75%, 66%, and 50%. During playback, you can press the [√√] button to rewind. By pressing the PHRASE TRAINER button, you can hold the sound that was being played at the moment you pressed the button (the Hold function). This is convenient when you need to hear individual notes in a phrase.

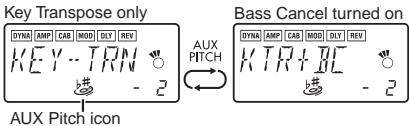

AUX Pitch mode When you press the [®❙❙] button, the playback will pause. Press the [®❙❙] button once again, and playback will resume. Pressing the [√√] button while playback is paused will return you to the beginning of the recorded phrase. In this mode you can transpose the key (pitch) of the sound from a CD or other audio source connected to the AUX jack. You can also apply the Bass Cancel effect to eliminate the low-frequency range. Press the AUX PITCH button to enter AUX Pitch mode and the icon will light. Each time you press the AUX PITCH button, you will alternate between Key Transpose Only and Key Transpose + Bass Cancel. If you wish to re-record the phrase, press the [®❙❙] button to pause playback. Start the CD or other audio source, and press the ENTER/REC button at the beginning of the desired phrase. If you want to change the recording mode or time, press the PHRASE TRAINER button while paused. Key Transpose only Bass Cancel turned on AUX Pitch icon By setting the Key Transpose setting to 0 and selecting Key Transpose + Bass Cancel, you can turn on the Bass Cancel function only. Press the EXIT button to return to Play mode.

The output will be mono in AUX Pitch mode. Edit mode The AUX Pitch setting is remembered even when the power is turned off. In this mode you can turn each effect on/off, and edit the effect type, parameter values, and program name. In Play mode, press the √ (or ®) button to access the DYNA effect edit screen. In any screen of Edit mode, you can use the control knobs to edit the Amp models, or use the TAP button to set the delay time. Press the EXIT button to reBefore turn to Play mode. writing If a program was not written after it was edited, the decimal After writing point of the program number will light. For some recordings, Bass Cancel may not be as effective as you would like. Use the Value dial to specify the amount of key transposition. The key can be transposed in a range of +/-1 octave. Display of 10 cent units Display of 100 cent units The value can be adjusted upward and downward for 3 semitones in 10 cent steps, and in semitone steps (100 cents) for the remainder of the range.

The edited settings will return to the settings of the original program if you switch programs or turn off the power without Writing (see p.28).

1. Select the effect that you wish to edit

1) DYNA (Dynamics & Pickup Modeling)

Each time you press the √/® buttons, you will cycle through the effects in the order shown below. When an effect is selected, its icon will blink. These are dynamics-type effects such as compressor and auto-wah that modify the tone, and pickup modeling effects. Parameter value On, Off Type selection

2. Editing each effect

2) AMP (Amp Modeling)

For each effect, you can select the effect type and set its parameter values. The fifteen types BTQ CLN–FUZZ are guitar amps, and the ten types VALVE–UKMAJOR are bass amps. SYNTH is a synth for both guitar and bass. Effects that are turned “OFF” will automatically be turned on if you press the ENTER/REC button or use the ▲/▼ buttons to select the effect type. For details on the effect types and parameters, refer to Effect Parameters (p.30). Renaming the program and writing the program are also performed here. Amount of distortion* Volume* Low range* High range* On, Off Mid range* Type selection

• Operation will be different if SYNTH is selected as the type.

The value display will indicate “Gt” for approximately one second if you’ve selected a guitar model, or “bA” if you’ve selected a bass model. The amp type selected by the amp modeling selector can be selected and edited even without entering Edit mode. When you use the Amp Modeling selector to select an amp, the PX4D will automatically select the most appropriate cabinet model and turn it on. The VOLUME control knob can be used to adjust the VOLUME even when the amp modeling effect is “OFF.”

3) CAB (Cabinet Modeling)

This simulates the acoustical characteristics of the amp’s cabinet. This is especially effective when you are not using an amp (e.g., when using headphones, or when connecting to a mixer, hard-disk recorder, or audio device). The eleven types 1X8TWD–4X12VIN are guitar amp cabinets, and the twelve types LA 4X10–COMBI are bass amp cabinets.

On, Off Presence Type selection The value display will indicate “Gt” for approximately one second if you’ve selected a guitar amp cabinet, or “bA” if you’ve selected a bass amp cabinet. You are free to use a guitar AMP with a bass CAB, or a bass AMP with a guitar CAB.

4) MOD (Modulation & Filter Effect Modeling)

These are modulation and filter-type effects such as chorus, flanger, phaser, and pitch shifter. On, Off Parameter value Type selection

5) DLY (Delay Modeling)

Adjust the depth of noise reduction These are spatial-type effects for which you can set the delay time by the interval at which you press the TAP button. On, Off Delay time Effect level Type selection

6) REV (Reverb Modeling)

These are spatial-type effects that add spaciousness to the sound. On, Off Effect level Type selection

7) NR (Noise reduction)

Use the Value dial to adjust the depth of the noise reduction that is applied. Increasing this value will produce more noise reduction. Normally you will adjust this so that you do not hear obtrusive noise when the strings are lightly muted. If the NR value is raised excessively, the sound may be cut off prematurely, depending on the device that is connected. If this occurs, reduce the value. Adjust the NR level as suitable for your guitar, bass, or pickup.

Here you can specify a name for each program. The following characters can be used: space, 0–9, A–Z, “, ‘, ❋, +, -, /. Select the character Select the character location

It is not possible to write to a preset program.

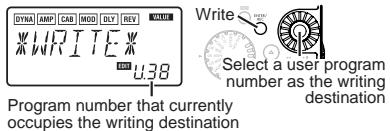

Here you can write (store) a program that you created. Use the Value dial to select the writing destination (User programs only). When you do so, the name of the program that currently occupies the writing destination will be displayed briefly. If you decide not to write, press the √ (or ®) button to select a different screen. When you press the ENTER/REC button, the edited program will be written into memory. When the program has been written, the LCD will indicate “COMPLT” for approximately one second. Write Select a user program number as the writing destination Program number that currently occupies the writing destination Before writing an edited program into a different program number, be sure that you do not mind overwriting the data that is currently in that program number. The program data that is overwritten will be lost.

3. Reloading the factory programs

While holding down the RHYTHM button and the ▲ button, turn on the power. The LCD will ask “RELOAD?” If you press the ENTER/REC button, the factory-set programs will be re-loaded into the user program area. The display will indicate “RELOAD”, “VERIFY”, “COMPLT” for a short time, and then the power-on screen will appear. Never turn off the power during the reload operation. If you decide not to reload, press the EXIT button while the “RELOAD?” indication is still shown. The factory programs will not be reloaded; the normal power-on screen will appear, and the PX4D will be in Play mode. Be aware that if you reload the factory programs, the user programs and any settings that are remembered when the power is turned off (master level etc.) will all be rewritten. Troubleshooting If the PX4D does not operate as you expect, please check the following points first. If this does not resolve the problem, contact your dealer.

1. Power does not turn on.

• Are batteries installed? Alternatively, is the correct AC adapter connected to an AC outlet?
• Are your guitar or bass, amp and/or headphones connected to the correct jacks?
• Is your amp turned on and set correctly?
• Are any cables broken?
• Is the master level of the PX4D set to “0” or to a low level?
• The VOLUME control knob may have been turned down.
• Is the PX4D muted? Be aware that if all effects are off, the chain display will disappear, and it will not be possible to distinguish Bypass or Mute from the LCD display.

• Is the volume of your guitar turned down?

3. The volume from the device connected to

the AUX jack is too loud or too soft, or cannot be heard.

• Adjust the output level of the connected device. Make connections to the headphone jack of the device, instead of to its line output.
• Are you in Phrase Trainer mode? Exit Phrase Trainer mode.
• Are you using a connection cable with a builtin resistor?

4. Effects do not apply

• Is the PX4D bypassed? (the effect chain will be blinking)
• Are the effects used in the program turned on?

5. Tuner does not work.

• Is the PX4D bypassed or muted?

• Effect Parameter DYNA (Dynamics & Pickup modeling) TYPE (π/† button) VALUE (Value Dial) COMP This compressor produces consistent levels and sustain. Adjusts sensitivity. (1.0 p. 10
• .0) DYNAEXC This effect dynamically applies an exciter according to your picking strength. (This is especially effective when you want to give more sparkle to clean sounds.) Adjusts sensitivity. (0 p. 10
• .0) VOX WAH Models a VOX V847 wah pedal. WAHUP1 Positive-polarity auto-wah that responds sensitively to attacks. WAHUP2 Positive-polarity auto-wah that responds smoothly to attacks. WAHDWN1 Negative-polarity auto-wah that responds sensitively to attacks. Adjusts location of a pedal. (1.0 p. 10
• .0) Adjusts sensitivity. (0 .0) WAHDWN2 Negative-polarity auto-wah that responds smoothly to attacks. p. 10

• SLOWATK Smooths the attack to create a violin-like effect. Specify the attack speed. (1.0 p. 10
• .0) OCTAVE This generates a pitch one octave lower than the original sound, and mixes it with the original sound to add a sense of depth and low end. This effect may not operate correctly if Adjusts effect level. (0 p. 10
• .0) two or more strings are played simultaneously, or when lowpitched strings are played. TYPE (π/† button) VALUE (Value Dial) RING An effect that produces bell-like sounds. (For the cleanest effect, use the neck pickup, turn down the tone control of your instrument, and play near the 12th fret.) RINGUP RINGDWN A ring modulator in which the effect changes dynamically depending on your picking strength. AC SIM An effect that simulates the tonal character of an acoustic guitar. HUMSGL Pickup modeling that transforms the sound of a humbucking pickup into the sound of a single-coil pickup. SGLHUM Pickup modeling that transforms the sound of a single-coil pickup into the sound of a humbucking pickup. HF TONE Pickup modeling that simulates the “half-tone” position between two pickups. PHASOUT Pickup modeling that simulates the “out of phase” sound when two pickups are connected out of phase. COMP2 A compressor with an emphasized attack. Adjusts sensitivity. (1.0 p. 10
• .0) LIMITER A limiter that makes the level more consistent. Specify the compression ratio. (0 p. 10
• .0) Specify the frequency. (1.0 p. 10
• .0) Adjusts sensitivity. (0 p. 10
• .0) Adjusts tone. (0 .0) p. 10

• TYPE (π/† button) B OD Overdrive for bass.* B DIST Distortion for bass.* VALUE (Value Dial) Amount of distortion. (1.0 p. 10
• .0) B FUZZ Fuzz for bass.* PREAMP1 Preamp set to a clear tone for bass. PREAMP2 Preamp set to a muted tone for bass. BALANCE Creates the sound of blending the output of two pickups for bass. LOWCUT Filter that cuts the unwanted low-frequency range. Effective for Adjusts frequency. (0 p. 10
• .0) recording. FRETLES Settings that simulate the sound of a fretless bass. Adjusts tone. (0 p. 10
• .0) Adjusts tone. (0 .0) *: This is usually an effect for bass, but you can use it with the SYNTH amp model to produce a thick sound when using a guitar. AMP (Amp Modeling) p. 10

When using Amp Modeling, the control knobs (GAIN/MID, BASS, TREBLE, VOLUME) and Value dial will be active. The VOLUME knob can still be used even when Amp Modeling is “OFF.” If SYNTH is selected as the type, the control knobs will control oscillator selection, VCF setting, direct level, and synth level respectively. Types marked by an asterisk* can also be selected by the amp modeling selector. In order to take full advantage of the characteristics of Amp Modeling, we recommend that you use it in conjunction with Cabinet Modeling when listening through headphones or when recording from line output. TYPE (π/† button or Amp modeling selector) BTQ CLN* Clean channel of a high-end 100 W hand made guitar amp. (recommended CAB: 4x12CLS, 4x12VIN, 4x12MDN) BTQ OD Overdrive channel of a high-end 100 W hand-made guitar amp. (recommended CAB: 4x12CLS, 4x12VIN, 4x12MDN) TWD1X12 Combo guitar amp covered in tweed cloth. (recommended CAB: 1x12TWD) TWD4X10 4x10 combo guitar amp designed for bass guitar. (recommended CAB: 4x10TWD) BLK2X12* 2x12 combo guitar amp indispensable for country or blues players. (recommended CAB: 2x12BLK) AC15* VOX AC15 manufactured in 1962. (recommended CAB: 1x12VOX) AC30 VOX AC30 modeling. (recommended CAB: 2x12VOX) AC30TB* Brilliant channel of a VOX AC30TB. (recommended CAB: 2x12VOX) UKBLUES UK-manufactured vintage stack guitar amp head. (recommended CAB: 4x12CLS) UK '70S High treble channel of a UK-manufactured 1969 model 100 W guitar amp head. (recommended CAB: 4x12CLS) VALUE (Value Dial & Control Knobs) GAIN/MID ............ amount of distortion BASS ................... low range TREBLE ............. high range VOLUME ....... output volume Value dial ............. mid range (0...10.0)

TYPE (π/† button or Amp modeling selector) UK '80S* UK-manufactured 1983 model 100W guitar amp head with master volume. (recommended CAB: 4x12CLS, 4x12VIN, 4x12MDN) UK MDN* UK-manufactured 100 W modern guitar amp. (recommended CAB: 4x12VIN, 4x12MDN) GAIN/MID ............ amount of distortion BASS ................... low range US HI-G 1991 model 100 W guitar amp head covered in snake skin. (recommended CAB: 4x12VIN, 4x12MDN) TREBLE ............. high range VOLUME ....... output volume US MDN* High-gain guitar amp with eye-catching metal plate. (recommended CAB: 4x12VIN, 4x12MDN) Value dial ............. mid range (0...10.0) FUZZ Vintage fuzz. VALVE* A vacuum tube bass amp with the ULTRA LO switch turned ON. (recommended CAB: CLS8X10) VALVE2 A vacuum tube bass amp ideal for rock. (recommended CAB: CLS8X10) CLASSIC A vacuum tube bass amp whose basic character changes according to the setting of the value dial. (recommended CAB: COMBI) SCOOPED

VALUE (Value Dial & Control Knobs) A bass amp that is typical of 80’s sounds. (recommended CAB: MTL4X10) GAIN/MID ............ mid range BASS ................... low range TREBLE ............. high range VOLUME ....... output volume Value dial ..... mid-range frequency (1...5) TYPE (π/† button or Amp modeling selector) VALUE (Value Dial & Control Knobs) LA STUD* A bass amp that is typical of the LA sound. (recommended CAB: LA 4X10, LA 1X18) GAIN/MID ............ mid range BASS ................... low range GOLDPNL A bass amp distinctive for its eye-catching gold panel and clean sound. (recommended CAB: MDN4X10) TREBLE ............. high range VOLUME ....... output volume JAZZ A combo bass amp favored by jazz bassists. (recommended Value dial ... mid-range frequency (1...5) CAB: JAZ1X15) GAIN/MID .......... gain setting A vacuum tube combo bass amp ideal for the Motown sound. (recommended CAB: STU1X15) BASS ................... low range STUDIO* AC100 A 100W vacuum tube bass amp made by Vox. (recommended CAB: AC 2X15) TREBLE ............. high range VOLUME ....... output volume UKMAJOR A 200W vacuum tube bass amp made in the UK. (recommended CAB: UK 4X15, UK 4X12) Value dial ............. mid range (0...10.0) SYNTH* Chromatic synth modeling. (recommended CAB:4X12MDN) Refer to separate Synth parameters

• Synth parameters Oscillator selection: 0: Sawtooth wave 2 octaves down 0 p. 15
• (GAIN/MID knob) 2: Sine wave 1 octave down 4: Sine wave 6: Sine wave 1 octave up Oscillators 8 p. 15
• are oscillators 1: Sawtooth wave 1 octave down 3: Sawtooth wave 5: Sawtooth wave 1 octave up 7: Sine wave 2 octaves up 0 p. 7
• with portamento turned on. VCF setting: 0…10.0 (BASS knob) Voltage Controlled Filter sensitivity adjustment. 0 p. 4
• .7 is sensitivity adjustment in the positive (+) direction, and 5.0 p. 10
• .0 is sensitivity adjustment in the negative (-) direction. Set this to 5.0 for a sine wave oscillator. Direct level: 0 p. 10
• .0 (TREBLE knob) Adjusts the volume of the guitar or bass. Synth level: 0 .0 (VOLUME knob) Adjusts the volume of the synth. Threshold adjustment: p. 10

1.0...10.0 (Value dial)

Adjusts the sensitivity of the synth in response to the volume of the guitar or bass. Adjust this as appropriate for your guitar, bass, or pickup. The Synth is effective only when single notes are played. The desired effect will not be obtained if chords are played. If your instrument is not tuned correctly, the results may not be as you expect. In this case, re-tune your instrument.

CAB (Cabinet modeling) TYPE (π/† button) 1X8TWD This model simulates an open back cabinet with one 8-inch speaker for guitar. 2X10BLK This model simulates an American open back cabinet with two 10-inch speakers for guitar. 4X10TWD This simulates an open back cabinet with four 10-inch speakers for guitar. 1X12TWD This model simulates an open back cabinet with one 12-inch speaker for guitar typically used for blues. 1X12VOX This model simulates a Vox open back cabinet with one 12inch “Blue” speaker for guitar. 2X12BLK This model simulates an American open back cabinet with two 12-inch speakers for guitar. 2X12VOX This model simulates a Vox open back cabinet with two 12inch “Blue” speakers for guitar. 4X12VOX A closed-back guitar cabinet used in recent VOX amps, containing four neodymium speakers 4X12CLS This simulates a closed back cabinet with four 25W 12-inch speakers for guitar. 4X12MDN This simulates a closed back cabinet with four 75W 12-inch speakers for guitar. VALUE (Value Dial) PRESENCE: Adjusts tone of the high-frequency range. (0...10.0)

VALUE (Value Dial) This simulates a closed back cabinet with four 30W 12-inch speakers for guitar. LA 4X10 Four 10-inch speakers / LA sound cabinet model for bass. MDN4X10 Four 10-inch speakers / modern-type cabinet model for bass. MTL4X10 Four 10-inch aluminum-cone speakers / modern cabinet model for bass. CLS8X10 Eight 10-inch speakers / classic-type cabinet model for bass. UK 4X12 STU1X15 Four 12-inch speakers / UK-manufactured cabinet model for PRESENCE: Adjusts tone of the high-frequency range. bass. (0...10.0) One 15-inch speaker studio combo cabinet model for bass. JAZ1X15 One 15-inch speaker jazz combo cabinet model for bass. AC 2X15 Two 15-inch speakers / cabinet model for AC100. US 2X15 Two 15-inch speakers / US-manufactured cabinet model for bass. UK 4X15 Four 15-inch speakers / UK-manufactured cabinet model for bass. LA 1X18 One 18-inch speaker / LA sound cabinet model for bass. COMBI One 12-inch and one 18-inch speaker combination cabinet model for bass. MOD (Modulation & Filter Effect Modeling) TYPE (π/† button) CHORUS1 Vintage chorus in which the effect sound is output to the left and the direct sound to the right. CHORUS2 Vintage stereo chorus that inverts the phase of the effect sound between left and right, creating more spaciousness. FLANG1…3 Vintage flanger with a distinctive sound. (1, 2, 3 have feedback amounts of 0%, 22%, and 60% respectively) FLANG4 Vintage flanger that inverts the phase of the feedback. PHASER1 A popular four-stage vintage phaser. PHASER2 A four-stage vintage phaser with a thick mid-range. PHASER3 A ten-stage vintage phaser with a mild effect. U-VIBE1 Simulation of a pedal vibe set to chorus mode. U-VIBE2 Simulation of a pedal vibe set to vibrato mode. TREM1 Smooth tremolo. TREM2 Tremolo built into a guitar amp. TREM3 Strong and deep tremolo. VALUE (Value Dial) Adjusts modulation speed. (0.1...10.0 [Hz]) Adjusts modulation speed. (1.0...10.0 [Hz])

Auto Pan. (LFO: square wave

AT PAN2 Auto Pan. (LFO: sine wave ROTARY1 Rotary speaker simulation.

ROTARY2, 3 Rotary speaker simulation in which your playing dynamics control the speed. 2 switches from slow to fast when you play strongly. 3 switches from slow to fast when you play softly. PITCH1…3 Pitch shifter (PITCH1, 2, 3 differ in the level of the effect). MAJ3UP Intelligent pitch shifter; a 3rd up in a major key. MAJ3DWN Intelligent pitch shifter; a 3rd down in a major key. MIN3UP Intelligent pitch shifter; a 3rd up in a minor key. MIN3DWN Intelligent pitch shifter; a 3rd down in a minor key. PER4TH Intelligent pitch shifter; a 4th up in a major key. PER5TH Intelligent pitch shifter; a 5th up in a major key. MAJ6TH Intelligent pitch shifter; a 6th up in a major key. VALUE (Value Dial) Adjusts modulation speed. (0.1...10.0 [Hz]) Adjusts modulation speed (1.0...10.0 [Hz]) Specify the level at which switch rotor speeds. (1.0...10.0) Amount of pitch shift (-24, -17, -12…-1, -d, d, 1…12, 19, 24) (d = detune) Specify the key (C, C#…A#, B) TYPE (π/† button) FEEDBK1, 2 An effect that artificially generates feedback, and operates when a note is held for an extended time. 2 generates feedback one octave higher. FEEDBK3, 4 An effect that artificially generates feedback, and operates constantly when sustained. 4 generates feedback one octave higher. FILTER Fixed filter effect. FILTUP1 Positive-polarity low-pass filter type auto-wah. FILTUP2 Low-pass filter auto-wah with positive-polarity and a strong peak. FILTDWN1 Negative-polarity low-pass filter type auto-wah. FILTDWN2 Low-pass filter auto-wah with negative-polarity and fast response. TALK 1…4 An effect that simulates a “talking guitar”.

1:YAH-YAH, 2:U-WAH, 3:YOI-YOI, 4:YEAH

VALUE (Value Dial) 0...4.7 adjusts the effect level.

5.0...10.0 adjusts the vibrato

• depth. Adjusts frequency (1.0 p. 10
• .0 [Hz]) Adjusts sensitivity (0 p. 10
• .0) Adjusts sensitivity (0.0 p. 10
• .0) RANDOM 1…4 Random step filter that moves a filter randomly. Adjusts modulation speed 1, 2, 3, and 4 by changing the frequency band affected by the (0.10 .0 [Hz]) filter. p. 10

About the Intelligent Pitch Shifter The Intelligent Pitch Shifter creates musically useful harmonies by varying the amount of pitch shift according to the note you play and the key in which you are playing. For example if you select a pitch shift of a 3rd up in a major key (MAJ3UP), the amount of pitch shift will vary automatically between three semitones (a minor third) and four semitones (a major third).

• When MAJ3UP is used with a key setting of C The pitch created by the intelligent pitch shifter is shown in parenthesis ( ). The PX4D provides seven types of intelligent pitch shifting, with intervals of a 3rd, 4th, 5th, and 6th. (For the 3rd, you can select either the upper or lower part, and a major or minor key.) If your instrument is not tuned correctly, the results may not be as you expect. In this case, re-tune your instrument. The intelligent pitch shifter will function when you play individual notes. It cannot produce the effect for chords.

DLY (Delay Modeling) Each delay type, (1, 2, 3, 4, 5) have different amounts of feedback. The delay time is set by the interval at which you press the TAP button twice. The specified delay time can be a maximum of 500 ms for SLAP or a maximum of 2 sec for MULTI, and can be checked by holding down the TAP button. TYPE (π/† button) SLAP1…5 VALUE (Value Dial) Slap-type delay whose delay time is 1/4 of the interval at which you press TAP. DELAY1…5 Stereo delay. PPDLY1…5 Dual-tapped ping-pong delay that pans the sound left and right. ECHO1…5 Tape echo simulation with a warm tone. MULTI1…5 Dual-head tape echo simulation with special stereo design. (creates a spacious reverberation) Adjusts effect level (0...10.0)

REV (Reverb Modeling) TYPE (π/† button)

DRYAIR Reverb that produces a sensation of dry air. WETAIR Reverb that produces a sensation of wet air. ROOM1 Bright-sounding room reverb. ROOM2 Mellow-sounding room reverb. PLATE1 Tight-sounding plate reverb. PLATE2 Bright-sounding plate reverb. HALL1 Reverberation of a mid-sized hall. HALL2 Reverberation of a large hall. SPRING1 Spring reverb of a guitar amp. SPRING2 Dense spring reverb. VALUE (Value Dial) Adjusts effect level (0...10.0) Preset Program Name No. Name No. Name 00…69: Guitar program, 70…99: Bass program No. Name No. Name No. Name P00 TRAPPED P20 DARK P40 SLOWPAN P60 SURF P80 THUMB P01 J-CLEAN P21 BOWATTK P41 FILTER P61 CHARLOT P81 COUNTRY P02 VELVET P22 LUCKY

No. Name C P No. Name C P No. Name C P No. Name C P No. Name

• The bass line of these rhythm patterns follow the chord progressions shown below. (The chord progressions when used in a pattern chain is shown in parenthesis [ ]. ) [ Im – IV ] – VIIm – III – VIm – II – V

16BEAT9 [ I (m) – V (m) ] – VI – VII

6/8 1 [ I – VI m ] – IV – V

POP2 [ I ] – VIm – IV – V

BLUES [ I ] – IV – I – V – IV – I – V LATIN1 I – IV JAZZ2 I (m) – IV – VII (m) – III

• Effects: 158 types (Maximum number of effects available simultaneously: 7)

• Number of programs: User: 100, Preset: 100
• Inputs: guitar input (1/4” jack) AUX (mini stereo jack)

• Output: line/headphone dual-purpose output (stereo phone jack)

• Tuner section: detection range: 27.5 Hz–2,093 Hz (A0–C7) calibration: A = 438 Hz–445 Hz

• Rhythm section: 40–208 bpm

• Power supply: four AAA alkaline batteries: Allows 10 hours of continuous use (backlight OFF) Allows 7 hours of continuous use (backlight ON) separately sold AC adapter (DC4.5V:

• Dimensions (W x D x H): 76 mm x 112 mm x 27 mm (2.99” x 4.41” x 1.06”)
• Weight (not including batteries): 138g (0.30lbs.)
• Included items: Owner’s manual, four AAA alkaline batteries for checking operation, Strap holder
• Option: AC adapter Appearance and specifications are subject to change without notice for product improvement.

CAB (Cabinet modeling) TYPE (Touchesπ/†)

8BEAT5 8FILL1 16BEAT9 6/8 1 6/8 2 5/4 POP1 POP2 BLUES JAZZ2 FASTJAZ I – IV I–V [ I (m) – V (m) ] – VI – VII [ I – VIm ] – IV – V [ Im – III ] – IV – V Im – Vm [ I – V – VIm – V ] – IV – IIIm – IIm – V [ I ] – VIm – IV – V [ I ] – IV – I – V – IV – I – V I (m) – IV – VII (m) – III Im – IV

1) DYNA (Dynamics & Pickup Modeling)

7) NR (Noise Reduction/

1) DYNA (Dynamics & Pickup Modeling)

6) REV (Reverb Modeling)

16BEAT9 [ I (m) – V (m) ] – VI – VII

POP2 [ I ] – VIm – IV – V

BLUES [ I ] – IV – I – V – IV – I – V

IMPORTANT NOTICE TO CONSUMERS

This product has been manufactured according to strict specifications and voltage requirements that are applicable in the country in which it is intended that this product should be used. If you have purchased this product via the internet, through mail order, and/or via a telephone sale, you must verify that this product is intended to be used in the country in which you reside.

WARNING: Use of this product in any country other than that for which it is intended could be dangerous and could

invalidate the manufacturer’s or distributor’s warranty. Please also retain your receipt as proof of purchase otherwise your product may be disqualified from the manufacturer’s or distributor’s warranty.
