USER MANUAL AX5G KORG

Table of Contents Precautions 4 Introduction 5 Main features 5

Front and rear panel 5 Front panel 5 Rear panel 6

Welcome! Thank you for adding the TONEWORKS AX5G Modeling Signal Processor to your r ig. Whether you’re playing live or in the studio, or practicing with headphones, the AX5G will give you countless hours of great sounds! To ensure a long and trouble-free relationship with your AX5G, please read this manual carefully, and use it as directed. When you’ve finished reading this manual, please keep it for future reference.

Installing batteries 6 Basic connections 7 Example of a connection to a guitar amp 7 Example of a connection to a mixer or recorder 7

Program mode 7 Selecting a program 7 Expression pedal 8

Creating your sound (Edit mode) 8 Signal flow 8 Selecting effects and adjusting the main parameters 8 Selecting and adjusting sub-parameters 9 Expression pedal settings 9 Saving a program (Write mode) 10 Checking the values saved in a program (Original Value) 10

Bypass and Mute 10 What is

? (Resonant Structure and Electronic circuit Modeling System) is Korg’s proprietary sound modeling technology which digitally simulates a wide range of factors that affect the sound, including the sound-producing mechanism of acoustic, electric, and electronic instruments, the body and cabinet resonances of these sounds, their acoustical sound field, the electrical and electronic response of the mics and speakers that propagate, these sounds, and even electronic circuit components such as vacuum tubes and transistors.

Bypassing the AX5G 10 Muting the AX5G 10

Tuner 11 Tuning procedure 11 Adjusting the tuner calibration 11 Adjusting the pedal sensitivity 11

Restoring the factory preset programs 12 Troubleshooting 12 Specifications 13

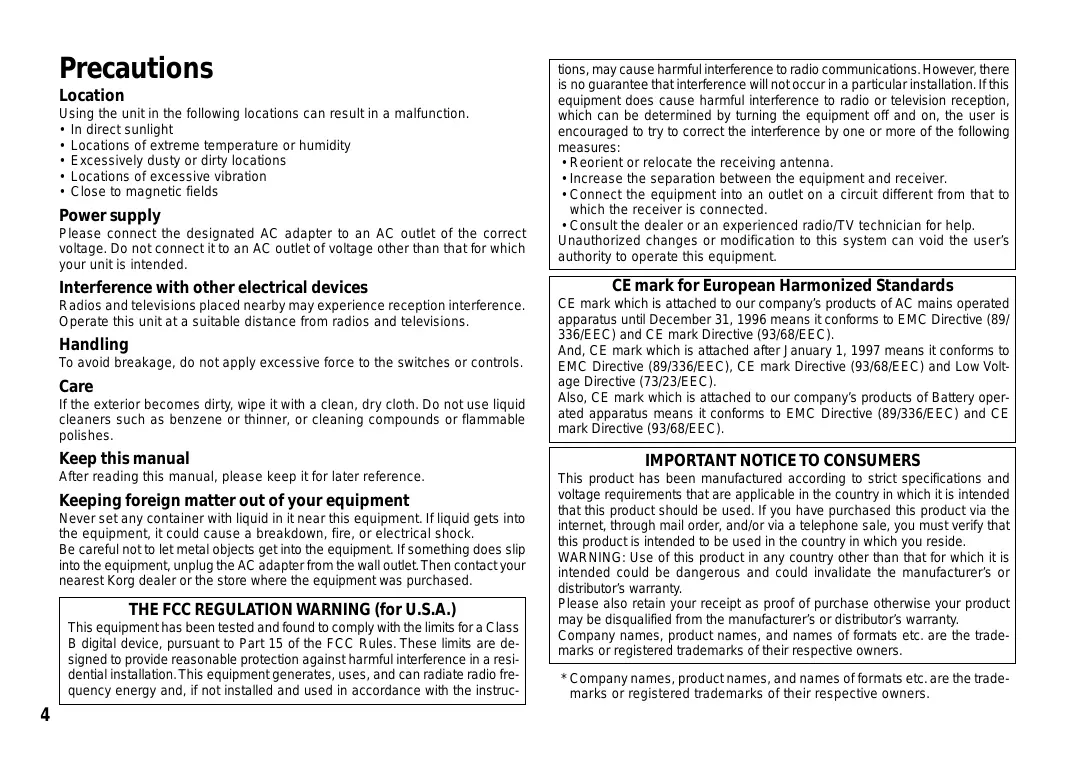

Precautions Location Using the unit in the following locations can result in a malfunction. • In direct sunlight • Locations of extreme temperature or humidity • Excessively dusty or dirty locations • Locations of excessive vibration • Close to magnetic fields

Power supply Please connect the designated AC adapter to an AC outlet of the correct voltage. Do not connect it to an AC outlet of voltage other than that for which your unit is intended.

Interference with other electrical devices Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

Handling To avoid breakage, do not apply excessive force to the switches or controls.

Care If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner, or cleaning compounds or flammable polishes.

Keep this manual After reading this manual, please keep it for later reference.

Keeping foreign matter out of your equipment Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown, fire, or electrical shock. Be careful not to let metal objects get into the equipment. If something does slip into the equipment, unplug the AC adapter from the wall outlet. Then contact your nearest Korg dealer or the store where the equipment was purchased.

THE FCC REGULATION WARNING (for U.S.A.) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Unauthorized changes or modification to this system can void the user’s authority to operate this equipment.

CE mark for European Harmonized Standards CE mark which is attached to our company’s products of AC mains operated apparatus until December 31, 1996 means it conforms to EMC Directive (89/ 336/EEC) and CE mark Directive (93/68/EEC). And, CE mark which is attached after January 1, 1997 means it conforms to EMC Directive (89/336/EEC), CE mark Directive (93/68/EEC) and Low Voltage Directive (73/23/EEC). Also, CE mark which is attached to our company’s products of Battery operated apparatus means it conforms to EMC Directive (89/336/EEC) and CE mark Directive (93/68/EEC).

IMPORTANT NOTICE TO CONSUMERS This product has been manufactured according to strict specifications and voltage requirements that are applicable in the country in which it is intended that this product should be used. If you have purchased this product via the internet, through mail order, and/or via a telephone sale, you must verify that this product is intended to be used in the country in which you reside. WARNING: Use of this product in any country other than that for which it is intended could be dangerous and could invalidate the manufacturer’s or distributor’s warranty. Please also retain your receipt as proof of purchase otherwise your product may be disqualified from the manufacturer’s or distributor’s warranty. Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. * Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners.

Main features ❑ Detailed and powerful modeling sounds delivered by Korg’s modeling technology. ❑ 58 types of modeling effect variation are built in, and you can use up to six different effects (including noise reduction) and volume pedal simultaneously. ❑ You can edit all of the parameters for each effect in the four effect categories (pre-effect, drive/amp, modulation, delay/reverb). ❑ Use these modeling effects to create your own sounds and store them in internal memory as one of 40 user programs. In addition, 40 more programs are provided as presets for immediate use. (p.54 “Preset program chart”) ❑ The AX5G provides an expression pedal that lets you control not only wah and volume but also many effect parameters, giving you enormous possibilities for live performance. ❑ The Quick Assign function lets you easily assign a parameter to the expression pedal with one touch. ❑ The delay sound is preserved when you switch between programs that have the same delay type and TIME parameter [P1] setting. Similarly, the reverb is preserved when switching between programs that have the same reverb type. ❑ A built-in auto chromatic tuner lets you tune while bypassed or muted.

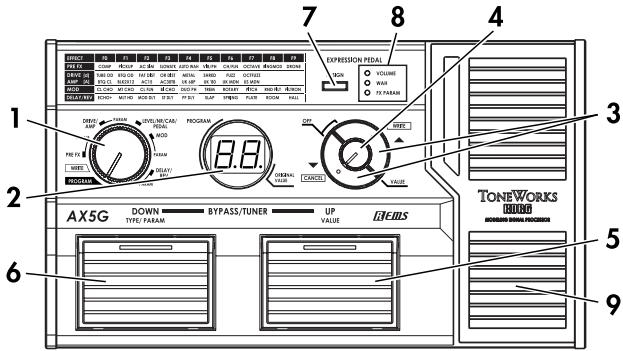

Front and rear panel This section explains the switches and connectors on the AX5G’s front and rear panels.

1. Function selector The operation of the up/down buttons and value knob will depend on the mode that’s chosen by this selector. You’re in Program mode when this selector is at the [PROGRAM] position, Write mode when at the [WRITE] position, and Edit mode when at the [PRE FX]–[DELAY/REV-PARAM] positions.

2. Program/Value display In Edit mode, this display indicates the effect type (F0–F9, d0–d7, A0– A7, LE, nr, Cb), the parameter (P1–P5) or its setting (value). In Write mode or Program mode, the display indicates the program number. When BYPASS/MUTE is active, the display indicates the name of the note you’re tuning.

3. [▲(WRITE)], [▼(CANCEL)] buttons In Effect mode, use these buttons to switch effect types or parameters. By pressing the two buttons simultaneously, you can turn each effect on/off. In Write mode, use these buttons to write a program. In Program mode, you can press these buttons to increment or decrement the program number in steps of 10. When you’re using the tuner, use these buttons to adjust the calibration setting.

In Edit mode, use this knob to adjust the value of a parameter. In Write mode, you can use this knob to specify the writing-destination for the program. In Program mode, this knob acts as the master volume.

5. Program Up switch In Program mode, use this to select programs. The program number will increase each time you press the switch. When the program/value display is indicating a parameter value, the LED in the upper part of this pedal will be lit or blinking. (It will blink if the currently-displayed parameter can be assigned for control by the expression pedal.)

6. Program Down switch In Program mode, use this to select programs. The program number will decrease each time you press the switch. In Edit mode, press this to make the effect or parameter type appear in the program/value display. When the program/value display is indicating the type of effect or program, the LED in the upper part of this pedal will be lit or blinking. (It will blink if the currently-displayed parameter can be assigned for control by the expression pedal.)

1. Input jack Connect your guitar to this jack.

2. Output jack Connect this jack to your guitar amp or headphones.

3. Power supply DC9V You can connect an optional AC adapter to this jack.

7. Pedal setting switch This switches the control target (volume, wah, or effect parameter) of the expression pedal. In Edit mode, you’ll use this to make settings for controlling an effect parameter from the pedal. (p.9 “Expression pedal settings”)

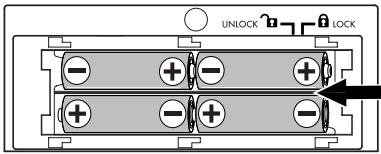

Installing batteries

8. Expression pedal LED This indicates the on/off status of the effect that’s selected for control by the expression pedal (ON: lit, OFF: blinking).

9. Expression pedal Use this to control volume, wah, or a parameter of another effect. By advancing the pedal all the way forward to egage the switch underneath it, you can switch the effect controlled by the expression pedal on/off. (p.9 “Expression pedal settings”)

1. Slide the cover of the battery case in the direction of the arrow, and open the cover. Insert four separately sold AA-size alkaline batteries, being sure to observe the correct polarity (“+” and “-” markings), and close the battery case.

AX5G Owner’s manual 2. When using batteries, the power will turn on when you insert a guitar cable into the AX5G’s INPUT jack. While the power is on, the display will indicate the program number or other information. The power will turn off when you remove the cable from the INPUT jack.

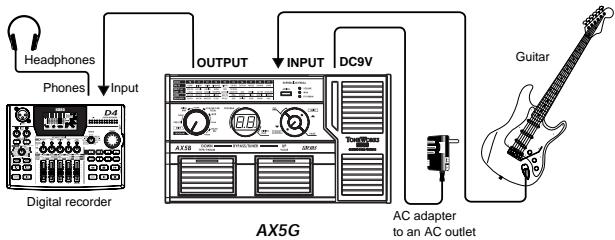

Example of a connection to a mixer or recorder Headphones Phones

Basic connections Be sure to make all connections with the power turned off. If you fail to use caution when making connections, you could damage your guitar amp or speaker system, or cause malfunctions.

1. Use a guitar cable to connect the AX5G’s OUTPUT jack to your gui-

AX5G AC adapter to an AC outlet

tar amp, mixer or recorder. When making connections or turning on the power, lower the volume of your amp or mixer so that you don’t hear noise If you’re using headphones, plug them into the OUTPUT jack.

2. Connect your guitar to the rear panel INPUT jack. If you’re using batteries, this will turn the power on.

3. If you’re using the optional AC adapter, connect it to the rear panel DC9V power supply jack, and then plug the adapter into an AC outlet to turn the power on.

4. Raise the volume of your amp or mixer to the appropriate volume.

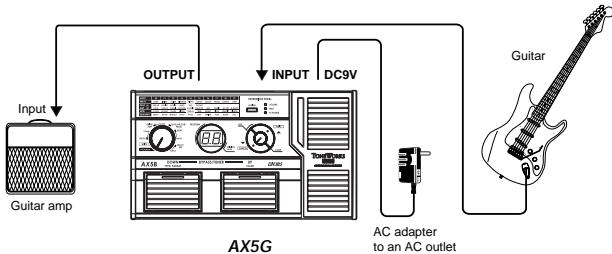

Example of a connection to a guitar amp

Settings for all the effects are collectively called a “program”. The AX5G has 80 programs which 40 (01–40) of them are rewritable. Programs 41–80 contain preset programs for immediate use. (p.54 “Preset program chart”) In Program mode, you can select programs by pressing the Program Down switch or Program Up switch, letting you change instantly between sounds. To enter Program mode, set the function selector to [PROGRAM]. (The LEDs in the upper part of the Program Up/Down switches will light.)

Selecting a program Guitar

INPUT OUTPUT Program mode

1. Make sure that the function selector is set to [PROGRAM]. In Program mode, the LEDs of both the Program Up and Program Down switches will be lit. When you turn on the power, you’ll be in Program mode regardless of the position of the function selector.

2. Turn the value knob to adjust the master volume. Guitar amp

AX5G AC adapter to an AC outlet

If you’ve connected the AX5G to a guitar amp, set the master volume to 50(Maximum value).

3. Press the Program Up or Program Down switch to select a program. The program/value display shows the number of the program you selected.

Expression pedal Each program specifies the expression pedal’s control target (volume, wah, or an effect parameter). When you move the pedal up or down while performing, the sound of the program will change accordingly. By pressing the pedal setting switch, you can change the target controlled by the expression pedal. Each time you press the switch, the control target will change in the order of VOLUME ➜ WAH ➜ FX PARAM ➜ VOLUME ..., and the LED for the target being controlled will light or blink. VOLUME (LED=orange): The pedal will operate as a volume pedal. WAH (LED=red):

The pedal will operate as a wah pedal. In this case, [PRE FX] will be assigned as a pedal wah.

FX PARAM (LED=green): The pedal will control the effect parameter specified by that particular program. For a program that assigns the expression pedal’s control target as WAH or FX PARAM, advancing the pedal forward will turn off the effect being controlled by the pedal, and the expression pedal LED will change from lit to blinking. Once again advance the pedal forward, and the effect being controlled will turn on; the expression pedal LED will change from blinking to lit. If the expression pedal’s control target is VOLUME, the position of the volume pedal will control the volume of the selected program. In the case of WAH or FX PARAM, the sound of the program will not change until you actually operate the expression pedal after switching programs.

VOLUME PEDAL is available if the expression pedal’s control target is set to VOLUME.

Edit mode is when the function selector is in one of the [PRE FX]–[DELAY/REV PARAM] positions. You can change the effect type for each category ([PRE FX], [DRIVE/ AMP], [LEVEL/NR/CAB/PEDAL], [MOD], [DELAY/REV]), and edit the parameters to create your sound.

Selecting effects and adjusting the main parameters [PRE FX], [DRIVE/AMP], [MOD], [DELAY/REV] To select the effect you want to use in each of the categories [PRE FX], [DRIVE/AMP], [MOD], and [DELAY/REV], set the function selector to the appropriate position and use the [▲] or [▼] buttons. The program/value display will indicate a value of F0–F9 (in the case of DRIVE/ AMP, d0–d7 or A0–A7), and the LED in the upper part of the program down pedal will light (or blink), indicating that the effect type is being shown. The effect list printed on the panel tells you the effect type that is selected.

By turning the value knob you can adjust the main (most important) parameter for the currently selected effect. At this time, the program/ value display will indicate the value of the parameter, and the LED in the upper part of the program up pedal will light (or blink) to indicate that the parameter value is being displayed. To turn an effect on/off, press both the [▲] and [▼] buttons simultaneously. When an effect is on the effect type is shown, and when an effect is off ”. the display indicates “

Creating your sound (Edit mode) Signal flow

PRE FX DRIVE/AMP CABINET DELAY / REVERB MOD VOLUME PEDAL NR

When you select an effect, the AX5G automatically sets the parameters of that effect to their most effective values. In other words, you can create great sounds just by choosing an effect for each of the categories PRE FX, DRIVE/AMP, MOD, and DELAY/REV, without having to make detailed parameter settings. By adjusting the main parameters, you can tweak your sound to what you have in mind.

AX5G Owner’s manual Selecting and adjusting sub-parameters [PRE FX-PARAM], [DRIVE/AMP-PARAM], [MOD-PARAM], [DELAY/ REV-PARAM] Here’s how to edit the sub-parameters of the effect you’ve selected for each of the [PRE FX], [DRIVE/AMP], [MOD], and [DELAY/REV] categories. When you press the [▲] or [▼] buttons, the program/value display will indicate a value of P1–P5, and the LED in the upper part of the program down pedal will light (or blink) to indicate that the parameter type is being displayed. For the sub-parameters that correspond to P1–P5, refer to p.50 “Parameter List”.

Now you can use the value dial to edit the sound by adjusting the various sub-parameters. At this time, the program/value display will indicate the parameter value, and the LED in the upper part of the program up pedal will light to indicate that the parameter value is being displayed. If the effect is turned off, the program/value display will indicate “ ” when you set the function selector to a [PARAM] position for that category. If you want to edit the parameters of that effect, simultaneously press both the [▲] and [▼] buttons to turn the effect on.

■ Quick guide To select an effect and edit it to your taste, you should first adjust the main parameters, and then adjust sub-parameter P1. In most cases, you’ll be able to get the sound you want by adjusting these two parameters.

[LEVEL/NR/CAB/PEDAL] Set the function selector to this position when you want to adjust the program level, noise reduction, or cabinet modeling. Then press the [s] or [t] buttons to cycle the display through “ ”(program level), “ ” ”(cabinet), and “ ”, “ ”(Expression pedal (NR sensitivity), “ target range). Use the value knob to adjust each parameter. : Use the value knob to adjust the program level (0.0–10). A setting of 5.0 is the standard value. Some effect settings may cause clipping. If this occurs, lower the program level. : Adjust the noise reduction sensitivity (0.0–10) so that you don’t hear noise (hiss) when you’re not playing your guitar.

Depending on the guitar you’re using, notes may be cut off if you raise the noise reduction value excessively. Adjust this so notes ring out naturally.

: Select the type (C0–C9) of cabinet modeling. You can’t edit the cabinet model if the drive/amp model is off. In this ”. case, the LED will indicate “ Cabinet modeling is associated with the drive/amp model. It works only if the drive/amp model is turned on. When you change the drive/ amp model type, the most suitable cabinet model is selected automatically. Cabinet modeling is associated with the drive/amp model. It works only if the drive/amp model is turned on. When you change the drive/ amp model type, the most suitable model is selected automatically.

: Specify the value of the parameter when the expression pedal is fully returned toward yourself. : Specify the value of the parameter when the expression pedal is fully advanced away from yourself.

Effect/parameter type and parameter value display When you press the Program Down switch in Edit mode, the program/ value display will indicate the effect type or parameter type (F0–F9, d0– d7, A0–A7, P1–P5). When you press the Program Up switch, the program/value display will indicate the parameter value. This gives you a convenient way to check the current settings.

Expression pedal settings Make the program/value display show the effect parameter (F0–F9, d0– d7, A0–A7, P1–P5). Make sure that the LED of the program up pedal or program down pedal is blinking, and then hold down the pedal setting switch for about one second. You can’t use the expression pedal to control a parameter for which the program up pedal or program down pedal does not blink.

The program/value display will briefly indicate “ ”(Complete), and you’ll be able to use the expression pedal to control the effect parameter.

If the expression pedal’s control target is FX PARAM, changing the category of the effect controlled by the pedal will reset the pedal control target to the most useful parameter of the selected effect. (p.50 “Parameter List”) If you set the expression pedal’s control target to FX PARAM, the corresponding effect will automatically be turned On. If, in this state, you operate the pedal or press the pedal setting switch once to select VOLUME without editing the setting, the effect will automatically be turned Off again. However, if you did operate the pedal or edit the setting, the effect will remain On even if you press the pedal setting switch once again to select VOLUME as the target. If the expression pedal’s control target is WAH, you can turn the function select knob to [PRE FX] (the display will indicate “ ”) or [PRE FXPARAM] and edit the WAH parameters. When the expression pedal’s control target is WAH, changing the [PRE FX] effect type will switch the expression pedal’s control target to VOLUME.

Saving a program (Write mode) Here’s how to save (write) a sound that you’ve created. If you switch to a different program in Program mode or turn off the power without writing your settings into memory, the changes you made will be lost.

1. Set the function selector to [WRITE]. 2. Press the [▲(WRITE)] button. The program number will blink. 3. Use the value knob or the program up/down switches to select the program in which you want to save your settings.

4. Press the [▲(WRITE)] button once again. The program will be saved, and the program/value display will indicate “

”(Complete) briefly.

The newly saved program will overwrite (i.e., replace) the existing settings, so that the previous program in that location will be lost. If you decide not to save the new program, press the [CANCEL] button to cancel the operation.

Checking the values saved in a program (Original Value) In Edit mode, the original value LED in the program/value display indicates the parameter value that is saved in the program. When you use the knob or switches to modify the value of a parameter, the Original Value LED will light when that value matches the value that’s already been saved in the program (i.e., the original value).

The original value LED won’t light in Program mode.

Bypass and Mute Bypass (which turns off all effects including noise reduction) and Mute (which mutes the AX5Gs output) are convenient functions for use while you’re adjusting your guitar amp, tuning during a live performance, or switching guitars. Here’s how to use Bypass or Mute.

Bypassing the AX5G Simultaneously press the Program Up and Program Down switches; all effects will be bypassed. At this time, the program/value display will indicate “ ”.

Muting the AX5G Simultaneously press and hold down the Program Up and Program Down switches for about one second and the output will be muted. At this time, the program/value display will indicate “ ”. When bypassed or muted, the Auto Chromatic Tuner will be active. To cancel the bypass or mute function, press the Program Up or Program Down switch (this will not change the program). At this time the value knob will operate as the master volume.

AX5G Owner’s manual Adjusting the pedal sensitivity

Tuner The AX5G has a built-in Auto Chromatic Tuner. You can calibrate the reference pitch (the note “A”) of the tuner in a range of A438 Hz–A445 Hz.

Tuning procedure 1. The Auto Chromatic Tuner will be activated when the AX5G is bypassed or muted. If you want to tune silently, such as during a live performance, simply mute the AX5G.

2. Play a note on your guitar and the program/value display will indicate the name of the closest note. Note names are indicated as follows. Note name

B If fully advancing the pedal does not produce the maximum effect or volume even though the AX5G’s expression pedal / settings are respectively set to minimum/maximum, or if the effect or volume does not reach the minimum when you fully return the pedal, or if fully advancing the pedal does not switch the effect on/off when the expression pedal setting is WAH or FX PARAM, use the following procedure to adjust the sensitivity of the expression pedal so that it will operate optimally. When adjusting the sensitivity, you should use your foot to operate the expression pedal. Accurate adjustment may not be possible if you use your hand.

1. Turn the power off. 2. While holding down

the pedal setting switch and the [▲(WRITE)] button, turn on the power. Continue holding down these two switches until the program/value display indicates “ ”(Pedal).

3. If your guitar is sharp (pitch too high), the Program Up switch LED will blink. If your guitar is flat (pitch too low), the Program Down switch LED will blink. In either case, more rapid blinking indicates that your guitar is farther from the correct pitch. When in tune, both the Program Up and Program Down LEDs will light.

Adjusting the tuner calibration When you turn on the power, the built-in tuner is set to a reference pitch of A 440 Hz (concert pitch). You can use the [▲]/[▼] buttons to calibrate this in the range of 438 Hz–445 Hz. When doing so, the program/value display will indicate a value of 38–45.

3. Release your hand from the switches, and return the expression pedal back towards yourself. Take your hand off the pedal

Return toward yourself

When you turn off the power, the calibration adjustment you made will be discarded and the AX5G will automatically be set to 440 Hz.

4. Advance the expression pedal forward to the position where the effect should turn on/off. Advance pedal

2. Release your hand from the switches you were pressing. 3. If you wish to reload the factory settings press the [▲(WRITE)] but”(Load) and reloadton. The program/value display will indicate “ ing will begin. When reloading is completed, the program/value display will indicate “ ”, and the AX5G will automatically enter Program mode.

5. Take your foot off the expression pedal while it’s still advanced forward. 6. The pedal will return by itself when you remove your foot. When the pedal has returned by itself, press the [▲(WRITE)] button. The display will indi”(Complete) and the sensitivity will be adjusted. After the display cate “ has indicated “ ” the AX5G will automatically switch to Program mode. If you decide not to carry out this adjustment, press the [▼(CANCEL)] switch.

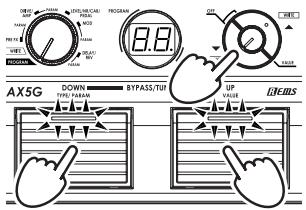

Restoring the factory preset programs Here’s how to restore (reload) the AX5G’s programs back to factory preset programs. When you execute this operation, all the programs you created and stored inside the AX5G will be erased, and replaced by the factory programs.

holding down both the Program Up and Down switches as well as the [▼(CANCEL)] button, turn on the power. Continue holding down the pedal and switch until the program/value display indicates “ ”(Reload).

You can’t cancel the reload operation once you’ve pressed the [▲ (WRITE) ] button. Never turn off the power while reloading. If you decide to cancel the reload operation, press the [▼(CANCEL)] button while the program/value display indicates “ ”.

Troubleshooting If you suspect a malfunction, please check the following points. If this does not resolve the problem, please contact a nearby dealer.

1. Power does not turn on ❑ Have the batteries have run down? When the batteries run low, the display will blink “ ”. We recommend that you replace the batteries as soon as possible. If batteries become unusable, remove them immediately. Leaving drained batteries in the unit can cause malfunctions such as battery leakage. You should also remove the batteries if you won’t be using the AX5G for an extended time. ❑ Have you have inserted a stereo cable into the INPUT jack? When operating the AX5G on batteries, the power will not turn on if you insert a stereo cable. Be sure to use a mono cable. ❑ Is the AC adapter connected to the rear panel DC9V jack? ❑ Is the AC adapter plugged into an AC outlet? ❑ Could the AC adapter be damaged?

AX5G Owner’s manual 2. No sound ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑

Is the volume of your guitar turned down? Is your guitar cable connected correctly? Is your guitar cable broken? Are the DRIVE/AMP or PROGRAM LEVEL (LEVEL/NR/CAB/ PEDAL) parameters turned to a low value? Is the volume turned down for another effect? If VOLUME is assigned as the control target of the expression pedal, could you have turned the volume down? Is the Mute function activated? Refer to “Bypass and Mute” (p.10) and cancel the Mute function. Is the master volume turned down? Set the function selector to [PROGRAM], and turn the value knob to adjust the master volume.

3. Effects don’t apply ❑ Could an effect be bypassed? ❑ Is the modulation “DEPTH” or the delay/reverb “MIX” set to a low value? ❑ Is the AX5G in Bypass mode? Refer to “Bypass and Mute” (p.10) and cancel the Bypass function.

4. High frequencies are distorted when using ACOUSTIC (AC SIM) ❑ Are you applying too much drive? Lower the DRIVE/AMP [GAIN] setting. ❑ Are you using a guitar that has high output humbucking pickups? Lower the volume of your guitar.

Specifications Number of effects:

Pre-effect types: 11 (Pre-effect 10 + Pedal-wah 1) Drive/Amp Model types: 16 Cabinet Model types: 10 Modulation Effect types: 10 Delay Effect types: 5 Reverb Effect types: 5 Noise Reduction: 1 Number of programs: 80 (40 user/40 preset) Audio input: 1/4” (mono) Audio output: 1/4” (stereo TRS) Signal processing: A/D conversion: 24 bit D/A conversion: 24-bit Sampling frequency: 31.25 kHz Tuner: Detection range : A0–E6 Calibration: A=438–445 Hz Power supply: Four alkaline AA batteries (continuous use of eight hours) or DC9V (separately sold) AC adapter Dimensions (W ✕ D ✕ H): 249 ✕ 143 ✕ 44 mm / 9.8 ✕ 5.6 ✕ 1.7 inches Weight: 650 g / 22.9 oz. Included items: Owner’s manual Options (separately sold): DC9V AC adapter * Specifications and appearance are subject to change without notice for improvement.

5. Sound connected to the guitar amp is distorted, or sounds wrong ❑ Is the AMP parameter “P5” (AMP/LINE) set to “ Ln ” (LINE)? Change the AMP parameter “P5” (AMP/LINE) setting to “A1”–“A3” (AMP). ❑ Is the DRIVE/AMP [VOLUME] setting or the PROGRAM LEVEL (LEVEL/NR/CAB/PEDAL) [LEVEL] setting raised excessively?

This is the parameter that will be automatically assigned for control by the pedal if you change the effect type within a category that includes the effect currently assigned for pedal control.

P3 BASS 0...10 BASS 0...10 BASS 0...10 BASS 0...10 BASS 0...10 BASS 0...10 BASS 0...10 BASS 0...10 BASS 0...10 BASS 0...10

About the AMP/LINE setting Use this setting to specify the type of device to which you've connected the AX5G; such as a guitar amp, mixer or recorder. This setting compensates the output from the guitar amp model so that it will be suitable for connection to the input jack of your guitar amp. A1: Use this setting if you've connected the AX5G to a clean-sounding amp, such as a typical US-made open-backed combo. A2: Use this setting if you've connected the AX5G to an amp with a distinctive mid-range character, such as a UK-made open-backed combo. A3: Use this setting if you've connected the AX5G to a stack-type amp, such as a 4x12 closed-back cabinet. Ln: Use this setting if you've connected the AX5G to a line input, to the power amp input of a guitar amp, or to a recorder.

MIX MODE MODE TRACKING DEPTH DEPTH C0...C9

SPEED MIX MANUAL GAIN SPEED MIX MANUAL SPEED RESO PITCH Clean Crunch Lead Solo Acoustic SE Lead Wah+Solo Dist Crunch Lead SE Clean SE Lead Lead Crunch OD Lead
