| Product type | Decorative chimney hood |
| Brand | Gorenje |
| Model | WHI849EB |
| Width | 90 cm |
| Depth | 50 cm |
| Height (chimney) | Min. 60 cm, max. 120 cm |
| Net weight | 18 kg |
| Power supply | 230 V ~ 50 Hz |
| Maximum power | 180 W |
| Exhaust duct diameter | 150 mm |
| Number of speeds | 4 speeds + intensive |
| Lighting | 2 LED bulbs (3 W each) |
| Grease filters | Dishwasher-safe metal filters |
| Charcoal filter (optional) | Compatible model: CHR-15 |
| Usage mode | External exhaust or recirculation |
| Maximum noise level | 65 dB(A) |
| Energy class | A (scale A+++ to D) |
| Maintenance | Clean grease filters monthly, replace charcoal filter every 3-6 months |
| Safety | Automatic shutdown in case of overheating |
| Spare parts available | Filters, bulbs, remote control (optional) |
| Warranty | 2 years |
Frequently Asked Questions - WHI849EB GORENJE
How to install the WHI849EB hood?
Installation must be carried out by a qualified professional. The hood must be firmly fixed to the wall, at a height of 65-75 cm above the cooking surface. Ensure that the exhaust duct (diameter 150 mm) is properly connected or that the charcoal filter is installed for recirculation mode.
How to use the different speeds?
Use the control buttons to select the desired speed: speed 1 for gentle cooking, speed 2 or 3 for normal cooking, speed 4 for strong odors. The intensive (Boost) button provides maximum power for 10 minutes, then automatically returns to the previous speed.
How to clean the grease filters?
The metal filters can be washed in the dishwasher or by hand with warm soapy water. Allow them to dry completely before reinstalling. It is recommended to clean them monthly to maintain hood efficiency.

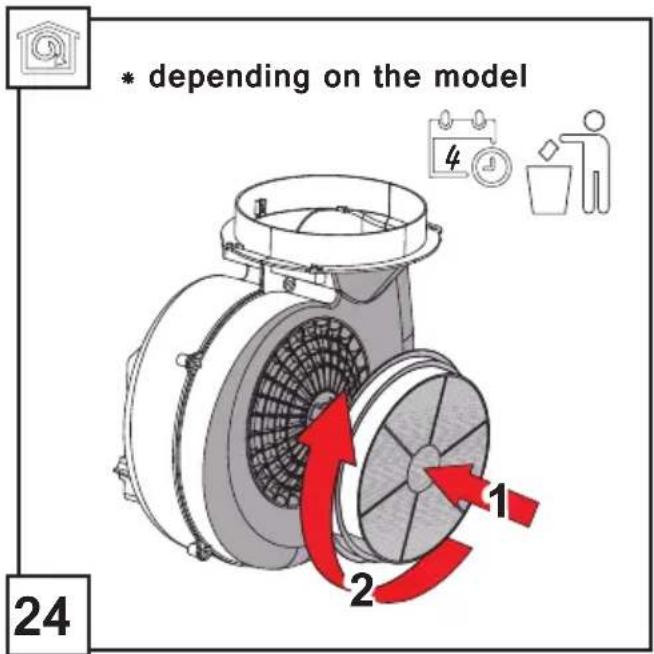

When should the charcoal filter be replaced?
The charcoal filter should be replaced every 3 to 6 months depending on use. If the hood is used frequently for frying or odorous cooking, replace it more often. Use the compatible CHR-15 reference.
What to do if the hood does not turn on?
First check that the hood is properly plugged in and that the circuit breaker has not tripped. If the problem persists, inspect the power cable and internal connections. If no solution works, contact customer service.
How to change the LED bulb?
Unplug the hood before any intervention. Remove the lighting cover, unclip the defective LED bulb and insert a new bulb of the same type (3 W, GU10 base). Replace the cover and plug the appliance back in.
The hood is making an abnormal noise, what to do?
An abnormal noise may be caused by an object stuck in the fan or a poorly positioned filter. Turn off the power and check the inside of the hood. If the noise persists, the motor bearings may be worn; call a professional.
Can the hood be used without external exhaust?
Yes, in recirculation mode. You must install a charcoal filter (not supplied) that absorbs odors before returning the air to the room. Follow the instructions in the manual for installation.
What is the recommended installation height?
For a hood above an electric or induction hob, the minimum distance is 65 cm. For a gas hob, the minimum distance is 75 cm. This height optimizes smoke extraction while respecting safety standards.
Where to find spare parts for the WHI849EB?
Spare parts (filters, bulbs, remote control) are available from Gorenje authorized dealers or on the official website. Use the model number WHI849EB to identify compatible parts.
