USER MANUAL 27P MTD

Warranty Statement	Page 1	Maintenance Instructions	Pages 11-13
Rules for Safe Operation	Pages 2-6	Specifications	Page 13
Assembly Instructions	Page 7	Parts List	Page 14
Adjustment Instructions	Pages 8	Notes	Page 15
Operating Instructions	Page 9-10	Manufacturer's Limited Warranty	Page 16

WARRANTY STATEMENT

TWO YEAR LIMITED WARRANTY ON YARD MACHINES GRASS TRIMMER

For two years from the date of purchase, when this grass trimmer is used and maintained according to the operator's manual, Yard Machines will repair any defect in material for workmanship free of charge.

If this grass trimmer is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THIS GRASS TRIMMER TO THE NEAREST MTD REPAIR DEALER.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

SYMBOL MEANING

SAFETY ALERT:

Indicates danger, warning or

caution. Attention is required in order to avoid serious personal injury. May be used in conjunction with other symbols or pictographs.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

Read the Operator's Manual(s) and follow all warnings and safety instructions.

Failure to do so can result in serious injury to the operator and/or bystanders.

FOR QUESTIONS, CALL 1-800-668-1238

SYMBOL MEANING

DANGER:

Failure to obey a safety warning will

result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

WARNING: Failure to obey a safety warning can result in injury to yourself and others.

Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

CAUTION: Failure to obey a safety warning may result in property damage or personal injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

- IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE OPERATING

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.

WARNING: When using the unit, safety rules.

Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

• Do not operate this unit when tired, ill or under the influence of alcohol, drugs or medication.
• Children must not operate the unit. Teens must be accompanied and guided by an adult.
• All guards and safety attachments must be installed properly before operating the unit.

• Inspect the unit before use. Replace damaged parts. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped or damaged in any way. Do not operate the unit with loose or damaged parts.

• Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc.

• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 feet (15m.) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the unit immediately.

PLEASE READ - SAVE THESESTRUCTIONS

When using an electrical appliance, basic precautions should always be followed to assure maximum safety and optimum performance. Read this manual before assembling and operating this appliance. Failure to comply with instructions may result in electrical shock, burns, fire, or personal injury.

WARNING

1-1. TO REDUCE THE RISK OF ELECTRIC SHOCK, BURNS, FIRE OR PERSONAL INJURY:

1. FOLLOW ALL SAFETY INSTRUCTIONS listed in this manual before/during operation of this trimmer.
2. TO REDUCE THE RISK OF ELECTRIC SHOCK this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized extension cord only one way. If the plug does not fit fully in the extension cord, reverse the plug. Do not change the plug in any way.
3. INSPECT UNIT FOR DAMAGE to the housing or plug. Keep all fasteners tight. Do not use if the trigger does not turn the unit off properly. Never use unit if cord or plug has been damaged, the motor or unit itself is not working as it should or has been dropped, damaged, left outdoors or dropped in water. Never operate with any air opening blocked. Keep air openings free of debris that may reduce air flow. Replace damaged parts that are chipped, cracked or damaged in any way. Keep cutter knife sharp.
4. DOUBLE INSULATED to help protect against electric shock. Double insulation construction consists of 2 separate "layers" of electric insulation. Appliances built with this insulation system are not intended to be grounded. As a result, the extension cord used with your unit can be plugged into any conventional 120 volt electrical outlet. Normal safety precautions must be observed when operating an electrical appliance. The double insulation system is only for added protection against injury resulting from a possible internal electrical insulation failure.
5. EXTENSION CORD - Use only with an extension cord intended for outdoor use. Match wire gauge to the cord length. See table below. A 2-wire cord without a ground connection may be used since this appliance is double insulated. If in doubt of proper wire size, use the next heavier gauge. Please note that the smaller the gauge number, the heavier the cord.

Table 1

MINIMUM WIRE GAUGE RECOMMENDATIONS
VOLTS	EXTENSION CORD LENGTH	WIRE SIZE REQUIRED
120	25 feet / 7.5m	18 A.W.G.*
	50 feet / 15m	16 A.W.G.*
	100 feet / 30m	16 A.W.G.*
*American Wire Gauge

(1). When using the appliance, an extension cord of adequate size must be used for safety and to prevent loss of power and overheating.
(2). The extension cord must be specifically intended for outdoor use and marked “SJ” or “SJT” and with the suffix “WA”. In Canada, the extension cord must be marked “SFTW”.
(3). Inspect extension power cord for loose or exposed wires and damaged insulation. If damaged, replace before using appliance.

DO NOT ABUSE CORD - Never carry appliance by cord or pull cord to disconnect from outlet. Keep cord clear of operator and obstacles at all times. Do not expose cord to heated surfaces, oil or water. Do not pull cord around sharp edges, corners or close door on cord.

1. NO SERVICEABLE PARTS INSIDE - Your double insulated appliance has no serviceable parts inside. Do not attempt to repair it yourself. For service information, contact the Yard Machines Product Service Department.
2. RISK OF EYE INJURY - Always wear goggles or other suitable eye protection when operating your trimmer. Edging increases the risk of injury caused by flying debris. Always keep bystanders at a safe distance.
3. KEEP HANDS AND FEET AWAY from rotating line. Do not operate without debris shield attached.
4. DRESS PROPERLY - Always wear long pants, shoes and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot.
5. KEEP AREA CLEAR - Keep everyone, especially children and pets away from the area of operation 50 feet (15m). Turn off unit immediately if you are approached. Never allow children to operate the appliance to be used as a toy or to run unattended at any time.
6. AVOID A DANGEROUS ENVIRONMENT - Do not use in the presence of flammable liquids or gases, smoking or burning materials to avoid creating a fire or explosion. Never operate the trimmer in wet or damp conditions or around swimming pools, hot tub, etc. Do not use in rain. Do not handle plug, cord or appliance with wet hands.

1. USE APPLIANCE CORRECTLY - Use this appliance only for its intended use as described in this manual. DO NOT SWEEP WITH TRIMMER - Sweeping refers to tilting stringhead to sweep away debris from walkways, etc. Your trimmer is a powerful tool and small stones or other such debris may be hurled 50 feet or more, causing injury or damage to nearby property such as automobiles, homes and windows. Inspect area before starting the appliance to remove debris and other objects that can cause damage during operation.
2. DO NOT USE ACCESSORIES or attachments except as recommended and provided by Yard Machines. Do not use any type of wire or metal cutting line.
3. DO NOT OVERREACH - Keep firm footing and balance at all times.
4. AVOID UNINTENTIONAL STARTING - Do not carry plugged in trimmer with your finger on the switch.
5. DISCONNECT trimmer from power supply when not in use and before servicing stringhead.
6. STORE idle trimmer indoors. Appliance should be stored in a dry, high or locked up place - out of the reach of children.
7. Don't grasp the exposed cutting blades or cutting edges when picking up or holding the appliance.
8. Don't force appliance - it will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

EXPLANATION OF NOTE, WARNING, and WARRANTY SYMBOL

1. A NOTE is used to convey additional information, or highlight a particular explanation, or to expand a step instruction.
2. A WARNING identifies a procedure which, if not undertaken or if improperly done, can result in a serious personal injury or damage to the unit and/or both.
3. (WARRANTY SYMBOL) serves notice that unless instructions or procedures are followed, any damage will void the warranty and repairs will be at owner's expense. Service other than user maintenance should be performed by a Yard Machines Authorized Service Center. Damage or conditions caused by improper maintenance practices which render this product inoperable will void the manufacturer's warranty.
4. FOR WARRANTY OR SERVICE contact the nearest Yard Machines Authorized Service Center by calling 800# on back cover.

SAVE THESE INSTRUCTIONS

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL

MEANING

- SAFETY ALERT SYMBOL

Indicates danger, warning, or caution. May be used in conjunction with other symbols or pictographs.

SYMBOL

MEANING

WARNING: Keep children, bystanders, and animals 50 feet (15 meters) away. If approached stop unit immediately.

- WARNING - READ OPERATOR'S MANUAL

Read the Operator's Manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

DANGER: Objects thrown up by machine.

- WEAR HEAD, EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit. Falling objects can cause severe head injury. Wear head protection when operating this unit. Use a full face shield when needed.

DO NOT USE BLADES

WARNING: To prevent serious personal injury, do not attach or operate the unit with any type of blade.

ASSEMBLY INSTRUCTIONS

NOTE: The only assembly required for your trimmer is to install the debris shield and the assist handle.

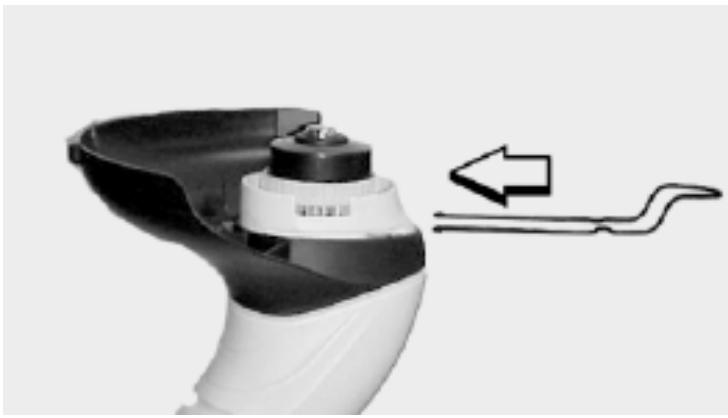

DEBRIS SHIELD INSTALLATION

1. Position the motor housing with stringhead carrier facing up (Figure 1).
2. Slide debris shield over motor housing as shown (Figure 2).

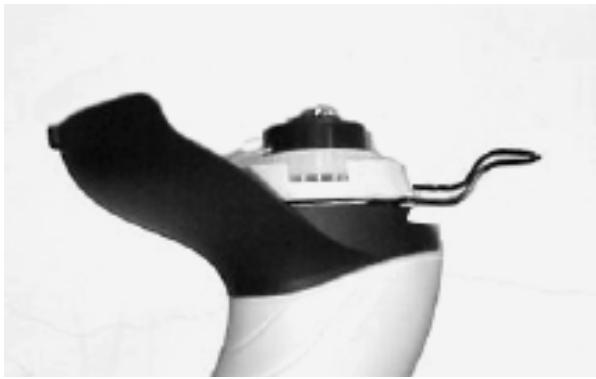

3. Align edging guide with mating grooves and push firmly in the direction shown until an audible snap is heard (Figure 3).

NOTE: Be certain that edging guide is oriented as shown. Once edging guide, motor housing and debris shield are mated the connection is permanent and cannot be removed without a special tool.

Fig. 1

Fig. 2
Fig. 3

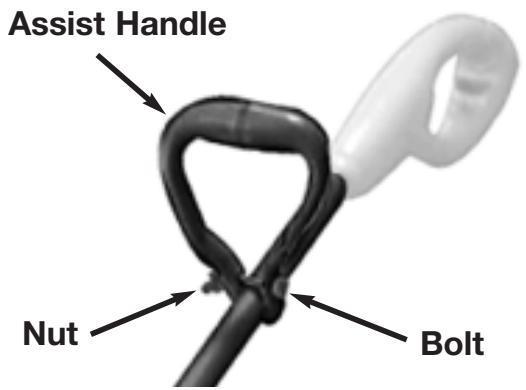

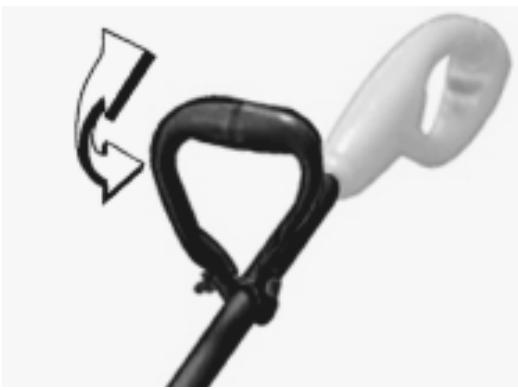

ATTACH ASSIST HANDLE (Fig. 4 and Fig. 5)

1. Insert the handle in comfortable position and tighten securely.
2. Before tightening completely, adjust the assist handle height by sliding handle up or down tube. When assist handle is at desired operating height, tighten it securely.

Fig. 4

Fig. 5

ADJUSTMENT INSTRUCTIONS

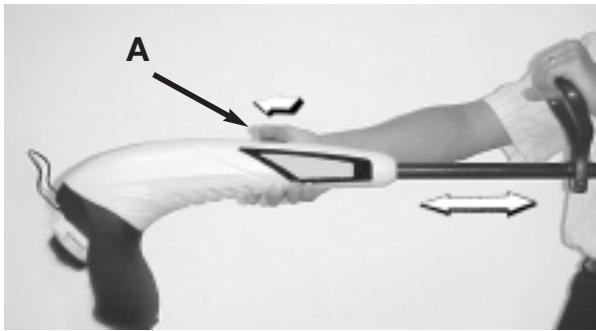

ADJUST SHAFT LENGTH

1. Grip shaft firmly.
2. Push shaft locking button (A) forward and move handle forward or backward to desired length. (Fig. 6)

NOTE: Shaft may be adjusted in trimming or edging mode.

Fig. 6

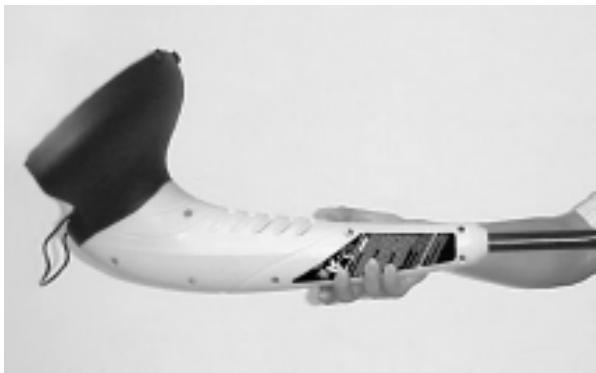

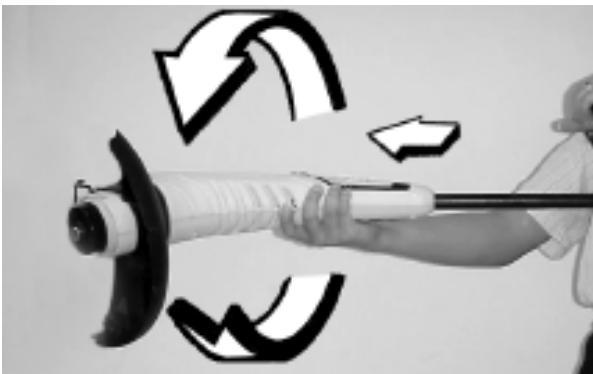

EDGING CONVERSION

1. Grip shaft firmly.
2. Push shaft locking button forward, and rotate cutting assembly until an audible click is heard. (Fig. 7 & Fig. 8)

Fig. 7

Fig. 8

STARTING

1. When starting the string-trimmer for the first time, check that the nylon wires touch or pass over the wire-cutting blade. If they are not long enough, press the button and, at the same time, pull the nylon wires. (Fig. 9)
2. Connect the plug of the string-trimmer to the extension cord and attach to the handle.
3. Make sure the length of grass trimmer and position of assist handle is most applicable before use, adjust the length of grass trimmer by pressing the shaft locking button, adjust the height of assist handle by releasing the loosening the wingnut.
4. Take a secure hold of the grass trimmer and, without letting it touch the grass to be cut unlock security then press the switch on the upper handgrip. Let the string trimmer run for a few seconds and "bump" the stringhead against the lawn. Nylon line will automatically release. The cut-off knife in the debris shield will trim off excess line.
5. To switch off the string trimmer let go of the switch.

CAUTION: A short or worn line cuts less efficiently so, to improve its operation on subsequent occasions, bump the stringhead lightly on the ground while the trimmer is running.(Fig 10)

These operations should be repeated a few times before starting work to make sure that everything is functioning properly and to familiarize yourself with the grass trimmer. Start off slowly, when you have gained experience, you will be able to use the grass trimmer to its full potential.

Fig. 9
Fig. 10

OPERATING INSTRUCTIONS

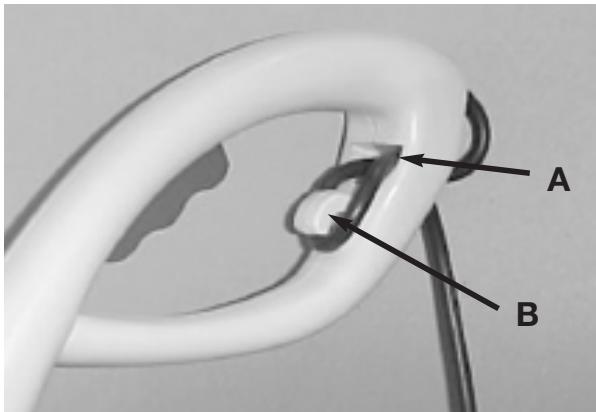

CONNECT THE CORD

1. Ensure the cord is NOT plugged into a receptacle before this procedure.
2. Make a loop with 8'' - 10'' (20 - 25cm) of the end of the extension cord.
3. Place the loop into the slot (A) under the rear handle and lock into place on the cord retainer (B) as shown in Figure 11.
4. Connect the extension cord to the trimmer power cord.
5. Plug the extension cord into a receptacle ONLY when you are ready to operate the trimmer.

Fig. 11

TRIMMER OPERATION

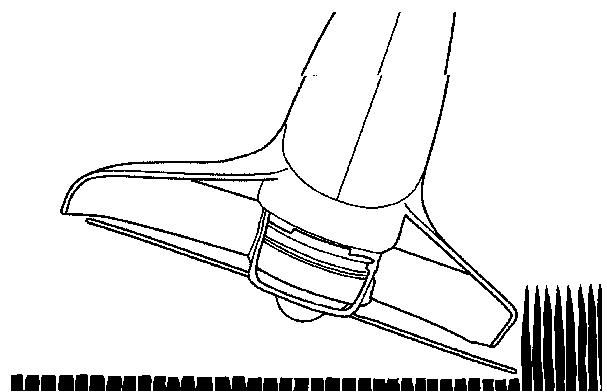

1. TRIMMING / MOWING (Fig. 12). Swing trimmer with a sickle-like motion from side to side. Do not tilt the stringhead during the procedure. Test area to be trimmed for proper cutting height. Keep stringhead at same level for even depth of cut.

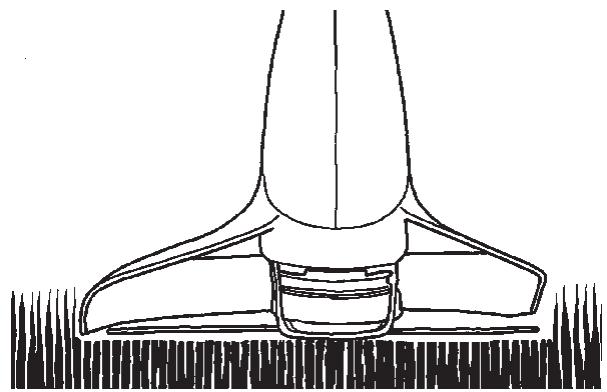

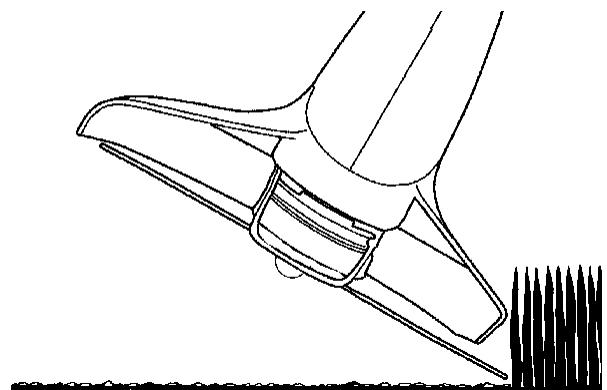

2. CLOSER TRIMMING (Fig. 13). Position trimmer straight ahead with a slight tilt so bottom of stringhead is above ground level and string contact occurs at proper cutting point. Always cut away from operator. Do not pull trimmer in toward operator.
3. FENCE/FOUNDATION TRIMMING. Approach trimming around chain link fences, picket fences, rock walls and foundations slowly to cut close without whipping string against the barrier. If the string comes in contact with rock, brick walls, or foundations, it will break or fray. If string snags fencing, it will snap off.

4. TRIMMING AROUND TREES. Trim around tree trunks with a slow approach so string does not contact bark. Walk around the tree trimming from left to right. Approach grass or weeds with the tip of the string and tilt stringhead slightly forward.

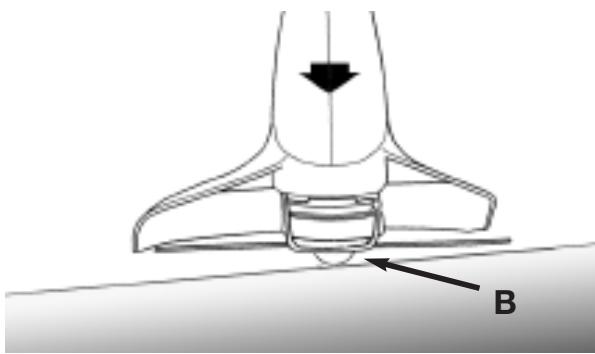

5. SCALPING (Fig. 14). Scalping refers to removal of all vegetation down to the ground. To do this, tilt the stringhead to about a 30 degree angle to the left. By adjusting the handle you will have better control during this operation. Always keep a distance of 50 feet (15 meters) from other people and animals when scalping. Do not attempt this procedure if there is any chance flying debris could injure operator, other people or cause damage to property.

Fig. 12

Fig. 13

Fig. 14

OPERATING INSTRUCTIONS

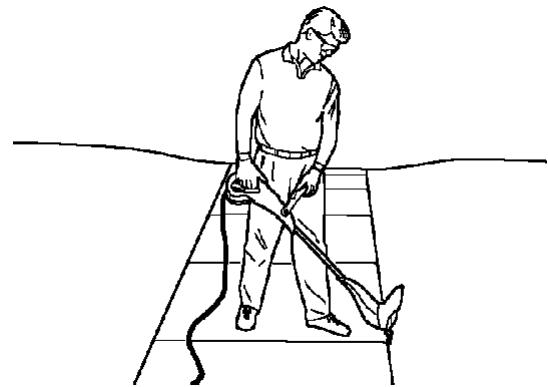

1. OPERATING AS AN EDGER (Fig. 15). With the unit configured as an edge, hold it so the motor is to your left side so that debris is thrown to the rear. Always use eye protection.

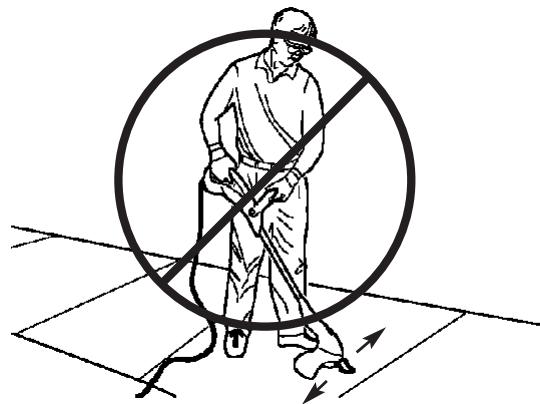

2. SWEEPING - DO NOT SWEEP WITH TRIMMER (Fig. 16)

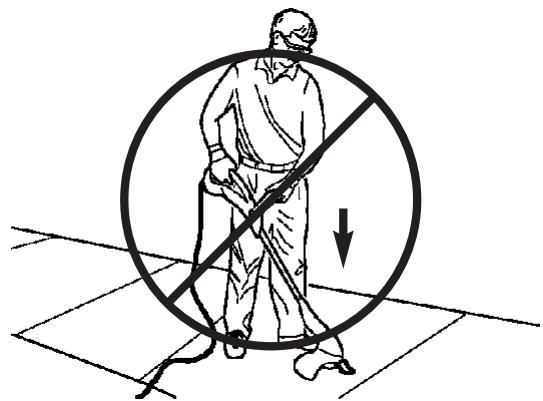

3. DO NOT BUMP TRIMMER ON CONCRETE. This can damage the stringhead (Fig. 17).

Fig. 15

Fig. 16

Fig. 17

MAINTENANCE INSTRUCTIONS

REPLACE THE SPOOL OF NYLON LINE

1. Unplug the trimmer.

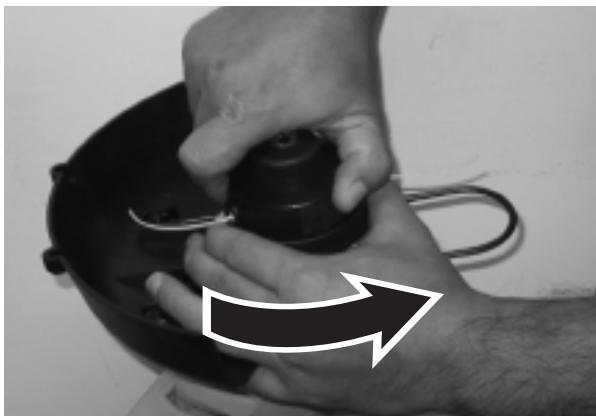

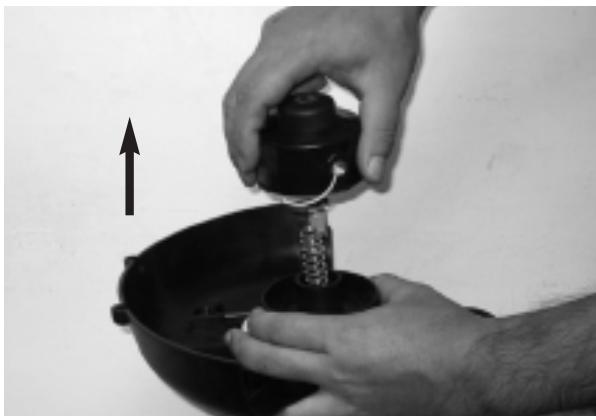

2. Remove the spool assembly from the trimmer. To do so, hold the outer ribbed part of the assembly with one hand, while pushing down and turning the spool head with the other to unlock it. (Fig. 18 & Fig. 19) The spool carrier and spool will now disassemble easily.

NOTE: There is a spring inside the spool head that could easily be lost. Ensure that it is put in a safe place.

Fig. 18

Fig. 19

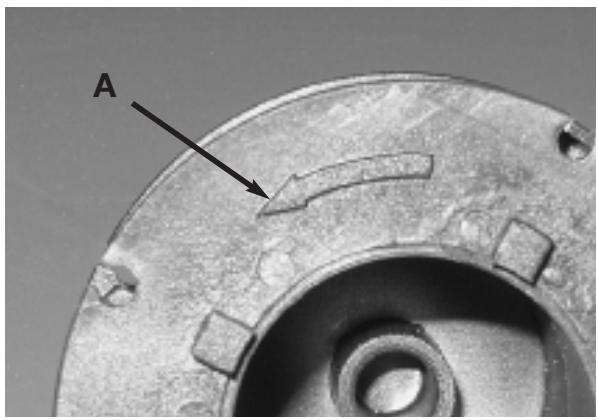

1. Remove the clear plastic line retaining ring. Remove any existing line from the spool.
2. Using 0.065'' replacement line measure off approximately 14' of line. Double over the cutter line into two equal lengths and place loop in slot of the spool divider (Fig. 20).

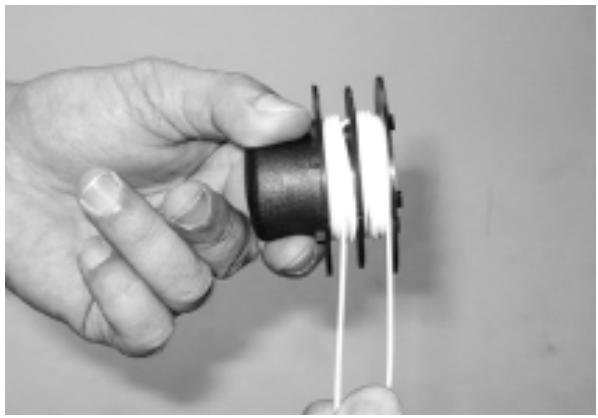

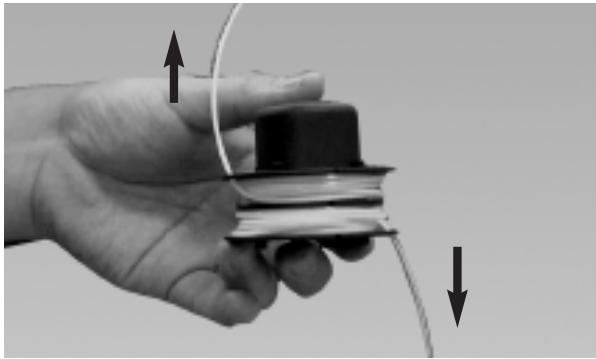

3. Wind the line onto the spool by turning the spool. The line should go on in the direction of the arrow (A) on the spool (Fig. 21). Line should be wrapped tightly around the spool. The line is wound with each half separated by the divider. Tightly wind it until there is about 6'' of line left (Fig. 22).

Fig. 20

Fig. 21

Fig. 22

MAINTENANCE INSTRUCTIONS

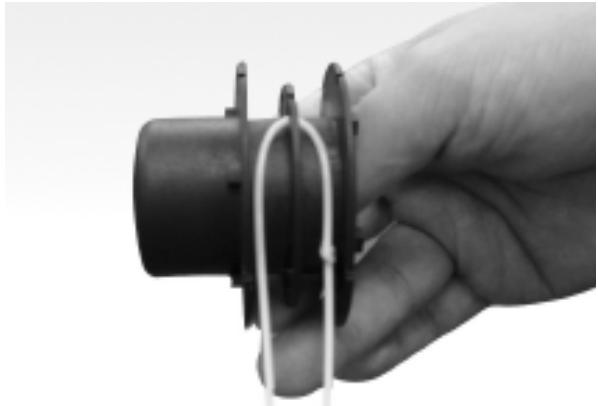

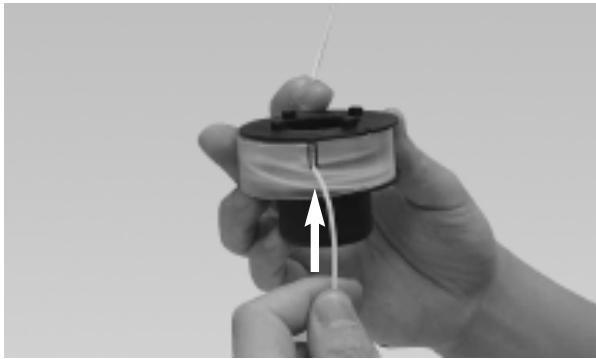

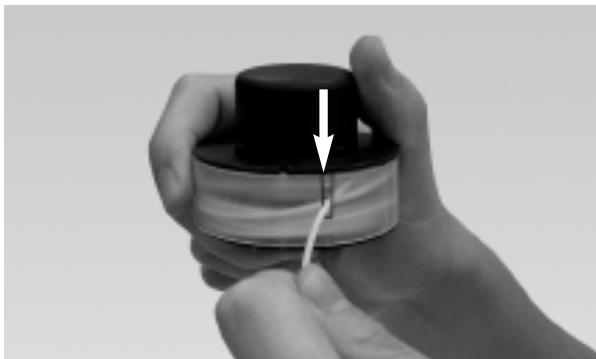

1. Lock the ends of the line in opposite slots on the spool (Fig. 23). Place the clear plastic line retainer back over the line and spool (Fig. 24). Pull the lower line up into the lower slot in the clear plastic line retainer (Fig. 25). Pull the upper line down into the upper slot (Fig. 26).

Fig. 23

Fig. 24

Fig. 25

Fig. 26

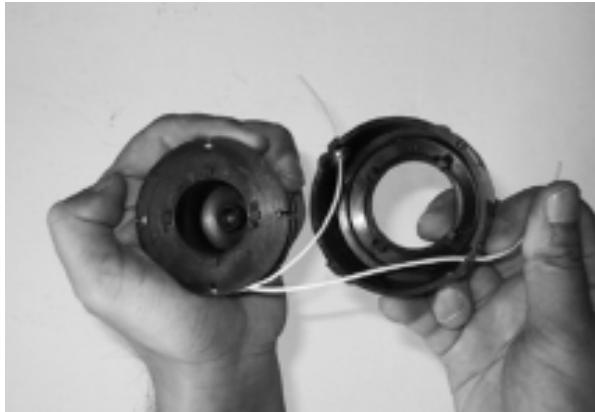

1. Insert the line through each eyelet in the spool carrier and slide the spool into the carrier. (Fig. 27)

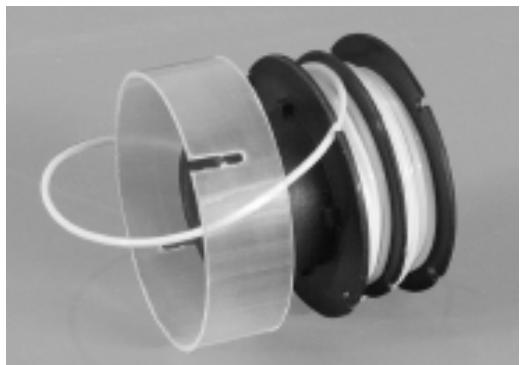

NOTE: Ensure that the line is within the clear plastic line retainer. If it's outside of the clear plastic line retainer, the line will not feed.

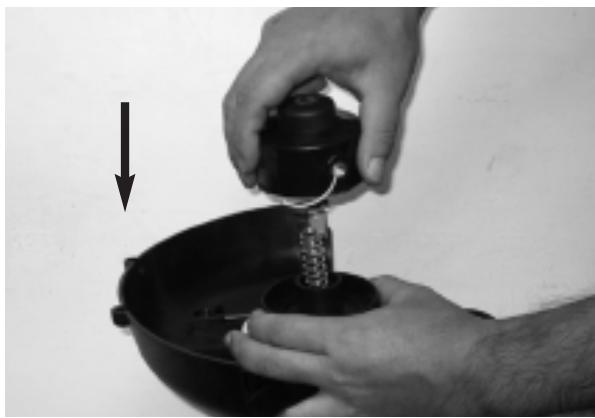

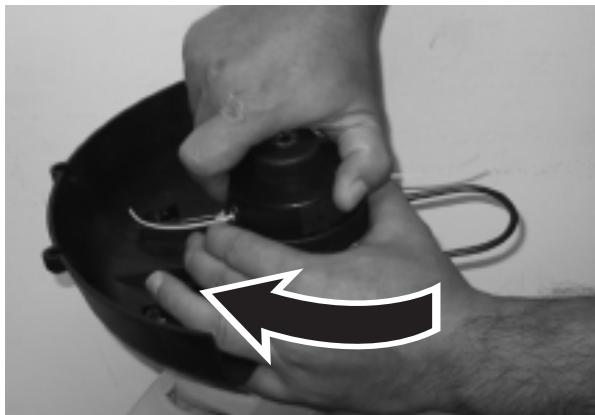

1. Make sure to insert the spring, assemble the spool and spool carrier back onto the trimmer. To do so, push the head on and turn it clockwise until it locks. (Fig. 28 and Fig. 29)

Fig. 27

Fig. 28

Fig. 29

MAINTENANCE INSTRUCTIONS

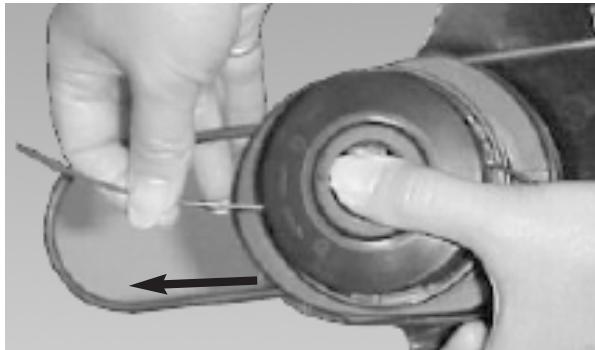

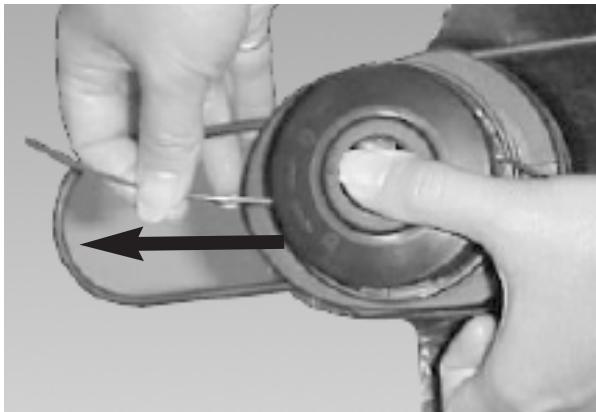

1. To test if the line is advancing properly, push the button with your thumb while pulling the line with your fingers. The line should advance freely. (Fig. 30).
2. In the event of the line breaking inside the spool, repeat the replacement operation.
3. Start the grass trimmer following the instructions in the "STARTING" section.

Fig. 30

MAINTENANCE

CAUTION: Before carrying out any maintenance operations, cut off the electric power supply by disconnecting the plug from the extension cord.

1. Regular cleaning and maintenance of your string trimmer will ensure efficiency and prolong the life of your machine.
2. After each cutting operation, take apart and clean out the grass and soil from: the spool and its slot and in particular the debris shield.
3. During operation, keep the air slots clean and free of grass.
4. Only use a cloth soaked with hot water and a soft brush to clean the string trimmer.
5. Do not spray or wet the appliance with water.
6. Do not use detergents or solvents as these could ruin the trimmer. The parts made of plastic can easily be damaged by chemical agents.
7. If the line cutting blade no longer cuts or breaks, have this replaced by contacting an authorized service center.

SPECIFICATION

Input 120V\~, 60Hz, 3.7Amp

No Load Speed .8,000/min.

Cutting width 12" (300mm)

Line Diameter .0.065" (1.65mm)

Net Weight .4.4 Lbs (2.0 Kg)

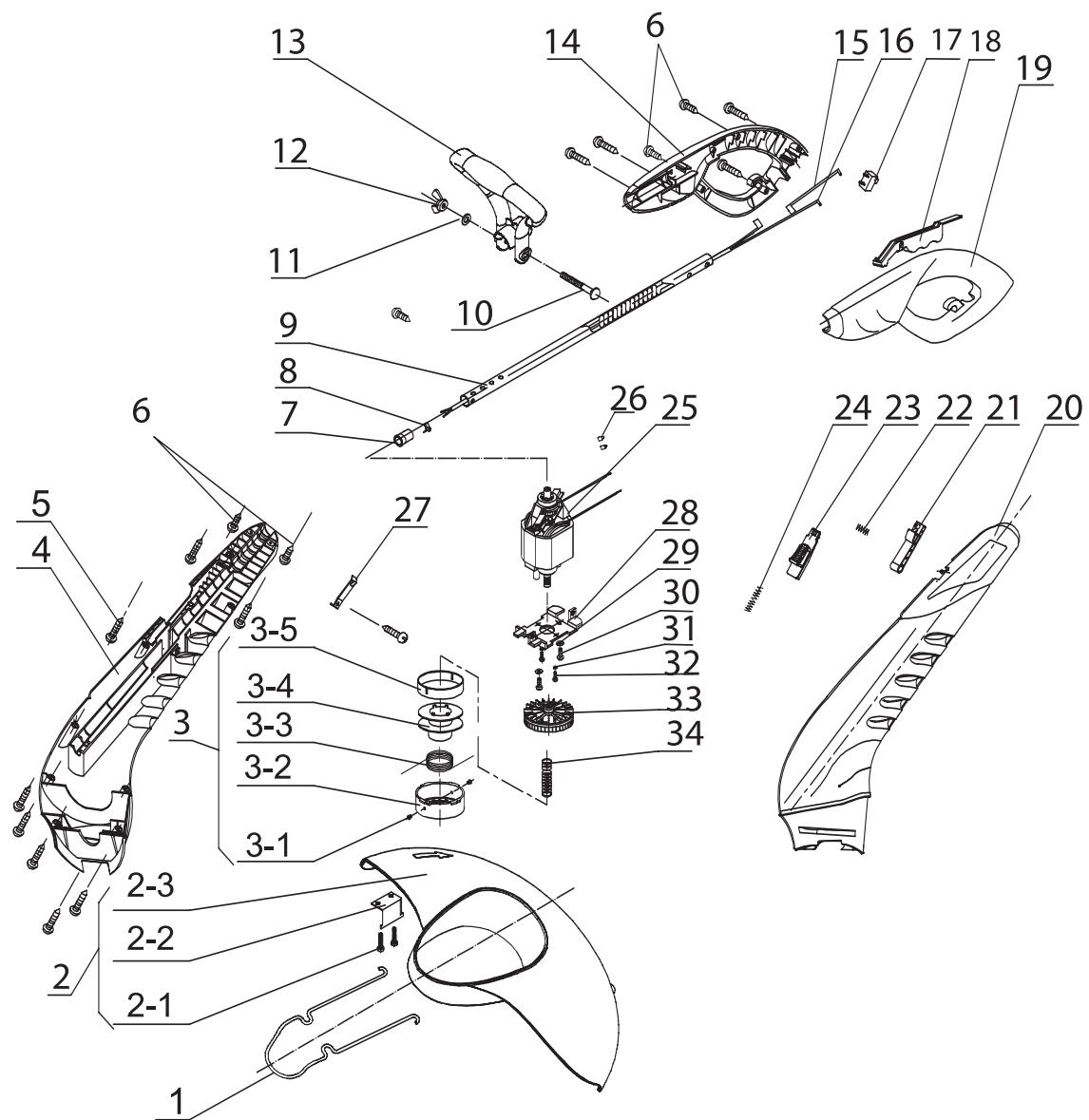

PARTS LIST

No.	Parts No.	Description	No.	Parts No.	Description
1	6036-230201	PROJECTIVE GUARD	14	6068-202606	UPPER HANDGRIP (R)
2	6228-202701	GUARD ASS'Y	15	6010-202602	WIRE
2-1	6SDABB04-10	SCREW	16	6010-202601	WIRE
2-2	6250-202503	WIRE CUTTING BLADE	17	6022-230001	SWITCH
2-3	6262-202701	GUARD	18	6028-230003	TRIGGER
3	6228-202004A	SPOOL CARRIER ASS'Y	19	6068-202605	UPPER HANDGRIP (L)
3-1	6140-B23101	PILOT	20	6038-202605	HOUSING (L)
3-2	6059-202005A	SPOOL COVER	21	6021-202602	DETENT
3-3	6194-202001	WIRE-CUTTING	22	6024-202605	SPRING
3-4	6008-202001A	SPOOL CARRIER	23	6056-202607	BUTTON
3-5	6059-202004	SPOOL COVER	24	6024-202603	SPRING
4	6038-202606	HOUSING (R)	25	6099-202702	MOTOR 120V
5	6SDABB04-18	SCREW	26	6154-840001	TERMINAL BLOCK
6	6SDABB04-14	SCREW	27	6024-202601	SPRING
7	6017-230101	JACKET	28	6072-202601	MOTOR PLATE
8	6056-202603	SNAP BUTTON	29	6WSB-04	WASHER
9	6114-202602	ADJUSTABLE ROD	30	6SDAE-03-08	SCREW
10	6SHDB-06-52	SCREW	31	6WSB-03	WASHER
11	6WFB-06	WASHER	32	6SDAB-04-10	SCREEW
12	6NBB-06	NUT	33	6270-202003	CUTTER ASS'Y
13	6196-202601	CENTRAL HANDGRIP	34	6024-202604	SPRING

NOTES

MANUFACTURER'S LIMITED WARRANTY FOR:

YARD MACHINES) by MTD

The limited warranty set forth below is given by MTD LLC ("MTD") with respect to new merchandise purchased and used in the United States and Canada, its possessions and territories.

MTD warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator's Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by MTD for use with the product(s) covered by this manual will void your warranty as to any resulting damage. This warranty is limited to ninety (90) days from the date of original retail purchase for any MTD product that is used for rental or commercial purposes, or any other income-producing purpose.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate the dealer in your area, please check for a listing in the Yellow Pages or contact the Customer Service Department of MTD LLC by calling 1-866-747-9816 or writing to P.O. Box 361131, Cleveland OH 44136-0019 or if in Canada call 1-800-668-1238. No product returned directly to the factory will be accepted unless prior written permission has been extended by the Customer Service Department of MTD LLC.

This limited warranty does not provide coverage in the following cases:

A. Trimmer line.
B. MTD does not extend any warranty for products sold or exported outside of the United States of America and Canada, its possessions and territories, except those sold through MTD's authorized channels of export distribution.

MTD reserves the right to change or improve the design of any MTD Product without assuming any obligation to modify any product previously manufactured.

No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty or guaranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product shall bind MTD. During the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth above. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. MTD shall not be liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement lawn care services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of the safety features of the product shall void this Warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased as a gift.

How State Law Relates to this Warranty: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To locate your nearest service dealer dial 1-866-747-9816 in the United States or 1-800-668-1238 in Canada.

MTD LLC

P.O. Box 361131

Cleveland, OH 44136-0019

DANGER: Objects thrown up by machine.

1. When starting the string-trimmer for the first time, check that the nylon wires touch or pass over the wire-cutting blade. If they are not long enough, press the button and, at the same time, pull the nylon wires. (Fig. 9)
2. Connect the plug of the string-trimmer to the extension cord and attach to the handle.
3. Make sure the length of grass trimmer and position of assist handle is most applicable before use, adjust the length of grass trimmer by pressing the shaft locking button, adjust the height of assist handle by releasing the loosening the wingnut.
4. Take a secure hold of the grass trimmer and, without letting it touch the grass to be cut unlock security then press the switch on the upper handgrip. Let the string trimmer run for a few seconds and "bump" the stringhead against the lawn. Nylon line will automatically release. The cut-off knife in the debris shield will trim off excess line.
5. To switch off the string trimmer let go of the switch.

CAUTION: A short or worn line cuts less efficiently so, to improve its operation on subsequent occasions, bump the stringhead lightly on the ground while the trimmer is running.(Fig 10)

These operations should be repeated a few times before starting work to make sure that everything is functioning properly and to familiarize yourself with the grass trimmer. Start off slowly, when you have gained experience, you will be able to use the grass trimmer to its full potential.

Fig. 9

Fig. 10

INSTRUCTIONS D'UTILISATION

BRANCHEMENT DU CORDON PROLONGA-TEUR

PRECAUCION: Before carrying out any maintenance operations, cut off the electric power supply by disconnecting the plug from the extension cord.

For problems or questions, DO NOT return this product to the store. Contact your Customer Service Agent .

Canada Imported by / Importé par:

MTD PRODUCTS LIMITED

97 Kent Avenue

Kitchener, ON

CANADA N2G 4J1

For Consumer Assistance Please Call
