MX 50 - Motorcycle APRILIA - Free user manual and instructions

Product type	Moped 50 cc
Brand	Aprilia
Model	MX 50
Dimensions (L x W x H)	2060 x 780 x 1350 mm
Wheelbase	1360 mm
Seat height	865 mm
Engine	Single-cylinder 2-stroke, liquid cooling, 49.75 cc, compression ratio 12:1
Fuel	Unleaded gasoline 95/85 RON, tank 9.5 L (reserve 1.5 L)
Oil injection	Tank 1.3 L (reserve 0.5 L)
Transmission	6-speed gearbox, chain
Brakes	Front disc 230 mm, rear disc 220 mm, hydraulic control
Suspension	Front telescopic fork 35 mm, rear adjustable monoshock (APS)
Tires	Front 100/80 x 17", rear 130/70 x 17"
Tire pressure	Rider only: front 1.8 bar, rear 1.9 bar; with passenger: rear 2.1 bar
Estimated weight	Approx. 110 kg
Lighting	Headlight, position lights, turn indicators, taillight
Battery	5 Ah, monthly maintenance of electrolyte level
Running-in	500 km, avoid long trips at low engine speed
Periodic maintenance	Gearbox oil change, air filter cleaning, pad inspection, every 4000 km or 12 months
Environmental quality	Catalytic silencer, reduces CO and HC emissions

Frequently Asked Questions - MX 50 APRILIA

How to start the engine when cold?

Open the fuel tap, turn the key to 'O', operate the choke (lift the carburetor lever), engage neutral or pull the clutch, then push the kick starter. After starting, turn the throttle grip fully to deactivate the choke (metal click).

What is the running-in period?

The running-in lasts first 500 kilometers. It is advisable to warm up the engine before riding, vary the revs, and avoid long distances at low revs. At the end of the running-in, have the vehicle checked at an official Aprilia dealer.

How to check the gearbox oil level?

Keep the vehicle upright. Unscrew the check screw (right side crankcase). The level is correct if the oil reaches the lower edge of the hole. If necessary, add oil through the upper filler hole.

Which oil to use for the gearbox?

Use oil SAE 75W-90 of API GL-4 quality or higher. Capacity is 820 cm³.

How to adjust the clutch?

Check that the lever free play is 3-4 mm. If necessary, adjust using the screw at the lever or the one on the engine casing. If the clutch slips or does not disengage properly, consult a dealer.

What is the recommended tire pressure?

Rider only: front 1.8 bar, rear 1.9 bar. With passenger: front 1.8 bar, rear 2.1 bar. Max pressure 2.5 bar. Check when cold (less than 1 km ridden).

How to clean the air filter?

Every 4000 km, remove the seat, take off the left side panel, then the airbox cover. Extract the filter element, wash with non-flammable solvent, dry, then soak with filter oil (SAE 80W-90) and squeeze out excess. Reassemble.

How to replace the headlight bulb?

For low beam: remove the rubber cap, disconnect the connector, extract the socket by acting on the V-spring. Replace the bulb. For position light: pull the rubber socket and change the bulb. Do not touch the bulb with fingers.

How to bleed the brake circuit?

Remove the cap from the bleed screw on the caliper, attach a transparent tube into a container. Pump the lever 2-3 times, hold it pulled, open the bleed screw to let fluid and bubbles out, close, release lever. Repeat until no bubbles. Use DOT 5 fluid (compatible with DOT 4).

How to maintain the battery?

Check electrolyte level monthly, keep between MIN and MAX with distilled water only. Keep battery charged, especially in winter (monthly charge). Charge at 10-20% of capacity (max 1 A for 5 Ah). Avoid reversing cables.

USER MANUAL MX 50 APRILIA

(Automatic Switch-on Device)

version catalytique

VERSION:

1

Italie

NL

Hollande

HR

Croatie

UK

Royaume-Uni

CH

Suisse

AUS

Australie

A

Autriche

DK

Danemark

USA

Etats Unis

d'Amérique

P

Portugal

J

Japon

BR

Brésil

SF

Finlande

SGP

Singapour

RSA

REEMPLACEMENT (Fig. 27-28)

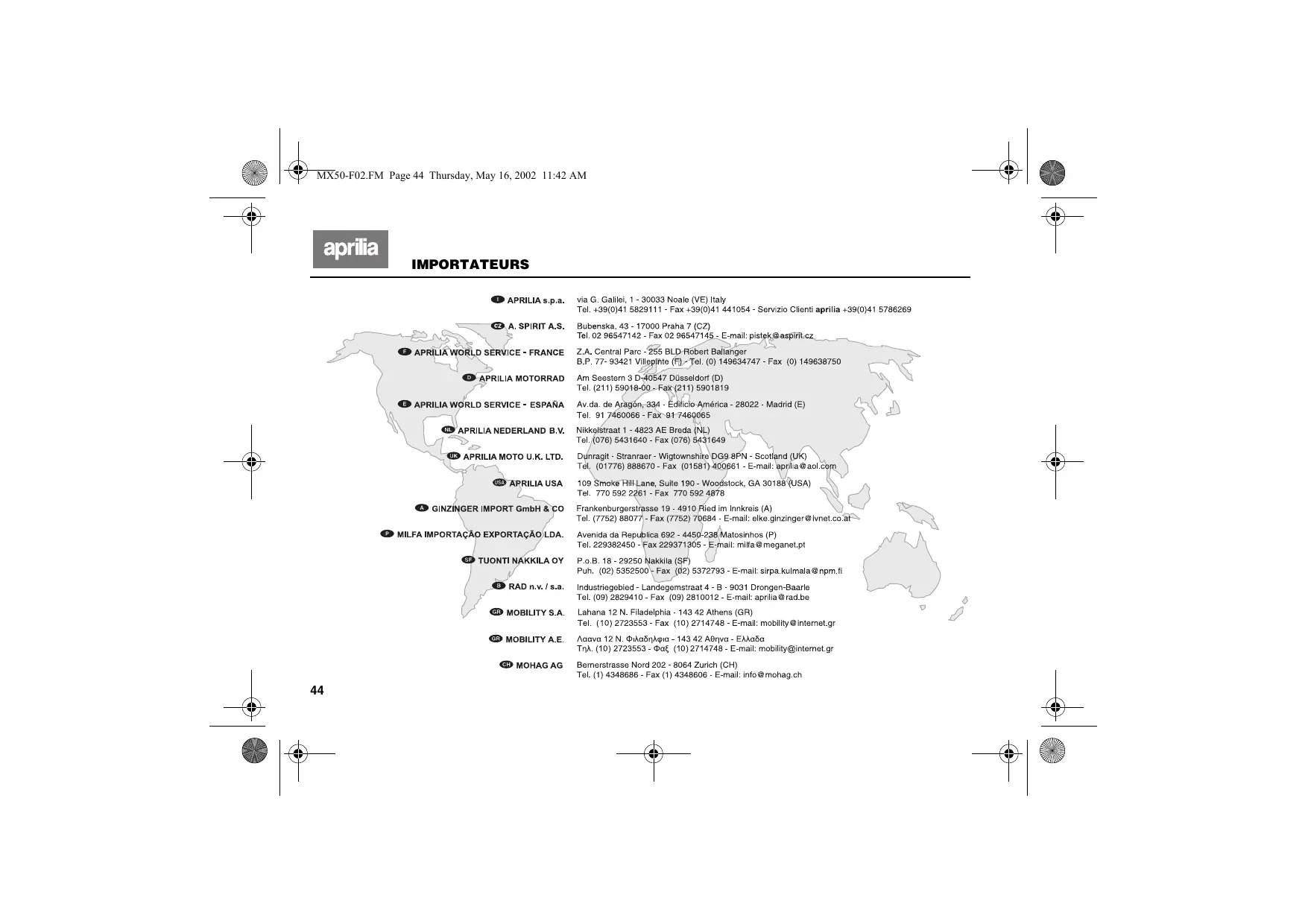

P MILFA IMPORTACAO EXPORTACAO LDA.

Avenida da Republica 692 - 4450-238 Matosinho (P) Tel. [phone] - Fax [phone] - E-mail: [e-mail]

SF TUONTI NAKKILA OY

P.O.B. 18-29250 Nakkila (SF) Puh. [phone]-Fax [phone]-E-mail: [e-mail]

RAD n.v./s.a.

Industriegebied - Landegemstraat 4 - B. 9031 Drongen-Baaren Tel. [phone]- Fax [phone] - E-mail: [e-mail]

GR MOBILITY S.A.

Lahan 12 N. Filadelphia - 4143 42 Athens (GR)
Tel. [phone] - Fax [phone] - E-mail: [e-mail]

GR MOBILITY A.E.

20 Mactaggart Road, #01-01 Khong Guan Industrial Building 368079 Singapore (SGP)

Tel. [phone] - Fax [phone] - E-mail: [e-mail]

H MILLE MOTOR KFT.

H-1054-Budapest-Hold utca 23.(H)

Tel. [phone] - Fax [phone] - E-mail: [e-mail]

BKE KOREA CO., LTD.

YeungSoo BLDG 302 #206-25, Ohjang-dong, Chung-ku, Seoul (ROK)

Tel. [phone] - Fax. [phone] - E-mail: [e-mail]

AUS JOHN SAMPLE GROUP PTY LTD.

8, Sheridan Close - NSW 2214 - Milperra - Sydney (AUS)

Tel. [phone] - Fax [phone] - E-mail: [e-mail]

8SA MOTOVELOS.A.

Old Pretoria Road - Wynberg-Johannesburg (RSA)

Tel. [phone] - Fax [phone] - E-mail: [e-mail]

MOTORCYCLINGDOWNUNDERLTD.

35, Manchester Street - P.o.B. 22416 - Christchurch (NZ)

Tel. [phone] - Fax [phone] - E-mail: [e-mail]

HRING-KART, d.o.o.

Samoborska cesta 258 - 10000 Zagreb (HR)

Tel. [phone] - Fax [phone] - E-mail: [e-mail]

no.1 Long Mile Road - Dublin 12 (IRL)

Tel. [phone] - Fax. [phone] - E-mail: [e-mail]

SLD AVTO TRIGLAV, d.o.o.

Baragova 5 - 1113 Ljubljana (SLO)

Tel. [phone] - Fax [phone] - E-mail: [e-mail]

N HARO SKANDINAVIA A.S.

Kjorbekkdalen 6-3735 - Skien, Norway (N)

Tel. [phone] - Fax: [phone] - E-mail: [e-mail]

MOTOMAX MOTORLU ARACLAR SAN.VETIC.A.S.

Kore Sehitleri Cad. No. 42 - 80300 Zincirlikuyu - Istanbul (TR)

Tel. [phone] - Fax [phone] - E-mail: [e-mail]
