Product Type	Portable space heater
Brand	KOENIG
Model	HeatsBox B00145
Dimensions (L x W x H)	20 x 15 x 25 cm
Weight	1,2 kg
Power supply	220-240 V, 50 Hz
Power	1500 W
Heating type	Convection
Thermostat	Adjustable
Protection	Overheating and tip-over
Maintenance	Clean with a soft dry cloth
Filter cleaning	Regularly vacuum dust
Safety	Automatic shut-off in case of overheating
Spare parts	Available on the manufacturer's website
Warranty	2 years

Frequently Asked Questions - HeatsBox B00145 KOENIG

How to turn on the HeatsBox B00145?

Plug the device into a power outlet, then turn the control knob to the desired position. The indicator light shows that the device is operating.

What is the maximum power of the device?

The maximum power is 1500 W, which allows heating a room up to about 15 m².

How to adjust the temperature?

Use the adjustable thermostat located on the side of the device. Turn it clockwise to increase the temperature and counterclockwise to decrease it.

The device makes a clicking noise, is this normal?

Yes, clicking noises are normal during heating and cooling cycles. If the noise becomes excessive, check that the device is level and that the fasteners are tight.

Can I use the HeatsBox in a bathroom?

No, this device is not designed for use in damp rooms. Keep a safety distance of at least 1 meter from any water source.

How to clean the filter?

Unplug the device and remove the removable filter. Clean it with a vacuum cleaner or warm soapy water, then dry it completely before putting it back.

What to do if the device no longer heats?

First check the connection and thermostat. If the device is still cold, the thermal protection may have been triggered. Let it cool down for 30 minutes and try again. If the problem persists, contact customer service.

Does the warranty cover misuse?

No, the 2-year warranty covers only manufacturing defects. Damage due to improper use, such as dropping or immersion in water, is not covered.

Where to find spare parts?

Spare parts are available on the official KOENIG website or from authorized dealers. Use the model number B00145 to identify the part.

How to store the device in summer?

Clean it thoroughly, pack it in a plastic bag to protect it from dust, and store it in a dry place away from direct sunlight.

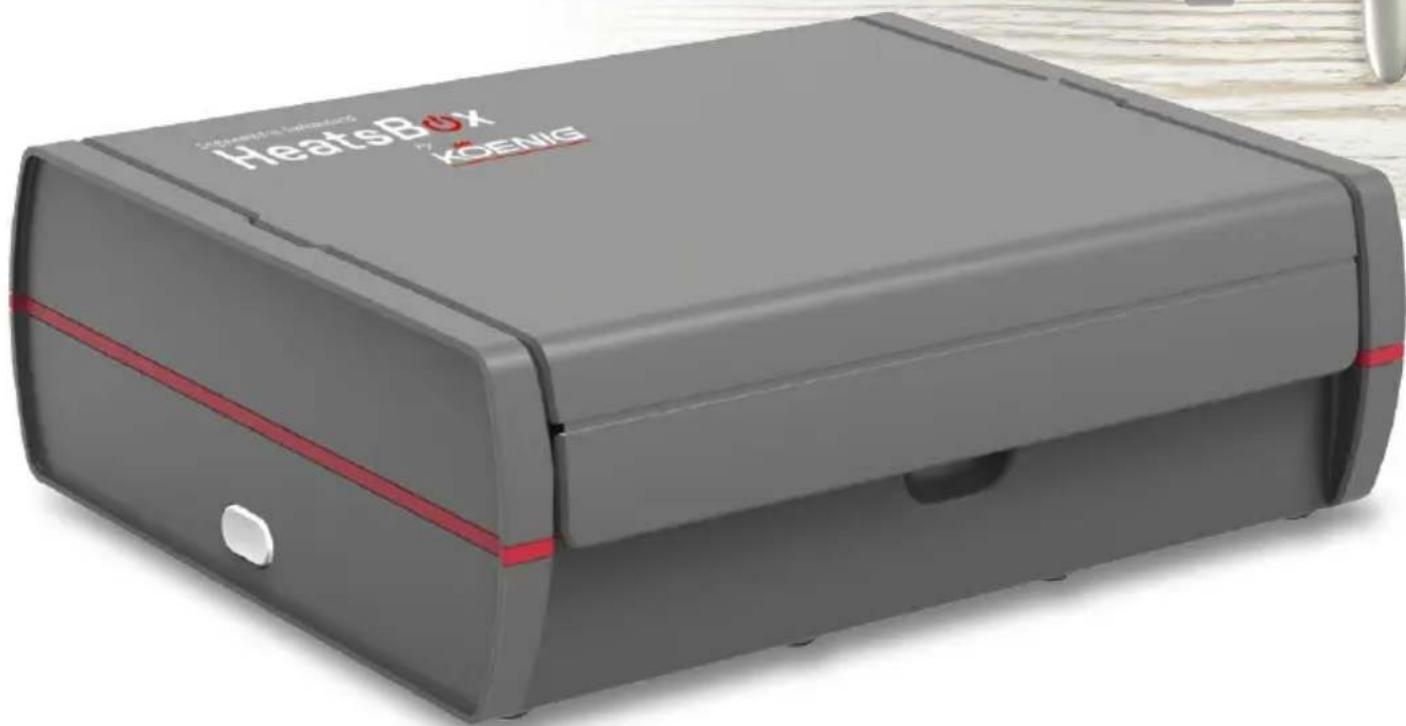

USER MANUAL HeatsBox B00145 KOENIG

Engineered in Switzerland

HeatsBox

by KOENIG

Reheat Bottom & top heat

HeatsBox

You have chosen well by purchasing this appliance. It will provide you with many years service if you take proper care of it. However, before using appliance for the first time, we request that you read these instructions thoroughly, and most of all to note the safety instructions below. Any persons who are unfamiliar with these instructions must not use the appliance. Keep the packaging for later use. However, destroy all plastic bags, as these can become dangerous toys for children.

Nutze alle Möglichkeiten der HeatsBox® mit der HeatsBox App! Utilisez toutes les possibilités de la HeatsBox® avec l'application HeatsBox! Sfrutta tutte le possibilità di HeatsBox® con l'app HeatsBox! Get the most out of the HeatsBox® by downloading the HeatsBox App!

Weitere Informationen zu unseren Produkten und dem Sortiment finden Sie unter: Pour de plus amples informations sur nos produits ou notre assortiment, veuillez consulter: Per ulteriori informazioni sui nostri prodotti o la nostra serie, volete consultare: For further information on our products or our range, please consult:

www.koenigworld.com

Deutsch 3-11

Français 12-20

Italiano 21-29

English 30-38

Inhaltsverzeichnis

Important safety information 32

Important Notes 33

General Recommendations 33

Parts Description 34

Before First Use 35

User Instructions 35

User Hints 36

Overview about LED Colors ON/OFF button 37

Cleaning Of Interior 37

Cleaning Of Exterior 37

Cleaning Of Inner Dish 37

Disposal 38

Specifications 38

Scope Of Delivery 38

Certifications 38

Garantie....39

Intended Use

HeatsBox is the first mobile heating lunchbox with a multi-sided heating technology. This patent-pending technology allows you to reheat your meal or even toast a crispy sandwich within minutes. The efficient and even heating process provides a fresh taste and retains full nutritional value of your food. Enjoy your favorite meal and a more convenient lifestyle. HeatsBox is powered by 220–240V AC and the heating process can be started by either pressing the ON/OFF button or by using our Android or iOS App. The HeatsBox can also be used for transportation.

Please read these instructions carefully and save them for future reference.

Conforms to European legal norms

Class II appliance

Restriction of hazardous substances

Food safe materials

Do not dispose of with normal household waste

Read instructions

Please find the latest valid version of the manual online at: koenigworld.com.

Safety Precautions

To ensure steady performance and long-lasting functionality, please ob-serve the warnings pertaining to the appliance. Faitron does not assume any liability for damage that may occur on account of noncompliance. Use the appliance in accordance with its designated use and for its in-tended purpose only.

Warning: No modification and/or manipulation are allowed at any cir-cumstances. KOENIG rejects any liability whatsoever.

In case of a transfer of the product (such as, but not limited to, reselling or gifting), the printed manual needs to be attached to the product itself and provided to the new owner for safety reasons!

The device may only be used for the intended use!

Important safety information

When using electrical appliances, basic safety precautions must always be followed, including the following:

• Read all instructions before using. Clean all components before use.
• Do not touch hot surfaces. Notice: Outer surface of appliance may heat up during use.
• To protect against electrical shock and personal injury do not im-merse cord, plugs, or appliance in water or other liquids.
• Close supervision is necessary when appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow the appliance to cool down before handling any parts and before cleaning the appliance.
• Warning: Do not operate any appliance with a damaged cord or plug, after appliance malfunctions or after the appliance has been damaged in any manner. This is applicable if the black isolation shield has been damaged or internal wiring can be seen! Stop and unplug immediately and do not touch the damaged area. Return the power cord to the point of sale for immediate exchange. If there are damages at the appliance itself or the user thinks so, return the appliance to the point of sale for examination, repair or adjustment. Repair and maintenance must only be performed by authorized personnel.
• Do not let the cord hang over the edge of a table or counter and do not let it get in contact with hot surfaces.
• Plug the cord into household electric outlet (220–240V AC) only. To disconnect, push the ON/OFF button and remove the plug from the wall outlet. Always unplug by pulling the power plug directly. Never pull the cord.
• Avoid sudden temperature changes when using the appliance. Do not place the appliance in or near ovens, refrigerators or freezers. Do not place the appliance in or near microwaves or dishwashers (at least 25 centimeters distance).
• Caution: Extreme caution must be used when moving the appliance containing hot contents or liquids. Otherwise, injuries and/or burns might result.
• Warning: The use of accessories, which were not recommended by the manufacturer may lead to fire, electric shock, or serious personal injury.

Important Notes

• Warning: Never submerge appliance into water or other liquids. It may be damaged beyond repair and cause a risk of electric shock.
• Do not use abrasive cleaners or scouring pads.
• Do not immerse the appliance, cord or plug into water at any time.
• During first use, the appliance may emit a slight odor. This is normal and will disperse within a few minutes.
• Always make sure the outside of the inner dish is dry prior to use. If the inner dish is returned to the appliance when wet, it may damage the appliance, causing it to malfunction.
• When opening the lid during or after use, hot air may escape and could cause burns.
• Do not use appliance when it is empty. Doing so may cause malfunction.
• Do not preheat the appliance before use.
  • Always unplug the appliance and allow it to cool completely before cleaning.
• The appliance should be cleaned after every use.
• Store the appliance away from sources of heat and moisture and out of the reach of children and pets.

General Recommendations

- Caution: To reduce risk of electrical shock, use only the original in-ner dish to heat up food. Never place food directly in the body of the appliance.

- Avoid the use of any objects that might damage the heating surface. A damaged heating surface may not heat the food or liquids well.

- Ensure that the area between the heating surface and inner dish is always clean and free from any foreign substances. This is important to ensure proper contact between the two.

- Do not use the appliance in extremely humid or wet conditions.

- Do not use the appliance in environments of below 10°C / 50°F or above 45°C / 113°F .

- For storage and transport put the appliance into its original packaging and place it in a well-ventilated and dry area.

- This appliance may be used by persons with reduced physical, sen-sory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers. Children should not use the appliance as a toy.

- The appliance can be used up to an altitude of 2000m/6562ft above sea level.

- Do not attempt to cool the appliance by pouring cold water into it. Let it cool naturally.

- For your safety, this appliance complies with safety regulations and directives in effect at the time of manufacture.

Parts Description

1. HeatsBox appliance
2. Lid of HeatsBox (Heating Lid)
3. On/Off button with LED indicator light
4. Fastener
5. Inner dish

6. Power connector

7. Inner case heating surface

8. Rubber sealing of lid
9. Lid heating surface
10. Power cord
11. Deckel für die Innenschale
12. Teiler

Before First Use

• Read all instructions and important safeguards.
• Remove all packaging materials and make sure all items are in good condition.
• Remove inner dish from appliance and clean with warm soapy water. Rinse and dry thoroughly before returning to appliance.
• Wipe body clean with a damp cloth.
• Download the HeatsBox app for your smartphone:
• Google Play Store:

- Search for «HeatsBox» in Play Store, or enter the following link in your browser: www.faitron.com/android

• Apple App Store: www.faitron.com/ios

- Search for «HeatsBox» in the App Store, or enter the following link in your browser: www.faitron.com/ios

- You can find the up-to-date manual of the App by visiting: www.faitron.com/App

User Instructions

1. Put the food in the removable inner dish. Keep the food below the maximum indication («--- max»).
2. Place the removable inner dish into the appliance.
3. Plug in the appliance. Caution: Do not use appliance on unstable surfaces or on surfaces that are vulnerable to heat.
4. Place the heating lid on the appliance and close it.
5. Connect the power plug to the appliance.
6. Press the ON/OFF button. The button should now light up continuously in white. Now please follow the steps in either «Offline Use» or in «App-controlled Use»

Notice: If the LED control lamp blinks, the lid of the appliance is not properly shut. App-controlled Use can also be started by App from the networked-standby mode (no LED light is shining).

Offline Use

• Press the ON/OFF button to turn on the heating. Default setting for offline heating is 75°C. The power indicator light will shine in red color, which means the heating is on. Notice: If the indicator light is blinking, the heating lid is not properly closed.
• Remove the heating lid after one minute to check the heating progress. Put back the lid again to continue the heating process.
• Press the ON/OFF button to turn off the appliance after reaching the desired heating time. The heating and the power indicator light will turn off. The LED control lamp should now light up again in white.
• The appliance indicates that the target temperature has been reached by switching the color of the LED control lamp to green. The appliance then automatically keeps your food warm at a certain tempera-ture for a prolonged period.
• Allow the appliance to cool down for roughly one minute, then remove the lid and enjoy your meal. Otherwise, the HeatsBox will automatically keep warm your food for 30 minutes.
• Disconnect the power plug and remove the lid.
• Enjoy your meal.

App-controlled Use

• Open the HeatsBox App on your smartphone.
• Select your HeatsBox and set the parameters such as target tempera-ture, heating process or timer individually.
• If the user is connected to the appliance, the LED control lamp will turn blue.
• Start the heating process by selecting the field on the app that displays the estimated time. The heating process starts immediately, and the LED control lamp turns red.
• If you have set a timer, the HeatsBox will automatically start the heat-ing process after a set time, but not immediately. You can close the app or disconnect the bluetooth®* connection. The information is stored directly on the appliance.
• Check the current food temperature on your HeatsBox App.
• Press the ON/OFF button to turn off the appliance after reaching the desired heating time. The heating and the power indicator light will turn off. The LED control lamp should now light up again in blue.
• The appliance indicates that the target temperature has been reached by switching the color of the LED control lamp to green. The device then automatically keeps your food warm at a certain temperature for a prolonged period.
• Allow the appliance to cool down before eating or handling any parts.
• Disconnect the power plug and remove the lid.
• Enjoy your meal.

User Hints

• Evenly distribute the food in the inner dish to ensure quick heating.
- For safety reasons, the heating process will stop when the lid is re-moved during use and will automatically continue once the lid is put back on the appliance. Avoid frequent removal of lid to check pro-gress for faster heating process.
- When the heating lid is removed during a heating process, the power indicator light will start blinking until the heating lid is put back on the appliance again. Once back on, the power indicator light will light up normally again.
- Small pieces heat faster than larger ones. The estimated heating time of the food may vary depending on the temperature, quality, amount of contents and the degree of heating desired.
- Some experimentation may be needed to determine exact heating times based on personal preferences.
- If the estimated heating time was too short, extend heating time while monitoring closely.
- For safety reasons, the appliance stops heating automatically after 60 minutes. If this is not enough time, press the ON/OFF button to start again. This can be done immediately and without waiting time after automatic shut off.
- To stop the heating process at any time: (1) press the ON/OFF button or (2) unplug the HeatsBox, (3) remove the lid or use the App (4).

Overview about LED Colors ON/OFF button

LED Color	Constantly shining	Blinking
White	Ready for offline heating Ready to be App-connected	Lid is open and needs to be closed before heating process will start (offline / online).
Red	Heating process in progress	Heating process is in progress but momentarily on hold until lid is closed. Close the lid to continue heating process.
Yellow	Keep warm process in progress	Keep warm process is in pro-gress but momentarily on hold until lid is closed. Close the lid to continue keep warm process.
Blue	HeatsBox is connected to the App.	Lid is open and must be closed first to start heating process.
No color, but device is connected to the power socket	The HeatsBox is in standby mode. The HeatsBox can be activated via App.

Cleaning Of Interior

• Remove the lid of the appliance.
• Remove the rubber sealing from the lid.
• Wash the rubber sealing using warm soapy water and a soft sponge.
• Remove the inner dish from the appliance.
• Wash the heating lid with a well-wrung damp cloth without deter-gent.
• Wash the interior of appliance with a well-wrung damp cloth without detergent.
• Dry the interior and lid of appliance thoroughly.

Cleaning Of Exterior

• Clean the main body and exterior of lid with a well-wrung damp cloth without detergent.
• Dry main body and exterior of lid thoroughly.

Cleaning Of Inner Dish

- The inner dish can be washed in the dishwasher.

Disposal

Disable appliances prior to disposal, cut off mains cable and bring to an official refuse site. The HeatsBox and its part should not be disposed of with other household waste.

Specifications

• Model: B00145
  • Material: PP, Silicone, Aluminium
• Food Safety: Food grade materials (LFGB and FDA)
  • Heating Power: 100 W (max.)
  • Power Consumption: 102 W (max.)
  • Voltage: 220 - 240 V AC
  • Frequency: 50 / 60 Hz
  • Max. Temp: 85°C / 185°F
  • Net Weight: 850 g / 1.65 lbs

Inner Dish

• Nom. Capacity: 650 ml / 22 oz
• Material: Stainless Steel (304)
- Food Safety: Food grade material
• Net Weight: 190 g / 0.42 lbs

Power Cord & Connector

• Length: 1.5 m / 4.92 ft
- Plug: Phase and neutral

Scope Of Delivery

• 1 HeatsBox
• 1 Inner dish
• 1 Power cord
• 1 User manual

Certifications

• CE mark EN 60335-1:2012 and EN 60335-2-9:2016
• CE-RED EN 60950-1, EN 301489, EN 300 328 and EN 62479
• EMC EN 55014-1:2015 and EN 55014-2:2017
• EMF EN 62233:2008
• EU EG 1275/2008 Power Consumption in standby- & off-mode
- Food-grade materials and coloring according to LFGB and FDA

Garantie Garantie Garanzia Guarantee

The product guarantee is in accordance with the respective local law and regulations and applies for at least 2 years from date of purchase. It covers faults in construction, workmanship and material. Excluded from this guarantee are damage from hydro-chemical influences (e.g. owing to calcification), damage to all wear parts, damage from inappropriate use or maintenance, as well as damage from modifications or repairs carried out by unauthorised third parties. Please keep your proof of purchase to verify any claims under guarantee.

Adressen

Adresses

Indirizzi

Address

TAVORA Brands AG

Sihlbruggstrasse 107

6340 Baar

Switzerland

www.koenigworld.com
