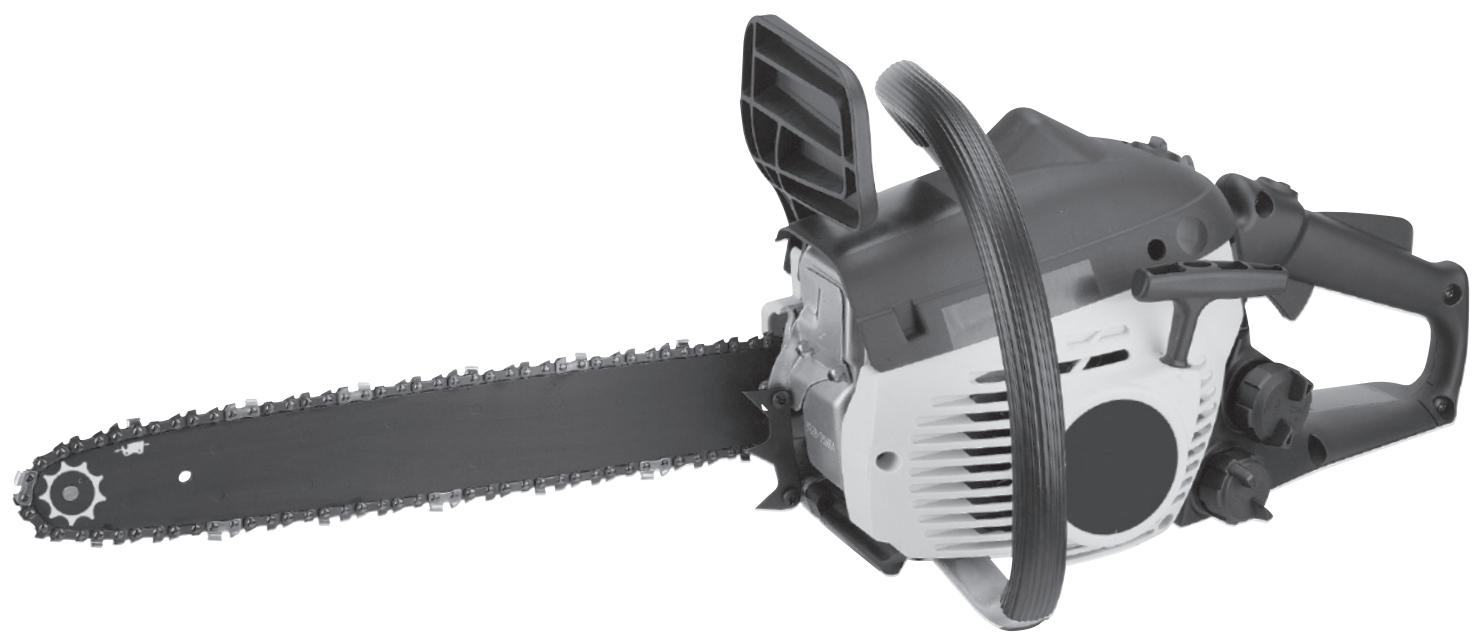

USER MANUAL MCC1840B MCCULLOCH

Models : MCC1840B, EBC1640BK, MCC1840B-CA, EBC1640BK-CA MCC1840BC Printed in China INTRODUCTION PLEASE READ

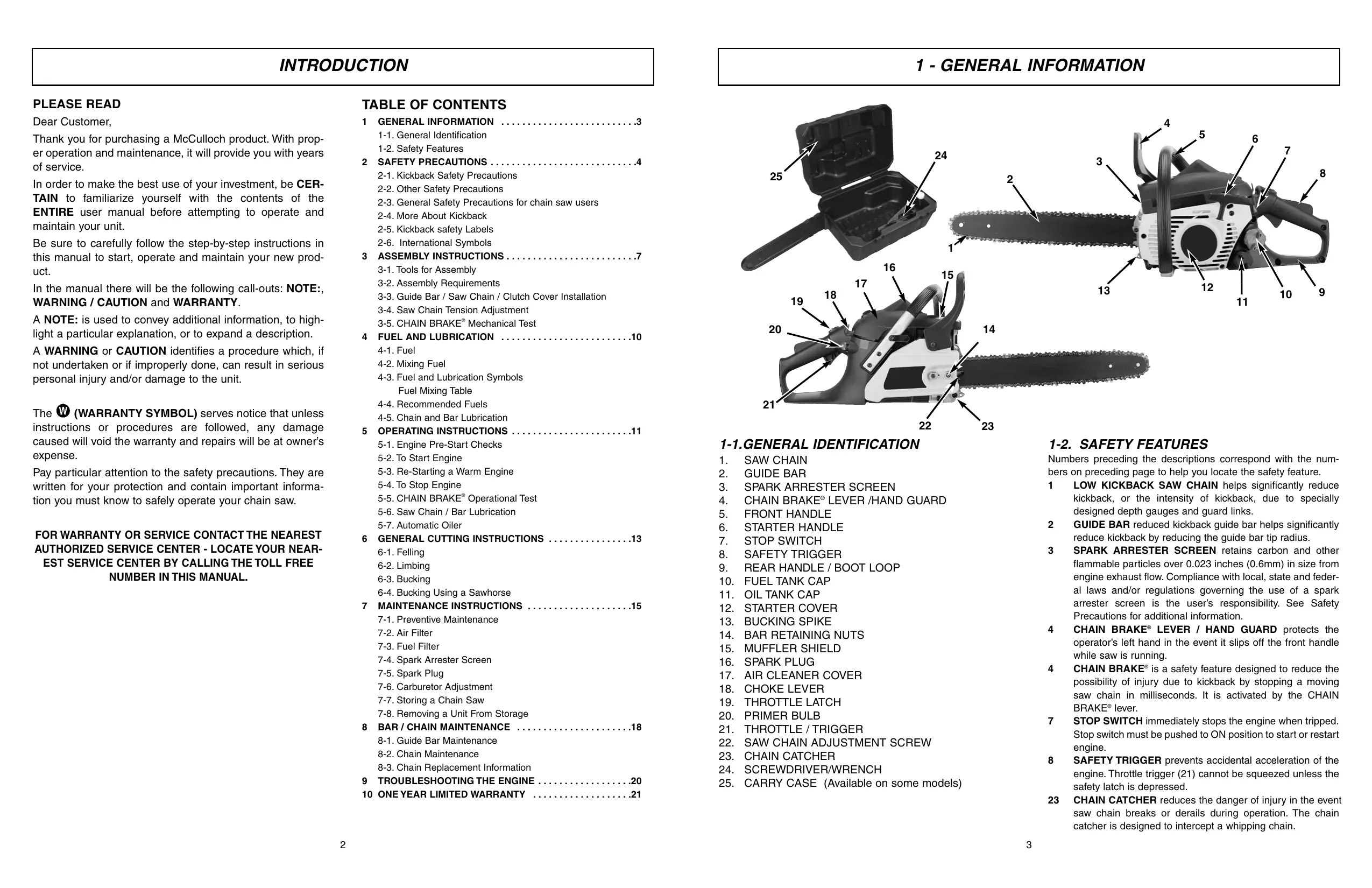

TABLE OF CONTENTS

Thank you for purchasing a McCulloch product. With proper operation and maintenance, it will provide you with years of service. In order to make the best use of your investment, be CERTAIN to familiarize yourself with the contents of the ENTIRE user manual before attempting to operate and maintain your unit. Be sure to carefully follow the step-by-step instructions in this manual to start, operate and maintain your new product. In the manual there will be the following call-outs: NOTE:, WARNING / CAUTION and WARRANTY. A NOTE: is used to convey additional information, to highlight a particular explanation, or to expand a description. A WARNING or CAUTION identifies a procedure which, if not undertaken or if improperly done, can result in serious personal injury and/or damage to the unit. The (WARRANTY SYMBOL) serves notice that unless instructions or procedures are followed, any damage caused will void the warranty and repairs will be at owner’s expense. Pay particular attention to the safety precautions. They are written for your protection and contain important information you must know to safely operate your chain saw. FOR WARRANTY OR SERVICE CONTACT THE NEAREST AUTHORIZED SERVICE CENTER - LOCATE YOUR NEAREST SERVICE CENTER BY CALLING THE TOLL FREE NUMBER IN THIS MANUAL.

1 - GENERAL INFORMATION

1-1.GENERAL IDENTIFICATION

1-2. SAFETY FEATURES

Numbers preceding the descriptions correspond with the numbers on preceding page to help you locate the safety feature. LOW KICKBACK SAW CHAIN helps significantly reduce kickback, or the intensity of kickback, due to specially designed depth gauges and guard links. GUIDE BAR reduced kickback guide bar helps significantly reduce kickback by reducing the guide bar tip radius. SPARK ARRESTER SCREEN retains carbon and other flammable particles over 0.023 inches (0.6mm) in size from engine exhaust flow. Compliance with local, state and federal laws and/or regulations governing the use of a spark arrester screen is the user’s responsibility. See Safety Precautions for additional information. CHAIN BRAKE® LEVER / HAND GUARD protects the operator’s left hand in the event it slips off the front handle while saw is running. CHAIN BRAKE® is a safety feature designed to reduce the possibility of injury due to kickback by stopping a moving saw chain in milliseconds. It is activated by the CHAIN BRAKE® lever. STOP SWITCH immediately stops the engine when tripped. Stop switch must be pushed to ON position to start or restart engine. SAFETY TRIGGER prevents accidental acceleration of the engine. Throttle trigger (21) cannot be squeezed unless the safety latch is depressed. 23 CHAIN CATCHER reduces the danger of injury in the event saw chain breaks or derails during operation. The chain catcher is designed to intercept a whipping chain.

2 - SAFETY PRECAUTIONS

SAFETY PRECAUTIONS FOR CHAIN SAW USERS

(ANSI B175.1-2000, Annex C. CAN/CSA-Z62.1-03)

2-1. KICKBACK SAFETY PRECAUTIONS

WARNING Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. If bar tip makes contact with something it may cause a lightning-fast reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw, which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury.

1. With a basic understanding of kickback, you can

reduce or eliminate the element of surprise. Sudden surprise contributes to accidents.

2. Keep a good firm grip on the saw with both hands, the

right hand on the rear handle, and the left hand on the front handle, when the engine is running. Use a firm grip with thumbs and fingers encircling the chain saw handles. A firm grip will help you reduce kickback and maintain control of the saw. Don’t let go.

3. Make sure that the area in which you are cutting is

free from obstructions. Do not let the nose of the guide bar contact a log, branch, or any other obstruction which could be hit while you are operating the saw.

4. Cut at high engine speeds.

5. Do not overreach or cut above shoulder height.

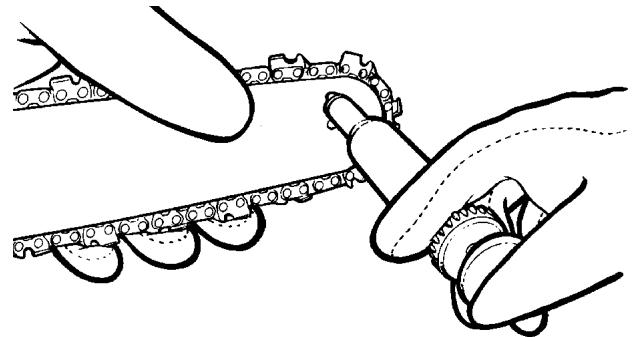

6. Follow manufacturer’s sharpening and maintenance

instructions for the saw chain.

7. Only use replacement bars and chains specified by

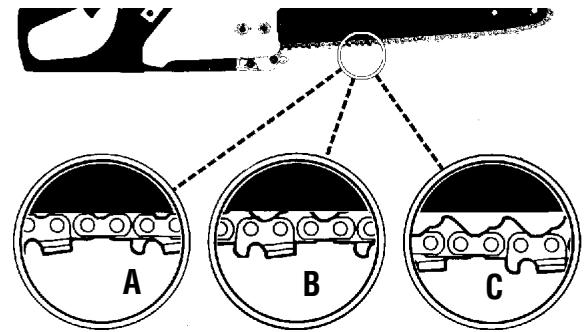

the manufacturer or the equivalent. NOTE: Low-kickback saw chain is chain that has met the kickback performance requirements of ANSI B175.1-2000 (American National Standard for Power Tools GasolinePowered Chain Saws Safety Requirements) when tested on the representative sample of chain saws below 3.8 c.i.d. specified in ANSI B175.1-2000.

2-2. OTHER SAFETY PRECAUTIONS

DO NOT operate a chain saw with one hand! Serious injury to the operator, helpers, bystanders, or any combination of these persons may result from onehanded operation. A chain saw is intended for twohanded use. DO NOT operate a chain saw when you are fatigued. Use safety footwear, snug-fitting clothing, protective gloves, and eye, hearing and head protection devices.

Use caution when handling fuel. Move the chain saw at least 9.1m (30 feet) from the fueling point before starting the engine. DO NOT allow other persons to be near when starting or cutting with the chain saw. Keep bystanders and animals out of the work area. DO NOT start cutting until you have a clear work area, secure footing, and a planned retreat path from the falling tree. Keep all parts of your body away from the saw chain when the engine is running. Before you start the engine, make sure that the saw chain is not contacting anything. Carry the chain saw with the engine stopped, the guide bar and saw chain to the rear, and the muffler away from your body. DO NOT operate a chain saw that is damaged, improperly adjusted, or not completely and securely assembled. Be sure that the saw chain stops moving when the throttle control trigger is released. Shut off the engine before setting the chain saw down. Use extreme caution when cutting small size brush and saplings because slender material may catch the saw chain and be whipped toward you or pull you off balance. When cutting a limb that is under tension, be alert for springback so that you will not be struck when the tension in the wood fibers is released. Keep the handles dry, clean, and free of oil or fuel mixture. Operate the chain saw only in well-ventilated areas. DO NOT operate a chain saw in a tree unless you have been specifically trained to do so. All chain saw service, other than the items listed in the user manual safety and maintenance instructions, should be performed by competent chain saw service personnel. When transporting your chain saw, use the appropriate guide bar scabbard. DO NOT operate your chain saw near or around flammable liquids or gases whether in or out of doors. An explosion and/or fire may result. USE THE RIGHT TOOL: Cut wood only. Do not use the chain saw for purposes for which it was not intended. For example, do not use the chain saw for cutting plastic, masonry, or non-building materials. Do not attempt to add fuel or lubricating oil to saw while engine is running.

2 - SAFETY PRECAUTIONS

NOTE: These safety precautions are intended primarily for the consumer or occasional user. When using a chain saw for logging purposes, refer to the Code of Federal Regulations, Section 1910.226(5); 2.5.1., of American National Standard Safety Requirements for Pulpwood Logging, ANSI 03.1-1978; and relevant state safety codes. These models are classified according to CAN/ CSAZ62.1-03 as a Class 1C saw. They are intended for infrequent use by homeowners, cottagers, and campers, and for such general applications as clearing, pruning, cutting firewood, etc. They are not intended for prolonged use. If the intended use involves prolonged periods of operation, this may cause circulatory problems in the user’s hands due to vibration. All models covered in this manual employ an antivibration feature for increased comfort and safety.

2-3. GENERAL SAFETY PRECAUTIONS

FOR CHAIN SAW USERS

Fatigue causes carelessness. Be more cautious before rest periods and towards the end of your shift.

2. Personal protective clothing required by your safety

organizations, government regulations, or your employer should be used. At all times when using a chain saw, snug-fitting clothing, protective eye wear, safety footwear, and hand, leg, and hearing protection should be worn.

3. Before refueling, servicing, or transporting your chain

saw, switch off the engine. To help prevent fire, restart your chain saw at least 9.1m (30ft) from the fuelling area.

4. When a chain saw is being used, a fire extinguisher

should be available.

5. When felling, keep at least 2 tree lengths away from

your fellow workers.

6. Plan your work, ensuring an obstacle-free work area

and, in the case of felling, at least one escape path from the falling tree.

7. Follow the instructions in your operator’s manual for

starting the chain saw and control the chain saw with a firm grip on both handles when it is in operation. Keep handles dry, clean, and free of oil.

8. When transporting your chain saw, use the appropriate transportation covers, which should be available

for the guide bar and saw chain.

9. Never operate a chain saw that is damaged or improperly adjusted or that is not completely and securely

assembled. Be sure that the saw chain stops moving when the power control system trigger is released. Never adjust the guide bar or saw chain when the engine is operating.

10. Beware of carbon monoxide poisoning. Operate the

chain saw in well-ventilated areas only.

11. Do not attempt a pruning or limbing operation in a

standing tree unless specifically trained to do so.

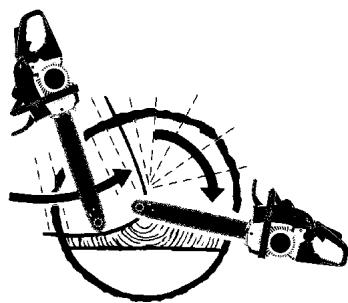

12. Guard against kickback. Kickback is the upward

motion of the guide bar that occurs when the saw chain, at the nose of the guide bar, contacts an object.

Kickback can lead to dangerous loss of control of the chain saw. A chain saw is intended for two-handed use. Serious injury to the operator, helpers, and/or bystanders can result from one-handed operation. See section 2-5, 2-6 for symbol definitions, page 5. When carrying a chain saw with the engine running, engage the chain brake. Allow your chain saw to cool before refueling, and do not smoke. Keep other persons or animals a safe distance away from a running chain saw or the area where a tree is being felled. Use extreme caution when cutting small brush and saplings because slender material can catch the saw chain and be whipped toward you. When cutting a limb that is under tension or compression, be alert for springback. This gas-powered saw is classified according to CAN/ CSA-Z62.1-03 as a Class 1C saw. It is intended for infrequent use by homeowners, cottagers, and campers, and for such general applications as clearing, pruning, cutting firewood, etc. It is not intended for prolonged use. Prolonged periods of operation can cause circulatory problems in the user’s hands due to vibration. For such use, it may be appropriate to use a saw having an anti-vibration feature.

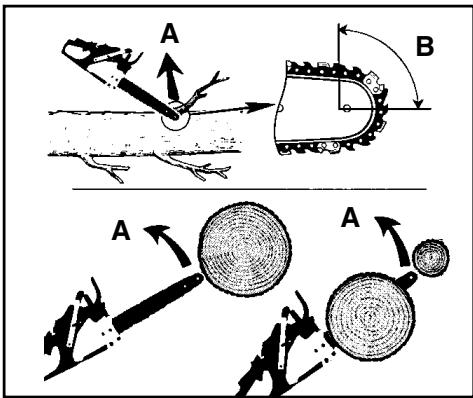

2-4. MORE ABOUT KICKBACK

WARNING DANGER! BEWARE OF KICKBACK! Kickback can lead to dangerous loss of control of the chain saw and result in serious or fatal injury to the saw operator or to anyone standing close by. Always be alert. Rotational kickback and pinch-kickback are major chain saw operational dangers and the leading cause of most accidents. BEWARE OF: ROTATIONAL KICKBACK (Figure 2-4A) A = Kickback path B = Kickback reaction zone

2 - SAFETY PRECAUTIONS

3 - ASSEMBLY INSTRUCTIONS

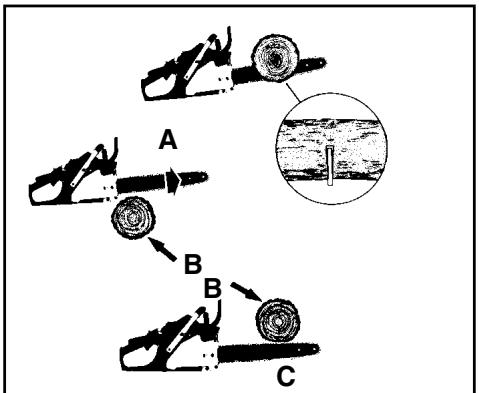

THE PUSH (PINCH-KICKBACK) AND PULL

REACTIONS (Figure 2-4B) A = Pull B = Solid objects C = Push Your McCulloch Chain Saw is provided with a safety label located on the chain brake lever. This label, along with the safety instructions on these pages, should be carefully read before attempting to operate this unit. HOW TO READ SYMBOLS AND COLORS: WARNING RED Used to warn that an unsafe procedure should not be performed.

WARNING (Figure 2-5A)

2-4B KICKBACK may occur when the NOSE or TIP of the guide bar touches an object, or when wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a lightning-fast reverse reaction, kicking the guide bar up and back toward the operator. PINCHING the saw chain along the BOTTOM of the guide bar may PULL the saw forward away from the operator. PINCHING the saw chain along the TOP of the guide bar may PUSH the guide bar rapidly back toward the operator. Any of these reactions may cause you to lose control of the saw, which could result in serious personal injury. Worst-case computed kickback angle. Beware of kickback. Do not attempt to hold saw with one hand. Avoid bar nose contact. RECOMMENDED

Hold saw properly with both hands.

3-1. TOOLS FOR ASSEMBLY (YOUR SAW

WAS ASSEMBLED AT THE FACTORY) You will need these tools to assemble your chain saw:

1. Combination wrench-screwdriver (contained in your

user’s kit or in lid of carry case).

2. Heavy duty work gloves (user supplied).

3-2. ASSEMBLY REQUIREMENTS

Your new chain saw will require adjustment of chain, filling the fuel tank with correct fuel mixture and filling the oil tank with lubricating oil before the unit is ready for operation. 3-3B WARNING DO NOT start saw engine until unit is properly prepared. Read the entire user manual before attempting to operate your unit. Pay particular attention to all safety precautions. Your user manual is both a reference guide and handbook provided to furnish you with general information to assemble, operate and maintain your saw.

3-3. GUIDE BAR / SAW CHAIN / CLUTCH

COVER INSTALLATION WARNING 3-3C Always wear protective gloves when handling chain. TO INSTALL GUIDE BAR: CAUTION WARNING 2-5A The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

2-6. INTERNATIONAL SYMBOLS

Use of these personal safety items is highly recommended to reduce the risk of accidental injury. Wear head, eye and hearing protection.

To ensure the bar and chain receive oil, ONLY USE THE ORIGINAL STYLE BAR with the oil passage hole (A) as illustrated above (Figure 3-3A).

1. Make sure the CHAIN BRAKE® lever is pulled back

into the DISENGAGED position (Figure 3-3B)

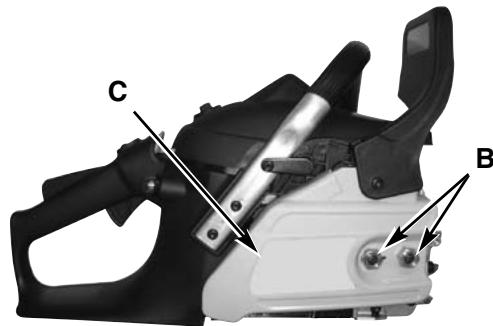

2. Remove the bar retaining nuts (B). Remove clutch

cover (C) by pulling straight out, some force may be required. (Figure 3-3C) NOTE: Discard the two plastic washers. They are only used for shipping the chain saw.

3. Using a screwdriver or the wrench supplied in the

user’s kit or in the upper half of the carrying case. Turn the adjustment screw (D) COUNTERCLOCKWISE until the TANG (E) (projecting prong) is to the end of its travel (Figure 3-3D).

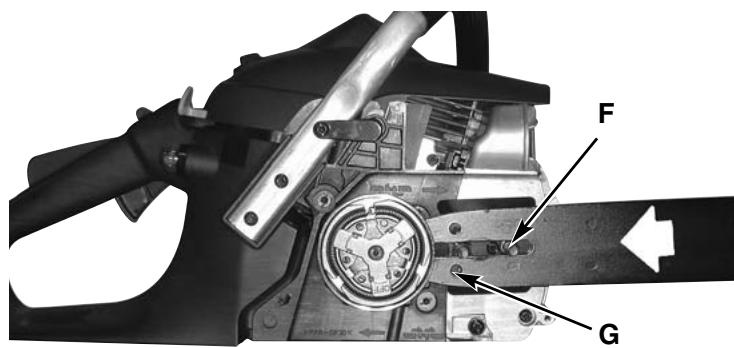

4. Place the slotted end of the guide bar over the bar bolt

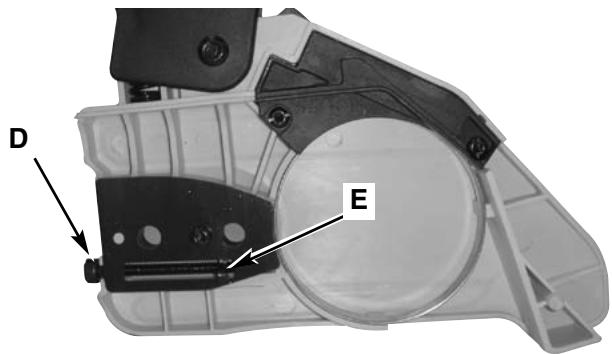

(F). Slide guide bar behind clutch drum (G) until the guide bar stops (Figure 3-3E).

Wear gloves to protect your hands. Wear safety boots to protect against electric shock. 3-3A

3 - ASSEMBLY INSTRUCTIONS

3 - ASSEMBLY INSTRUCTIONS

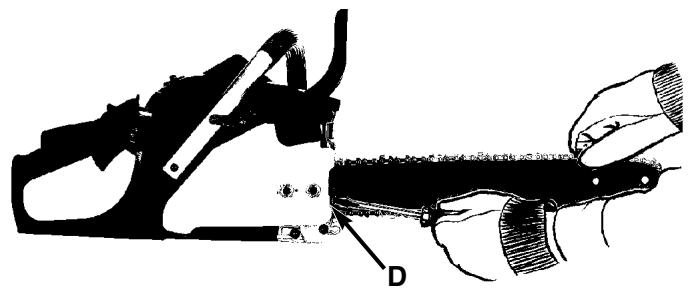

3-4. SAW CHAIN TENSION ADJUSTMENT

Proper tension of saw chain is extremely important and must be checked before starting, as well as during any cutting operation. Taking the time to make needed adjustments to the saw chain will result in improved cutting performance and prolonged chain life. Always wear heavy duty gloves when handling saw chain or making saw chain adjustments.

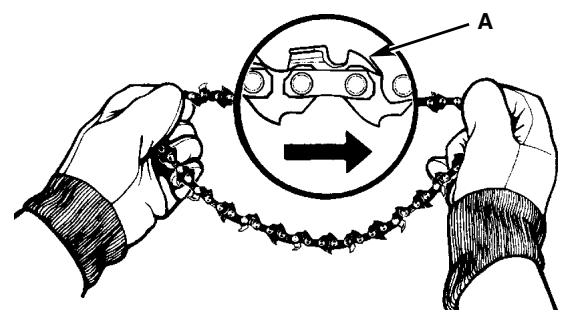

1. Spread chain out in a loop with cutting edges (A)

pointing CLOCKWISE around loop (Figure 3-3F).

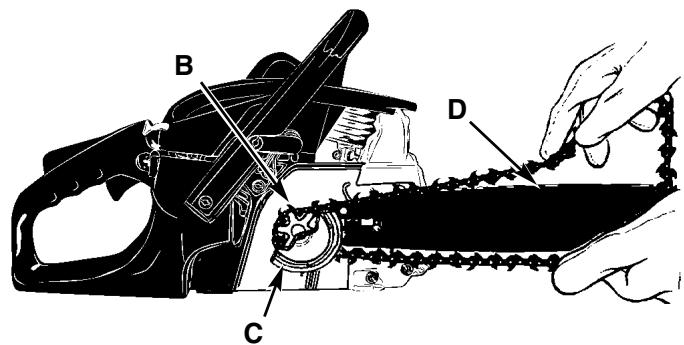

2. Slip the chain around the sprocket (B) behind the

clutch (C). Make sure the links fit between the sprocket teeth (Figure 3-3G).

3. Guide the drive links into the groove (D) and around

the end of the bar (Figure 3-3G). NOTE: The saw chain may droop slightly on the lower part of bar. This is normal.

4. Pull guide bar forward until chain is snug. Ensure all

drive links are in the bar groove.

5. Install the clutch cover making sure the tang is positioned in the lower hole in the guide bar. Make sure

the chain does not slip off of the bar. Install the bar retaining nuts hand tight and follow tension adjustment instructions in Section 3-4. NOTE: The guide bar retaining nuts are installed only hand tight at this point because saw chain adjustment is required. Follow instructions in Section 3-4, Saw Chain Tension Adjustment. WARNING Always wear heavy duty gloves when handling saw chain or making saw chain adjustments. TO ADJUST SAW CHAIN: Hold nose of guide bar up and turn adjustment screw (D) CLOCKWISE to increase chain tension. Turning screw COUNTERCLOCKWISE will decrease amount of tension on chain. Ensure the chain fits snugly all the way around the guide bar (Figure 3-4A).

2. After making adjustment, and while still holding nose

of bar in the uppermost position, tighten the bar retaining nuts securely. Chain has proper tension when it has a snug fit all around and can be pulled around by gloved hand. NOTE: If chain is difficult to rotate on guide bar or if it binds, too much tension has been applied. This requires minor adjustment as follows: A. Loosen the bar retaining nuts so it is finger tight. Decrease tension by turning the bar adjustment screw COUNTERCLOCKWISE slowly. Move chain back and forth on bar. Continue to adjust until chain rotates freely, but fits snugly. Increase tension by turning bar adjustment screw CLOCKWISE. B. When saw chain has proper tension, hold nose of bar in uppermost position and tighten the bar retaining nut securely. CAUTION To Test CHAIN BRAKE®: The CHAIN BRAKE® is DISENGAGED (chain can move) when BRAKE LEVER IS PULLED BACK AND LOCKED. Be sure the chain break latch is in the on position. (Figure 3-5A).

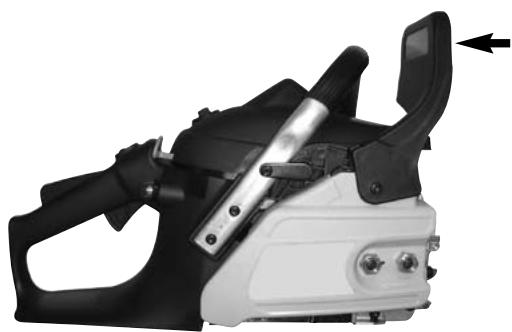

2. The CHAIN BRAKE® is ENGAGED (chain is stopped)

when brake lever is in forward position and the chain brake latch is in the off position. You should not be able to move chain (Figure 3-5B). NOTE: The brake lever should snap into both positions. If strong resistance is felt, or lever does not move into either position, do not use your saw. Take it immediately to an Authorized Service Center for repair.

A new saw chain stretches, requiring adjustment after as few as 5 cuts. This is normal with a new chain, and the interval between future adjustments will lengthen quickly. CAUTION If saw chain is TOO LOOSE or TOO TIGHT, the sprocket, bar, chain, and crankshaft bearings will wear more rapidly. Study Figure 3-4B for information concerning correct cold tension (A), correct warm tension (B), and as a guide for when saw chain needs adjustment (C).

3-4B Your chain saw is equipped with a CHAIN BRAKE® that reduces possibility of injury due to kickback. The brake is activated if pressure is applied against brake lever when, as in the event of kickback, operator’s hand strikes the lever. When the brake is actuated, chain movement stops abruptly. WARNING The purpose of the CHAIN BRAKE® is to reduce the possibility of injury due to kickback; however, it cannot provide the intended measure of protection if the saw is operated carelessly. Always test the CHAIN BRAKE® before using your saw and periodically while on the job. OFF 3-5B

4 - FUEL AND LUBRICATION

5 - OPERATING INSTRUCTIONS

4-1. FUEL Use regular grade unleaded gasoline mixed with Genuine McCulloch 40:1 2-cycle engine oil for best results. Use mixing ratios in Section 4-3. Never use straight gasoline in your unit. This will cause permanent engine damage and void the manufacturer’s warranty for that product. Never use a fuel mixture that has been stored for over 90 days. If 2-cycle lubricant other than Genuine McCulloch Lubricant is to be used, it must be a premium grade oil for 2-cycle air cooled engines mixed at a 40:1 ratio. Do not use any 2-cycle oil product with a recommended mixing ratio of 100:1. If insufficient lubrication is the cause of engine damage, it voids the manufacturer’s engine warranty for that occurrence. GASOLINE 5-1. McCulloch 40:1 Ratio Lubricant 1 U.S. Gal.

3.2 oz.

4.3 oz.

125ml (cc) 1 lmp. Gal.

4.3 oz.

125ml (cc) Mixing Procedure 40 Parts Gasoline to 1 Part Lubricant

ENGINE PRE-START CHECKS

After warm up - See the User's Manual section 5-2, step 7 - If unit does not Idle after restarting 2 times, follow these steps to adjust idle.

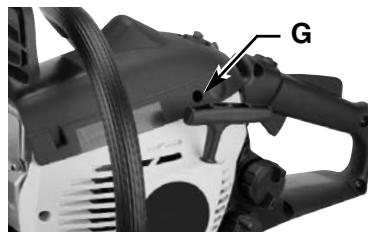

1. Idle adjustment access (G). (Figure 5-2H)

2. Using a Phillips or slotted screwdriver - turn screw 1/4

to 1/2 turn clockwise (to the right). Unit should then idle properly. (Figure 5-2H) NOTE: If chain turns while idling - turn screw back to the left until chain stops and unit continues to idle. WARNING Never start or operate the saw unless the bar and chain are properly installed.

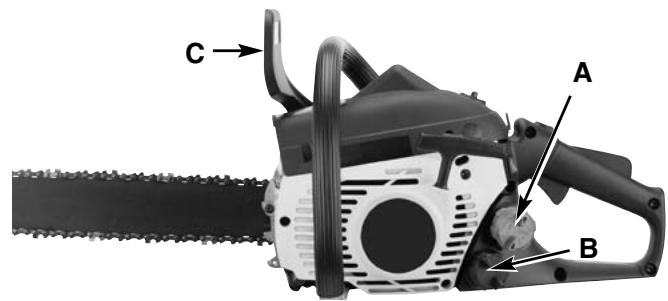

1. Fill the fuel tank (A) with correct fuel mixture (Figure

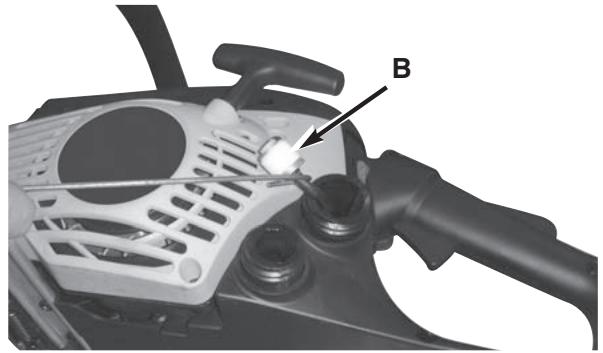

2. Fill the oil tank (B) with correct chain and bar oil

3. Be certain the CHAIN BRAKE® is disengaged (C)

before starting unit (Figure 5-1A). NOTE: See page 9 Fig. 3-5A & 3-5B. 1ml=1cc

4-2. MIXING FUEL

RECOMMENDED FUELS Some conventional gasolines are being blended with oxygenates such as alcohol or an ether compound to meet clean air standards. Your McCulloch engine is designed to operate on any gasoline intended for automotive use including oxygenated gasolines. Mix fuel with Genuine McCulloch brand 2 cycle oil in an approved container. Use mixing table for correct ratio of fuel to oil. Shake container to ensure thorough mix. Lack of lubrication voids engine warranty. 4-5.

CHAIN AND BAR LUBRICATION

Always refill the chain oil tank each time the fuel tank is refilled. We recommend using Genuine McCulloch Chain, Bar and Sprocket Oil, which contains additives to reduce friction and wear and to assist in the prevention of pitch formation on the bar and chain. Gasoline and Oil Mix 40:1 5-2A 5-1A 5-2.

TO START ENGINE

Press red STOP switch to the “I” ON position (Fig. 52A).

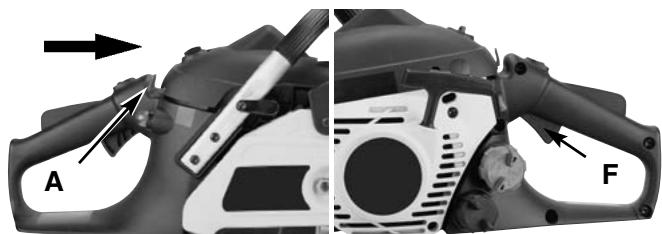

2. Pull out the choke (A) to the point where it latches in

3. Push the primer bulb (B) 10 times. (Fig. 5-2C)

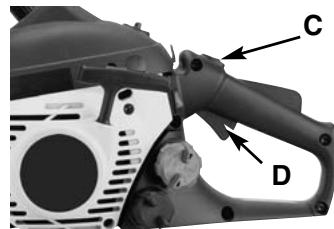

4. Latch throttle advance: depress latch and hold (C)

squeeze throttle trigger (D) release trigger and then the latch. (Fig. 5-2D)

5. Place the saw on a firm and level surface. Hold the

saw securely with your foot as illustrated. Pull sharply on the starter 4 times. Watch the chain in case it runs. (Fig. 5-2E) NOTE: Easy Start power assist starting significantly reduces the pulling effort. Pull the starter cord slowly to about 3 1/2 feet, the power assist will turn over the engine with little resistence from the engine.

6. Push in the choke (E) as far it will go. (Fig. 5-2F)

7. Hold the saw securely and tug sharply on the starter

4 times. The engine should start.

8. Let the engine run for 10 seconds to warm up. Press

the trigger (F) and put it into idle. (Fig. 5-2G)

9. If the engine does not start up, repeat the above

IMPORTANT IDLING INFORMATION

In some cases due to operating conditions (altitude, temperature etc.) your chain saw may need a slight adjustment to the idle speed.

5. Squeeze the throttle trigger to 1/3 throttle, then immediately activate the CHAIN BRAKE® lever (C) (Figure 55A).

1. Make sure the on/off switch is in the “I” position.

2. Depress the primer bulb 10 times.

3. Set the throttle latch. Latch throttle advance: depress

latch and hold squeeze throttle trigger release trigger and then the latch.

4. Pull the starter rope rapidly 4 times. The engine

5. Release the throttle latch. The throttle latch will be

released while you press the trigger.

6. If the engine still can not start, follow the step as “To

start engine” section in this user manual. 5-4.

6 - GENERAL CUTTING INSTRUCTIONS

WARNING Activate the CHAIN BRAKE® slowly and deliberately. Keep the chain from touching anything; don’t let the saw tip forward.

6. Chain should stop abruptly. When it does, immediately

release the throttle trigger. WARNING If chain does not stop, turn engine off and take your unit to the nearest Authorized Service Center for service.

7. If CHAIN BRAKE® functions properly, turn the engine

off and return the CHAIN BRAKE® to the DISENGAGED position.

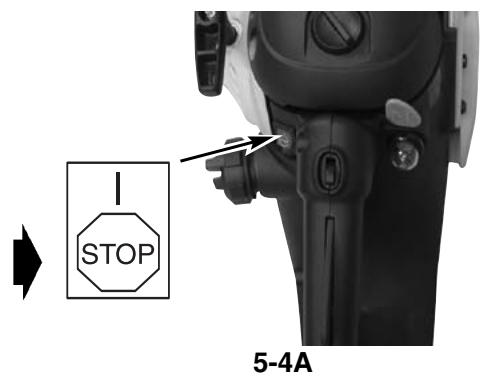

TO STOP ENGINE

1. Release trigger and allow engine to return to idle

2. Press STOP switch down to stop engine Figure 5-4A.

NOTE: For emergency stopping, simply activate CHAIN BRAKE® and move STOP switch down.

6-1. FELLING FELLING CUT:

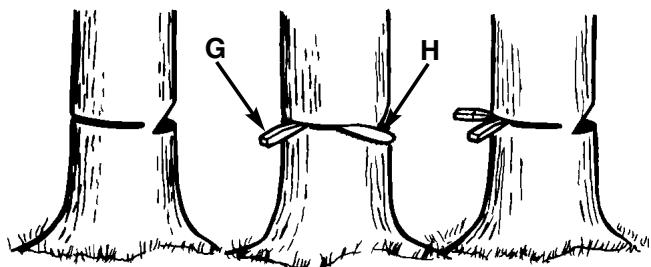

1. Use wooden or plastic wedges (G) to prevent binding

the bar or chain (H) in the cut. Wedges also control felling (Figure 6-1C).

2. When diameter of wood being cut is greater than the

bar length, make 2 cuts as shown (Figure 6-1D). Felling is the term for cutting down a tree. Small trees up to 6-7 inches (15-18cm) in diameter are usually cut in a single cut. Larger trees require notch cuts. Notch cuts determine the direction the tree will fall. FELLING A TREE: WARNING WARNING As the felling cut gets close to the hinge, the tree should begin to fall. When tree begins to fall, remove saw from cut, stop engine, put chain saw down, and leave area along retreat path (Figure 6-1A). A retreat path (A) should be planned and cleared as necessary before cuts are started. The retreat path should extend back and diagonally to the rear of the expected line of fall, as illustrated in Figure 6-1A. CAUTION If felling a tree on sloping ground, the chain saw operator should keep on the uphill side of the terrain, as the tree is likely to roll or slide downhill after it is felled. NOTE: Direction of fall (B) is controlled by the notching cut. Before any cuts are made, consider the location of larger branches and natural lean of the tree to determine the way the tree will fall.

WARNING Do not cut down a tree during high or changing winds or if there is a danger to property. Consult a tree professional. Do not cut down a tree if there is a danger of striking utility wires; notify the utility company before making any cuts. 5-5A 5-6. Adequate lubrication of the saw chain is essential at all times to minimize friction with the guide bar. Never starve the bar and chain of oil. Running the saw with too little oil will decrease cutting efficiency, shorten saw chain life, cause rapid dulling of chain, and cause excessive wear of bar from overheating. Too little oil is evidenced by smoke, bar discoloration or pitch build-up. NOTE: Saw chain stretches during use, particularly when it is new, and it will occasionally be necessary to adjust and tighten it. New chain will require adjustment after about 5 minutes of operation. 5-4A

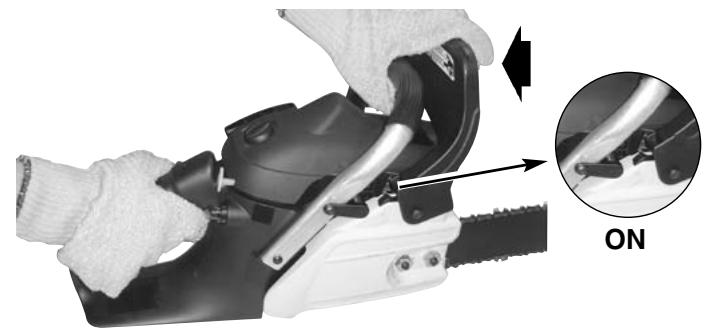

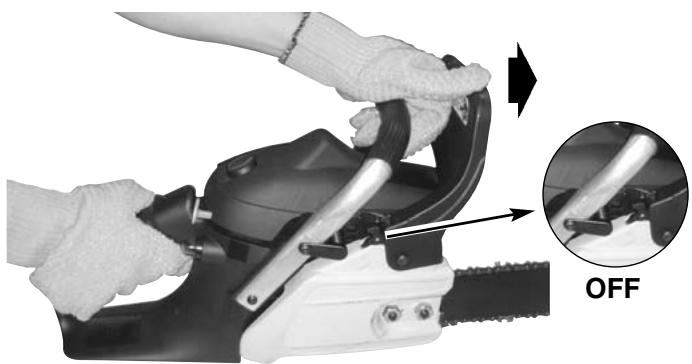

5-5. CHAIN BRAKE® OPERATIONAL TEST

Test the CHAIN BRAKE® periodically to ensure proper function. Perform a CHAIN BRAKE® test prior to initial cutting, following extensive cutting, and definitely following any CHAIN BRAKE® service.

5-7. AUTOMATIC OILER

Your chain saw is equipped with an automatic clutch driven oiler system. The oiler automatically delivers the proper amount of oil to the bar and chain. As the engine speed increases, so does the oil flow to the bar pad. There is no flow adjustment. The oil reservoir will run out at approximately the same time as the fuel supply runs out. TEST CHAIN BRAKE® AS FOLLOWS:

1. Place saw on a clear, firm, flat surface.

2. Start engine.

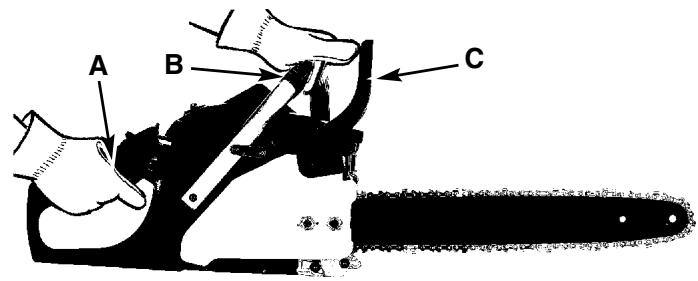

3. Grasp the rear handle (A) with your right hand (Figure

4. With your left hand, hold the front handle (B) [not

CHAIN BRAKE® lever (C)] firmly (Figure 5-5A). 6-1A

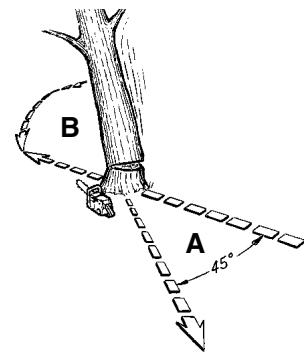

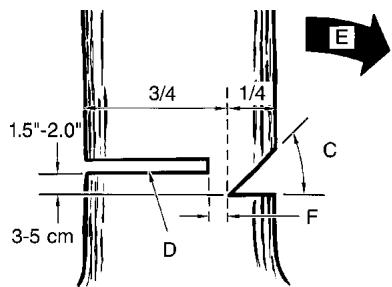

GENERAL GUIDELINES FOR FELLING

TREES: Normally felling consists of 2 main cutting operations, notching (C) and making the felling cut (D). Start making the upper notch cut (C) on the side of the tree facing the felling direction (E). Be sure you don t make the lower cut too deep into the trunk. The notch (C) should be deep enough to create a hinge (F) of sufficient width and strength. The notch should be wide enough to direct the fall of the tree for as long as possible. 6-1B

WARNING Never walk in front of a tree that has been notched. Make the felling cut (D) from the other side of the tree and

1.5 - 2.0 inches (3-5 cm) above the edge of the notch (C)

(Figure 6-1B). Never saw completely through the trunk. Always leave a hinge. The hinge guides the tree. If the trunk is completely cut through, control over the felling direction is lost. Insert a wedge or felling lever in the cut well before the tree becomes unstable and starts to move. This will prevent the guide bar from binding in the felling cut if you have misjudged the falling direction. Make sure no bystanders have entered the range of the falling tree before you push it over. 6-1C WARNING Before making the final cut, always recheck the area for bystanders, animals or obstacles. 6-1D

6 - GENERAL CUTTING INSTRUCTIONS

7 - MAINTENANCE INSTRUCTIONS

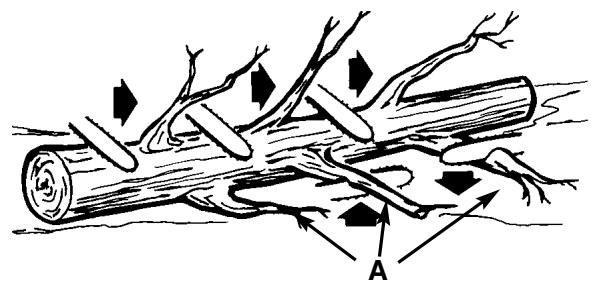

LIMBING All chain saw service, other than items listed here in your user manual maintenance instructions, should be performed by your nearest Authorized Service Center. Limbing a tree is the process of removing the branches from a fallen tree. Do not remove supporting limbs (A) until after the log is bucked (cut) into lengths (Figure 6-2A). Branches under tension should be cut from the bottom up to avoid binding the chain saw. 7-1. WARNING PREVENTIVE MAINTENANCE A good preventive maintenance program of regular inspection and care will increase life and improve performance of your McCulloch chain saw. This maintenance checklist is a guide for such a program. Cleaning, adjustment, and parts replacement may be required, under certain conditions, at more frequent intervals than those indicated. 6-3B Never cut tree limbs while standing on tree trunk. HOURS OF OPERATION

SCREWS / NUTS / BOLTS

CLEAN OR REPLACE

CLEAN / ADJUST / REPLACE

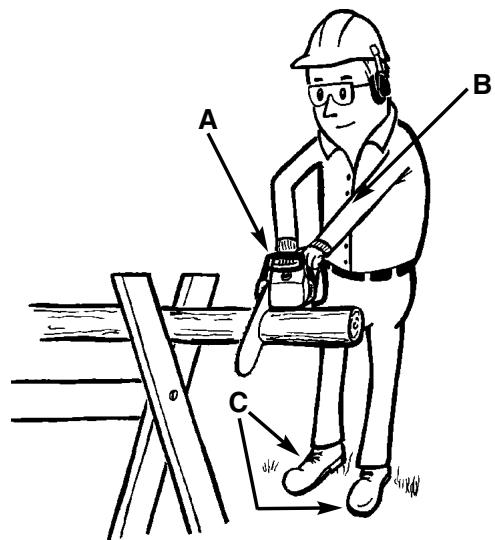

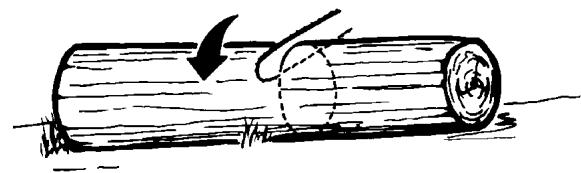

BUCKING USING A SAWHORSE

For personal safety and ease of cutting, the correct position for vertical bucking is essential (Figure 6-4A). BUCKING VERTICAL CUTTING: Bucking is cutting a fallen log into lengths. Make sure you have a good footing and stand uphill of the log when cutting on sloping ground. If possible, the log should be supported so that the end to be cut off is not resting on the ground. If the log is supported at both ends and you must cut in the middle, make a downward cut halfway through the log and then make the undercut. This will prevent the log from pinching the bar and chain. Be careful that the chain does not cut into the ground when bucking as this causes rapid dulling of the chain. When bucking on a slope, always stand on the uphill side.

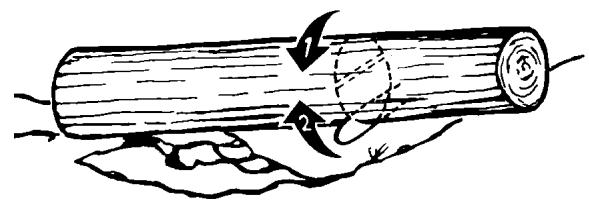

1. Log supported along entire length: Cut from top (overbuck), being careful to avoid cutting into the ground

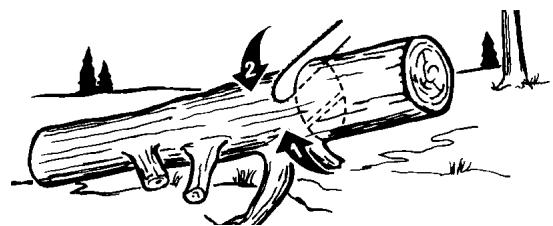

2. Log supported on 1 end: First, cut from bottom (underbuck) 1/3 diameter of log to avoid splintering. Second,

cut from above (overbuck) to meet first cut and avoid pinching (Figure 6-3B).

3. Log supported on both ends: First, overbuck 1/3 diameter of log to avoid splintering. Second, underbuck to

meet first cut and avoid pinching (Figure 6-3C). NOTE: The best way to hold a log while bucking is to use a sawhorse. When this is not possible, the log should be raised and supported by the limb stumps or by using supporting logs. Be sure the log being cut is securely supported. A. Hold the saw firmly with both hands and keep the saw to the right of your body while cutting. B. Keep the left arm as straight as possible. C. Keep weight on both feet.

REPLACE AS REQUIRED

*REPLACE AS REQUIRED

CAUTION While the saw is cutting, be sure the chain and bar are being properly lubricated.

*REPLACE AS REQUIRED

*Recommended for Maintenance by a Authorized Service Center Technician.

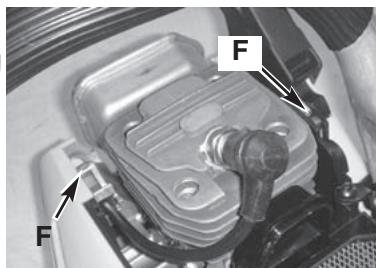

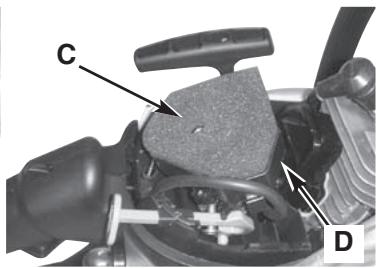

Never operate saw without the air filter. Dust and dirt will be drawn into engine and damage it. Keep the air filter clean! TO CLEAN AIR FILTER:

Remove knob (A) holding air filter cover in place, remove the top cover (B) by loosening the cover retaining screws. Cover will lift off.(Figure 7-2A)

2. Completely remove the air filter box (B) from the unit.

3. Clean air filter box by using air cleaner or brush.

NOTE: Never clean air filter with liquid material or it may cause air filter damaged.

4. Install air filter. Install engine / air filter cover. Make

sure latch (E) latch (F) and cover fit properly. Tighten the cover retaining knob securely. (Figure 7-2C & Figure 7-2D) 7-3A 7-4. Never perform maintenance when the engine is hot, to avoid any chance of burning hands or fingers.

7-5. SPARK PLUG

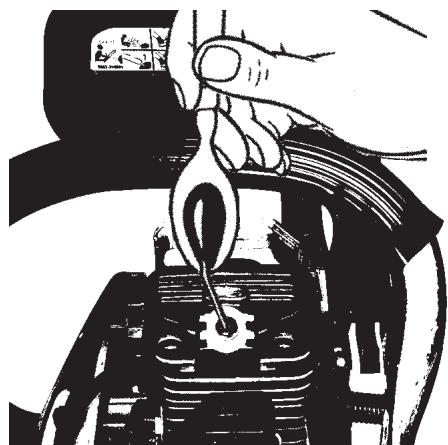

Allow the engine to cool (approx. 5 minutes). Using a spark plug wrench, remove the spark plug. Pour 1 teaspoon of clean 2-cycle oil into the combustion chamber. Pull starter rope slowly several times to coat internal components. Replace spark plug (Figure 7-7A). NOTE: Store the unit in a dry place and away from possible sources of ignition such as a furnace, gas hot water heater, gas dryer, etc. NOTE: For efficient operation of saw engine, spark plug must be kept clean and properly gapped.

1. Push STOP switch down.

2. Remove air cleaner cover.

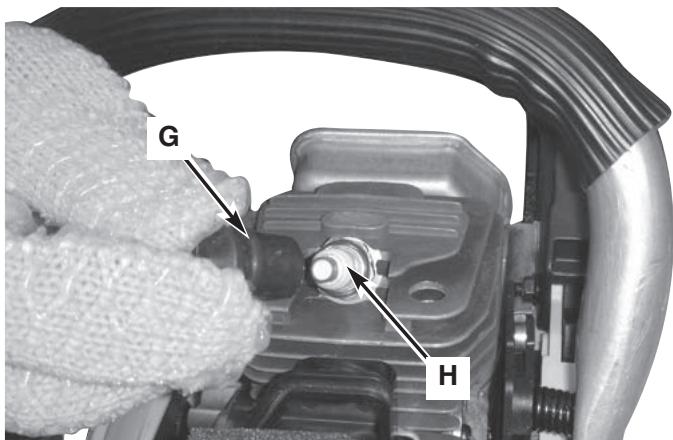

3. Disconnect the wire connector (G) from the spark plug

(H) by pulling and twisting at the same time (Figure 75A).

4. Remove spark plug with spark plug socket wrench.

DO NOT USE ANY OTHER TOOL.

5. Check electrode gaps with wire feeler gauge and set

gaps to .025” (.635mm) if necessary.

6. Reinstall a new spark plug.

NOTE: A resistor spark plug must be used for replacement (Part no. 9295-310801). NOTE: This spark ignition system meets all requirements of the Canadian Interference-Causing Equipment Regulations. NOTE: A clogged spark arrester screen will dramatically reduce engine performance.

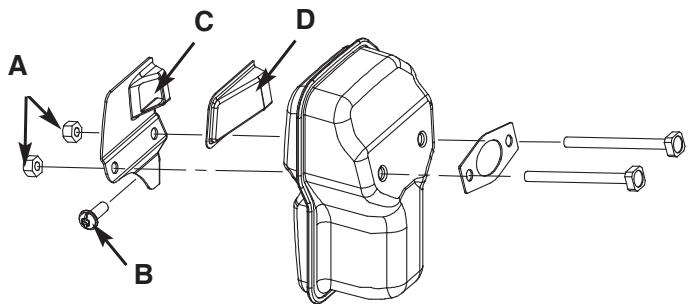

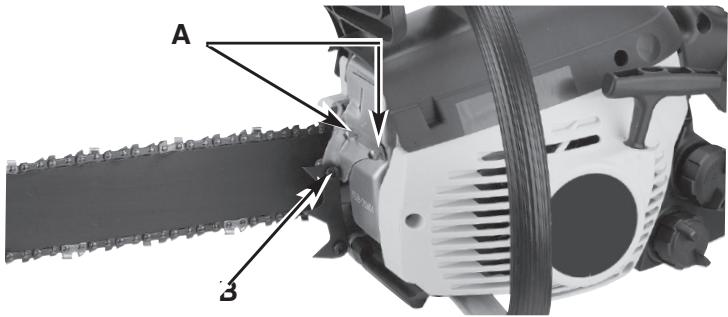

1. Remove the 2 nuts (A) and pull muffler out. (Figure74A).

2. Remove the 1 screw (B) that holds the spark arrester

cover (C) . (Figure 7-4B)

3. Discard the used spark arrester screen (D) and

replace it with a new one.

4. Reassemble the muffler components and install the

muffler to the cylinder. Tighten securely.

Pull filter off with a twisting motion. Discard filter. Install new filter. Insert end of filter into tank opening. Make sure filter sits in bottom corner of tank. Use a long handle screwdriver to aid in filter placement if necessary. Fill tank with fresh fuel / oil mixture. See Section 4, Fuel and Lubrication. Install fuel cap.

7 - MAINTENANCE INSTRUCTIONS

7-8. REMOVING A UNIT FROM STORAGE

7-6. CARBURETOR ADJUSTMENT

7-2C The carburetor was pre-set at the factory for optimum performance. If further adjustments are necessary, please take your unit to the nearest Authorized Service Center listed in the Yellow Pages.

7-2D Never operate your saw without a fuel filter. The fuel filter should be replaced after each 20 hours of use. Drain fuel tank completely before changing filter.

1. Completely remove the fuel cap from the gas tank.

2. Bend a piece of soft wire to form a hook at the end.

3. Reach into fuel tank opening and hook fuel line.

Carefully pull the fuel line toward the opening until you can reach it with your fingers. NOTE: Do not pull hose completely out of tank.

4. Lift filter (A) out of tank (Figure 7-3A).

CAUTION Never store a chain saw for longer than 30 days without performing the following procedures. Storing a chain saw for longer than 30 days requires storage maintenance. Unless the storage instructions are followed, fuel remaining in the carburetor will evaporate, leaving gum-like deposits. This could lead to difficult starting and result in costly repairs.

1. Remove the fuel tank cap slowly to release any pressure in tank. Carefully drain the fuel tank.

2. Start the engine and let it run until the unit stops to

remove fuel from carburetor.

Remove spark plug. Pull starter rope briskly to clear excess oil from combustion chamber. Clean and gap spark plug or install a new spark plug with proper gap. Prepare unit for operation. Fill fuel tank with proper fuel / oil mixture. See Fuel and Lubrication Section. To help minimize bar wear, the following guide bar maintenance procedures are recommended. BAR WEAR - Turn guide bar frequently at regular intervals (for example, after 5 hours of use), to ensure even wear on top and bottom of bar. BAR GROOVES - Bar grooves (or rails which support and carry the chain) should be cleaned if saw has been used heavily or if saw chain appears dirty. Rails should always be cleaned every time saw chain is removed. OIL PASSAGES - Oil passages on the bar should be cleaned to ensure proper lubrication of the bar and chain during operation. NOTE: The condition of the oil passages can be easily checked. If the passages are clear, the chain will automatically give off a spray of oil within seconds of starting the saw. Your saw is equipped with an automatic oiler system. Frequent lubrication of the guide bar (railed bar which supports and carries the saw chain) sprocket tip is required. Proper maintenance of the guide bar, as explained in this section, is essential to keep your saw in good working condition. SPROCKET TIP LUBRICATION: CAUTION The sprocket tip on your new saw has been pre-lubricated at the factory. Failure to lubricate the guide bar sprocket tip as explained below will result in poor performance and seizure, voiding the manufacturer’s warranty. Lubrication of the sprocket tip is recommended after 10 hours of use or once a week, which ever occurs first. Always thoroughly clean guide bar sprocket tip before lubrication.

8 - BAR / CHAIN MAINTENANCE

8-3. CHAIN REPLACEMENT INFORMATION

Chain Type (Carlton) N1C-BL-M-62E SK 180SDEA041 18-10-N1-MHC 3/8” 5/32” There may be other quality equivalent replacement components for achieving kickback protection. TOOLS FOR LUBRICATION: The Lube Gun (optional) is recommended for applying grease to the guide bar sprocket tip. The Lube Gun is equipped with a needle nose tip which is necessary for the efficient application of grease to the sprocket tip. CHAIN TENSION: TO LUBRICATE SPROCKET TIP: Check the chain tension frequently and adjust as often as necessary to keep the chain snug on the bar, but loose enough to be pulled around by hand. A new chain and bar will need chain readjustment after as few as 5 cuts. This is normal during the break-in period, and the interval between future adjustments will begin to lengthen quickly. WARNING Wear heavy duty work gloves when handling the bar and chain.

1. Move the STOP switch down.

NOTE: It is not necessary to remove the saw chain to lubricate the guide bar sprocket tip. Lubrication can be done on the job.

2. Clean the guide bar sprocket tip.

3. Using the Lube Gun (optional), insert tip of lube gun

into the lubrication hole and inject grease until it appears at outside edge of sprocket tip (Figure 8-1A).

4. Rotate saw chain by hand. Repeat lubrication procedure until the entire sprocket tip has been greased.

WARNING Never have more than 3 links removed from a loop of chain. This could cause damage to the sprocket. CHAIN LUBRICATION: Always make sure the automatic oiler system is working properly. Keep the oil tank filled with Genuine McCulloch Chain, Bar and Sprocket Oil. Adequate lubrication of the bar and chain during cutting operations is essential to minimize friction with the guide bar. Never starve the bar and chain of lubricating oil. Running the saw dry or with too little oil will decrease cutting efficiency, shorten saw chain life, cause rapid dulling of chain, and lead to excessive wear of bar from overheating. Too little oil is evidenced by smoke or bar discoloration. CHAIN SHARPENING: Chain sharpening requires special tools to ensure that cutters are sharpened at the correct angle and depth. For the inexperienced chain saw user, we recommend that the saw chain be professionally sharpened by the nearest Authorized Service Center. If you feel comfortable sharpening your own saw chain, special tools are available from the nearest Authorized Service Center. 8-1A GUIDE BAR MAINTENANCE: Most guide bar problems can be prevented merely by keeping the chain saw well maintained. Insufficient guide bar lubrication and operating the saw with chain that is TOO TIGHT will contribute to rapid bar wear.

Chain Chain Gauge Pitch File Size Bar Length 0.05”

9 - TROUBLESHOOTING THE ENGINE

PROBLEM Unit won’t start or starts but will not run. PROBABLE CAUSE Incorrect starting procedures. CORRECTIVE ACTION Follow instructions in the User Manual. Incorrect carburetor mixture adjustment setting. Have carburetor adjusted by an Authorized Service Center. Fouled spark plug Fuel filter plugged. Replace fuel filter. Incorrect lever position on choke. Move to RUN position. Dirty spark arrester screen. Replace spark arrester screen. Dirty air filter. Remove, clean and reinstall filter. Incorrect carburetor mixture adjustment setting. Have carburetor adjusted by an Authorized Service Center. Incorrect carburetor mixture adjustment setting. Have carburetor adjusted by an Authorized Service Center. Runs erratically. Incorrectly gapped spark plug. Incorrect carburetor mixture adjustment setting. Have carburetor adjusted by an Authorized Service Center. Incorrect fuel mixture. Use properly mixed fuel (40:1 mixture). Unit starts, but engine has low power. Engine hesitates. No power under load.

10 - ONE YEAR LIMITED WARRANTY

1. DURATION

The duration of the warranty for this McCulloch product is as follows: ONE (1) YEAR from date of original purchase only when used for personal, family, household, farm or ranch, purposes, provided the unit is not used for rental purposes; NINETY (90) DAYS from date of original purchase when used for commercial, professional, institutional or rental purposes. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. MCCULLOCH CORPORATION HEREBY DISCLAIMS ALL IMPLIED WARRANTIES AFTER THE APPLICABLE EXPIRATION DATES OF THIS EXPRESS LIMITED WARRANTY. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.)

2. WHO GIVES THIS WARRANTY

McCulloch U.S.A 1-800-554-6723 1030 Stevens Creek Road, Augusta, GA 30907

3. WHO RECEIVES THIS WARRANTY

A. The buyer (other than for purposes of resale) of the McCulloch Product. B. Any person to whom such product is lawfully transferred within the duration of the implied or written warranty applicable to the product. C. Any other person who is entitled by the terms of the warranty or under applicable state law to enforce against the Warrantor the obligation of the warranty. (The above mentioned parties are hereinafter referred to as “User.”)

4. WHAT IS COVERED UNDER THIS WARRANTY

Any failure that occurs within the applicable duration of the warranty period that is the result of defects in materials or workmanship.

5. WHAT IS NOT COVERED UNDER THIS WARRANTY

A. Any incidental or consequential damages that may result from the failure or malfunction of the McCulloch product. (Some states do not allow the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you.) B. Any failure that results from an accident, User abuse, neglect or failure to operate the product in accordance with the instructions provided in the User Manual(s) supplied with the product, or that results from improper servicing by an unauthorized repair facility. C. Normal adjustments which are explained in the User Manual(s) provided with the product. D. Any component(s) or accessories not sold or manufactured by the Warrantor. E. Predelivery setup or assembly of units. F. This warranty does not apply to accessories, normal maintenance or adjustment(s) of the product set forth in the User Manual(s).

6. RESPONSIBILITIES OF THE WARRANTOR UNDER THIS WARRANTY

A. Repair or replace components which have failed within the duration of the applicable warranty period at no cost to the User. B. Ensure that the authorized repair station is reimbursed for parts and labor costs incurred due to performance of a warranty repair in accordance with established warranty policies and procedures.

7. RESPONSIBILITIES OF THE USER UNDER THIS WARRANTY

A. The User must deliver or ship the McCulloch product covered under this warranty to the dealer from whom it was originally purchased or to the nearest Authorized Service Center. Proof of purchase is required. B. Freight costs, if any, will be borne by the user. C. Use reasonable care in maintenance, operations and storage of the product as explained in the User Manual(s).

8. WHEN WARRANTOR WILL PERFORM OBLIGATION UNDER THIS WARRANTY

A. Repair of warrantable products will be scheduled according to the normal work flow at the servicing location, depending on the availability of replacement parts. B. Repair time which exceeds ten (10) days from the time the product was delivered to the servicing agent will extend the warranty coverage by the number of days the product remains inoperable. C. If User does not receive satisfactory results from local servicing outlet, User must contact McCulloch Corporation, by calling our toll-free telephone number.

A LIRE ATTENTIVEMENT

3 - INSTRUCTIONS POUR MONTAGE

3 - INSTRUCTIONS POUR MONTAGE

3 - INSTRUCTIONS POUR MONTAGE

6 - INSTRUCTIONS POUR LA COUPE

6 - INSTRUCTIONS POUR LA COUPE

7 - ENTRETIEN

6-2. EBRANCHAGE COUPE VERTICALE:

INSPECTER TO CLEAN AIR FILTER:

PARA INSTALAR LA BARRA GUIA:

4 - COMBUSTIBLE Y LUBRICACION

TABLA DE MEZCLA DEL COMBUSTIBLE

4-2.MEZCLA DEL COMBUSTIBLE

LIMPIAR O REEMPLAZAR

N1C-BL-M-56E SK 160SDEA041 16-10-N156-MHC 0.05” 3/8” 5/32” 18” Bar 62 DL 91PJ062X

N1C-BL-M-62E SK 180SDEA041

18-10-N1-MHC

40cc Gas Chain Saw REVISED DATE 6/12/2009 11/22/2007 MCC1840B MODEL NO. 22A

59A 59B 59C 59D 59E 54A

86B 86C 86D 86E 40cc Gas Chain Saw PARTS LIST MCC1840B No. 6/12/2009 Parts No. Description

9292-31080F自 CYLINDER

9228-310839 PISTON ASS'Y

9228-310819自 CRANKCASE ASS'Y

CRANK/ROD ASS'Y

KIT SPARK ARRESTOR INCL 22, 23

9014-310810 COVER, MESH

9016-310801 SPARK ARRESTER

9228-311005T MUFFLER ASS'Y

9288-310801 IGNITION ASS'Y

9169-310801 FLYWHEEL ASS'Y

6221-830301 WOODRUFF KEY

9082-311001 ISOLATER, CARBURETER

9013-311003 RUBBER PLUG

AIR BOX ASS'Y

22A 40cc Gas Chain Saw PARTS LIST MCC1840B No. 6/12/2009 Parts No. Description

9183-311201 AIR FILTER

9211-311001 CAP, AIRWAY

STARTER HOUSING ASS'Y EASY

42A 9194-310801 STARTER ROPE

42C 9137-MD0701 STARTER PULLEY

CLUTCH DRUM ASS'Y INCL 53, 54

9200-311201 DRUM ASS'Y

9228-311004 CLUTCH ASS'Y

9013-311002 RUBBER PLUG

BRAKE KIT ASS'Y

59A AO9091-310510-US888 KIT ADJUSTING SCREW & NUT INCL 59B, 59C, 59D, 59E

59B 9014-311001 BAR PLATE

59D 9191-310501 SCREW

9014-310811 BAR PLATE

9263-310801 CHAIN CATCH

SHROUD ASS'Y INCL 64, 65, 97

54A 64A 40cc Gas Chain Saw PARTS LIST MCC1840B No. 6/12/2009 Parts No. Description

HOLDER, CHOKE LEVER

9114-311001 LEVER, CHOKE

9068-311002 HANDLE ASS'Y (L)

9010-311001 CABLE, THROTTLE

AO9028-311001-US888 HANDLE ASS'Y (R)

86A AO9129-311001-US888

CARBURETER WT-808A

9295-310801 40cc Gas Chain Saw PARTS LIST MCC1840B No. 6/12/2009 Parts No. Description

9066-310101 OIL 40 TO 1

9014-311003 IN KNOB RETAINER
