USER MANUAL HP2010N MAKITA

For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

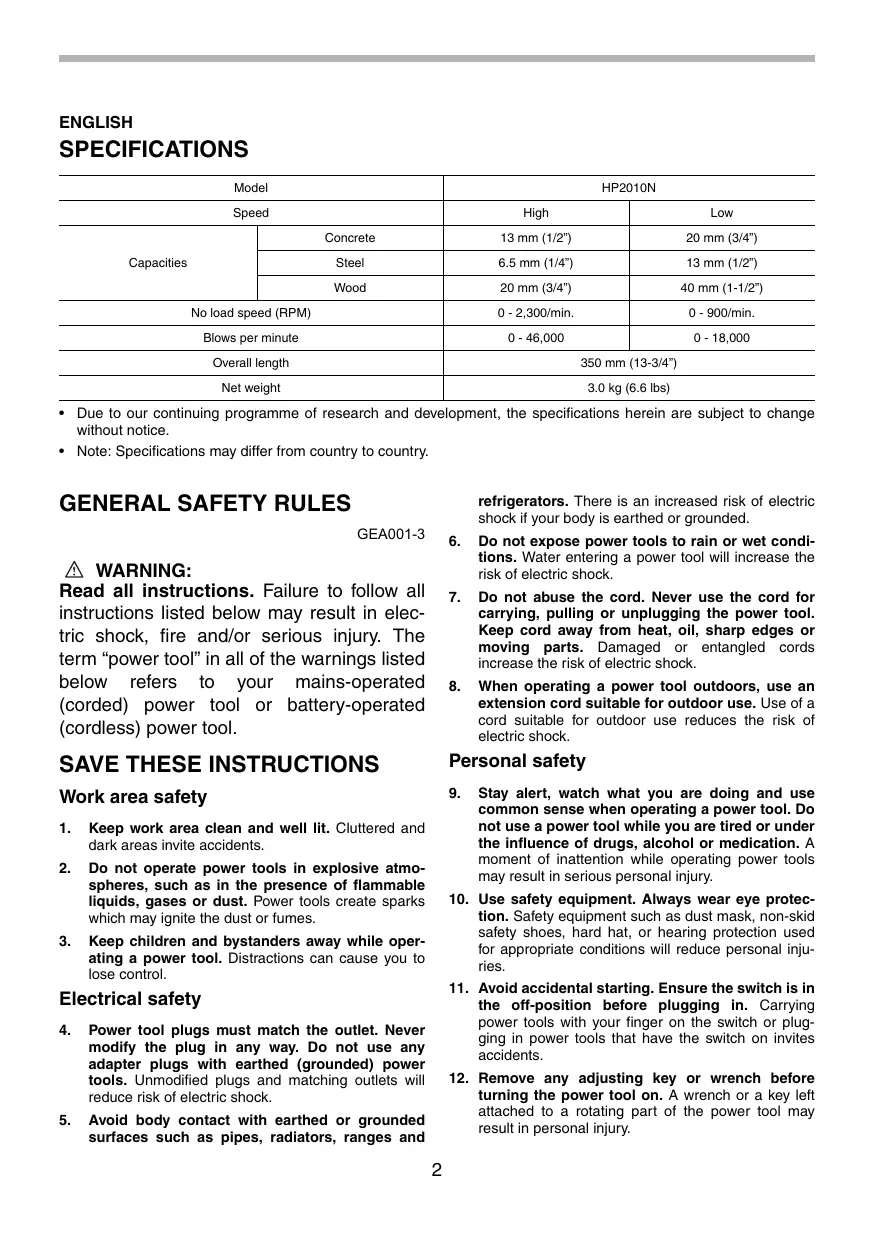

13 mm (1/2”) Wood 20 mm (3/4”) 40 mm (1-1/2”) No load speed (RPM)

Overall length 350 mm (13-3/4”) Net weight

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.

GENERAL SAFETY RULES

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. GEA001-3

Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

SAVE THESE INSTRUCTIONS

Personal safety Work area safety

Keep work area clean and well lit. Cluttered and dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

10. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid

safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

11. Avoid accidental starting. Ensure the switch is in

the off-position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. Electrical safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

12. Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and

25. Keep handles dry, clean and free from oil and

13. Do not overreach. Keep proper footing and balance at all times. This enables better control of the

power tool in unexpected situations.

SPECIFIC SAFETY RULES

14. Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. GEB003-2 DO NOT let comfort or product (gained from replace strict adherence safety rules. If you use unsafely or incorrectly, serious personal injury.

15. If devices are provided for the connection of

dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards. Power tool use and care

16. Do not force the power tool. Use the correct

power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

17. Do not use the power tool if the switch does not

turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

18. Disconnect the plug from the power source and/

or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

19. Store idle power tools out of the reach of children and do not allow persons unfamiliar with

the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. familiarity with repeated use) to hammer drill this power tool you can suffer

Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.

Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.

Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.

Hold the tool firmly with both hands.

Keep hands away from rotating parts.

Do not leave the tool running. Operate the tool only when hand-held.

binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Do not touch the bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

21. Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

SAVE THESE INSTRUCTIONS

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

22. Use the power tool, accessories and tool bits

etc. in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. SYMBOLS Service USD202-2 The followings show the symbols used for tool.

23. Have your power tool serviced by a qualified

repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. V ........................... volts A ........................... amperes

24. Follow instruction for lubricating and changing

This tool has a reversing switch to change the direction of rotation. Move the reversing switch lever to the position for clockwise rotation or the position for counterclockwise rotation. CAUTION: Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Switch action

CAUTION: Always check the direction of rotation before operation. Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool. Speed change

CAUTION: Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released.

• Switch can be locked in “ON” position for ease of operator comfort during extended use. Apply caution when locking tool in “ON” position and maintain firm grasp on tool. To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. For continuous operation, pull the switch trigger and then push in the lock button. To stop the tool from the locked position, pull the switch trigger fully, then release it. A speed control screw is provided so that maximum tool speed can be limited (variable). Turn the speed control screw clockwise for higher speed, and counterclockwise for lower speed.

Two speed ranges can be preselected with the speed change lever. To change the speed, press the speed change lever and slide it to the “L” position for low speed or the “H” position for high speed. If the speed change lever does not slide easily, turn the chuck slightly in either direction while sliding the lever. Be sure that the speed change lever is set to the correct position before operation. Use the right speed for your job.

CAUTION: Always set the speed change lever fully to the correct position. If you operate the tool with the speed change lever positioned halfway, the tool may be damaged. Do not use the speed change lever while the tool is running. The tool may be damaged. Selecting the action mode To install the bit, place it in the chuck as far as it will go. Tighten the chuck by hand. Place the chuck key in each of the three holes and tighten clockwise. Be sure to tighten all three chuck holes evenly. To remove the bit, turn the chuck key counterclockwise in just one hole, then loosen the chuck by hand.

This tool has an action mode changing ring. For rotation with hammering, turn the ring in the direction of multiple arrow indication. For rotation only, turn the ring in the direction of single arrow indication.

CAUTION: Always turn the change ring fully to your desired mode mark. If you operate the tool with the ring halfway, the tool may be damaged. The depth gauge is convenient for drilling holes of uniform depth. Loosen the clamp screw and adjust the depth gauge to the desired depth. After adjusting, tighten the clamp screw. ASSEMBLY

CAUTION: Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. The depth gauge cannot be used at the position where the depth gauge strikes against the tool body. OPERATION Installing side grip (auxiliary handle)

Hammer drilling operation

Always use the side grip to ensure operating safety. Install the side grip on the tool barrel. Then tighten the thumb screw securely at the desired position. It may be swung 360° so as to be secured at any position. CAUTION: There is a tremendous and sudden twisting force exerted on the tool/bit at the time of hole breakthrough, when the hole becomes clogged with chips and particles, or when striking reinforcing rods embedded in the concrete. Always use the side grip (auxiliary handle) and firmly hold the tool by both side grip and switch handle during operations. Failure to do so may result in the loss of control of the tool and potentially severe injury. Be sure to use a tungsten-carbide tipped bit. Position the bit at the desired location for the hole, then pull the switch trigger. Do not force the tool. Light pressure gives best results. Keep the tool in position and prevent it from slipping away from the hole.

Installing or removing drill bit

MAINTENANCE Do not apply more pressure when the hole becomes clogged with chips or particles. Instead, run the tool at an idle, then remove the bit partially from the hole. By repeating this several times, the hole will be cleaned out and normal drilling may be resumed. CAUTION: Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

Blow-out bulb (optional accessory)

ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

After drilling the hole, use the blow-out bulb to clean the dust out of the hole. Drilling operation Drilling in wood When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the workpiece. Drilling in metal To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling. Use a cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry.

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge. This Warranty does not apply where:

• repairs have been made or attempted by others:
• repairs are required because of normal wear and tear:
• the tool has been abused, misused or improperly maintained:
• alterations have been made to the tool. IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT.

THIS DISCLAIMER APPLIES BOTH DURING AND

AFTER THE TERM OF THIS WARRANTY.

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED

WARRANTIES, INCLUDING IMPLIED WARRANTIES

CAUTION: Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool. There is a tremendous force exerted on the tool/bit at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the workpiece. A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly. Always secure small workpieces in a vise or similar hold-down device.

OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,” AFTER THE ONE YEAR TERM OF THIS WARRANTY. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

< USA only > WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. < USA solamente > ADVERTENCIA Algunos tipos de polvo creados por el lijado, serrado, amolado, taladrado, y otras actividades de la construccion contienen sustancias quimicas reconocidas por el Estado de California como causantes de cancer, defectos de nacimiento y otros peligros de reproduccion. Algunos ejemplos de estos productos quimicos son:
