USER MANUAL HP2051 MAKITA

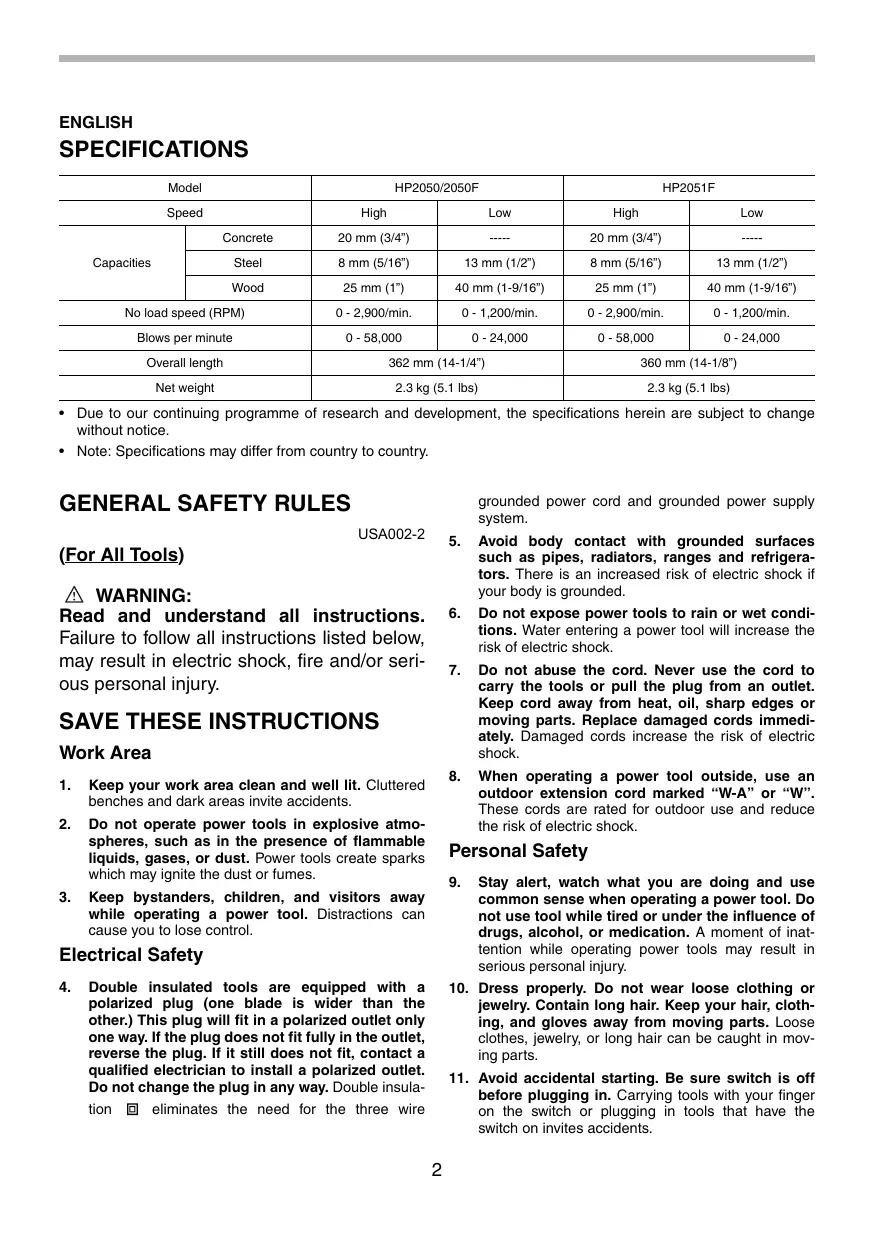

ENGLISH SPECIFICATIONS Model HP2050/2050F HP2051F Speed High Low High Low Concrete 20 mm (3/47) = 20 mm (8/47) | — Capacites Steel 8 mm (5/16) 13 mm (1/27) 8 mm (5/6) 13 mm (1/27) Wood 25 mm (1) 40 mm (1-9/16") 25 mm (1°) 40 mm (1-9/16°) No load speed (RPM) 0 - 2,900/min. 0- 1,200/min. 0 - 2,900/min. 0 - 1,200/min. Blows per minute 0-58,000 0-24,000 0-58,000 0-24,000 Overall length 862 mm (14-1147) 860 mm (14-1/8") Net weight 23 kg (5. lbs) 23 kg (5.1 lbs) + Due to our continuing programme of research and development, the specifications herein are subject to change without notice. +_ Note: Specifications may differ from country to country.

GENERAL SAFETY RULES

USA002-2 (For All Tools) À WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or seri- ous personal injury.

SAVE THESE INSTRUCTIONS

1. Keep your work area clean and well lit. Cluttered

benches and dark areas invite accidents.

2. Do not operate power tools in explosive atmo-

spheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away

while operating a power tool. Distractions can cause you to lose control. Electrical Safety

4. Double insulated tools are equipped with a

polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double insula- tion Æ eliminates the need for the three wire grounded power cord and grounded power supply system.

5. Avoid body contact with grounded surfaces

such as pipes, radiators, ranges and refrigera- tors. There is an increased risk of electric shock if your body is grounded.

6. _ Do not expose power tools to rain or wet condi-

tions. Water entering a power tool will increase the risk of electric shock.

7. Do not abuse the cord. Never use the cord to

carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immedi- ately. Damaged cords increase the risk of electric Shock.

8. When operating a power tool outside, use an

outdoor extension cord marked “W-A” or “W”. These cords are rated for outdoor use and reduce the risk of electric shock. Personal Safety

9. Stay alert, watch what you are doing and use

common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inat- tention while operating power tools may result in serious personal injury.

10. Dress properly. Do not wear loose clothing or

jewelry. Contain long hair. Keep your hair, cloth- ing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in mov- ing parts.

11. Avoid accidental starting. Be sure switch is off

before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

Remove adjusting keys or wrenches before turn- ing the tool on. À wrench or a key that is left attached to a rotating part of the tool may result in personal injury. Do not overreach. Keep proper footing and bal- ance at all times. Proper footing and balance enables better control of the tool in unexpected situ- ations. . Use safety equipment. Always wear eye protec- tion. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate con- ditions. Ordinary eye or sun glasses are NOT eye protection. Tool Use and Care

Use clamps or other practical way to secure and support the workpiece to a stable platform. Hold- ing the work by hand or against your body is unsta- ble and may lead to loss of control . Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed. . Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the Switch is dangerous and must be repaired. . Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally. . Store idie tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

Maintain tools with care. Keep cutting tools Sharp and clean. Propely maintained tools with sharp cutting edges are less likely to bind and are easier to control. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool serviced before using. Many acci- dents are caused by poorly maintained tools. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become haz- ardous when used on another tool SERVICE

Tool service must be performed only by qualified repair personnel. Service or maintenance per- formed by unqualiied personnel could result in a risk of injury. When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unau- thorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury. USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord Table 1. Minimum gage for cord Amber Rain Vois Totallengih of cord in feet P s 120V_ | 25% | 508 | 1008 | 101. MoreThan | Not More Than AWG G 10 LE T6 LE E 10 E 16 16 14 E E 16 14 12 | NotRecommended SPECIFIC SAFETY RULES 1. Hold tools by insulated gripping surfaces when performing an operation where the cutting tool USB002-2 may contact hidden wiring or its own cord. Con- DO NOT let comfort or familiarity with tact with a “live” wire will make exposed metal parts product (gained from repeated use) replace strict adherence to hammer drill safety rules. If you use this tool unsafely or incorrectly, you can suffer serious per- sonal injury. of the tool “live” and shock the operator. Always be sure you have a firm footing. Be sure no one is below when using the tool in high loca- tions. Hold the tool firmly with both hands. Always use the side grip. Keep hands away from rotating parts.

5. Do not leave the tool running.

Operate the tool only when hand-held. À CAUTION:

6. Do not touch the bit or the workpiece immedi- + Before plugging in the tool, always check to see

ately after operation; they may be extremely hot that the switch trigger actuates properly and returns and could burn your skin. to the “OFF” position when released. 7... Some material contains chemicals which may be * Switch can be locked in “ON” position for ease of toxic. Take caution to prevent working dust inha- operator comfort during extended use. Apply cau- lation and skin contact. Follow material supplier tion when locking tool in “ON” position and maintain safety data. firm grasp on tool. To start the tool, simply pull the switch trigger. Tool speed SAVE THESE INSTRUCTIONS is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. For continuous operation, pull the switch trigger and then push in the lock button. lure to follow the safety To stop the tool from the locked position, pull the switch rules stated this instruction manual _ trigger fully, then release it. i ï A speed control screw is provided so that maximum tool may cause serious personal injury. speed can be limited (variable). Turn the speed control screw clockwise for higher speed, and counterclockwise SYMBOLS for lower speed, À WARNING: MISUSE or f: USD202-2 Lighting up the lamps For Model HP2050F, HP2051F

The followings show the symbols used for tool.

alternating current no load speed Class 11 Construction revolutions or reciprocation per À CAUTION: mule + Do not look in the light or see the source of light number of blowr directly. To turn on the lamp, pull the trigger. Release the trigger FUNCTIONAL DESCRIPTION 10 um tot NOTE: À CAUTION: + Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. + Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. Reversing switch action ose

switch lever - Lock button Speed control screw Switch trigger Higher Lower

This tool has a reversing switch to change the direction of rotation. Move the reversing switch lever to the <= posi- tion (A side) for clockwise rotation or the => position (B side) for counterclockwise rotation. À CAUTION: + Always check the direction of rotation before opera- tion. + Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rota- tion before the tool stops may damage the tool. Speed change onmse

knob Two speed ranges can be preselected with the speed change knob. To change the speed, turn the speed change knob so that the arrow on the tool body points toward the “l” posi- tion on the knob for low speed or “ll” position for high speed. Ifitis hard to tum the knob, first turn the chuck slightly in either direction and then turn the knob again. À CAUTION: + Use the speed change knob only after the tool comes to a complete stop. Changing the tool speed before the tool stops may damage the tool. + Always set the speed change knob to the correct position. If you operate the tool with the speed change knob positioned halfway between the “1” and “il” position, the tool may be damaged. Selecting the action mode on26e2 (em) (oi This tool has an action mode change lever. For rotation with hammering, slide the action mode change lever to the right ( ®_ symbol). For rotation only, slide the action mode change lever to the left (_ & symbol)

changing lever À CAUTION: + Always slide the action mode change lever all the way to your desired mode position. 1f you operate the tool with the lever positioned halfway between the mode symbols, the tool may be damaged. ASSEMBLY À CAUTION: + Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. Installing side grip (auxiliary handle)

Always use the side grip to ensure operating safety. Install the side grip so that the teeth on the grip fit in between the protrusions on the tool barrel. Then tighten the grip by turning clockwise at the desired position. lt may be swung 360° so as to be secured at any position. Installing or removing drill For Model HP2050, HP2050F

To install the bit, place it in the chuck as far as it will go. Tighten the chuck by hand. Place the chuck key in each of the three holes and tighten clockwise. Be sure to tighten all three chuck holes evenly. To remove the bit, tum the chuck key counterclockwise in just one hole, then loosen the chuck by hand. After using the chuck key, be sure to return to the original position.

Hold the ring and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the sleeve clock- wise to tighten the chuck. To remove the bit, hold the ring and turn the sleeve coun- terclockwise. Depth gauge

The depth gauge is convenient for drillng holes of uni- form depth. Loosen the side grip and insert the depth gauge into the hole in the side grip. Adjust the depth gauge to the desired depth and tighten the side grip. NOTE: + The depth gauge cannot be used at the position where the depth gauge strikes against the tool body. OPERATION Hammer drilling operation À CAUTION: + There is a tremendous and sudden twisting force exerted on the tool/bit at the time of hole break- through, when the hole becomes clogged with chips and particles, or when striking reinforcing rods embedded in the concrete. Always use the side grip (auxllary handle) and firmiy hold the tool by both side grip and switch handle during opera- tions. Failure to do so may result in the loss of con- trol of the tool and potentially severe injury. When drilling in concrete, granite, tile, etc., move the action mode changing lever to the position of symbol to use “rotation with hammering” action. Be sure to use a tungsten-carbide tipped bit. Position the bit at the desired location for the hole, then pull the switch trigger. Do not force the tool. Light pres- sure gives best results. Keep the tool in position and pre- vent it from slipping away from the hole. Do not apply more pressure when the hole becomes clogged with chips or particles. Instead, run the tool at an idle, then remove the bit partial from the hole. By repeating this several times, the hole will be cleaned out and normal driling may be resumed. Blow-out bulb (opt

After drillng the hole, use the blow-out bulb to clean the dust out of the hole. Drilling operation When driling in wood, metal or plastic materials, move the action mode changing lever to the position of 8 symbol to use “rotation only” action. Drilling in wood When driling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes driling easier by pulling the bit into the workpiece. Drilling in metal To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling, Use a cutting lubricant when driling metals. The excep- tions are iron and brass which should be drilled dry. À CAUTION: + Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool. + There is a tremendous force exerted on the tool/bit at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the workpiece. + A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptiy if you do not hold it firmiy. + Always secure small workpieces in a vise or similar hold-down device.

MAINTENANCE À CAUTION: + Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance. Cleaning vent holes The tool and its air vents have to be kept clean. Regularly clean the tools air vents or whenever the vents start to become obstructed.

To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Mak- ita Authorized or Factory Service Centers, always using Makita replacement parts. ACCESSORIES À CAUTION: + These accessories or attachments are recom- mended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to per- sons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. + Drillbits + Hammer drill bits + Hole saws + Blowrout bulb + Safety goggles + Chuckkey + Grip assembly + Depth gauge + Plastic carrying case EN0006.1

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge. This Warranty does not apply where: + repairs have been made or attempted by others: + repairs are required because of normal wear and tear: + the tool has been abused, misused or improperly maintained: + alterations have been made to the tool. IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY

INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAM-

AGES FROM THE SALE OR USE OF THE PRODUCT.

THIS DISCLAIMER APPLIES BOTH DURING AND

AFTER THE TERM OF THIS WARRANTY.

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED

WARRANTIES, INCLUDING IMPLIED_ WARRANTIES

OF “MERCHANTABILITY" AND ‘FITNESS FOR À SPE-

CIFIC PURPOSE; AFTER THE ONE YEAR TERM OF THIS WARRANTY. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limi- tation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
