USER MANUAL BCM3300 MAKITA

BCM2310 BCM2610 BCM3310

Important:

Read this instruction manual carefully before putting the Brush Cutter / String Trimmer into operation and strictly observe the safety regulation! Preserve instruction manual carefully !

Recommendation importante :

Thank you very much for purchasing MAKITA Brush Cutter/String Trimmer. We are pleased to recommend to you the MAKITA Brush Cutter/String Trimmer which is the result of a long development program and many years of knowledge and experience. Please read this booklet which refers in detail to the various points that will demonstrate its outstanding performance. This will assist you to obtain the best possible result from your MAKITA Brush Cutter/String Trimmer.

Table of contents

SYMBOLS 4

SAFETYINSTRUCTIONS 5

TECHNICAL DATA 7

MOUNTING OF HANDLE 8

MOUNTING OF PROTECTOR 8

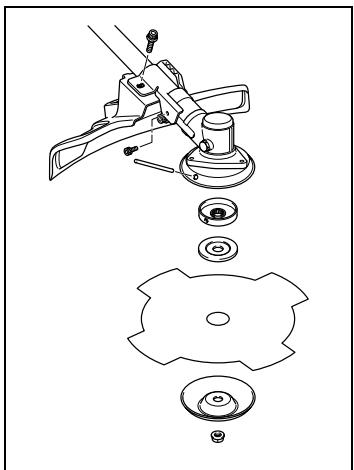

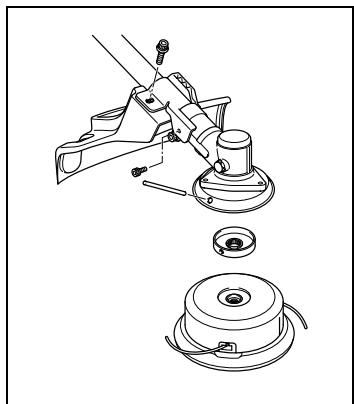

MOUNTING OF CUTTER BLADE OR NYLON CUTTING HEAD. 9

FUELS/REFUELING 10

CORRECT HANDLING OF MACHINE 10

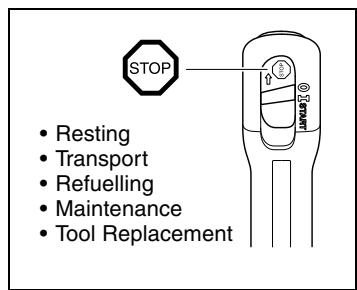

POINTS IN OPERATION AND HOW TO STOP 11

RE-SHARPENING THE CUTTING TOOL 11

SERVICING INSTRUCTIONS 12

STORAGE 13

EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE

MAKITA U.S.A, Inc warrant to the initial retail purchaser and each subsequent owner, that this utility equipment was designed, built, and equipped to conform at the time of initial sale to all applicable regulations of the U.S. Environmental Protection Agency (EPA), and that the engine is free of defects in materials and workmanship which would cause this engine to fail to conform with EPA regulations during its warranty period.

For the components listed under PARTS COVERED, the service dealer authorized by MAKITA will, at no cost to you, make the necessary diagnosis, repair, or replacement necessary to ensure that the engine complies with applicable U.S. EPA regulations.

EMISSISON COMPONENT DEFECT WARRANTY PERIOD

The warranty period for this engine begins on the date of sale to the initial purchaser and continues for a period of 2 years.

PARTS COVERED

Listed below are the parts covered by the Emission Components Defect Warranty. Some of the parts listed below may require scheduled maintenance and are warranted up to the first scheduled replacement point for that part.

(1) Fuel Metering System
(i) Carburetor and internal parts
(ii) Fuel filter, if applicable.
(iii) Throttle stopper, if applicable.
(iv) Choke System, if applicable.
(2) Air Induction System
(i) Air cleaner plate
(ii) Air cleaner case
(3) Ignition System
(i) Spark plugs.
(ii) Flywheel Magneto
(iii) Ignition Coil
(4) Miscellaneous Items Used in Above Systems
(i) Fuel hoses, clamps and sealing gaskets

OBTAINING WARRANTY SERVICE

To obtain warranty service, take your engine to the nearest MAKITA Factory Service Center or service Center authorized by MAKITA. Bring your sales receipts indicating date of purchase for this engine. The dealer of service authorized by MAKITA will perform the necessary repairs or adjustments within a reasonable amount of time and furnish you with a copy of the repair order. All parts and accessories replaced under this warranty become the property of MAKITA.

WHAT IS NOT COVERED

• Conditions resulting from tampering, misuse, improper adjustment (unless they were made by the service dealer authorized by MAKITA during a warranty repair), alteration, accident, failure to use the recommended fuel and oil, or not performing required maintenance services.
• The replacement parts used for required maintenance services.
• Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
• Diagnosis and inspection charges that do not result in warranty-eligible service being performed.
• Any non-authorized replacement part, or malfunction of authorized parts due to use of non-authorized parts.

OWNER'S WARRANTY RESPONSIBILITIES

As the engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual. MAKITA recommends that you retain all receipts covering maintenance on your engine, but MAKITA cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the engine owner, you should however be aware that MAKITA may deny warranty coverage if your engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your engine to the nearest service dealer authorized by MAKITA when a problem exists.

If you have any questions regarding your warranty rights and responsibilities, you should contact the MAKITA Warranty service Department at 1-800-4-MAKITA for the information.

THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY:

MAINTENANCE AND REPAIRS

You are responsible for the proper maintenance of the engine. You should keep all receipts and maintenance records covering the performance of regular maintenance in the event questions arise.

These receipts and maintenance records should be transferred to each subsequent owner of the engine. MAKITA reserves the right to deny warranty coverage if the engine has not been properly maintained. Warranty claims will not be denied, however, solely because of the lack of required maintenance or failure to keep maintenance records.

MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY REPAIR ESTABLISHMENT OR INDIVIDUAL; HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED BY A SERVICE DEALER AUTHORIZATION BY WACKER. THE USE OF PARTS THAT ARE NOT EQUIVALENT IN PERFORMANCE AND DURABILITY TO AUTHORIZED PARTS MAY IMPAIR THE EFFECTIVENESS OF THE EMISSION CONTROL SYSTEM AND MAY HAVE A BEARING ON THE OUTCOME OF A WARRANTY CLAIM.

If other than the parts authorized by MAKITA are used for maintenance replacements or for the repair of components affecting emission control, you should assure yourself that such parts are warranted by their manufacturer to be equivalent to the parts authorized by MAKITA in their performance and durability.

HOW TO MAKE A CLAIM

All repair qualifying under this limited warranty must be performed by a service dealer authorized by MAKITA. In the event that any emission-related part is found to be defective during the warranty period, you shall notify MAKITA Warranty Service Department at 1-800-4-MAKITA and you will be advised of the appropriate warranty service dealer or service providers where the warranty repair can be performed.

SYMBOLS

You will note the following symbols when reading the instruction manual.

	Read instruction Manual		Wear eye and ear protection (for String trimmer only)
	Take Particular care and Attention		Wear protective helmet, eye and ear protection (for Brush Cutter only)
	Forbidden		Do not use metal blades (for String trimmer only)
	Keep distance		Top permissible tool speed
	Flying object hazard		Fuel and oil mixture
	No smoking		Engine-Manual start
	No open flame	STOP	Emergency stop
	Protective gloves must be worn		First Aid
	Kickback	REZY	Recycling
	Keep the area of operation clear of all persons and pets	I	ON/START
	Wear sturdy boots with nonslip soles. Sleettoed safety boots are recommended.	O	OFF/STOP

SAFETY INSTRUCTIONS

General Instructions

• To ensure correct operation, user has to read this instruction manual to make himself familiar with the handling of the Brush Cutter/String Trimmer. Users insufficiently informed will risk danger to themselves as well as others due to improper handling.
• It is recommended only to lend the Brush Cutter/String Trimmer to people who have proven to be experienced with Brush Cutter/String Trimmer. Always hand over the instruction manual.
• First users should ask the dealer for basic instructions to familiarize oneself with the handling of an engine powered cutter.
• Children and young persons aged under 18 years must not be allowed to operate the Brush Cutter/String Trimmer. Persons over the age of 16 years may however use the device for the purpose of being trained only whilst under supervision of a qualified trainer.
• Use Brush Cutter/String Trimmer with the utmost care and attention.
• Operate the Brush Cutter/String Trimmers only if you are in good physical condition. Perform all work calmly and carefully. The user has to accept liability for others.
• Never use the Brush Cutter/String Trimmer after consumption of alcohol or drugs, or if feeling tired or ill.

Intended use of the machine

The Brush Cutter/String Trimmer is only intended for cutting grass, weeds, bushes, undergrowth. It should not be used for any other purpose such as edging or hedge cutting as this may cause injury.

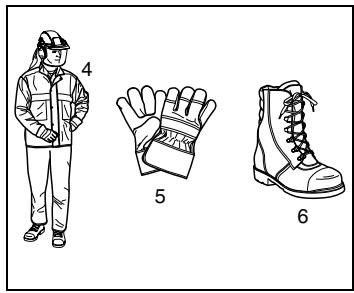

Personal protective equipment

• The clothing worn should be functional and appropriate, i.e. it should be tight-fitting but not cause hindrance. Do not wear either jewelry or clothing which could become entangled with bushes or shrubs.
• In order to avoid either head-, eye-, hand-or foot injuries as well as to protect your hearing, the following protective equipment and protective clothing must be used during operation of the Brush Cutter/String Trimmer.

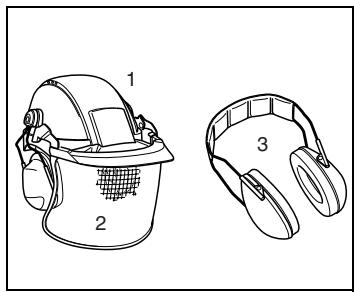

• Always wear a helmet where there is a risk of falling objects. The protective helmet (1) is to be checked at regular intervals for damage and is to be replaced at the latest after 5 years. Use only approved protective helmets.
• The visor (2) of the helmet ( or goggles ) protects the face from flying debris and stones. During operation of the Brush Cutter/Sting Trimmer, always wear goggles, or a visor to protect eye injuries.
• Wear adequate noise protection equipment to avoid hearing impairment ( ear muffs (3), ear plugs etc.).
• The work overalls (4) protect against flying stones and debris. Wearing work overalls is strongly recommended.
• Always wear special gloves (5) made of thick leather during operation of the Brush cutter/String Trimmer.
• When using the Brush Cutter/String Trimmer, always wear sturdy shoes (6) with a non-slip sole to protect against injuries and ensure a good footing.

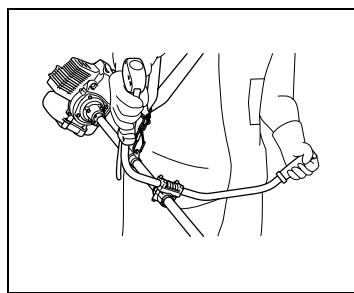

Starting the brush cutter

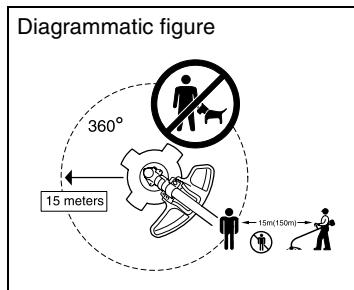

• Make sure that there are no children or other people within a working range of 15 meters (50ft), also pay attention to any animals in the working vicinity.
• Before use, always check that the Brush cutter/String Trimmer is safe for operation.

Check the security of the cutting tool, the control lever for easy action and check for proper functioning of the control lever lock.
- Rotation of the cutting tool during idling the engine is not allowed. Check with your dealer for adjustment. Check for clean and dry handles and test the function of the start/stop switch.

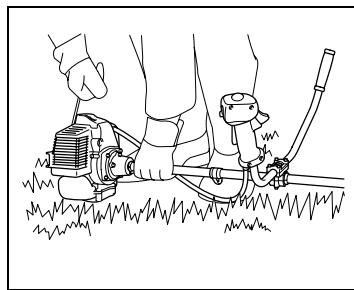

- Start the Brush Cutter/String trimmer only in accordance with the instructions mentioned in this manual. Do not use any other methods for starting the engine.
- Use the Brush Cutter/String Trimmer and the tools only for such applications as specified.
- Only start the Brush Cutter/String Trimmer engine after the entire assembly is done. Operation of the machine is only permitted after all the appropriate accessories are attached.
- Before starting, make sure that the cutting tool has no contact with hard objects such as branches, stones etc. as the cutting tool will rotate when starting.
- The engine is to be switched off immediately in case of any engine problems.
- Should the cutting tool hit stones or other hard objects, immediately stop the engine and inspect the cutting tool.
- Inspect the cutting tool at short regular intervals for damage ( Detect hairline cracks by means of tapping-noise test ).

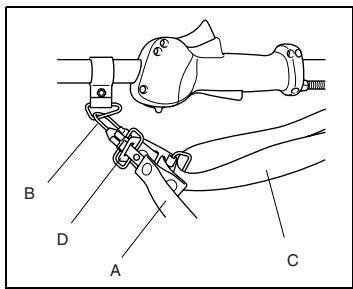

- Operate the Brush Cutter/String Trimmer only with the shoulder strap provided. It should be suitably adjusted before using the Brush Cutter/String Trimmer. Adjust the should strap according to the user's size to prevent fatigue during operation. Never hold the Brush Cutter/String Trimmer with one hand during use.
- During operation always hold the Brush Cutter/String Trimmer with both hands. Always ensure a safe footing.
- Operate the Brush Cutter/String Trimmer in such a manner as to avoid inhalation of the exhaust gases. Never run the engine in enclosed rooms (risk of gas poisoning). Carbon monoxide is an odorless gas.
- Switch off the engine while not in use of the Brush Cutter/String Trimmer, and place it in a safe location to prevent danger to others or damage to the machine.
- Never put the hot Brush Cutter/String Trimmer on dry grass or on any combustible materials.
- The Brush Cutter/String Trimmer has to be always equipped with an appropriate guard.
- All protective installations and guards provided with the Brush Cutter/String Trimmer must be used during operation.
- Never run the engine with faulty exhaust muffler.
- Stop the engine during transport.
- During transport for long distances, the tool-protection must always be used.
- Make sure a safe position of the Brush Cutter/String Trimmer during car transportation to avoid fuel leakage.
- In transporting the Brush Cutter/String Trimmer, make sure that the fuel tank is completely empty.
- When unloading the Brush Cutter/String Trimmer from the truck, never drop the engine on the ground, which may severely damage the fuel tank.
- Always lift the entire unit of the machine from the ground when moving the machine. Dragging the fuel tank is highly dangerous and may cause damage of the tank and leakage of fuel, possibly causing fire.

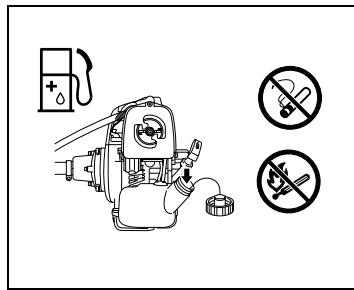

Refueling

• Always stop the engine during refueling, keep away from open flames and do not smoke.
• Always wear protective gloves during refueling. Change and clean protective clothing at regular intervals.
• Be careful not to spill either fuel or oil for environmental protection. Clean the Brush Cutter/String Trimmer immediately if fuel is split.
• Avoid any fuel contact with your clothing. Change your clothing immediately if fuel is split on it to prevent clothing catching fire.
• Inspect the fuel cap regularly to make sure that it is securely fastened and does not leak.
• Always tighten the fuel tank cap securely. Change the location to start the engine (at least 3 meter away from the place of refueling).

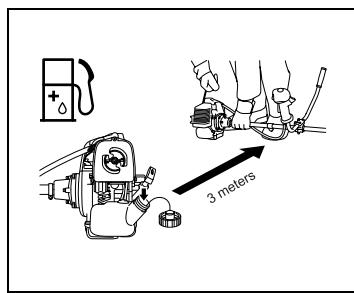

• Never refuel in closed rooms. Fuel vapors accumulate, which may cause explosions.
• Only transport and store fuel in approved containers. Make sure the fuel stored is not accessible to children.

Method of operation

• Only use the Brush Cutter/String Trimmer in good light and visibility. During the winter season, always be aware of slippery or wet area, ice and snow. Ensure a safe footing.
• Never cut above waist height.
• Never operate the Brush Cutter/String Trimmer standing on a ladder.
• Never use the Brush Cutter/String Trimmer climbing up into trees.
• Never work on unstable surfaces.
• Remove sand, stones, nails etc. within the working range. Foreign materials may damage the cutting tool and cause dangerous kick-back.
• The cutting tool must have reached full working speed before contact with the grass.

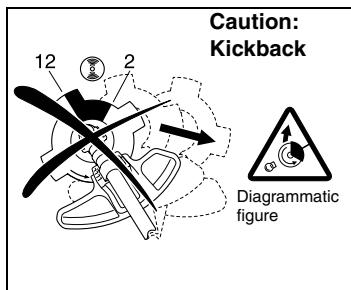

Kickback

• When operating the brush cutter, uncontrollable kickback may occur.
• This is particularly the case when attempting to cut within a blade segment between 12 and 2 o'clock.

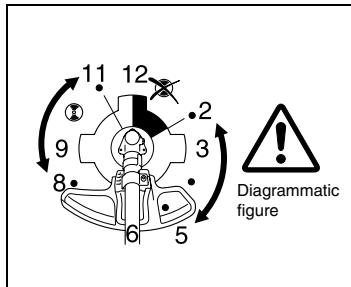

• Never use the brush cutter within a segment between 12 and 2 o'clock.
• Never apply the blade of brush cutter to solids, such as bushes and trees, etc., having a diameter in excess of 3cm or the brush cutter will be deflected at great force with the risk of injuries.

Kickback prevention

To avoid kickback, ensure the following :

• Operation within a blade segment between 12 and 2 o'clock presents positive hazards, especially in using metal cutting tools.
• Cutting operations within a blade segment between 11 and 12 o'clock, and between 2 and 5 o'clock, must only be performed by trained and experienced operators, and then only at their own risk.

Easy cutting with almost no kickback is possible within a blade segment between 8 and 11 o'clock.

Cutting Tools

Use only the correct cutting tool.

Maintenance instructions

• The condition of the Brush Cutter/String Trimmer must be checked before operation, in particular of the cutting tool, the protective devices and also the shoulder strap. Special attention must be paid to the cutting blade which must be correctly sharpened.

• Stop the engine and remove spark plug connector when replacing or sharpening cutting tools, and also when cleaning the machine or cutting tool.

• Operate the Brush Cutter/String Trimmer with as little noise and contamination as possible. In particular check the correct setting of carburetor.

• Clean the Brush Cutter/String Trimmer regularly and ensure that all screws and nuts are well tightened.

• Never service or store the Brush Cutter/String Trimmer in the vicinity of naked flames.

• Always store the Brush Cutter /String Trimmer in locked rooms and with a emptied fuel tank.

• Do not perform any modifications on the Brush Cutter/String Trimmer as this will endanger your safety.

• The performance of maintenance or repair work by the user is limited to those activities as described in this instruction manual. All other works are to be done by an Authorized Service Agent. Use only genuine spare parts and accessories supplied by MAKITA.

Use of non-approved accessories and tools means increased risk of accidents.

MAKITA will not accept any liability for accidents or damage caused by the use of non-approved cutting tools and fixing devices of cutting tools, or accessories.

First Aid

Make sure that a first-aid box is available in the vicinity of the cutting operations in case of accident.

TECHNICAL DATA

MODEL	BCM2310	BCM2610	BCM2600	BCM3310	BCM3300
Dry Weight	5.7 kg	5.7 kg	6.5 kg	6.5 kg	7.3 kg
Engine	TLE23FD-TBM/TBD	TLE26FD-TBM/TBD		TLE33FD-TBM/TBD
Bore x Stroke	31 x 30 mm	33 x 30 mm		36 x 32 mm
Displacement	22.6 cm³	25.6 cm³		32.6 cm³
Maximum output	0.7 kW (0.94 HP)/8000 rpm	0.8 kW (1.07HP)/8000 rpm		0.97 kW (1.3 HP)/7500 rpm
Fuel	Mixture of gasoline and lubricanting oil (ratio 50:1)
Lubricating oil	Two-stroke motor oil FC
Fuel Tank Capacity	0.6 lit.			0.8 lit.
Spark Plug	NGK BPMR8Y
Carburetor	Diaphragm type (with 2 passage for air and mixture)

Main Pipe	Drive Shaft	Flex/Rigid	Rigid
		Diameter	7 mm Hollow (5 mm)
		Upper end	Involute Spline (7 x 7 x 0.75)
		Lower end
	Tube	Type	Straight
		Diameter	25.4 mm
		Wall thickness	1.5 mm
		Length	1500 mm
		Finish	Silver Anodized
	Bearings	Type	Bronze bush in rubber
String Head		Type	Tap and Go	N/A	Tap and Go	N/A
		O.Dia.	105 mm		105 mm
		Line size	2.4 mm		2.4 mm
Gear Case Assy		Arbor size	M10LH FEM
		Gear ratio	14/19		17/21
Clutch Case Assy		Anti-Vib	Yes
		Number Brgs	2
		Drum dia.	54 mm		78 mm
Throttle Control		Overmolded	Yes
		First Idle	Yes
Hanger		Type	Fixed

Guard	Type	Grass		Weed Blade	Grass	Weed Blade
	Swath dia	41 cm (16 in.)	43 cm (17 in.)	N/A	43 cm (17 in.)	N/A

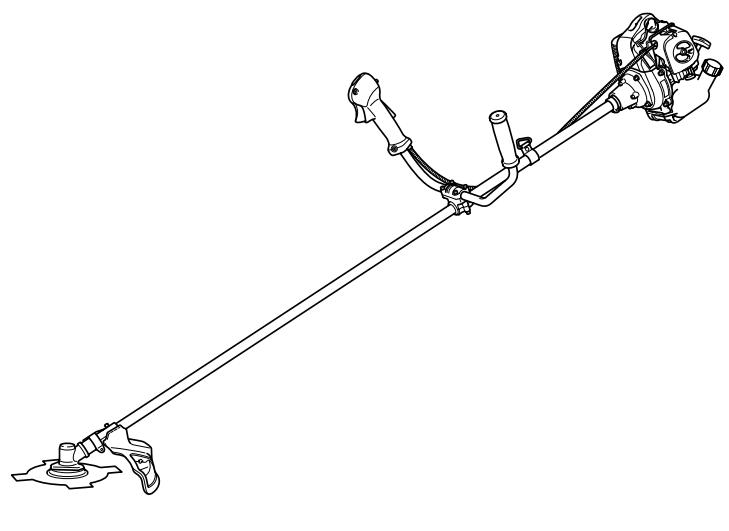

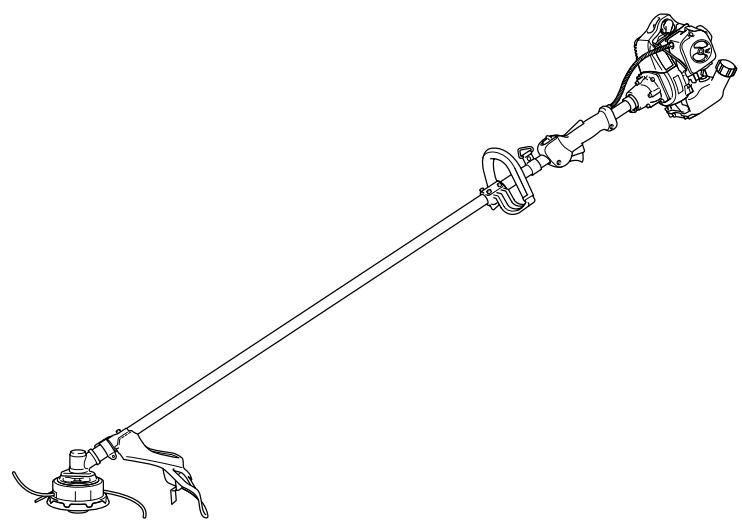

Handle Assy	Type	Loop		Bike	Loop	Bike
	Barrier	N/A
	Overmolded	Yes (Black)		N/A	Yes (Black)	N/A
Band Shoulder	Type	Single				Double
Tool Set		Yes
Blade	Size	N/A		23 cm (9 in.)	N/A	23 cm (9 in.)
	Type			Quard		Quard
Blade Holder		N/A		Yes	N/A	Yes

MOUNTING OF HANDLE

CAUTION:

Before doing any work on the Brush Cutter/String Trimmer, always stop the engine and pull the spark plug connector off the spark plug.

Always wear protective gloves.

CAUTION:

Start the engine of Brush Cutter/String Trimmer after making sure that it is assembled completely.

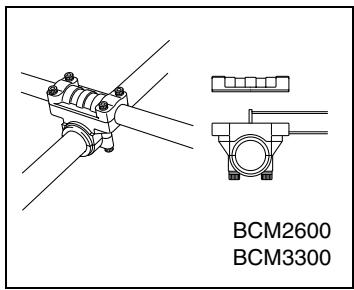

For machines with U Handle models

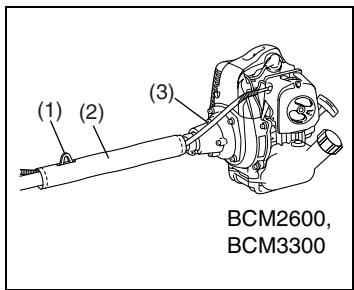

• Place the handle-fixing metal so that the handle with the control lever will be positioned on the right (the right-hand grip side) as viewed from the engine side, and the other handle on the left side.
• Fit the groove of the handle-fixing material to the handle end. Fix the attached metal by hexagon socket bolts supplied.
• Adjust the position of handle for easy and comfortable operation, and then tighten securely the four (4) hexagon socket bolts uniformly on the right and left with the wrench provided.
• Wrap the waist pad around the shaft so that the hanger (1) will come out through the slit in the waist pad and control cable (3) will also wrapped under the waist pad (2).

For machines with Loop Handle

• Fix a barrier to the left side of the machine together with the handle of operator's protection.
• Do not adjust position of the loop handle too close to the control grip.
• The handle must be kept in position more than 250~mm from the hanger.

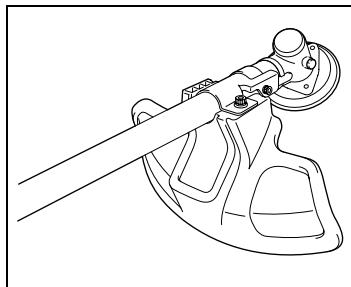

MOUNTING OF PROTECTOR

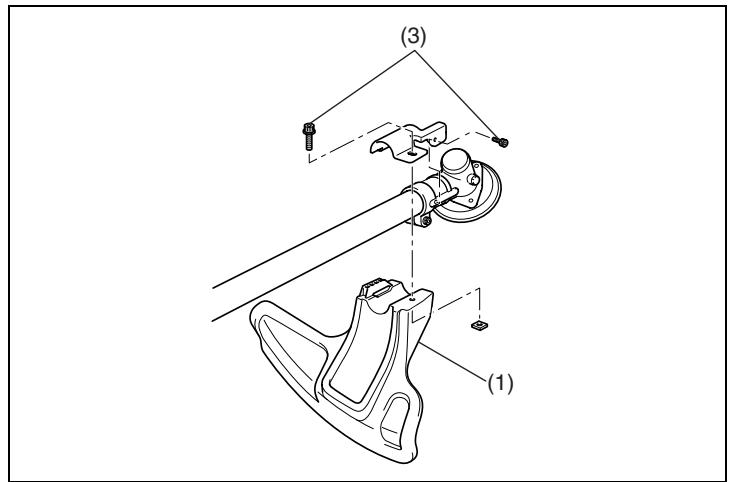

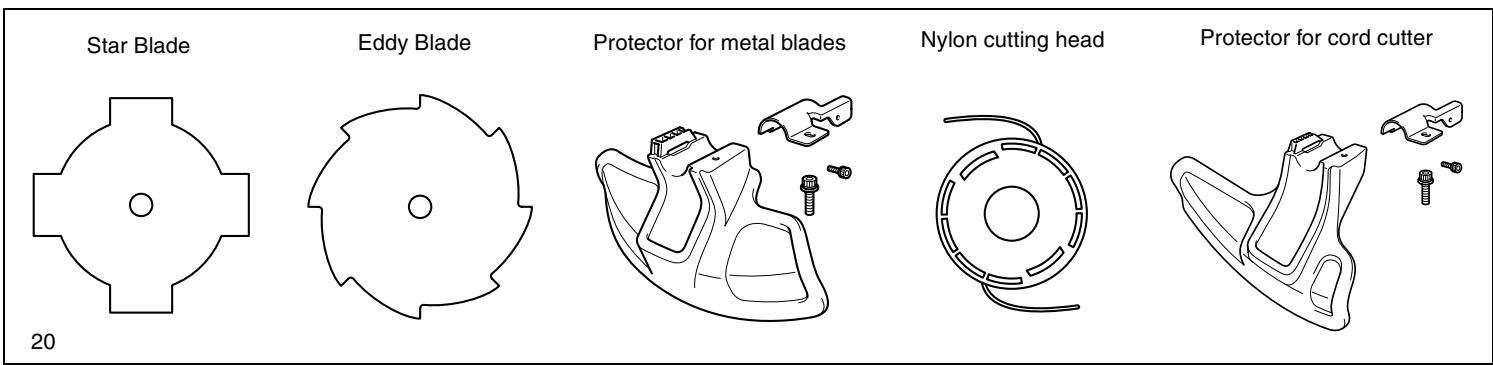

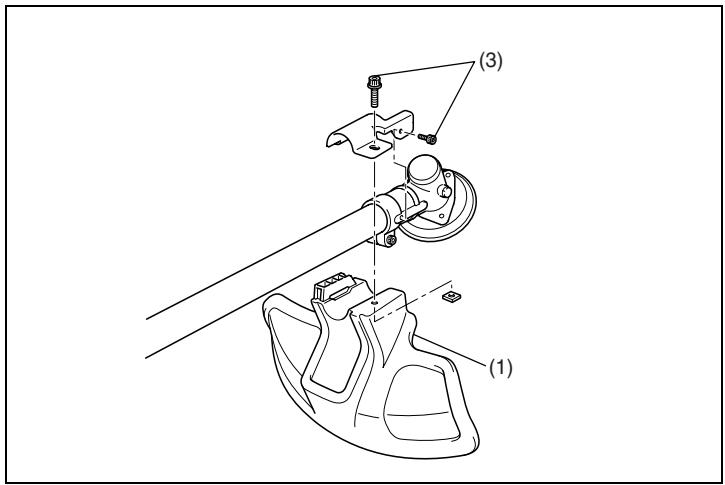

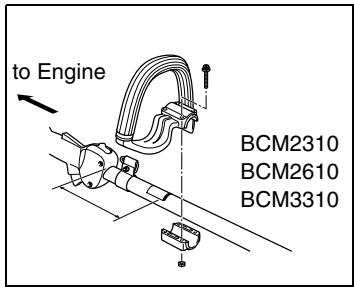

To meet the applicable safety provisions, only the tool/protector combinations as described in the table must be used.

Use genuine MAKITA cutter blades or nylon cutting head.

The cutter blade must be well sharpened, free of cracks or breakage. If the cutter blade hits against a stone during operation, stop the engine and check the blade immediately.

Sharpen or replace the cutter blade every three (3) hours of operation.

If the nylon cutting head hits against a stone during operation, stop the engine and check the nylon cutting head immediately.

CAUTION:

The appropriate blade guard must always be installed for your own safety and complying with accident-prevention regulations.

Operation without the safety guard is not permitted.

For # BCM2600 and # BCM3300

Fix the protector (1) to the clamp (3) with two bolts.

For # BCM2310, BCM2610 and BCM3310

Fix the protector (1) to the clamp (3) with two bolts.

MOUNTING OF CUTTER BLADE OR NYLON CUTTER HEAD

Turn the Brush Cutter/String Trimmer upside down and replace the cutter blade or the nylon cutting head.

- Installing Cutter-Blade

Mount the cutter blade (A) onto the receiver washer (B).

Make sure that the cutter blade (A) is centered and lies flat.

The guide of the receiver washer (B) must fit in the arbor hole in the cutter blade (A).

Install the clamp washer (C) with the raised center away from the cutter blade (A).

Insert the holding-pin (D) through the slot of the grass cover (E) and rotate the receiver washer (B) until it is locked with the holding -pin (D). Then install the nut guard (F) and the blade nut (G) onto the gear case and turn counterclockwise to tighten securely.

Note : Always wear gloves when handling the cutter blade

- Installing Nylon cutting head

Install the receiver washer (A) onto the gear case.

Insert the holding-pin (B) through the slot of the grass cover (C) and rotate the receiver washer (A) until it is locked with the holding-pin (B). Then place the nylon-cutting head (D) on the receiver washer (A) and rotate the nylon-cutting head (D) counterclockwise to tighten securely.

FUELS/REFUELING

Handling fuel

Utmost care required when handling fuel. Fuel may contain substances similar to solvents. Refuel either in a well ventilated room or outdoors.

Do not inhale fuel vapors, avoid any contact of fuel or oil with your skin.

Mineral oil products degrease you skin. If your skin contacts with these substances repeatedly and for an extended period of time, it will desiccate. Various skin diseases may result. In addition, allergic reactions may occur. Eyes can be irritated by contact with oil. If oil comes into your eyes, immediately wash them with clear water. If your eyes are still irritated, see a doctor immediately.

Fuel and oil mixture

This brush-cutter (string-trimmer) is powered by a high-efficiency two-stroke engine being run with a mixture of fuel and two-stroke engine oil. The engine is designed for unleaded gasoline intended for automotive use with an octane rating of 87 or higher.

For lubricating the engine, use any brand of premium 2-stroke engine oil classified as grade ISO-L-EGD or JSAO-FC to be added to the fuel. Using any other oil will shorten the engine life and increase the required maintenance. It is absolutely required to observe a mixture ratio of 50:1 (2-stroke engine oil specified above), unless otherwise reliable function of the brush cutter (or string trimmer) cannot be guaranteed.

Correct Fuel Mixture ( 50 : 1 )

Gasoline Oil
1 Gallon (US) 2.6 oz.
1 Liter 20 cc (20ml)
5 Liter 100cc (100ml)

Note :

When doing the fuel-oil mixture, first mix the entire oil quantity with half of the fuel required, then add the remaining fuel. Before filling it into the brush-cutter ( string trimmer ) tank, thoroughly shake the mixture. It is not recommended to add more engine oil than specified to ensure safe operation. This will result in a higher production of combustion residues which will pollute the environment and clog the exhaust channel in the cylinder as well as the muffler. In addition, the fuel consumption will rise and the performance will decrease.

Refuelling

Follow the appropriate manners described on page 6.

Storage of Fuel

Fuel cannot be stored for an unlimited period of time.

Purchase only the quantity required for a 4 week operating period. Use only approved fuel storage containers.

CORRECT HANDLING OF MACHINE

Attachment of shoulder strap

Always wear the shoulder strap and adjust the strap length so that the cutter blade is kept parallel with the ground.

Detachment

The shoulder strap has a quick release latch. In an emergency, pull the red strap (A) to detach the machine from you. Be extremely careful to maintain control of the machine at this time. Do not allow the machine to be deflected toward you or anyone in the work vicinity.

WARNING : Failure to maintain complete control of the machine may result in serious bodily injury or death.

To reassemble, remove the spring clip (B) from the machine, place open end over the strap buckle (C) and then insert the release blade (D).

Observe the Safety Instructions on page 6.

POINTS IN OPERATION AND HOW TO STOP

Follow the applicable accident prevention regulations.

Starting

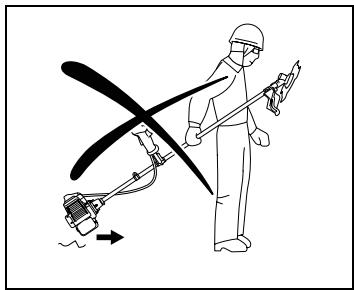

Move at least 3m away from the place of refueling. Place the machine on a flat, bare surface so that the cutting blade does not contact the surface of ground or any other objects.

Cold start

For machine with U Handle or Loop Handle

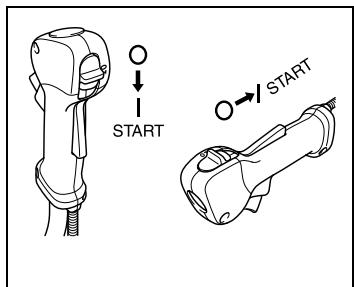

• Move the switch (1) to the "l" position.
• Push gently the primer pump (A) 8 to 10 times.
• Set the choke lever (B) to the "CHoke" position (C).

Note : Depress the trigger safety lock (E) before squeezing trigger.

• Squeeze the trigger (F) to full throttle position and hold it, and then set the switch (1) to the "START" position and release the trigger (F).
• Pull the starter until the engine tries to run (No more than 6 pulls).
• Set the choke lever to half choke position.
• Pull the starter until the engine start running.

After the engine runs for 30 to 45 seconds at the "START" position (for warming up the engine), move the choke lever to the "RUN" position (D).

Warm Start ( Re-starting Engine )

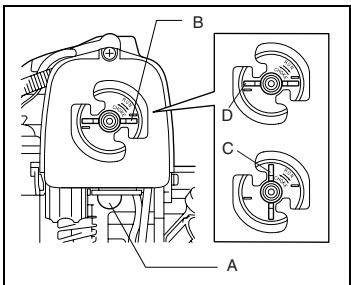

• Set the choke lever (B) to the "RUN" position (D).
  Note : You do not need to pull the trigger or set the throttle-lock when the engine is warm.
• Pull the starter rope until the engine runs.

STOPPING

Release the trigger (F) fully, and push the switch (1) to the "O" position that the engine will stop.

Be aware that the cutting blade may not stop immediately and allow it to slow down fully.

IDLE SPEED ADJUSTMENT

Your MAKITA engine has been adjusted at the factory for optimum performance and fuel consumption, and no further adjustment is required.

Due to varying atmospheric and climatic conditions, however, you may need some minor adjustment for your area.

Checking the idle-speed

The idle-speed should be set to 2,800 - 3,300 rpm. If necessary, adjust the idle-speed using with a tachometer to insure the proper idle-speed. Note that the cutting blade or the nylon cutting head must not turn when the engine is on idle.

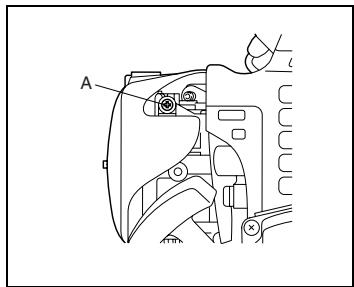

Adjusting the idle rpm. Can be done by turning the idle-speed screw (A) clockwise ( for increasing the engine speed ) or counterclockwise ( for decreasing the engine speed ).

If the engine does not idle properly after the adjustment, contact your nearest Makita dealer for service.

RE-SHARPENING THE CUTTING TOOL

CAUTION :

The cutting blades mentioned below should only be re-sharpened by an authorized facility. Manual re-sharpening will result in imbalances of the blade causing abnormal vibrations and damage to the machine.

• Cutter Blade : star blade ( 4 teeth ) , eddy blade ( 8 teeth )

An expert service for re-sharpening and balancing is provided by Authorized Service Agents.

NOTE:

To increase the service life of the above cutter blade, it may be turned over once until both cutting edges have become blunt.

NYLON CUTTING HEAD

Replacing the nylon cord

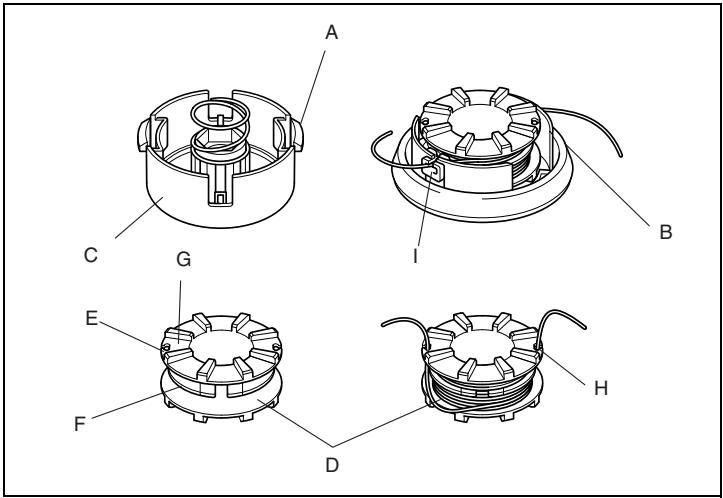

1 First, stop the engine. Press on the housing latches (A) inward to lift off the cover assembly (B). Then remove the spool (D).
2 Remove any excess nylon cord from the spool.
3 Cut a length of the nylon cord that is approximately 7.5m (25') long.
4 Hook the center of new nylon cord into the notch (F) in the center of the spool, with one end of the cord extending about 80~mm ( 3'' to 3 - 1 / 8'' ) more than the other. Then wind both ends firmly around the spool in the direction of the head rotation.
5 Put the cord ends temporarily into the notched (H) when winding being finished. Leave approximate 100mm (4^ ) of the cord extended beyond the notch.
6 Place the spool into the cover. Remove the ends of the cord from the notches (H) and put them in the metal eyelets (I) on the cover.

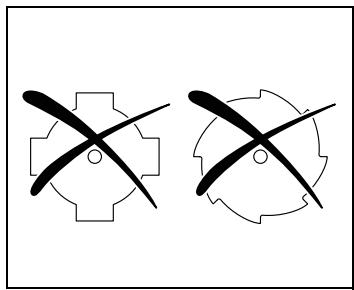

7 Mount the spool ( cover-assembly ) in the housing so that the grooves and protrusions on the spool mach up with those in the housing ( C ). Then push the cover firmly onto the housing to secure it.

SERVICING INSTRUCTIONS

Before doing any work on the Brush Cutter/String Trimmer, always stop the engine and pull the plug cap off the spark plug.

Always wear protective gloves.

Do not attempt to remove the recoil starter by yourself, which may cause an accident. It should be done by the Authorized Service Agent.

To ensure a long service life and to avoid any damage to the machine, the following servicing operations should be done at regular intervals.

Daily checkup and maintenance

Before operation, check the machine for loose screws or missing parts. Pay your special attention to the tightness of the cutting tool.

Before operation, always check for clogging of the cooling air passage and the cylinder fins. Clean them if necessary.

Do the following works daily after use :

• Clean the machine externally and inspect for damage.
• Clean the air filter. When working under extremely dusty conditions, clean the filter several times a day.
• Check the blade or the nylon cutting head for damage and make sure it is firmly mounted.
• Check if there is sufficient difference between idling and engagement speed. Make sure that the cutting tool does not rotate while the engine is idling.
• Check the functioning of the I-O switch, the lock-off lever, the control lever and the lock button.

Cleaning of air-filter

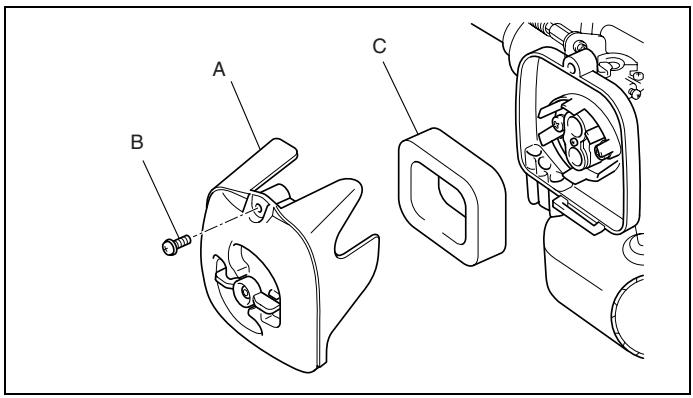

• Remove screw (B).
• Remove the air filter cover (A). Take out the air-filter (C) and clean it in warm soapy water. Dry the air-filter completely.
• After cleaning, put back the air filter cover and fasten it with the screw.

Note :

If there is excessive dust or dirt adhering to the air filter, clean it every day. A clogged air filter may make it difficult or impossible to start the engine or increase the engine rotation-speed.

Checking the spark plug

Only use the supplied universal wrench to remove or install the spark plug.

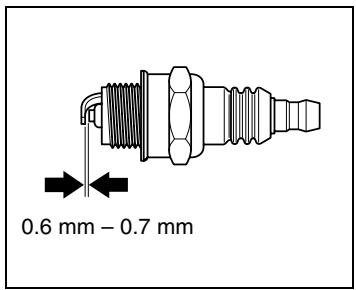

The gap between the two electrodes of the spark plug should be 0.6 - 0.7mm (0.024" - 0.028"). If the gap is too wide or too narrow, adjust it. If the spark plug is clogged with carbon or fouled, clean it completely or replace it.

CAUTION :

Never touch the spark plug connector while the engine is running ( danger of high voltage electric shock ).

Supply grease (Shell Albania 3 or equivalent) to the gear case through the grease hole every 30 hours.

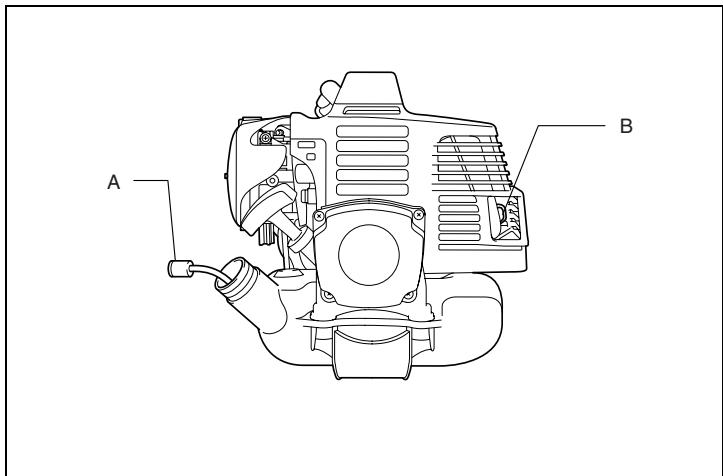

Suction head in the fuel tank

The fuel filter (A) of the suction head is for filtering the fuel to the carburetor. A periodical visual inspection of this fuel filter is highly recommended.

To inspect the fuel filter, open the tank cap and pull out the suction head through the opening of the tank using a wire hook.

If the filter is found to have hardened, polluted or clogged up, it should be replaced.

Insufficient fuel supply caused by the deteriorated filter will result in the poor performance of the engine. It is therefore important to replace the fuel filter at least quarterly to ensure fuel-supply to the carburetor.

Cleaning of muffler exhaust port

Check the muffler exhaust port (B) regularly. If it is clogged by carbon deposits, scratch out the deposits carefully with a suitable tool.

STORAGE

When the Brush Cutter/String Trimmer is in storage for a long time,

1 Drain all fuel from the fuel tank into a container approved for gasoline. Run the engine until it stops.
2 Clean all foreign material from the machine and store it in a well-ventilated place that is not accessible to children.

MAINTENANCE SCHEDULE

General	Engine assembly, screws and nuts	Visual inspection for damage and tightness. Check for general condition and security.
After each refueling	Control lever I-O switch	Functional check Functional check
Daily	Air filter Cooling air duct Cutting tool Idling speed	To be cleaned To be cleaned Check for damage and sharpness Inspect (Cutting tool does not rotate)
Weekly	Spark plug Muffler	Inspection, replace if necessary Check and clean the opening if necessary
Quarterly	Suction head Fuel tank	To be replace To be cleaned
Yearly (Long Term)	Fuel tank Carburetor	Empty fuel tank Operate until engine stops

TROUBLESHOOTING CHART

Trouble	System	Observation	Cause
Engine does not start or hard to start	Ignition system	Ignition spark O.K.	Failure in fuel supply or compression system, mechanical defect
		No ignition spark	I-O switch operated, wiring fault or short circuit, spark plug or connector defective, ignition module faulty
	Fuel supply	Fuel tank filled	Wrong choke position, defective carburetor, fuel supply line bent or blocked, dirty fuel
	Compression	No compression when pulled over	Cylinder bottom gasket defective, Crankshaft seals damaged, Cylinder or piston rings defective or improper sealing of spark plug
	Mechanical fault	Starter not engaging	Broken starter spring, broken parts inside the engine
Warm start problem		Tank filledIgnition spark	Carburetor contaminated or damaged. Clean or replace.
Engine starts but soon stops	Fuel supply	Tank filled	Incorrect idle-adjustment,Carburetor contaminatedDefective tank, fuel supply line interrupted, cable or I-O switch defective.
Insufficient performance	Several systems	Poor engine idling	Air filter contaminated, carburetor contaminated, muffler clogged, exhaust duct in the cylinder clogged

FRANÇAIS

POUR FAIRE APPLICER LA GARANTIE

COMBUSTIBLE/REPOSTAJE 38

COMBUSTIBLE/REPOSTAJE
