USER MANUAL BODYCRUZER BRAUN

Shaving Technology B 55 B 35 lett Gil 852-25249377 (Audio Supplies Company Ltd.) www.service.braun.com trim trim&shav shave

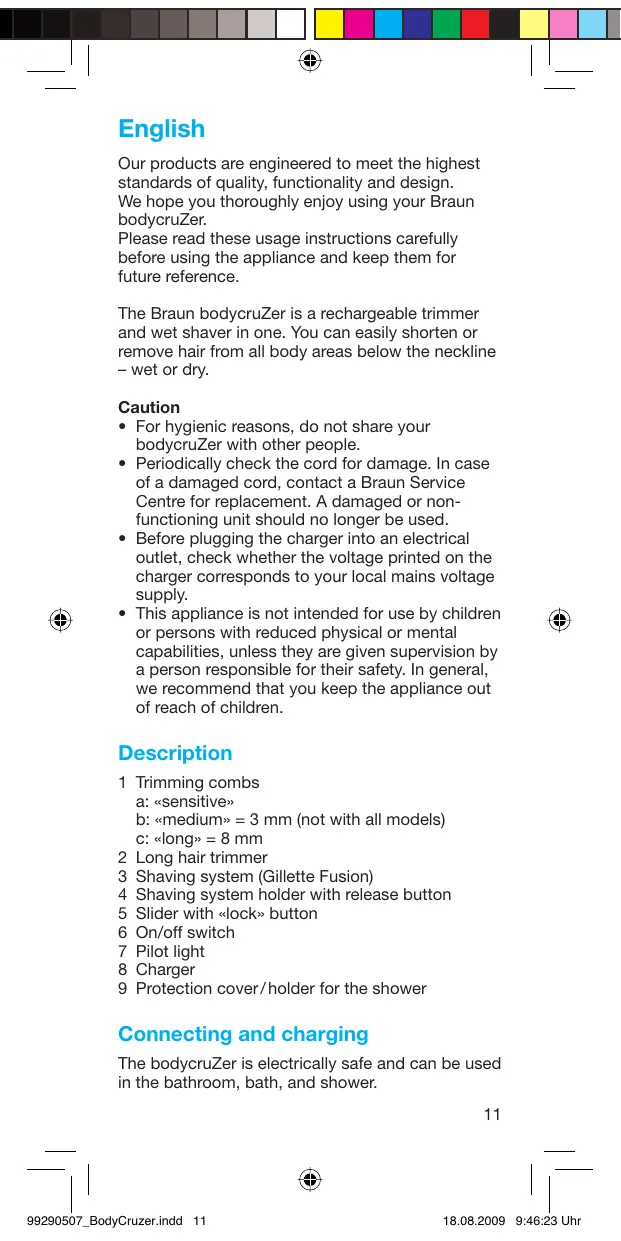

English Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun bodycruZer. Please read these usage instructions carefully before using the appliance and keep them for future reference. The Braun bodycruZer is a rechargeable trimmer and wet shaver in one. You can easily shorten or remove hair from all body areas below the neckline – wet or dry. Caution

• For hygienic reasons, do not share your bodycruZer with other people.
• Periodically check the cord for damage. In case of a damaged cord, contact a Braun Service Centre for replacement. A damaged or nonfunctioning unit should no longer be used.
• Before plugging the charger into an electrical outlet, check whether the voltage printed on the charger corresponds to your local mains voltage supply.
• This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Description 1 Trimming combs a: «sensitive» b: «medium» = 3 mm (not with all models) c: «long» = 8 mm 2 Long hair trimmer 3 Shaving system (Gillette Fusion) 4 Shaving system holder with release button 5 Slider with «lock» button 6 On/off switch 7 Pilot light 8 Charger 9 Protection cover / holder for the shower Connecting and charging The bodycruZer is electrically safe and can be used in the bathroom, bath, and shower.

99290507_BodyCruzer.indd 11

18.08.2009 9:46:23 Uhr

Plug the charger (8) into an electrical outlet. Place the bodycruZer onto the charger. The pilot light (7) indicates that the bodycruZer is connected to an electrical outlet. Charging time is approximately 12 hours. Cordless operation time is up to 50 minutes. Battery maintenance In order to maintain the capacity of the rechargeable batteries, we recommend that you unplug the charger and discharge the bodycruZer by regular use at least every 6 months. How to use the bodycruZer Make sure that you always keep your skin stretched when shaving or trimming. The bodycruZer is not intended for removing facial hair or scalp hair. This appliance is suitable for use in a bath or shower.

• Trimming: Trimming on the skin / contour trimming For trimming precise lines and contours, just use the trimmer (2) (picture a). Press the on/off switch (6) to turn on the bodycruZer. Stretching your skin, carefully move the trimmer against the direction of hair growth. For this function, you can use Gillette shaving foam or gel. Using the trimming combs (1a) – (1c) For best results use the trimming combs on dry hair only. Do not use shaving foam or gel for this application. Whenever hairs build up in front of the comb, remove them. Trimming on the skin in sensitive areas (e.g. genital area) with the «sensitive» attachment (1a) For trimming in sensitive areas and improved skin care, you should use the «sensitive» attachment (1a) (picture b). Snap it onto the trimmer (2) as shown until it clicks into place. Press the on/off switch (6) to turn on. Gently move the bodycruZer against the direction of

99290507_BodyCruzer.indd 12

18.08.2009 9:46:24 Uhr

hair growth with the comb tips pointing forward. In sensitive areas take special care that the skin is always stretched to avoid injuries. Trimming the hair length with trimming combs «medium» and «long» The trimming combs (1b) / (1c) allow you to cut the hair to 2 different lengths («medium» = 3 mm or «long» = 8 mm). Start with the «long» trimming comb (1c) to acquire practice. Gently move the bodycruZer against the direction of hair growth with the comb tips pointing forward (picture c).

• Combishave («trim&shave»): Trimming and shaving in one stroke for a close shave of long haired sections with the trimmer (2) and shaving system (3) The combishave is suitable for large areas like chest and back. Press the «lock» button and extend the slider to the «trim&shave» setting (picture d). Press the on/off switch (6) to turn on the bodycruZer. The trimmer first raises all long hairs and cuts them off. The shaving system (3) follows to smooth away any stubble. For best results, always make sure that both, the trimmer and the shaving system are in contact with the skin. When using this function, we recommend using Gillette shaving foam or gel. For sensitive areas, we recommend starting with the «sensitive» attachment (1a) and then finish with the shaving system (3).
• Shave: For a close shave of stubbled areas with the shaving system (3) Pressing the «lock» button, extend the slider (5) as far as it will go to setting «shave» (picture e). Place the shaving system (3) on the stretched skin and gently move it against the direction of hair growth. Do not apply too much pressure and always keep your skin stretched. Make sure the shaving system is in full contact with the skin. When using the shaving system, we recommend using Gillette shaving foam or gel.

99290507_BodyCruzer.indd 13

18.08.2009 9:46:24 Uhr

Protection sleeve / holder for the shower The bodycruZer comes with a protective cover that can also be used as a shower holder. When used as a protective cover, insert the bodycruZer with the trimmer facing inwards. When using it as holder, insert the bodycruZer with the trimmer facing outwards (see picture 9). Cleaning and maintenance After each use, clean the bodycruZer. Remove the trimming comb and brush it out. You may also use the brush to clean the trimmer if it has been used for dry applications only. If you have used the bodycruZer with shaving gel or foam, rinse it under hot, running water as shown (in picture f). Shake well to remove excess water and leave to dry. Apply a drop of light machine oil onto the trimmer on a weekly basis. Replacing the shaving system The shaving system (3) has to be replaced when the green stripe becomes discoloured. Use Gillette Fusion cartridges only. Extend the slider, press the release button (4) to eject the used shaving system. Insert the appliance into the refill organizer to collect a new one (picture g). In case the bodycruZer has dropped onto the shaving system, replace the shaving system for safety reasons. Environmental notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection sites provided in your country. Subject to change without notice This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

99290507_BodyCruzer.indd 14

18.08.2009 9:46:24 Uhr

For electric specifications, see printing on the charger. Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaving system) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre. For UK only: This guarantee in no way affects your rights under statutory law.

99290507_BodyCruzer.indd 15

18.08.2009 9:46:24 Uhr
