USER MANUAL KF 157 BRAUN

ba English IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions. 10. Do not place on or near a hot gas or

2. Do not touch hot surfaces. electric burner, or in a heated oven.

Use handles or knobs. 11. Do not use appliance for other than

8. To protect against electric shock, intended use.

do not place cord, plugs, or appliance 12. Scalding may occur if the lid is in water or other liquid. removed during the brewing cycle.

4. Close supervision is necessary when 18. The carafe is designed for use with

any appliance is used by or near this appliance. It must never be used children. on a range top.

5. Unplug from outlet when not in use 14. Do not set a hot carafe on a wet or

and before cleaning. Allow to cool cold surface. before putting on or taking off parts, 15. Do not use a cracked carafe or a and before cleaning the appliance. carafe having a loose or weakened

6. Do not operate any appliance with a handle.

damaged cord or plug or after the 16. Do not clean carafe with cleansers, appliance malfunctions, or has been steel wool pads, or other abrasive damaged in any manner. Return appli- material. ance to an authorized service facility for examination, repair or adjustment. Please note the Warning on the bot- tom of the appliance:

7. The use of an accessory not recom-

re s) mended for use with this appliance «To reduce the risk of fire or electrical d may cause injuries. shock, do not remove this cover.

8. Do not use outdoors. No user serviceable parts inside.

9. Do not let cord hang over edge of Repair should be done by authorized

table or counter, or touch hot surfaces. service personnel only.»

SAVE THESE INSTRUCTIONS

SHORT CORD INSTRUCTIONS

A short power cord is provided to reduce A. The marked electrical rating should be risks resulting from becoming entangled at least as great as the electrical rating in or tripping over a longer cord. of the appliance. Longer detachable power supply cords B. If the appliance is of the grounded or extension cords are available and may type, the extension cord should be a be used if care is exercised in their use. grounding-type 3-wire cord. C. The longer cord should be arranged If an extension cord is used follow these so that it will not drape over the coun- guidelines: tertop or table top where it can be pulled on by children or tripped over.

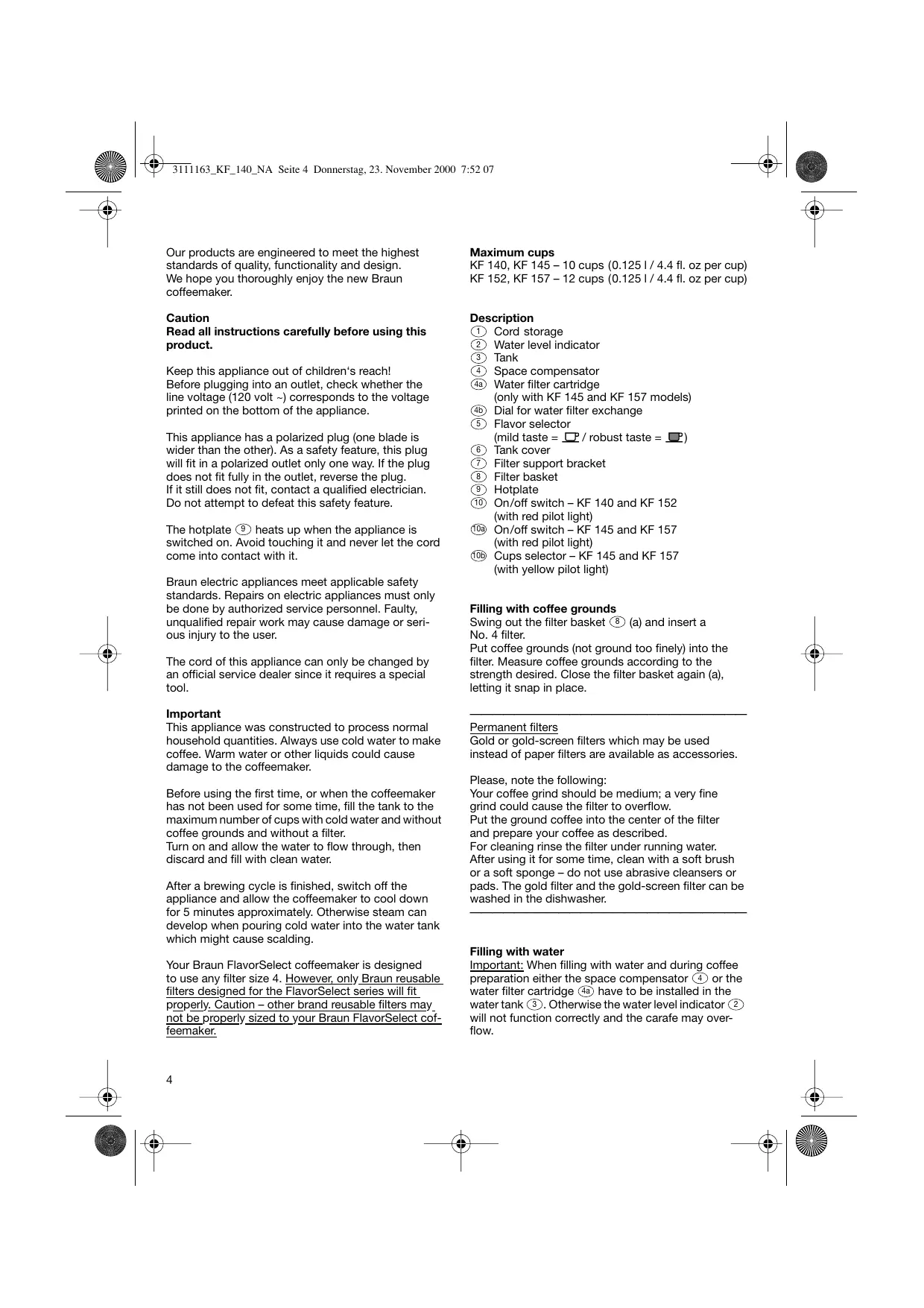

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy the new Braun coffeemaker. Caution Read all instructions carefully before using this product. Keep this appliance out of children's reach! Before plugging into an outlet, check whether the line voltage (120 voit -) correspondés to the voltage printed on the bottom of the appliance. This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. Hit still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature. The hotplate ®) heats up when the appliance is switched on. Avoid touching it and never let the cord come into contact with it. Braun electric appliances meet applicable safety standards. Repair on electric appliances must only be done by authorized service personnel. Faulty, unqualified repair work may cause damage or seri- ous injury to the user. The cord of this appliance can only be changed by an official service dealer since it requires a special tool. Important This appliance was constructed to process normal household quantities. Always use cold water to make coffee. Warm water or other liquids could cause damage to the coffeemaker. Before using the first time, or when the coffeemaker has not been used for some time, fill the tank to the maximum number of cups with cold water and without coffee grounds and without a filter. Tu on and allow the water to flow through, then discard and fill with clean water. After a brewing cycle is finished, switch off the appliance and allow the coffeemaker to cool down for 5 minutes approximately. Otherwise steam can develop when pouring cold water into the water tank which might cause scalding. Your Braun FlavorSelect coffeemaker is designed to use any fier size 4. However, only Braun reusable filters designed for the FlavorSelect series will ft properly, Caution other brand reusable filters may. not be properly sized to your Braun FlavorSelect cof- feemaker. Maximum cups KF 140, KF 145 — 10 cups (0.125 1/ 4.4 fl. oz per cup) KF 152, KF 157 — 12 cups (0.125 1/ 4.4 fl. oz per cup) Description (D Cord storage @) Water level indicator Tank

2) Space compensator

Water filter cartridge (only with KF 145 and KF 157 models) Dial for water filter exchange Flavor selector {mild taste = CP / robust taste = IP) Tank cover Filter support bracket Filter basket ) Hotplate

1) On/off switch — KF 140 and KF 152

{with red pilot light) € On/off switch — KF 145 and KF 157 {with red pilot light) < Cups selector - KF 145 and KF 157 {with yellow pilot light) Filling with coffee grounds Swing out the filter basket () (a) and insert a No. 4 filter. Put coffee grounds (not ground too finely) into the filter. Measure coffee grounds according to the strength desired. Close the filter basket again (a), letting it snap in place. Permanent fiters Gold or gold-screen fiers which may be used instead of paper fiters are available as accessories. Please, note the following: Your coffee grind should be medium; a very fine grind could cause the filter to overflow. Put the ground coffee into the center of the filter and prepare your coffee as described. For cleaning rinse the filter under running water. After using it for some time, clean with a soft brush or a soft sponge - do not use abrasive cleansers or pads. The gold filter and the gold-screen filter can be washed in the dishwasher. Filling with water Important: When filing with water and during coffee preparation either the space compensator (5) or the water filter cartridge Ga have to be installed in the water tank (>. Otherwise the water level indicator (2) will not function correctiy and the carafe may over- flow.

Pour cold water into the tank () to the number of cups of coffee desired. To do this, lift the tank cover €) and pour the cold water into the tank. The amount of water is shown on the water level indi- cator 2) (KF 140, KF 145 - maximum 10 cups; KF 152, KF 157 - maximum 12 cups). Pre-selecting the taste - flavor selector By adjusting the flavor selector (), you can adjustthe taste of your coffee to suit your personal preference — milder with less bitter aftertaste or stronger, but always with the same full flavor. Set the flavor selec- tor under the tank cover before turning on the coffee- maker. Hf you prefer milder coffee with less bitter aftertaste, turn the flavor selector (6) in the direction of the CP symbol (b). Should you prefer a more robust taste, tu the flavor selector towards the BE symbol. Regardless of the position you select, the coffee will always have the same full flavor. Controls jor selector Mild taste CG Robust taste = 8 gniofr switch GO) — KF 140, KF 152 © (the red pilot light is on) 0 (e] onef switch € — KF 145, KF 157 © (the red pilot light is on)

The red pilot light lights up when the coffeemaker is switched on: it goes out when the appliance is switched off. Cups selector 4 —(KF 145, KF 157) min-3 (cups): Even small quantities (to 3 cups) will maintain the right temperature and flavor. The yellow pilot light lights up. 4-max (cups): Larger quantities (4 and more cups) will maintain the right temperature and flavor. Making coffee Place the carafe with the lid onto the hotplate (3) and snap the filter basket (®) in place. Switch the coffee- maker on (see on/off switch). Brewing time is approx. 50 seconds per cup (including dripping). The pause and serve feature allows you to pour a cup in mid- brewing cycle and prevents coffee from dripping on the hotplate when removing the carafe from the hotplate. The brewing, however, continues when the pause and serve feature is activated. The carafe should be immediately returned to the hotplate after pouring to prevent the filter basket from overflowing. To make coffee, the carafe with the lid snapped on {d) must be set on the hotplate (&) and the filter bas- ket (#) must be snapped in place (a). Due to a buit-in overflow protection feature, the liquid in the filter will flow directiy into the carafe if you forget to snap the filter basket in place or put the lid on. The carafe must be on the hotplate for the overtiow protection to work. Remove the filter basket «Cleaning»). Œ to empty grounds (see Keeping the coffee hot The carafe rests on the hotplate (5) which begins to heat up when the coffeemaker is switched on and will keep the coffee hot until the coffeemaker is switched off (red pilot light goes out). KE 145, KF 157: f you want to keep more than 4 cups of coffee hot, set the cups selector 0 to position 4-max, or less than 4 cups to position min-8. In this way even small quantities will be kept at the right temperature and the flavor will be pro- tected. For KF 140 auto-off only: Auto-off feature The appliance is protected against overheating by several special safety components and an automatic shut off feature. This means that the coffeemaker will automatically be switched off after 2 hours and the red pilot light will go out. if you want to start your coffeemaker again, first turn the switch to off = «O» and then turn the appliance on. The red pilot light will light up again. Space compensator The space compensator () in the tank @ takes up the space which is intended for the water filter cartridge 2. Unless the water filter cartridge is installed in the tank, the space compensator must always be inside the tank when filing with water and brewing to avoid overiling. Keep the space com- pensator as it has to be installed in the tank if you have to decalcify your coffeemaker. Water filter cartridge {only with KF 145 and KF 157 models) This water filter cartridge @) is only to be used with municipally treated tap or well water that is regulariy tested to be microbiologically safe (max. 85 °F). It gives you purer tasting coffee by removing chlorine, bad tastes and odors as well as scale. Provided the cartridge is regularly replaced, it provides not only better tasting coffee, but also can increase the life of your coffeemaker by preventing calcification.

Installing the water filter cartridge Unpack the water filter cartridge G. Then put the fil- ter cartridge for 10 minutes in a receptacle filled with water. Remove the space compensator (1) from the tank and replace it by the water filter cartridge. Make sure +9 keep the space compensator as it could be needed if you do not use the water filter any longer at a future point in time or for decalcification. After having installed a new water filter cartridge always run a cycle of the maximum number of cups of clean cold water through the unit before brewing coffee. In order to ensure the proper functioning of the filter cartridge, exchange it after 2 months of regu- larly using the coffeemaker. In order to remind you to replace the fier in time, you may set the dial GE) incorporated in the tank cover to the month when the cartridge has to be exchanged. Dial for water filter exchange After having installed a new filter cartridge, set the dial 5) for 2 months later by turning it from the reverse side of the tank cover. Cleaning Always tu the coffeemaker off and pull the plug out of the outlet before cleaning. Swing out the filter basket () and pull it off upwards from the filter sup- port bracket (7) (e). To replace, set the rectangular opening in the rim of the filter basket () on top of the nose of the filter support bracket (D) until the filter basket snaps in place (e). To wash, take the lid off the carafe (d). The carafe, lid and fier basket can be cleaned in the dishwasher. All other parts should be cleaned with a damp cloth only. After cleaning, put the lid back on the carafe (o. Clean the hotplate (®) with liquid cleansers only. Do not use abrasive cleansers. The coffeemaker must never be cleaned under running water and must never be immersed in water. The filter support bracket (7) can be taken off for cleaning. Swing it out, push it up and pull it off diag- onally downwards (9. To replace, insert the top first. Decalcifying If you have hard water and you use your coffeemaker without a water filter, it should be decalcified regu- larly. When using the water filter cartridge and exchanging it regular, you normally will not need to decalcify. However, if your coffeemaker takes much longer than normal to brew, the appliance should be decalcified. Notice: Replace the water filter with the space compensator for any decalcifying procedure. The flavor selector &) must be setto the CP symbol for decalcifying. You can either use a commercially available decalci- fying agent which does not affect aluminum or white distilled vinegar (available at foodstores).

1. Follow the instructions of the manufacturer of the

2. Repeat this procedure as many times as

necessary until the flow rate returns to normal (approx. 50 seconds per cup including dripping). Use a newly prepared decalcifying solution for each cycle.

3. After decalcifying run at least two cycles ofthe

maximum number of cups of clean cold water through the unit before brewing coffee. If you are using white distilled vinegar, please pro- ceed as follows: Fillthe tank © to the 6 cup level with the white distilled vinegar. Do not mix the vinegar with water or any other liquid.

2. Set the carafe with the lid in place on the hot-

plate, snap the filter basket (without a filter) in place and turn on the appliance.

3. Allow half of the vinegar to flow through.

Switch off the appliance and leave for 10 minutes.

5. Switch on the appliance again and allow the rest

of the vinegar to flow through.

Repeat this procedure as many times as neces- sary until the flow rate of the coffeemaker returns to normal (approx. 50 secs. per cup). Use fresh vinegar for each cycle.

After decalcifying run at least two cycles of the maximum number of cups of clean cold water through the unit before brewing coffee. Specifications are subject to change without notice.

For USA only How to obtain service in the USA Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts and accessories: Contact a Braun Authorized Service Center. Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you. To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (272-8611). Limited Warranty Braun warrants this Braun Appliance to be free of defects in material and workmanship for a period of one year from the date of original purchase at retail. Hthe appliance exhibits such a defect, Braun wil, at its option, repair or replace it without cost for parts and labor. The product must be carried in or shipped, prepaid and insured (recommended), to an Authorized Braun Service Center. Proof of date of original purchase is required. The cost to ship the product to an Authorized Service Center is the responsibility of the consumer, the cost to return the product to the consumer is the responsibility of Braun. This warranty does not cover finishes, normal wear, nor does it cover damage resulting from accident, misuse, dirt, water, tampering, unreasonable use, service performed or attempted by unauthorized service agencies, failure to provide reasonable and necessary maintenance, including recharging, or units that have been modified or used for commercial purposes.

ALL IMPLIED WARRANTIES, INCLUDING ANY

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other legal rights which vary from state to state.

É Le 7 3111163_KF_140_NA Seite 16 Donnerstag, 23. November 2000 7:52 07 For Canada only How to obtain service in Canada Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts & accessories: Contact a Braun Authorized Service Center. Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you. To speak to a Braun Service Representative: Please call 1-800-387-6657. Limited 1-Year Warranty In the event a Braun Appliance fails to function within the specified warranty period because of defects in material or workmanship, and the consumer returns the unit to an authorized service centre, Braun Canada will at its option either repair or replace the unit without additional charge to the consumer. This warranty does not cover any product which has been damaged by dropping, tampering, servicing performed or attempted by unauthorized service agencies, misuse or abuse. This warranty excludes units which have been modified or used for commercial purposes. To the extent allowed by law, Braun Canada shall not be responsible for loss ofthe product, loss of time, inconvenience, commercial loss, special or consequential damages. The provisions of this warranty are in addition to and not a modification of or subtraction from the statutory warranties and other rights and remedies contained in applicable provincial legislation.
