Brand	BRAUN
Model	FS 20
Product Type	MultiGourmet Steamer
Maximum Water Capacity	1.2 liters
Timer	60 minutes with automatic shut-off
Indicator Light	Yes, lights up during operation
Number of Steam Baskets	2
Number of Drip Trays	2
Included Accessories	Black protection basket, black rice basket, transparent lid, steam accelerator
Basket Material	White plastic (steam basket) and black plastic (protection/rice basket)
Water Levels	Minimum (for cooking < 18 min) and Maximum (for cooking > 18 min)
Use	Steaming vegetables, fish, meats, poultry, rice, cereals, eggs, seafood
Cleaning	All parts except the base are dishwasher safe
Descaling	With white vinegar, 15-minute cycle
Safety	Do not immerse the base, use oven mitts, do not touch hot parts
Warranty	2 years
Compliance	European Directives 2004/108/EC and 2006/95/EC
Power Supply	See rating plate on the bottom of the appliance

Frequently Asked Questions - FS 20 BRAUN

How much water should I put in the Braun FS 20 steamer?

Fill the base to the minimum level (mark ③) for cooking under 18 minutes, and to the maximum level (mark ②) for longer cooking. The maximum capacity is 1.2 liters of water.

How to use the timer on the Braun FS 20?

Turn the timer knob (⑩) to 60 minutes, then turn back to the desired cooking time. The indicator light comes on and cooking begins. At the end of the time, the appliance shuts off automatically.

Can I cook frozen foods without thawing?

Yes, frozen vegetables do not need to be thawed. For frozen fish, increase cooking time by about 10%.

How to clean the Braun FS 20 steamer?

Always unplug the appliance. All parts except the base (①) are dishwasher safe or can be hand washed with regular detergents. Clean the base with a damp cloth. Never immerse the base in water.

How to descale the Braun FS 20?

Fill the base with white vinegar to cover the heating element. Place the steam accelerator (⑧) and lid. Plug in and set the timer to 15 minutes. If limescale persists, repeat. Then rinse 3 to 4 times with lukewarm water.

What accessories are included with the Braun FS 20?

The FS 20 model comes with 2 steam baskets (⑤), 2 drip trays (④), a black protection basket (⑤) for color-transferring foods, a black rice basket (⑥), a transparent lid (⑦), and a removable steam accelerator (⑧).

How to stack the steam baskets on the FS 20?

Place the first basket with its drip tray on the base. For the second, put it on top of the first with its tray. Use the black protection basket or the rice basket only in the upper basket when both are used.

What types of food can I steam?

The Braun FS 20 steamer allows you to cook vegetables, fish, meats (tender and low-fat), poultry, eggs, rice and cereals, as well as seafood.

What are the important safety instructions?

Always use oven mitts to handle hot parts. Never touch the steam or droplets. Do not immerse the base. Unplug before cleaning. Use on a flat, dry, heat-resistant surface. Keep the appliance out of reach of children.

How to check cooking without burning yourself?

Put on long oven mitts. Turn off the appliance. Lift the lid tilting it away to avoid steam. Use a long fork to test the food. If necessary, replace the lid and restart. For the lower basket, first remove the upper basket using the hollow side of the lid as a trivet.

USER MANUAL FS 20 BRAUN

Electrical food steamer/rice cooker

Steam cooker

Steam cooker

Steam cooker

9 Use Instructions 13 Guarantee

French

79 Odyiecs xpoews 84 Eyyunon

Russian

85 IHCtpyKUma no 3Kcnnyataa 90「apaNTn

Ukrainian

92 Ihctpykci3 ekcnnyataaii 97 TapaantTi

3

105 Joo 99 1

D A 0080027286463 0080BRAUNINFOLINE

CH 0844-884010

GB 08007837010

IRL 1800509448

F 0810309780

B 080014592

E 901 11 61 84

P 808200033

[phone]

NL 0800-4455388

DK 70150013

N 22630093

S 020-213321

FIN 020377877

PL 0801127286 08011BRAUN

CZ 221804335

TR 02124737585

RUS [phone]

UA [phone]

HK 852-25249377 (Audio Supplies Company Ltd.)

FS 10

Deutsch

Our products are engineered to meet the highest standards of quality, functionality, and design. We hope you thoroughly enjoy your new Braun product.

Your Braun MultiGourmet is particularly well suited for steaming vegetables, rice, fish, meat and poultry. Steaming is a most gentle and healthy way of preparing food. Vitamins, minerals, natural taste and colour will be retained to a large extent.

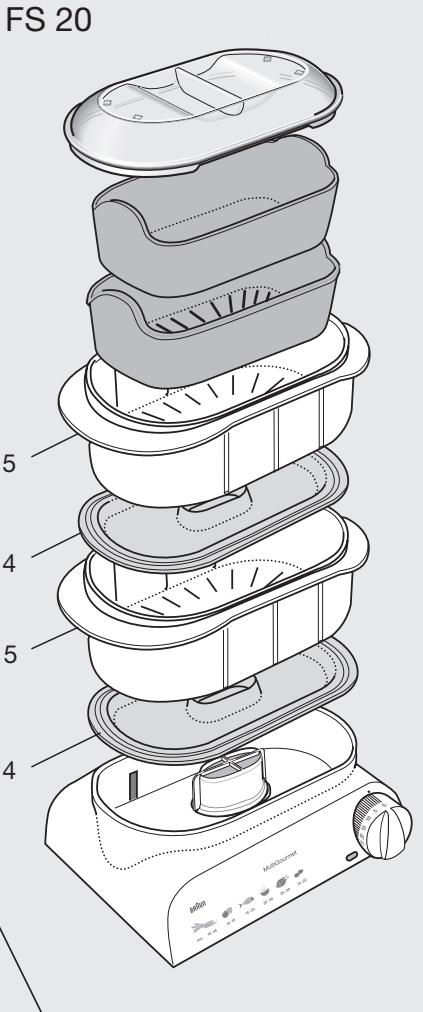

The model Braun MultiGourmet plus FS 20 is provided with 2 steam baskets (⑤) and 2 drip pans (④). Thus it has approximately twice the capacity of the model Braun MultiGourmet FS 10 (except rice).

Read all instructions carefully before using the appliance.

Important safeguards

• This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children.
• Before operating, check whether your voltage corresponds to the voltage printed on the bottom of the appliance.
• This appliance is designed for household use processing household quantities (see processing tables).
• Use the steam basket (⑤) only together with the drip pan (④). Always use the black insert (⑤) when steaming food with colour (e.g. carrots, paprika, tomatoes, etc.), in order to minimize permanent colouring of the white steam basket (⑤).
• Remove the black rice bowl (⑥) or the black insert (⑤) only together with the steam basket (⑤) from the drip pan (④). Always unplug the appliance before cleaning. Never immerse the base (①) into water.
• Never touch the appliance without potholders or kitchen gloves, and do not use the appliance without the cover ⑦. When lifting the cover, always hold it so that you do not come in touch with escaping steam or dripping hot water. Be careful with hot liquids in the drip pan(s). Always pull the plug when you have finished using the appliance.
• When using the appliance ensure sufficient room over and beside the appliance, in order to prevent damage to e.g. cabinets or other objects.
• When using the appliance place it on a dry, level, heat-resistant surface.
• Never place the appliance on a hot surface or over an open flame.
• Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorised service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.

Specifications

• Voltage/wattage: See type plate on the bottom of the appliance Maximum capacity: 1.2 l water

Description

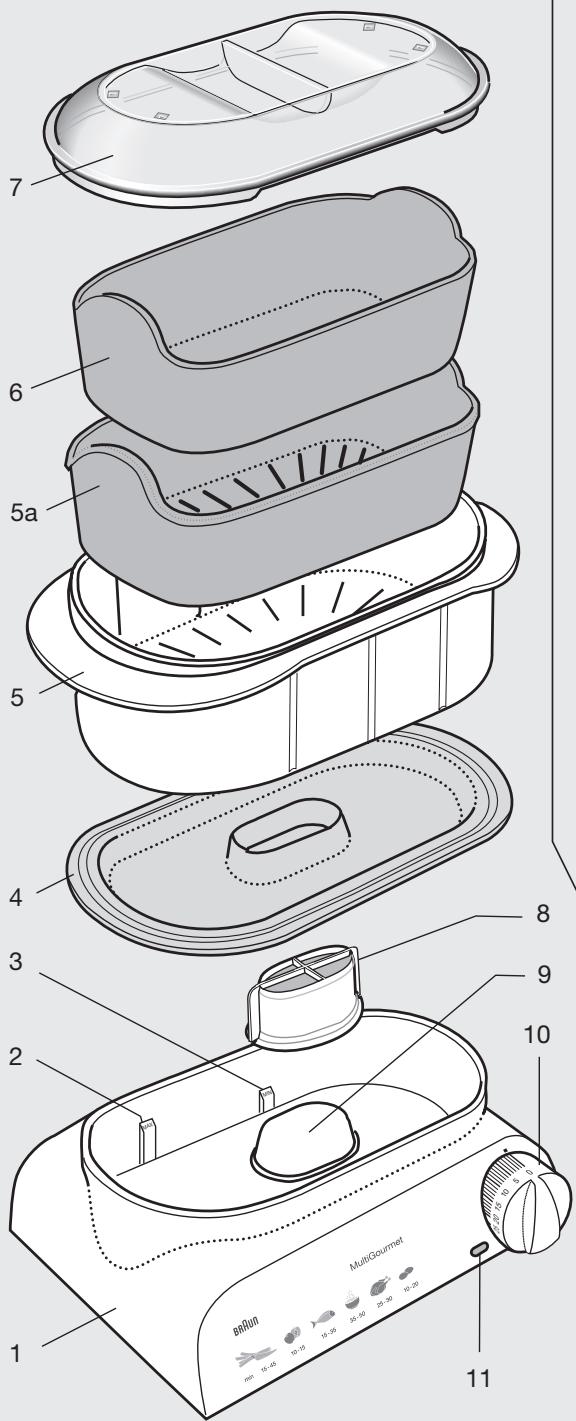

① Base ② Maximum water fill line (for long steaming times) ③ Minimum water fill line (for short steaming times) ④ Drip pan (the model FS 20 has 2 drip pans) ⑤ Steam basket with slots (the model FS 20 has 2 steam baskets) Black insert (with slots) for the steam basket ⑤ for steaming food with colour (e. g. carrots, paprika, tomatoes, etc.) ⑥ Black rice bowl (without slots) for the steam basket ⑦ Cover (transparent) ⑧ Steam accelerator (removable) Heating element On/off switch with timer (60 minutes) ① Pilot light for switch ⑨ ⑫ Cord store for unused length of cord

Notice: Clean all parts before the first use as described under «Cleaning».

Steaming

1. Fill the base ① with cold tap water and put the steam accelerator ⑧ in place. Do not add any spices, sauces, wine etc. to the water. The water quantity needed (maximum or minimum water fill line) depends on the selected steaming time.

Steaming in the steam basket (e.g. vegetables, fish)

Put the food into the steam basket with slots ⑤ . Add spices when steaming is finished.

Always use the black insert ⑤ when steaming food with colour (e.g. carrots, paprika, tomatoes, etc.) in order to minimize permanent colouring of the white steam basket ⑤ .

Model FS 20: When using both steam baskets ⑤ the black insert ⑧ or the black rice bowl ⑥ can only be used in the upper steam basket.

Steaming in the black rice bowl (e.g. rice, bakes)

Put the rice/grains with a liquid if necessary into the rice bowl. Place the rice bowl into the steam basket.

1. Place the filled steam basket onto the drip pan ④ in the base ① and set the cover ⑦ onto the steam basket. Without the cover in place, the consumption of electrical power would be higher and the steaming time longer. Model FS 20: When using both steam baskets, place the second steam basket with its drip pan on the lower steam basket.
2. When using the steamer ensure sufficient vertical and horizontal space to other objects (shelves etc.).
3. Plug the cord into a mains socket.
4. Set the timer ⑥ . To do this first turn the knob to 60 minutes and then back to the desired steaming time. The pilot light ① illuminates and steaming begins.
5. After the selected steaming time is over, the appliance switches off automatically and the pilot light ① goes out.
6. Check whether the food is cooked. Put on long kitchen gloves. Switch the appliance off.

Lift the cover ⑦ being careful of escaping steam. Do not touch any hot parts. Check the food using a long fork.

If you want to continue steaming put on the cover ⑦ and switch the appliance on again.

Model FS 20 when using both steam baskets: To check whether the food is cooked in the lower steam basket proceed as follows. Switch the appliance off and remove the cover ⑦

Carefully lift off the upper steam basket (with the black insert) and place it on the reverse side of the cover. Then, using kitchen gloves, carefully remove the drip pan from the lower steam basket and check whether the food is cooked.

If you want to continue steaming in both steam baskets, first place the drip pan onto the lower steam basket and then put on the upper steam basket with the cover. Switch on the appliance again.

1. When the appliance switches itself off and the food is sufficiently cooked, pull the plug and let the appliance cool off slightly. Then remove the steam basket, the black rice bowl, or the black insert together with the steam basket, using kitchen gloves. The reserve side of the cover ⑦ serves as a stand for the steam basket. Remove the food from the steam basket or the rice bowl and spice it as desired. Model FS 20: For disassembling, see Point 7.
2. The liquids that have dripped into the drip pan ④ can be used for sauces or soup.
3. Before you pour out remaining water from the base ① , disassemble or clean the appliance, always let it cool off. Pull the plug.

Water quantities

The water quantity needed depends on the steaming time. When steaming up to 18 minutes, fill the base up to the minimum water fill line ③ . When steaming longer than 18 minutes, fill to the maximum water fill line ② . Ensure a sufficient water level, especially if the steaming time was extended. Should no more steam develop, please check the water level. To do so, pull the plug and let the appliance cool off somewhat. Lift the steam basket and the drip pan carefully, and add water.

Notice: All parts are designed for use in the Braun MultiGourmet only. Do not put them into a conventional oven or a microwave oven.

Steaming in the steam basket ⑤ and in the black rice bowl ⑥

Notice: The quantities and processing times are approximate for steaming in one steam basket (e.g., model FS 10). The steaming times listed in the charts also apply when steaming smaller quantities. When steaming larger quantities, the steaming times may be somewhat longer if there is not enough space to permit sufficient steam circulation.

Tips for steaming with the model FS 20: The steaming times in the upper steam basket are longer. Therefore,

• steam larger pieces or food with longer steaming times in the lower steam basket.
• When steaming different kinds of food with different steaming times: Steam food with a longer steam time in the lower steam basket. After some time, place the steam basket containing food with a shorter steaming time on top of the lower steam basket for steaming.

Vegetables and fruits

• Cut off thick stems from cauliflower, broccoli, and cabbage.
• Steam leafy, green vegetables for the shortest possible time as they lose colour easily.
• Frozen vegetables should not be thawed before steaming.

Food	Type	Ca. quantity	Steam times
Artichokes	fresh	4 (medium)	40–45 min.
Asparagus	fresh	500 g	30–40 min.
Beans, runner	fresh, whole or sliced	500 g	25–35 min.
Broccoli	fresh, florets	500 g	15–20 min.
Brussels sprouts	fresh	500 g	20–25 min.
Cabbage	fresh, sliced	500 g	25–30 min.
Carrots	fresh, sliced	500 g	20–25 min.
Cauliflower	fresh, florets	500 g	20–25 min.
Courgettes	fresh, sliced	500 g	15–20 min.
Fennel	fresh, sliced	500 g	15–20 min.
Kohlrabi	fresh, in cubes	500 g	20–25 min.
Leeks	fresh, cut	500 g	15–20 min.
Mushrooms, button	fresh, whole or sliced	500 g	20–25 min. (sliced 5 min. less)
Potatoes	sliced	500 g	20–25 min.
Potatoes	unpeeled	500 g	30–40 min.
Sweetcorn	fresh	2 pieces	55–60 min. (turn frequently)
Apples	fresh, 1/8 pieces	500 g	10–15 min.
Pears	fresh, 1/6 pieces	500 g	10–15 min.

Fish and Seafood

• Frozen fish may be steamed without defrosting if separated before steaming, and the steaming time is extended by approximately 10%.

Food	Type	Ca. quantity	Steam times
Trout	fresh	2 pieces, each 150 g	18–25 min.
Tuna steaks	fresh	2 pieces, each 200 g	25–30 min.
Bream	fresh, whole	1 piece, 400 g	17–25 min.
Rosefish fillets	fresh	2 pieces, each 200 g	15–18 min.
Pollack fillets	fresh	2 pieces, each 140 g	15–18 min.
Shrimps	frozen	450 g	15–20 min.
Mussels	in the shells	1.000 g	18–25 min.
Squid	frozen	600 g	20–25 min.
Lobsters	in the shells	2 pieces	30–35 min.

• Tender meat with a little fat is suited best.
• The meat should be well washed and dabbed dry, so that as little juice as possible drips out.
• Puncture eggs first.

Food	Type	Ca. quantity	Steam times
Turkey cutlets	fresh	2 pieces, each 150 g	25–30 min.
Chicken legs	fresh	2 pieces, each 150 g	25–30 min.
Veal cutlets	fresh	2 pieces, each 150 g	30–35 min.
Lamb chops	fresh	2 pieces, each 120 g	25–30 min.
Frankfurter sausages	fresh	2–8 (pierce skins)	8–10 min.
Beef sausages	fresh	2–8 (pierce skins)	8–13 min.
Eggs soft-boiled	in the eggshell	2–10 medium size	10–13 min.
Eggs hard-boiled	in the eggshell	2–10 medium size	15–20 min.

Rice, grains, bakes

• Use the black rice bowl ⑥ and add the required quantity of liquid together with the rice, grains, etc.
• Model FS 20: If you are using both steam baskets please proceed as follows. Pre-steam the rice etc. with its long steaming time in the rice bowl ⑥ - placed into the lower steam basket with the cover ⑦ in place. After some time place the other steam basket filled with different food on the base ① (i.e. on the bottom) and continue steaming the rice etc. by moving the steam basket to the top.

Food	Ca. quantity	Water level in the base ①	Liquid level in the rice bowl ⑥	Steam times
Basmati rice	250 g	max.	300–400 ml water	35–40 min.
Long-grain rice	250 g	max.	300–400 ml water	35–40 min.
Brown rice	250 g	max.	300–400 ml water	45–50 min.
Pudding rice	250 g	max.	750 ml milk	60 min.
Indian meal (maize)	250 g	max.	750–1000 ml water	20–25 min.

Cleaning

Always pull the plug before you clean the appliance. Except the base ①, all parts can be cleaned in the dishwasher or by hand with a commercially available detergent. The steam accelerator ⑧ can be removed for cleaning. Wipe the base ① with a damp cloth.

Decalcifying

After you have used your steamer several times (depending on the water hardness in your housing area), the heater ⑨ in the base ① is covered by a layer. The appliance should now be decalcified. Fill the base with white household vinegar (5%) so that the heating element is just covered. Put the steam accelerator ⑧ in place. Close the appliance, connect it to the mains and set the time to 15 minutes. Should there still be a layer visible after the 15 minutes are over, repeat the procedure. After the vinegar and the appliance have sufficiently cooled off empty the base. Rinse the base ① 3 to 4 times with warm water. Any remaining calcium can be removed from the steam accelerator with a brush.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

Our products meet the highest requirements of quality and design. We are sure that you will enjoy your new Braun appliance.

The Braun MultiGourmet has a special shape for cooking vegetables, rice, fish, meat and poultry in steam. Cooking in steam is the most healthy and hygienic way of preparing food. Vitamins, minerals and flavor are preserved to a high degree.

The Braun FS 20 MultiGourmet plus is equipped with 2 baskets of 5 and 2 discs to drain the water. For this reason it has double capacity compared to the FS 10 MultiGourmet model (except for rice).

Please read the instructions carefully before using the appliance.

Basic safety rules

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Always unplug the appliance before cleaning or maintenance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance is intended for household use and for quantities as indicated in the tables. Use the measuring cup ⑤ always together with the lid ④. Always use the measuring cup ⑥ when filling water (e.g. for coffee, milk, etc.) to reduce the risk of overflowing. Remove the lid ④, the measuring cup and the water tank lid always with the measuring cup ⑤. Always remove the appliance from the base before filling. For no reason immerse the base ① of the appliance in water. Do not touch the appliance without protective gloves. Do not use the appliance without the filter ⑦. When inserting the filter, make sure to hold it so that it does not come into contact with the steam or the hot water from the

appliance. Be careful with the hot steam that is released from the openings.

Always remove the jug from the base when not using the appliance. - When using the appliance, make sure there is enough space around it so that any splashes from the steam or liquids are avoided. - When using the appliance, make sure the lid is properly closed and the steam outlet is not blocked. Never place the appliance on a hot surface and do not place it in a dishwasher. All Braun electrical appliances comply with the relevant safety standards. Any repair or replacement of the power cord must be carried out only by authorized technicians. Improper repair by unqualified persons may cause serious risks to the user.

Specifications

Voltage/Power: See the type plate on the bottom of the appliance - Maximum capacity: 1.2 liters of water

Description

On September 1, 1996, amendments were made to the Law "On Protection of Consumer Rights" and the RSFSR Code on Administrative Offenses. BRAUN sets the service life of its products to two years from the date of purchase or from the date of manufacture if the purchase date cannot be determined. BRAUN products are manufactured in accordance with high European quality standards. With careful use and adherence to operating instructions, the product you purchased from BRAUN may have a significantly longer service life than the period established in accordance with Russian law.

Cases where the warranty does not apply:

- Damage caused by force majeure; - Use for professional purposes; - Violation of operating instructions; - Incorrect installation or connection to the power supply (if required); - Making technical modifications; - Mechanical damage; - Damage caused by animals, rodents, and insects (including cases of rodents and insects inside the product); - For battery-operated devices: operation with unsuitable or exhausted batteries, any damage caused by leaking batteries (we recommend using only batteries protected against leakage); - For devices with a mains cable: damaged mains cable.

Attention! The original warranty card must be presented when contacting a service center for warranty repair. After the repair, the warranty card will be returned to you with a note of the repair completion, stamped by the service center and signed by the consumer upon receipt of the product from repair. Demand that the date of return from repair be recorded; the warranty period is extended by the time the product spends in the service center. In case of difficulties with warranty or post-warranty service, please

report this to the BRAUN service information hotline at [phone].

Ukrainian

Our products are manufactured in accordance with high quality standards, functionality, and design. We hope that you will be satisfied with your new Braun electric appliance.

Your Braun MultiGourmet is very convenient for cooking with steam: vegetables, rice, fish, meat, and poultry. Cooking with steam is more gentle and healthier. Vitamins, minerals, natural taste, and color of products are almost completely preserved in steam-cooked dishes.

The product does not contain substances harmful to health.

YkpTECT-005

Thank you for choosing Braun products. The date of manufacture is indicated directly on the product (in the marking area) and consists of three digits: the first digit is the last digit of the year of manufacture, the next two digits are the sequential number of the day in the year.

Manufacturer: "Braun GmbH", Baumhofstrasse 40, DE-97828 Marktheidenfeld, Germany. "Braun GmbH", Baumhofstrasse, D-97828 Marktheidenfeld, Germany.

Warranty obligations of BRAUN

For this product, BRAUN provides a warranty for two years from the date of purchase of the product.

During the warranty period, we will eliminate defects free of charge by repair, replacement of parts, or replacement of the entire product with a new one, if the defects are caused by manufacturing defects or poor quality of materials or components.

In case of impossibility of repair during the warranty period, the product may be replaced with a new one or an analogous one in accordance with the law on consumer rights protection.

The warranty is valid only if the purchase date is confirmed by a receipt and a written confirmation from the seller (store) on the original warranty card or on the last page of the original instruction manual, which may also serve as a warranty card.

The warranty is valid in any country where this product is supplied directly by the manufacturer or by an authorized distributor, and where import restrictions or other legal provisions do not prohibit the provision of warranty service.

The performance of warranty service does not affect the end date of the warranty period. The warranty replacement of parts ends at the moment the warranty period for the product ends.

The warranty does not cover damage caused by improper use (see also the list below), normal wear and tear, and damage that does not significantly affect the operation of the product. This warranty becomes void if repairs are carried out by unauthorized personnel or if non-original parts from Braun are used.

In case of a justified complaint under the terms of this warranty, please return the product to the dealer together with the warranty card at any of the Braun service centers.

All other claims, together with claims for damages, are excluded unless liability is established by law.

The warranty does not cover:

- Defects caused by force majeure; - Use for professional purposes; - Violation of the instruction manual; - Incorrect installation of the mains voltage (if required); - Technical modifications; - Mechanical damage; - Damage caused by batteries: operation with discharged or expired batteries, any damage caused by expired or leaking batteries; - Damage from dirt or improper cleaning.

In case of any questions regarding the performance of warranty or post-warranty service, please contact the Braun service center in Ukraine.

Country of origin: Germany

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: "502" - The product was manufactured in week 02 of 2005.

L

all

J 1000

x

The set of a such that 12 implies a^2 + 12 = -4, and the set of a such that 12 implies a^2 + 12 = 0.

(Δlo - Δl, 0, Δ = 0)

1

Since a_4 = a_1 + 3d, therefore a_4 = 1/3.

(0,1;0,-1,0,1;0,0,1)

/

.

The difference between the integral over D and the integral over D of f is f'(x).

:FS20

.

1

()

(1)

MultiGourmet FS 20

Jll Lue Mo MultiGourmet FS 10

LalcI 1000

Kaaaii 100000000000000000

a b c d e f g h i j k l m n o p q r s t
