EPM-04-96 - Measuring equipment ENTES - Free user manual and instructions

Product Type	Multifunction Power Meter
Brand	ENTES
Model	EPM-04-96
Display Type	Digital LCD
Dimensions (W x H x D)	96 x 96 x 50 mm (panel cutout 92 x 92 mm)
Weight	Approx. 250 g
Power Supply	AC/DC 80-270 V (self-powered)
Measuring Parameters	Voltage, Current, Power (active/reactive/apparent), Frequency, Power Factor, Energy (import/export)
Accuracy Class	Class 1 (active energy) per IEC 62053-21
Input Voltage (direct)	Up to 480 V L-L / 277 V L-N
Input Current	Via external CTs (e.g., 5A secondary)
Communication Port	RS-485 Modbus RTU (optional)
Operating Temperature	-10°C to +55°C
Storage Temperature	-25°C to +70°C
Relative Humidity	Up to 95% non-condensing
Installation	Panel mount, IP54 front (when properly sealed)
Safety Standards	IEC 61010-1, CAT III
Warranty	2 years (standard)
Included Accessories	Mounting brackets, seal gasket, quick guide
Maintenance	No special maintenance; wipe with dry cloth. Do not use solvents.

Frequently Asked Questions - EPM-04-96 ENTES

What does the ENTES EPM-04-96 measure?

It measures key electrical parameters including voltage (L-L and L-N), current, active/reactive/apparent power, frequency, power factor, and energy (import and export).

What is the recommended panel cutout size for installation?

The recommended cutout is 92x92 mm. The device fits standard 96x96 mm panel meters.

How do I connect current transformers (CTs)?

Connect the CTs to the secondary terminals (typically 5A). Ensure the CT orientation is correct for proper power and energy measurement. Refer to the wiring diagram in the manual.

Does the EPM-04-96 support Modbus communication?

Yes, an optional RS-485 Modbus RTU module is available for remote monitoring and data logging.

What is the power supply requirement?

The meter is self-powered from the measured voltage lines, operating from 80 to 270 V AC or DC. No external power supply is needed.

How do I set up the CT ratio and PT ratio?

Use the front panel buttons to navigate to the setup menu. Enter the primary current of your CT (e.g., 200A) and if using a PT, the primary voltage. The meter automatically scales readings.

Can the meter be used for billing purposes?

Yes, it is accuracy class 1 for active energy, suitable for sub-metering and energy allocation. Check local regulations for billing approval.

What does the display show during normal operation?

The LCD cycles through selected parameters like total active power, energy, voltage, and current. You can customize the scrolling parameters via the setup.

How do I clean the EPM-04-96?

Wipe the front panel with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Ensure the device is powered off before cleaning.

What does the error code 'Err' mean?

'Err' typically indicates a self-test failure or incorrect wiring. Check that voltage and current inputs are within range and CT connections are secure. Power cycle the device; if it persists, contact support.

USER MANUAL EPM-04-96 ENTES

Panel Cut-out

Summary of the Contact Operations *
* Valid for EPM-04C/04CS

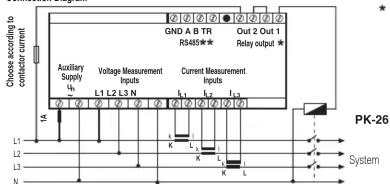

Connection Diagram

• Available only for EPM-04C/04CS ** Available only for EPM-04CS
Note: For CT-25 models:
k: When CT-25 is used, Red cable is connected to k terminal.
I: When CT-25 is used, Black cable is connected to I terminal.
A4034 / Rev.8

MULTIMETER
EPM-04 / 04C / 04CS
INDEX

Precautions for Installation and Safe Usage.
Front Panel and Usage of Buttons	1
General Information and Applications	1
Using the Buttons	1
Transformer Menu (Cr / Im) / Utr (ConnElction)
User Password Settings (Pin Menu).	2
Activating the User Password (Pin Act Menu).	2
Changing the User Password (Pin Chg Menu)	2
Output Setting Menu	3
Current Setting Menu (SP Current Menu)
High/Low Current Settings (H-Lys, H-SL, SP Cur Lo Menu).	4
Hysteresis Settings for High/Low Currents (I-H, Hys, I-Lys Hymus).	5
Delay-on Time for High/Low Currents (I-H ond., I-L ond. menu).	6
Delay-off Time for High/Low Currents (I-H ond., I-L ond. menu).	7
Start and Auto Function (Start and Auto FS Menu).	8
Instant Trip Function (CU inS trP Menu).	9
Voltage Setpoint Menu (SP Volt Menu).	10
High/Low Current Settings (H-Lys, H-SL, SP Unl, Lo Menu).	11
Hysteresis Settings for High/Low Voltages (U-H, Hys, U-L Hymus. menu).	12
Delay-on Time for High/Low Voltages (U-H ond., U-L ond. menu).	13
Delay-off Time for High/Low Voltages (U-H ond., U-L of menu).	14
Frequency Menu
High/Low Frequency Settings (Frq H, Frq Lo Menu).	15
Hysteresis Settings for High/Low Frequencies (F-H, FyS, F-L HyS)
Delay-on / Delay-off Time for High/Low Frequencies (Frq and, Frq eFd).
Phase Selectivity (Voltage Spectrum Mode) and Instant Trip (Use in SP PM Menu)
Erasing the Max., Min and Max. Demand Values (Reset Menu).
Demand Time for Demand and Max. Demand (OE T menu).
Communication Menu (RS-RBS)
Technical Features and Default Factory Settings
Connection Diagram
Output, SP Current and SP volt menus are available for EPM-04C/04CS, RS-485 menu.

PRECAUTIONS FOR INSTALLATION AND SAFE USE
In CT-25 (120A) compliant models, only CT-25 current transformer must be used.
1. must be used. Other type of CT's have a high risk to damage to device.
Failure to follow those instructions will result in death or serious injury.
- Disconnect all power before working on equipment.
- When the device is connected to the network, do not remove the front panel.
- Do not try to clean the device with solvent or the like. Only clean with dry
cloth. Verify current terminal connections when writing
- Verify correct terminal connections when wiring. - Electrical equipment should be serviced only by your component seller.
- Only for rack panel mounting.
- Fuse must be F type and limit value doesn't exceed 1A.
- No responsibility is assured by manufacturer or any of its subsidiaries
for any consequences arising out of the use of this material.

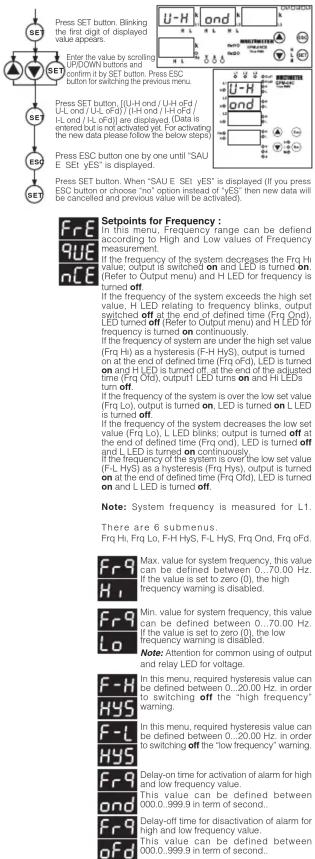

1 ...... Phase LEDs: The LEDs turn on when the voltage value, which is applied
to one of the current inputs, reach 30 V
2 ...... First display's k LED (for L1). Measurement parameter is the unit of kilo
when LED is turned on. ie: kA, kV
3 ..... Display for L1.
4 ...... Second display's k LED (for L2). Measurement parameter is the unit of kilo
when LED is turned on. ie: kA, kV
5 ..... Display for L2.
6 .... Third display's k LED (for L3). Measurement parameter is the unit of kilo
when LED is turned on. ie: kA, kV
7 ..... Display for L3.
8 ...... Displays network frequency when Hz LED is turned on.
9 ...... k LED for neutral current. Measurement parameter is displayed in unit of
kilo when this LED is turned on.
10 ..... Display for neutral current and frequency (for EPM-04C/04CS).
11 ...... First warning output LED (Out1). Turned on when the output is activated.
12 ...... Second warning output LED (Out2). Turned on when the output is activated.
13 ...... Over current / voltage warning output for L1. (EPM-04C/04CS)
14 .... Low current / voltage warning output for L1. (EPM-04C/04CS)
15 ...... Over current / voltage warning output for L2. (EPM-04C/04CS)
16 ..... Low current / voltage warning output for L2. (EPM-04C/04CS)
17 ...... Over current / voltage warning output for L3. (EPM-04C/04CS)
18 ..... Low current / voltage warning output for L3. (EPM-04C/04CS)
19 ...... Over current / frequency warning output for frequency and neutral current
(EPM-04C/04CS).
20 .... Low current / frequency warning output for frequency and neutral current
(EPM-04C/04CS).
21 ...... Monitoring the L1, L2, L3 voltages values when V LED is turned on and
displays the frequency in 4th display.
22 ...... Monitoring the L1, L2, L3 currents values when A LED is turned on and
displays the neutral current in 4th display
23. Indicates the activating delta connection when▲ is turned on. Neutral
current protection is deactivated even if is activated.
24 ...... H LED for max. instant current and voltage. Max. instant currents and
voltages are displayed when this LED is turned on.
25 ..... L LED for min. instant current and voltage. Min. instant currents and
voltages are displayed when this LED is turned on.
26 ..... M LED for max. demand. Max. demand values are displayed when this
LED is turned on.
27 ...... SET button. It is used to enter into the menu and to save the values.
If SET button is pressed for 3 sec. in the measurement mode, you can
enter into menus. This button is used for monitoring the max. (H), Min
(L) current values and max. demand values in measurement mode.
28 ...... Downward selection button
29 ...... Upward selection button.
30 ...... ESC button. Escaping from the menu. And also used for switching off the
Latch function while this function has activated.

General information

EPM-04/04C/04CS is designed for measuring Phase current, frequency, neutral

current and voltages (Phase-Phase and Phase-Neutral) in a

3-Phase system.

EPM-04C/04CS

Device has 2 warning output which named as Out1 and Out2. (NO-Normally

Open) Please refer to "Output" menu for the functions of the relays.

MULTIMETER EPM-04 / 04C / 04CS

Below measurement and application can be implemented with EPM 04/04C/04CS

LPM 04/04/0408

1) Phase currents (IL), Neutral current (IN), Phase-Phase and Phase-Neutral voltages can be measured.

2) Existence of live phases can be observed by L1-L2-L3 LEDs on the device.

3) Min. and max. values for measured currents and voltages can be monitored with only one button.

4) Max. demand values for measured current can be monitored. demand

time can be defined in "dE ti" menu.

5) A 4 digit password can be defined from pin menu in order to prevent the change of settings by unauthorized person.

change of settings by unauthorized person. 6) Current transformer ratio is programmable (1 2000)

Current transformer ratio can be programmed in term of "turn number"

between 1.....20 (for CT-25 adapted devices). Voltage transformer ratio in programmable (0.1 - 4000)

voltage transformer ratio is programmable. (0.1 .... 4000) 7) A user defined measurement range is used for monitoring the voltages

and currents; and Out1 & Out2 outputs are used for warning the user and

disconnecting the device in case of exceeding the limits of measurement

8) In case of using the device for measuring the current values of motors etc.

start delay (AUto rSt) function can be used for preventing the equipment

against the improper tripping, which is because of the demurrage current.

3) when a failure has occurred use the Latch function, in order to keep the device with saving its position (Latched), even if the failure conditions are

removed.

7th, 8th and 9th subjects are valid for EPM-04C/04CS.

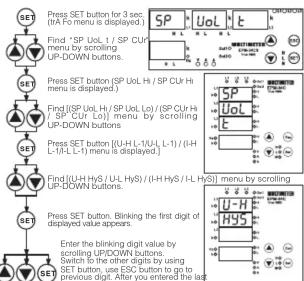

Using the Buttons:

Using the Buttons: Some buttons and button groups are used for the below special function

Some buttons and button groups are used for the below special function when device is in the measurement mode (Without selecting a menu).

Monitoring for phase currents (A LED is activated) or phase voltages

(2) Monitoring for phase currents (V LED is activated) or phase voltages (V LED is activated).

Used for changing the menu settings and parameters in programming

mode.

: Used for monitoring min. / max. currents and voltages or max. demand

values. Switching to the programming mode if it pressed for 3 sec. In

programming mode; it is used for switching to the menu and saving

changes for the parameters.

(ESC): Switching to the previous menu and escaping the programming menu without saving the changes.

If the Latch function is turned on (EPM-04C/04CS): output will be

released when current(s) of system is exceed the defined values

When the system's current turns back to normal values then output doesn't react. Output can be triggered by the "ESC" button.

doesn't react. Output can be triggered by the ESC button. Commissioning the EPM-04C/04CS and menu setting:

Energize the device after implementing the connections respected to the

user manual.

Enter the proper menu settings in order to correct measurements and applications.

applications. Current Transformer Ratio Setup:

In this menu, current transformer ratio is set between 1 - 2000

(This menu is not available in the devices which are adapter

F0 with CT-25.)

Note: If the current transformer is not used between the system and device, current transformer ratio is entered as '1'.

Example: If a current transformer which has a ratio of 30/5A i

used between the system and device;

Current transformer ratio is entered as = 30/5 = 6

SET Press SET button for 3 sec. (IrA Fo menu is displayed)

Press SET button; trA Fo Ctr menu is displayed (In CT-25 adapted devices, trA Fo trp is displayed instead.)

(BET) (Not: trA Fo Utr or Con nEC to n menu can be displayed by scrolling

Press SET button. Blinking the first digit of displayed value appear ("trA Eq Ultr" or "Con nEC big p" menu can be

Enter the blinking digit value by scrolling

UP/DOWN buttons. Switch to the other digits by using SET buttons, up ESC button

digits by using SET button, use ESC button to go to previous digit. After you entered

SET the last digit press SET button, "trA Fo Ctr" → LCF

Is displayed. (Data is entered but is not activated yet. For activating the new data

please follow the below steps).

ESC Press ESC button one by one until

"SAU E SET yES" is displayed.

Press SET button. When "SAU E ErH Fo LEr"

SET YES IS displayed (If you press ESC button or choose "no")

SET PRICE AND ACTION OF CHECKS: No option instead of "yES" then new

data will be cancelled and previous value will be activated)

previous value will be activated.

Programming the Turn Number: This menu is available for CT-25 adapted devices. User defines

turn number, which is the number of how many tour the current

to cable has rounded into the CT-25. Numbers can be selected

between 1-20. Greater the number of turn means greater the conductivity

tco sensitivity.

E. 17

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

In this menu, voltage transformer ratio is set between 0000,1 - 4000,0.

Note: If the voltage transformer is not used between the system and

voltage transformer ratio is entered as '1'.

Example: If a voltage transformer which has a ratio of 34.5KV/100V is used between the system and device, Voltage transformer ratio

is used between the system and device, voltage transformer ratio is entered as 345. (34500/100)

Selection the Connection

Selecting the Connection Type :

Connection can be selected as Star or Delta in this menu

Connection can be selected as Qal of Delta in this menu.

Phase-Neutral voltage monitoring can be implemented if the "Star"

1. Hold: Neutral Voltage Monitoring Start-Be Implemented in the "Star" connection is selected.

[Non-Text]

Phase-Phase voltage monitoring can be implemented if the "Delta"

connection is selected.

NOTE: When the "Delta" connection is selected, "neutral current

NOTE: When the "Delta" connection is selected, "neutral current monitoring" can not be implemented even if it is activated.

monitoring can not be implemented even if it is activated.

User Password Setup:

In this menu user password is defined and activated. You must define and activate a 4-digit user password for preventing device

You must define and activate a 4-digit user password for preventing device settings from the illegal usage.

There are 2 sub menu in the Pin menu

Activating the user password

This menu is used for activating the user password.

After the user password is activated for entering to the menus; if the button is pressed for 3 sec, while the instant values

the battery is processed for 6 units, while the instant value are observed, user password is required. If the user password

s entered wrong device does not latch.

Vote: Factory default value of user password is "0000"

[Non-Text]

[Non-Text]

ing the user password, in the measurement mode

T button for 3 sec. (trA Fo menu is displayed)

[Non-Text]

[Non-Text]

"Pin" menu by scrolling UP/DOWN buttons

[Non-Text]

(2) 12 (3) 12 (4) 12 (5)

ET button (Pin ACT IUA tE is displayed.)

T button. Blinking the first digit of displayed value appears

- 1.2 1.3 1.4 - 1.5 - 0.9 0.8 0.7 - 0.6 - 0.8 0.7 0.6 - 0.5 - 0.7 0.6 0.5 - 0.4 - 0.6 0.5 0.4 - 0.3 - 0.5 0.4 0.3 - 0.2 - 0.4 0.3 0.2 - 0.1 - 0.3 0.2 0.1 - 0.0 - 0.2 0.1 0.0 - 0.0 - 0.1 0.0 0.0 - 0.0 - 0.0 0.0 0.0 - 0.0 - 0.0 0.0 0.0 - 0.0 - 0.0 0.0 0.0 - 0.0 - 0.0 0.0 0.0 - 0.0 - 0.0 0.0 0.0 - 0.0 - 0.0 0.0

the blinking digit value by scrolling OWN buttons. Switch to the other

OWN Buttons: SWITCH TO THE OTHER by using SET button, use ESC button

to previous digit. After you entered at digit press SET button, "Run ACT"

displayed, "on" can be selected by

ng UP/DOWN buttons. (Data is

ed but is not activated yet. For ing the new data please follow the

ing the new data please follow the steps).

(1)

C button one by "SALLE SET vES" P in k BCF k IWR k

SAO E SET YES yed.

15

I button. When SET vES" is

d (If you press

on or choose "no" option instead of "yes" then new data called and previous value will be activated?

dened and previous value will be activated).

Changing of User Password

This menu is used for changing the user password

Note: Factory default value for user password is "0"

[Non-Text]

[Non-Text]

[Non-Text]

vating the user password. in the measurement mo

n SET button 3 sec. (trA Eo menu is displayed.)

's SET Button 5 sec. (iTA TO menu is displayed.)

the "Pin" menu

crolling P in LAR nSE

DOWN buttons.

o SET button k Multiimeter Auto E76-1435

SET button CT IUA TE is

(1) 0.00

(1) 2017年1月1日

the "Pin CHA n9E" menu by scrolling UP/DOWN button

MULTIMETER EPM-04 / 04C / 04CS

ESC button of choose "no" option instead of "vES" then new data will be cancelled and

previous value will be activated).

Serial Communication (for EPM-04CS) EPM-04S have MODBUS RTU communication protocol which is optical isolated. All measured parameters can be transfer to the computer. Transformer ratios and communication parameters can be set. Saved values can be reset.

Enter the parameter values by scrolling UP/DOWN buttons (001...247 / 2400...38400 /no, EUEn, odd).

Press SET button, "Adr ESS / bAU d / PAnty" is displayed. (Data i entered but is not activated yet. For activating the new data please follow the below steps)

Press ESC button one by one until "SAU E SEt yES" is displayed

Press SET button. When "SAU E SET yES" is displayed (If you press ESC button or choose "no" option instead of "yES" then new data wi

MODBUS RTU PROTOCOL (Available only for EPM-04CS)

The 4 times correspond to a time in which data must not be exchanged on the communication bus to allow the connected devices to recognize the end of one message and the beginning of another. This time must be at least 3.5 characters at the selected baud rate. Adress range (1-247) is address of the connected device. The data field contains data sent to the slave by master or data sent to master by slave.

CRC is a error check method by using MODBUS RTU protocol and consists of 2 bytes.

10H PRESET MULTIPLE REGISTERS Read Hold (03) function is used for reading measured values and set value. If any request of reading of a register, excepted mentioned in register table, device will send an error message.

For example to read phase1 voltage by sending a message to the device.

0 00 02 XX XX address

n dress

dress s number MSR

1 Number MSB er number LSB

SB SB

Preset Single Register (06) function is used for writing the setting values, erasing the energy counter or resetting the min., max., max. demand values. Current transformers ratio can be set 0-2000, voltage transformer ratio can be set 1-40000.

g CT as 100; 2.00.64 XX XX

E 53 64 XK AA address

n address

dress SB

SB SB

3B SB 2016.4.25, 2017.0.25, 2018.0.25, 2019.0.25, 2020.0.25, 2021.0.25, 2022.0.25, 2023.0.25, 2024.0.25, 2025.0.25, 2026.0.25, 2027.0.25, 2028.0.25, 2029.0.25, 2030.0.25, 2031.0.25, 2032.0.25, 2033.0.25, 2034.0.25, 2035.0.25, 2036.0.25, 2037.0.25, 2038.0.25, 2039.0.25, 2040.0.25, 2041.0.25, 2042.0.25, 2043.0.25, 2044.0.25, 2045.0.25, 2046.0.25, 2047.0.25, 2048.0.25, 2049.0.25, 2050.0.25, 2051.0.25, 2052.0.25, 2053.0.25, 2054.0.25, 2055.0.25, 2056.0.25, 2057.0.25, 2058.0.25, 2059.0.25, 2060.0.25, 2061.0.25, 2062.0.25, 2063.0.25, 2064.0.25, 2065.0.25, 2066.0.25, 2067.0.25, 2068.0.25, 2069.0.25, 2070.0.25, 2071.0.25, 2072.0.25, 2073.0.25, 2074.0.25, 2075.0.25, 2076.0.25, 2077.0.25, 2078.0.25, 2079.0.25, 2080.0.25, 2081.0.25, 2082.0.25, 2083.0.25, 2084.0.25, 2085.0.25, 2086.0.25, 2087.0.25, 2088.0.25, 2089.0.25, 2090.0.

Preset Multiple Register(10H) is used to set more then one register at same time. i.e. Setting CT as 100, UIt as 20.0:

01 10 80 00 00 02 04 00 C8 00 €4 XX XX

Address

address

dress er number MSB

Rated Voltage (Un) : Please look at back side of the device Operating frequency (f) : 45-65 Hz Auxiliary Supply Power Consumption : < 4 VA Measuring Input Power Consumption : < 1 VA Measurement range

Current : 0.05-5.5A\~ : 2 - 120 A\~ for CT-25 Voltage : 10-300 V AC (Phase - Neutral) : 10-500 V AC (Phase - Phase) Class : 1±1% digit ([10%-100%) x full scale] Current Transformer Ratio : 1 ... 2000 Turn number for CT-25 adapted models : 1 ... 20 Voltage Transformer Ratio : 1 ... 4000 Max. Ctr x Vtr : 40.000

Communications (for EPM-04CS) : MODBUS RTU (RS 485)

Optic isolated, programmable Baud Rate (for EPM-04CS) : 2400-4800-9600-19200-38400 bps Address (for EPM-04CS) : 1-247

Parity (for EPM-04CS) : No. Odd, Even, 8 Data Bits, 2 Stop Bits Output Relays(for EPM-04C/04CS) : 2 NO, 250 V AC, 5A, 1250 VA

Ambient Temperature : -5°C; +50°C Display : Red LED display

Display : Red LED Display Dimensions : PR-19, PK-26

Equipment Protection Class : Double Insulation - Class II (☐)
Ray Protection Class : IR 40

Box Protection Class : IP 40 Terminal Protection Class : IP 00

Box Material : Nonflammable

Mounting : Panel Mounted (PR-19) Rail Mounted (PK-26)

Wire Cross section (for terminals)

Weight : 0.56 kg (PH-19) 0.53 kg (PK-26)

Mounting Category : Class III

Panel Size : 91x91 mm (PR-19) 46x107 mm (PK 26)

Default Se

.../5A type

Ctr - 0001 I-H L-1 - 5.000 I-L L-2 - 0.000 Out relay - U-I Utr - 0001 I-H L-2 - 5.000 I-L L-3 - 0.000 Latch - oFF trn - 01 I-H L-3 - 5.000 I-L L-n - 0.000 Out Inverse - oFF ConnEC - SIAr I-H L-n - 5.000 I-L HyS - 0.200 I-H HyS- 0.100 I-L ond - 010.0 bAUD - 9600 Pin Act - oF I-H ond - 010.0 I-L ofD - 010.0 AddrES - 001 Pin - 0000 I-H ofD - 010.0 Str Art dEL - 0.000 PArty - no I-L L-1 - 0.000 Auto reset - oFF dt - 15 Cur ins trip - oFF

2017年1月

U-H L-1 - 250 U-L L-3 - 180 Frq Hi - 63 U-H L-2 - 250 U-L HyS - 010.0 F-H HyS - 01.00 U-H L-3 - 250 U-L ond - 003.0 Frq Lo - 47 U-H HyS - 10 U-L oFd - 003.0 F-L HyS - 01.00 U-H ond - 003.0 VoL PHS SEq - oFF Frq ond - 003.0 U-H OFd - 003.0 VoL inS triP - oFF Frq oFd - 003.0 U-L L-1 - 180

U-LL-2 - 18

CT-25 type

I-H L-1 - 100.0 I-L L-2 - 0.000 I-H L-2 - 100.0 I-L L-3 - 0.000 I-H L-3 - 100.0 I-L L-n - 0.000 I-H L-n - 100.0 I-L HyS - 2.000 I-H HyS - 2.000 I-L ond - 010.0 I-H ond - 010.0 I-L oFd - 010.0 I-H oFd - 010.0 Str Art dEL - 0.000 I-L L-1 - 0.000 Auto reset - off Cur ins trp - off

7

-

-

-

-

-

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

MULTIMETER

EPM-04 / 04C / 04CS

Setpoints for Frequency :

In this menu, Frequency range can be defiend according to High and Low values of Frequency measurement.

If the frequency of the system decreases the Frq Hi value; output is switched on and LED is turned on. (Refer to Output menu) and H LED for frequency is turned off.

If the frequency of the system exceeds the high set value, H LED relating to frequency blinks, output switched off at the end of defined time (Frq Ond), LED turned off (Refer to Output menu) and H LED for frequency is turned on continuously.

If the frequency of system are under the high set value (Frq Hi) as a hysteresis (F-H HyS), output is turned on at the end of defined time (Frq oFd), LED is turned on and H LED is turned off, at the end of the adjusted time (Frq Ofd), output1 LED turns on and Hi LEDs

If the frequency of the system is over the low set value (Frq Lo), output is turned on, LED is turned on L LED is turned off.

If the frequency of the system decreases the low set value (Frq Lo), L LED blinks; output is turned off at the end of defined time (Frq ond). LED is turned off and L LED is turned on continuously.

If the frequency of the system is over the low set value (F-L HyS) as a hysteresis (Frq Hys), output is turned on at the end of defined time (Frq Ofd), LED is turned on and L LED is turned off.

Note: System frequency is measured for L1.

There are 6 submenus.

Frq Hi, Frq Lo, F-H HyS, F-L HyS, Frq Ond, Frq oFd.

Max. value for system frequency, this value can be defined between 0...70.00 Hz. If the value is set to zero (0), the high frequency warning is disabled.

Min. value for system frequency, this value can be defined between 0...70.00 Hz. If the value is set to zero (0), the low frequency warning is disabled.

Note: Attention for common using of output and relay LED for voltage.

In this menu, required hysteresis value can be defined between 0...20.00 Hz. in order to switching off the "high frequency" warning.

In this menu, required hysteresis value can be defined between 0...20.00 Hz. in order to switching off the "low frequency" warning.

Delay-on time for activation of alarm for high and low frequency value. This value can be defined between 000.0, 999.9 in term of second.

Delay-off time for disactivation of alarm for high and low frequency value. This value can be defined between 000.0..999.9 in term of second..

Phase sequence can be turned on/off in this menu. Inversed phase voltage which is applied to the measurement inputs (L1-L2-L3), can be monitored. Default setting is off. In order to let the device to warn user in case of inversed phase situation please change the off position as on in "UoL PHS SEq" menu. Phase sequence function is disabled if the selection is selected off.

L1, L2 and L3 LEDs blink and output output released immediately when "UoL PHS SEq" is turned on and phase sequence is inverted with any reason. Note: Output 2 is used if U-I is selected and Output1 is used if H-L is selected in Output menu for the Phase Sequence monitoring.

Instant Tripping Function. At position ON, if any VL-L / VL-N values exceeds 1.5 times of high voltages (UoL Hi L-1/L-2/L-3) values; the "voltage output" switches OFF instantly, output LED turned OFF and H LED, for related voltage, is turned ON. (Please refer to "Output".)

If any phase voltage decrease 0.5 times low voltages (UoL L-1/L-2/L-3); the "voltage output" switches OFF instantly, output LED turned OFF and Lo LED, for related voltage, is turned ON.

(Refer to Page-4 for "CUr inS trP", "AUt or St" and "UoL inS trP")

Reset function.

In this menu, values of min., max., max. demand are erased. It saves the instantaneously measured min. and max. values of the device into its memory. Please kindly look at to the section of FUNCTIONS OF BUTTONS for min. and max. values.

Note: Measured electrical parameters which are saved to the memory are not affected from the electric interruptions. In the rES Et HL or rES Et dE menu; when you choose yES and quit from all menus, if you confirm the changes, min., max. and max. demand values of all parameters are erased at the same time.

Press SET button for 3 sec. (trA Fo menu is displayed.)

Find rES Et menu by

scrolling UP-DOWN

buttons.

menu is displayed.)

handa is displayed.)

dE (rES Ft HI, monu by

- DOWN buttons.

[Non-Text]

vutton ("rES E) dE no

a UP DOWN buttons, other

\$ OF -DOWN buttons, other can be selected. If you want

e no.

[Non-Text]

button, rES Et dE / rES Et HL

t activated yet. Activat

below steps)

1.1.2

button one by one until "S

,

button. When "SAU E SET

or choose "no" option insted and previous value will be

Time.

and time can be defined

and time can be defined

[Non-Text]

button for 3 sec.

u is displayed.)

[Non-Text]

1. If UP DOWN

[Non-Text]

button. Blinking the first dig

alue appears.

A. . A. . E. . D. .

blinking digit value by scro ber digits by using SET by

Her digits by using SET be digit. After you entered the

laved. (Data is entered but is

data please follow the below

,

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

MULTIMETER

EPM-04 / 04C / 04CS

C10
sen
•
ct
C
JCI
OCL
m = 311
广力云智慧零售收银系统
[Non-Text]
QW
BHF
HOC
m = 311
口
C
c5t
. 26
广力云智慧零售收银系统
Dip
Please
principl
. . .
(on)
(off)
1
. .
5A
4A
34
2A
LA
1A
IL1
1
单位：元
VIS-EN
itch-off 5t
itch-on
itch stl
1
Sta
itch-on
itch-off
itch-cn
5.6.2
10
1
CU-
LUP
C
105
m2
L-0
ENT
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

Programming "CUr inS trP", "AUt o rSt" and "UoL inS trP"

Press SET button for 3 se

(trA Fo menu is displayed)

(No text)

[Non-Text]

Find "SP CUr rmt / SP Uol

menu by scrolling UP-D

Press SET button (SP CUr Hi / SP Uol Hi

menu is displayed.)

Trend by scrolling of -DOWN buttons.

[Non-Text]

Press SET button [(CUr inS trP on /

AUt o rSt on) / UoL inS trP off1 is displayed.

1.2.1.2.17.2.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

Select "on" in order to activating the "instant trip function" (A)lt o rSt

select "off" in order to disactivating the "instant trip function" (not a flat),

SELECT ON IN ORDER TO DISilitating the Instant trip function, by scrolling UP/DOWN buttons.

Press SET button. (CH) is set to (Alt) or (CT) (Alt) and set to (C) is displayed

Press SET button, [(C0F INS trP) A0L 81St)] OOL INS trP] is displayed. (Selection is entered but is not activated yet. For activating the new

(detection is offered but is not activated yet. For activating the flow selection, please follow the below steps).

Press ESC button one by one until "SAU E SET vES" is displayed.

Press SET button. When "SALLE, SET, vES" is displayed (If you press

FSS SET button. When SAD E SET YES is displayed (if you press ESC button or choose "no" option instead of "YES" then now data will

ESC button or choose "No option instead of YES" then new data will be cancelled and previous value will be activated)

Programming "SP UoL t"

Using purposes of submenus of "SP UoL t" explained below with

In this menu, high set points for voltage values are

programmed. Hi values for Phase-Neutral / Phase-

Phase (according to Star / Delta selection) can be

DOC

If all the voltage values (Phase-Neutral / Phase-Phase) are under the live value selected relay is switched on

are under the HI value; released relay is switched on,

its LED turned on (please refer "Output") and released

If all the voltage values (Phase-Neutral / Phase-Phase)

are over the Hi value. H I ED blinks and released output

is switched off at the end of "delay on time" (U-H ond).

its LED turned off (please refer "Output") and released

HLEDs are turned on

If all voltage (Phase-Neutral / Phase-Phase) are below

the high set value (Hi) as a hysteresis voltage (U-H HvS).

the high cost rate (1.5) as any discrete voltage (2 111) a), released output is switched on at the end of the "delay

off time" (U-H oFd). Its LED turned on (please refer

"Output") and HLED is turned off

Note: High Voltage values are programmed for

Note: High voltage values are programmed for

(Phase-Neutral / Phase-Phase) separately but "Hi

HyS ^- (hysteresis) and "Hi ond" (delay on time) and

"Hi ofFd" (delay off time) values are common; these

parameters have same values for Phase-Neutral /

Phase-Phase.

When Connection type (Star/Delta) is selected (refer

to Connection menu), device will change the

U-H L-1, U-H L-2 and U-H L-3 values automatically

Figure 1. If the connection type is selected as Star

Example : If the connection type is selected as Star

(with neutral); U-H HyS=10V U-H L-1=250V,

U-H L-2=255V, U-H L-3=260V

and then this connection type is selected as Delta

(without neutral), device will change the values after

New values:

U-H L-1 (L 1-L 2 Phase to phase voltage) - 433 V

U H L 2 (L 2 L 3 Phase to phase voltage) - 441 V

U-H L-2 (L2-L3 Phase to phase voltage) = 441 V
U-H L-3 (L3-L1 Phase to phase voltage) = 450 V

U-IT L-S (L3-L1 Phase to phase voltage) = 450 V (YYYY 0 - 10 Y)

There are 6 submenu

U-H L-1, U-H L-2, U-H L-3, U-H HyS,

U-H and. U-H of Ed

In this menu, low set points for voltage values are programmed. Lo values for Phase-Neutral / Phase-Phase (according to Star / Delta selection) can be entered one by one.

If all the voltage values (Phase-Neutral / Phase-Phase) are over the Lo value; released output is switched on, its LED turned on (please refer "Output") and released I LEDs are turned off.

If any of the voltage values (Phase-Neutral / Phase-Phase) decrease the Lo value, L LED blinks and related output is switched off at the end of “delay on time” (U-L ond), its LED turned off (please refer “Output”) and related L LED is turned on continuously. If all voltage (Phase-Neutral / Phase-Phase) values increase the low set value (Lo) as a hysteresis voltage (U-L HyS), related relay is switched on at the end of the “delay off time” (U-L ofd), its LED turned on (please refer “Output”) and L LED is turned off.

Note: Low Voltage values are programmed for (Phase-Neutral / Phase-Phase) separately but "U-L HyS" (hysteresis), "U-L ond" (delay on time) and "U-L ofD" (delay off time) values are common; these parameters have same values for Phase-Neutral / Phase-Phase. When Connection type (Star/Delta) is selected (refer to Connection menu), device will change the U-L L-1, U-L L-2 and U-L L-3 values automatically according to connection.

Example : If the connetion type is selected as Star (with neutral): U-L-Hvs=10V

U-L L-1=180V, U-L L-2=175V, U-L L-3=170V and then this connection type is selected as Delta (without neutral), device will change the values after calculated them according to Phase-Phase values. New values;

U-L L-1 (L1-L2 Phase to phase voltage) = 311 V
U-L L-2 (L2-L3 Phase to phase voltage) = 303 V
U-L L-3 (L3-L1 Phase to phase voltage) = 294 V
U-L-HyS = 10 V.

There are 6 submenus.

U-I I-1, U-I I-2, U-I I-3, U-I HvS.

U-I and U-I oEd

High value for L1, when the Star is selected; high value for L1-L2, when the Delta selected can be defined in this menu.

0....300 for Star connection and 0....500 for Delta connection can be defined.

If the value is set to zero (0), the high voltage warning is disabled. Refer "SP Uol Hi" for details.

Note: L2 and L3 phases can be programmed similarly.

Low value for L1, when the Star is selected; low value for L1-L2, when the Delta selected can be defined in this menu.

0....300 for Star connection and 0....500 for Delta connection can be defined

If the value is set to zero (0), the high voltage warning is disabled. Refer "SP Uol Lo" for details.

Note: L2 and L3 phases can be programmed similarly.

(Refer to Page-4 for SP CUr Hi, SP CUr Lo, SP UoL Hi ve SP UoL Lo)

In this menu, required hysteresis voltage for high voltage warning is programmed. (same for Phase-Neutral/Phase-Phase.) 0....200V for Star connection and 0....200V for Delta connection can be defined.

Refer "SP Uol. Hi" for details.

In this menu, required hysteresis voltage for low voltage warning is programmed. (same for Phase-Neutral/Phase-Phase.) 0....200V for Star connection and 0....200V for Delta connection can be defined.

Refer "SP UoL Lo" for details

Programming the "U-H HyS", "U-L HyS", "I-H HyS", "I-L HyS"

Page 257 Button for 2:00

Press SET Button for 3 sec (trA. Eo menu is displayed

(1) 10 months is displayed.

Find *SP UoL 1 / SP CU

menu by scrolling

UP-DOWN buttons.

[Non-Text]

Press SET Button (SP UoL menu is displayed.)

menu is displayed.)

Find [(SP U6L HI) SP U6L I / SP CUI, Lo)] menu

UP DOWN buttons

OF-DOWN BUTTONS

Press SET button [I] - H1 - 1

L-1/1-L L-1) menu is display

[Non-Text]

Find [(U-H HvS / U-L HvS)

UP-DOWN Buttons.

[Non-Text]

Press SET button. Blinking

displayed value appears

Enter the blinking digit value by

scrolling UP/DOWN buttons

Switch to the other digits by using

ET SET button, use ESC button to go to

previous digit. After yo

digit press SET button, [0] H HvS (11) HvS

[3-111]S7 O-E HyS7 (MTHyS7) E-L HyS] is displayed. (Data is ordered but is not activated yet. For activating the new data place

entered but is not activated yet. For activating the new data please follow the below steps).

(Refer "SP UoL Hi" for details.)

(Refer "SP UoL Lo" for details.)

"Delay off" time for activating the output for

high voltage warning. It is common for all

voltages (same for Phase-Neutral/Phase-

of 8 The value can be programmed between

000,0 and 999,9 in terms of se

(Refer "SP DoL Hi" for details.)

"Delay off" time for activating the output for

U-L low voltage warning. It is common for all

voltages (same for Phase-Neutral/Phase-

1. 6 The value can be programmed between RPP-C and PPP-G in terms of seconds

000,0 and 999,9 in terms of set

(Refer SP Out

Programming the "U-H ond", "U-H oFd", "U-L ond", "U-L oFd", "L-H and", "L-H oFd", "L-L and", "L-L oFd".

I-H ond, I-H ofD, I-L ond, I-L ofD.

(SET) Press SET button for 3 sec.

(trA Fo menu is displayed.)

Find (1) and (1) eFd (1) and (1) eFd (1) and (1) eFd (1).

Pind [(U-H ond) U-H oFd / U-L ond / U-L oFd)] (I-H ond and /I-L oFd) menu by scrolling UP-DOWN buttons.

Press SET BUTTON (SP 00L menu is displayed)

Final [(CD Unit] Ux (CD Unit)

( SP COR Lo)] menu by sc UR DOWN buttons

Press SET button [(U-H]

(I-H L-1 / I-L L-1) menu is displayed.

1

Find [(U-H ond / U-H oFd / U-L ond / U-L oFd) /(I-H ond

( ond /1-L oFd)] menu by scrolling UP-DOWN buttons.
