Product Type	Smartphone
Brand	TCL
Model	50 NXTPAPER 5G
Display	6.5-inch NXTPAPER, FHD+ resolution
Dimensions	165 x 76 x 9 mm
Weight	Approximately 190 g
Battery	5000 mAh, USB-C fast charging
Processor	MediaTek Dimensity 700
RAM	4 GB
Internal Storage	128 GB, expandable via microSD
Rear Camera	Triple sensor: 50 MP + 2 MP + 2 MP
Front Camera	8 MP
Network	5G, 4G, 3G, 2G
Connectivity	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.1, NFC
Sensors	Side fingerprint sensor, accelerometer, gyroscope, proximity, ambient light
Operating System	Android 12, upgradeable to Android 13
Care and Cleaning	Clean with a soft, dry cloth; avoid abrasive products
Security	Fingerprint reader, facial recognition
Spare Parts and Repairability	Battery and screen replaceable at authorized centers

Frequently Asked Questions - 50 NXTPAPER 5G TCL

How to insert the SIM card and microSD card?

Use the provided tool to open the tray located on the left side of the device. Insert the nano-SIM card and optionally a microSD card (up to 512 GB) into the designated slots.

How to activate NXTPAPER mode?

NXTPAPER mode is set in the display settings. You can choose a paper-like rendering to reduce eye strain. Activate it via Settings > Display > NXTPAPER.

Does the battery last a full day?

Yes, the 5000 mAh battery provides a full day of moderate use. The 18W fast charging can recover 50% in about 30 minutes.

How to take a screenshot?

Simultaneously press the power button and the volume down button for one second. The screenshot will be saved in the gallery.

Is the smartphone waterproof?

The TCL 50 NXTPAPER 5G is not IP certified. It is resistant to light splashes but should not be submerged.

How to transfer data from my old phone?

Use the pre-installed Clone Phone app or a USB-OTG cable to connect both devices. Follow the on-screen instructions.

What is the camera quality?

The 50 MP main sensor takes good daylight photos. The macro and depth sensors are useful for close-ups and portraits. The 8 MP front camera is sufficient for selfies.

How to reset the device to factory settings?

Go to Settings > System > Reset options > Erase all data (factory reset). Back up your data first.

Does the phone support wireless charging?

No, the TCL 50 NXTPAPER 5G does not support wireless charging. Use the provided USB-C charger.

How to activate dark mode?

Go to Settings > Display > Dark mode to switch between light and dark themes. You can also schedule it automatically.

USER MANUAL 50 NXTPAPER 5G TCL

TCL 50 NXTPAPER 5G Full-color Electronic Paper Display

Quick Start Guide T702D

Table of contents

English 1

Shqip 6

Français ....12

Hrvatski....18

Mакедонски....23

Română....29

Srpski 35

Türkçe 40

قَيْبِرِعُلَاب 53

הַרְׁעָה 58

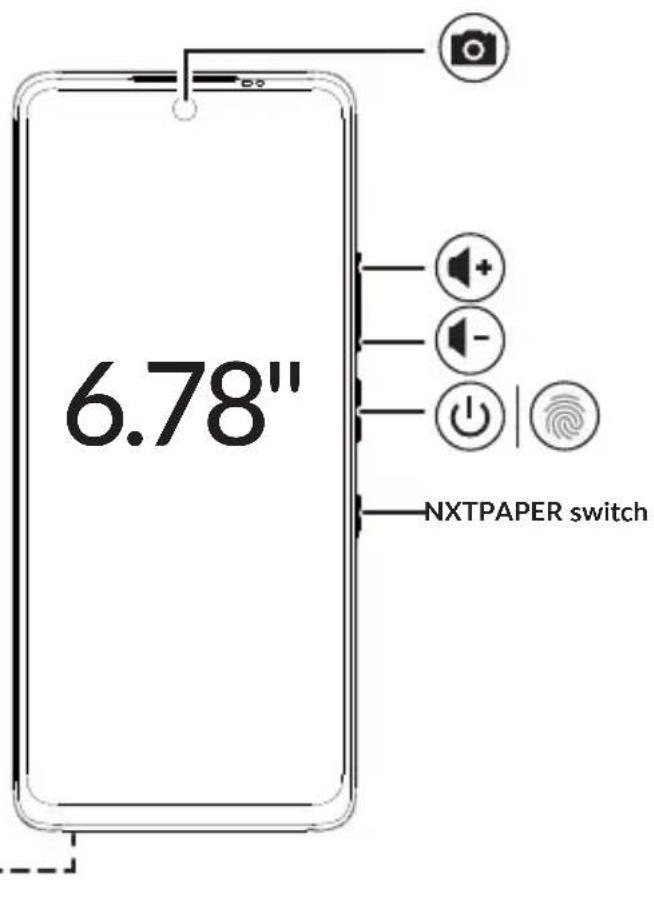

NXTPAPER mode

NXTPAPER mode offers superior image quality with reduced glare and reflections. Slide the NXTPAPER switch up or down to turn NXTPAPER mode on or off. You can select your preferred mode when it's on.

• Ink Paper Mode: Paper-like display effect with black ink on white paper, which brings an immersive e-ink like reading experience.
• Color Paper Mode: Low saturation and soft color display effect, bringing a paper-like experience to improve all-round eye comfort.
• Max Ink Mode: Close currently open apps in order to enjoy an immersive, low-power reading experience within your dedicated library.

Safety and use

Please read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein.

• Do not use your device when the vehicle is not safely parked. Using a handheld device while driving is illegal in many countries.
• Comply with restrictions on use specific to certain places (hospitals, planes, gas stations, schools, etc.).
• Switch the device off before boarding an aircraft.
• Switch the device off when you are in health care facilities, except in designated areas.
• Switch the device off when you are near gas or flammable liquids.

Strictly obey all signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in any potentially explosive atmosphere when operate your device.

- Turn off your mobile device or wireless device when in a blasting area or in areas posted with notifications requesting "two-way radios" or "electronic devices" are turned off to avoid interfering with blasting operations.

Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device. When the device is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid, or an insulin pump, etc.

• Do not let children use the device and/or play with the device and accessories without supervision.
• To reduce exposure to radio waves, it is recommended:

- To use the device under good signal reception conditions as indicated on its screen (four or five bars);

• To use a hands-free kit;
• To make reasonable use of the device, particularly for children and adolescents, for example by avoiding night calls and limiting the frequency and duration of calls;
• Keep the device away from the belly of pregnant women or the lower abdomen of adolescents.

- Do not allow your device to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer's recommended operating temperature range is 0°C (32°F) to 40°C (104°F). At over 40°C (104°F) the legibility of the device's display may be impaired, though this is temporary and not serious.

• Use only batteries, battery chargers, and accessories which are compatible with your device model.
• Do not use a damaged device, such as a device with a cracked display or badly dented back cover, as it may cause injury or harm.
• Do not keep device connected to charger with battery fully charged for a long period of time as it can cause overheating and shorten battery life.
• Do not sleep with the device on your person or in your bed. Do not place the device under a blanket, pillow, or under your body, specially when connected to the charger, as this may cause the device to overheat.
• The NXTPAPER technology display avoids reflections and glare in the sunlight exposing, delivering a real paper and matte experience. This is done by diffusing reflection of external light. However under strong direct sunlight, this diffusion is greater and the viewing angle of the device is reduced. If this happens, you may need to adjust your viewing angle in order to be able to see the screen more clearly.

- The NXTPAPER display delivers a tactile feel, protecting against smudges or fingerprints. It produces a paper-like matte effect image and provides resistance. This screen surface is different to standard smartphones screens, please note that it is not possible to add any tempered glass as protection on top. The screen surface is more prone to scratches than a typical smartphone screen, please take care to avoid contact with other objects which could harm the display.

Performance Tested

Paper Display

This product has passed the SGS Paper plus (Paper +) Certification, which evaluates Objective Optical Performance and Human Factor such as Visual Fatigue Index to comprehensively obtain the Paper+ Index. The higher the Paper+ Index, the higher the similarity between the display characteristics of the product and paper reading, and the better the reading comfort.

This device has been awarded TÜV Rheinland Reflection Free certification. It ensures consistent clarity, comfort, and an immersive experience.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high

Licences

Bluetooth SIG, Inc. licensed and certificated TCL T702D Bluetooth

Declaration ID D065040

Wi-Fi Alliance certified

Waste disposal and recycling

Device, accessory and battery must be disposed of in accordance with locally applicable environmental regulations.

This symbol on your device, the battery, and the accessories means that these products must be taken to:

• Municipal waste disposal centres with specific bins.
• Collection bins at points of sale.

They will then be recycled, preventing substances being disposed of in the environment.

In European Union countries: These collection points are accessible free of charge. All products with this sign must be brought to these collection points.

In non-European Union jurisdictions: Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled.

Battery

In accordance with air regulations, the battery of your product is not fully charged. Please charge it first.

• Do not attempt to open the battery (due to the risk of toxic fumes and burns).
• For a device with a non-removable battery, do not attempt to eject or replace the battery.
• Do not puncture, disassemble, or cause a short circuit in a battery.
• For a unibody device, do not attempt to open or puncture the back cover.
• Do not burn or dispose of a used battery or device in household rubbish or store it at temperatures above 60°C (140°F), this can result in an explosion or the leakage of flammable liquid or gas. Similarly, subjecting the battery to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Only use the battery for the purpose for which it was designed and recommended. Never use damaged batteries.

EN

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Charger

- For environmental reasons this package may not include a charger, depending on the device you purchased. This device can be powered with most USB power adapters and a cable with USB Type-C plug.

To correctly charge your device you can use any charger as long as it meets all applicable standards for safety of information technology equipment and office equipment with minimum requirements as above listed.

Please do not use chargers which are not safe or do not meet the above specifications.

- Mains powered chargers will operate within the temperature range of: 0°C (32°F) to 40°C (104°F).

The chargers designed for your device meet the standard for safety of information technology equipment and office equipment use. They are also compliant with the ecodesign directive 2009/125/EC. Due to different applicable electrical specifications, a charger you purchased in one jurisdiction may not work in another jurisdiction. They should be used for the purpose of charging only.

Model: QC16

Input Voltage: 100~240V

Input AC Frequency: 50/60Hz

Output Voltage: 5.0V/9.0V/12.0V/15.0V/20.0V/3.3-11V

Output Current: 3.0A/3.0A/2.5A/2.0A/1.5A/3A

Output Power: 15.0W/27.0W/30.0W/30W/30W/33W

Average active efficiency: 87.21% (33W)

No-load power consumption: 0.1W

Fast Charging supported protocols: PD3.0 PPS

To enjoy the experience of the Fast Charging technology (33W) supported by this device, please use a charger compatible with PD 3.0 PPS protocol.

If you use any other charger, not compatible with PD 3.0 PPS protocol, it will imply that the smartphone will not use the fast charging technology and the charging duration may take longer.

Protective Case & T-pen

*Available if sold with the device. It depends on the device you purchased.

Radio Equipment Directive Declaration of Conformity

Hereby, TCL Communication Ltd. declares that the radio equipment of type TCL T702D is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.tcl.com/global/en/EC_DOC

Hereby, TCL Communication Ltd. declares that the radio equipment model number T702D is in compliance with The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023.

(1) The button on the top of this pen is a physical button that helps you connect it to, or extract it from, the protective case.

The full text of the PSTI Statement of Compliance is available at: https://www.tcl.com/global/en/EC_DOC

The support period of the device can be found at https://www.tcl.com/uk/en/support mobile/software-security

Information on how to report security issues of the device can be found at https://src.tcl.com/en/

SAR and radio waves

This device meets international guidelines for exposure to radio waves.

The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg for Head SAR and Body-worn SAR, and 4 W/kg for Limb SAR.

When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 5 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a device call.

Maximum SAR for this model and conditions under which it was recorded
Head SAR GSM 1800MHz+	Wi-Fi 2.4GHz 1.69 W/kg
Body-worn SAR (5 mm) CA	_1A_7A+Wi-Fi 5GHz 1.62 W/kg
Limb SAR (0 mm) DC_38A	n78A+Wi-Fi 5GHz 3.52 W/kg

Frequency bands and maximum radio-frequency power

This radio equipment operates with the following frequency bands and maximum radio-frequency power:

GSM 900MHz: 32.50 dBm

GSM 1800MHz: 30.00 dBm

UMTS B1 (2100MHz): 24.50 dBm

UMTS B8 (900MHz): 24.50 dBm

LTE FDD B1/3 (2100/1800MHz): 24.00 dBm

LTE FDD B7 (2600MHz): 23.00 dBm

LTE FDD B8 (900MHz): 24.60 dBm

LTE FDD B20/28 (800/700MHz): 23.50 dBm

LTE TDD B38/40 (2600/2300MHz): 24.00 dBm

LTE TDD B42 (3500MHz): 23.00 dBm

5G NR FDD n1/n3/n8/n28 (2100/1800/900/700MHz): 24.0 dBm

5G NR FDD n7 (2600MHz): 22.0 dBm

5G NR FDD n20 (800MHz): 23.0 dBm

5G NR TDD n38 (2600MHz): 21.0 dBm

5G NR TDD n40/n77/n78 (2300/3700/3500MHz): 22.50 dBm

5G NR TDD n41 (2500MHz): 23.5 dBm

Bluetooth 2.4GHz band: 7.57 dBm

Bluetooth LE 2.4GHz band: 0.81 dBm

802.11 b/g/n 2.4GHz band: 15.36 dBm

802.11 a/n/ac 5150 - 5350 MHz: 12.32 dBm

802.11 a/n/ac 5470 - 5725 MHz: 12.92 dBm

802.11 a/n/ac 5725 - 5875 MHz: 12.17 dBm

NFC 13.56 MHz: -21.43 dBuA/m at 10m

Restrictions:

This equipment may be operated in all European countries. The 5150-5250 MHz of Wi-Fi 5GHz can be used indoors and outdoors only when the equipment is not attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. The 5250-5350 MHz of Wi-Fi 5GHz can be used inside buildings only. The 5470-5725 MHz band of Wi-Fi 5GHz can't be used in road vehicles, trains, aircraft or UAS (Unmanned Aircraft System) scenarios for the following countries:

EN

_	BE BG CZ DK DE EE IE EL ES FR HR
	IT	CY	LV	LT	LU	HU	MT	NL	AT	PL	PT
	RO S	SK FI SE NO IS LI CH TR UK (NI)
_	Third countries
	UK

This radio equipment is also subject to certain restrictions when it is placed on the market in United Kingdom (UK):

In accordance with the relevant statutory requirements in the UK, the 5150 to 5350 MHz frequency range is restricted to indoor use in the United Kingdom.

General information

• Internet address: tcl.com
• Service Hotline and Repair Center: Go to our website https://www.tcl.com/global/en/mobile-support/hotline&service-center.html, or open Support Center application on your device to find your local hotline number and authorized repair center for your country.
• Full User Manual: Please go to tcl.com (tcl.com - Support - Mobile - SELECT A MODEL) to download the full user manual of your device.

On our website, you will find our FAQ (Frequently Asked Questions) section. You can also contact us by email to ask any questions you may have.

• Manufacturer: TCL Communication Ltd. - Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong - Electronic labelling path: Touch Settings > Regulatory & safety or press *#07#, to find more information about labelling (1).

Software update

The connection costs associated with finding, downloading and installing software updates for your mobile device's operating system will vary depending on the offer you have subscribed to from your telecommunications operator. Updates will be downloaded automatically but their installation will require your approval.

Refusing or forgetting to install an update can affect your device's performance and, in the event of a security update, expose your device to security vulnerabilities. For more information about software update, please go to tcl.com

Privacy statement of device usage

Any personal data you shared with TCL Communication Ltd. will be handled in accordance with our Privacy Notice. You can check our Privacy Notice by visiting our website: https://www.tcl.com/global/en/communication-privacy-policy

Disclaimer

There may be certain differences between the user manual description and the device's operation, depending on the software release of your device or specific operator services. TCL Communication Ltd. shall not be held legally responsible for such differences, if any, nor for their potential consequences, which responsibility shall be borne by the operator exclusively.

Limited warranty

As the consumer You may have legal (statutory) rights that are in addition to those set out in this Limited Warranty offered by Manufacturer voluntarily, such as the consumer laws of the country in which You live ("Consumer Rights"). This Limited Warranty sets out certain situations when the Manufacturer will, or will not, provide a remedy for the TCL device. This Limited Warranty does not limit or exclude any of your Consumer Rights relating to the TCL device.

For more information about limited warranty, please go to https://www.tcl.com/global/en/warranty

In case of any defect of your device which prevents you from normal use thereof, you must immediately inform your vendor and present your device with your proof of purchase.

NXTPAPER Mode

5G NR FDD n20 (800 MHz): 23.0 dBm

5G NR TDD n38 (2600 MHz): 21.0 dBm

5G NR TDD n40/n77/n78 (2300/3700/3500 MHz): 22.50 dBm

5G NR TDD n41 (2500 MHz): 23.5 dBm

Bluetooth 2.4 GHz band: 7.57 dBm

Bluetooth LE 2.4 GHz band: 0.81 dBm

802.11 b/g/n 2.4 GHz band: 15.36 dBm

5G NR FDD n20 (800 MHz): 23.0 dBm

5G NR TDD n38 (2600 MHz): 21.0 dBm

5G NR TDD n40/n77/n78 (2300/3700/3500 MHz): 22.50 dBm

5G NR TDD n41 (2500 MHz): 23.5 dBm

Bluetooth 2.4 GHz band: 7.57 dBm

Bluetooth LE 2.4 GHz band: 0.81 dBm

802.11 b/g/n 2.4 GHz band: 15.36 dBm

802.11 a/n/ac 5150 - 5350 MHz: 12.32 dBm

802.11 a/n/ac 5470 - 5725 MHz: 12.92 dBm

802.11 a/n/ac 5725 - 5875 MHz: 12.17 dBm

5G NR FDD n20 (800MHz): 23.0 dBm

5G NR TDD n38 (2600MHz): 21.0 dBm

5G NR TDD n40/n77/n78 (2300/3700/3500MHz): 22.50 dBm

5G NR TDD n41 (2500MHz): 23.5 dBm

Bluetooth 2.4GHz band: 7.57 dBm

Bluetooth LE 2.4GHz band: 0.81 dBm

802.11 b/g/n 2.4GHz band: 15.36 dBm

802.11 a/n/ac 5150 - 5350 MHz: 12.32 dBm

802.11 a/n/ac 5470 - 5725 MHz: 12.92 dBm

802.11 a/n/ac 5725 - 5875 MHz: 12.17 dBm

NFC 13.56 MHz: -21.43 dBuA/m at 10m

Restrictions:

This equipment can be operated in all European countries. 5150-5250 MHz for Wi-Fi 5GHz can be used indoors and outdoors only when the equipment is not attached to a fixed installation or to the external body of road vehicles, fixed infrastructure, or fixed outdoor antenna. 5250-5350 MHz for Wi-Fi 5GHz can only be used indoors. The 5470-5725 MHz band for Wi-Fi 5GHz cannot be used in road vehicles, trains, aircraft, or UAS (Unmanned Aircraft System) scenarios for the following countries:

	BE BG CZ D	K DE EE IE EL	ES FR	HR
	IT	CY	LV	LT	LU	HU	MT	NL	AT	PL	PT
	RO SI	SK FI	SE NO	IS LI CH	H TR UK (NI)
	Treće zemlje
	UK

General information

• Internet address: tcl.com - Emergency service and repair center: Open our website https://www.tcl.com/global/en/mobile-support/hotline&service-center.html, or open the support center app on your device to find the local emergency service number and authorized repair center for your country. - Complete user manual: Open the tcl.com website (tcl.com - Support - Mobile - SELECT A MODEL) to download the complete user manual for your device.

On our website you will also find our FAQ section (frequently asked questions). You can also contact us via email and ask any questions you might have.

• Manufacturer: TCL Communication Ltd. - Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong - Electronic labeling path: Tap Settings > Regulatory information and safety or press *#07# for additional labeling information ⁽¹⁾ .

Software updates

Connection costs related to finding, downloading, and installing software updates for your mobile device's operating system will vary depending on the tariff you have subscribed to with your telecommunications provider. Updates will be downloaded automatically, but installation will require your approval.

Performance Tested Paper+Display

Performance Tested Paper+ Display

5G NR FDD n20 (800 MHz): 23.0 dBm

5G NR TDD n38 (2600 MHz): 21.0 dBm

5G NR TDD n40/n77/n78 (2300/3700/3500MHz): 22.50 dBm

5G NR TDD n41 (2500 MHz): 23.5 dBm

Bluetooth 2.4GHz band: 7.57 dBm

Bluetooth LE 2.4GHz band: 0.81 dBm

802.11 b/g/n 2.4GHz band: 15.36 dBm

802.11 a/n/ac 5150 - 5350 MHz: 12.32 dBm

802.11 a/n/ac 5470 - 5725 MHz: 12.92 dBm

802.11 a/n/ac 5725 - 5875 MHz: 12.17 dBm

NFC 13.56 MHz: -21.43 dBuA/m at 10m

Restrictions:

Performance Tested Paper+ Display

Output Power: 15.0W/27.0W/30.0W/30W/30W/33W

Average active efficiency: 87.21% (33W)

- Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong

5G NR FDD n20 (800 MHz): 23.0 dBm

5G NR TDD n38 (2600 MHz): 21.0 dBm

5G NR TDD n40/n77/n78 (2300/3700/3500MHz): 22.50 dBm

5G NR TDD n41 (2500 MHz): 23.5 dBm

Bluetooth 2.4GHz band: 7.57 dBm

Bluetooth LE 2.4GHz band: 0.81 dBm

802.11 b/g/n 2.4GHz band: 15.36 dBm

802.11 a/n/ac 5150 - 5350 MHz: 12.32 dBm

802.11 a/n/ac 5470 - 5725 MHz: 12.92 dBm

802.11 a/n/ac 5725 - 5875 MHz: 12.17 dBm

NFC 13.56 MHz: -21.43 dBuA/m at 10m

American Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, Virginia 22101 USA

Tel: [phone]

Fax: [phone]

5/F, Building 22E, 22 Science Park East Avenue,

Hong Kong Science Park, Shatin, NT, Hong Kong

Tel: [phone]

Fax: [phone]

Teknik Özellikler
Boyut 167,6 X 75	5 X 7,99 mm
Ağırlık 196 gr
Bağlantı 2G/3G/4	G/5G
Ekran 6,78" ekran
İşlemci 256GB ROM + 8GB RAM
Kamera 108MP+8MP(UW)+2MP (Macro)8MP ön kamera
USB USB Type-C
Pil 5010 mAh
Bluetooth BT 5,3

TCL Communication Ltd

5F. Building 22E, 22 Science Park East

Avenue, Hong Kong Science Park, Shatin,

NT, Hong Kong

American Certification Body, Inc.

EU declaration of conformity

Product type:

Product identification:

Smartphone

TCL T702D

Manufacturer:

TCL Communication Ltd.

5/F. Building 22E. 22 Science Park East

Avenue, Hong Kong Science Park, Shatin,

NT, Hong Kong

Manufacturer's Authorized Representative:

TCT Mobile Europe SAS-15

We declare under our sole responsibility that the product above mentioned is conform to the applicable essential requirements of the directive 2014/53/EU and that all essential radio test suites have been carried out according to conformity assessment procedure: Module B and C, annex III of the directive.

Applied standards

- Item 3.1. a (protection of the health and of the safety of persons and of domestic animals and the

protection of property)

- EN IEC 62366-1:2020

- EN 50360 2017, EN 50566 2017, EN 62478 2010, EN 50663 2017, EN IEC 62311 2020

- Item 3.1.b (an adequate level of electromagnetic compatibility)

- EN 301 489-1 V2.2.3 (2019-11), EN 301 489-3 V2.3.2 (2023-01), EN 301 489-17 V3.2.6

(2020-09), EN 301 489-19 V2.21 (2022-09), EN 301 489-52 V1.21 (2021-11), EN

55032 2015/A11 2020. EN 55035 2017/A11 2020

- item 3.2 (both effectively uses and supports the efficient use of radio spectrum in order to avoid

(harmful interference)

EN 301 511 V12.5.1 (2017-03), EN 301 008-1 V15.2.1 (2023-01), EN 301 006-2 V13.1.1 (2020-06), EN 301 906-13 V13.2.1 (2022-02), EN 301 906-25 V15.1.1.0.0.21 (2024-01), EN 300 328 V2.2.2 (2019-07), EN 301 683 V2.1.1 (2017-05), EN 300 330 V2.1.1 (2017-02), EN 300 440 V2.2.1 (2018-07), EN 303 413 V1.2.1 (2021-04), EN 303 345-1 V1.1.1 (2019-06), EN 303 345-3 V1.1.1 (2021-06)

- Item 3.3.g (radio equipment supports certain features ensuring access to emergency services):

- GUIDELINES FOR COMPLIANCE WITH DELEGATED REGULATION (EU) 2018/320

- Commission Delegated Regulation (EU) 2018/320 of 12 December 2018

This product also conforms to the applicable requirements of following directives:

- Directive 2011/65/EU (RoHS - restriction of the use of certain hazardous substances) with amendment (EU) 2015/863

EN IEC 63000:2018

- Directive 2008/125/EC (ErP - ecodesign requirements for energy-related products)

- (EC) No 1275/2008, (EU) No 801/2013, EN 50564:2011

The chargers delivered with this product (when included in the box) also conform to the applicable

requirements of the relevant Union harmonisation legislations:

Directive 2014/35/EU (LVD)

Directive 2014/30/EU (EMC)

- Directive 2009/125/EC (Energy Related Product)

Where applicable, description of accessories and components, including software, which allow the radio equipment to operate as intended and covered by the EU declaration of conformity:

Accessories

	PN	Technical data
Charger	CBA0118BA0C5 (QC16EU)	INPUT: 100-240V-50/60Hz 650mAOUTPUT: 5.0V 3.0A/9.0V 3.0A/12.0V2.5A/15.0V 2.0A/20.0V 1.5 A/PPS 3.3V-11.0V3.0A
	CBA0118BA0C7 (QC16EU)	INPUT: 100-240V-50/60Hz 650mAOUTPUT: 5.0V 3.0A/9.0V 3.0A/12.0V2.5A/15.0V 2.0A/20.0V 1.5 A/PPS 3.3V-11.0V3,0A
	CBA0118BB0C7 (QC16UK)	INPUT: 100-240V-50/60Hz 650mAOUTPUT: 5.0V 3.0A/9.0V 3.0A/12.0V2.5A/15.0V 2.0A/20.0V 1.5 A/PPS 3.3V-11.0V3.0A
	CBA0118BC0C7 (QC16AU)	INPUT: 100-240V-50/60Hz 650mAOUTPUT: 5.0V 3.0A/9.0V 3.0A/12.0V2.5A/15.0V 2.0A/20.0V 1.5 A/PPS 3.3V-11.0V3.0A
Headset	CBB0080B10C1	/

	Model	Technical data
Battery	TLp04809	3.67V Rated: 4900 mAH
	TLp049DA	3.67V Rated: 4900 mAH

The software is not intended to be installed or changed by the user without the control of the manufacturer.

Conformity of this product with the essential requirements of the RE Directive 2014/53/EU has been

reviewed by the following Notified Body:

American Certification Body.

Identification number: 1568

and issued the EU-type examination certificate

ATC031500, issue 1

Place and date of issue: Issy-les-Moulineaux, 2024-07-19

Signature

TCT MOBILE EUROPE SAS

Invisible Animal

Head of Groups Project Managers | TCT Mobile Europe SAS

NXTPAPER ∪ ∪

Performance Tested Paper+ Display

Output power: 15.0 W 27.0/30.0/30/30/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/33/

https://www.tcl.com/global/en/EC_DOC

CE

AR

https://www.tcl.com/global/en/mobile-support/hotline&service-center.html

Park, Shatin, NT, Hong Kong

https://www.tcl.com/global/en/communication-privacy-policy

Disclaimer

https://www.tcl.com/global/en/warranty

Performance Tested Paper+ Display

Bluetooth Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal SNR TCL T702D SNR D065040 'on

Wi-Fi Alliance 7w nynn

https://www.tcl.com/global/en/EC_DOC

CE

5/F, Building 22E, 22 Science Park East Avenue, Hong Kong :

Science Park, Shatin, NT, Hong Kong

https://www.tcl.com/global/en/communication-privacy-policy

תָאַלְעֹת

https://www.tcl.com/global/en/warranty
