GA-MA790GP-DS4H - Motherboard GIGABYTE - Free user manual and instructions

Product Type	Motherboard
Brand	GIGABYTE
Model	GA-MA790GP-DS4H
Form Factor	ATX
Processor Socket	AM2+/AM2
Chipset	AMD 790GX
Supported Memory Type	DDR2
Number of Memory Slots	4 (up to 16 GB)
Integrated Graphics	Yes (ATI Radeon HD 3300)
Expansion Slots	2 PCI Express x16, 3 PCI, 1 PCI Express x1
SATA Connectors	5 (SATA II)
USB Connectors	12 (including 8 front panel)
Network	Gigabit Ethernet
Audio	Realtek ALC888 (7.1 channels)
Dimensions (L x W)	30.5 cm x 24.4 cm
Weight	approx 0.8 kg
Required Power Supply	ATX 24-pin power supply
Main Features	Multi-GPU support (CrossFireX), DualBIOS, simplified overclocking
Maintenance and Cleaning	Regular dusting with dry air
Safety	Static protection: handle on antistatic surface
Spare Parts and Repairability	Capacitors and BIOS replaceable (soldering)

Frequently Asked Questions - GA-MA790GP-DS4H GIGABYTE

What type of processor is compatible with this motherboard?

The GIGABYTE GA-MA790GP-DS4H motherboard supports AMD processors for socket AM2+ and AM2, including Phenom, Athlon 64, Sempron series.

What RAM memory can I use?

You can install DDR2 up to 800 MHz (PC2-6400), in dual-channel configuration up to 16 GB on 4 slots.

How to install the processor on this motherboard?

Lift the socket lever, align the processor triangle with the socket triangle, gently insert the processor, then lower the lever. Consult the manual for more details.

Can I use an AMD AM3 processor on this board?

No, the socket is AM2+/AM2, AM3 processors are not compatible. Use AM2+ or AM2 CPUs.

How many graphics cards can I install?

This motherboard has two PCI Express x16 slots and supports AMD CrossFireX with two graphics cards.

What is the debug LED on the board?

The motherboard includes a Debug LED display that shows boot codes in case of issues. Refer to the manual for code meanings.

How to update the BIOS?

Use GIGABYTE's @BIOS utility in Windows or the Q-Flash function built into the BIOS. Download the latest version from the GIGABYTE website.

Is the motherboard compatible with Windows 10?

Official support ends with Windows 7, but unofficial drivers may allow installation of Windows 10. Check forums for feedback.

What is the minimum recommended power supply wattage?

For a typical configuration, a 500W power supply is recommended. If using two graphics cards, choose 600W or more.

Where can I find the drivers for this motherboard?

Drivers are available on the GIGABYTE website in the support section, by searching for model GA-MA790GP-DS4H.

USER MANUAL GA-MA790GP-DS4H GIGABYTE

The sequence of installation may differ depending on the type of case and devices used. The installation instructions below apply to GIGABYTE's desktop systems and are for reference only.
Refer to the user's manual included for detailed motherboard specifications.
- Before installing the devices, make sure they are compliant with the connectors on your computer.
- Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices and the system components.
- Place the computer system on a stable surface to prevent improper installation resulted from shaking.

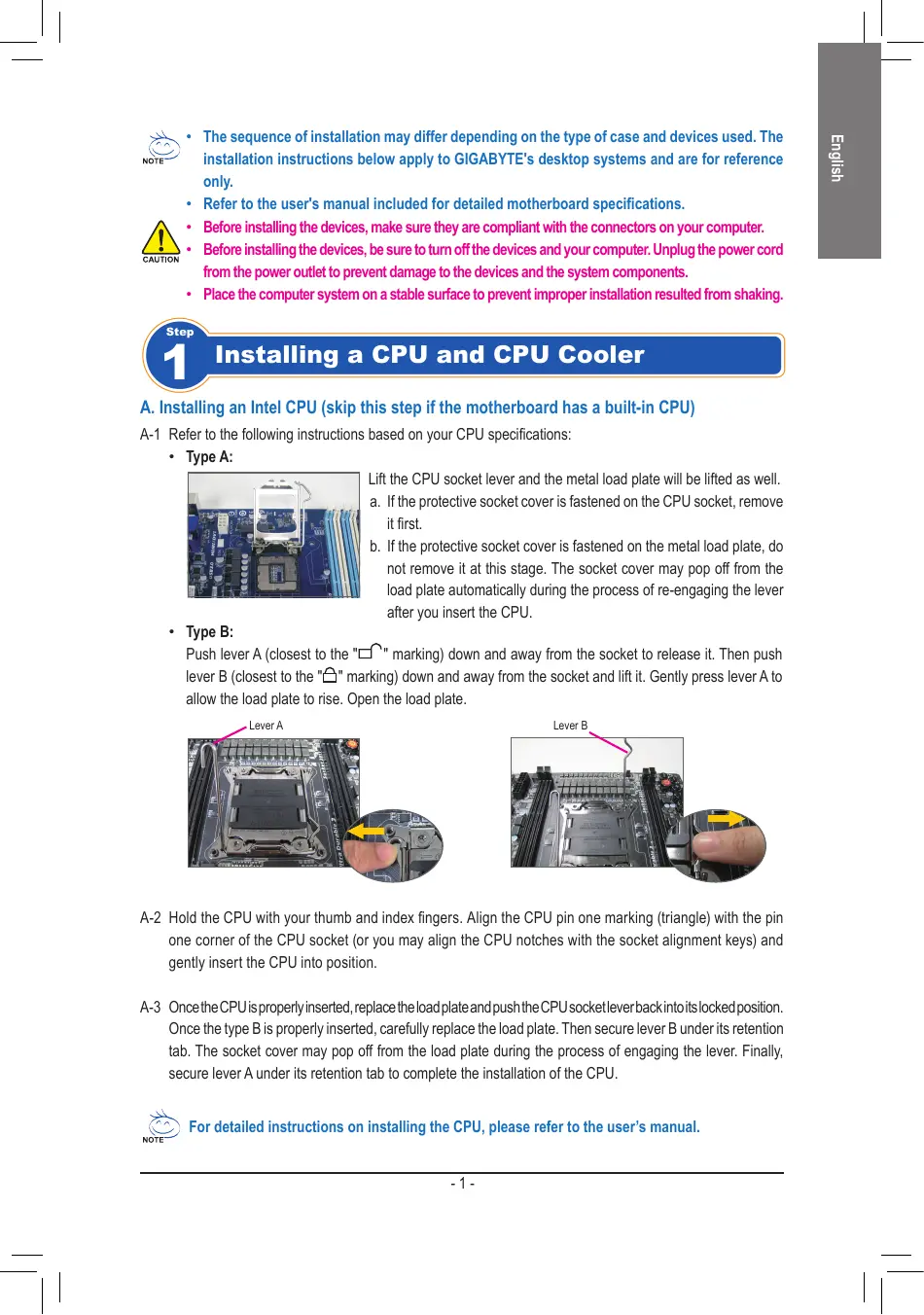

Installing a CPU and CPU Cooler

A. Installing an Intel CPU (skip this step if the motherboard has a built-in CPU)

A-1 Refer to the following instructions based on your CPU specifications:

• Type A:

Lift the CPU socket lever and the metal load plate will be lifted as well.

a. If the protective socket cover is fastened on the CPU socket, remove it first.
b. If the protective socket cover is fastened on the metal load plate, do not remove it at this stage. The socket cover may pop off from the load plate automatically during the process of re-engaging the lever after you insert the CPU.

• Type B:

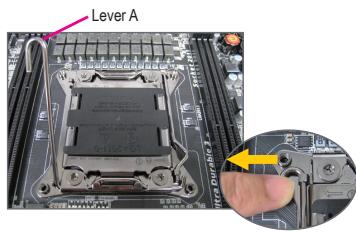

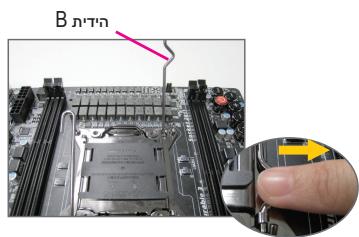

Push lever A (closest to the "□" marking) down and away from the socket to release it. Then push lever B (closest to the "□" marking) down and away from the socket and lift it. Gently press lever A to allow the load plate to rise. Open the load plate.

A-2 Hold the CPU with your thumb and index fingers. Align the CPU pin one marking (triangle) with the pin one corner of the CPU socket (or you may align the CPU notches with the socket alignment keys) and gently insert the CPU into position.
A-3 Once the CPU is properly inserted, replace the load plate and push the CPU socket lever back into its locked position. Once the type B is properly inserted, carefully replace the load plate. Then secure lever B under its retention tab. The socket cover may pop off from the load plate during the process of engaging the lever. Finally, secure lever A under its retention tab to complete the installation of the CPU.

For detailed instructions on installing the CPU, please refer to the user's manual.

B. Installing an AMD CPU (skip this step if the motherboard has a built-in CPU)

B-1 Completely raise the CPU socket lever. Align the CPU pin one (small triangle marking) with the triangle marking on the CPU socket and gently insert the CPU into the socket. Make sure that the CPU pins fit perfectly into their holes.
B-2 Once the CPU is positioned into its socket, place one finger down on the middle of the CPU, lowering the socket lever and latching it into the fully locked position.

• Do not force the CPU into the CPU socket. The CPU cannot fit in if oriented incorrectly. Adjust the CPU orientation if this occurs.
• DO NOT touch socket contacts. To protect the CPU socket, always replace the protective socket cover when the CPU is not installed.

C. Installing the CPU cooler

C-1 Before installing the CPU cooler, please first add a thin layer of heat sink paste on the surface of the CPU. Then install the cooler (refer to the installation manual for your CPU cooler).
C-2 Connect the CPU cooler cable to the CPU_FAN connector located on the motherboard so that the cooler can properly function to prevent the CPU from overheating.

Installing Memory

Note the orientation of the memory module. Spread the retaining clips at both ends of the memory socket. Place the memory module on the socket. As indicated in the picture on the left, place your fingers on the top edge of the memory, push down on the memory and insert it vertically into the memory socket. The clips at both ends of the socket will snap into place when the memory module is securely inserted.

Preparing the Case and Installing a Power Supply

Using the GIGABYTE desktop system as the demonstration example, please first remove both sides and the lid of the case in order to install the power supply. Place the power supply in the correct place in the case and secure it with screws. Installation and placement of the power supply may differ depending on the type of case used.

To ensure sufficient power can be supplied to your system, it is recommended that a power supply of good quality be used. If a power supply is used that does not provide the required power, the result can lead to an unstable or unbootable system.

Step

4

Installing the Motherboard

Remove the original I/O shield from the back of the case and replace it with the motherboard I/O shield. Place the motherboard within the case by positioning it into its I/O shield. Align the mounting screw holes on the motherboard with their corresponding mounting holes on the case. Secure the motherboard in place with screws.

I/O Shield

Step

5

Installing an Expansion Card

PCI Express Graphics Card

Locate an expansion slot that supports your card and remove the slot cover from the case back panel. Then insert the expansion card into the slot. Secure the expansion card's bracket to the case back panel with a screw.

• Before purchasing an expansion card, check the length of the card, making sure it can fit into your case.
• Make sure that the expansion card is fully seated in its slot.

Step

6

Installing IDE and SATA Devices

Installing an Optical Drive

6-1 Install your optical drives, such as DVD-ROM and CD-ROM drives.

Remove the 5.25" drive bay cover from the front of the case. Mount the optical drive in the 5.25" drive bay and secure it with screws.

Installing a Hard Drive

6-2 Install your IDE and SATA hard drives.

Install the hard drive into a drive bay within the case and secure it with screws.

• One motherboard IDE connector can connect up to two IDE devices. Prior to installation, check the jumper settings (master and slave) on your IDE devices.
• If more than one hard drive is installed, enter system BIOS Setup to set the hard drive boot sequence.

Connecting Cables to Internal Connectors

7-1 Connect cables to internal connectors and headers on the motherboard, including IDE/SATA connectors, and front panel audio, USB, IEEE 1394 headers, etc.
7-2 Attach the front panel module (differs depending on the case design, consisting of power indicator, hard drive activity indicator, speakers, reset switch, power switch, etc.) from the case to the front panel header (F PANEL) on the motherboard.

Front Panel Header

Pin Assignments A:

Pin Assignments B:
MSG: Message/Power/Sleep LED

PWR: Power LED

PW: Power Switch

SPEAK:Speaker

HD: Hard Drive Activity LED

RES: Reset Switch

Cl: Chassis Intrusion Header

(Note) The pin assignments for the front panel header may differ by model. Refer to the motherboard user's manual for the actual pin assignments.

Connecting Peripherals

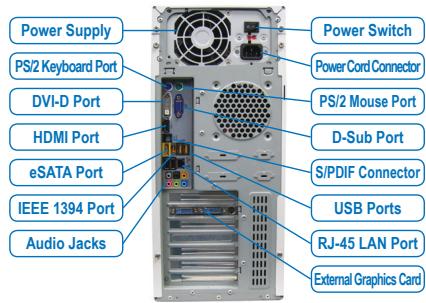

Back Panel of the Case

Once the steps above have been completed, connect the peripheral devices to the computer, such as the keyboard, mouse, monitor, etc. Then connect the power, turn on the system, and install all required software.

Conector do paine frontal

YctaHOBka CNCTeMHoN pIaTbI

CnHmnte 3aIyUkPy pa3bEmOB BBOda/BbIBOda Ha 3aIHei PaHEni KOpnyCa n yCTAHOBITE Ha ee MeTc O NaHEnb pa3bEmOB BBOda/BbIBOda I3 KOMIIeKTA NOCTABKN CNTeMHOn INaTbI. YCTAHOBITE CNTeMHHy INaTpy B KOpnyCe, COBMeCTNB pa3bEmbl Ha 3aIHei PaHEni CNCTeMHOn INaTae C OTBepCTNMy H aNaHEni BBOda/BbIBOda. COBMeCTNe KpeJexHbIe OTBepCTNc NCTeMHOn INaTbIC COOTBeTCTByIOUIMN OTBepCTNMy KOpnyCa. 3akpenite CNTeMHHy INaTpy B KOpnyCe IIK c NOMouBbV BNHTOB.

3aŋnyuka pa3bEmOB BBOda/BbBOda

YctaHOBka pnaTbI paCwnpeHnA

Adum Bellegin Kurulumu

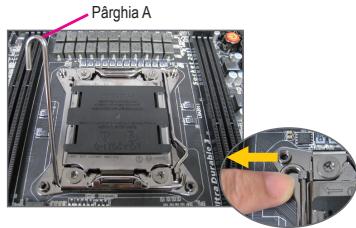

Push lever A (closest to the "□" marking) down and away from the socket to release it. Then push lever B (closest to the "□" marking) down and away from the socket and lift it. Gently press lever A to allow the load plate to rise. Open the load plate.
