GA-B85M-HD3 User's Manual Rev. 1001

Declaration of Contormity

DECLARATION OF CONFORMITY

FCC Part 15, Subpat B, Section 15.107(s) and Section 15.109 1 2otuU os Diet (@) Class B Digial Device I Racciton ue a emtan Ti prie aciers Supplementary Information: PAR a ne This device complies with part 15 ofthe FCC Rules. Operation is . . subject 0 the following two conditions: (1) This device may not D cEmaing cause harnf and) this device must accept any infrence receive, CE including that may cause undesired operation Representative Person’ Name: ERIC LU Signature: Eric_Lu som Ang Amy I — Date AD 30, 2013 Copyright © 2013 GIGA-BYTE TECHNOLOGY CO. LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission. M In order to assist in the use of this product, carefully read the Users Manual. mm For quick set-up of the product, read the Quick Installation Guide included with the product. m For product-related information, check on our website at: http:/{www.gigabyte.com Identifying Your Motherboard Revision The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS, drivers, or when looking for technical information. Example: = REV: 1.0

GA-B85M-HD3 Motherboard Layout … GA-B85M-HD3 Motherboard Block Diagrai

Chapter 1 Hardware Installation

Chapter 3 Drivers Installation.

ED HD 8 80SC] M80s[ GENE CHOCO BCE me.

Box Contents M1 GA-B85M-HD3 motherboard M Motherboard driver disk M Users Manual M 1/O Shield M Quick Installation Guide The box contents above are for reference only and the actual iems shall depend on the product package you obtain The box contents are subject to change without nolice. M1 Two SATA 6Gb/s cables

DDR3 1600/1333 MHz I Dual Channel Memory

ER For detailed product informationlimitation(s), refer to "1-2 Product Specifications."

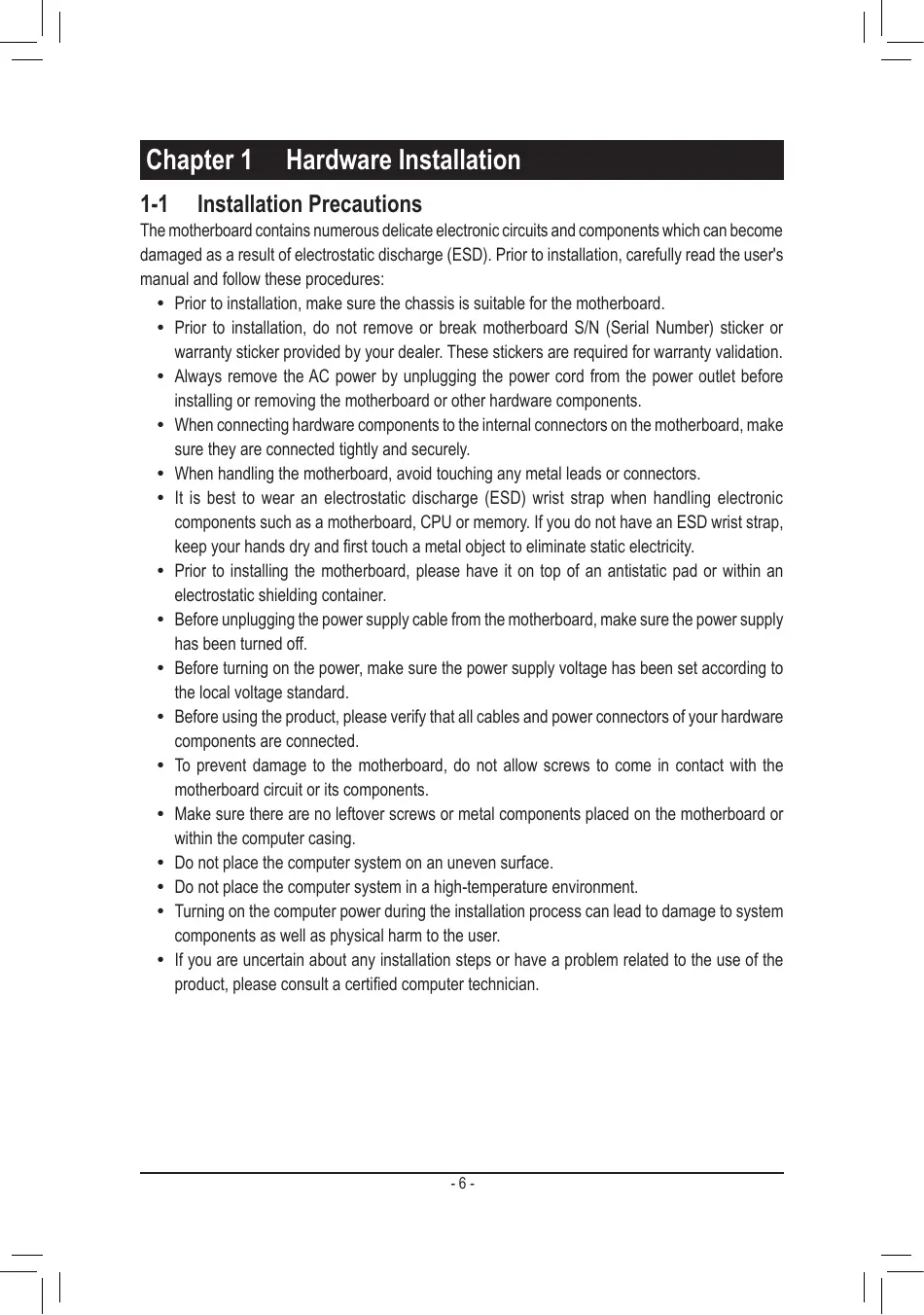

apter 1 Hardware Installat 1-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: Prior to installation, make sure the chassis is suitable for the motherboard. Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation. Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components. When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely. When handling the motherboard, avoid touching any metal leads or connectors. lt is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity. Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container. Before unplugging the power supply cable from the motherboard, make sure the power supply has been turned off. Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard. Before using the product, please verify that all cables and power connectors of your hardware components are connected. To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components. Make sure there are no leftover screws or metal components placed on the motherboard or Within the computer casing. Do not place the computer system on an uneven surface. Do not place the computer system in a high-temperature environment. Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user. If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

1-2 Product Specifications CPU Support for Intel Core” 17 processors/Intel Core” 15 processors! Intel Core” i3 processors/Intel” Pentium? processors/ Intel” Celeron® processors in the LGA1150 package (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU © Chipset Intel” B85 Express Chipset Mere 2x1.5V DDR3 DIMM sockets supporing up to 16 GB of system memory

• Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed wil be less than the size of {he physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Proflle (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) @ Onboard Graphics Integrated Graphics Processor: = 1x D-Sub port, supporting a maximum resolution of 1920x1200 = 1x DVD port, supporting a maximum resolution of 1920x1200
• _The DVI-D port does not support D-Sub connection by adapter. = 1x HDMI por, supporing a maximum resolution of 4096x2160 *__ Support for HDMI 1.4a version. = Maximum shared memory of 1 GB (©) Audio Reallek” ALCB87 codec: High Definition Audio 2/4/5.1/7.1-channel
• To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the muli-channel audio feature through the audio driver. ES] LAN Realtek° GbE LAN chip (10/100/1000 Mbit) D ©rarson Sbs 1x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) 1x PCI slot A) S'orece Intrice Chipset: = 4x SATA6Gb/S connectors (SATAS 0/1/2/3) supporting up to 4 SATA 6Gb/s devices = 2 x SATA 3Gb/ connectors (SATA2 4/5) supporting up to 2 SATA 3Gb/s devices Chipset: = Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the intemal USB header) = Upto 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the intemal USB headers)

• Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. -_ @BIOS - EasyTune - EZSetup - USB Blocker Support for ON/OFF Charge

• GIGABYTE reserves the right lo make any changes lo the product specifcations and product-related information without prior notice.

• Please visit the Support & Downloads!Utility page on GIGABYTE'S website to check the supported operating system(s) for the software listed in the "Unique Features” and "Bundled Software" columns. 1-3 Installing the CPU Read he following guidelines before you begin o install the CPU À Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list) Always turn of {he computer and unplug the pour cord from he pouer oullet before instlling the CPU to prevent hardiare damage. Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrect. (Or you may locale the notches on both sides oftne CPU and alignment Keys on the CPU socket) Apply an even and thin layer of thermal grease on the surface oftne CPU Do not tu on the computer ifthe CPU cooler is not installed, lheruise overheating and damage ofthe CPU may occur. Set he CPU host frequency in accordance wilh the CPU speciications. is not recommended that the system bus frequency be set beyond hardware specifcations since i does not meet he standard requirements for the peripherals. you wish to set {he frequency beyond {he standard speciications, please do so according lo your hardware specifcations including he CPU, graphics card, memory, hard drive, etc Installing the CPU Locate the alignment keys on the motherboard CPU socket and the noîches on the CPU. LGAT150 CPU Socket LGA1150 CPU Notch Notch Aignment Alignment key key Pin One Comer afthe CPU Socket Triangle Pin One Marking on the CPU À Do not remove the CPU socket cover before inserting the CPU. It may pop of from the load plate automatically during the process of re-engaging the lever aîter you insert the CPU.

1-4 Installing the Memory ( Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. IL is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Always tum of the computer and unplug the power cord from the power outlet before instaling the memory to prevent hardware damage Memory modules have a foolproof design. Amemory module can be installed in only one direction. I you are unable to insert the memory, Switch the direction Dual Channel Memory Configuration This motherboard provides to DDR3 memory sockets and supports Dual Channel Technology. After he memory is installed, the BIOS will automatically detect the speciications and capacity of the memory, Enabling Dual Channel memory mode will double the original memory bandwidth. The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as following: # Channel A: DDR3_2 Channel B: DDR3_1 Due to CPU limitations, read the following guidelines before instalng the memory in Dual Channel mode. 1... Dual Channel mode cannot be enabled if only one DDR3 memory module is installed 2... When enabling Dual Channel mode with two memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used for optimum performance 1-5 Installing an Expansion Card Read the following guidelines before you begin to instal an expansion card À Make sure the motherboard supports the expansion card. Carelull read the manual that came with your expansion card. Always tum of the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage. 1-6 Back Panel Connectors

LE — Q o Jo e USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB Keyboard/mouse, USB printer, USB flash drive and etc. 5 PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard. © D-Sub Port The D-Sub port supports a 15-pin D-Sub connector and a maximum resolution of 1820x1200 Connect à monitor that supports D-Sub connection to this port.

© DVI-D Port No) The DVI-D port conforms to the DVI-D specification and supports a maximum resolution of 1920x1200 (the actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI-D connection to this port. © HDMI Port AE 7e HOM por is HDCP compliant and supports Dolby True HD and DTS HD mesosrmmemenmeon rene Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio output. You can use this port to connect your HDMI-supported monitor The maximum supported resolution is 4096x2160, but the actual resolutions supported are dependent on the monitor being used. Triple Display Configurations for the Onboard Graphics: Triple-display configurations are supported after you install motherboard drivers in OS. Only dual-display configuralions are supported during the BIOS Setup or POST process.

USB 3.0/2.0 Port The USB 3.0 port supports the USB 3.0 specifcation and is compatible to the USB 2.0/1.1 speciication: Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc. RJ-45 LAN Port The Gigabit Ethemet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of he LAN port LEDS.

Connection! LED AcMyLED … ComeionSpeed LED Ac LED: l l Sue [Description Site] Descrpion Orange | 1 Gps satarae Binking_| Data transmission or receñang is occuring Green [rooms | [Or No dla transmission or receAng 1 occuring CS | CI 10 Mbps data rate LAN Por & Line In Jack (Blue) The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc. ® Line Out Jack (Green) The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to connect front speakers in a 4/5.1/7.1-channel audio configuration. ® Mic In Jack (Pink) The default Mic in jack. Microphones must be connected to this jack. To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. device and then remove it from the motherboard. + When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector. î +. When removing the cable connected to a back panel connector, first remove the cable from your (Note) The DVI-D port does not support D-Sub connection by adapter.

1-7 Internal Connectors

Read the following guidelines before connecting extemal devices First make sure your devices are compliant with the connectors you wish to connect. + Before instaling the devices, be sure Lo tum of the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices. + After instaling the device and before tuning on the computer, make sure the device cable has been securely aftached to the connector on the motherboard.

1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With he use ofthe power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is tumed off and all devices are propeny installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation The 12V power connector mainly supplies power to the CPU. fthe 12V power connector is not connected, the computer wil not start. To meetexpansion requirements, tis recommended that a power supply that can withsland high power consumption be used (500W or greater). If a power supply is used hat does not provide the required power, the result can lead to an unstable or unbootable system. AD tav 2x 5 got à [PinNo.| Denon Pin No. | Definition noconr TL GND (On 2dpin AVI 5 | #2V (One Zip A) TETE 2] GND(Onylor2ct pin PA] 6 | #2 (On for Ad-pin 12V) 3 [on ME 4 GND 8 #12V G) xx 2Lekep# Pin No. | Definition Pin No. | Definition (QE ME 15 [sw QE 2 [sw LME 3 [ew 15 [en na DEN 16 | PS-ON (soi OnON)

(GE 5 | GND 17 | GND

TI ME EU 7 [own CU 5 | PouerGoo CRE + 9 | SVS8 (tandby +5v) RE 10 env 2 [sw GE | #12V (Ony for 2x iZpinl 23 | #50 (On or iZ-pn ATX) ‘ [ENS ATX) ras] 12 | 3.3 (Oniy for AZ-pin| 2 | GND(Onyror2xI2-pn ATX) ATX ATX) 3/4) CPU_FAN/SYS_FAN (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect tin the correct orientation (the black connector ire is the ground wire). The speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation, i is recommended that a system fan be installed inside the chassis.

Pin No. [ Definition Pin No. [ Definition 1 [en 1 [en 2 [4 2 | #12VISpeed Control CPU FANSYS FAN 7 | see 3 | sue 4 | Speed Control 4 [vec may result in damage to the CPU or the system may hang î + Be sure to connect fan cables to he fan headers to prevent your CPU and system from overheating. Overheating + _ These fan headers are not configuration jumper blocks. Do not place a jumper cap on the headers. -T3-

SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device.

The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. SAT Pin No. | Definition 1 7 1 [en 2 [7 3 [TN 4 [en Ts 5 [RN 6 [Re 7 [en

7) F_AUDIO (Front Panel Audio Header)

The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module Connector match the pin assignments ofthe motherboard header. Incorrect connection between the module connector and he motherboard header will make the device unable to work or even damage it For HD Front Panel Audio: For AC'97 Front Panel Audio: Pin No. | Dernion Pin No. | Defnition o ‘ 1 [Mœr 1 [Me 10 2 2 |GN 2 [en 3 [MC2R 3 | MICPower 4 [-ACZDET 4 [nc 5 [INR 5 |[LneoutR 6 [en 6 [nc T | FAuDo D 7 [nc 8 | NoPin 8 |NoPin 9 [UNE 9 [Lneout) 1 [en 1 [nc The front panel audio header supports HD audio by default. Audio signals wil be present on both of the front and back panel audio connections simultaneoush. Some chassis provide a front panel audio module that has separated connectors on each wire instead of a Single plug. For information about connecting the front panel audio module that has different wire assignments, please contact the chassis manufacturer.

Connectthe power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables: + PLEDIPWR_LED (Pour LED): System Sas [LED | Connects to the power status indicator ü On on the chassis front panel. The LED is on vihen the system is operating. The LED is SISASS [OM | Guen the systems in S3S4 sleep state or powered of (55). ETES [ET + PW (Power Switch): Connects Lo the power switch on the chassis front panel. You may configure the way to tum off your system using the power switch {refer to Chapter 2, "BIOS Selup," "Power Management for more information). Speaker (Speaker): Connects to the speaker on the chassis front panel. The system reports system startup status by issuing a beep code. One single short beep will be heard i no problem is detected at system startup. HD (Hard Drive Activity LED): Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data. RES (Reset Switch) Connects to the reset switch on the chassis front panel. Press the reset switch to rester {he computer the computer freezes and fails to perform a normal restart. CI (Chassis Intrusion Header): Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover has been removed. This function requires a chassis with a chassis intrusion suitch/sensor. power LED, hard drive actvity LED, speaker and etc. When connecäng your chassis front panel module to his æ The front panel design may differ by chassis. À front panel module mainly consists of power switch, reset switch, header, make sure the wire assignments and the pin assignments are matched correcly.

Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds. B open: Nomal 8 Short: Clear CMOS Values Always tu of your computer and unplug the power cord from he power out before clearing the CMOS values. After system restar, go to BIOS Setup to load factory default (select Load Oplimized Default or manually configure the BIOS settings (refer to Chapter 2, "BIOS Setup" for BIOS configurations)

10) F_USB30 (USB 3.0/2.0 Header)

The header conforms to USB 3.0/2.0 speciication and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer. Pin No. | Definition [Pin No. | Derniion 2 ! 1 [vus n [D MES 2 | 3] SSRXE 5 [own 4 [own [ss 5 |SSxr [ss » M MEL [on 7 _[ow m7 [ssRer 5 [or 1 | ssRe: 5 [or 1 | vaus 10 [Nc 20 | NoPin Prior to instaling he USB front panel, be sure to turn off your computer and unplug the power cord from the power oullt to prevent damage to the USB front panel

11) F_USB1/2 (USB 2.0/1.1 Headers)

The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. PinNo.| Definition [PinNo. | Definition , , T [Porn | 6 [uso ° CT: 2 | Power T_[eN 5 [uso 5 [ow 4 | usnv 9 | NoPin 5_[usnx 1 [ne + Do not plug the IEEE 1394 bracket (2x8-pin) cable into the USB header. + Priortoinstaling the USB bracket, be sure to turn of your computer and unplug the power cord from the power out to prevent damage to the USB bracket. -T6-

The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is tumed off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost You may clear the CMOS values by removing the battery Turn off your computer and unplug the power cord Gent remove the battery from the battery holder and wait for one minute. (Or use à metal object ike a screwdriver t touch the positive and negative terminals of the battery holder, making them short for 5 seconds.) Replace Ihe battery, Plug in the power cord and restart your computer. Always tum of your computer and unplug the power cord before replacing the battery. Replace the battery with an equivalent one. Danger of explosion ifthe battery is replaced with an incorrect model Contact the place of purchase or local dealer you are not able to replace the battery by yourself or uncertain about the battery model When instaling the battery, note the orientation of 1he positive side (+) and the negative side (-) of the battery {the positive side should face up). Used batteries must be handled in accordance with local environmental regulations -T7-

BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. lts major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features. When the power is turned of, the battery on the motherboard supplies the necessary power to the CMOS to Keep the configuration values in the CMOS To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. + C-Flashalows the userto quickly and easily upgrade or back up BIOS without entering the operating system: + @BIOS is a Windows-based utility that searches and downloads the latest version of BIOS from the Internet and updates the BIOS. itis recommended that you not flash the BIOS. To flash the BIOS, d it with caution. Inadequate BIOS flashing may resul in system malfunclion + lis recommended that you notalter the default setings (unless you need to) to prevent systeminstabilty or other unexpected results. nadequately altering the setings may result in system's failure to boot. this occurs, try to clear the CMOS values and reset the board to default values. (Refer to the "Load Optimized Defaults” section in this chapter or introductions of he battery/clear CMOS jumper in Chapter 1 for how to clear the CMOS values ) î Because BIOS flashing is potential risky, if you do not encounter problems using the current version of BIOS, 2-1 Startup Screen The following startup Logo screen will appear when the computer boots. (Sample BIOS Version: D10) GIGABYTE CMUrDurble) Function Keys On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. Or you can use your mouse to select the item you want + Whenthe systemis not stable as usual, select the Load Optimized Defaults em to sel your system to its defaults. The BIOS Setup menus described in this chapler are for reference only and may difler by BIOS version.

GIGABYTE - UEFI DualBlOS This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and Vcore. Whether the system will work stably with the overclocklovervoltage settings you made is dependent on your overall À system configurations. Incorrectiy doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the uselul life ofthese components, This page is for advanced users only and we recommend you not to alter he default settings to prevent system instabilty or other unexpected results. (nadequately alering the setings may result in system faïlure to boot. this occurs, clear the CMOS values and reset the board to default values.) > M.LT. Current Status This screen provides information on CPU/memory frequencies/parameters. > Advanced Frequency Settings Performance Boost) Provides you with five different overclocking configurations. Options are: Medium, High, Turbo, Ultra, Extreme. (Default: Auto) Processor Graphics Clock Allows you to set the onboard graphics clock. The adjustable range is from 400 MHz to 4000 MHz. (Default: Auto) CPU Upgrade (ot) Allows you to set the CPU frequency. Options may vary depending on the CPU being used. (Default: Auto) CPU Clock Ratio Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU being installed. CPU Frequency Displays the current operating CPU frequency. Note) Thisitemis presentonly when you install a CPU that supports this feature. For more information about Intel CPUS" unique features, please visit Itels website.

Advanced CPU Core Features CPU Clock Ratio, CPU Frequency The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu. K OC ou) Alows for increased performance by using certain CPUs. (Default: Auto) CPU PLL Selection Alows you to set the CPU PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) Filter PLL Level Alows you to set the Filter PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) Uncore Ratio Alows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. Uncore Frequency Displays the current CPU Uncore frequency. Intel(R) Turbo Boost Technology !\) Allows you to determine whether to enable the Intel CPU Turbo Boost technology. Auto lets the BIOS automatically configure this setting. (Default: Auto) Turbo Ratio (1-Core Active-4-Core Active) (Note) Allows you to set the CPU Turbo ratios for different number of active cores. Auto sets the CPU Turbo ratios according to the CPU specifications. (Default: Auto) Turbo Power Limit (Watts) Alows you to set a power limit for CPU Turbo mode. When the CPU power consumption exceeds the specified power limit, the CPU will automatically reduce the core frequency in order to reduce the power. Auto sets the power limit according to the CPU specifications. (Default: Auto) Core Current Limit (Amps) Allows you to set a current limit for CPU Turbo mode. When the CPU current exceeds the specified current limit, the CPU will automatically reduce the core frequency in order to reduce the current. Auto sets the power limit according to the CPU specifications. (Default: Auto) CPU Core Enabled (w*) Allows you to determine the number of CPU cores you want to enable. Auto lets the BIOS automatically configure this setting. (Default: Auto) Hyper-Threading Technology ("t} Alows you to determine whether to enable multi-threading technology when using an Intel CPU that supports this function. This feature only works for operating systems that support mult-processor mode. Auto lets the BIOS automatically configure this setting. (Default: Auto) CPU Enhanced Halt (C1E) (vois) Enables or disables Intel CPU Enhanced Halt (CE) function, a CPU power-saving function in system halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to decrease power consumption. Auto lets the BIOS automatically configure this setting. (Default: Auto) C3/C6 State Support (ot) Allows you to determine whether to let the CPU enter C3/C6 mode in system halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to decrease power consumption. The C3/C6 state is a more enhanced power-saving state than C1. Auto lets the BIOS automatically configure this setting. (Default: Auto) CPU Thermal Monitor (ot) Enables or disables Intel CPU Thermal Monitor function, a CPU overheating protection function. When enabled, the CPU core frequency and voltage will be reduced when the CPU is overheated. Auto lets the BIOS automatically configure this setting. (Default: Auto) Note) Thisitemis presentonly when you install a CPU that supports this feature. For more information about Intel® CPUs' unique features, please visit Intel's website.

CPU EIST Function (te 1) Enables or disables Enhanced Intel SpeedStep Technology (EIST). Depending on CPU loading, Intel EIST: technology can dynamically and effectvely lower he CPU volage and core frequency to decrease average power consumption and heat production. Auto lets the BIOS automaticaly configure this seting. (Default Auto) Extreme Memory Profile (X.M.P.) ("te 2) Allows the BIOS to read the SPD data on XMP memory module(s) to enhance memory performance when enabled. » Disabled Disables this function. (Default) » Profile Uses Profile 1 settings. » Profile2 2 Uses Profile 2 settings. System Memory Multiplier Allows you to set ihe system memory multiplier. Auto sets memory multiplier according to memory SPD data. (Default: Auto) Memory Frequency (MHz) The first memory frequency value is the normal operating frequency of the memory being used: the second isthe memory frequency thatis automatically adjusted according to the System Memory Muitiplier settings: Advanced Memory Settings Extreme Memory Profile (X.M.P.) (2, System Memory Multiplier, Memory Frequency(MHz) The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu. Memory Upgrade l\ote 2) Allows you to setthe memory frequency. Options may vary depending on the memory being used. (Default: Auto) Performance Enhance Alows the system to operate at three different performance levels. » Normal Lets the system operate at its basic performance level. » Turbo Lets the system operate at its good performance level. (Defauit) » Extreme Lets the system operate at its best performance level. DRAM Timing Selectable Quick and Expert allows the Channel Interleaving, Rank Interleaving, and memory timing settings below to be configurable. Options are: Auto (defaull, Quick, Expert. Profile DDR Voltage Displays the memory voltage as 1.50V. Channel Interleaving Enables or disables memory channel interleaving. Enabled allows the system to simultaneously access different channels of the memory to increase memory performance and stability. Auto lets the BIOS automatically configure this setting. (Default: Auto) Rank Interleaving Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access different ranks of the memory lo increase memory performance and stability. Auto lets the BIOS automatically configure this setting. (Default: Auto) Channel A/B Timing Settings This sub-menu provides memory timing settings for each channel of memory. The respective timing setting screens are configurable only when DRAM Timing Selectable is set to Quick or Expert. Note: Your system may become unstable or fall to boot ter you make changes on the memory timings. Ifthis occurs, please reset the board to default values by loading optimized default or clearing the CMOS values Note 1). This itemis present only when you install a CPU that supports this feature. For more information about Intel® CPUs' unique features, please visit Intel's website. Note 2). This item is present only when you install a CPU and a memory module that support this feature.

Advanced Voltage Settings CPU Core Voltage Control This section provides CPU voltage control options.

DRAM Voltage Control This section provides memory voltage control options. PC Health Status Reset Case Open Status » Disabled Keeps or clears the record of previous chassis intrusion status. (Default) # Enabled Clears the record of previous chassis intrusion status and the Case Open field will Show "No" at next boot. Case Open Displays the detection status of the chassis intrusion detection device attached to the motherboard CI header. lfthe system chassis cover is removed, this field will show "Yes", otherwise it will show "No". To clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to the CMOS, and then restart your system. CPU Vcore/CPU VRIN/DRAM Voltage/+3.3V/+5V/+12V/CPU VAXG Displays the current system voltages. CPU/System Temperature Displays current CPU/system temperature CPU/System Fan Speed Displays current CPU/system fan speeds. CPU/System Temperature Warning Sets the warning threshold for CPUIsystem temperature. When CPUlsystem temperature exceeds the threshold, BIOS will emit warning sound. Options are: Disabled (default), 60°C/140:F, 70°C/158°F, 80C/176%F, 90°C/194%F. CPU/System Fan Fail Warning Allows the system to emit waming sound if the fan is not connected or fails. Check the fan condition or fan connection when this occurs. (Default: Disabled) CPU Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. # Normal Allows the fan to run at different speeds according to the CPU temperature. You can adjust the fan speed with EasyTune based on your system requirements. (Default) » Silent Allows the fan to run at slow speeds. # Manual Allows you to control the fan speed under the Slope PWM item. » Disabled Allows the fan to run at full speeds. Slope PWM Allows you to control the fan speed. This item is configurable only when CPU Fan Speed Control is set to Manual. Options are: 0.75 PWM value /°C - 2.50 PWM value /°C. System Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. » Normal Allows the fan to run at different speeds according to the system temperature. You can adjust the fan speed with EasyTune based on your system requirements. (Default) » Silent Allows the fan to run at slow speeds. # Manual Allows you to control the fan speed under the Slope PWM item. » Disabled Allows the fan to run at full speeds.

7 Slope PWM Allows you to control the fan speed. This item is configurable only when System Fan Speed Control is set to Manual. Options are: 0.75 PWM value /°C - 2.50 PWM value °C. » Miscellaneous Settings 7 PEG Gen3 Slot Configuration Allows you to set the operation mode ofthe PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation mode is subject to the hardware specification of each slot. For example, the PCI Express x1 slots can support up to Gen 2 mode only. Auto lets the BIOS automatically configure this setting. (Default: Auto) 7 Legacy BenchMark Enhancement Alows ÿou to determine whether to enhance some legacy benchmark performance. (Default: Disabled)

2-3 GIGABYTE - UEFI DualBlOS Bali This section provides information on our motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time System Language Selects the default language used by the BIOS. System Date Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch between the Month, Date, and Year fields and use the <Page Up> or <Page Down> key to set the desired value. System Time Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:0:0. Use <Enter> to switch between he Hour, Minute, and Second fields and use the <Page Up> or <Page Down> key to set the desired value. Access Level Displays the current access level depending on the type of password protection used. (If no password is set, the default will display as Administrator.) The Administrator level allows you to make changes to all BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.

2-4 BIOS Features Boot Option Priorities Specifies the overall boot order from the available devices. For example, you can set hard drive as the first priority (Boot Option #1) and DVD ROM drive as the second priority (Boot Option #2). The list only displays the device with the highest priority for a specific type. For example, only hard drive defined as the first priority on the Hard Drive BBS Priorities submenu will be presented here. Removable storage devices that support GPT format will be prefixed with "UEFI:" string on the boot device lit, To boot from an operating system that supports GPT parttioning, select the device prefixed with "UEFI:" string. Orif you wantto install an operating system that supports GPT parttioning such as Windows 7 64-bit, select the optical drive that contains the Windows 7 64-bit installation disk and is prefixed with "UEFI:" string. Hard Drive/CD/DVD ROM Drive/Floppy Drive/Network Device BBS Priorities Specifies the boot order for a specific device type, such as hard drives, optical drives, floppy disk drives, and devices that support Boot from LAN function, etc. Press <Enter> on this item to enter the submenu that presents the devices of the same type that are connected. This item is present only if at least one device for this type is installed. Bootup NumLock State Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: Enabled) Security Option Specifies whether a password is required every time the system boots, or only when you enter BIOS Setup. After configuring this item, set the password(s) under the Administrator Password/User Password item » Setup À password is only required for entering the BIOS Setup program. » System À password is required for booting the system and for entering the BIOS Setup program. (Default) Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABŸTE Logo when the system staris up. (Default: Enabled) Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed. (Default: Disabled)

VGA Support Alows you to select which type of operating system to boot. » Auto Enables legacy option ROM only. » EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot is set to Enabled or Ultra Fast. USB Support » Disabled Al USB devices are disabled before the OS boot process completes. » Full Initial AI USB devices are functional in the operating system and during the POST. » Partial Initial Part of the USB devices are disabled before the OS boot process completes. (Default) This item is configurable only when Fast Boot is set to Enabled. This item is disabled when Fast Boot is setto Ultra Fast. PS2 Devices Support » Disabled All PS/2 devices are disabled before the OS boot process completes. » Full Initial Al PS/2 devices are functional in the operating system and during the POST. (Default) This item is configurable only when Fast Boot is set to Enabled. This item is disabled when Fast Boot is set to Ultra Fast. NetWork Stack Driver Support » Disabled Disables booting from the network. (Default) » Enabled Enables booting from the network. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast. Next Boot After AC Power Loss » Normal Boot … Enables normal bootup upon the return of the AC power. (Default) » Fast Boot Keeps the Fast Boot settings upon the return of the AC power. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast. Limit CPUID Maximum (\o) Alows you to determine whether to limit CPUID maximum value. Set this item to Disabled for Windows XP operating system: set this item to Enabled for legacy operating system such as Windows NT4.0. (Default: Disabled) Execute Disable Bit(vot) Enables or disables Intel” Execute Disable Bit function. This function may enhance protection for the computer, reducing exposure to viruses and malicious buffer overflow attacks when working with its supporting software and system. (Default: Enabled) Intel Virtualization Technology tot) Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Technology wil allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. (Default: Enabled) Intel TXT(LT) Support (vote) Enables or disables Intel® Trusted Execution Technology (Intel® TXT). Intel® Trusted Execution Technology provides a hardware-based security foundation. (Default: Disabled) Dynamic Storage Accelerator Enables or disables Intel® Dynamic Storage Accelerator. When enabled, the hard drive 1/0 performance will be adjusted according to hard drive load. (Default: Disabled) VT-dou) Enables or disables Intel® Virtualization Technology for Directed 1/0. (Default: Enabled) OS Type Alows you to select the operating system to be installed. (Default: Other OS) (Note) This item is present only when you install a CPU that supports this feature. For more information about Intel CPUs' unique features, please visit Intel's website.

CSM Support Enables or disables UEFI CSM (Compatibilty Support Module) to support a legacy PC boot process. » Always Enables UEFI CSM. (Default) » Never Disables UEFI CSM and supports UEFI BIOS boot process only. This item is configurable only when OS Type is set to Windows 8 or Windows 8 WHQL. Boot Mode Selection Alows you to select which type of operating system to boot. » UEFI and Legacy Allows booting from operating systems that support legacy option ROM or UEFI option ROM. (Default) » Legacy Only Allows booting from operating systems that only support legacy Option ROM. » UEFI Only Allows booting from operating systems that only support UEFI Option ROM. This item is configurable only when CSM Support is set to AÏways. LAN PXE Boot Option ROM Allows you to select whether to enable the legacy option ROM for the LAN controller. (Default: Disabled) This item is configurable only when CSM Support is set to Always. Storage Boot Option Control Alows you to select whether to enable the UEFI or legacy option ROM for the storage device controller. » Disabled Disables option ROM. » Legacy only Enables legacy option ROM only. (Default) + UEFI only Enables UEFI option ROM only. » Legacy First Enables legacy option ROM first. > UEFI First Enables UEFI option ROM first. This item is configurable only when CSM Support is set to AWays. Other PCI Device ROM Priority Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. » Legacy OpROM Enables legacy option ROM ony. # UEFI OpROM Enables UEFI option ROM only. (Default) Network stack Disables or enables booting from the network to install a GPT format OS, such as installing the OS from the Windows Deployment Services server. (Default: Disabled) Ipv4 PXE Support Enables or disables IPv4 PXE Support. This item is configurable only when Network stack is enabled Ipv6 PXE Support Enables or disables IPv6 PXE Support. This item is configurable only when Network stack is enabled Administrator Password Alows you to configure an administrator password. Press <Enter> on this item, type the password, and then press <Enter. You will be requested to confirm the password. Type the password again and press <Enter. You must enter the administrator password (or user password) at system startup and when entering BIOS Setup. Differing from the user password, the administrator password allows you to make changes to all BIOS settings. User Password Alows you to configure a user password. Press <Enter> on this item, type the password, and then press <Enter. You will be requested to confirm the password. Type he password again and press <Enter>. You must enter the administrator password (or user password) at system startup and when entering BIOS Setup. However, the user password only allows you to make changes to certain BIOS settings but not all To cancel the password, press <Enter> on he password item and when requested for the password, enter the correct one first. When prompted for a new password, press <Enter> without entering any password. Press <Enter> again vien prompted to confirm.

2-5 Peripherals GIGABYTE - UEFI DualBlOS TE Dia FIESE Init Display First Species the first initiation ofthe monitor display from the installed PCI graphics card, PCI Express graphics card or the onboard graphics. »IGFX » PCle 1 Slot » PCI XHCI Mode Sets the onboard graphics as the first display. Sets the graphics card on the PCIEX16 slot as the first display. (Default) Sets the graphics card on the PCI slot as the first display. Allows you to determine the operating mode for the xHCI controller in OS. » Smart Auto » Auto » Enabled » Disabled » Manual This mode is avallable only vihen the BIOS supports the xHCI controller in the pre-boot environment. This mode is similar to Auto, but it adds the capabilty to route the ports to xHCI or EHCI according to setting used in previous boots (for non-G3 bof) in the pre-boot environment, This allows the use of USB 3.0 devices prior to OS boot. xHCI controller enabling and rerouting should follow the steps in Auto, when previous boot routs ports to EHCI. Note: This is the recommended mode when BIOS has xHCI pre- boot support. (Default) BIOS routes the sharable ports to EHCI controller. Then it uses ACPI protocols to provide an option to enable the xHCI controller and reroute the sharable ports. Note: This is the recommended mode when BIOS does NOT have xHCI pre-boot support Allshared ports are eventuallyrouted to the xHCI controller during the BIOS boot process. I BIOS does not have pre-boot support for the xHCI controller, it should initilly route the sharable ports to the EHCI controller and then prior to OS boot it should route the ports to xHCI controller. Note: OS has to provide support for the xHCI controller in this mode. Ifthe OS does not provide support all sharable ports won't work. The USB 3.0 ports are routed to the EHCI controller and the xHCI controller is tumed of. AI USB 3.0 devices function as High Speed devices regardiess of xHCI software support'availability. Allows you to determine whether to routthe USB 3.0 ports to the xHCI or EHCI controller before booting to OS, and also provides you with options to manually rout each USB 3.0/2.0 port to xHCI or EHCI

Audio Controller Enables or disables the onboard audio function. (Default: Auto) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. Internal Graphics Enables or disables the onboard graphics function. (Default: Enabled) Internal Graphics Memory Size Alows you to set the onboard graphics memory size. Options are: 32M-1024M. (Default: 64M) DVMT Total Memory Size Allows you to allocate the DVMT memory size of the onboard graphics. Options are: 128M, 256M, MAX. (Default: MAX) Intel(R) Rapid Start Technology Enables or disables Intel® Rapid Start Technology. (Default: Disabled) Legacy USB Support Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled) XHCI Hand-off Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off support. (Default: Enabled) EHCI Hand-off Determines whether to enable EHCI Hand-off feature for an operating system without EHCI Hand-off support. (Default: Disabled) USB Storage Devices Displays alistof connected USB mass storage devices. This item appears only when a USB storage device is installed. OnBoard USB3.0 Controller#1 Enables or disables the integrated USB 3.0/2.0 controller. (Default: Enabled) OnBoard LAN Controller#1 Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled. SATA Configuration SATA Controller(s) Enables or disables the integrated SATA controllers. (Default: Enabled) SATA Mode Selection Allows you to decide whether to configure the SATA controller integrated in the Chipset to AHCI mode. » IDE Configures the SATA controller to IDE mode. (Default) » AHCI Configures the SATA controller to AHCI mode. Advanced Host Controller Interface (AHCI) is an interface specification that allows the storage driver to enable advanced Serial ATA features such as Native Command Queuing and hot plug. Serial ATA Port 0/1/2/3/4/5 Port 0/1/2/3/4/5 Enables or disables each SATA port. (Default: Enabled) Hot plug Enables or disable the hot plug capability for each SATA port. (Default: Disabled)

Super 10 Configuration This section provides information on the super 1/0 chip and allows you to configure the serial port and parallel port. Serial Port A Enables or disables the onboard serial port. (Default: Enabled) Parallel Port Enables or disables the onboard parallel port. (Default: Enabled) Device Mode #_ Thisitemis configurable only when Parallel Portis set to Enabled. It allows you to select an operating mode for the onboard parallel (LPT) port. Options are: Standard Parallel Port Mode (Default), EPP Mode (Enhanced Parallel Port), ECP Mode (Extended Capabilities Port), EPP Mode & ECP Mode. Intel(R) Smart Connect Technology ISCT Support Enables or disables Intel® Smart Connect Technology. (Default: Disabled) Realtek PCIe GBE Family Controller This sub-menu provides information on LAN configuration.

Des Dsset Resume by Alarm Determines whether to power on the system at a desired time. (Default: Disabled) If enabled, set the date and time as following: » Wake up day: Turn on the system at a specific time on each day or on a specific day in a month » Wake up hour/minute/second: Set the time at which the system will be powered on automatically. Note: When using this function, avoid inadequate shutdown from the operating system or removal of the AC power, or the settings may not be effective. Erp Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled) Note: When this item is set to Enabled, the following functions will become unavailable: PME event wake up, power on by mouse, power on by keyboard, and wake on LAN. Soft-Off by PWR-BTTN Configures the way to tu off the computer in MS-DOS mode using the power button » Instant-Off Press the power button and then the system wil be tumed off instantiy. (Default) » Delay 4 Sec Press and hold the power button for 4 seconds to tum off the system. If the power button is pressed for less {han 4 seconds, the system will enter suspend mode. RC6(Render Standby) Allows you to determine whether to let the onboard graphics enter standby mode to decrease power consumption. (Default: Enabled) AC BACK Determines the state of the system after the retum of power from an AC power loss. » Always Of The system stays off upon the retum of the AC power. (Default) » Always On The systems tumed on upon the return of the AC power. » Memory The system retums to its last known awake state upon the retum of the AC power. Power On By Keyboard Allows the system to be tuned on by a PS/2 keyboard wake-up event: Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead » Disabled Disables this function. (Default) » Any Key Press any key to turn on the system. » Keyboard 98 Press POWER button on the Windows 98 keyboard to turn on the system. » Password Set a password with 1-5 characters to tum on he system.

Power On Password Set the password when Power On By Keyboard is set to Password. Press <Enter> on this item and set a password with up to 5 characters and then press <Enter> to accept. To turn on the system, enter the password and press <Enter>. Note: To cancel the password, press <Enter> on this item. When prompted for the password, press <Enter> again without entering the password to clear the password settings. Power On By Mouse Allows the system to be tuned on by a PS/2 mouse wake-up event. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. » Disabled Disables this function. (Default) » Move Move the mouse to turn on the system. » Double Click Double click on left button on the mouse to turn on the system. 2-7 Save & Exit GIGABYTE - UEFI DualBlOS Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu Exit Without Saving Press <Enter> on this item and select Yes. This exits the BIOS Setup without saving the changes made in BIOS Setup to the CMOS. Select No or press <Esc> to return to the BIOS Setup Main Menu. Load Optimized Defaults Press <Enter> on this item and select Yes to load the optimal BIOS default settings. The BIOS defaults settings help the system to operate in optimum state. Always load the Optimized defaults after updating the BIOS or after clearing the CMOS values. Boot Override Allows you to select a device to boot immediately. Press <Enter> on the device you select and select Yes to confirm. Your system wil restart automatically and boot from that device. Save Profiles This function allows you to save the current BIOS settings to a profil. You can create up to 8 profiles and save as Setup Profile 1- Setup Profile 8. Press <Enter> to complete. Or you can select Select File in HDD/USB/FDD to save the profile to your storage device.

Load Profiles I your system becomes unstable and you have loaded the BIOS default settings, you can use this function to load the BIOS settings from a profile created before, without the hassles of reconfiguring the BIOS settings. First select he profile you wish to load and then press <Enter> to complete. You can select Select File in HDD/USB/FDD to input the profile previously created from your storage device or load the profile automatically created by the BIOS, such as reverting the BIOS settings to the last settings that worked properly (last known good record). apter3 Drivers Installatio Before instaling the drivers, first install the operating system. (The following instructions use ER Windows 8 as the example operating system.) Aflerinstaling the operaling system, insert {he motherboard driver diskinto your opfical div. Click on the message “Tap 1o choose wat happens with this disc” on the top-right corner of ne screen and select"Run Run.exe." (Or go to My Computer, double-cick the oplical drive and execute the Run.exe program ) "Xpress Install will automatically scan your system and then ist all of the drivers that are recommended to install. You can click the Xpress Install button and'Xpress instal” will instal al of the selected drivers. Or click the arrow Œicon to individually install the drivers you need.
