NeoPix 130C Smart - Projector PHILIPS - Free user manual and instructions

Brand	Philips
Model	NeoPix 130C Smart
Product Type	Smart projector
Display Technology	LED (LCD)
Native Resolution	1280 x 720 (HD ready)
Brightness	300 ANSI lumens
Contrast Ratio	1000:1
Lamp Life	Up to 30,000 hours
Smart Features	Built-in Android, WiFi, Bluetooth
Connectivity	HDMI, USB, 3.5mm audio out
Built-in Speaker	3W mono
Focus	Manual
Keystone Correction	Manual (±15°)
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	60 W (typical)
Dimensions (W x D x H)	200 x 150 x 80 mm
Weight	1.0 kg
Operating Temperature	0°C to 35°C
What's in the Box	Projector, power cord, remote control, user manual

Frequently Asked Questions - NeoPix 130C Smart PHILIPS

How do I connect the projector to Wi-Fi?

Go to Settings > Network > Wi-Fi, select your network and enter the password.

Can I connect my phone via Bluetooth?

Yes, the NeoPix 130C has Bluetooth for audio streaming or to use it as a speaker.

What is the lamp life and how to replace it?

The LED lamp lasts up to 30,000 hours. It is not user-replaceable; contact Philips support if needed.

How do I clean the lens?

Use a soft, dry microfiber cloth. Gently wipe in circular motions. Do not use liquids.

Can I cast content from my smartphone?

Yes, the projector supports screen mirroring via Miracast or AirPlay (depending on the model).

What is the native resolution?

The native resolution is 1280 x 720 pixels (HD ready).

How do I adjust the picture size?

Move the projector closer or farther from the screen. Use the manual focus ring to sharpen the image.

Why is the projector overheating?

Ensure vents are not blocked. Keep the projector on a flat, hard surface. Clean the air intake if dusty.

Can I use the projector outdoors?

Yes, but only in dry conditions. Avoid direct sunlight and ensure the area is well-ventilated.

How to update the firmware?

Go to Settings > About > System Update. Ensure the projector is connected to Wi-Fi and has sufficient battery (if applicable).

USER MANUAL NeoPix 130C Smart PHILIPS

Download the full user manual at: www.philips.com/support and register your product for further support.

NeoPix 130C Smart

Thank you for choosing our Digital Projector. We carefully engineered and crafted this product for you to enjoy TV shows, devour your favorite movies, laugh, cry, and share your best moments with your loved ones.

Need help?

Chat with our technicians on Facebook: m.me/philipsprojection

Check our tutorial on Youtube: youtube.com/philipsprojection

Send us an email: [e-mail]

① Power on/off ② Mouse Pointer ③ Select input source ④ Settings ⑤ Up, down, left and right ⑥ Enter confirmation ⑦ Back ⑧ LuminOS Home ⑨ Extra options ⑩ Focus button ⑪ Volume+ ⑫ Volume- ⑬ Mute

Remote control Bluetooth pairing: Open Bluetooth settings, press and hold the left and right buttons for 5 seconds to perform Bluetooth pairing.

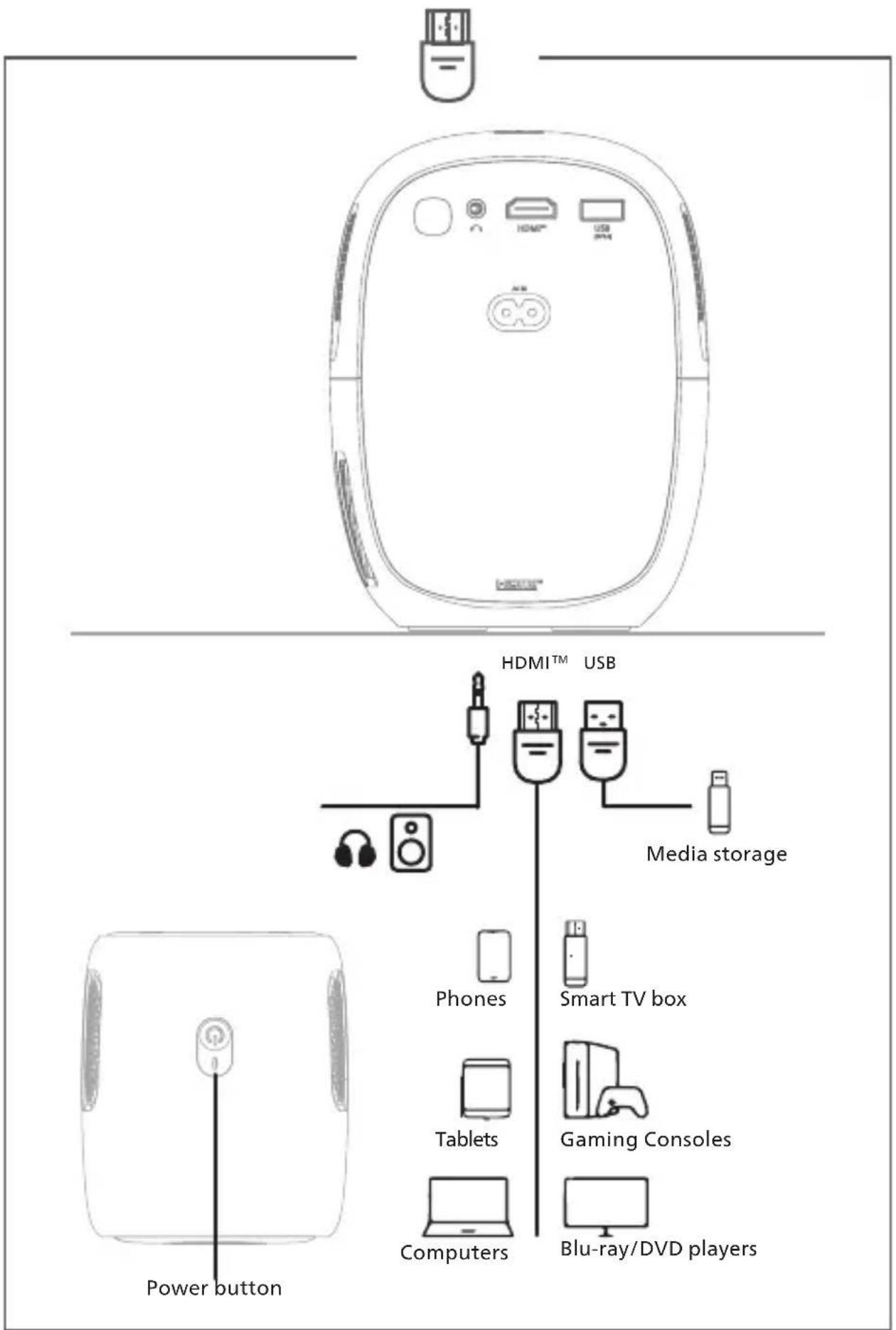

① Connect the power supply

② Press the power button for 2 seconds to turn on the projector

③ Mounted option

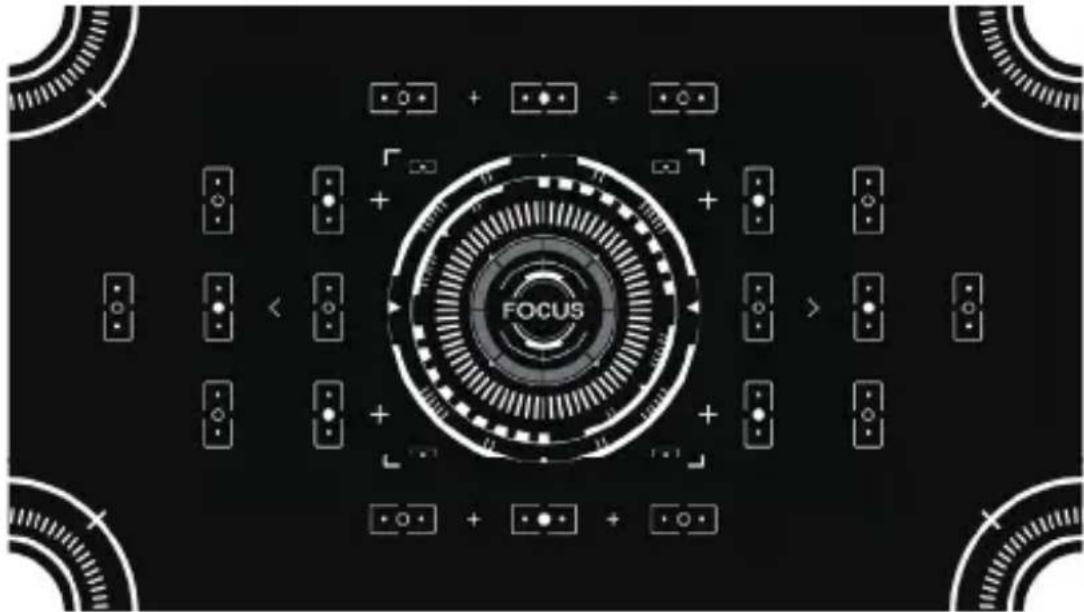

Auto focus/manual focus

1. Auto focus

1.1 The projector is about 1.2-3M away from the wall, and short press the focus button on the remote control: 1.2 Turn on the «Displacement Autofocus» switch in the menu. When the projection host is moved, it will trigger and complete the automatic focus.

Dynamic focus.

2. Manual focus

Press and hold "+" or "-" on the remote control to make manual adjustments.

This software end user license agreement (“this agreement”) is a legal and binding agreement between you (either an individual or entity) and SCREENEO INNOVATION SA, a Swiss company, with its principal office at Route de Lully 5c, 1131 Tolochenaz, Switzerland. This agreement gives you the right to use certain software (the “software”) including user documentation in electronic form which may have been provided separately or together with a SCREENEO INNOVATION SA (Philips branded) product (the “device”) or a PC. By downloading, installing, or otherwise using the software, you accept and agree to be bound by all of the terms and conditions of this agreement. If you do not agree to these terms and conditions, do not download, install, or otherwise use the software. If you acquired the software in tangible media e.g., CD without the opportunity to review this license and do not accept these terms, you may receive a full refund of the amount, if any, that you paid for the software if you return the software unused with proof of payment within 30 days from the date of purchase.

1. Grant of License. This Agreement grants you a non-exclusive, non-transferable, non-sub licensable license to install and use, on the Device or a PC, as applicable, one (1) copy of the specified version of the Software in object code format as set out in the user documentation solely for your personal use. The Software is "in use" when it is loaded into the temporary or permanent memory (i.e. RAM, hard disk, etc.) of the PC or the Device.
2. Ownership. The Software is licensed and not sold to you. This Agreement grants you only the right to use the Software, but you do not acquire any rights, express or implied, in the Software other than those specified in this Agreement. SCREENEO INNOVATION SA and its licensors retain all right, title, and interest in and to the Software, including all patents, copyrights, trade secrets, and other intellectual property rights incorporated therein. The Software is protected by copyright laws, international treaty provisions, and other intellectual property laws. Therefore, other than as expressly set forth herein, you may not copy the Software without prior written authorization of SCREENEO INNOVATION SA, except that you may make one (1) copy of the Software for your back-up purposes only. You may not copy any printed materials accompanying the Software, nor print more than one (1) copy of any user documentation provided in electronic form, except that you may make one (1) copy of such printed materials for your back-up purposes only.
3. License Restrictions. Except as provided otherwise herein, you shall not rent, lease, sublicense, sell, assign, loan, or otherwise transfer the Software. You shall not, and you shall not permit any third party, to reverse engineer, decompile, or disassemble the Software, except to the extent that applicable law expressly prohibits the foregoing restriction. You may not remove or destroy any product identification, copyright notices, or other proprietary markings or restrictions from the Software. All titles, trademarks, and copyright and restricted rights notices shall be reproduced on your back up copy of the Software. You may not modify or adapt the Software, merge the Software into another program or create derivative works based upon the Software.
4. Termination of certain functionality. The Software may contain components of certain licensed software including software licensed from Microsoft Corporation ("Microsoft") which implements Microsoft's digital rights management technology for Windows Media. Content providers are using the digital rights management technology for Windows Media ("WM-DRM") to protect the integrity of their content ("Secure Content") so that their intellectual property, including copyright, in such content is not misappropriated. Your Device may also use WM-DRM software to transfer or play Secure Content ("WM-DRM Software"). If the security of such WM-DRM Software is compromised, Microsoft may revoke (either on its own or upon the request of the owners of Secure Content ("Secure Content Owners") the WM-DRM Software's right to acquire new licenses to copy, store, transfer, display

and/or play Secure Content. Revocation does not alter the WM-DRM Software's ability to play unprotected content. A list of revoked WM-DRM Software is sent to your PC and/or your Device whenever you download a license for Secure Content. Microsoft may, in conjunction with such license, also download revocation lists onto your Device on behalf of Secure Content Owners, which may disable your Device's ability to copy, store, display, transfer, and/or play Secure Content. Secure Content Owners may also require you to upgrade some of the WM-DRM components distributed with this Software ("WM-DRM Upgrades") before accessing their content. When you attempt to play Secure Content, WM-DRM Software built by Microsoft will notify you that a WM-DRM Upgrade is required and then ask for your consent before the WM-DRM Upgrade is downloaded. WM-DRM Software built by SCREENEO INNOVATION SA may do the same. If you decline the upgrade, you will not be able to access Secure Content that requires the WM-DRM Upgrade; however, you will still be able to access unprotected content and Secure Content that does not require the upgrade. WM-DRM features that access the Internet, such as acquiring new licenses and/or performing a required WM-DRM Upgrade, can be switched off. When these features are switched off, you will still be able to play Secure Content if you have a valid license for such content already stored on your Device. However, you will not be able to use certain of the WM-DRM Software features that require Internet access such as the ability to download content that requires the WM-DRM Upgrade. All title and intellectual property rights in and to the Secure Content is the property of the respective Secure Content owners and may be protected by applicable copyright or other intellectual property laws and treaties. This Agreement grants you no rights to use such Secure Content. To summarize, if the Software contains Microsoft WM-DRM components – Secure Content you desire to download, copy, store, display, transfer, and/or play is protected by the Microsoft WM-DRM components of the Software. Microsoft, Secure Content Owners, or Secure Content distributors may deny you access, or restrict your access, to Secure Content even after you have paid for, and/or obtained, it. Neither your consent nor the consent or approval of SCREENEO INNOVATION SA is necessary for any of them to deny, withhold or otherwise restrict your access to Secure Content. SCREENEO INNOVATION SA does not guaranty that you will be able to download, copy, store, display, transfer, and/or play Secure Content.

1. Open Source Software. (a) This software may contain components that are subject to open-source terms. This Agreement does not apply to this software as such. More information can be found in the documentation. If applicable, source code which needs to be offered under the applicable open source licenses will be delivered upon request, please contact [e-mail] in English with product identification or for more information. (b) Your license rights under this Agreement do not include any right or license to use, distribute or create derivative works of the Software in any manner that would subject the Software to Open Source Terms. "Open Source Terms" means the terms of any license that directly or indirectly (1) create, or purport to create, obligations for SCREENEO INNOVATION SA with respect to the Software and/or derivative works thereof; or (2) grant, or purport to grant, to any third party any rights or immunities under intellectual property or proprietary rights in the Software or derivative works thereof.
2. Termination. This Agreement shall be effective upon installation or first use of the Software and shall terminate (i) at the discretion of SCREENEO INNOVATION SA, due to your failure to comply with any term of this Agreement; or (ii) upon destruction of all copies of the Software and related materials provided to you by SCREENEO INNOVATION SA hereunder. SCREENEO INNOVATION SA's rights and your obligations shall survive the termination of this Agreement.

WARRANTY CARD	GARANTIKORT	JAMSTVO KARTICE
GARANTIEKARTE	TAKUUKORTTI	ГАРАНТНИ ЛИСТ
CARTE DE GARANTIE	JÓTÁLLÁSI JEGY	ГАРАНТИЙНЫЙ ТАЛОН
TAGLIANDO DI GARANZIA	KARTA GWARANCYJNA	КАРТА ЕГГУНЗНЗ
GARANTIEBEWIJS	ZÁRUČNÍ LIST	GARANTI KARTI
TARJETA DE GARANTÍA	ZÁRUČNÝ LIST	CARTÃO DE GARANTIA
CARTÃO DE GARANTIA	CARTE DE GARANȚI	THĖ BẢО HÀNH
GARANTIKORT	ГАРАНЦИОННА КАРТА	KAD JAMINAN
GARANTIBEVIS	GARANCIJSKI LIST	ใบรับประกัน

Dear Customer, you may obtain a copy of the warranty conditions from the dealer, by downloading it from the internet or by contacting the customer support center. Please retain your sales receipt and the warranty card!

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

HIGH-DEFINITION MULTIMEDIA INTERFACE

FCC ID: 2ASRT-NPX130

FCC Warning

15.19 Labeling requirements.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

15.21 Information to user.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

15.105 Information to the user.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment.
3. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

SIMPLIFIED EU DECLARATION OF CONFORMITY FOR RADIO DEVICE

DE	Hiermit erklärt Screeneo Innovation SA, dass die Geräte in Übereinstimmung mit den Richtlinien 2014/53/EU, 2009/125/EG, 2011/65/EU sind. Der vollständige Wortlaut der EU-Konformitätserklärung steht unter folgender Internet Adresse zur Verfügung: www.philips.com
FR	Par la présente, Screeneo Innovation SA déclare que l’équipement est en conformité avec les directives 2014/53/EU, 2009/125/EC, 2011/65/EU. Le texte complet de la déclaration de conformité européenne est disponible à l’adresse internet suivante : www.philips.com
EN	Hereby, Screeneo Innovation SA declares that the equipment is in compliance with Directives 2014/53/EU, 2009/125/EC, 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: www.philips.com
IT	Con la presente, Screeneo Innovation SA dichiara che il prodotto è conforme alle direttive 2014/53/EU, 2009/125/EC e 2011/65/EU. Il testo completo della dichiarazione europea di conformità è disponibile al seguente link: www.philips.com
ES	Por medio de la presente, SCREENEO INNOVATION SA declara que el equipo cumple con las Directrices 2014/53/UE, 2009/125/CE, 2011/65/UE. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección Internet: www.philips.com
NL	Screeneo Innovation SA verklaart hiermee dat de uitrusting aan de Directieven 2014/53/EU, 2009/125/EC, 2011/65/EU voldoet. De volledige tekst van de EU-conformiteitsverklaring is terug te vinden op het volgende internetadres: www.philips.com
PT	A Screeneo Innovation SA declara que o equipamento está em conformidade com as Directivas 2014/53/UE, 2009/125/CE, 2011/65/UE. O texto integral da declaração de conformidade da UE está disponível através do seguinte endereço da Internet: www.philips.com
SW	Härmed , försäkrar Screeneo Innovation SA att utrustningen är i enlighet med direktiven 2014/53/EU, 2009/125/EG, 2011/65/EU. Den fullständiga texten av EU-försäkran om överensstämmelse finns på följande internetadress: www.philips.com
DK	Herved , erklærer Screeneo Innovation SA , at udstyret er i overensstemmelse med direktiv 2014/53/EU , 2009/125/EF , 2011/65/EU. Den fulde tekst af EU-overensstemmelseserklæringen er tilgængelig på følgende internetadresse : www.philips.com
NO	Screeneo Innovation SA erklærer herved at apparatene er i samsvar med direktivene 2014/53/EU, 2009/125/EG, 2011/65/EU. Den komplette teksten for EU-samsvarserklæringen er tilgjengelig på følgende internett-adresse: www.philips.com
FI	Screeneo Innovation SA vakuuttaa täten, että laitteisto täyttää direktiivien 2014/53/EY, 2009/125/EY, 2011/65/EY vaatimukset. Täydellinen EY-vaatimustenmukaisuusvakuutus on luettavissa seuraavasta verkko-osoitteesta: www.philips.com
CZ	Společnost Screeneo Innovation SA tímto prohlašuje, že toto zařízení odpovídá požadavkům směrnic 2014/53/EU, 2009/125/ES a 2011/65/EU. Celý text prohlášení o shodě platném pro EU je k dispozici na následující internetové adrese: www.philips.com
SK	Týmto spoločnost Screeneo Innovation SA prehlasuje, že vybavenie je v súlade s normami 2014/53/EÚ, 2009/125/ES, 2011/65/EÚ. Kompletný text vyhlásenia o zhode s EÚ je dostupný na nasledujúcej internetovej adrese: www.philips.com
HU	Screeneo Innovation SA ezennel kijelenti, hogy a készülék teljesíti a 2014/53/EU, 2009/125/EC, 2011/65/EU irányelveket. Az EU megfelelősségi nyilatkozat teljes szövege a következő internet címen érhető el: www.philips.com
PL	Niniejszym Screeneo Innovation SA deklaruje, že urządzenia są zgodne z wymogami dyrektyw 2014/53/UE, 2009/125/WE, 2011/65/UE. Pełny tekst deklaracji zgodności UE jest dostępny na następujęcej stronie internetowej: www.philips.com
TR	Bu vesile ile Screeneo Innovation SA, Cihaz Direktifleri 2014/53/EU, 2009/125/EC, 2011/65/EU ile uyumlu olduğunu beyan eder. AB uygunluk beyani tam metni aşağıdaki internet adresinde mevcuttur: www.philips.com
GR	Đια του парóvtос, η Screeneo Innovation SA δηλώνει ότι ο εξοπλισμός έχει συμμορφωθεί με τις οδηγίες 2014/53/EU, 2009/125/EC, 2011/65/EU. Олóклпро то кείμενο της Ευρωπαϊκής δήλωσης συμμόρφωσης είναι διαθέσιμο στην ακόλουθη διεύθυνση Internet: www.philips.com
RO	Prin prezenta, Screeneo Innovation SA declara ca echipamentul este in conformitate cu Directivele Europene 2014/53/EU, 2009/125/EC, 2011/65/EU. Textul integral al declaratiei de conformitate UE este disponibil la urmatoarea adresa de internet: www.philips.com
BG	С настоящото, Screeneo Innovation SA декларира, че оборудването е в съответствие с директиви 2014/53/EC, 2009/125/EO, 2011/65/EC. Пълният текст на EC декларацията за съответствие е достъпна на следния интернет адрес: www.philips.com
HR	Screeneo Innovation SA ovim putem izjavljuje da je oprema uskladena sa smjernicama 2014/53/EU, 2009/125/EC, 2011/65/EU. Puni tekst EU deklaracije usklađenosti dostupan je na sljedećoj internoj adresi: www.philips.com
RS	Ovim Screeneo Innovation SA izjavljuje da su uređaji usaglašeni sa direktivama 2014/53/EU, 2009/125/EG, 2011/65/EU. Kompletan tekst EU izajve o usaglašenosti je dostupan na sledećoj internet adresi: www.philips.com

Screeneo Innovation SA

Route de Lully 5C

1131 - Tolochenaz - Switzerland

www.philips.com/welcome

[e-mail]

EUROPEAN Service Center:

Euro Repair Center

Europa-Allee-77

54343 Föhren

Germany

NORTH AMERICA Service Center:

Cooper General Global Services, Inc.

Attn: Screeneo/Philips

8501 NW 17th Street,

Suite 102 (Docks 32 - 33)

Doral, FL 33126, USA

Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips

N.V. and are used under license.

This product has been manufactured by

and is sold under the responsibility of

Screeneo Innovation SA, and Screeneo

Innovation SA is the warrantor in relation to this product.

2024 © Screeneo Innovation SA

All rights reserved
