USER MANUAL BIG BANG-XPOWER 2 MSI

Big Bang-XPower II series

MS-7737 (v1.x) Mainboard

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks in this manual are properties of their respective owners.

MSI® is registered trademark of Micro-Star Int'l Co., Ltd.
NVIDIA® is registered trademark of NVIDIA Corporation.
ATI® is registered trademark of AMD Corporation.
AMD® is registered trademarks of AMD Corporation.
Intel® is registered trademarks of Intel Corporation.
Windows® is registered trademarks of Microsoft Corporation.
AMI is registered trademark of American Megatrends Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
Sound Blaster® is registered trademark of Creative Technology Ltd.
Realtek® is registered trademark of Realtek Semiconductor Corporation.
- JMicron® is registered trademark of JMicron Technology Corporation.
Netware® is registered trademark of Novell, Inc.
Lucid® is trademark of LucidLogix Technologies, Ltd.
VIA® is registered trademark of VIA Technologies, Inc.
■ ASMedia® is registered trademark of ASMedia Technology Inc.
iPad, iPhone, and iPod are trademarks of Apple Inc.

Revision History

Revision	Revision History	Date
V1.0	First release	2011/12

Technical Support

If a problem arises with your system and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/service/download
Contact our technical staff at: http://support.msi.com

Safety Instructions

Always read the safety instructions carefully.
- Keep this User's Manual for future reference.
- Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
- The openings on the enclosure are for air convection hence protects the equipment from overheating. DO NOT COVER THE OPENINGS.
- Make sure the voltage of the power source is at 110/220V before connecting the equipment to the power inlet.
- Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
Always Unplug the Power Cord before inserting any add-on card or module.
All cautions and warnings on the equipment should be noted.
- Never pour any liquid into the opening that can cause damage or cause electrical shock.
If any of the following situations arises, get the equipment checked by service personnel:

The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work according to User's Manual.
The equipment has been dropped and damaged.
The equipment has obvious sign of breakage.

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT ABOVE 60^ (140^) IT MAY DAMAGE THE EQUIPMENT.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7737

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause undesired operation.

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

廢電池請回收

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.

For further information please visit:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

CAUTION: There is a risk of explosion, if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmptrtt_pcm.html

BSMI EMI 聲明

警告使用者：

WEEE (Waste Electrical and Electronic Equipment) Statement

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment

will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

Mainboard Specifications

Processor Support

Intel® processors for the LGA2011 package (For the latest information about CPU, please visit http://www.msi.com/service/cpu-support)

Chipset

Intel® X79 chipset

Memory Support

• 8x DDR3 DIMMs support DDR3 2400(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066 DRAM (128GB Max)
  Supports Quad-Channel mode (OC = OverClocking, for more information on compatible components, please visit http://www.msi.com/service/test-report)

LAN

Supports Dual LAN 10/100/1000 Fast Ethernet by Intel® 82579V and 82574L

IEEE 1394

Integrated chip by VIA® VT6315N
Supports 1x IEEE 1394 port (back panel) & 1x IEEE 1394 connector

Audio

Integrated HD audio codec by Realtek® ALC892
8-channel audio with jack sensing

SATA

2x SATA 6Gb/s ports (SATA1~2) by Intel® X79
4x SATA 3Gb/s ports (SATA3~6) by Intel® X79
4x SATA 6Gb/s ports by AsMedia 1061

RAID

SATA1~6 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel® X79

USB 3.0

4x USB 3.0 rear IO ports by NEC D720200
2x USB 3.0 onboard connectors by NEC D720200

Multi-GPU

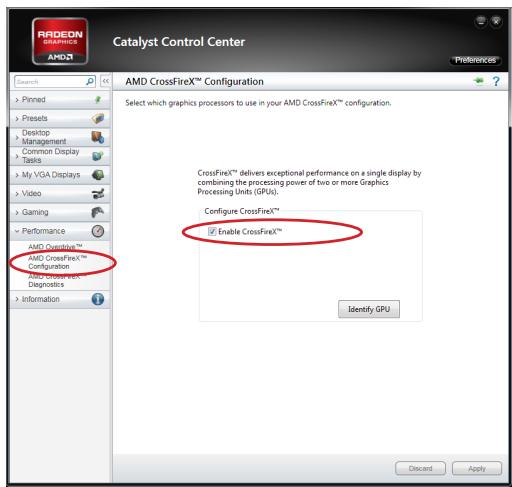

Supports ATI® CrossFireX™ Technology

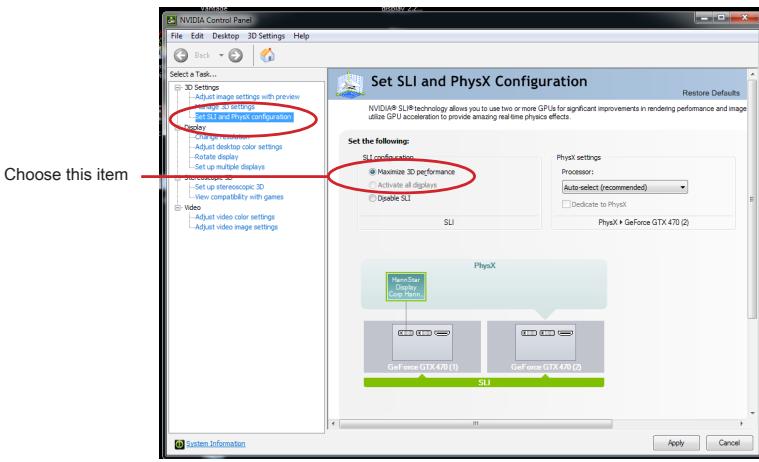

Supports NVIDIA® SLITM Technology

Connectors & Buttons

Back panel

• 1x PS/2 keyboard/ mouse port
• 1x Clear CMOS button
• 1x Coaxial S/PDIF-out port
• 1x Optical S/PDIF-out port
• 1x IEEE 1394 port
• 6x USB 2.0 ports
• 4x USB 3.0 ports
• 2x LAN ports
• 6x audio ports

On-Board

• 2x USB 2.0 connectors
• 1x USB 3.0 connector
• 1x IEEE 1394 connector
• 1x Front Panel Audio connector
• 1x Chassis Intrusion connector
• 1x Voice Genie connector (optional)
• 1x MultiConnect Panel connector (optional)
• 1x Power button
• 1x Reset button
• 1x OC Genie button
• 1x Multi BIOS button
• 2x Base clock buttons

Slots

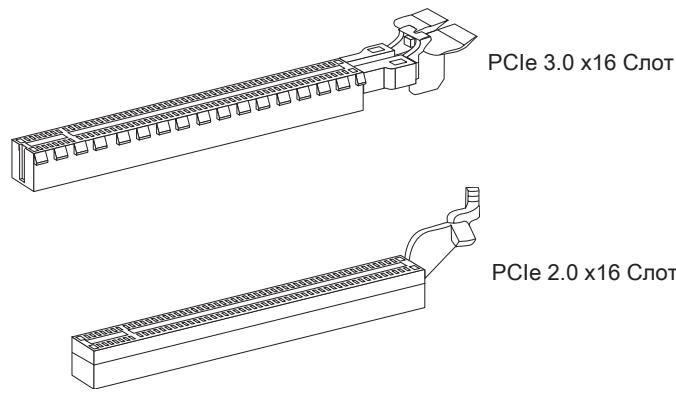

• 4x PCIe 3.0 x16 slots (PCI_E1, PCI_E3, PCI_E5, PCI_E7)

-PCI_E1 supports up to PCIe 3.0 x16 speed
- PCI_E5 supports up to PCIe 3.0 x16 speed (when PCI_E3 is empty) or PCIe 3.0 x8 speed (when PCI_E3 is installed)
-PCI_E3,PCI_E7 support up to PCIe 3.0 x8 speed

• 3x PCIe 2.0 x16 slots (PCI_E2, PCI_E4, PCI_E6)

-PCI_E2,PCI_E4,PCI_E6 support up to PCIe 2.0 x1 speed

Form Factor

XL-ATX (34.5 cm X 26.4 cm)

Mounting Screw Holes

12x mounting holes

If you need to purchase accessories and request the part numbers, you could search the product web page and find details on our web address below

http://www.msi.com/index.php

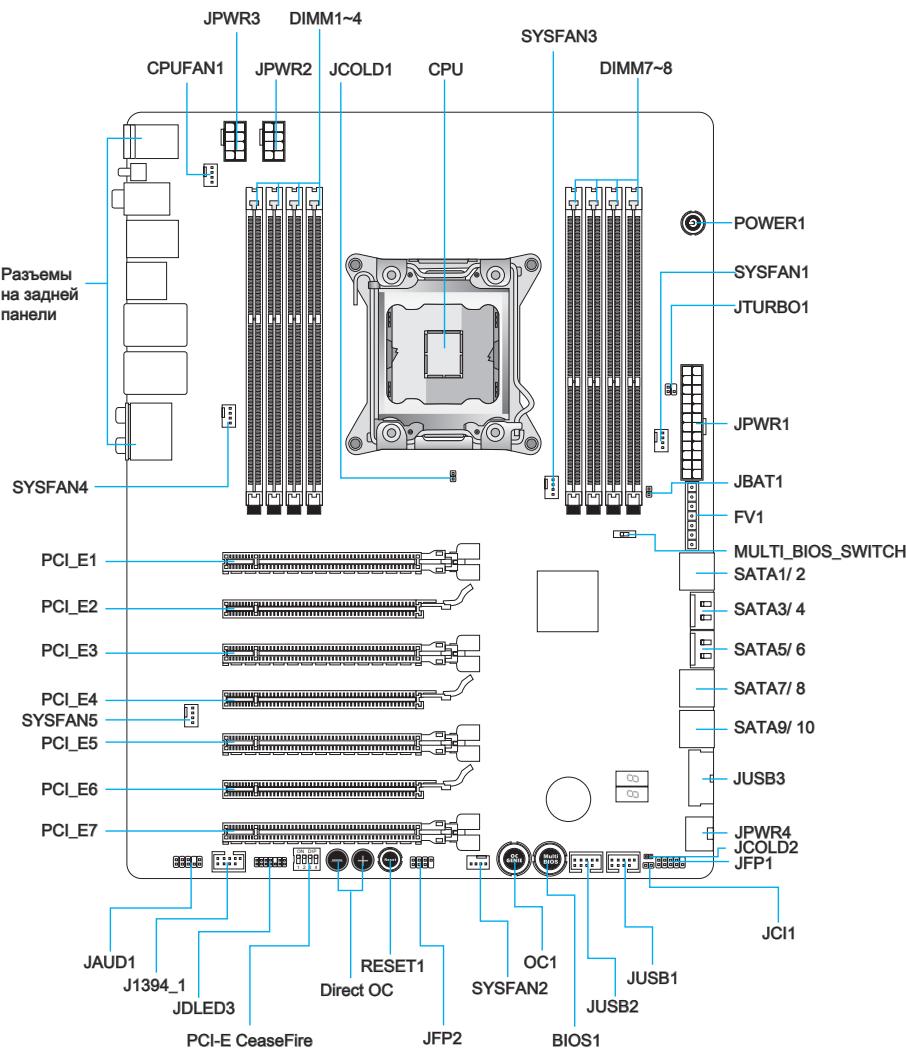

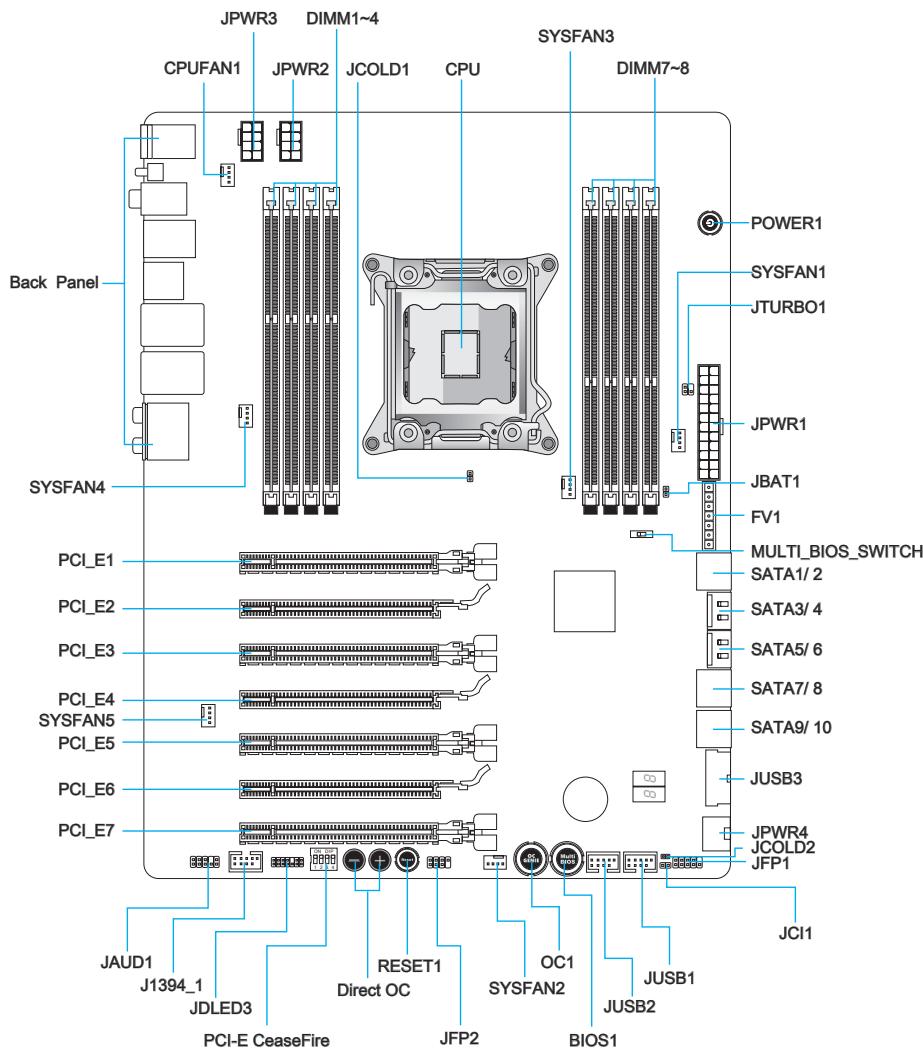

Connectors Quick Guide

Connectors Reference Guide

Port Name	Port Type	Page
Back Panel		En-6

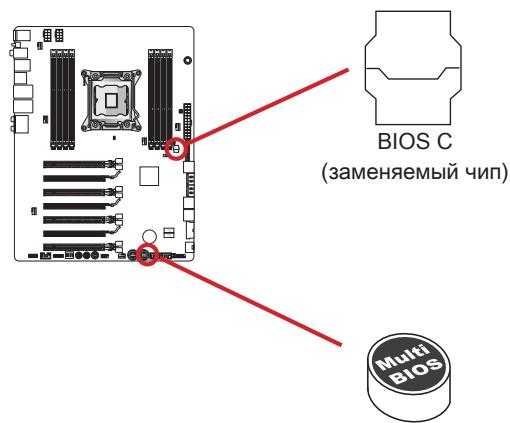

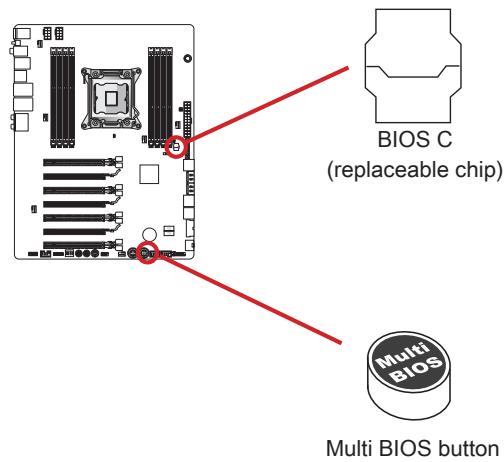

BIOS1	Multi BIOS Button	En-34
CPU	LGA2011 CPU Socket	En-8
CPUFAN1,SYSFAN1~5	Fan Power Connectors	En-25

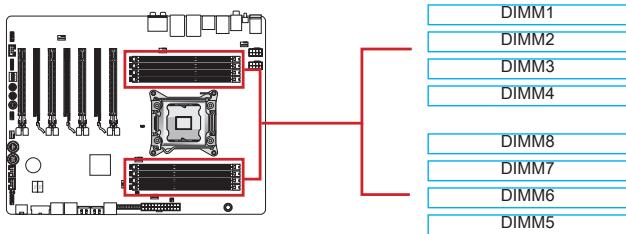

DIMM1~8	DDR3 Memory Slots	En-14
FV1	Voltage Checkpoints Connector	En-31

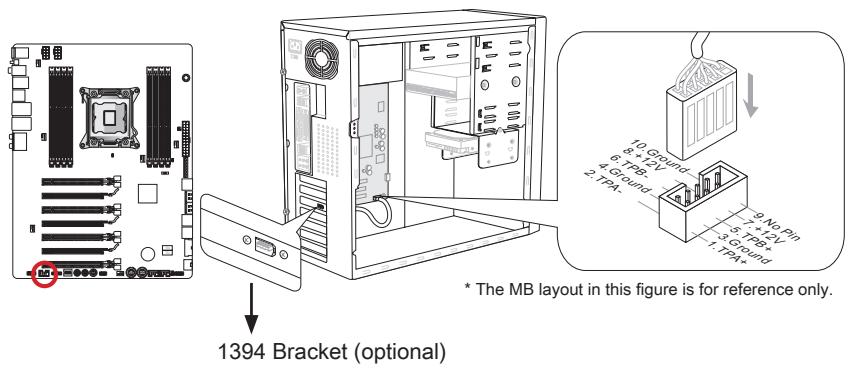

J1394_1	IEEE1394 Expansion Connector	En-28

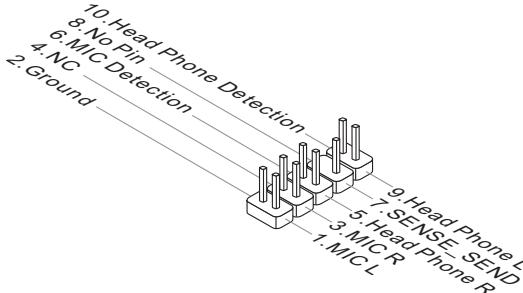

JAUD1	Front Panel Audio Connector	En-26
JBAT1	Clear CMOS Jumper	En-35
JCI1	Chassis Intrusion Connector	En-29
JCOLD1, JCOLD2	Low Temperature Booting Jumpers	En-35

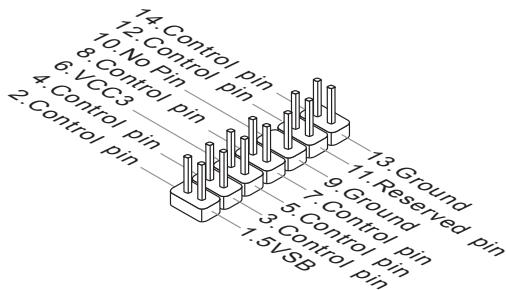

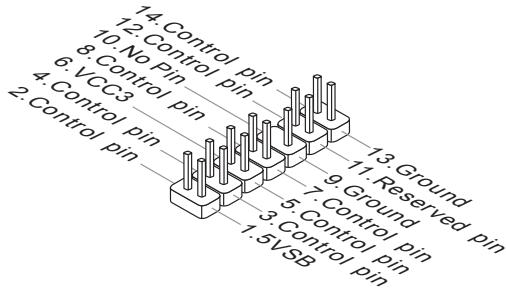

JDLED3	Voice Genie Connector	En-29

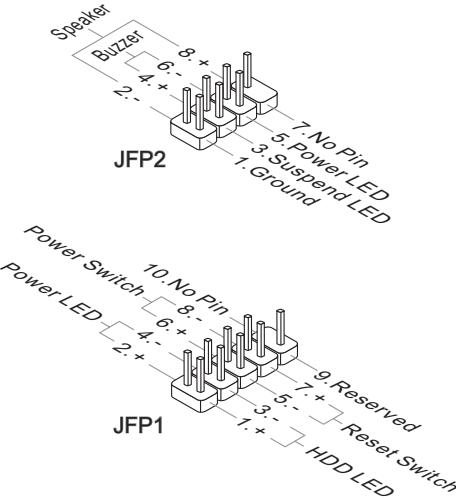

JFP1, JFP2	Front Panel Connectors	En-26
JPWR1	ATX 24-pin Power Connector	En-13
JPWR2, JPWR3	ATX 8-pin Power Connectors	En-13
JPWR4	ATX 6-pin Power Connector	En-13
JTURBO1	MultiConnect Panel Connector	En-30

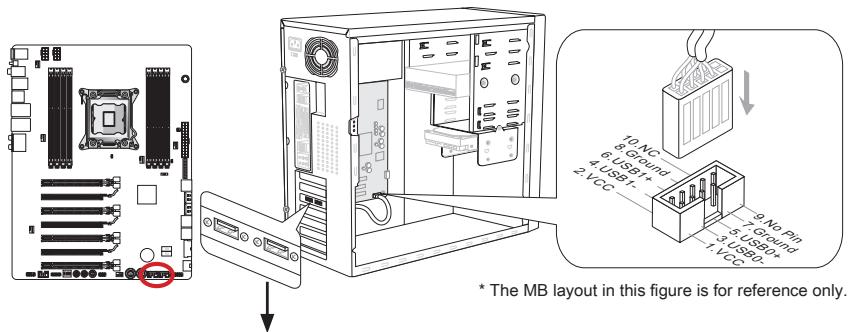

JUSB1, JUSB2	USB 2.0 Expansion Connectors	En-27

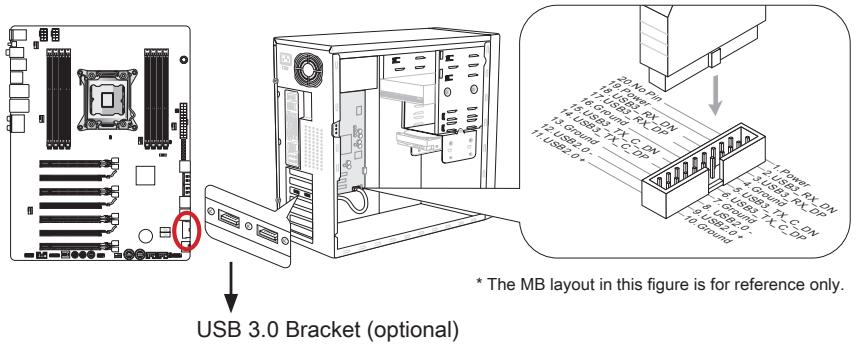

JUSB3	USB 3.0 Expansion Connector	En-28
MULTI BIOS SWITCH	Multi BIOS Switch	En-36
OC Genie	OC Genie Button	En-32

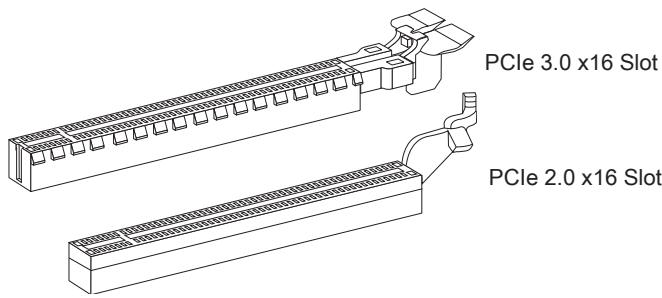

PCI_E1~7	PCIe x16 Expansion Slots	En-18

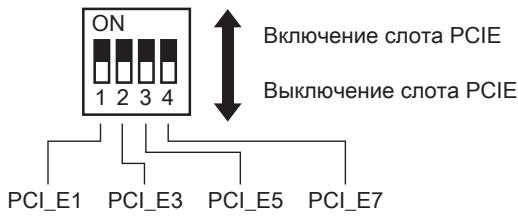

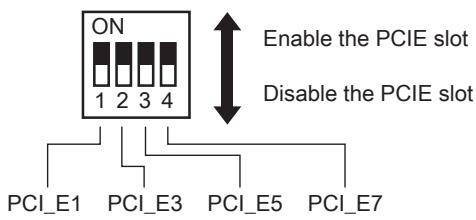

PCI-E CeaseFire Switch	PCI-E CeaseFire Switch	En-36
Plus, Minus	Base Clock Control Buttons	En-33
POWER1	Power Button	En-33
RESET1	Reset Button	En-33

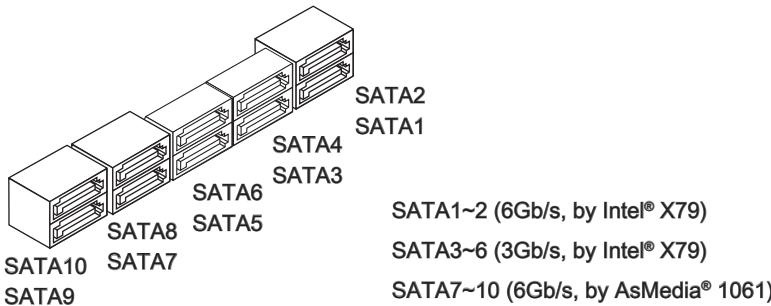

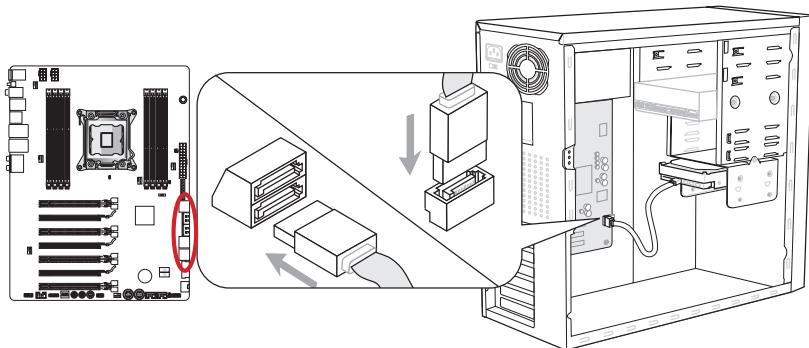

SATA1~2, SATA7~10	SATA 6Gb/s Connectors	En-24
SATA3~6	SATA 3Gb/s Connectors	En-24

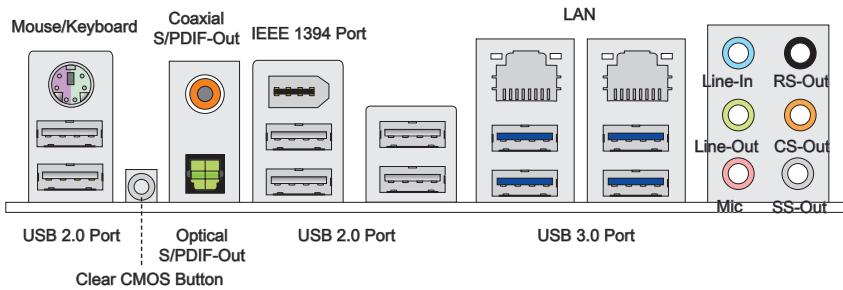

Back Panel Quick Guide

Mouse/Keyboard

A combination PS/2® mouse/keyboard DIN connector for a PS/2® mouse/keyboard.

> Clear CMOS Button

There is CMOS RAM present on board that is powered by an external battery to store system configuration data. Using CMOS RAM, the system can automatically boot into the operating system (OS) every time it is turned on. If you wish to clear the system configuration, press the button to clear the data.

Important

• Please make sure that the system is powered off (G3 state), before clearing CMOS data.

After clearing CMOS data, the system will automatically boot.

Coaxial S/PDIF-Out

This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for digital audio transmission to external speakers through an coaxial cable.

Optical S/PDIF-Out

This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for digital audio transmission to external speakers through an optical fiber cable.

IEEE 1394 Port

The IEEE 1394 port on the I/O panel provides connection to IEEE 1394-compatible devices.

USB 2.0 Port

The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other USB 2.0-compatible devices.

USB 3.0 Port

USB 3.0 port is backward-compatible with USB 2.0 devices. It supports data transfer rate up to 5 Gbit/s (SuperSpeed).

Important

In order to use USB 3.0 devices, you must connect to a USB 3.0 port. If a USB cable is used, it must be USB 3.0 compliant.

LAN

The standard RJ-45 LAN jack is for connecting to a Local Area Network (LAN).

LED	Color	LED State	Condition
Left	Yellow	Off	LAN link is not established.
		On(Steady)	LAN link is established.
		On(FLASHING)	The computer is communicating with another computer on the network.
Right	Green	Off	10 Mbits/sec data rate
		On	100 Mbits/sec data rate
	Orange	On	1000 Mbits/sec data rate

Audio Ports

These connectors are used for audio devices. The color of the jack refers to the function of the connector.

Blue-Line in: Used for connecting external audio outputting devices.
- Green- Line out: Used as a connector for speakers or headphone.
Pink-Mic:Used as a connector for a microphone.
- Black- RS-Out: Rear surround sound line out in 4/5.1/7.1 channel mode.
Orange-CS-Out: Center/subwoofer line out in 5.1/7.1 channel mode.
Gray-SS-Out: Side surround sound line out in 7.1 channel mode.

CPU (Central Processing Unit)

Introduction to the LGA2011 CPU

The surface of the LGA2011 CPU has four alignment keys and a yellow triangle to assist in correctly lining up the CPU for mainboard placement. The yellow triangle is the Pin 1 indicator.

Yellow triangle is the Pin 1 indicator

Alignment Key

Important

Overheating

Overheating can seriously damage the CPU and mainboard. Always make sure the cooling fans work properly to protect the CPU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.

Replacing the CPU

When replacing the CPU, always turn off the system's power supply and unplug the power supply's power cord to ensure the safety of the CPU.

Overclocking

This mainboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommend. MSI does not guarantee the damages or risks caused by inadequate operation beyond product specifications.

CPU & Cooler Installation

When installing a CPU, always remember to install a CPU cooler. A CPU cooler is necessary to prevent overheating and maintain system stability. Follow the steps below to ensure correct CPU and CPU cooler installation. Wrong installation can damage both the CPU and the mainboard.

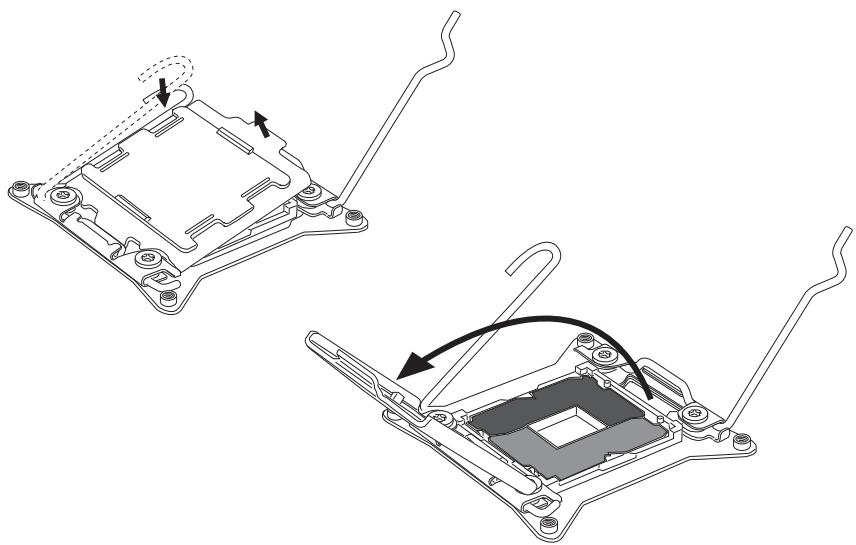

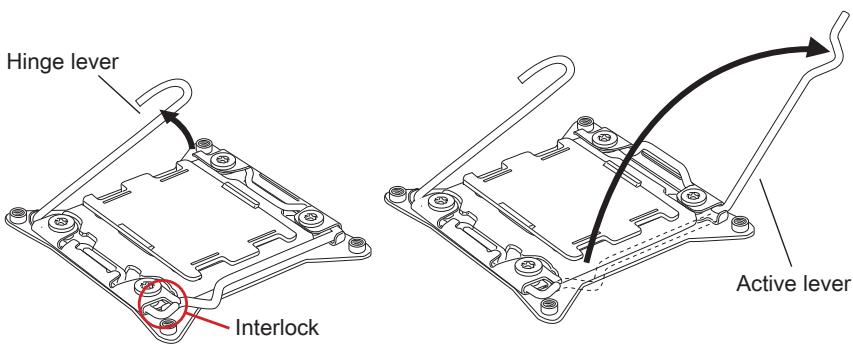

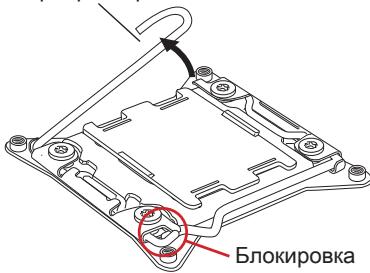

1. Open hinge lever. You can identify the hinge lever as below shown, it with a interlocking feature on the other end.

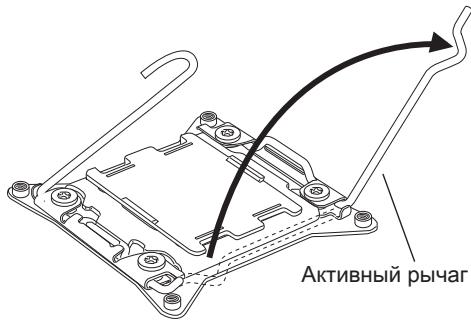

2. Open active lever.

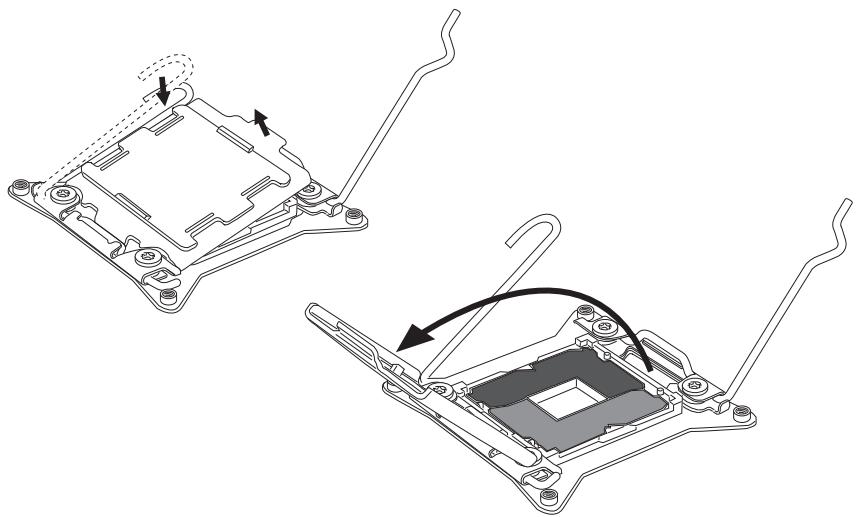

1. Open the load plate by pushing down on the hinge lever.
2. Grasp the tab, only it has risen away from the socket, open load plate to full open position.

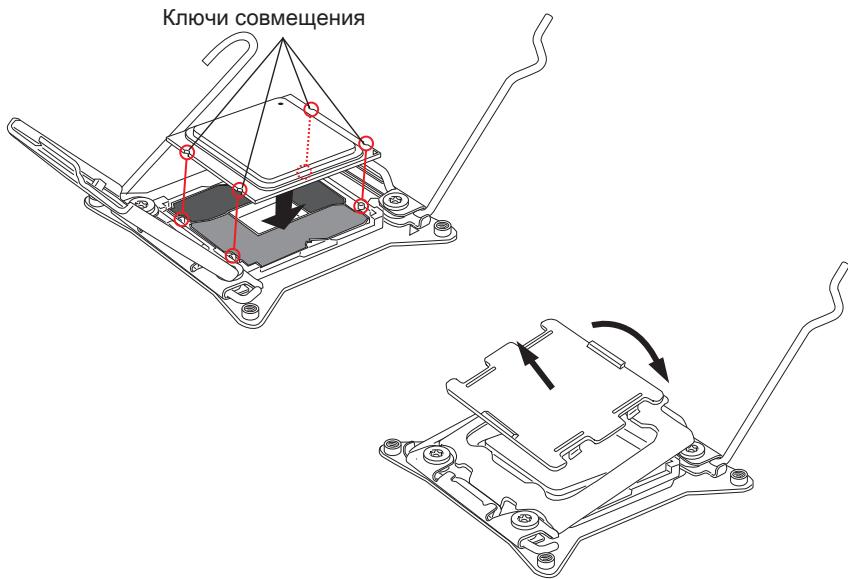

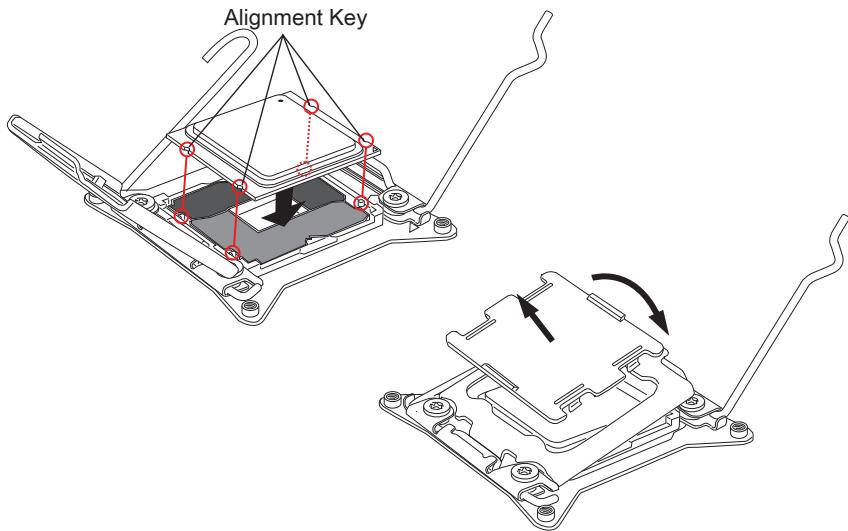

1. Line up the CPU to fit the CPU socket. Be sure to hold the CPU by the base with the metal contacts facing downward. The alignment keys on the CPU will line up with the edges of the CPU socket to ensure a correct fit.
2. Carefully close the load plate and remove the plastic protective cap.

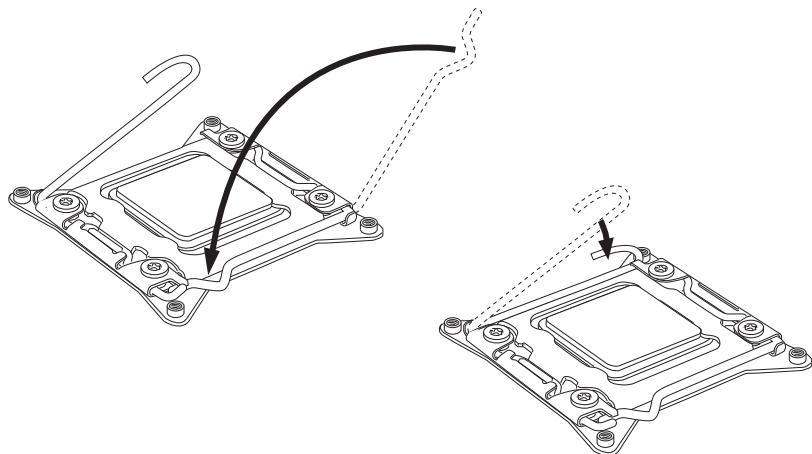

1. Close the active lever with a smooth uniform motion and latch to the socket.
2. Close the hinge lever with a smooth uniform motion and latch to the socket.

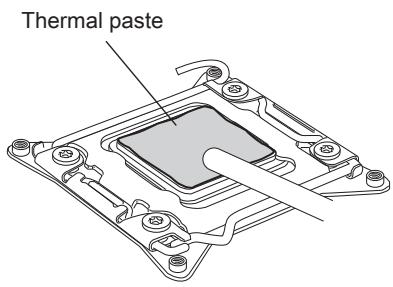

1. Evenly spread a thin layer of thermal paste (or thermal tape) on the top of the CPU. This will help in heat dissipation and prevent CPU overheating.
2. Locate the CPU fan connector on the mainboard.

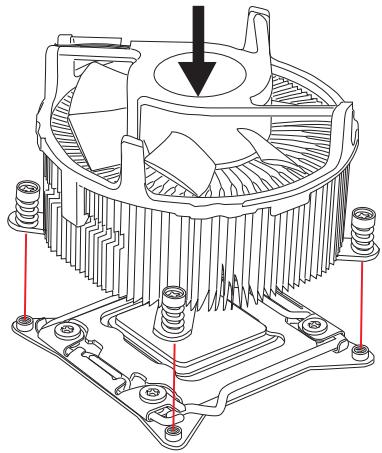

1. Place the heatsink on the mainboard with the fan's wires facing towards the fan connector and the screws matching the holes on the socket.

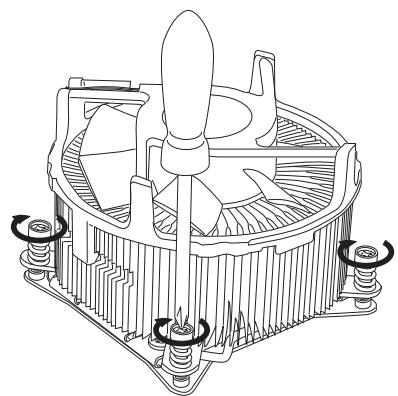

2. Using a screwdriver tighten the four captive screws (9 inch-pounds).

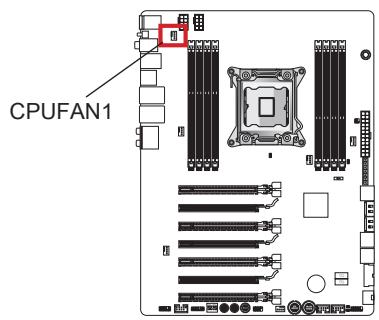

1. Finally, attach the CPU fan cable to the CPU fan connector on the mainboard.

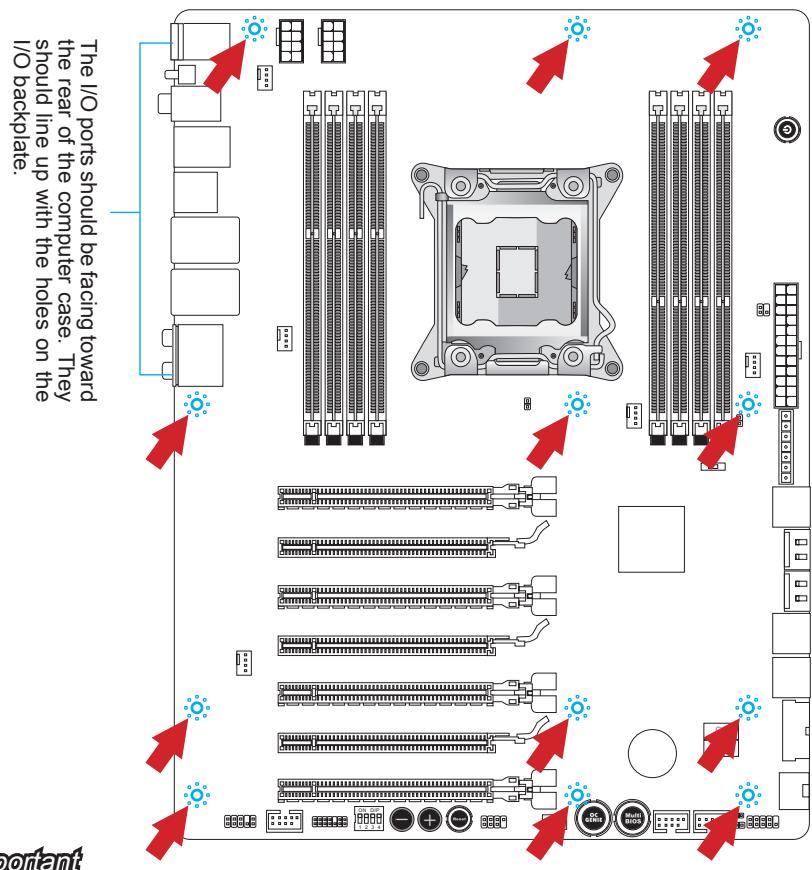

Mounting Screw Holes

When installing the mainboard, first install the necessary mounting stands required for an mainboard on the mounting plate in your computer case. If there is an I/O back plate that came with the computer case, please replace it with the I/O backplate that came with the mainboard package. The I/O backplate should snap easily into the computer case without the need for any screws. Align the mounting plate's mounting stands with the screw holes on the mainboard and secure the mainboard with the screws provided with your computer case. The locations of the screw holes on the mainboard are shown below. For more information, please refer to the manual that came with the computer case.

Important

• Install the mainboard on a flat surface free from unnecessary debris.
• To prevent damage to the mainboard, any contact between the mainboard circuitry and the computer case, except for the mounting stands, is prohibited.
• Please make sure there are no loose metal components on the mainboard or within the computer case that may cause a short circuit of the mainboard.

Power Supply

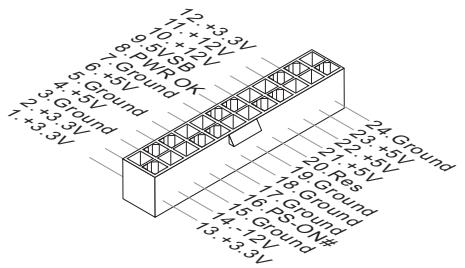

JPWR1:ATX24-pinPowerConnector

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, align the power supply cable with the connector and firmly press the cable into the connector. If done correctly, the clip on the power cable should be hooked on the mainboard's power connector.

JPWR2, JPWR3: ATX 8-pin Power Connectors

These connectors provide 12V power to the CPU.

JPWR4:ATX6-pinPowerConnector

This connector provides power to the graphics card.

Important

Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the mainboard.

Memory

These DIMM slots are used for installing memory modules. For more information on compatible components, please visit http://www.msi.com/service/test-report

Up to Quad-Channel mode

This mainboard supports up to four memory channels. Two DIMM slots provide a single channel. The memory modules can transmit and receive data with four data bus channels simultaneously to enhance system performance. Please refer the following tables for more details.

Defined Channel list
Channel	DIMM Slot
Channel A	DIMM1, DIMM2
Channel B	DIMM3, DIMM4
Channel C	DIMM5, DIMM6
Channel D	DIMM7, DIMM8

Important

• DDR3 memory modules are not interchangeable with DDR2, and the DDR3 standard is not backward compatible. Always install DDR3 memory modules in DDR3 DIMM slots.
• Always insert memory modules in the DIMM1 slot first.
• Due to chipset resource usage, the system will only detect up to 127+ GB of memory (not full 128 GB) when all DIMM slots have 16GB memory modules installed.

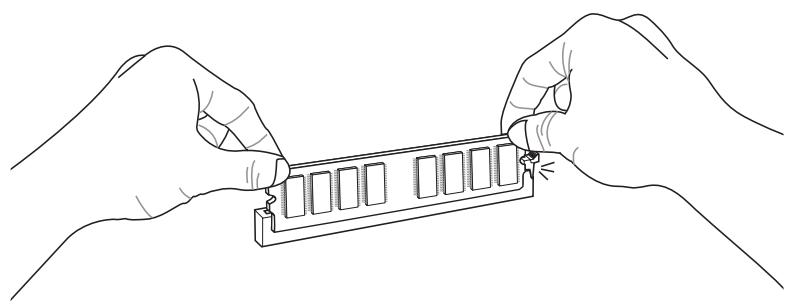

Installing Memory Modules

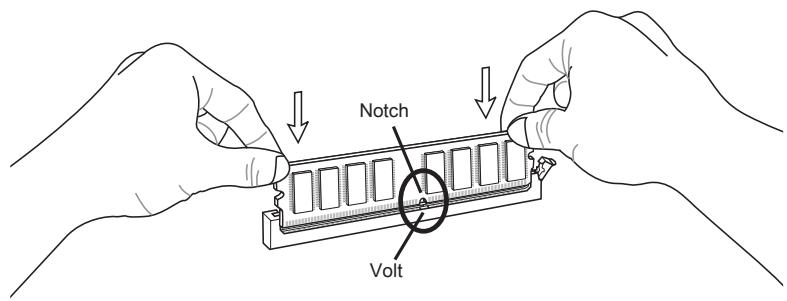

1. Unlock the DIMM slot by pushing the mounting clip to the side. Vertically insert the memory module into the DIMM slot. The memory module has an off-center notch on the bottom that will only allow it to fit one way into the DIMM slot.
2. Push the memory module deep into the DIMM slot. The plastic clip at side of the DIMM slot will automatically close when the memory module is properly seat and an audible click should be heard.
3. Manually check if the memory module has been locked in place by the DIMM slot's side clip.

Suggestions for Multi-Channel mode population rule

Dual-Channel mode
Installed DIMMs(2 memory modules)	Diagram
DIMM1, DIMM3orDIMM1, DIMM5orDIMM1, DIMM7	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5

Triple-Channel mode
Installed DIMMs(3 memory modules)	Diagram
DIMM1, DIMM3, DIMM5orDIMM1, DIMM5, DIMM7orDIMM1, DIMM3, DIMM7	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5or	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5or	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5or
Installed DIMMs(6 memory modules)	Diagram
DIMM1, DIMM2, DIMM3, DIMM4, DIMM5, DIMM6orDIMM1, DIMM2, DIMM3, DIMM4, DIMM7, DIMM8orDIMM1, DIMM2, DIMM5, DIMM6, DIMM7, DIMM8	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5or	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5or	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5or

Quad-Channel mode
Installed DIMMs(4 memory modules)	Diagram
DIMM1, DIMM3, DIMM5, DIMM7	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5
Installed DIMMs(8 memory modules)	Diagram
DIMM1, DIMM2, DIMM3, DIMM4, DIMM5, DIMM6, DIMM7, DIMM8	DIMM1DIMM2DIMM3DIMM4DIMM8DIMM7DIMM6DIMM5

Important

To ensure system stability for multi-channel mode (Dual/ Triple/ Quad channel mode), memory modules must be of the same type, number and density. And for every channel, the odd number DIMM slot must to be installed first.

Expansion Slots

This mainboard contains numerous ports for expansion cards, such as discrete graphics or audio cards.

PCIe (Peripheral Component Interconnect Express) Slot

The PCIe slot supports the PCIe interface expansion card.

Important

When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card's documentation to check for any necessary additional hardware or software changes.

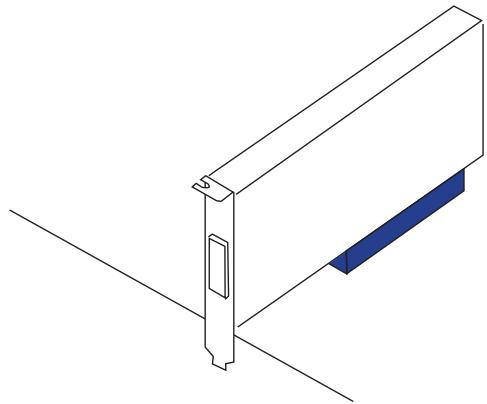

Video/ Graphics Cards

If available, this mainboard takes advantage of the CPU's integrate graphics processor, but discrete video cards can be installed by way of the mainboard's expansion slots. Adding on one or more discrete video cards will significantly boost the system's graphics performance. For best compatibility, MSI graphics cards are recommended.

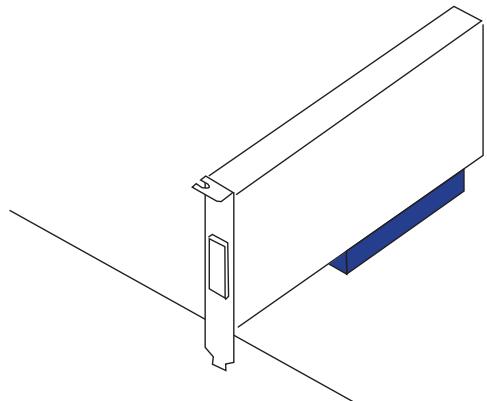

Single Video Card Installation

1. Determine what type of expansion slot(s) the video card will use. Locate the expansion slot(s) on the mainboard. Remove any protective expansion slot covers from the computer case.
2. Line up the video card on top of the expansion slot(s) with the display ports facing out of the computer case. For a single video card installation, using the PCI_E1 slot is recommended.
3. Push the video card into its expansion slot(s). Depending on the expansion slot(s) used, there should be clip(s) on the expansion slot(s) that will lock in place.
4. If needed, screw the edge of the graphics card to the computer case. Some video cards might require a power cable directly from the power supply.
5. Please consult your video card's manual for further instructions regarding driver installation or other special settings.

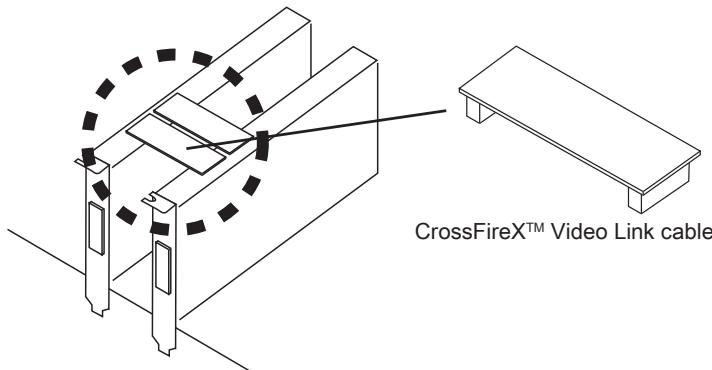

AMD CrossFireX™ (Multi-GPU) Technology

AMD CrossFireX™ is a multi-GPU performance gaming platform. By linking together two or more discrete GPUs, CrossFireX™ can significant improve system graphics performance. It allows the ability to scale a system's graphics power as needed, making it the most scalable gaming platform. This mainboard will automatically detect CrossFireX™ technology and make changes in the BIOS as needed. Follow the instructions below to ensure a successful two-way CrossFireX™ installation.

1. Install two AMD Radeon™ HD graphics cards into the PCI_E1 & PCI_E3 expansion slots.

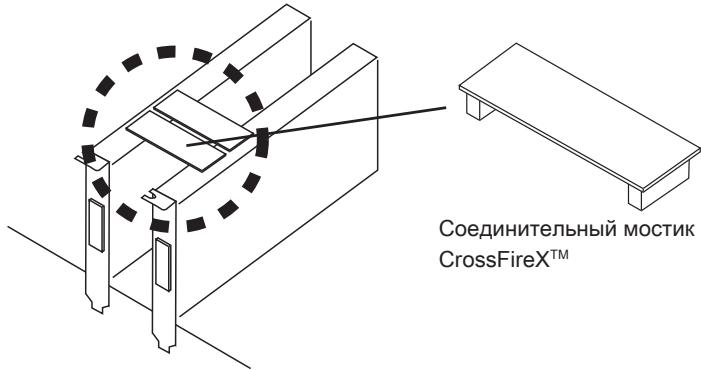

2. With the two cards installed, two CrossFire™ Video Link cable are required to connect the graphics cards. Attach one side of the cable on each of the cards by way of the metal contacts (please refer to the picture below). Please note that although two graphics cards have been installed, only the display ports on the graphics card installed in the first PCIe x16 slot will work. All displays should be connected to this graphics card.

Important

• Please ensure that all graphics cards used in CrossFire™ mode are of the same brand and specifications. For best compatibility with the mainboard, MSI graphics cards are recommended.
• Make sure to connect an adequate power supply to the power connectors on the graphics cards to ensure stable operation.

• Only Windows® XP with Service Pack 2 (SP2), Windows™ XP Professional x64 Edition, Windows™ Vista, & Windows™ 7 will support CrossFire™ mode.

• Boot up the computer and install the drivers and software included in your video card package. For more information, please refer to the manual that came with your video card.

• After all of the hardware and software has been properly installed, reboot the system. After entering the operating system (OS), right click on the desktop and choose the "Catalyst Control Center".

1. The CrossFireX™ setting must be enabled to allow CrossFireX™ mode to operate. The follow screen appears in the Catalyst Control Center. Depending on your operating system, the screen may look different.

Important

A CrossFire X^TM system has four possible display modes:

SuperTiling
- Scissor Mode
Alternate Frame Rendering
Super Anti-aliasing.

For more details, please consult the graphics card manual.

NVIDIA® SLI Technology

NVIDIA's SLI (Scalable Link Interface) technology allows two or more GPUs to run in tandem within a system to achieve significant graphics performance gains. To utilize this technology, the GPU cards must be connected by an SLI Video Link.

If you intend to use SLI mode, please follow the instructions below to properly set up SLI mode. The instructions below are meant for a two video card SLI configuration.

1. Install two NVIDIA graphics cards in the PCI_E1 and the PCI_E3 slots.

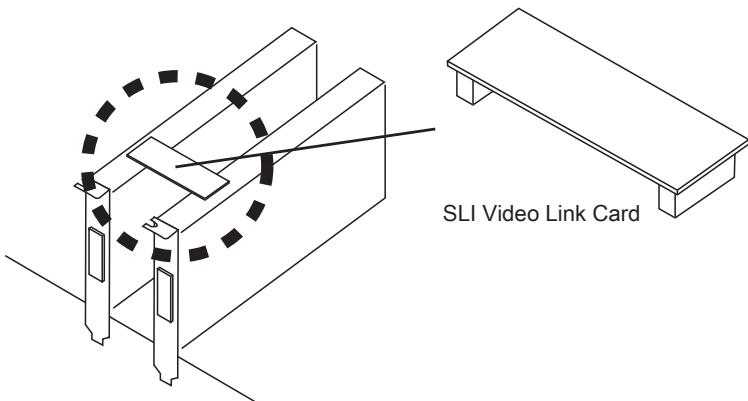

2. With the two cards installed, a SLI Video Link cable is required to connect the graphics cards. Attach one side of the cable on each of the cards by way of the metal contacts (please refer to the picture below). Please note that although two graphics cards have been installed, only the display ports on the graphics card installed in the first PCIe x16 slot will work. All displays should be connected to this graphics card.

1. Boot up the computer and install the drivers and software included in your video card package. For more information, please refer to the manual that came with your video card.

2. After all of the hardware and software has been properly installed, reboot the system. After entering the operating system (OS), right click on the desktop and choose the "NVIDIA Control Panel".

1. Enter the NVIDIA Control Panel. Choose the "Maximize 3D Performance" setting to enable SLI mode. The configuration screen is shown below. Depending on your operating system, the screen may look different.

Important

• Please ensure that all graphics cards used in SLI mode are of the same brand and specifications. For best compatibility with the mainboard, MSI graphics cards are recommended.
• Make sure to connect an adequate power supply to the power connectors on the graphics cards to ensure stable operation.
• If you wish to remove one graphics card and quit the SLI function, make sure the "Maximize 3D Performance" function is disabled before removing the graphics card.

Internal Connectors

SATA1~10: SATA Connectors

This connector is a high-speed SATA interface port. Each connector can connect to one SATA device. SATA devices include disk drives (HDD), solid state drives (SSD), and optical drives (CD/DVD/Blu-Ray).

* The MB layout in this figure is for reference only.

Important

• Many SATA devices also need a power cable from the power supply. Such devices include disk drives (HDD), solid state drives (SSD), and optical drives (CD / DVD / Blu-Ray). Please refer to the device's manual for further information.
• Many computer cases also require that large SATA devices, such as HDDs, SSDs, and optical drives, be screwed down into the case. Refer to the manual that came with your computer case or your SATA device for further installation instructions.
• Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.
• SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the mainboard for space saving purposes.

CPUFAN1,SYSFAN1~5:FanPowerConnectors

The fan power connectors support system cooling fans with +12V . If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with a speed sensor to take advantage of the CPU fan control. Remember to connect all system fans. Some system fans may not connect to the mainboard and will instead connect to the power supply directly. A system fan can be plugged into any available system fan connector.

Important

• Please refer to your processor's official website or consult your vendor to find recommended CPU cooling fans.
• These connectors support Smart fan control. The Control Center utility can be installed to automatically control the fan speeds according to temperature.
• If there are not enough ports on the mainboard to connect all system fans, adapters are available to connect a fan directly to a power supply.
• Before first boot up, ensure that there are no cables impeding any fan blades.

JFP1, JFP2: Front Panel Connectors

These connectors connect to the front panel switches and LEDs. The JFP1 connector is compliant with the Intel® Front Panel I/O Connectivity Design Guide. When installing the front panel connectors, please use the enclosed mConnectors to simplify installation. Plug all the wires from the computer case into the mConnectors and then plug the mConnectors into the mainboard.

Important

• On the connectors coming from the case, pins marked by small triangles are positive wires. Please use the diagrams above and the writing on the mConnectors to determine correct connector orientation and placement.
• The majority of the computer case's front panel connectors will primarily be plugged into JFP1.

JAUD1: Front Panel Audio Connector

This connector allows you to connect the front audio panel located on your computer case. This connector is compliant with the Intel® Front Panel I/O Connectivity Design Guide.

JUSB1, JUSB2: USB 2.0 Expansion Connectors

This connector is designed for connecting high-speed USB peripherals such as USB HDDs, digital cameras, MP3 players, printers, modems, and many others.

USB 2.0 Bracket (optional)

The JUSB1 (red mark) connector supports MSI's new SuperCharger technology which provides quicker USB charging of your cellular phone or other USB-powered devices. To enable this feature, please install the MSI SuperCharger application on your computer. When the SuperCharger application is turned on, the JUSB1 connector will convert data channels to extra power channels to quickly charge your connected device. Please note that when the SuperCharger application is turned on, data transmission and synchronization over the JUSB1 connector will not function. To enable the JUSB1 connector to function as a normal USB 2.0 connector, please turn off the SuperCharger application. When the computer is in stand-by or hibernation mode (S3/ S4/ S5) SuperCharger mode will automatically be enabled.

Important

• Note that the VCC and GND pins must be connected correctly to avoid possible damage.
• Please only connect one device per USB port to ensure stable charging.
• SuperCharger Technology is only available on select MSI mainboard models. Please refer to the MSI website to check if your mainboard has SuperCharger technology.
• For iPad, JUSB1 (red mark) can still charge iPad in S3, S4, S5 state.
• We recommend that don't disconnect the device when you charge it in S1 state.

JUSB3: USB 3.0 Expansion Connector

The USB 3.0 port is backwards compatible with USB 2.0 devices. It supports data transfer rates up to 5Gbits/s (SuperSpeed).

Important

• Note that the VCC and GND pins must be connected correctly to avoid possible damage.
• To use a USB 3.0 device, you must connect the device to a USB 3.0 port through an optional USB 3.0 compliant cable.

J1394_1: IEEE1394 Expansion Connector

This connector allows you to connect an IEEE 1394 device via an optional IEEE 1394 expansion bracket.

JCI1: Chassis Intrusion Connector

This connector connects to the chassis intrusion switch cable. If the computer case is opened, the chassis intrusion mechanism will be activated. The system will record this intrusion and a warning message will flash on screen. To clear the warning, you must enter the BIOS utility and clear the record.

JDLED3: Voice Genie Connector (optional)

This connector is used to link to the voice control module (optional). Please refer to its user guide for more details and usages.

JTURBO1: MultiConnect Panel Connector (optional)

This connector is used to connect an optional front panel for controlling the OC Genie and some additional functions. Please refer to its user guide for more details and usages.

FV1: Voltage Checkpoints Connector

These voltage checkpoint are used to measure the current system voltages. A multimeter (not included) will be required to check voltages. To check the voltage, please use the included voltage checkpoint cables included in the mainboard package. Attach the positive lead of the multimeter to the voltage checkpoint cable and the negative lead to the ground connector.

Point	Description
GND (pin 7)	Ground
PCH_1P1V (pin 6)	PCH 1.1 voltage. The PCH voltage is the voltage supplied to the platform Controller Hub.
DDR_C/D (pin 5)	Memory channel C and D voltage. The DDR memory voltage is the voltage supplied to the DDR memory modules on the mainboard. Lower memory timings may require higher voltages to maintain system stability.
DDR_A/B (pin 4)	Memory channel A and B voltage. Refer to the DDR_C/D.
CPU_SA (pin 3)	CPU system agent voltage (iMC). The CPU SA voltage is the voltage supplied to the iMC (integrated Memory Controller) on the CPU. Higher overclocks may require a higher CPU SA voltage to maintain stability.
CPU_IO (pin 2)	CPU IO voltage (Uncore). The CPU IO voltage is the voltage supplied to the Uncore on the CPU. Higher overclocks may require a higher CPU IO voltage to maintain stability.
CPU_CORE (pin 1)	CPU core voltage. The CPU voltage is the voltage suppoied to the CPU core. Higher overclocks may require higher CPU core voltages to maintain stability.

Buttons

The mainboard has numerous on-board buttons to control various functions. This section will explain how to change your mainboard's functions through the use of these on-board buttons.

OC Genie: OC Genie Button

This button is used to automatically overclock the system. Press this button once while the system is off to enable OC Genie. The button will lock remain depressed until it is pushed again to disable OC Genie. On the next boot, the OC Genie utility will automatically overclock the CPU settings to optimal performance values. To disable OC Genie, power off the system and press the OC Genie button again. The button will depress and the CPU configuration settings will return to normal values.

Important

• Please install DDR3 1333 or faster memory and equip a better heatsink/ cooler to use the OC Genie function.
• We do not guarantee the OC Genie overclocking range or the damages/risks caused by overclocking behavior.
• It is possible to disable the OC Genie function in the BIOS setup. Please refer to the BIOS section of the manual for instructions on how to turn off OC Genie from the BIOS.
• The usage of OC Genie is at the user's own risk. Overclocking is never guaranteed by MSI.
• To ensure successfully OC Genie usage, MSI components are recommended.

POWER1:PowerButton

This button is used to turn-on and turn-off the system. Press the button once to turn-on or turn-off the system.

RESET1: Reset Button

This reset button is used to reset the system. Press the button to reset the system.

Plus, Minus: Base Clock Control Buttons

These buttons are used to increase or decrease the Base clock frequency. Pressing the Plus/Minus button once will increase/ decrease the Base clock frequency 1 MHz when the system is in regular operation state.

Minus button

Plus button

BIOS1: Multi BIOS Button

This button can force the system to boot from BIOS C. BIOS C is a replacable chip that allows you to change the BIOS chip. If you don't want to boot from the BIOS A or B, press the button, the system will boot from the BIOS C.

Jumpers

JBAT1: Clear CMOS Jumper

There is CMOS RAM onboard that is external powered from a battery located on the mainboard to save system configuration data. With the CMOS RAM, the system can automatically boot into the operating system (OS) every time it is turned on. If you want to clear the system configuration, set the jumpers to clear the CMOS RAM.

Keep Data

Clear Data

Important

You can clear the CMOS RAM by shorting this jumper while the system is off. Afterwards, open the jumper. Do not clear the CMOS RAM while the system is on because it will damage the mainboard.

JCOLD1, JCOLD2: Low Temperature Booting Jumpers

These jumpers are used for liquid nitrogen cooling system to boot at an extreme low temperature. Try to set one or both jumpers to Enabled to increase the boot success rate.

JCOLD1
Disabled

Enabled

JCOLD2
Disabled

Enabled

Important

Users will try extreme low temperature overclocking at their own risks. The overclocking results will vary according to the CPU version.

Switch

MULTI BIOS SWITCH: Multi BIOS Switch

This mainboard has two built-in BIOS ROMs (Labeled A and B, default BIOS ROM is A). If one is crashed, you can shift to the other for booting by sliding the switch. In addition, these two BIOS ROMs do not have the Auto Recovery feature, you need to maintain or update the BIOS version by yourself.

BIOS recovery using the M-flash utility:

1. Ensure that the system is switched off.
2. Boot up the system with the operational BIOS ROM by switching the Multi-BIOS switch.
3. Enter the BIOS setup Utilities M-Flash Save BIOS to storage and then save the file to a bootable USB pen drive (root folder).
4. Switch back to the BIOS ROM that needs to be recovered.
5. Choose "Select one file to update BIOS" and recover the BIOS ROM with the file saved in the USB pen drive.

Important

Do not use the BIOS switch when system is booting up.

PCI-E CeaseFire Switch

The PCI-E CeaseFire switch can help you conveniently and directly control the installed graphics cards without removing the physical graphics cards.

Important

Avoid using the switches while the system is on; it will damage the mainboard.

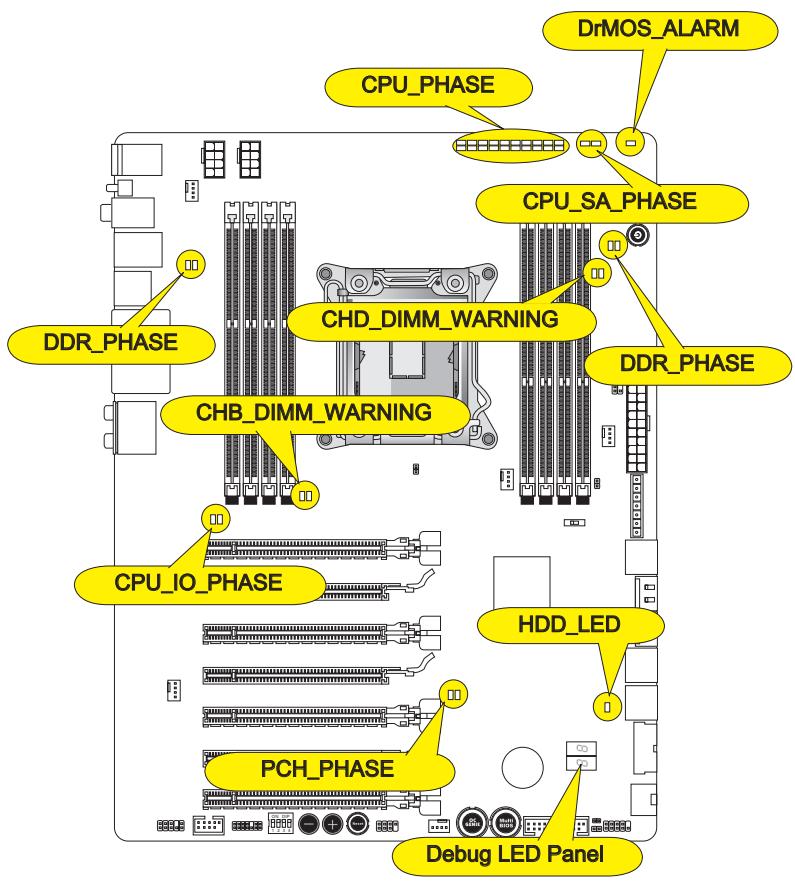

LED Status Indicators

CPU_PHASE

These LEDs will change according to CPU loading. The higher the power phase number, the more reliable the power flow to the processor.

CPU_SA_PHASE

These LEDs indicate the current CPU System Agent power phase mode.

CPU_IO_PHASE

These LEDs indicate the current CPU I/O power phase mode.

PCH_PHASE

These LEDs indicate the current PCH power phase mode.

DrMOS_ALARM

This LED will light when DrMOS overheat.

DDR_PHASE

These LEDs indicate the current memory power phase mode.

HDD_LED

This LED will flash whenever there's a disk activity.

CHB/ CHD_DIMM_WARNING

These LEDs will light when the installed memories in channel B (DIMM3/ DIMM4) and channel D (DIMM7/ DIMM8) do not meet the mainboard design.

Debug LED Panel

Please refer to the table below to get more information about the Debug LED message.

Post	Status
02,07	Power on CPU Initialization
03,08	Power on North Bridge Initialization
04,09	Power on South Bridge Initialization
0B	Power on Cache Initialization
11~14,32~36,56~5A	Early CPU Initialization
15~18,37~3A	Early North Bridge Initialization
19~1C,3B~3E	Early South Bridge Initialization
1D~2F,31,3F~4E,50~55	Early Memory Initialization
63~67,D0	Late CPU Initialization
69~6F,D1	Late North Bridge Initialization
70~77,D2	Late South Bridge Initialization
92~96,B5,D4	PCI bus Initialization
97,98,99,B2,D5~D7	Console Output/Input devices/Console initialization and Load Option ROM (VGA, RAID, parallel ports, serial ports......)
9A~A7,B4	Onboard devices Initialize and Detect (USB/ SATA/ SCSI......)
A8,A9,AB	Start of Setup. BIOS setup if needed/ requested.
AD/AE	Ready To Boot event/Legacy Boot event
AA	Enter OS (Windows® 7 or Windows® XP).

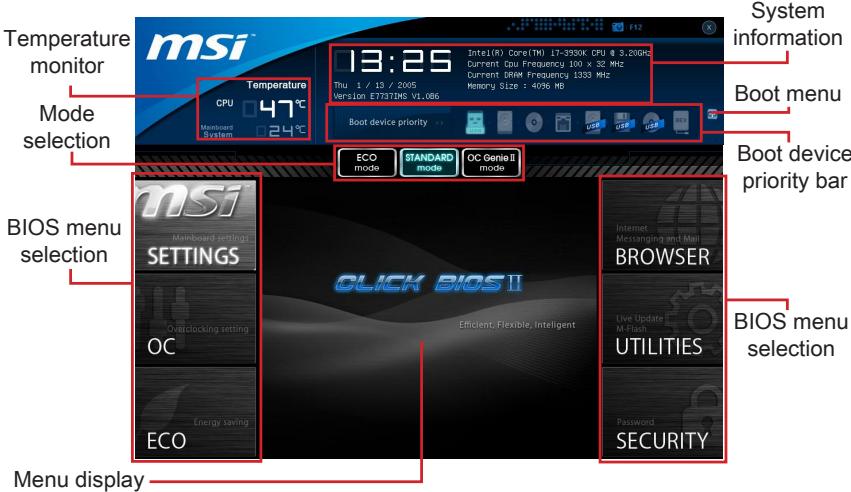

BIOS Setup

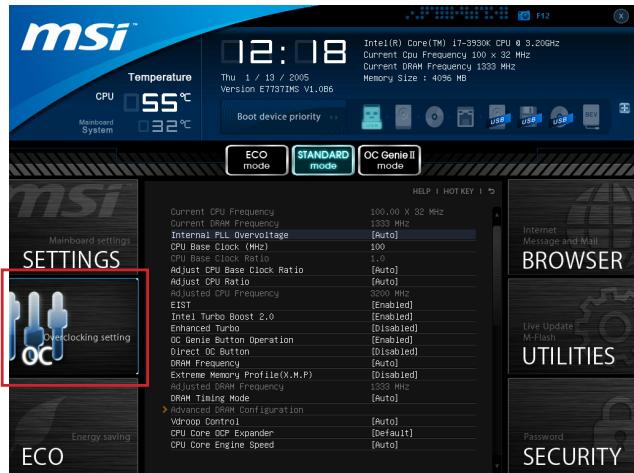

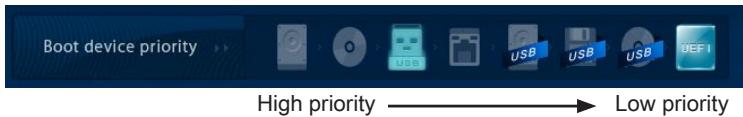

Click BIOS II is developed by MSI that provides a graphical user interface for setting parameters of BIOS by using the mouse and the keyboard.

With the Click BIOS II, users can change BIOS settings, monitor CPU temperature, select the boot device priority and view system information such as the CPU name, DRAM capacity, the OS version and the BIOS version. Users can import and export parameters data for backup or sharing with friends. After connecting to Internet, users can browse the internet, check mail and live update your system.

Entering

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press key to enter Setup.

Press DEL key to enter Setup Menu, F11 to enter Boot Menu

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl> , <Alt> , and <Delete> keys.

Important

The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.

Overview

After entering Click BIOS II, the following screen is displayed.

Important

The pictures in this guide are for reference only and may vary from the product you purchased. Please refer to the actual screens of your system for detailed information.

Temperature monitor

This block shows the temperature of the processor and the mainboard.

System information

This block shows the time, date, CPU name, CPU frequency, DRAM frequency, DRAM capacity and the BIOS version.

BIOS menu selection

These blocks are used to select menus of BIOS. The following options are available:

• SETTINGS - Use this menu to specify your settings for chipset features, boot device.
• OC - This menu contains items of the frequency and voltage adjustments. Increasing the frequency can get better performance, however high frequency and heat can cause instability, we do not recommend general users to overclock.
  ECO - This menu is related to energy-saving settings.
• BROWSER - This feature is used to enter the MSI Winki web browser.
• UTILITIES - This menu contains utilities for backup and update.
  SECURITY - The security menu is used to keep unauthorized people from making any changes to the settings. You can use these security features to protect your system.

Boot device priority bar

You can move the device icons to change the boot priority.

Boot menu

This button is used to open a boot menu. Click the item to boot the system from the device instantly.

Mode selection

This feature allows you to load presets of energy saving or overclocking.

Menu display

This area provides BIOS setting menu that allows you to change parameters.

Boot device priority bar

This bar shows the priority of the boot devices. The light icons indicate that the devices are available.

Click and draw the icon to left or right to specify the boot priority.

Operation

Click BIOS II allows you to control BIOS settings with the mouse and the keyboard. The following table lists and describes the hot keys and the mouse operations.

Hot key	Mouse	Description
<↑↓→←>	Move the cursor	Select Item
<Enter>	Click/ Double-click the left button	Select Icon/ Field
<Esc>	Click the right button	Jump to the Exit menu or return to the previous from a submenu
<++>		Increase the numeric value or make changes
<->		Decrease the numeric value or make changes
<F1>		General Help
<F4>		CPU Specifications
<F5>		Enter Memory-Z
<F6>		Load optimized defaults
<F10>		Save Change and Reset
<F12>		Save a screenshot to a FAT/FAT32 USB drive

Sub-Menus

An arrow symbol appears to the left of certain fields that means it contains a sub-menu. A sub-menu contains additional options for a field parameter. You can use arrow keys (↑↓) or mouse to highlight the field and press or mouse double left click to enter the sub-menu. If you want to return to the previous menu, just press the or click the right mouse button.

General Help

Click BIOS II provides General Help window. You can call up the window from any BIOS menu by simply pressing <F1> or click HELP on BIOS setting screen. The Help window lists the appropriate keys to use and the possible selections for the highlighted item.

OC Menu

This menu is for advanced users who want to overclock the mainboard.

Important

• Overclocking your PC manually is only recommended for advanced users.
• Overclocking is not guaranteed, and if done improperly, can void your warranty or severely damage your hardware.
• If you are unfamiliar with overclocking, we advise you to use OC Genie for easy overclocking.
  Current CPU/ DRAM Frequency

These items show the current clocks of CPU and Memory speed. Read-only.
Internal PLL Overvoltage
This item is used to adjust the PLL voltage.
CPU Base Clock (MHz)
This item allows you to set the CPU Base clock (in MHz). You may overclock the CPU by adjusting this value. Please note the overclocking behavior is not guaranteed.
CPU Base Clock Ratio
It shows the CPU Base Clock ratio. Read-only.
Adjust CPU Base Clock Ratio
This item allows you to set the CPU Base Clock ratio.
Adjust CPU Ratio
Controls the multiplier that is used to determine internal clock speed of the processor. This feature can only be changed if the processor supports this function.

Adjusted CPU Frequency

It shows the adjusted CPU frequency. Read-only.

EIST

Enhanced Intel SpeedStep technology allows you to set the performance level of the microprocessor whether the computer is running on battery or AC power. This field only appears with installed CPUs that support this technology.

Intel Turbo Boost 2.0

Enables or disables Intel Turbo Boost 2.0 which automatically boosts CPU performance above rated specifications (when applications requests the highest performance state of the processor).

Enhanced Turbo

This feature was significantly enhanced on the CPU by allowing for speed to be increased to maximum frequency of Intel Turbo Boost for all CPU cores.

OC Genie Button Operation

This item allows you to enable/disable the OC Genie function.

Direct OC Button

This item allows you to enable/disable the Direct OC buttons.

DRAM Frequency

This item allows you to adjust the DRAM frequency. Please note the overclocking behavior is not guaranteed.

Extreme Memory Profile (X.M.P)

This item is used to enable/disable the Intel Extreme Memory Profile (XMP). For further information please refer to Intel's official website.

Adjusted DRAM Frequency

It shows the adjusted DRAM frequency. Read-only.

DRAM Timing Mode

Select whether DRAM timing is controlled by the SPD (Serial Presence Detect) EEPROM on the DRAM module. Setting to [Auto] enables DRAM timings and the following "Advanced DRAM Configuration" sub-menu to be determined by BIOS based on the configurations on the SPD. Selecting [Link] or [Unlink] allows users to configure the DRAM timings for each channel and the following related "Advanced DRAM Configuration" sub-menu manually.

Advanced DRAM Configuration

Press to enter the sub-menu.

Command Rate

This setting controls the DRAM command rate.

tCL

Controls CAS latency which determines the timing delay (in clock cycles) of starting a read command after receiving data.

tRCD

Determines the timing of the transition from RAS (row address strobe) to CAS (column address strobe). The less clock cycles, the faster the DRAM performance.

tRP

Controls number of cycles for RAS (row address strobe) to be allowed to pre-charge. If insufficient time is allowed for RAS to accumulate before DRAM refresh, the DRAM may fail to retain data. This item applies only when synchronous DRAM is installed in the system.

tRAS

Determines the time RAS (row address strobe) takes to read from and write to memory cell.

tRFC

This setting determines the time RFC takes to read from and write to a memory cell.

tWR

Determines minimum time interval between end of write data burst and the start of a pre-charge command. Allows sense amplifiers to restore data to cell.

tWTR

Determines minimum time interval between the end of write data burst and the start of a column-read command; allows I/O gating to overdrive sense amplifies before read command starts.

tRRD

Specifies the active-to-active delay of different banks.

tRTP

Time interval between a read and a precharge command.

tFAW

This item is used to set the tFAW (four activate window delay) timing.

tWCL

This item is used to set the tWCL (Write CAS Latency) timing.

tCKE

This item is used to set the Pulse Width for DRAM module.

tRTL

This item is used to set Round Trip Latency settings.

tXP

Exit Power Down with DLL on to any valid command; Exit Precharge Power Down with DLL frozen to commands not requiring a locked DLL.

= = Advanced Timing Configuration = =

Follwing items are used to set the read/ write timings for memory.

tRRDR

Read-Read Different Rank, same DIMM.

tRRDD

Read-Read Different Rank.

tWWDR

Write-Write Different Rank, same DIMM.

tWWDD
Write-Write Different Rank.
tRWDRDD
Read-Write Different Ranks same or Different DIMM.
tWRDRDD
Write-Read Different Ranks same or Different DIMM.
tRWSR

Read-Write Same Rank.

VDroop Control

This item is used to select the VDroop control mode.

CPU Core OCP Expander

This item is used to expand the limitation of CPU Over Current Protection. The higher expanding value indicates less CPU protection. So please adjust the CPU voltage carefully if needed.

CPU Core Engine Speed

This item allows you to increase the PWM working speed to stabilize CPU Core voltage and minimize ripple range. Increasing the PWM working speed will cause higher temperture of MOSFET. So please make sure a cooling solution is well-prepared for MOSFET before you increase the value.

CPU Core Voltage/ System Agent Voltage (SA)/CPU I/O Voltage/CPU PLL Voltage/ DDR CH_A/B Voltage/DDR CH_C/D Voltage/DDR CH_A CA Vref Voltage/DDR CH_B CA Vref Voltage/DDR CH_C CA Vref Voltage/DDR CH_D CA Vref Voltage/DDR CH_A DQ Vref Voltage/DDR CH_B DQ Vref Voltage/DDR CH_C DQ Vref Voltage/DDR CH_D DQ Vref Voltage/PCH 1.1 Voltage/PCH 1.5 Voltage.

These items are used to adjust the voltage of CPU, Memory and chipset.

Current CPU Core Voltage/ Current SA Voltage/ Current CPU I/O Voltage/ Current CPU PLL Voltage/ Current DDR CH_A/B Voltage/ Current DDR CH_C/D Voltage/ Current PCH 1.1 Voltage

These items show current CPU/ DRAM voltage. Read-only.

Overclocking Profiles

Press to enter the sub-menu.

Overclocking Profile 1/2/3/4/5/6

Press to enter the sub-menu.

Set Name for Overclocking Profile 1/2/3/4/5/6

Give a name by typing in this item.

Save Overclocking Profile 1/2/3/4/5/6

Save the current overclocking settings to ROM for selected profile.

Load/ Clear Overclocking Profile 1/2/3/4/5/6

Load/ Clear the stored profile settings from ROM.

OC Profile Save to USB

Save the current overclocking settings to USB flash disk.

OC Profile Load from USB

Load the stored settings from USB flash disk.

CPU Specifications

Press to enter the sub-menu. This sub-menu highlights all the key features of your CPU. The information will vary by model and is read-only. You can also access this information at any time by pressing [F4]. Press to enter the sub-menu.

CPU Technology Support

Press to enter the sub-menu. The sub-menu shows the installed CPU technologies. Read only.

MEMORY-Z

Press to enter the sub-menu. This sub-menu highlights all the settings and timings of your DIMMs. This information will vary by model and is read-only. You can also access this information at any time by pressing [F5]. Press to enter the sub-menu.

DIMM1~8 Memory SPD

Press to enter the sub-menu. The sub-menu displays the informations of installed memory.

CPU Features

Pressto enter the sub-menu.

Hyper-Threading Technology

The processor uses Hyper-Threading technology to increase transaction rates and reduces end-user response times. The technology treats the two cores inside the processor as two logical processors that can execute instructions simultaneously. In this way, the system performance is highly improved. If you disable the function, the processor will use only one core to execute the instructions. Please disable this item if your operating system doesn't support HT Function, or unreliability and instability may occur.

Active Processor Cores

This item allows you to select the number of active processor cores.

Limit CPUID Maximum

It is designed to limit the listed speed of the processor to older operating systems.

Execute Disable Bit

Can prevent certain classes of malicious "buffer overflow" attacks where worms can try to execute code to damage your system. It is recommended you keep this enabled always.

Intel Virtualization Tech

Enhances virtualization and allows the system to act as multiple virtual systems. See Intel's official website for more information.

Intel VT-D Tech

This item is used to enable/disable the Intel VT-D technology. For further information please refer to Intel's official website.

Power Technology

This item allows you to select the Intel Dynamic Power technology mode.

C1E Support

Enable system to reduce CPU power consumption while idle. Not all processors support Enhanced Halt state (C1E).

OverSpeed Protection

Monitors current CPU draw as well as power consumption; if it exceeds a certain level, the processor automatically reduces its clock speed. For overclocking, it is recommended this feature is disabled.

Intel C-State

C-state is a power management state that detects when the system is idle and lowers power consumption accordingly.

Package C State limit

This field allows you to select a C-state mode.

> Long duration power limit (W)

This field allows you to adjust the TDP power limit for the long duration.

Long duration maintained (s)

This field allows you to adjust the maintaining time for long duration power limit.

Short duration power limit (W)

This field allows you to adjust the TDP power limit for the short duration.

Primary plane turbo power limit (W)

These fields allow you to adjust the TDP limit for the primary plane turbo.

1/2/3/4/5/6-Core Ratio Limit

These fields show the 1/2/3/4/5/6 core ratio limit of CPU.

Updating the BIOS with Live Update

This section tells you how to update the BIOS by using the Live Update utility before entering Operating System. Live Update will update the BIOS automatically when connecting to the Internet. To update the BIOS with the Live Update utility:

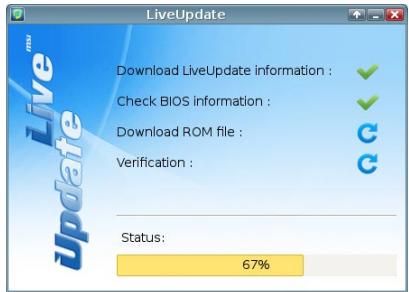

1. Click Live Update button installed).

on the BIOS UTILITIES menu. (The Winki must be

1. Setup the connection by click the setting button if necessary.
2. Click the next button

1. Live Update will automatically detect the version of BIOS and download the appropriate file.

1. Click the confirm button to update the BIOS.

Important

Do not update the BIOS if your system is running fine.

Software Information

Take out the Driver/Utility Disc that is included in the mainboard package, and place it into the optical drive. The installation will auto-run, simply click the driver or utility and follow the pop-up screen to complete the installation. The Driver/Utility Disc contains the:

• Driver menu : It provides available drivers. Install the driver by your desire and to activate the device.
• Utility menu : It allows you to install the available software applications.
• Service base menu : Through this menu to link the MSI officially website.
• Product info menu : It shows the newly information of MSI product.
• Security menu : It provides the useful antivirus program.

Important

Please visit the MSI officially website to get the latest drivers and BIOS for better system performance.

Installing Winki

BIOS BROWSER and UTILITIES request Winki, please install the "Winki" software application from MSI Driver Disc in Windows first. And then you can access these two features by clicking their respective buttons.

To install Winki, follow the steps below:

1. Power on your computer and enter Windows operating system.
2. Insert MSI Driver Disc into the optical drive. The setup screen will automatically appear.
3. Click Driver tab.
4. Click OTHERS button.

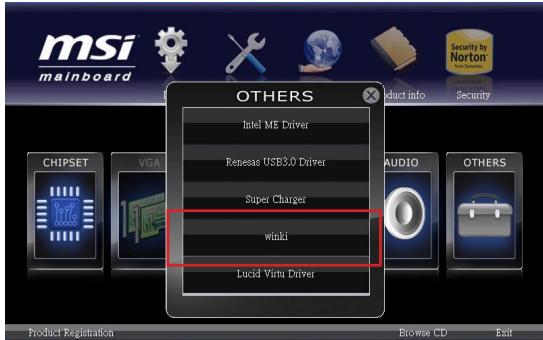

5. Select Winki to start installing.
6. When finished, restart your computer.

Deutsch

Big Bang-XPower II

Serie

Spezifikationen

Prozessoren

JPWR2, JPWR3: ATX 8-poliger Stromanschlüsse

SuperTiling
- Scissor Mode
Alternate Frame Rendering
Super Anti-aliasing.

SATA1~10: SATA Anschlüsse

JFP1, JFP2: Frontpanel Anschlüsse

Current CPU/ DRAM Frequency

CPU Base Clock (MHz)

CPU Base Clock Ratio

Adjust CPU Base Clock Ratio

Adjusted CPU Frequency

Adjusted DRAM Frequency

Current CPU Core Voltage/ Current SA Voltage/ Current CPU I/O Voltage/ Current CPU PLL Voltage/ Current DDR CH_A/B Voltage/ Current DDR CH_C/D Voltage/ Current PCH 1.1 Voltage

CPU Technology Support

Intel Virtualization Tech
Enhances virtualization and allows the system to act as multiple virtual systems. See Intel's official website for more information.
Intel VT-D Tech

Mainboard Specifications

Proceseurs Supportés

XL-ATX (34.5 cm X 26.4 cm)

Emplacement PCIe (Peripheral Component Interconnect Express)

SuperTiling
- Scissor Mode
Alternate Frame Rendering
Super Anti-aliasing.

CPU Base Clock Ratio

Adjust CPU Base Clock Ratio

Adjusted CPU Frequency

Adjusted DRAM Frequency

CPU Core Engine Speed

Current CPU Core Voltage/ Current SA Voltage/ Current CPU I/O Voltage/ Current CPU PLL Voltage/ Current DDR CH_A/B Voltage/ Current DDR CH_C/D Voltage/ Current PCH 1.1 Voltage

Set Name for Overclocking Profile 1/2/3/4/5/6

CPU Technology Support

Intel Virtualization Tech

OverSpeed Protection

Package C State limit

> Long duration power limit (W)

Long duration maintained (s)

> Short duration power limit (W)

Primary plane turbo power limit (W)

XL-ATX (34.5 cm X 26.4 cm)

OTBepCTnI IOI yCTaHOBOUHbIe BNHTbl

12x kpeenKhbIX OTBepCTn

ПомошьВпробетенДдОЛнгьнхakceccуapOBиNonckeHOMepaИЗдELNMOXHOHaHTnno aDpecy

http://www.msi.com/index.php

KpaTkoe pyKOBOdTO BO pa3bEmam

CnpaBOuHoe pyKOBoIDCTBO no pa3bEmam

YctaHOBKa CPU u BeHTnIyTopa

Pn yctahOBKe CPU y6eHntecb, yTo Ha HEm yCTaHOBJIeN BeHTnJIaTOp, npedOTBpauzauoui nepeperpeB npoueccopa. Pn yCTAHOBKe padnaTopa/BeHTnJIaTOp a He 3abYbTe HaHeCTu Ha CPU Tepmonacty, yUyUshaOuIy TeIOnpepa.ДЯ npabInbHoi yCTAHOBKn BEHTnJIaTOpa n npoueCCopa BbIOnHnTe CJIeDyUoIne DeiCTBnA. HenpaBnblhna yCTAHOBKa moKet npnbEctu K nobpeXdEnIO CPU n cIcTeMHoI pIaTbl.

1. Пдимпшарнрьшуаг, кak поано на Kapннke Ник. Вь можete Иdentицювате ergo no6lOKIpOBOUHOMy mexaH3My ha konue pbiura.
2. OTKpOte aKTHBHy bpyHa.

JapnnpbIpbUar

1. PpInoDnHmMtTe npnxKmHyu nlaCTnHy hKaTneM Ha 7apHnHbI pyHuar.
2. Пдимпглпрнхимную пл actину до NOЛнocью OTkpbltoro nonoKeHn.

1. После поверкиnpавильноctи opиентаци пpoцeccopa OTHOCHTeNBcOKeta, yctahOBITE erO b pa3bem.Держать поцeccop pekomehdyetca TOLko 3a kpar erO ochOBAHnI.поверпгпавильноctb pacnoIOKHeNKnIOUChE coBMeUeHnI.
2. AkkypaTHO CHIMNTE nJnactIKOByU 3arJlyuKU n ONyCTNTe npNXMHyU nJnactHy.

Cnot PCIe (Peripheral Component Interconnect Express)

CnotPCIe noDaepxnBaet KapTb paacnepenHn INTepeeaPCIe.

Bunahme!

Pn do6ablennn nnn n3Bneuehen nnat pacwnpehna Bcerda BbknquaTe nntaHne n BbHMaIte shnp nntaHn 13 p03eTKn. IpouTne DOKymentauNHO kaKapTy paunepHn n BbONHnTE Heo6xOumblte annapatnbte nn nporpamMbte yctahOBKn dny daHHo n PnAbl, taKne KaK nepembyuKn, nepeKluoyateu nn N konphiurpaunio BIOS.

Bndeo/BndeokapTbI

IyoymoJauHIO,daHHaI pNATA uCNOb3yeT rpaQnueckoe JaIPO INHTerpnpOBaHHe B CPU,Ho Bby TaKJe MoKeTe 3NaHTeJIbHO NOBICNT rpaQnueckyU npOn3BOuNTeJIbHOCTb CnCTeMbI,nyTeM Do6abNeHne OndH NII HeCKOJIbKIN DnCKPeTHbIX BnDeOkapT B CnOTbl paCShpeHn. IpyLyuWe CoBMeTUMOCT PeKOMeHdyETc NcNoB3OBAtB rpaqnueeKn Keptb MSl.

YcTaHOBka OndHb BndeOkapTbI

1. OnpeIeIte TnCNoTa paCUnpeHn, KOtOpbI NcNoIb3yeTcBnDeOkaTOni. HauInTe COoTBetCTByUoun Cnot Ha MaTePnHckO nnate. BbIhBe 3aunTHyo KpbIuK cyNTo paCUnpeHn n3 Kopnyca cncTeMHoro 6noka.
2. PacnoIoxKeTe BIneOekapTy Haid CNOTOM IaI paCunpeHnraTak, YTO6bl NopTb IaI OTo6paXeHn8 6bln HAnpabNeHb Ko BHeuHne CToPOHe CnCTemHoro 6Joka. IaI yCTahOBKn OOnH BIneOekapTb peKoMeHdyetcNcNoJIb3ObaTb cNt PCI_E1.
3. Bctabbte BndeokapTy B cnot paunepHna. B cnyae npaBnIbHo yCTaHOKn KapTbI, 3aueJka Ha cnot paunepHna DOJXHbI 3aueKNHyTbcra.
4. Пи Heo6xOdmOCTn, innKpyTne BIndeokapTy K Kopnycuy cncTeMHoro 6JOKa BInrTom.ДЯ HeKOtOpbIX BIndeokapT Tpe6yETcnoKNIuOHeHne HEnocpeIcTBeHHO K 6JOKy NITaHnY OTdJIbHbIM Ka6eJem.
5. Дожинтульные ИсторICAL Noустовские лаьеви Нсторій спейлыньх паламетров подоставлени в рыковомсков的基础上 Видаокар'te.

Texhonoria AMD CrossFireX™ (Multi-GPU)

AMD CrossFireX™ obecneuBaet BO3MOxHocTb CO3dHaHn HA6OJIe MoUHbIX multi-GPU INrpoBbI nnatfopm. CBya3ab BMeCTe DByuxnn6oJeeDnckpeTHbIX GPU, CrossFireX™ MOKeT 3NaHTeNB0 yNpyuTaB rpaFNUeCKo npON3BOOnTeNBocCTn CnCTEmbl. 3To DaET BO3MOxHocTb MACITabINPOBaHnra rpaFNUeCKo pON3BOOnTeNBocCTn CnCTEmbl NO Mpe HeOBxOIMOCtN, YTO DeJaet erO HAnBOJee MaCSTABInPyEMyU INrPOByIO nPaTfOpM. 3Ta CNCTEMHnA nnata bdyet AToMaTInCeKN OnpeJeYb TExHOJOrnIO CrossFireX™ B HOCITb N3MeHEHnB B BIOS no Mepe HeOBxOIMOCtN. CnedyTe INCTpyKUqIaM HnKZe, YTObI ObecneuNTb ycNeuHy DoByHApBaJIeHHy UcTaHOBky CrossFireX™

1. YctaHOBIne DBe HD BnDeOkaPTbI AMD RadeonTM B CnOTbI paCUnpeHnRA PCI_E1 &PCI_E3.
2. UctaHOBInTe DByx MoCTnka CrossFireXTMДЯ CoeINHeHnB VInDeOkapr. IprKpeNITe OHy CTOpOHy Ka6JIg K KaKdoI KapTe NocpeDcTBOM MetaJIInuecknx KOtAKeTOb (CMOTPe N3O6paXeHne Hnke). ObpaTIte BHNMaHne, YTO XOTy UcTaHOBNeHbI DBe BVInDeOkapr, pa6oTApToJbKO npTbI DnCnIIe Ha BeDuJeI KapTe. BCE DnCnIIe DOJKNHbI 6bItb POnKInOHeHbI K 3ToI BVInDeOkapTe.

Bhumahxel

• Y6eHntecb, yTO Bce BnDeokapTbI, nCNoJIb3yEmbIe B pexKmE CrossFireX T^M , mHeOT OINHOKOBm MapKn N TexHNueckne XapaKTepnCTuKN. IJNA lyUWe COBMeCTUMOCTN C MaTePHNCKo Pnatoi, MSI BnDeokapTbI peKOMeHdyOTcA.
• Y6eHntecb, yTo oBecneeyo doctatoohoe nHTaHne uepe3doonHnTeIbHbI pa3beM nHTaHnHa BnDeokapTax dnn oBecneeyen ee cTabuIbHO pa60bl.

• Pexim CrossFireX™ noДeprKuBaetc TОЛько B Windows® XP Service Pack 2 (SP2), Windows™ XP Professional x64 Edition, Windows™ Vista, & Windows™ 7.

• 3aRpy3nTE KOMNbHOTep n yctaHOBNTe DpaBEBbI n pporpamMHOe o6ecneHHe, BKNUcHHe B KOMNJIeKTe NocTABKN BInDeOkaTbI. IINaONUeHnA DonONHnTeJbHOH INΦOpMaun, ObaTnTECb K pyKOBOCTBy BInDeOkaTbI.

• Послпразвиьног установи BCex apanapathoro n nporpaMMHOrO obcepehenia, nepezarpy3nte cnTeMy. Посл BXODa B onepaunOHyCnCTeMy (OC), npaBoi KhoNkoMbIshn haxmnte Ha pa6oyn CTon n BbIbepnte "Catalyst Control Center".

1. BkHouHTe yCTaHOBky CrossFireXTM, YTO6bI NO3BOJYb pa6OtaTb peKIM CrossFireXTM. Iocne 3TORO NO8BnTBc CNeDyUoNm 3KpaH B Catalyst Control Center. 3KpaH MoKET BByrJaDeTb HeCKOJIbKO pa3HbI B 3aBNCIMoCTn OT BaWei onepaOnHHoCnCTeMbI.

Bhumahne!

CnTeMa ha 6a3e CrossFireXTM moKeT pa6oTaTb B 4 peKImax:

SuperTiling
- Scissor Mode
Alternate Frame Rendering
Super Anti-aliasing.

3a dononHntelbHOHnOpMaueNe obpaTneCb K pykoOoCTBy BnDeoKapTbI.

TexHoiJorNy NVIDIA® SLI

TexhONorNy NVIDIA's SLI (Scalable Link Interface) no3BOnJET Bdum nIIb6OJIe GPU pa6oTaTb COBMeCTHO, NOBbIaA 6bICTPOJeICTBne rpaΦnueCKO NODcNCTeMbI.ДЯ INCNoJIb3OBAHnI DaHHoTexHONOrN, BInDeOKapTb I Heo6XoIMO CoeINHTb MOCTOM SLI.

JDLED3: Pa3bem Voice Genie (onpnoHaJIbHO)

3TOT pa3bem NcNoIb3yeTcA DnI NOdKJIuOeHn K MoDyIIO UnpaBHeHn 3BykOM (OnUHOHaJIbHO). 3a 6oJee NoIpO6HoN INΦOpMauzne I Na3NaUeHnMn ObaaITeCb K pyKOBODCTBY noJIb3ObATEn.

JTURBO1: Pa3bem nahen MultiConnect (onznoHaIbHo)

3TOT pa3bem nCnoIb3yETc dnn IpoKJIuOeHn K OIcIOHaJIbHOI nepeJeHn NaHei dIynpaBLeHn OC Genie n HeKOToPbIMN DoONHITeJIbHbIMN yHKUaMn. 3a 6oJee npOboHn IHΦopMaucnei n Ha3NaueHnMa oBaPaaTecb K pyKOBODCTBy noIb3OBAteJIa.

FV1: Pa3bemblдя замета наразжени Voltage Checkpoints

POWER1: Khonka nHTaHnA

3Ta KhoNka npedHa3NaeHa dIy BkIoUeHn I BbIKIOeHn CnCTembl. HaxMnte Ha KHOKNy dIy BkIOUeHn IIN BbIKIOUeHn CnCTembl.

RESET1: Khonka Reset

3Ta KhoNkA npedHa3haueHa dIy nepeycTaHOBKn CnCTeMbI. HaxMITE Ha KhoNkY dIy nepeycTaHOBKn CnCTeMbI.

Plus,Minus:KhonknynpablennnaBaseClock

3TN KONKIN NcONb3yOTc DnI IN3MeHeHnO OCHOBHO TAKTOBOU YAcTObTbI. HaxaTne KONKIN PJIIOC/ MInyc OOnH pa3 npBBeJET K yBEJIuYeHnO/ yMeHbSeHnO OCHOBHO TAKTOBOU YAcTObTbI B 1 MfU.

Khorika Minus

Khonka Plus

BIOS1: Khonka Multi BIOS

3Ta KhoNka N03BoJraT BbIHydntb CnCTeMy 3aRpyKaTb n3 BIOS C. BIOS C-3aMeHReMbyu, KOtOpBni N03BoJraT 3aMeHrT bYnBIOS.EcnnBbHe HamepeHb3arpyKaTb CnCTeMy n3 BIOS A uIN B, HaxmTe 3Tu KhoNky, n CnCTema 6yDet 3aRpyKaTb n3 BIOS C.

Khorika Multi BIOS

NEPEmbIyKu

IpoceDypa BOCCTaHOBJIeHnB BIOS c nOmozbu yTInNTbI M-Flash:

1. Y6eIInTeCb, YTO CnCTema BblklnHueHa.
2. 3arpy3nte cncTeMy c pa6oeryo BIOS ROM nyTeM BkIoueHnpeKIOuateJIa Multi-BIOS.
3. Даee задиTe в HabstpoiKn BIOS Utilities M-Flash Save BIOS to storage in coxpaHnte noIyBnncs paIHa 3arpy3OuHbI USB-flash hakonntelb (В Корнeвую пanky).
4. Περεκλιουητες Βσρατηο ḌΑΙΒΙS ROM ΚΟτόβγ ΜεθόδχοπμΟ BOCCTaHOBιTb.
5. BB6epuTe "Select one file to update BIOS" in BocctaHOBuTe BIOS ROM qaiIOM, KOToPbI 6bl coXpaHeH Ha USB-flash hakOnntene.

Bhimahxel

He nCnoJIb3yIte nepeKJIIOuATEnbBIOS KOrDa cNCTema 3aRpykaetc!

PpeeknouateIb PCI-E CeaseFire

IpeeknouateIbPCI-E CeaseFire no3B0JraT HEnocpeiCTBeHHO ynpabJIyTb yctaHOJIeHHbIMN BIndeOKapTaMn 6e3Φn3UeCKOrO BMeuATeJIbCTBa.

BhimaHne!

He nCnoB3yIe nepeKIOUaTeEN Ha pa6oTaIOSeI cIcTeMe. 3To npBedeT K NOBpeJDeHIO cIcTeMHOI INaTBI.

CBeTOBbIe HnDnKaTObpI

INdkaTopbΦa3CPU(CPU_PHASE)

3TN INDnKaTopbpearnpuyoHa ypOBeH 3aRpy3Kn CPU. BOnbIe KOJIueCTBO pa3 DeJaET nITaHHe npouecoppa 6oJee cTaNbHbIM.

INdinkaTopb1Φa3CPU_SA(CPU_SA_PHASE)

3TN INDnKaTOpbl NOKa3bIBAoT TeKu7i pexm f3 nITaHnCy CPU System Agent.

Индikatopь Фа3 CPU_IO (CPU_IO_PHASE)

3TN INHINKATOpbI NOKa3bIbAIO T EKUyI pEKM 0a3 NTanHnC PU I/O.

INdikKaToPbIΦa3 PCH (PCH_PHASE)

3TN INHINKATOpbI NOKa3bIBaHTeKyuI pexIM pa3 nITaHn PCH.

Инд�示 Top DrMOS_ALARM

3ToIHHdkaTop roup npn neperpeBe DrMOS.

HdikKaTOpbIΦa3DDR(DDR_PHASE)

3TN INHINKATOpbI NOKa3bBAIO Tekuyn pekM a3 nITAHn naMaTn.

CnCTeMHaI INΦOpMaIaIaI

ДаннbiунгтпokаьBaetВремЯ,дату,нamMuHOBaHneCPU,чacToTyCPU,чacToTy DRAM,обем DRAMиВерсиюBIOS.

Bb6op paaedela BIOS

3TN nykhtbI nCnoJIb3yIOTcI dIa BbIbopa MeHIO BIOS. IocTyHbI cIeDyUOJIne OIuIN:

• SETTINGS (HACTPOIKN) -В данном MeHо можно 3адaТь co6cTeBENHbIe HactpoiKn Дя ФунКич YINcetaи 3arpy3OHybIX yCtpoiCTB.
  OC (PA3ROH) - 3TO MeHIO No3BOJRAET ynpaBJIrTaTkoBIMn YactOTamn HAnpRaeHnAIMn npn pa3roHe CnCTeMbI. TObbIeHne YactOTb MoKet NOBbICITb POn3BOJNTeJBHOCTb. Ondako CnUHKOM CnIbHbN pa3ROH n PbIBbIeHHaY TemNepaTypa 3JeMeHTOB MOrYT npNBecTN K HeCTa6NJbHOJ pa6Ote CnCTeMbI. ITo 3tOMy MbI He pekOMeHNyEM NcNOBJ3OBaTB 3TOT pa3dEn HeONbIHbIM NOLb3OBaTeJIaM.
  ECO (3KO) - B 3TOM MeHIO COePkaTcA HAcTpoiKn, OTHocIuNecr K3Heproc6epeJeeHIO.
  BROWSER (6pay3ep) - 3Ta Φункця IncnoЛьзуется Дпя Вхда в Be6 6pay3ep MSI Winki.
  UTILITIES (CJYXK6HbIE IPOPGAMMbI) - DaHHoe MeHIO COePjNt CJYXe6HbIE npoRpaMMbI DnA Co3aHnpe3epBbIX KOJIIN N O6HOBHeHn CnCTEmbl.

SECURITY (SE30NACHOCTb) - MeHIO 6e30nacHOCTn nCNOJb3yETcI IJIa 3aUITbI CNTEmbl I pEDoTbPaUeHnI N3MeHeHnHaCTpoEK CNTEmbl HeABTOIN3OBAHHbIM NOJb3OBaTeJIEM.

Adjusted CPU Frequency

3TOT nyHKT nokazbIbaeTeKyuUo cactOtu CPU.ToIbKO dIy UTeHnA.

EIST

TexHONOrnEnhancedIntelSpeedStepno3BOJareTyCTaHOBtbyPOBeHbPOn3BOJnteHbHOCTn npOecccopa pIpi 3JeKTPoRHTaHmN OT 6aTapeN mN OT cETn. DaHHeOE nOle nOraBJIeTcR toMbK B Cnyuae yCTaHOBKn CPU, noDdepKJBaUoJero 3Tu TexHONOrnIO.

Intel Turbo Boost 2.0

3TOT nyHKT nCNOJb3yeTc dЯг BKNIOUeHn/ BbIKNIOUeHn TexHONOrn Intel Turbo Boost 2.0. ON nobIshaet YacToTy npOceccopa, KOrda npKNaIaNbIe nporpaMMbl Tpe6yHOT 6oJIbSeI npOn3BOdntelbHOCTn, n TDP npOceccopa 3TO nO3BOJnAET.

Enhanced Turbo

Adjusted DRAM Frequency

3TOT nyHKT noka3bIbaeTe kTuSyU qaTo TY DRAM. TOnIbKO dIy UTeHnA.

DRAM Timing Mode

OnpeJeIeT 6yU Tn TaMmHr DRAM KOHTpOIpOpBaTbc DaHbIMn n3 SPD (Serial Presence Detect) EEPROM ha moDyIe DRAM. PIn BblOpe 3NaueHnra [Auto] taMmHr DRAM, BkIIOyA pyKtB MeHIO, nepeuNcIeHbIe HnIXe, yCTaHaBJIbAHOcTcB IOS B COOTBeTCTBn C daHbIMn n3 SPD. YcTaHOBka 3NaueHnra B [Link] IIN [Unlink] no3BOJlEET BpyHyIO perYIpOpBaTb TaMmHr DRAM DOcTyNbIe B 3OM MeHIO n peExoDITb B IOdMeHIO «Advanced DRAM Configuration» («PacShnPepHHa KOnΦnIrpyaZn DRAM»).

Advanced DRAM Configuration

HaxmnteДЯ BXOa B noDMeHIO.

Command Rate

> CPU Core OCP Expander

3TOT nyHKT nCnObl3yETcIЯ paSUnpeHnI JIMMtauI 3aunIbIOT nepepy3kn NO TOky (Over Current Protection) CPU. Bonee BbICOKOE 3NaueHne paSUnpeHnI 6o3Haayet 60nee manyu 3auNTy CPU. PToTMy noKaJyIcTa, perynpIte HaprrKeHne CPU BHNMaTeBHo pInr Heo6xOdImocTn, B IpOTNBHom cNyuae 3TO nobpeDIT CPU.

CPU Core Engine Speed

3TOT nyHKT no3BONJET yBelenuHTb ckOpocTB pa60tBI PWM dIra c7a6nH3npoBaHnHa nApjXeHnCPU Core mMINHMn3IPoBaHn DnAna3OHa BOnHbI. NObblSeHne cKOpocTn pa60tBI PWM npuBeDet K BbICseI TempepaType MOSFET. IOnTOMy IOnKaIyIcTa y6eIntecB TOM, YTO CnCTema OxlanKeHn XopoWo IOnrToBJIeHa dIra MOSFET npexJeYem yBelenuHTb 3NaueHne.

• CPU Core Voltage/ System Agent Voltage (SA)/ CPU I/O Voltage/ CPU PLL Voltage/ DDR CH_A/B Voltage/ DDR CH_C/D Voltage/ DDR CH_A CA Vref Voltage/ DDR CH_B CA Vref Voltage/ DDR CH_C CA Vref Voltage/ DDR CH_D CA Vref Voltage/ DDR CH_A DQ Vref Voltage/ DDR CH_B DQ Vref Voltage/ DDR CH_C DQ Vref Voltage/ DDR CH_D DQ Vref Voltage/ PCH 1.1 Voltage/ PCH 1.5 Voltage.

Current CPU Core Voltage/ Current SA Voltage/ Current CPU I/O Voltage/ Current CPU PLL Voltage/ Current DDR CH_A/B Voltage/ Current DDR CH_C/D Voltage/ Current PCH 1.1 Voltage

3Tи npKtbI noka3bIAoT Tekyuee HanpJxKeHne CPU/DRAM.ToIbKO IaIyTeHnA.

Overclocking Profiles

HaxmnteДЯ BXOda B noDMehIO.

Overclocking Profile 1/2/3/4/5/6

HaxmnteДЯВxoDAВnoDMeHIO.

Set Name for Overclocking Profile 1/2/3/4/5/6

YkaKInTe NmB 3TOM nOJIe.

Save Overclocking Profile 1/2/3/4/5/6

CoxpanHe TeKyuHne HAcTpoKn pa3roHa IJa BbIbpaHoro npoФnna Ha 3Y

Load/ Clear Overclocking Profile 1/2/3/4/5/6

CoxpaHene/HyaJIeHne HacTpoEk PnoΦnIpa3rOHa Ha I3Y.

OC Profile Save to USB
CoxpanenHe TekyuHx HacTpoek pa3roHa Ha pfneu-Dnck USB.
OC Profile Load from USB

3arpy3ka coxpaheHHbIX HacTpoEc cPneu-dncca USB.

CPU Specifications

CPU Technology Support

Haxmnte ДЯ BXOda B NOmEnIO. B DAHHOM NOmEnIO OTo6paKaIOTcФунки,ycTaHOBJIeHNbIe B npoceccope.3Tu 3HaueHn HeJIb3a N3MeHЯrTb.

MEMORY-Z

Haxmnte ДЯ BXOda B NOIMHeI. B DAHHOM NOIMHe OTPaKeHb BCE HAcTPOkN IN napamTeBcINxPoHN3aUIM DIMM. 3Ta INHOpMaJn 3aBNCIT OT MoJeN IN PpeDHa3HaYeHa TOnbKO dIy UTeHn.ДЯ pOcMToPa 3ToI INHOpMaJn Haxmnte Ha [F5].

DIMM1~8 Memory SPD

HaxmteДЯ BXOДВ NOmEH.3TO NOmEHIO NOKa3bIaET INΦopMaцИо 6bYCTaHOBJIeHHbIX MOdIyIaX NaMrtN.

CPU Features

HaxmnteДЯВxoDAВnoDMHeI.O.

Hyper-Threading Technology

Ipoceccop nCnoIb3yET texHOnIgNIO Hyper-Threading InyBvElnuHnna npOn3BOUInTeNbHocTn. 3Ta texHOnIgNIA No3BOJrae DByM Na6Opam perncTPOB B npOeccope nCnoINHrTB NHCtpyKcIM OndHOBpeMHNO. 3TO yBeInuHbaet npOn3BOUInTeNbHocTb CnCTembl. PnB bIKNUeHmN 3ToN FynKcIM, npOceccop nCnoINHReT NHCtpyKcIM c NOMoCbIO OndHOrO Na6Opa rpeNCTPOB. BbIKNUOHTe 3TOT nyHKT, KOrda daHHa CnCTema He NpOdepXnBaet FynKcIMIO HT, B npOTNBOM clyvae 3TO npINBeDeT K HeHaJeXHoCTNs HecTaBnJIbHoCTNs.

Active Processor Cores

3TOT nyHKT n03BONJET 3aDaTB YICNo AKTNBBHbIX JIep npOceccopa.

Limit CPUID Maximum

Danhnyi npaametpr rpaHnHbAeT donyctmyu ckopoctb npoceccopa np

IcNoJIb3OBAHmI cTapbIX BercnIOC.

Execute Disable Bit

Mozet npedotbpatntb onpeidenenHbte BnDbl aTak Tnna «nepeonHeHne 6yepa», KOrda BpeoHOChbIe nporpAmbl nbTaIOCTc NcOJNHtB KoI dIy yHHTOKeHIn cNCTembl. PekomeHdyTeTc He otKJIQUaTb daHHYIO ONIIO.

Intel Virtualization Tech

YnyuetaeBnptyaJn3aunIO nno3BOJraT CnCTeMe DeiCTBOBaTb KaueCTBe HECKoJIbKINX BnptyaJbHbIX CnCTeM. IOnoJHnTeJbHbIe CBeDeHnA CM. Ha OfuiuaJbHom Be6-caTe Intel.

Intel VT-D Tech

3TOT NyHKT nCnOJb3ayETcA DnI BkJIIOUeHnBbIKJIIOUeHn TExHOJorHn Intel VT-D. IOnoJIHnTeJbHbIe CBeDEHn CM. Ha OΦuIuaJIbHom Be6-caIte Intel.

Power Technology

OverSpeed Protection

OcIeKnBaet TOK, nOtepeBJeMbI LII, n 3HepronoTpeBJeHne; ecIn oHO npBeBlaaet onpeDeJenHbYpOBeHb, pOceCCop aBTOMaTueeCKn yMeHbShaet TaKTobyU YoacToTy. Ppi pa3roHe 3Tu fYHKmIO peKOMeHNyETc OTKIOuHTb.

Intel C-State

C-state - coctoHne ynpabLeHn3HeprOnOTpe6IeHnEM, onpeJeIooJIeepnocTo nCCTembl I IOHHkaOooee 3HeprOnOTpe6IeHnE COOTBeTCTByIOUIM O6pa3OM.

Package C State limit

Данн布局аMuTpo3B0JЯETbIbpaTbpeKIM C-state.

> Long duration power limit (W)

> Short duration power limit (W)

B daHnomone yctaHaBnBaetc npedeIbHaMoIHoCTb TDP npKpaTkoBpeMeHHo pa6ote.

Primary plane turbo power limit (W)
