USER MANUAL MS-7666 G52-76661X2 MSI

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

MSI is registered trademark of Micro-Star Int'l Co., Ltd.
NVIDIA® is registered trademark of NVIDIA Corporation.
ATI® is registered trademark of ATI Technologies, Inc.
AMD® is registered trademarks of AMD Corporation.
Intel® is registered trademarks of Intel Corporation.
Windows® is registered trademarks of Microsoft Corporation.
AMI is registered trademark of American Megatrends, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
Sound Blaster® is registered trademark of Creative Technology Ltd.
Realtek® is registered trademark of Realtek Semiconductor Corporation.
- JMicron® is registered trademark of JMicron Technology Corporation.
Netware® is a registered trademark of Novell, Inc.

Revision History

Revision	Revision History	Date
V1.0	First release for Europe	April 2010

Technical Support

If a problem arises with your system and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/index.php?func=service
Contact our technical staff at: http://ocss.msi.com

Safety Instructions

Always read the safety instructions carefully.
- Keep this User's Manual for future reference.
- Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
- The openings on the enclosure are for air convection hence protects the equipment from overheating. DO NOT COVER THE OPENINGS.
- Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet.
- Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
Always Unplug the Power Cord before inserting any add-on card or module.
All cautions and warnings on the equipment should be noted.
- Never pour any liquid into the opening that could damage or cause electrical shock.
If any of the following situations arises, get the equipment checked by service personnel:

The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work according to User's Manual.
The equipment has dropped and damaged.
The equipment has obvious sign of breakage.

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60^ (140°F), IT MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

警告使用者：

For better environmental protection, waste batteries should be collected separately for recycling special disposal.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7666

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause undesired operation.

WEEE (Waste Electrical and Electronic Equipment) Statement

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded

as municipal waste anymore and manufacturers of covered electronic equip-

ment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

Safety Instructions..

FCC-B Radio Frequency Interference Statement. iv

WEEE (Waste Electrical and Electronic Equipment) Statement

English.

Mainboard Specifications. En-2

Quick Components Guide. En-4

CPU (Central Processing Unit) .En-5

Memory . En-9

Power Supply. .En-12

Back Panel. En-14

Connectors. En-16

Button. En-21

Switch. En-23

Slots En-25

LED Status Indicators (optional) En-32

BIOS Setup . En-36

Software Information. En-48

Deutsch. De-1

Mainboard Specifications

Processor Support

Intel® Bloomfield™ processor in the LGA1366 package (For the latest information about CPU, please visit http://www.msi.com/index.php?func=cpuform2)

QPI

Up to 6.4 GT/s

Chipset

North Bridge : Intel® X58 chipset
South Bridge : Intel® ICH10R chipset

Memory Support

6 DDR3 DIMMs support DDR3 2133(OC)/ 1800(OC) /1600*(OC)/ 1333/ 1066 / 800 DRAM (24GB Max)
Supports Dual-Channel/ Triple-Channel mode *For more information on compatible components, please visit http://www.msi.com/index.php?func=testreport)

LAN

Supports Dual LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111DL

IEEE 1394

1 IEEE 1394 port by VIA®VT6315N

QuantumWave Audio Card

Realtek® ALC889
Compliant with Azalia 1.0 Spec
7.1 Channel High Definition Audio Codec with jack sensing
Supports1x S/PDIF out header
Supports Coaxial/Optical S/PDIF out ports on rear

SATA

6 SATA 3Gb/s (SATA1~6) ports by Intel® ICH10R
2 SATA 6Gb/s (SATA7~8) ports by Marvell® 88SE9128
1 ESATA port & 1 ESATA/ USB 2.0 combo port (back panel) by JMicron® JMB362
Supports hot plug & asynchronous notification

USB 3.0

2 USB 3.0 ports by NEC® uPD720200F1

RAID

SATA1~6 support Intel® Matrix Storage Technology (AHCI/ RAID 0/1/5/10) by Intel® ICH10R
SATA7~8 ports support RAID 0/1 mode by Marvell® 88SE9128

Connectors

Back panel

• 1 PS/2 keyboard port
• 1 PS/2 mouse port
• 1 Clear CMOS button
• 1 D-LED2 panel connector
• 1 1394 port
• 5 USB 2.0 ports
• 1 ESATA port
• 1 ESATA/ USB 2.0 Combo port
• 2 LAN ports
• 2 USB 3.0 ports

On-Board

• 2 USB 2.0 connectors
• 1 1394 connector
• 1 Chassis Intrusion connector
• 1 TPM Module connector
• 1 Reset button
• 1 Power button
• 1 GreenPower Genie connector (optional)
• 1 Over-Voltage switch
• 1 set voltage check point
• 1 OC Genie button
• 2 Base clock control buttons
• 1 set Debug LED panel

Slots

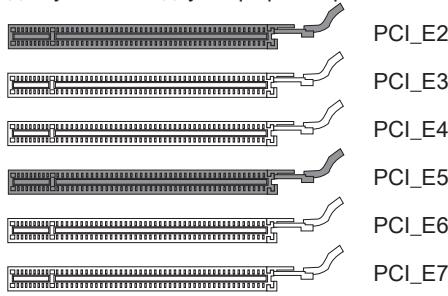

• 6 PCI Express 2.0 x16 slots (PCI_E2 & PCI_E5 support up to PCIE x16 speed, PCI_E4 & PCI_E6 support up to PCIE x8 speed, PCI_E3 & PCI_E7 support up to PCIE x4 speed)
  1 PCI Express 1.1 x1 slot

Form Factor

ATX (24.4cm X 30.5 cm)

Mounting

9 mounting holes

• If you need to purchase accessories and request the part numbers, you could search the product web page and find details on our web address http://www.msi.com/index.php

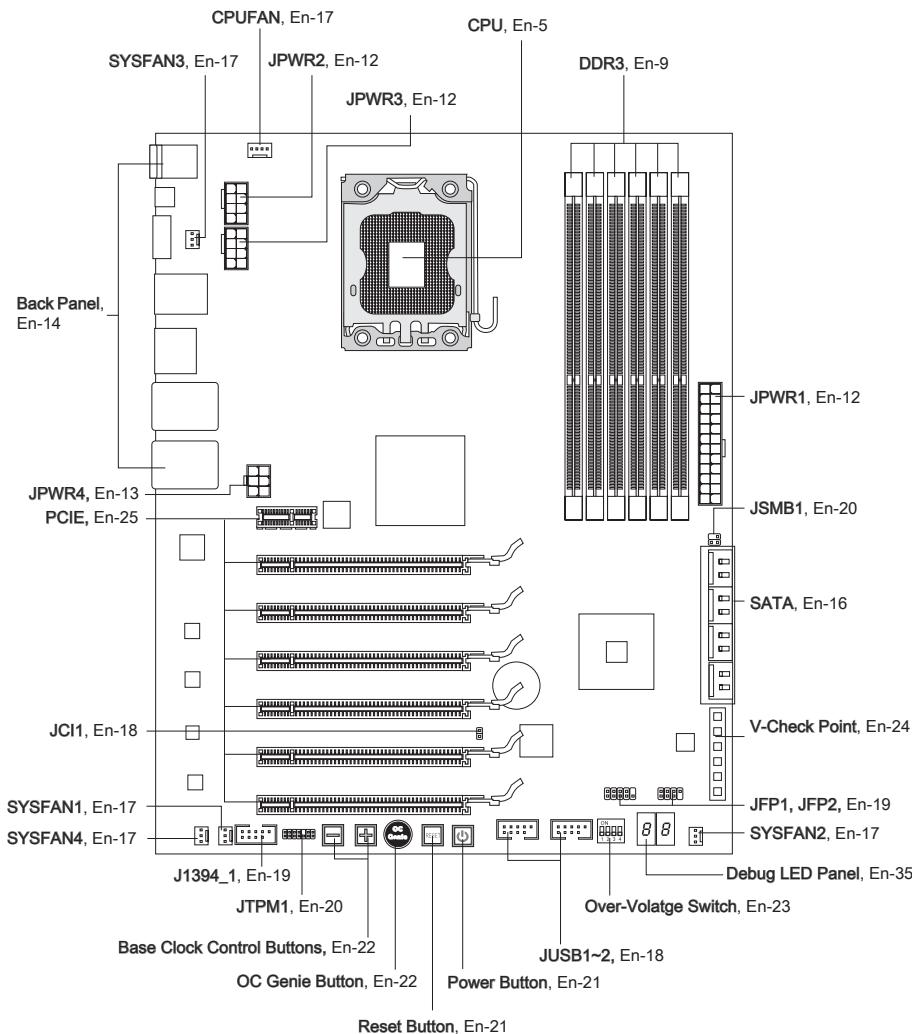

Quick Components Guide

CPU (Central Processing Unit)

When you are installing the CPU, make sure to install the cooler to prevent overheating. If you do not have the CPU cooler, consult your dealer before turning on the computer. For the latest information about CPU, please visit http://www.msi.com/index.php?func=cpuform2

Important

Overheating

Overheating will seriously damage the CPU and system. Always make sure the cooling fan can work properly to protect the CPU from overheating. Make sure that you apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.

Replacing the CPU

While replacing the CPU, always turn off the ATX power supply or unplug the power supply's power cord from the grounded outlet first to ensure the safety of CPU.

Overclocking

This mainboard is designed to support overclocking. However, please make sure your components are able to tolerate such abnormal setting, while doing overclocking. Any attempt to operate beyond product specifications is not recommended. We do not guarantee the damages or risks caused by inadequate operation or beyond product specifications.

Introduction to LGA 1366 CPU

The pin-pad side of LGA 1366 CPU.

Yellow triangle is the Pin 1 indicator

The surface of LGA 1366 CPU. Remember to apply some thermal paste on it for better heat dispersion.

Yellow triangle is the Pin 1 indicator

CPU & Cooler Installation

When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the damage of your CPU & mainboard.

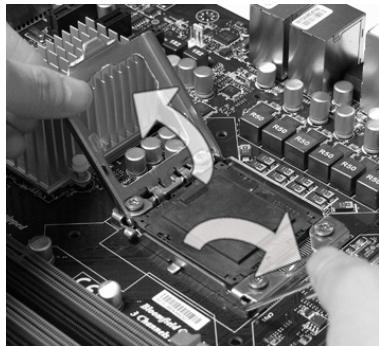

1. Open the load level.

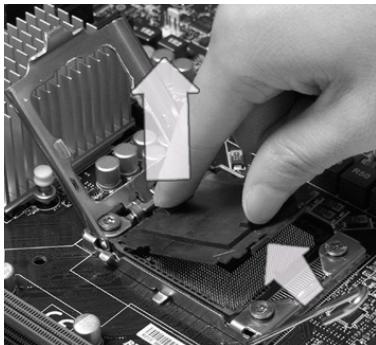

1. Lift the load lever up and open the load plate.

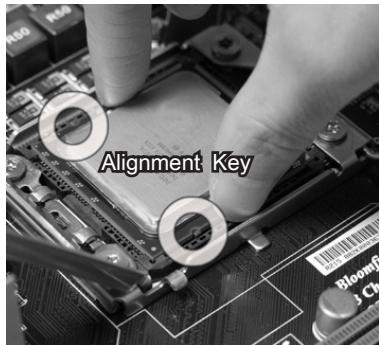

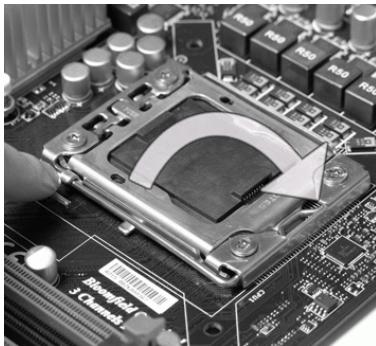

1. The CPU socket has a plastic cap on it to protect the contact from damage. Before you install CPU, always cover it to protect the socket pin. Remove the cap (as the arrow shows).

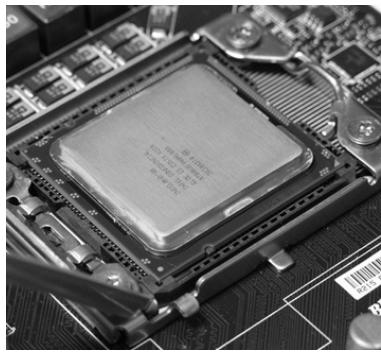

1. After confirming the CPU direction for correct mating, put down the CPU in the socket housing frame. Be sure to grasp on the edge of the CPU base. Note that the alignment keys are matched.

1. Visually inspect if the CPU is seated well into the socket. If not, take out the CPU with pure vertical motion and reinstall.

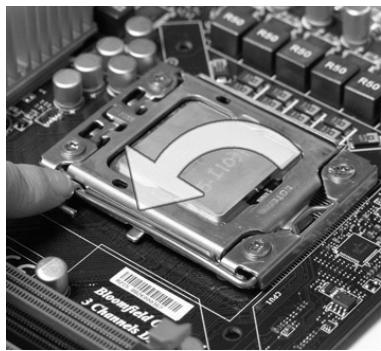

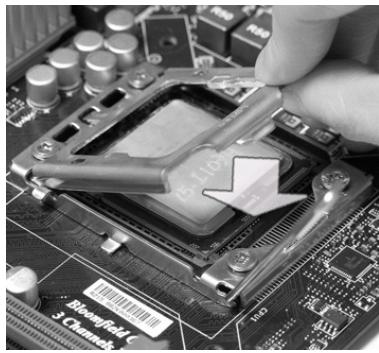

1. Press down the load lever lightly onto the load plate, and then secure the lever with the hook under retention tab.

1. Cover the load plate onto the package.

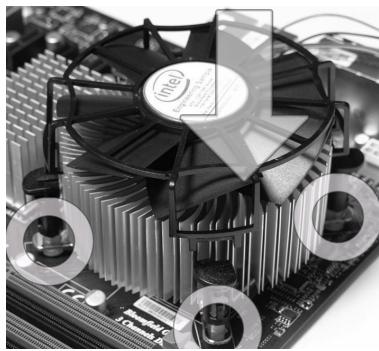

1. Align the holes on the mainboard with the heatsink. Push down the cooler until its four clips get wedged into the holes of the mainboard.

Important

• Confirm if your CPU cooler is firmly installed before turning on your system.

• Do not touch the CPU socket pins to avoid damaging.

• Press the four hooks down to fasten the cooler.

1. Turn over the mainboard to confirm that the clip-ends are correctly inserted.

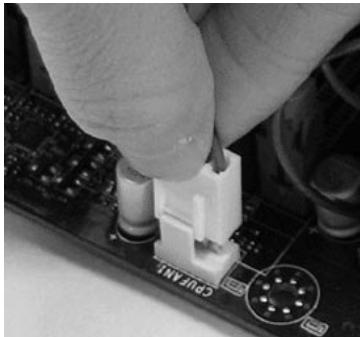

1. Finally, attach the CPU Fan cable to the CPU fan connector on the mainboard.

Important

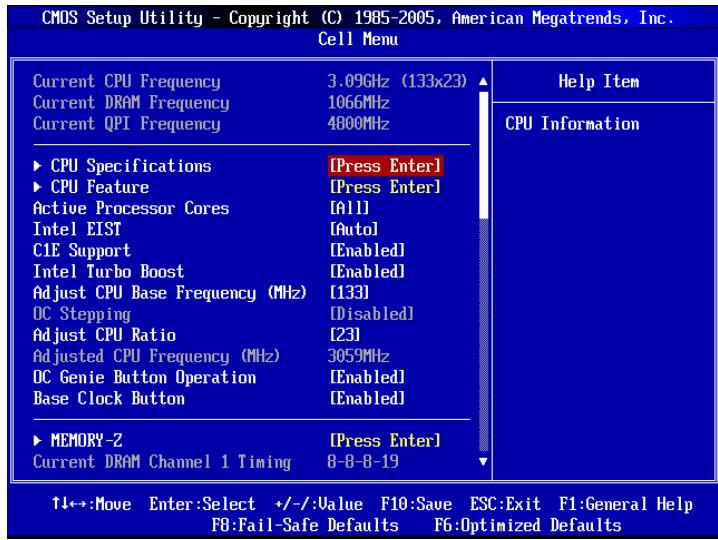

• Read the CPU status in BIOS.
• Whenever CPU is not installed, always protect your CPU socket pin with the plastic cap covered (shown in Figure 1) to avoid damaging.
• Mainboard photos shown in this section are for demonstration of the CPU/ cooler installation only. The appearance of your mainboard may vary depending on the model you purchase.
• Please refer to the documentation in the CPU fan package for more details about the CPU fan installation.

Memory

These DIMM slots are used for installing memory modules. For more information on compatible components, please visit http://www.msi.com/index.php?func=testreport

DDR3

240-pin, 1.5V

Memory Population Rule

Please refer to the following illustrations for memory population rules.

Single-Channel mode Population Rule

When you have only one memory module, please always insert it into the DIMM_1 (DIMM_A0 in v1.0 PCB) first.

Dual-Channel mode Population Rule

In Dual-Channel mode, the memory modules can transmit and receive data with two data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system performance. When you have two memory modules, please always insert them as the figures shown in below.

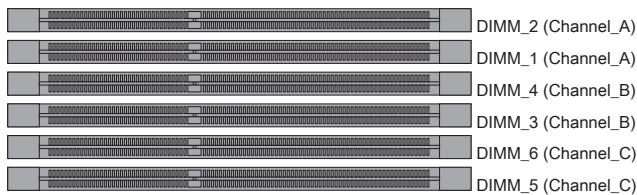

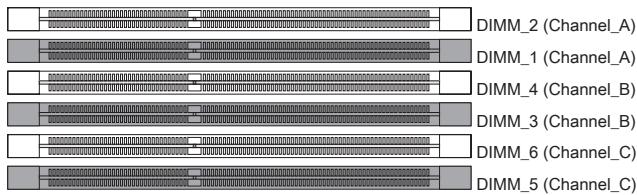

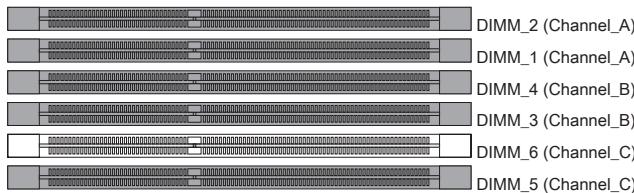

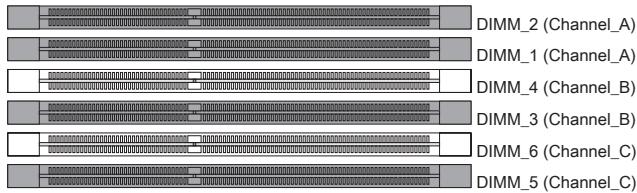

Triple-Channel mode Population Rule

In Triple-Channel mode, the memory modules can transmit and receive data with three data bus lines simultaneously. Enabling Triple-Channel mode can enhance the best system performance. When you have three or more memory modules, please always insert them as the figures shown in below.

(3)

(4)

(5)

6

Important

• DDR3 memory modules are not interchangeable with DDR2 and the DDR3 standard is not backwards compatible. You should always install DDR3 memory modules in the DDR3 DIMM slots.

• In Triple-Channel/ Dual-Channel mode, make sure that you install memory modules of the same type and density in different channel DIMM slots.

• To enable successful system boot-up, always insert the memory modules into the DIMM_1 (DIMM_A0 in v1.0 PCB) first.

• Due to the chipset resource deployment, the system density will only be detected up to 23+GB (not full 24GB) when each DIMM is installed with a 4GB memory module.

Installing Memory Modules

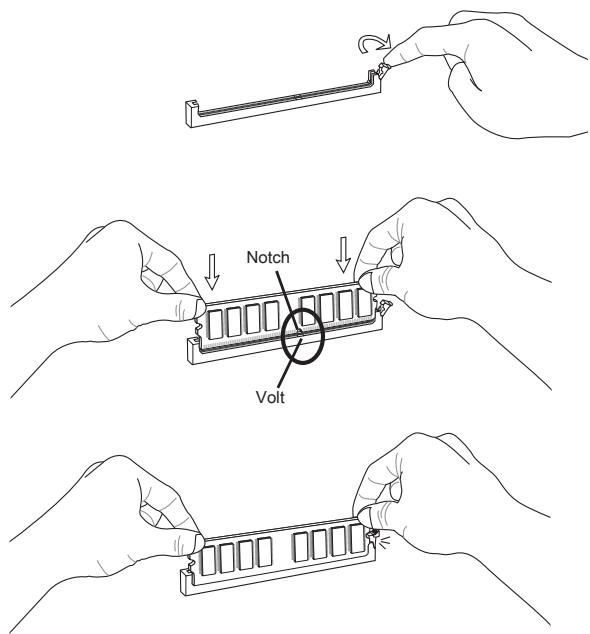

1. The memory module has only one notch on the center and will only fit in the right orientation.
2. Insert the memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the DIMM slot. The plastic clip at each side of the DIMM slot will automatically close when the memory module is properly seated.
3. Manually check if the memory module has been locked in place by the DIMM slot clips at the sides.

Important

You can barely see the golden finger if the memory module is properly inserted in the DIMM slot.

Power Supply

ATX 24-pin Power Connector: JPWR1

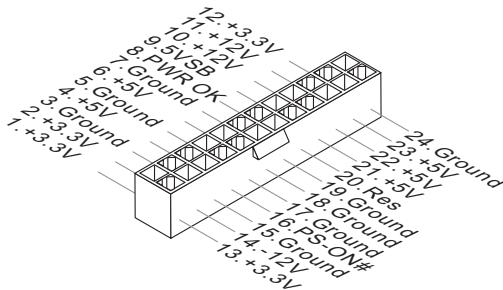

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.

You may use the 20-pin ATX power supply as you like. If you'd like to use the 20-pin ATX power supply, please plug your power supply along with pin 1 & pin 13.

ATX 8-pin Power Connector: JPWR2/ JPWR3

These connectors provide 12V power output to the CPUs.

ATX 6-pin Power Connector: JPWR4

This connector is used to provide power to the graphics card.

Important

• Make sure that all the connectors are connected to proper ATX power supplies to ensure stable operation of the mainboard.
• Power supply of 450 watts (and above) is highly recommended for system stability.

Back Panel

Mouse/Keyboard

The standard PS/2 mouse/keyboard DIN connector is for a PS/2 mouse/keyboard.

Clear CMOS Button

There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the button to clear data. Press the button to clear the data.

Important

Make sure that you power off the system before clearing CMOS data.

After pressing this button to clear CMOS data in power off (G3) state, the system will boot automatically.

D-LED2 Panel Connector

This connector connects to a D-LED2 (Debug-LED2) panel (optional), which shows information on the panel for you and identify the current status or mode of the connected system. Please refer to the D-LED2 quick guide (optional) for more details and usages.

IEEE 1394 Port

The IEEE 1394 port on the back panel provides connection to IEEE 1394 devices.

USB 2.0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. Supports data transfer rate up to 480Mbit/s (Hi-Speed).

ESATA Port

The ESATA (External SATA) port is for attaching the ESATA hard drive.

ESATA/USB2.0ComboPort

The ESATA/USB 2.0 combo port is for attaching the ESATA external hard drive or USB device.

USB 3.0 Port

USB 3.0 port is backward-compatible with USB 2.0 devices. Supports data transfer rate up to 5 Gbit/s (SuperSpeed).

Important

If you want to use a USB 3.0 device, you must use the USB 3.0 cable to connect to the USB 3.0 port.

LAN

The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You can connect a network cable to it.

LED	Color	LED State	Condition
Left	Yellow	Off	LAN link is not established.
		On(Steady state)	LAN link is established.
		On(brighter & pulsing)	The computer is communicating with another computer on the LAN.
Right	Green	Off	10 Mbit/sec data rate is selected.
		On	100 Mbit/sec data rate is selected.
	Orange	On	1000 Mbit/sec data rate is selected.

Connectors

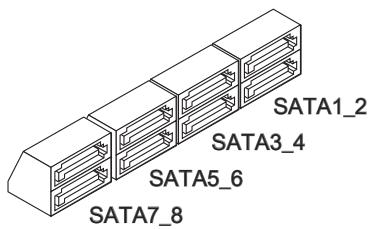

Serial ATA Connector: SATA1~8

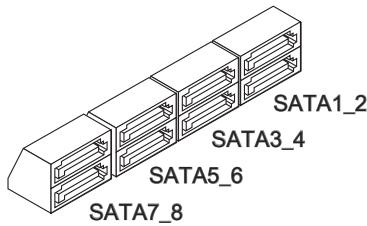

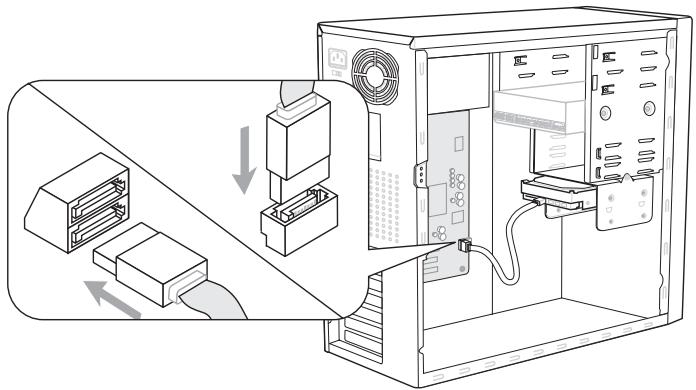

This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device.

* The MB layout in this figure is for reference only.

SATA1~6 (3Gb/s)

supported by Intel® ICH10R

SATA7/ SATA8 (6Gb/s)

supported by Marvell® 88SE9128

Important

Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may occur during transmission.

Fan Power Connectors: CPUFAN,SYSFAN1~4

The fan power connectors support system cooling fan with +12V . When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V ; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

SYSFAN1~4

Important

• Please refer to the recommended CPU fans at processor's official website or consult the vendors for proper CPU cooling fan.
• CPUFAN support Smart fan control. You can install Control Center utility that will automatically control the CPUFAN speeds according to the actual CPUFAN temperatures.

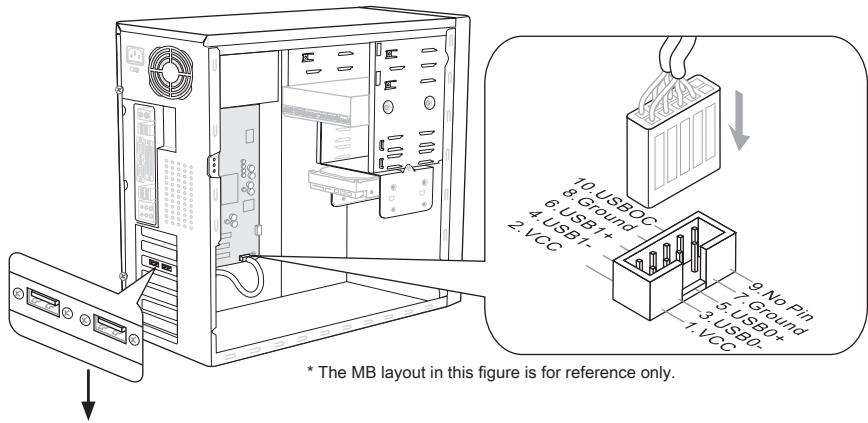

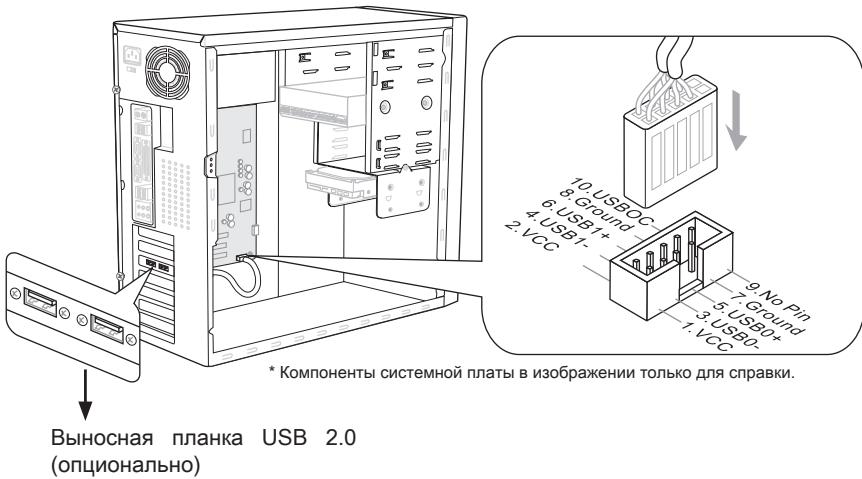

Front USB Connector: JUSB1 / JUSB2

This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

USB 2.0 Bracket (optional)

Important

Note that the pins of VCC and GND must be connected correctly to avoid possible damage.

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.

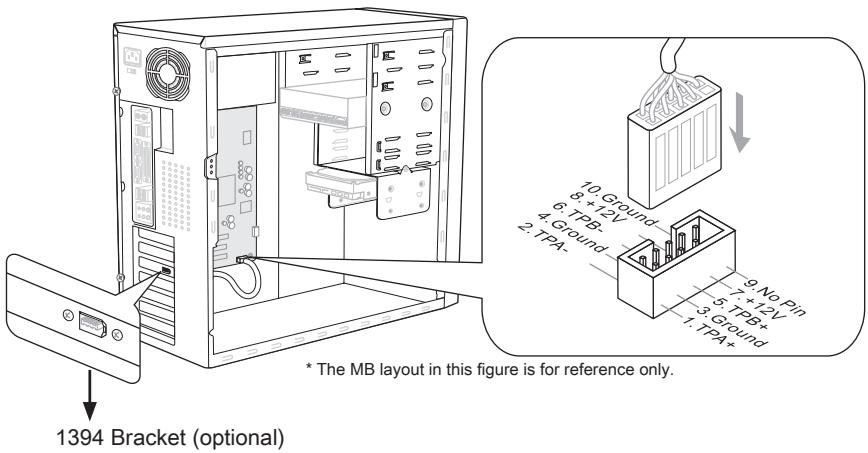

IEEE1394 Connector: J1394_1

This connector allows you to connect the IEEE1394 device via an optional IEEE1394 bracket.

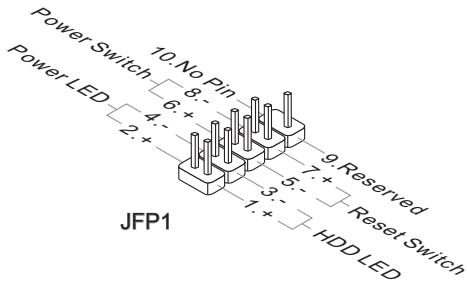

Front Panel Connectors: JFP1, JFP2

These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

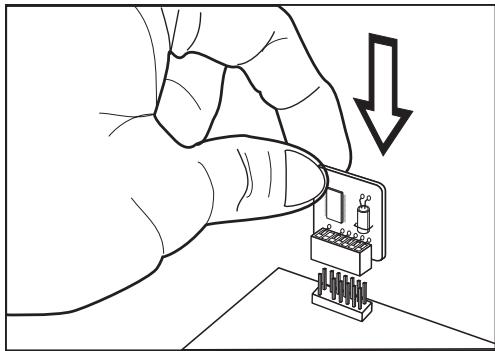

TPM Module connector: JTPM1

This connector connects to a TPM (Trusted Platform Module) module (optional). Please refer to the TPM security platform manual for more details and usages.

GreenPower Genie Connector: JSMB1 (optional)

This connector connects to GreenPower Genie (optional).

Button

The mainboard provides the following buttons for you to set the computer's function. This section will explain how to change your mainboard's function through the use of button.

Power Button

This button is used to turn-on or turn-off the system. Press the button to turn-on or turn-off the system.

Reset Button

This button is used to reset the system. Press the button to reset the system.

OC Genie Button

This button is used to auto-overclock for the system. Press this button to enable the OC Genie function when the system is in power off state, meanwhile, the button will light and lock. And then the system will automatically detect the optimum values to overclock after booting the system. To disable the OC Genie function, please press the button again after power off the system, meanwhile, the button light will off and unlock, and the system will restore the default for next boot.

Important

• Please install the DDR3 1333 and up memory and equip better heat sink/ cooler with OC Genie function.
• We do not guarantee the OC Genie overclocking range and the damages or risks caused by the OC Genie overclocking behavior.
• You can disable the OC Genie function in BIOS setup. And we suggest you to save the OC Genie configuration to overclocking profile in BIOS for future using.
• The usage of OC Genie is at your own risk. Overclocking is never guaranteed by MSI.

Base Clock Control Buttons

These buttons are used to increase or decrease the Base clock frequency. Pressing the Plus/ Minus button once will increase/ decrease the Base clock frequency 0.5 MHz when the system is in regular operation state.

Plus button

Minus button

Switch

This mainland provides the following switch for you to set the computer's function. This section will explain how to change your mainland's function through the use of switch.

Over-Voltage Switch

The switch is used to upgrade the maximum adjustment value of CPU/ QPI/ DDR/ IOH voltage in BIOS setup. And then you can over-voltage the CPU/ QPI/ DDR/ IOH voltage in BIOS setup.

Follow the instructions below to to upgrade the maximum adjustment value of CPU/QPI/ DDR/ IOH voltage.

Switch 1 : is used to upgrade the CPU voltage adjustment range, switching it to "ON" will upgrade the CPU voltage adjustment range in BIOS.

Switch 2 : is used to upgrade the QPI voltage adjustment range, switching it to "ON" will upgrade the QPI voltage adjustment range in BIOS.

Switch 3 : is used to upgrade the DDR voltage adjustment range, switching it to "ON" will upgrade the DDR voltage adjustment range in BIOS.

Switch 4 : is used to upgrade the IOH voltage adjustment range, switching it to "ON" will upgrade the IOH voltage adjustment range in BIOS.

Important

• While you enable OC Genie to detect your system configuration, please don't turn on any parts of V-switch simultaneously. That behavior would offer too much voltage for device and would be possible to cause some damage of device.
• After you set the CPU/QPI/ DDR/ IOH voltage in BIOS, you can check the CPU/QPI/ DDR/ IOH voltage by measuring the Voltage Check Point with multimeter. Please refer the following instructions to measure these voltages.

Voltage Check Point: V-Check Point

This voltage check point set is used to measure the current CPU/ QPI/ DDR/ IOH/ ICH voltage.

CPU voltage: measure the current CPU voltage with CPU point and GND point by using a multimeter.

QPI voltage: measure the current QPI voltage with QPI point and GND point by using a multimeter.

DDR voltage: measure the current DDR voltage with DDR point and GND point by using a multimeter.

IOH voltage: measure the current IOH voltage with IOH point and GND point by using a multimeter.

ICH voltage: measure the current ICH voltage with ICH point and GND point by using a multimeter.

Slots

PCIE (Peripheral Component Interconnect Express) Slot

The PCI Express slot supports the PCI Express interface expansion card.

PCI Express x16 Slot

PCI Express x1 Slot

Important

When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.

PCIE x16 slots Population Rule

Please refer to the following illustrations for PCIE x16 population rules. And the following table details the PCIE x16 lanes configuration with/ without installed expansions card(s).

	1 expansion card	2 expansion cards	3 expansion cards		4 expansion cards	5 expansion cards	6 expansion cards
PCI_E2 Lane	x16 @	x16 @	x16 @	x8 @	x8 @	x8 @	x8 @
PCI_E3 Lane	x0	x0	x0	x0	x0	x4 @	x4 @
PCI_E4 Lane	x0	x0	x0	x8 @	x8 @	x4 @	x4 @
PCI_E5 Lane	x16	x16 @	x8 @	x8	x8 @	x8 @	x8 @
PCI_E6 Lane	x0	x0	x8 @	x8 @	x8 @	x8 @	x4 @
PCI_E7 Lane	x0	x0	x0	x0	x0	x0	x4 @
@: expansion card installed slot

The way for installing one expansion card:

The way for installing two expansion card:

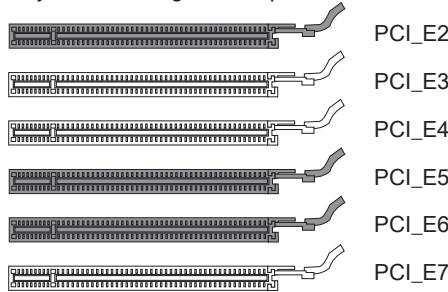

Two ways for installing three expansion card:

The way for installing four expansion card:

PCI_E2

PCI_E3

PCI_E4

PCI_E5

PCI_E6

PCI_E7

The way for installing five expansion card:

PCI_E2

PCI_E3

PCI_E4

PCI_E5

PCI_E6

PCI_E7

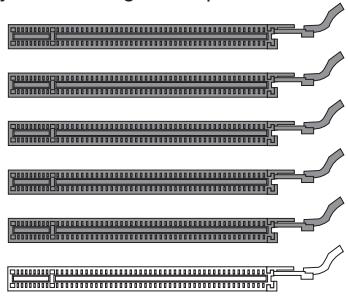

The way for installing six expansion card:

PCI_E2

PCI_E3

PCI_E4

PCI_E5

PCI_E6

PCI_E7

ATI CrossFireX™ (Multi-GPU) Technology

ATI CrossFireX™ is the ultimate multi-GPU performance gaming platform. Enabling game-dominating power, ATI CrossFireX™ technology enables two or more discrete graphics processors to work together to improve system performance. ATI CrossFireX™ technology allows you to expand your system's graphics capabilities. It allows you the ability to scale your system's graphics horsepower as you need it, supporting two or more ATI Radeon™ HD graphics cards, making this the most scalable gaming platform ever. The motherboard can auto detect the CrossFireX™ mode by software, therefore you don't have to enable the CrossFireX™ in BIOS by yourself. The following details the 2-way CrossFireX™ installation.

1. Install two ATI Radeon™ HD graphics cards into the PCI_E2 & PCI_E5 slots.

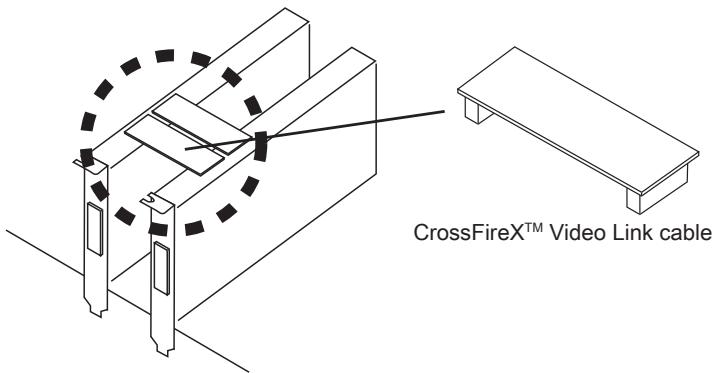

2. With two cards installed, an CrossFire™ Video Link cable is required to connect the golden fingers on the top of these two graphics cards (refer to the picture below). Please note that although you have installed two or more graphics cards, only the video outputs on the graphics card installed in first PCIE x16 slot will work. Hence, you only need to connect a monitor to this graphics card.

Important

• If you intend to install TWO graphics cards for CrossFire™ mode, make sure that: a. these two graphics cards are of the same brand and specifications; b. these two cards are installed on both PCIe x16 slots (PCI_E2 & PCI_E5) that support up to PCIe x16 speed.
• Make sure that you connect an adequate power supply to the JPWR4 connector (or to the power connector on the graphics card) to ensure stable operation of the graphics card.

• Only Windows® XP with Service Pack 2 (SP2)& Windows® XP Professional x64 Edition, Windows® Vista & Windows® 7 support the CrossFire™ function.

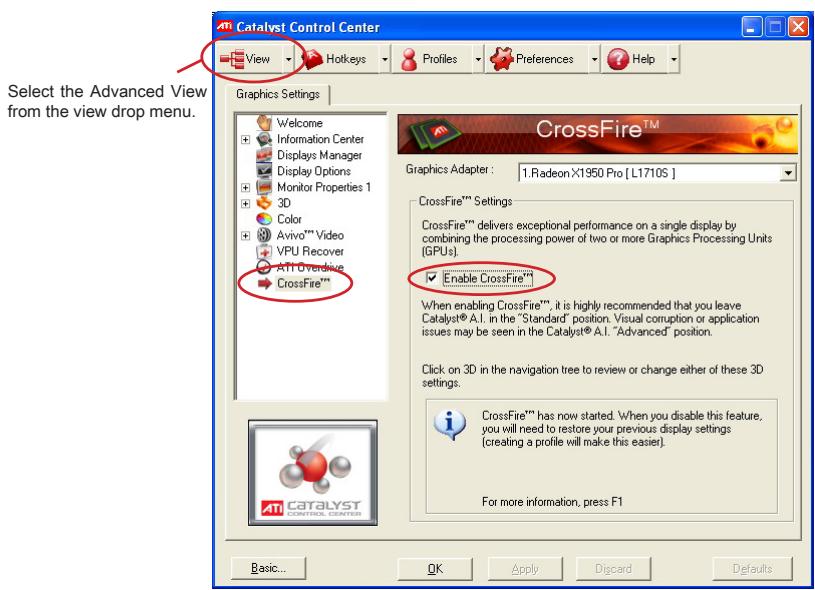

• When all of the hardware and software has been properly set up and installed, reboot the system. After entering the O.S., click the "Catalyst™ Control Center" icon on the desktop. There is a setting in the Catalyst™ Control Center that needs to be enabled for CrossFire™ to operate. The following aspect appears in Catalyst™ Control Center:

Important

A CrossFire™ system has four possible display modes:

SuperTiling
- Scissor Mode
Alternate Frame Rendering
Super Anti-aliasing.

for more details, please consult the graphics card manual from the manufacturer.

NVIDIA® SLI Technology

NVIDIA® SLI (Scalable Link Interface) technology allows two GPUs to run in tandem within a system to achieve up to twice the performance of a single graphics card. To utilize this technology, the two GPU cards must be connected by an SLI Video Link card.

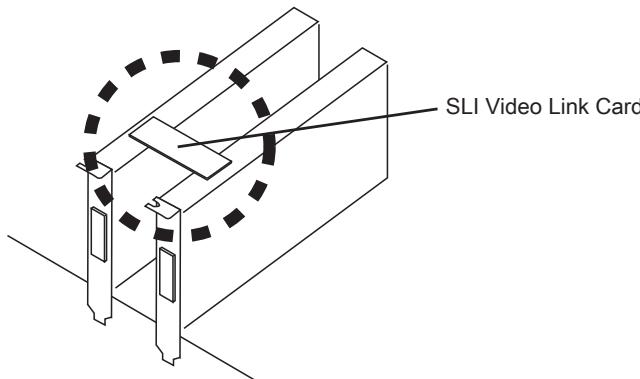

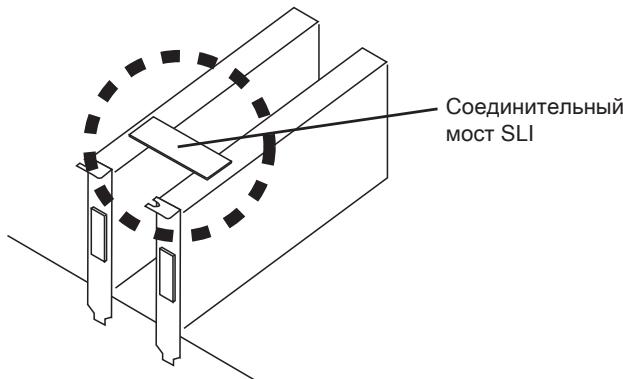

SLI Video Link Card

If you intend to use the SLI mode for better graphics performance, please refer to the following instructions.

1. Install two graphics cards into the PCI_E2 & PCI_E5 slots. With two cards installed, an SLI Video Link Card is required to connect the golden fingers on the top of these two graphics cards (refer to the picture below). Please note that although you have installed two graphics cards, only the video outputs on the first card will work. Hence, you only need to connect a monitor to the first PCI Express card.

Important

• The photos shown in this section are for demonstration only. The appearance of your mainboard may vary depending on the model you purchase.
• If you intend to install TWO x16 graphics cards, make sure that these two graphics cards are of the same brand and specifications.

• Make sure that you connect an adequate power supply to the JPWR4 connector (or to the power connector on the graphics card) to ensure stable operation of the graphics card.

• After the hardware installation is completed, restart the system and install the NV SLI driver/utility. A configuration panel will be provided for Multi-GPU control. Check the Enable multi-GPU box to enable the SLI function for the onboard graphics cards (concerning the details of multi-GPU settings, please refer to your graphics card manual).

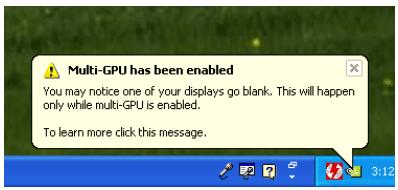

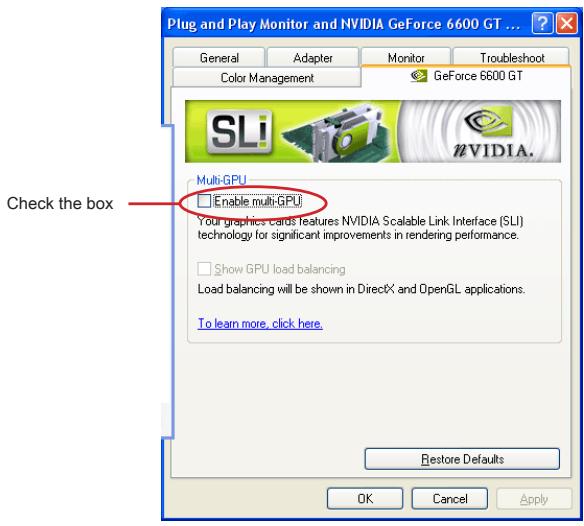

1. Restart your system and a pop-up message will show in the system tray confirming the Multi-GPU has been enabled.

Important

If you want to remove one graphics card and quit the SLI function, make sure the "Multi-GPU" function is disabled.

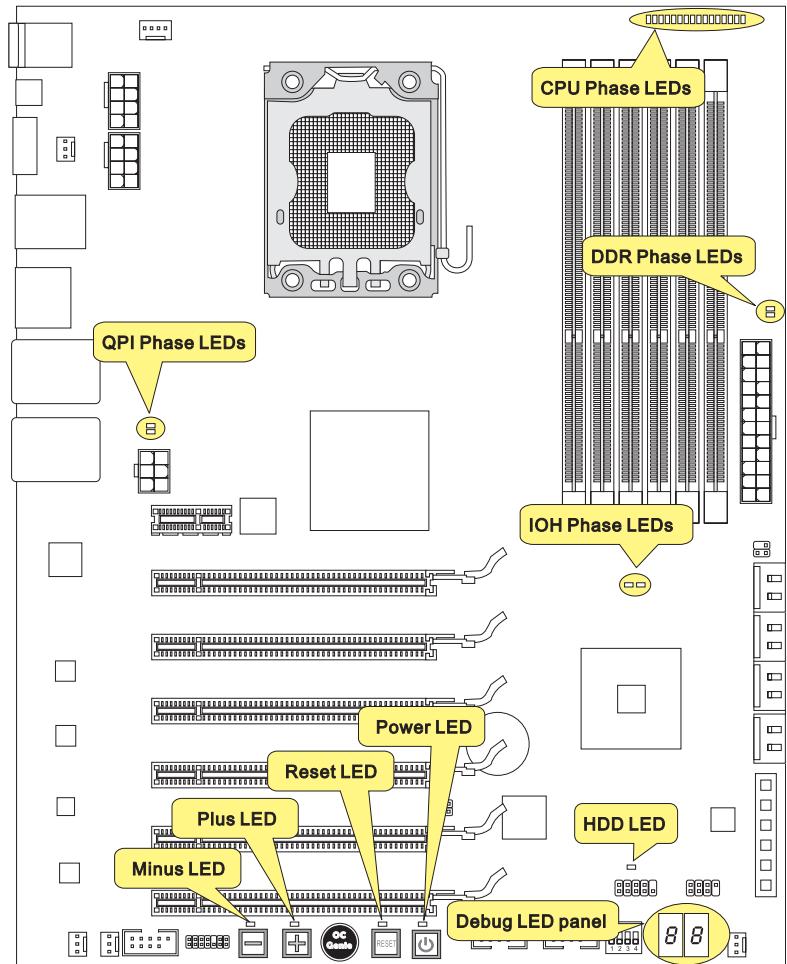

LED Status Indicators (optional)

CPU Phase LEDs

These LEDs indicate the current CPU power phase mode. Follow the instructions below to read.

Lights

Off

CPU is in 1 phase power mode.

CPU is in 2 phase power mode.

CPU is in 3 phase power mode.

CPU is in 4 phase power mode.

CPU is in 5 phase power mode.

CPU is in 6 phase power mode.

CPU is in 7 phase power mode.

CPU is in 8 phase power mode.

CPU is in 9 phase power mode.

CPU is in 10 phase power mode.

CPU is in 11 phase power mode.

CPU is in 12 phase power mode.

CPU is in 13 phase power mode.

CPU is in 14 phase power mode.

CPU is in 15 phase power mode.

CPU is in 16 phase power mode.

QPI Phase LEDs

These LEDs indicate the current QPI power phase mode. Follow the instructions below to read.

Lights

Off

□■

QPI is in 1 phase power mode.

■■

QPI is in 2 phase power mode.

IOH Phase LEDs

These LEDs indicate the current IOH power phase mode. Follow the instructions below to read.

Lights

Off

IOH is in 1 phase power mode.

IOH is in 2 phase power mode.

DDR Phase LEDs

These LEDs indicate the current DDR power phase mode. Follow the instructions below to read.

Lights

Off

□

DDR is in 1 phase power mode.

■

DDR is in 2 phase power mode.

HDDLED

Lights when the hard drive is operating.

Power LED

Every time you press the power button and it is functional, the power LED will blink once.

Reset LED

Every time you press the reset button and it is functional, the reset LED will blink once.

Minus LED

Every time you press the minus button and it is functional, the minus LED will blink once.

Plus LED

Every time you press the plus button and it is functional, the plus LED will blink once.

Debug LED Panel

Please refer to the table below to get more information about the Debug LED message.

Post	Status
FF	Power on and first initialize CPU.
C0, C1, C2	Early CPU Initialize.
C4, C6	Initialize chipset.
D4, D5	Initialize memory.
08	Initialize keyboard.
2A, 31	Initialize onboard devices. Load Option ROM (VGA and RAID option ROM) from BIOS to memory.
37	Displaying sign-on message, CPU information, setup key message and any OEM specific information.
38	Initialize USB device and different devices.
3C	Mid POST initialization of chipset registers. Detect different devices (parallel ports, serial ports and coprocessor in CPU...etc.)
75, 78	Initialize INT 13 devices and IPL devices. (include SATA/ PATA HDD and CD/DVD ROM).
87	Enter setup screen. BIOS setup if needed/ requested.
A4	Wait for user input at configuration display if needed.
A7	Display the system configuration screen if enabled.
B1	Save system context for ACPI (Advanced Configuration and Power Interface).Prepare give control to OS loader (INT 19H).
00	Pass control to OS Loader (typically INT 19H).
AA	Enter OS

BIOS Setup

This chapter provides basic information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when:

An error message appears on the screen during the system booting up, and requests you to run BIOS SETUP.
- You want to change the default settings for customized features.

Important

• The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.
• Upon boot-up, the 1st line appearing after the memory count is the BIOS version. It is usually in the format:

A7666IMS V1.0 042210 where:

1st digit refers to BIOS maker as A = AMI , W = AWARD , and P = PHOENIX . 2nd - 5th digit refers to the model number.

6th digit refers to the chipset as I = Intel, N = NVIDIA, A = AMD and V = VIA. 7th - 8th digit refers to the customer as MS = all standard customers.

V1.0 refers to the BIOS version.

042210 refers to the date this BIOS was released.

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl> , <Alt> , and <Delete> keys.

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the arrow keys (↑↓) to select the item. The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol appears to the left of certain fields that means a submenu can be launched from this field. A sub-menu contains additional options for a field parameter. You can use arrow keys (↑↓) to highlight the field and press to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the .

General Help

The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1> . The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.

The Main Menu

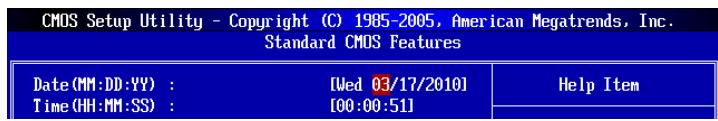

Once you enter BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from the setup functions and two exit choices. Use arrow keys to select among the items and press to accept or enter the sub-menu.

Standard CMOS Features	Cell Menu
Advanced BIOS Features	M-Flash
Integrated Peripherals	Overclocking Profile
Power Management Setup	Load Fail-Safe Defaults
H/W Monitor	Load Optimized Defaults
Green Power	Save & Exit Setup
BIOS Setting Password	Exit Without Saving

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of special enhanced features.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

H/W Monitor

This entry shows your PC health status.

Green Power

Use this menu to specify the power phase.

BIOS Setting Password

Use this menu to set the password for BIOS.

Cell Menu

Use this menu to specify your settings for frequency/voltage control and overclocking.

M-Flash

Use this menu to read/ flash the BIOS from storage drive (FAT/ FAT32 format only).

Overclocking Profile

Use this menu to save/ load your settings to/ from CMOS for BIOS.

Load Fail-Safe Defaults

Use this menu to load the default values set by the BIOS vendor for stable system performance.

Load Optimized Defaults

Use this menu to load the default values set by the mainboard manufacturer specifically for optimal performance of the mainboard.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

When entering the BIOS Setup utility, follow the processes below for general use.

1. Load Optimized Defaults: Use control keys ( ) to highlight the Load Optimized Defaults field and press , a message as below appears:

Load Optimal Defaults?

[0k]

[Cancel]

Select [Ok] and press Enter to load the default settings for optimal system performance.

1. Setup Date/ Time : Select the Standard CMOS Features and press to enter the Standard CMOS Features-menu. Adjust the Date, Time fields.

1. Save & Exit Setup: Use control keys ( ) to highlight the Save & Exit Setup field and press , a message as below appears:

Save configuration changes and exit setup?

[0k]

[Cancel]

Select [Ok] and press Enter to save the configurations and exit BIOS Setup utility.

Important

The configuration above are for general use only. If you need the detailed settings of BIOS, please see the complete version of English manual on MSI website.

1. Cell Menu Introduction : This menu is for advanced user who want to overclock the mainboard.

Important

Change these settings only if you are familiar with the chipset.

Current CPU / DRAM / QPI Frequency

These items show the current frequencies of CPU, Memory and QPI. Read-only.

CPU Specifications

Press to enter the sub-menu. This submenu shows the information of installed CPU.

CPU Technology Support

Press to enter the sub-menu. In this sub-menu, it shows the installed CPU technologies. Read only.

CPU Feature

Press to enter the sub-menu.

Intel EIST

The Enhanced Intel SpeedStep technology allows you to set the performance level of the microprocessor whether the computer is running on battery or AC power. This field will appear after you installed the CPU which supports speedstep technology.

Intel C-State

C-state is a power management state that significantly reduces the power of the processor during idle. This field will appear after you installed the CPU which supports c-state technology.

C State Package Limit Setting
This feild allows you to select a C-state level. We recommend that you leave this setting to Auto.
C1E Support

To enable this item to read the CPU power consumption while idle. Not all processors support Enhanced Halt state (C1E).

OverSpeed Protection
Overspeed Protection function can monitor the current CPU draws as well as its power consumption. If it exceeds a certain level, the processor automatically reduces its clock speed. If you want to overclock your CPU, set it to [Disabled].
Hyper-Threading Function

The processor uses Hyper-Threading technology to increase transaction rates and reduces end-user response times. The technology treats the two cores inside the processor as two logical processors that can execute instructions simultaneously. In this way, the system performance is highly improved. If you disable the function, the processor will use only one core to execute the instructions. Please disable this item if your operating system doesn't support HT Function, or unreliability and instability may occur.

Important

Enabling the functionality of Hyper-Threading Technology for your computer system requires ALL of the following platform Components:

• CPU: An Intel® Processor with HT Technology;
• Chipset: An Intel® Chipset that supports HT Technology;
• BIOS: A BIOS that supports HT Technology and has it enabled;
• OS: An operating system that supports HT Technology.

For more information on Hyper-threading Technology, go to:

http://www.intel.com/products/ht/hyperthreading_more.htm

Execute Bit Support

Intel's Execute Disable Bit functionality can prevent certain classes of malicious "buffer overflow" attacks when combined with a supporting operating system. This functionality allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation.
Set Limit CPUID MaxVal to 3

The Max CPUID Value Limit is designed limit the listed speed of the processor to older operating systems.

Intel Virtualization Tech

This item is used to enable/disable the Intel Virtualization technology. For further information please refer to Intel's official website.

Intel VT-d

This item is used to enable/disable the Intel Virtualization Technology for Directed I/O (VT-d). For further information please refer to Intel's official website.

Active Processor Cores

This item allows you to select the number of active processor cores.

Intel EIST

The Enhanced Intel SpeedStep technology allows you to set the performance level of the microprocessor whether the computer is running on battery or AC power. This field will appear after you installed the CPU which supports speedstep technology.

C1E Support

To enable this item to read the CPU power consumption while idle. Not all processors support Enhanced Halt state (C1E).

Intel Turbo Boost

This item will appear when you install a CPU with Intel Turbo Boost technology. This item is used to enable/ disable Intel Turbo Boost technology. It can scale processor frequency higher dynamically when applications demand more performance and TDP headroom exists. It also can deliver seamless power scalability (Dynamically scale up, Speed-Step Down). It is the Intel newly technology within i7 CPU.

Adjust CPU Base Frequency (MHz)

This item allows you to set the CPU Base clock (in MHz). You may overclock the CPU by adjusting this value. Please note the overclocking behavior is not guaranteed.

OC Stepping

This item will be enabled after you set the overclocking frequency in the "Adjust CPU Base Frequency (MHz)". And the following items will appear. This items will help the system to overclock step by step after system booting up.

Start OC Stepping From (MHz)

This item is used to set the initial base clock. The system will boot with the initial base clock, and start to overclock from initial base clock to set base clock that you set in "Adjust CPU Base Frequency (MHz)" step by step.

OC Step

This item is used to set how many steps for base colck overclocking.

OC Step Count Timer

This item is used to set the buffer time for every step.

Adjust CPU Ratio

This item allows you to adjust the CPU ratio.

Adjusted CPU Frequency (MHz)

It shows the adjusted CPU frequency (Base clock x Ratio). Read-only.

OC Genie Button Operation

This item is used to enable/ disable the OC Genie button function.

Base Clock Button

This item is used to enable/ disable the base clock button function.

MEMORY-Z

Pressto enter the sub-menu.

DIMM1~6 Memory SPD Information

Press to enter the sub-menu. The sub-menu displays the informations of installed memory.

Current DRAM Channel1/2/3 Timing

It shows the installed DRAM Timing. Read-only.

DRAM Timing Mode

Select whether DRAM timing is controlled by the SPD (Serial Presence Detect) EEPROM on the DRAM module. Setting to [Auto] enables DRAM timings and the following "Advance DRAM Configuration" sub-menu to be determined by BIOS based on the configurations on the SPD. Selecting [Manual] allows users to configure the DRAM timings and the following related "Advance DRAM Configuration" sub-menu manually.

Advance DRAM Configuration

Pressto enter the sub-menu.

CH1/ CH2/ CH3 or CH1-3 1T/2T Memory Timing

This item controls the SDRAM command rate. Selecting [1] makes SDRAM signal controller to run at 1N (N=clock cycles) rate. Selecting [2] makes SDRAM signal controller run at 2N rate.

CH1/ CH2/ CH3 or CH1-3 CAS Latency (CL)

This controls the CAS latency, which determines the timing delay (in clock cycles) before SDRAM starts a read command after receiving it.

CH1/ CH2/ CH3 or CH1-3 tRCD

When DRAM is refreshed, both rows and columns are addressed separately. This setup item allows you to determine the timing of the transition from RAS (row address strobe) to CAS (column address strobe). The less the clock cycles, the faster the DRAM performance.

CH1/ CH2/ CH3 or CH1-3 tRP

This setting controls the number of cycles for Row Address Strobe (RAS) to be allowed to precharge. If insufficient time is allowed for the RAS to accumulate its charge before DRAM refresh, refresh may be incomplete and DRAM may fail to retain data. This item applies only when synchronous DRAM is installed in the system.

CH1/ CH2/ CH3 or CH1-3 tRAS

This setting determines the time RAS takes to read from and write to memory cell.

CH1/ CH2/ CH3 or CH1-3 tRFC

This setting determines the time RFC takes to read from and write to a memory cell.

CH1/ CH2/ CH3 or CH1-3 tWR
Minimum time interval between end of write data burst and the start of a precharge command. Allows sense amplifiers to restore data to cells.
CH1/ CH2/ CH3 or CH1-3 tWTR

Minimum time interval between the end of write data burst and the start of a column-read command. It allows I/O gating to overdrive sense amplifiers before read command starts.

CH1/ CH2/ CH3 or CH1-3 tRRD
Specifies the active-to-active delay of different banks.
CH1/ CH2/ CH3 or CH1-3 tRTP

Time interval between a read and a precharge command.
CH1/ CH2/ CH3 or CH1-3 tFAW

This item is used to set the tFAW timing.
- Current CH1/ CH2/ CH3 or CH1-3 tdrRdTRd/ tddRdTRd/ tsrRdTWr/ tdrRdTWr/ tddRdTWr/ tsrWrTRd/ tdrWrTRd/ tddWrTRd/ tdrWrTWr/ tddWrTWr/ tsrRdTDr/ tsrWrTWr

These item show the advanced DRAM timings.
Channel 1/Channel 2/Channel 3 or Channel 1-3 Advance Timing

Setting to [Auto] enables the advance memory timing automatically to be determined by BIOS. Setting to [Manual] allows you to set the following advanced memory timings.

Extreme Memory Profile (X.M.P.)
This item is used to enable/ disable the Intel Extreme Memory Porfile (X.M.P.). For further information please refer to Intel's official website.
Memory Ratio

This item allows you to set the memory multiplier.
Adjusted DRAM Frequency (MHz)

It shows the adjusted DRAM frequency. Read-only.

Uncore Ratio
This item allows you to set the uncore multiplier.
Adjusted Uncore Frequency (MHz)
It shows the adjusted uncore frequency. Read-only.

QPI Links Speed
This item is used to select the QPI link speed mode.
QPI Frequency
This item allows you to set the QPI frequency.
Adjusted QPI Frequency (MHz)
It shows the adjusted QPI frequency. Read-only.

ClockGen Tuner

Pressto enter the sub-menu.

CPU Amplitude Control/PCI Express Amplitude Control
These items are used to select the CPU/PCI Express clock amplitude.
CPU CLK Skew/MCH CLK Skew

These items are used to select the CPU/ MCH chipset clock skew. They can help CPU to reach the higher overclocking performance.

Adjust PCI-E Frequency (MHz)
This field allows you to select the PCIE frequency (in MHz).
VDroop Control
This item is used to select the VDroop control mode.
- CPU Voltage (V)/ CPU PLL Voltage (V)/ QPI Voltage (V)/ DRAM Voltage (V)/ DDR_VREF_CA_A (V)/ DDR_VREF_CA_B (V)/ DDR_VREF_CA_C (V)/ DDR_VREF_DQ_A (V)/ DDR_VREF_DQ_B (V)/ DDR_VREF_DQ_C (V)/ IOH Voltage (V)/ IOH PCIE Voltage (V)/ ICH Voltage (V)

These items are used to adjust the voltage of CPU, Memory and chipset.

Spread Spectrum

When the mainboard's clock generator pulses, the extreme values (spikes) of the pulses create EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by modulating the pulses so that the spikes of the pulses are reduced to flatter curves.

Important

• If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.
• The greater the Spread Spectrum value is, the greater the EMI is reduced, and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.
• Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

Important

Failed Overclocking Resolution

This mainboard supports overclocking greatly. However, please make sure your peripherals and components are bearable for some special settings. Any operation that exceeds product specification is not recommended. Any risk or damage resulting from improper operation will not be under our product warranty.

Two ways to save your system from failed overclocking...

Reboot

Press the Power button to reboot the system three times. Please note that, to avoid electric current to affect other devices or components, we suggest an interval of more than 10 seconds among the reboot actions.

At the fourth reboot, BIOS will determine that the previous overclocking is failed and restore the default settings automatically. Please press any key to boot the system normally when the following message appears on screen.

Warning !!! The previous overclocking had failed, and system will restore its defaults setting, Press any key to continue......

Clear CMOS

Please refer to "how to clear CMOS data" section for more information about how to clear CMOS data.

Software Information

Take out the Driver/Utility DVD that is included in the mainboard package, and place it into the DVD-ROM drive. The installation will auto-run, simply click the driver or utility and follow the pop-up screen to complete the installation. The Driver/Utility DVD contains the:

• Driver menu : The Driver menu shows the available drivers. Install the driver by your desire and to activate the device.
• Utility menu : The Utility menu shows the software applications that the mainboard supports.

Important

Please visit the MSI website to get the latest drivers and BIOS for better system performance.

Deutsch

XPower Serie

Spezifikationen

Prozessoren

SuperTiling
- Scissor Mode
Alternate Frame Rendering
Super Anti-aliasing.

Press DEL to enter SETUP

Standard CMOS Features	Cell Menu
Advanced BIOS Features	M-Flash
Integrated Peripherals	Overclocking Profile
Power Management Setup	Load Fail-Safe Defaults
H/W Monitor	Load Optimized Defaults
Green Power	Save & Exit Setup
BIOS Setting Password	Exit Without Saving

Standard CMOS Features

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Overclocking Profile

Load Optimal Defaults?

[0k]

[Cancel]

Save configuration changes and exit setup?

[0k]

[Cancel]

Current CPU / DRAM / QPI Frequency

CPU Technology Support

http://www.intel.com/products/ht/hyperthreading_more.htm

Intel Virtualization Tech

Active Processor Cores

Adjust CPU Base Frequency (MHz)

Adjusted CPU Frequency (MHz)

Current DRAM Channel1/2/3 Timing

Warning !!! The previous overclocking had failed, and system will restore its defaults setting, Press any key to continue......

Clear CMOS

Emplacement PCIE (Peripheral Component Interconnect Express)

SuperTiling
- Scissor Mode
Alternate Frame Rendering
Super Anti-aliasing.

Press DEL to enter SETUP

Standard CMOS Features	Cell Menu
Advanced BIOS Features	M-Flash
Integrated Peripherals	Overclocking Profile
Power Management Setup	Load Fail-Safe Defaults
H/W Monitor	Load Optimized Defaults
Green Power	Save & Exit Setup
BIOS Setting Password	Exit Without Saving

Standard CMOS Features (Fonctions CMOS standard)

Current CPU / DRAM / QPI Frequency

CPU Technology Support

http://www.intel.com/products/ht/hyperthreading_more.htm

Intel Virtualization Tech

Active Processor Cores

Adjust CPU Base Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Current DRAM Channel1/2/3 Timing

Channel 1/Channel 2/Channel 3 or Channel 1-3 Advance Timing

Warning !!! The previous overclocking had failed, and system will restore its defaults setting,

Press any key to continue.....

- Effacer CMOS

* KomnoentbI CnTeMHOI IIaTbI B I3O6paKeHIn ToJIbKO dIe CnpaBKn.

SATA1~6 (3Γ6/c)

pa6oTaIOT Ha YInncete Intel

ICH10R

SATA7/ SATA8 (6Γ6/c)

pa6oTaIOT Ha YInCeTe Marvell

88SE9128

BHTMAHNE

U36eaiTe, noKanyiSta, pe3Kux u3r6oB ka6ena Serial ATA. B npotuBHom cIyuae MOrTy BO3HnKHyTb nOtePn daHHbIX npn nepeDaue.

Pazbem nitaHnBentnIaTOpOB: CPUFAN,SYSFAN1\~4

Pa3bEmblNTaHnBEHTNlIATOPOB NOdEepKINBAOT BEHTNlAITOpblc NtTaHMe +12B. PnnoNDkIIOeHNHeo6xOJIMO NOMHNTb, YTO KpaChbI NPOBOID NOkKnIOUaETcK WInHe +12B, YepHbI - K 3emJIe GND. EcnHa CnCTeMHOn INaTe yCTaHOBJeMa MKNpOxCema annapaTHoro MOHITOpHra, Heo6xOJMO nCNOJb3ObaT bCneuaIbHbIe BEHTNlAITOpblc DaTUnKaMn CKOpOCTn DnpeaIINaZuN FyHKUm ynpabLeHna BEHTNlAITopamn.

SYSFAN1~4

BHMHHE

• UTo6bI y3HaTb O MoDeJIaX IOxOJaXuX BeHTnIaTOpOB, O6paTInTeCb, IOnKaJyIcTa, Ha OΦnUaJIbHbI Be6 caNTnI npOKOHcyIbTnpYIteCb c npOdaBcM.
• CPUFAN noДержиBaet упаьнения скорoctь врашени вентлаятopa. Ддг abTomatческого контponя скорoctи вентлаятopa поц ECCOPA, звисяй OT Temпетатусы почeccopa и систмы, можно установс Control Center.

Pa3bEm USB nepedne naneJ: JUSB1 / JUSB2

Pa3bem, cooTBeTcByet cneuФkaunl Intel® I/O Connectivity Design, ndealbno pOdoNT dIЯ pOdkIyueHnra TaKxB bICOKocOpocThbIX nepuΦeprnHbX yCTpoiCTB, kA USB HDD, uΦpOboIe KamepbI, MP3 nIeepbl, npInTepebl, moEmln IM nIOobHbIe.

BHIMAHUE

POMHnTe, YTO BO n36eJaanHe NOBpeXdEHN, KOHTaKtbl VCC n GND oJnxHbI 6bItb npabuJIbHO IOKnIOUeHbI.

Pa3bEm DaTnka OTKpbBaHnK Kopnyca: JCI1

Cnot PCIE (Peripheral Component Interconnect Express)

CnotPCIExpressnoДеркиBaet KapTbI paСИрении ИntepeiCaPCIExpress.

PCI Express x16 cnot

PCI Express x1 cnot

BHIMAHWE

Ipeud yctahOBko nnnn 3BneueHem Kapr pacuHepnna ybeDntecb, yto Ka6ebn IITaHnO tKnUoyen OT 3NeKtpnuecko CETn. PpOHTte DOKymeHTauNHO h KapTy pacuHepnna n BblONHIne Heo6xOumMbie annpaTHbIE nn nporpaMhble yCTAHOBKn dJa daHHo nIpaTbI, TaKne Kac NepembyKn, nepeknouatenn nnn KOHfynpyaunIO BIOS.

Ppabnla yctaHOBKn cIOTOB PCIE x16

CmToTe HnKecIeMyUOHe yKa3aHnI dI npaBn yCTaHOKn cNoTOB PCIE x16. B Ta6JIne nepeuNCHeHa konΦnurpyaun npOnyckHo nCnoc6hocTn PCIE x16 C yCTaHOBLeHHbIMn KapTaMn paCUnpeHn IIn Be3 HxN.

	1 Kapta pacuerspeignia	2 Kaptsy pacuerspeignia	3 Kaptsy pacuerspeignia	4 Kaptsy pacuerspeignia	5 Kapt pacuerspeignia	6 Kapt pacuerspeignia
PCI_E2 Lane	x16@	x16@	x16@	x8@	x8@	x8@
PCI_E3 Lane	x0	x0	x0	x0	x4@	x4@
PCI_E4 Lane	x0	x0	x0	x8@	x4@	x4@
PCI_E5 Lane	x16	x16@	x8@	x8@	x8@	x8@
PCI_E6 Lane	x0	x0	x8@	x8@	x8@	x4@
PCI_E7 Lane	x0	x0	x0	x0	x0	x4@
@: yctahoblenk kapton pacuerspeignia сlots

CnocobdnyyctaHOBKnOndHOJkapTbIpacunpeHnA:

CnocobIy yctahOBKn DByx KapT paCunpeHna:

SuperTiling
- Scissor Mode
Alternate Frame Rendering
Super Anti-aliasing.

3a dononHntelbHou nHopmauei o6paTntecb K pyKoBOcTBy noIb3OBaTeJIr OT npOn3BOuNTeJI BUnDeOkaTpbl.

Texhoiognia NVIDIA® SLI

TexhONorNya NVIDIA® SLI (Scalable Link Interface) no3B0JnEeT Bdym GPU pa6oTaTB COBMeCTHO, NObIshaa 6bICTPOeHcTBne rpaΦuueeCKO nOcncTeMbI (do 2x).ДЯ INCNoJIb3OBaHnA DaHHoTexHONOrNn, BInDeOKapTbI Heo6XODIMo CoeINHTb MOCTOM SLI.

CoeHHTeBHyMocTNK SLI

PnncnoJIb3OBAHmpeKIma SLI, KOTOpB yIyUshaet npOn3BoIDTeJIbHOcTB rpaФИKIM, cIeDyIte DaHHbIM yka3aHnM.

1. YctaHOBInTe DBe rpaФHueCKnX KapTb I B CNoTb I PCI_E2 & PCI_E5. Nocne yCTaHOBKn KapT, Bam TaKxpe Notpe6yETcMocST SLI dNra CoeINHeHnKoHNKeTOpOB, paCNOJoxEHHbIX Ha BepUHnE KaKdoi KapTb (CM. IN3O6paXeHne HnKe). O6paTInTe BHMAMHne, YTO TOnbKO BnDEoBbIXoN nepBOi KAPtB 6yEt pa6oTaTb. POnToMy MOHITOp Heo6xoDmIO PoKnHouHTb ToIbKO K nepBOi KapTe PCI Express.

BHMaHue

-ФOTOrpaФи nCtEmHNoI pNAtbIB 3TOM pa3dJIe NpNBEdeHbI TOnbKO InIaIeMoHCTpaUIN. BnCtEmHNoI pNAtbIMoKET BapbIpOBaTbB 3aBNCmOcTN OT KynIeHHoB BammoJen.
- EcIN BbI cObpaTeCb yCTaHOBtB IBe BnDeOKeapTb X16, y6eINTeCb B TOM, YTO y Bac yCTaHOBneHb KApTb OT OndHoro npOn3BOJntEn a C OdHaKOBbIMN xapaKTepNCtIKAMN.
- Ybεntecb,уTo y BAC obecneeyeno Doctatoohoe nItaHne uepe3 doonHnTeJbHbI pa3bem nItaHna JPWR4 (u nn pa3bem nItaHna Ha BundeokapTe) dIy oBecepeHn ee ctabnbHO pa60tbl.

CBeTOBbIe HndNKaTOPbI (ONUHOHaJIbHO)

INHdkaTopbΦa3CPU(CPU Phase LEDs)

3TN INHdNkATOpbI NOKa3bIBaHT peKIM pa60bTI nCTOchnka nITaHnCy CPU. INHΦopMaun O COCTOHN INHdNkATOpB pINBeDeHa B Tabnue.

BKIIIOUeyE

BbIKIOUeyH

CPU Incp0nb3yet 1 φa3y pntanria.

CPU Incp0nb3yet 2 φa3b pntanria.

CPU Incp0nb3yet 3 φa3b pntanria.

CPU Incp0nb3yet 4 φa3b pntanria.

CPU Incp0nb3yet 5 φa3 pntanria.

CPU Incp0nb3yet 6 φa3 pntanria.

CPU Incp0nb3yet 7 φa3 pntanria.

CPU Incp0nb3yet 8 φa3 pntanria.

CPU Incp0nb3yet 9 φa3 pntanria.

CPU Incp0nb3yet 10 φa3 pntanria.

CPU Incp0nb3yet 11 φa3 pntanria.

CPU Incp0nb3yet 12 φa3 pntanria.

CPU Incp0nb3yet 13 φa3 pntanria.

CPU Incp0nb3yet 14 φa3 pntanria.

CPU Incp0nb3yet 15 φa3 pntanria.

CPU Incp0nb3yet 16 φa3 pntanria.

Инд�示 Top ФаЗ QPI (QPI Phase LEDs)

3TN INHINKATOpbI NOKa3bIBaHT pejxIM pa6oTbI NCTOCHNka pNTAHnQPI. INHΦopMaun O COCTOHN INHINKATOpB PrNBedeHa B Tabnue.

BKJIQUYEN

BbIKIOUeyEH

□■

QPI Incpólbyet 1 Фау пitaлия.

■■

QPI Incpólbyet 2 Фаbl пitaлия.

Инд�示лрфа3 IOH (IOH Phase LEDs)

3TN INHINKATOpbI NOKa3bIBaHT pejxum pa6oTbI nCTOUYNka pntAHn IOH. INHΦopMaun O COCTOHN INHINKATOpB pnpBeDeHa B Tabnue.

BKJIQUYEN

BbIKJIIOUeH

IOH IncnoIb3yET 1 pha3y nitaTAnia.

IOH IncnoIb3yET 2 pha3bI nitaTAnia.

Инд�示 Top Фа3 DDR (DDR Phase LEDs)

3TN INHINKATOpbI NOKa3bIBaHT pexkIM pa60bI nCTOChNka pntAHnY DDR. INHΦopMaζη O COCTOHN INHINKATOpB PrnBeDeHa B TabnIe.

BKJIIOUeH

BbIKIOUeyH

□

DDR Incpólbyet 1 φa3y piṭaḥη.

■

DDR Incpólbyet 2 φa3b piṭaḥη.

HdkaTop HDD (HDD LED)

1a86kBa COOTBETCTByeT u3roTOBnTeIIO BIOS (A = AMI, W = AWARD n P = PHOENIX).

Cneyuoune 4 ucbpbcooTBeCTbYIOHmOpy Moen.

Cnéýuòa éyKBa oó3hauaet noctabuika yinceTa (I = Intel, N = Nvidia, A = AMD, u V = VIA).

2 cneyuüne 6kybbl o603naaioT 3ka3yika MS = ctaHndapThbI 3ka3yik.

V1.0 COOTBETCTByeT HOMepy BepCuNBIOS.

Press DEL to enter SETUP

(HaXmnte DEL nIy BxoJaB SETUP)

EcHn coo6ueHHe nCye3IIO, a BbI He ycneIe HaxaTb KnaBnSy, nepe3anyCTnte CnCTeMy, BbIKNoUH IN CHOBA BKnIOuH NITaHne, INI HaxaB KhoNky RESET. MoKHO, TaKKe, nepe3anyCTntb CnCTeMy, HaxaB OndOBpeMeHHo KnaBnSIn , , n .

Pexim HactpoiK

BoiIaBpeXIMHactpoiKn, BbIcpa3y yBvndTe IlaBHOe MeHIO.

Main Menu (Главhoe мени)

Главhoe MeHIO coDEpXHT CnICOK HAcTpoE, KOTOpBIE Bbl MoKTe N3MeHNT.ДЯ BbIbopa moKHO nCNoJIb3OBAbT KJIaBNIu CO CTpeKNaMn (↑↓).CnpabKa O bblpaHHOH NaCTpoKe OTo6paKaaeTcB HnKHe Yactn 3KpaHa.

Повменно

EcHn BbI OOBAPyKHTe, yTO CNEBa OT nyHKTa MeHIO NMeETc 3HaK npaBOrO yka3aTeJRA 3TO O3NaHaeT HAIINUe NOIMEHIO, COdepXaJIeRO DOnONHITeNbHbIe HAcTPOiKN KOTOpBle MOxH0 CDeJaTb B 3ToM NyHKTe. IcNoIb3yIte YnpabJIHOUne KlaBnSi (↑ ↓) dNra Bbl6opA , a 3aTEM HaxMITE yTO6bI Bbl3BaTb NOmEHIO. Daane MoXHO IcNoIb3OBA Tb ynpabJIHOUne KlaBnSi dNra BBOda NapaMeTPOB INepemeSeHnRA NO NyHKtAM NOmEHIO. yTO6bI BEPhYtCBa RflaBHOe MeHIO, npocTo HaxMITE .

Подробна справka

B pexime hactpoikn BIOS nmeetc B03MOXHOCTb nonyehnna npdo6ho ncpaBKn. Ee moxho Bbl3BaT b3 JIO6O ro MeHIO npocTbIM HaxaTneM < F1> .B OKHe cnpaBKn 6ydt nepeuNCJIeHb BCE BO3MOXHbIe HactpoiKn B Bbl6paHHOM nyHKTe MeHIO.Haxmnte < Esc> dIra BblKJIUOeHnO kHa cnpaBKn.

The Main Menu (Главhoe мени)

Pn Bxode B pexkIm hactpoKIN BIOS Ha 3kpahe OTo6paxaetcra TnaBHOe MeHIO TnaBHOe MeHIO N03BOJRAET Bb6paTb FyHKmN HactpoKIN N IMeET Dba BapnaHTa BbIXoJa. IJI napeMeueHnI IO NyHKtAM NCNoJIb3yOTcR KNaBUnn CO cTepeKamN nI NaD TBepKDeHnI IN BxOda B NoDMHeIO.

Standard CMOS Features	Cell Menu
Advanced BIOS Features	M-Flash
Integrated Peripherals	Overclocking Profile
Power Management Setup	Load Fail-Safe Defaults
H/W Monitor	Load Optimized Defaults
Green Power	Save & Exit Setup
BIOS Setting Password	Exit Without Saving

Standard CMOS Features (CTaHapTHbIe yHKcIM CMOS)

3To MeHIO N03BOJnEeYcTaHOBnTb OCHOBHbIe npaMeTpbl KOHpNrgpaun CnCTembl (daTy, BpeMn T.n.).

Advanced BIOS Features (Дононтелови Ксии BIOS)

To MeHIO nCIOJIb3yeTcraI NaCTPOKIN CNEUaJIbHbIX fYHKLIBIOS.

Integrated Peripherals (BcTpoeHbIe nepiFepriHbIe yctpoIcTa)

3To MeHIO NcNoJIb3yeTcra dIy HAcTpoiKn IapaMeTPOB BCTpoeHHbIX nepuΦepnHbIX yCTpoiCTB.

Power Management Setup (Hactpojka ynpablenia nitaHnem)

3To MeHIO no3B0JraET 3aDaTb npaMeTpbl ynpaBHeHnI NITaHnEM CnCTeMbI.

H/W Monitor (MonHTop apnnapaTHou qactn)

3ToTnyHKT OTo6paKaet coCToHHe annapaTHO uactn PIK.

Green Power

3To MeHIO nCIOJIb3yETcIЯpeKIMoB 3HePrcO6epeKeHnIa.

BIOS Setting Password (Пароль дocура Кнастоюкам BIOS)

3To MeHIO nCnOJb3yeTcA, YTO6bl 3aDaTb npoJIb.

Cell Menu (MeHIO y3Ja "Cell")

3To MeHIO NO3BOJAREynpaBJIaTb TaKTOBbIMu YacOTAMN IN HaprJxehnMaMn npi pa3roHe CNTEmbl.

M-Flash

IcnoB3yetcTЯ qTeHn/ npoWNbKn BIOS c BHeuHero HakOnITeJIa (ToIbKO FAT/FAT32).

Overclocking Profile

IcnoIb3yeTcI ypaHEnH/ 3arpy3kn npaMeTpoB V/ n3 CMOS BIOS.

Load Fail-Safe Defaults

3To MeHIO NcNoIb3yETcT dTn 3aRpy3Kn 3HaueHnBIOS, yCTaHOBJIeHHbIX npOn3BOIDTeNEM nTn CTaBnBnO pa60tbl CNTEmbl.

Load Optimized Defaults (YcTaHOBnTb ONTmAmNbHbHe NaCTpoKn)

3To MeHIO NcNoJIb3yETcIgI 3aRpy3Kn HAcTpoEKN3rOToBnteIgI ONTmAlbHOI pOnI3BOIDTeNbHOCTNCCTEMHOI PJIaTbl.

Save & Exit Setup (BbIXoI c coxaHeHem HacTpoEk)

3aIncb nImMeHenn B CMOS n BbIXoN n3 peXmHa HactpoiKn.

Exit Without Saving (BbIXoN 6e3 coxpanenHn)

OTmeHa BCex I3MeHeHn I BbIXoI n 3peKIma HAcTpoKI.

B obsem cnyae, haxoJcB b pexKme HacTroKn BIOS, peKomeHdyetc BblOnHnTb cIeDyOuNe deICTBna.

1. Load Optimized Defaults: KnaBnIaMn ynpaBJIeHnra ( ) BbIbepnte npHKT Load Optimized Defaults n haxmTe , noBvTcra cneDyUoee coo6uHeHne:

Load Optimal Defaults?

[OK]

[Cancel]

HaxmTe [Ok], yTo6bI 3arpy3nTb HacTpoKn IOn yMOJIaHNIO dIy ONTImaJIbHOI npOn3BOAnTeJbHOCTN CnCTeMBI.

Save configuration changes and exit setup?

[0k]

[Cancel]

HaxmTe [Ok], yTo6bI coXpaHntb KoHpfuYpauZIO u BbItnn3 BIOS Setup.

BhimhaHue

PnBVeIeHHa BbIwe KOHfNrgpaZna IoXoNT dIy o6IeO npMHeHn. EcIe JBe Bam TpebYOTcB 6oJIe ToKHe NaCTpoJKNBIOS, ObaPATteCb K anrnnckoB Bercnn pykoBDCTBa Ha Be6-caITe MSl.

1. Pa3dien Cell Menu: 3To MeHIO npEdHa3NaYeHO nIy OIbIThbIX nOJIb3OBaTeJIe I npedocTabnE r BO3MOxHOCtN dIra pa3roHa CnCTEmbl.

BhimhaHne

He MeHЯTe 3Tu HAcTpoiKu, ecJIu Bbl He 3HaKOMbl C OCoBcHOCrMaN TOHKoI HaCtpoiKn YUnCeTOB.

Current CPU / DRAM / QPI Frequency

3TNnykTBI NOKA3bIbaIOT TeKUyUO yactOTy CPU nCKOpocTb naMrtn N QPI. TOnbko DnryTeHn.

CPU Specifications

Haxmnte Дя BXOДа B noДмeHIO. B noДмeHIO nOKa3aHa INHΦopMaцЯ o6 yctahOBJIeHHOM CPU.

CPU Technology Support

Haxmte ДЯ BXOa B NOMeHb. B NOMeHIO NOKa3aHbI TEXHOIOrn, KOTopble noDepKINBAOTcB yCTaHOBNeHOM CPU. TOnbKO dIy UTeHnI.

CPU Feature

HaxmteДЯ BXOda B noMEnIO.

Intel EIST

TexhONorHg Enhanced Intel SpeedStep no3B0JraT yctaHOBt b ypoBeHb npOn3BOIDntbHocTN MkPonpoceccopa npn pa6ote c 6batapee nIIN PNTaHneM OT cTeN. 3TOT nyHKT NOBJIeTcR npn ycTAHOBKe IPOeCCopa, KOtOpbI NOdEprKInBaet texhONorHIO SpeedStep.

Intel C-State

C-state - 3TO texhONorH ynpaBneHn H nHTaHnE, pni KOTopo3HaHTeJIbHO cokpaAaTcR nHTaHnE npOeCCopa B cnaIeM pexKHe. 3TO TnyKT NOBIaTeC, ecIn bbl yctahOBnCPU, noDdepxNbaIOuIy mTexhONorH C-state.

C State Package Limit Setting
3TOT nyHKT no3BONJrET BbI6paTb ypOBeHb C-state. PekOMeHdyETcra yctaHOBTb 3TOT nyHKrB Auto.
C1E Support

BkIIOHTe 3OT nyHKT dIy CMOTpeHnIa COCTOHNr 3HePrc6bepeXeHnI CPU, KOrda OH He pa6oTaET. He BcE npOceccOpbI noDpeKxBaIoT Enhanced Halt state (C1E).
OverSpeed Protection

Функця Overspeed Protection oTo6pkaet notok bByuCnHnCy CPU n 3heproc6epexehnna. EcIn OH npBbIaet onpeJeHnyu ypoBeHB, To npouceccop abTomatueckn noHnkaet ckOpocTb TaKTOBO rHana. EcIn Bbl c6upaTecb pa3roHnTB CPU, to yctahOBnTe ero B [Disabled].
Hyper-Threadsing Function

Ipoceccop nCnoB3yET texHOnIgNIO Hyper-Threading Iny ByeNueHn npOn3BOUInTeNbHocTNI. 3Ta texHOnIgNIA N3BOJAE Tbym HabOpam perncTPOB B npOeCCope nCnoHNrTB INCTpyKcIM ONDOBpeMHNO. 3TO yBeNnuHBAET npOn3BOUInTeNbHocTb CnCTembl. PnB bIKNUeHn 3ToI yHKm, npOceccop nCnoHReT INCTpyKcIM c NOMoCbIO OndHO rApoba rPeINCTPOB. BbIKNUOHTe 3OT nyHKT, ecn OnepauNoHHa CnCTema BaWero KOMMbIoTepa He noDdEprXnBaet fynKcIMHOHT, B npOTNBHom Cnyae 3TO MoKeT pINBeCTN K HeCTaBnHocTNI.

BhimhaHne

Дпя paBOTocno6bOCTn TexHONOrn Hyper-Threading, Tpe6yETcra HAnuYe BceX HIXeCNeDyUoIxN KOMNoHErTOB:

Intel Virtualization Tech

3TOT nyHKT IcNoIb3yeTc IaIy BkIIOUeHn/BykIIOUeHn TExHOJorNl Intel Virtualization. 3a DOnOJIHTeBHOINΦOpMaueNe CMoTpIte OΦΦuNaIbHbY Be6caIT Intel.

Intel VT-d

3TOT nyHKT IcNoIb3yETcA DnA BkIIOUeHNA/BbIKIOUeHNA TexHOrNl Intel Virtualization. 3a DonOpHnTeJIbHOINΦOpMauném CMOTpnte OΦΦnuaJIbHbI Be6caIT Intel.

Active Processor Cores
TOT nyHKT NO3BOJAREBbIpaTb KOINueCTBO pa6oTaIOUxN pOceCCOPbIX YHNCETOB.
Intel EIST

TexHONorIg Enhanced Intel SpeedStep no3BolAeYcTaHOBtbyoBeHb npOn3BOUInTeNbHocTNI MkPonpoCeccopa npn pa6Ote c 6aTaapee nn nntaHneM ot cetN. 3TO TnyKt NOABJIeTc npn yCTaHOBKe pOceccopa, KOToPb IODepXKnBaet TexHONorIg SpeedStep.
C1E Support

BkIouHte 3OT nyHKT IJIa CHNKeHnIe HeproTope6IeHnI CyU, KOrda OH He pa6oTaet. He BCE npOeessCopbI noIDepxmbaIot Enhanced Halt state (C1E).

Intel Turbo Boost

3TOT nykHT nOABnIETcA, KOrDa BbY yCTaHOBnI CPU, NOdEprKbBAUoIy Ie TXHOLOrIO Intel Turbo Boost. 3TOT nyHKT nCOnb3yETcA dNRA BKJIuOeHn/ BByKJIuOeHn TXHOLOrIO Intel Turbo Boost. OH nobblaaet cactoty npouecccopa, KOrDa npNKlAaHbIe nporpamMbI tpe6yIOT 60JIbSei npoi3BOJNTeJIbHocTn TDP npouecccopa 3TO nO3BOJraET. 3Ta texHOJorNA taKke obecneuBaET pnaBHyO MacuTaBpyEmocTb 3HeprONOTpe6JIeHn (Dynamically scale up, Speed-Step Down). OH HOBeIIaA TeXHOJorN npouecccopob i7.

Adjust CPU Base Frequency (Mf4)

3TOT nyHKT no3BONJET yCTaHOBt TaKTOByo cAcToTy Base clock CPU (B MfU). IV3meHHe 3TOrO napameTp a6eCneuBaet BO3MOXHOCTb pa3roHa CPU. BHHMaHHe, BO3MOXHOCTb ycNeSHoro pa3roHa He rapaHTnpyetcra.

OC Stepping

3TOT nyHKT noBnIeTcnaocne yctaHObKn cactoTb pa3roHa B "Adjust CPU Base Frequency (Mf). N noBnIeTcnaeDyUoiN pyHKT. OH nO3BOJIeT ocUeCTbpa3roH 1ar 3a 1arom noCne 3arpy3kn cnCTembl.

Start OC Stepping From (M u)
3TOT nyHKT NO3BOJIeY cTaHOBITb HauaJIbHOe 3HaueHHe T aKTBOI qactOTbl (base clock). CnCTema 3arpy3ntc r C hauaJIbHbIM 3HaueHHeM T aKTBOI qactOTbl (base clock), a NOTOM HauHET pa3roHrTB CnCTeMy C hauaJIbHOrO 3HaueHnI yar 3a warom yctaHOBJIeHHbIM B "Adjust CPU Base Frequency (MfU)".
OC Step
ТOTNYнТИСОЛьзЕТСДЯЗАПИША раэгОН ТAKTOВОЧАТOTы (base colck).
OC Step Count Timer
3TOT nyHKT nCNoIb3yeTcra Iy yCTaHOBKn BpeMeHn 3aIepKKn KaKdOrO shara.

Adjust CPU Ratio

TOT nyHKT nCNOJIb3yETc dIg MHOXKITeJI MHOXKITeJI yAcTOTbl npOceccopa.

Adjusted CPU Frequency (MΓu)

3TOT nyHKT noka3bIbaet TekyUyO yactoty CPU (Base clock x Ratio). TOnbko dnyuTeHn.

OC Genie Button Operation

TOT nyHKT nCNoJIb3yETc dIa BkJIIOUeHn/ BbIKJIIOUeHn OyHKuN OC Genie.

Base Clock Button

TOT nyHKT NcIOnJIb3yETc dIa BkJIIOUeHn/ BbIKJIIOUeHn FyHKIIm base clock.

MEMORY-Z

HaxmTeДЯ BXOda B IOmEnIO.

DIMM1~6 Memory SPD Information

HaxmTeДЯВXOДВПОмeHIO.3TOTnyHKT NOKa3bIaEТИнфopMaIIOo6 yCTaHOBJEHbIXMOdYnXnamrTi.

Current DRAM Channel1/2/3 Timing

TOnTnyHKTnoka3bIBaetycaHOBJIeHHbDRAMTiming.ToIbKOdIyTeHnI.

DRAM Timing Mode

OnpeJeIeT 6ydt IIN BpeMeHHbIe npaMeTpbl DRAM KOHTpOJInpoBaTcBcAaHHbIMn3 SPD (Serial Presence Detect) EEPROM Ha MoJyIe DRAM. Ppi BbIbOpE 3HaueHnna [Auto] BpeMeHHbIe npaMeTpbl DRAM, BkIOUyA pyHKtbl MeHIO, nepeuCJIeHHbIe HNKe, yCTaHaBJIbaOTcBIOS B COOTBeTCTBUN C DaHHbIMn n3 SPD. Ppi ycTaHOBKe 3HaueHnna [Manual], 3OT nyIKT no3BOJIaR T BPuyHyO peYInpoBaTb BpeMeHHbIe npaMeTpbl DRAM DoCTynHbIe B 3TOM MeHIO.

Advance DRAM Configuration

HaxmnteДЯ BXOa BNoDMHeI.

CH1/ CH2/ CH3 or CH1-3 1T/2T Memory Timing

3TOT nyHKT onpeJeIeT ckOpocTb pa60tbl namrtn SDRAM. Bb6op [1] nepeBOoNT KOHTPOJIeP namrtn SDRAM B peKIM pa60tbl 1N. Bb6op [2] nepeBOoNT KOHTPOJIeP namrtn SDRAM B peKIM pa60tbl 2N.

CH1/ CH2/ CH3 or CH1-3 CAS Latency (CL)

3TOT nyHKT KOHTpOJIpyET BPEM 3aIepKKn CAS, KOTOpoe OpipeJeT nepIOd (B TaKtax reHepaTopa) Mekdy nolnyeHnem naMaTbTO SDRAM KOMaHdbI UTeHnra N haayanom ee BblONJIHeHn.

CH1/ CH2/ CH3 or CH1-3 tRCD

Warning !!! The previous overclocking had failed, and system will restore its defaults setting, Press any key to continue......

Ouicta CMOS

3aДононтьнов Инфорmaц neuropашипесь к pa3dency "kaK c6pocntb NaCTpoiKN CMOS".

CBeHnO nporpaMMHom oecneueHH

YctahOBtBe B DVD npBOD nck Driver/Utility (DpaBebpbI u yTnInTbI) n3 KOMPNeKta IOCTaBKn CnCTeMHo nIaTbI. ABToMaTuYeCKn 3aNyCTntcra NHCtAJIpyn. HaxMITE Ha HA3BaHne dpaBepa/ yTnInTbI u cIeMyTe IHcTpkyqumm ha 3kpaHe IJN 3aBepSeHnHnCTaJIpyu. Dnck Driver/Utility codepKnt:

• Driver menu (Ménhó dpánbépoB) - Ipejctabnietnepeyehb doctynbix dpánbépoB. YctahOBiTE dpánbépoI DnI NOkJIoueHnHEo6xOIMbIX yCTPOIcTB.
• Utility menu (Meho yTnnt) - Poka3bBAeT yTnNTbl, KOTOpIe noDepKnaOTcCnCTEMHO nlaToI.

BhimaHae

Ioxaynuicta, noceitte Be6caT MSI nna onnyeHnra cambIX HObIX dpaiBepOB IN BIOS, KOtOpblie no3BOJAT yNyUHTb npOn3BOJNTeHbOCTb CnCTeMbI.
