USER MANUAL G52-76601X7 MSI

Power Edition series

MS-7660 (v1.x) Mainboard

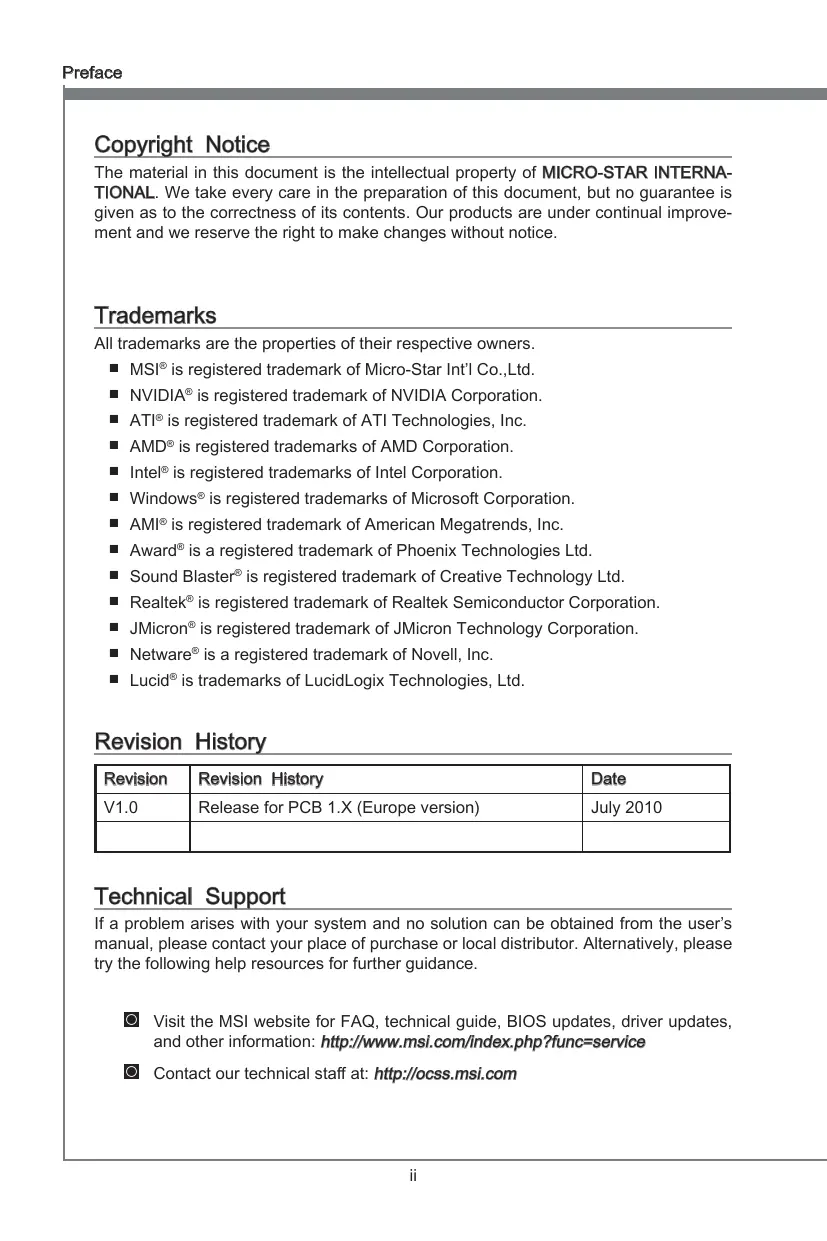

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

MSI is registered trademark of Micro-Star Int'l Co., Ltd.
NVIDIA® is registered trademark of NVIDIA Corporation.
ATI® is registered trademark of ATI Technologies, Inc.
AMD® is registered trademarks of AMD Corporation.
Intel® is registered trademarks of Intel Corporation.
Windows® is registered trademarks of Microsoft Corporation.
AMI is registered trademark of American Megatrends, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
Sound Blaster® is registered trademark of Creative Technology Ltd.
Realtek® is registered trademark of Realtek Semiconductor Corporation.
■ JMicron® is registered trademark of JMicron Technology Corporation.
Netware® is a registered trademark of Novell, Inc.
Lucid® is trademarks of LucidLogix Technologies, Ltd.

Revision History

Revision	Revision History	Date
V1.0	Release for PCB 1.X (Europe version)	July 2010

Technical Support

If a problem arises with your system and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/index.php?func=service
Contact our technical staff at: http://ocss.msi.com

Safety Instructions

Always read the safety instructions carefully.
- Keep this User's Manual for future reference.
- Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
- The openings on the enclosure are for air convection hence protects the equipment from overheating. DO NOT COVER THE OPENINGS.
- Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet.
- Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
Always Unplug the Power Cord before inserting any add-on card or module.
All cautions and warnings on the equipment should be noted.
- Never pour any liquid into the opening that could damage or cause electrical shock.
If any of the following situations arises, get the equipment checked by service personnel:

The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work according to User's Manual.
The equipment has dropped and damaged.
The equipment has obvious sign of breakage.

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60^ (140°F), IT MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

警告使用者：

For better environmental protection, waste batteries should be collected separately for recycling special disposal.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7660

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause undesired operation.

WEEE (Waste Electrical and Electronic Equipment) Statement

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded

as municipal waste anymore and manufacturers of covered electronic equip-

ment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

Power Edition Series

Mainboard Specifications

Processor Support

• AMD® Phenom™ II series, Athlon™ II series and Sempron™ series processor in the AM3 package. (For the latest information about CPU, please visit http://www.msi.com/index.php?func=cpuform2)

HyperTransport

HyperTransport™ 3.0, supports up to 5.2 GT/s

Chipset

North Bridge: AMD® RX780 chipset
- South Bridge: AMD® SB850/ SB810 chipset
Lucid LT22102

Memory Support

DDR3 1600 * (OC)/ 1333/ 1066 DRAM (total 16GB Max)
- 4 DDR3 DIMMs, supports Dual-Channel mode * (For more information on compatible components, please visit http://www.msi.com/index.php?func=testreport)

LAN

Supports PCIE LAN (10/100/1000) by Realtek® RTL8111DL

IEEE 1394

Chip integrated by VIA® VT6315N
Supports 1 IEEE 1394 port (back panel) & 1 IEEE 1394 connector

Audio

• HD audio codec integrated by Realtek® ALC892/ ALC889
  Flexible 8-channel audio with jack sensing

SATA

6 SATA 6Gb/s ports by AMD® SB850
Or 6 SATA 3Gb/s ports by AMD® SB810
Supports hot plug & asynchronous notification

USB 3.0

2 USB 3.0 ports by NEC uPD720200F1

RAID

SATA1~6 ports support RAID 0/1/5/10 mode by AMD® SB850
Or SATA1~6 ports support RAID 0/1/10 mode by AMD®SB810

Connectors

Back panel

• 1 PS/2 keyboard port
• 1 PS/2 mouse port
• 1 Clear CMOS button
• 1 Coaxial S/PDIF-Out port
• 1 Optical S/PDIF-Out port
• 6 USB 2.0 ports
• 1 USB 3.0 port
• 1 IEEE 1394 port
• 1 LAN port
• 6 flexible audio ports

On-Board

• 3 USB 2.0 connectors
• 1 USB 3.0 connector
• 1 IEEE 1394 connector
• 1 Chassis Intrusion connector

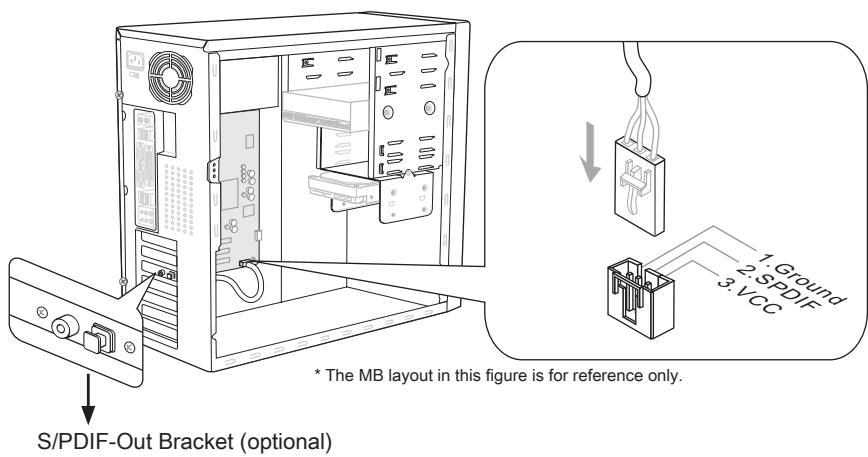

• 1 S/PDIF-Out connector
• 1 Front Panel Audio connector
• 1 Serial Port connector
• 1 TPM Module connector
• 1 Power button
• 1 Reset button
• 1 Green Power button
• 1 OC Genie button

Slots

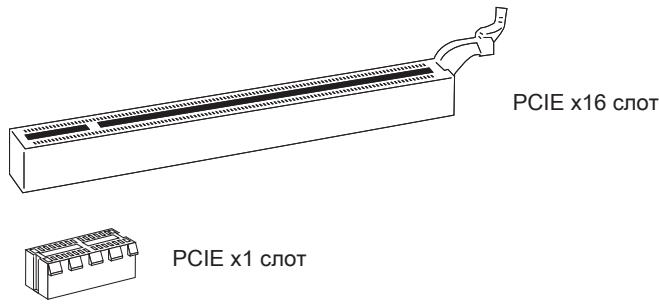

2 PCIE x16 slots

• Supports Multi-GPU computing technology
  Supports ATI CrossFireX™ technology

3 PCIE x1 slots
1 PCI slot, supports 3.3V/ 5V PCI bus Interface

Form Factor

ATX (24.5cm X 30.5 cm)

Mounting

9 mounting holes

• If you need to purchase accessories and request the part numbers, you could search the product web page and find details on our web address http://www.msi.com/index.php

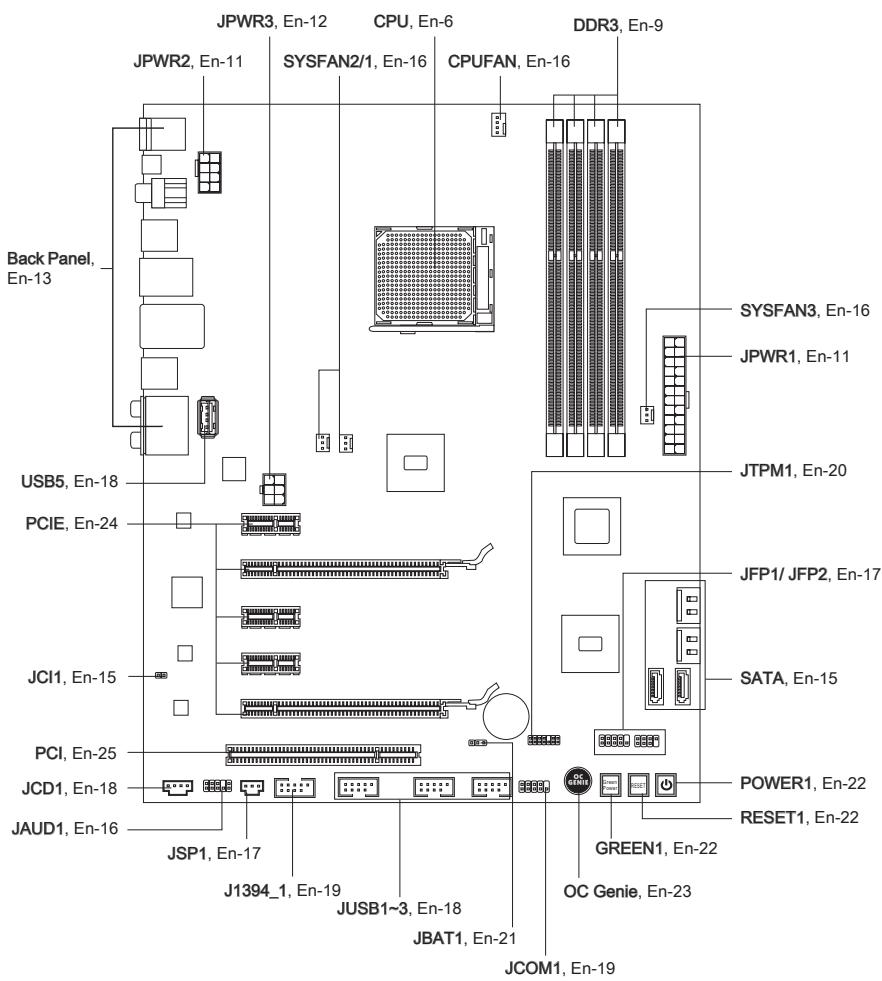

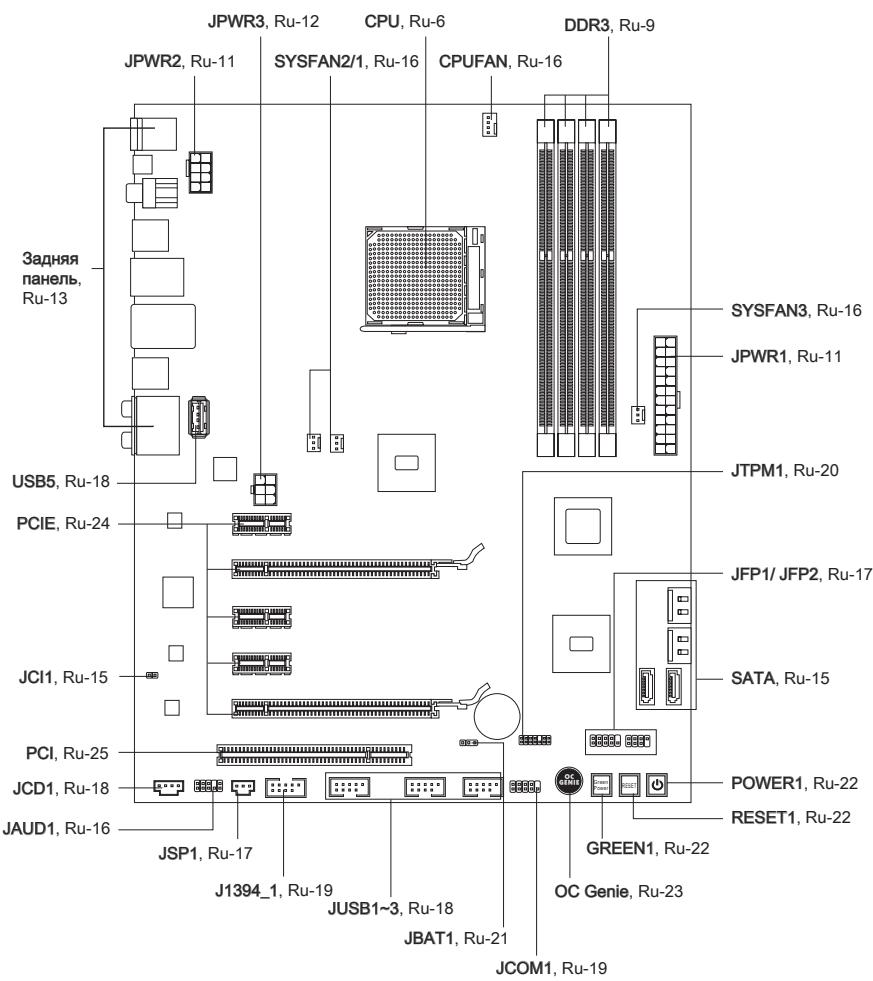

Quick Components Guide

Screw Holes

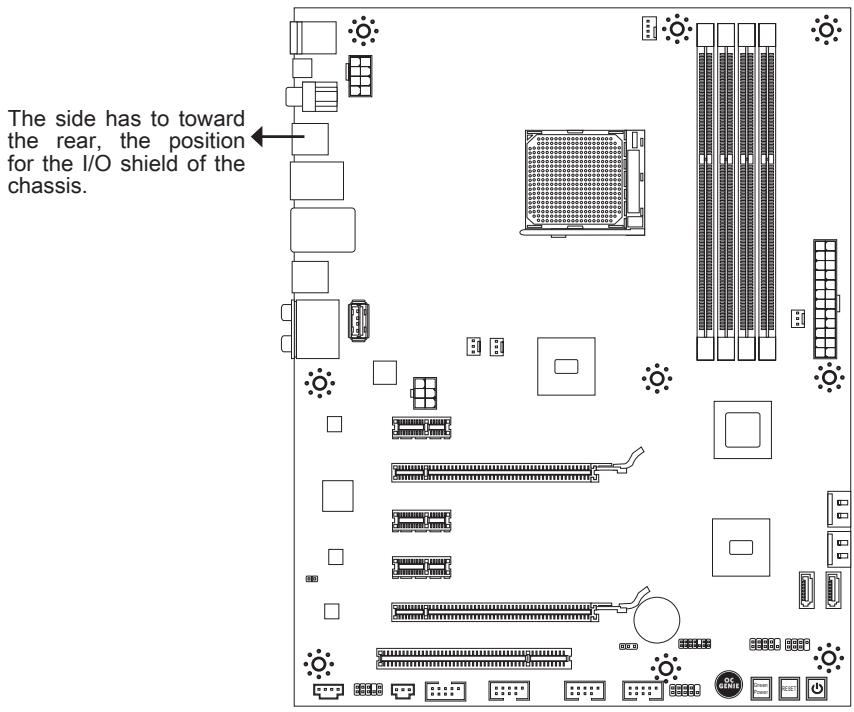

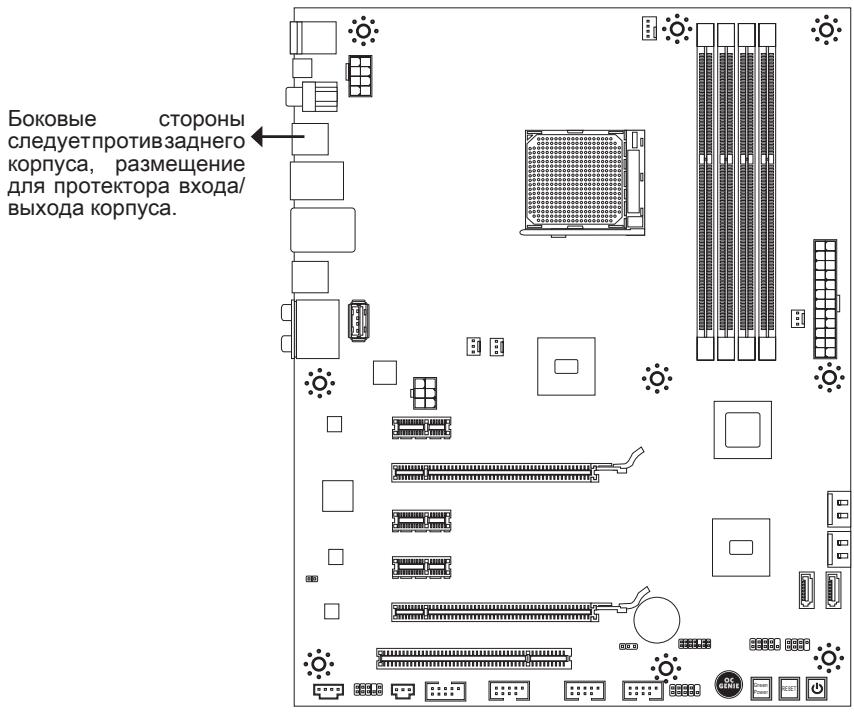

When you install the mainboard, you have to place the mainboard into the chassis in the correct direction. The locations of screws holes on the mainboard are shown as below.

Refer above picture to install standoffs in the appropriate locations on chassis and then screw through the mainboard screw holes into the standoffs.

Important

• To prevent damage to the mainboard, any contact between the mainboard circuit and chassis or unnecessary standoffs mounted on the chassis is prohibited.
• Please make sure there are no metal components placed on the mainboard or within the chassis that may cause short circuit of the mainboard.

CPU (Central Processing Unit)

When you are installing the CPU, make sure to install the cooler to prevent overheating. If you do not have the CPU cooler, consult your dealer before turning on the computer. For the latest information about CPU, please visit http://www.msi.com/index.php?func=cpuform2

Important

Overheating

Overheating will seriously damage the CPU and system. Always make sure the cooling fan can work properly to protect the CPU from overheating. Make sure that you apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.

Replacing the CPU

While replacing the CPU, always turn off the ATX power supply or unplug the power supply's power cord from the grounded outlet first to ensure the safety of CPU.

Overclocking

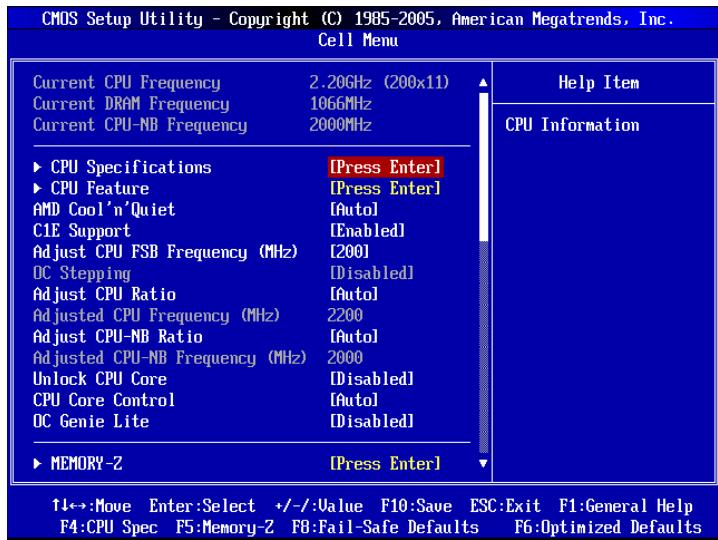

This mainboard is designed to support overclocking. However, please make sure your components are able to tolerate such abnormal setting, while doing overclocking. Any attempt to operate beyond product specifications is not recommended. We do not guarantee the damages or risks caused by inadequate operation or beyond product specifications.

Introduction to AM3 CPU

The surface of CPU. Remember to apply some thermal paste on it for better heat dispersion.

Gold arrow

CPU & Cooler Installation

When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the damage of your CPU & mainboard

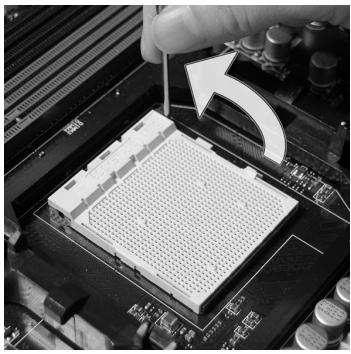

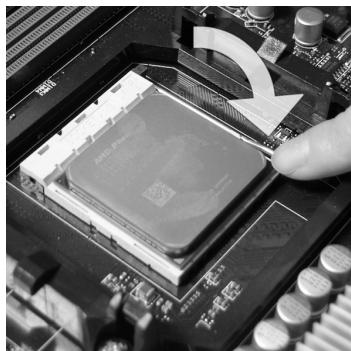

1. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree angle.

1. If the CPU is correctly installed, the pins should be completely embedded into the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your mainboard.

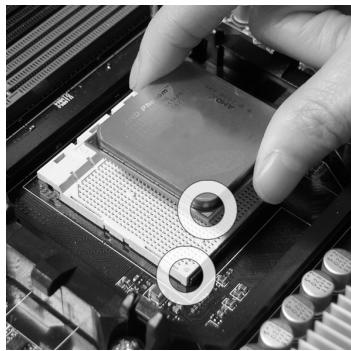

1. Look for the gold arrow of the CPU. The gold arrow should point as shown in the picture. The CPU can only fit in the correct orientation.

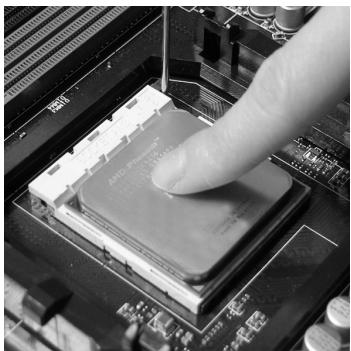

1. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to make sure the CPU is properly and completely embedded into the socket.

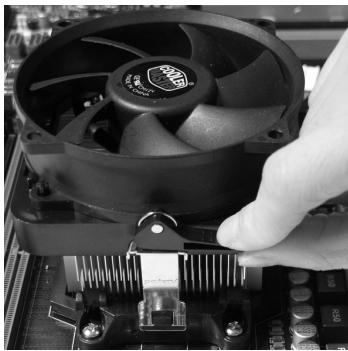

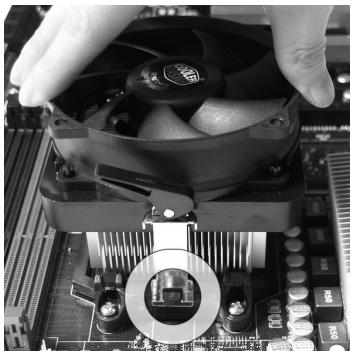

1. Position the cooling set onto the retention mechanism.

Hook one end of the clip to hook first.

1. Fasten down the lever.

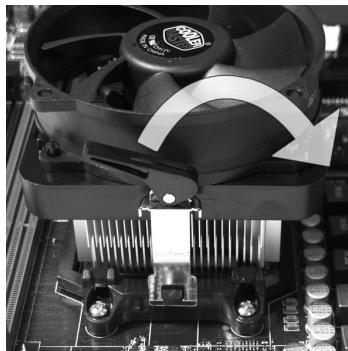

1. Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism.

Locate the Fix Lever and lift up it.

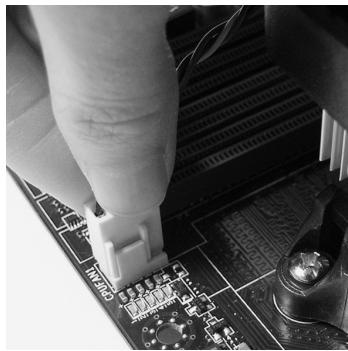

1. Attach the CPU Fan cable to the CPU fan connector on the mainboard.

Important

• Mainboard photos shown in this section are for demonstration only. The appearance of your mainboard may vary depending on the model you purchase.
• While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly.

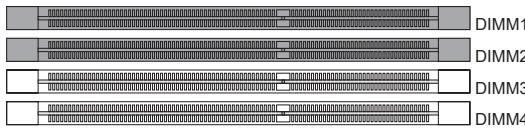

Memory

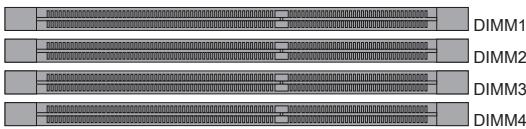

These DIMM slots are used for installing memory modules. For more information on compatible components, please visit http://www.msi.com/index.php?func=testreport

DDR3

240-pin, 1.5V

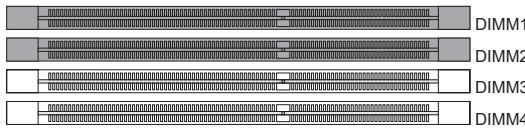

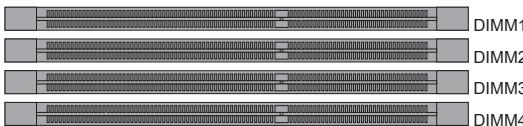

Dual-Channel mode Population Rule

In Dual-Channel mode, the memory modules can transmit and receive data with two data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system performance. The following illustrations explain the population rules for Dual-Channel mode.

Important

• DDR3 memory modules are not interchangeable with DDR2 and the DDR3 standard is not backwards compatible. You should always install DDR3 memory modules in the DDR3 DIMM slots.
• In Dual-Channel mode, make sure that you install memory modules of the same type and density in different channel DIMM slots.
• To ensure a successful system boot-up, always insert the memory modules into the DIMM1 first.
• Due to the chipset resource deployment, the system density will only be detected up to 15+GB (not full 16GB) when each DIMM is installed with a 4GB memory module.

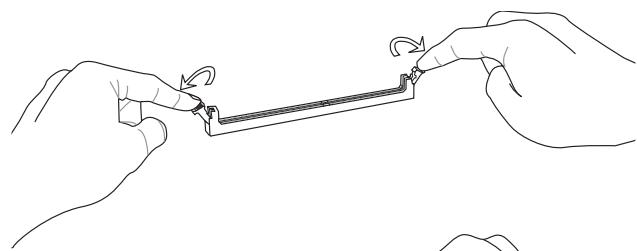

Installing Memory Modules

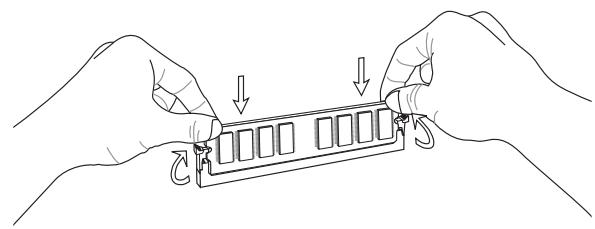

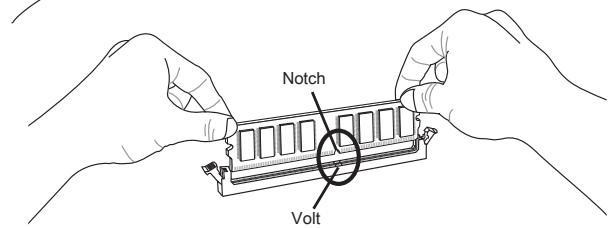

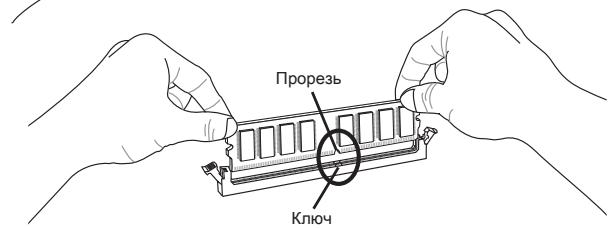

1. The memory module has only one notch on the center and will only fit in the right orientation.

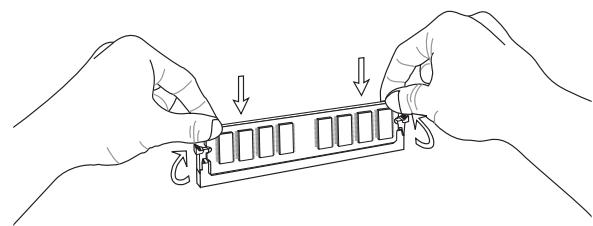

2. Insert the memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the DIMM slot. The plastic clip at each side of the DIMM slot will automatically close when the memory module is properly seated.
3. Manually check if the memory module has been locked in place by the DIMM slot clips at the sides.

Important

You can barely see the golden finger if the memory module is properly inserted in the DIMM slot.

Power Supply

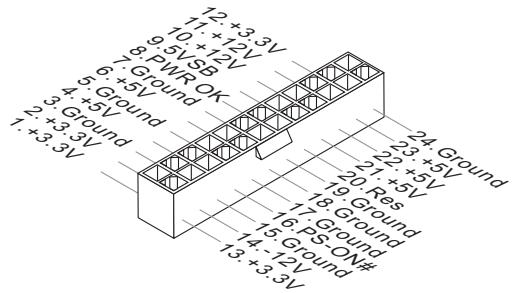

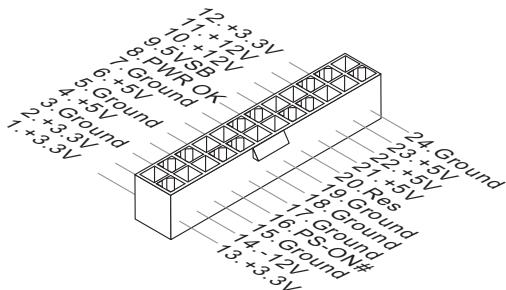

ATX 24-pin Power Connector: JPWR1

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.

You may use the 20-pin ATX power supply as you like. If you'd like to use the 20-pin ATX power supply, please plug your power supply along with pin 1 & pin 13.

ATX 8-pin Power Connector: JPWR2

This connector provides 12V power output to the CPU.

ATX 6-pin Power Connector: JPWR3

This connector is used to provide power to the graphics card.

Important

Make sure that all the connectors are connected to proper ATX power supplies to ensure stable operation of the mainboard.

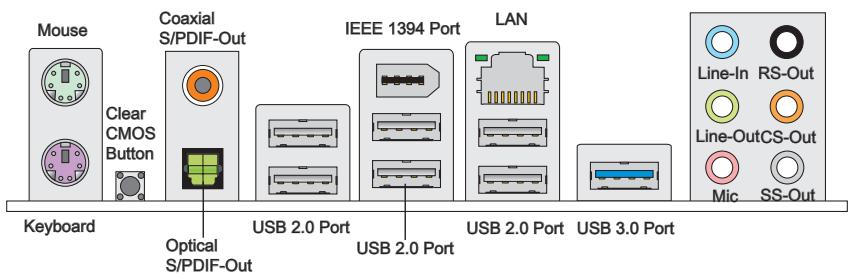

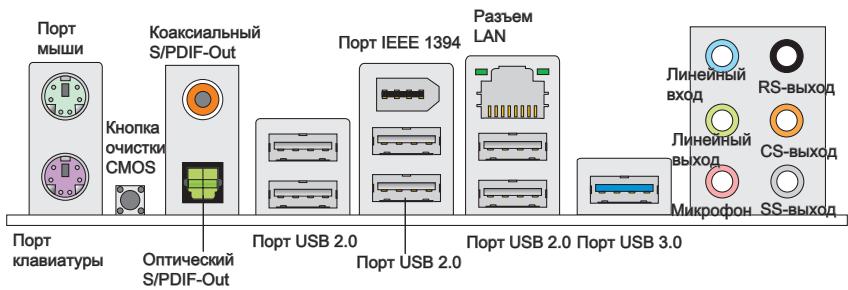

Back Panel

Mouse/Keyboard

The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/keyboard.

Clear CMOS Button

There is a CMOS RAM on board with an external battery power supply to preserve the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the button to clear data. Press the button to clear the data.

Important

Make sure that you power off the system before clearing CMOS data.

After pressing this button to clear CMOS data in power off (G3) state, the system will boot automatically.

Coaxial S/PDIF-Out

This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for digital audio transmission to external speakers through a coaxial cable.

Optical S/PDIF-Out

This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for digital audio transmission to external speakers through an optical fiber cable.

USB 2.0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. Supports data transfer rate up to 480Mbit/s (Hi-Speed).

IEEE 1394 Port

The IEEE 1394 port on the back panel provides connection to IEEE 1394 devices.

USB 3.0 Port

USB 3.0 port is backward-compatible with USB 2.0 devices. It supports data transfer rate up to 5 Gbit/s (SuperSpeed).

Important

If you want to use a USB 3.0 device, you must use the USB 3.0 cable to connect to the USB 3.0 port.

LAN

The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You can connect a network cable to it.

LED	Color	LED State	Condition
Left	Yellow	Off	LAN link is not established.
		On(Steady state)	LAN link is established.
		On(brighter & pulsing)	The computer is communicating with another computer on the LAN.
Right	Green	Off	10 Mbits/sec data rate is selected.
		On	100 Mbits/sec data rate is selected.
	Orange	On	1000 Mbits/sec data rate is selected.

Audio Ports

These audio connectors are used for audio devices. It is easy to differentiate between audio effects according to the color of audio jacks.

• Line-In (Blue) - Line In, is used for external CD player, tape-player or other audio devices.
  Line-Out (Green) - Line Out, is a connector for speakers or headphones.
• Mic (Pink) - Mic, is a connector for microphones.
  RS-Out (Black) - Rear-Surround Out in 4/5.1/7.1 channel mode.
  CS-Out (Orange) - Center/ Subwoofer Out in 5.1/ 7.1 channel mode.
  SS-Out (Gray) - Side-Surround Out 7.1 channel mode.

Connectors

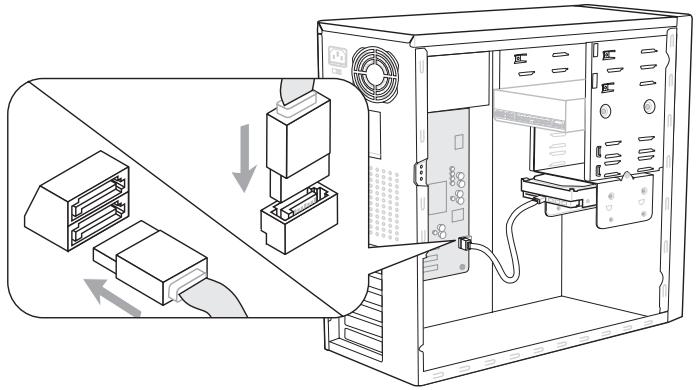

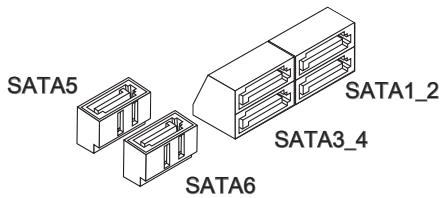

Serial ATA Connector: SATA1~6

This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device.

* The MB layout in this figure is for reference only.

Important

Please do not fold the Serial ATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission.

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.

Fan Power Connectors: CPUFAN, SYSFAN1~3

The fan power connectors support system cooling fan with +12V . When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V ; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

Important

• Please refer to the recommended CPU fans at processor's official website or consult the vendors for proper CPU cooling fan.
• CPUFAN supports fan control. You can install Control Center utility that will automatically control the CPU fan speed according to the actual CPU temperature.
• Fan cooler set with 3 or 4 pins power connector are both available for CPUFAN.

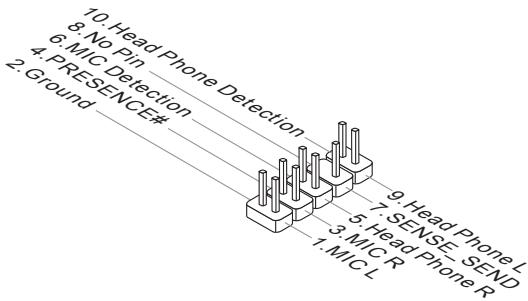

Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.

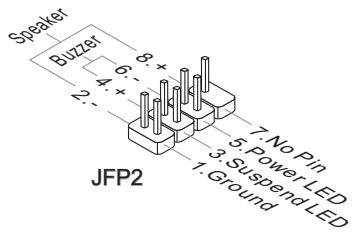

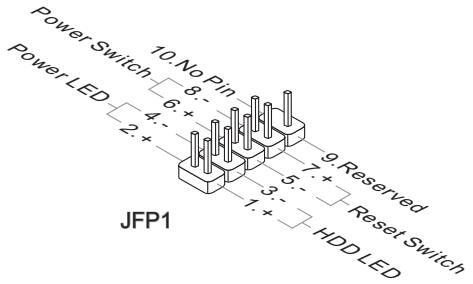

Front Panel Connectors: JFP1, JFP2

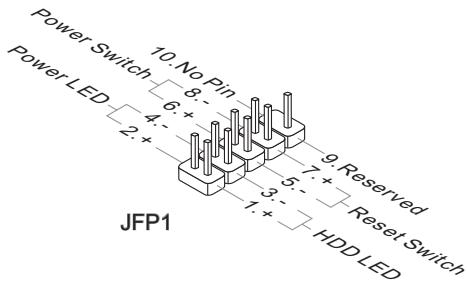

These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

S/PDIF-Out Connector: JSP1

This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital audio transmission.

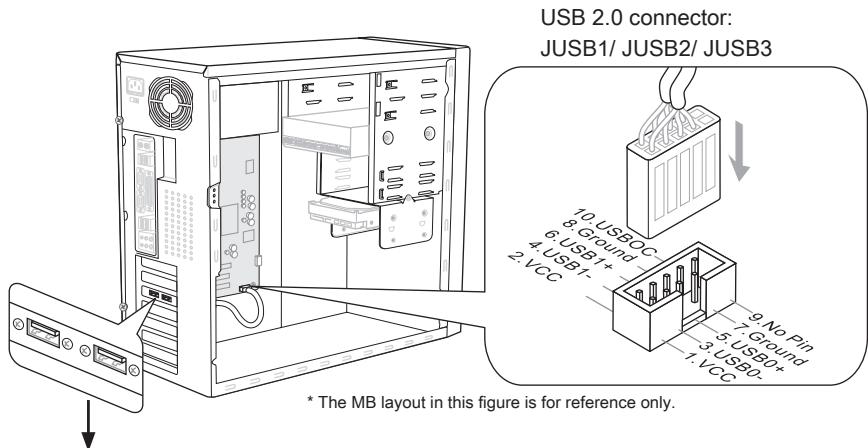

Front USB Connector: JUSB1 / JUSB2 / JUSB3/ USB5

This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

USB 2.0 Bracket (optional)

USB 3.0 connector: USB5

Important

• Note that the pins of VCC and GND must be connected correctly to avoid possible damage.
• If you want to use a USB 3.0 device, you must use the USB 3.0 cable to connect to the USB 3.0 port.

CD-In Connector: JCD1

This connector is provided for external audio input.

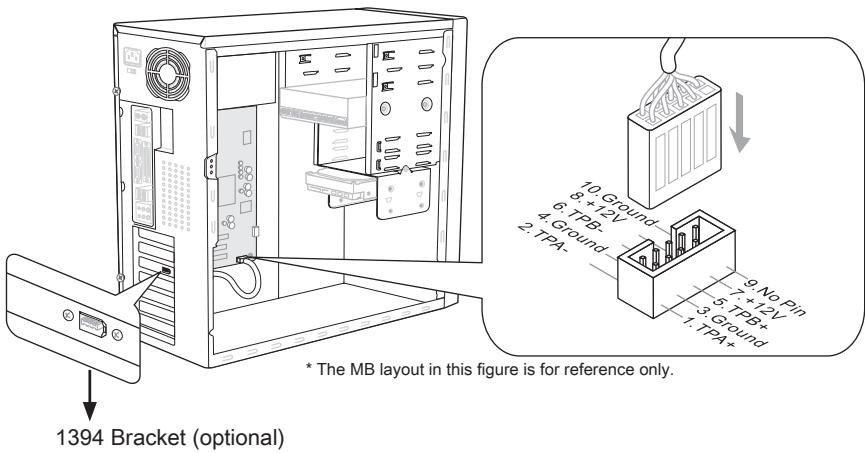

IEEE 1394 Connector: J1394_1

This connector allows you to connect the IEEE 1394 device via an optional IEEE1394 bracket.

Serial Port Connector: JCOM1

This connector is a 16550A high speed communication port that sends/ receives 16 bytes FIFOs. You can attach a serial device.

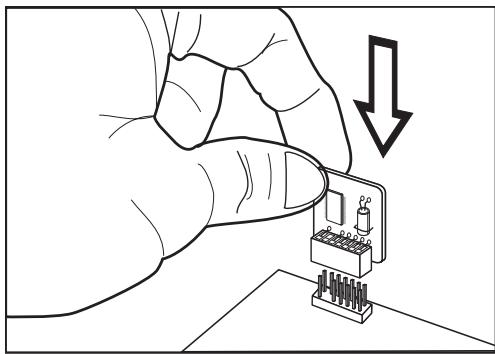

TPM Module connector: JTPM1

This connector connects to a TPM (Trusted Platform Module) module (optional). Please refer to the TPM security platform manual for more details and usages.

Jumper

Clear CMOS Jumper: JBAT1

There is a CMOS RAM on board with an external battery power supply to preserve the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, set the jumper to clear data.

JBAT1

Keep Data

Clear Data

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.

Button

The mainboard provides the following buttons for you to set the computer's function. This section will explain how to change your mainboard's function through the use of button.

Power Button: POWER1

This button is used to turn-on or turn-off the system. Press the button to turn-on or turn-off the system.

Reset Button: RESET1

This button is used to reset the system. Press the button to reset the system.

GreenPower Button: GREEN1

This button is used to switch LED function of system. Once you press the button, the system will switch the LED between on and off mode.

OC Genie Button: OC Genie

This button is used to auto-overclock the system. When the system is in a power off state, pressing the button will enable OC Genie. The button will light up and lock into place. After booting up, the system will automatically detect the optimum values to overclock. To disable the OC Genie function, please press the button again after powering off the system. The button light will turn off, and the system will restore the default setting.

Important

• When using OC Genie, installation of DDR3 1333 and up memory and a better CPU cooler is highly recommended.
• We do not guarantee the OC Genie overclocking range and the damages or risks caused by the OC Genie overclocking behavior.
• You can disable the OC Genie function in BIOS setup. And we suggest you to save the OC Genie configuration to overclocking profile in BIOS for future using.
• The usage of OC Genie is at your own risk. Overclocking is never guaranteed by MSI.

Slots

PCIE (Peripheral Component Interconnect Express) Slot

The PCIE slot supports the PCIE interface expansion card.

Important

When adding or removing expansion cards, make sure that you unplug the power supply first. Read the documentation for the expansion card to configure any necessary hardware or software settings for it, such as jumpers, switches or BIOS configuration.

PCI (Peripheral Component Interconnect) Slot

The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications.

32-bit PCI Slot

Important

When adding or removing expansion cards, make sure that you unplug the power supply first. Read the documentation for the expansion card to configure any necessary hardware or software settings for it, such as jumpers, switches or BIOS configuration.

PCI Interrupt Request Routing

IRQ, or interrupt request line, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus pins as follows:

	Order1	Order2	Order3	Order4
PCI Slot1	INT E#	INT F#	INT G#	INT H#

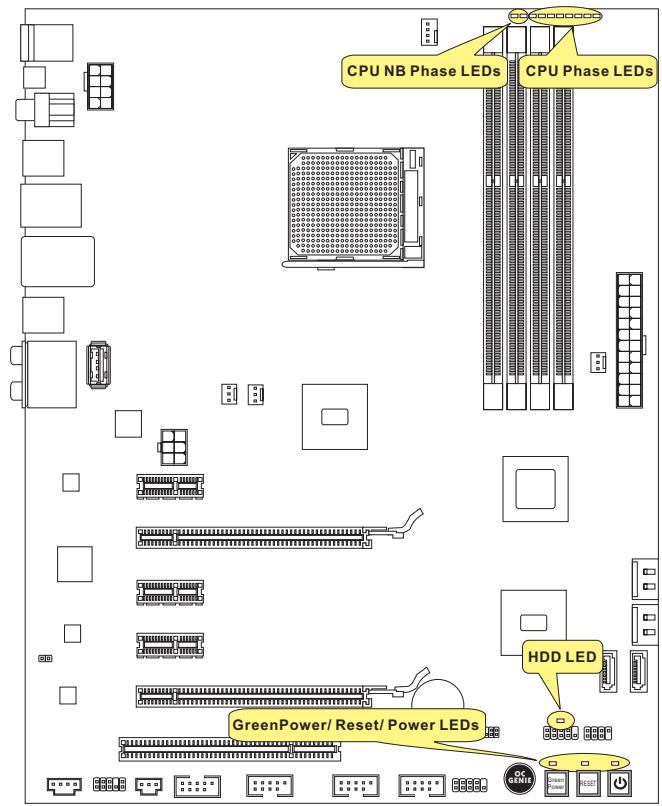

LED Status Indicators

CPU NB Phase LEDs

These LEDs indicate the current CPU-NB power phase mode. Follow the instructions below to read.

Lights

Off

□□

CPU-NB is in 1 phase power mode.

■■

CPU-NB is in 2 phase power mode.

CPU Phase LEDs

These LEDs indicate the current CPU power phase mode. Follow the instructions below to read.

Lights

Off

CPU is in 2 phase power mode.

CPU is in 4 phase power mode.

CPU is in 6 phase power mode.

CPU is in 8 phase power mode.

Power LED

Every time you press the power button and it is functional, the power LED will blink once.

Reset LED

Every time you press the reset button and it is functional, the reset LED will blink once.

GreenPowerLED

Lights when you press the GreenPower button to switch the LED function of system on.

HDD LED

Lights when the hard drive is operating.

BIOS Setup

This chapter provides basic information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when:

• An error message appears on the screen during the system booting up, and requests you to run BIOS SETUP.
• You want to change the default settings for customized features.

Important

• The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.
• Upon boot-up, the 1st line appearing after the memory count is the BIOS version. It is usually in the format:

A7660AMS V1.X 061410 where:

1st digit refers to BIOS maker as A = AMI , W = AWARD , and P = PHOENIX . 2nd - 5th digit refers to the model number.

6th digit refers to the chipset as I = Intel, N = NVIDIA, A = AMD and V = VIA.
7th - 8th digit refers to the customer as MS = all standard customers.

V1.X refers to the BIOS version.

061410 refers to the date this BIOS was released.

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing , , and keys.

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the arrow keys (↑↓) to select the item. The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol appears to the left of certain fields that means a submenu can be launched from this field. A sub-menu contains additional options for a field parameter. You can use arrow keys (↑↓) to highlight the field and press to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the .

General Help

The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1> . The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.

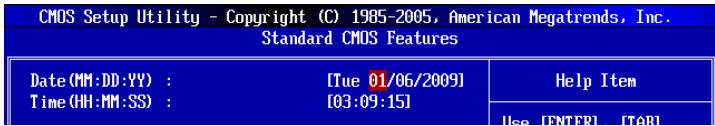

The Main Menu

Once you enter BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from the setup functions and two exit choices. Use arrow keys to select among the items and press to accept or enter the sub-menu.

Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
H/V Monitor
Green Power
BIOS Setting Password

Cell Menu
M-Flash
Overclocking Profile

Load Fail-Safe Defaults

Load Optimized Defaults

Save 8 Exit Setup

Exit Without Saving

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of the BIOS special enhanced features.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

H/W Monitor

This entry shows your PC health status.

Green Power

Use this menu to specify the power phase.

BIOS Setting Password

Use this menu to set the password for BIOS.

Cell Menu

Use this menu to specify your settings for frequency/voltage control and overclocking.

M-Flash

Use this menu to read/ flash the BIOS from storage drive (FAT/ FAT32 format only).

Overclocking Profile

Use this menu to save/ load your settings to/ from CMOS for BIOS.

Load Fail-Safe Defaults

Use this menu to load the default values set by the BIOS vendor for stable system performance.

Load Optimized Defaults

Use this menu to load the default values set by the mainboard manufacturer specifically for optimal performance of the mainboard.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

When enter the BIOS Setup utility, follow the processes below for general use.

1. Load Optimized Defaults: Use control keys ( ) to highlight the Load Optimized Defaults field and press < Enter>, a message as below appears:

Load Optimal Defaults?

[0k]

[Cancel]

Select [Ok] and press Enter to load the default settings for optimal system performance.

1. Setup Date/ Time : Select the Standard CMOS Features and press to enter the Standard CMOS Features-menu. Adjust the Date, Time fields.

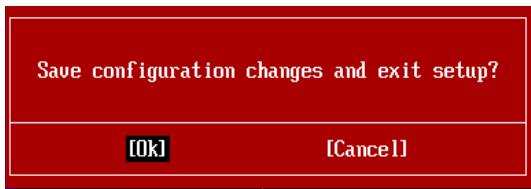

1. Save & Exit Setup: Use control keys ( ) to highlight the Save & Exit Setup field and press , a message as below appears:

Select [Ok] and press Enter to save the configurations and exit BIOS Setup utility.

Important

The configuration above are for general use only. If you need the detailed settings of BIOS, please see the English manual on MSI website.

1. Cell Menu Introduction : This menu is for advanced user who want to overclock the mainboard.

Important

Change these settings only if you are familiar with the chipset.

Current CPU / DRAM / CPU-NB Frequency
These items show the current clocks of CPU, Memory and CPU-NB speed. Read-only.
CPU Specifications

Press to enter the sub-menu. This submenu shows the information of installed CPU.

CPU Technology Support

Press to enter the sub-menu. This sub-menu shows the technologies that the installed CPU supported.

CPU Feature

Press to enter the sub-menu.

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

Important

To ensure that Cool'n'Quiet function is activated and will be working properly, it is required to double confirm that:

• Run BIOS Setup, and select Cell Menu. Under Cell Menu, find AMD Cool'n'Quiet, and set this item to "Enabled".

• Enter Windows, and select [Start]->[Settings]->[Control Panel]->[Power Options]. Enter Power Options Properties tag, and select Minimal Power Management under Power schemes.

C1E Support
To enable this item to read the CPU power consumption while idle. Not all processors support Enhanced Halt state (C1E).
SVM Support

This item is used to enable/ disable SVM.

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

C1E Support
To enable this item to read the CPU power consumption while idle. Not all processors support Enhanced Halt state (C1E).
Adjust CPU FSB Frequency (MHz)
This item allows you to select the CPU Front Side Bus clock frequency (in MHz).
OC Stepping

This item will be enabled after you set the overclocking frequency in the "Adjust CPU FSB Frequency (MHz)". And the following items will appear. This items will help the system to overclock step by step after system booting up.

Start OC Stepping From (MHz)
This item is used to set the initial FSB clock. The system will boot with the initial FSB clock, and start to overclock from initial FSB clock to set FSB clock that you set in "Adjust CPU FSB Frequency (MHz)" step by step.
OC Step
This item is used to set how many steps for FSB colck overclocking.
OC Step Count Timer

This item is used to set the buffer time for every step.

Adjust CPU Ratio
This item is used to adjust CPU clock multiplier (ratio). It is available only when the processor supports this function.
Adjusted CPU Frequency (MHz)
It shows the adjusted CPU frequency. Read-only.
Adjust CPU-NB Ratio
This item is used to adjust CPU-NB ratio.
Adjusted CPU-NB Frequency (MHz)
It shows the adjusted CPU NB frequency. Read-only.

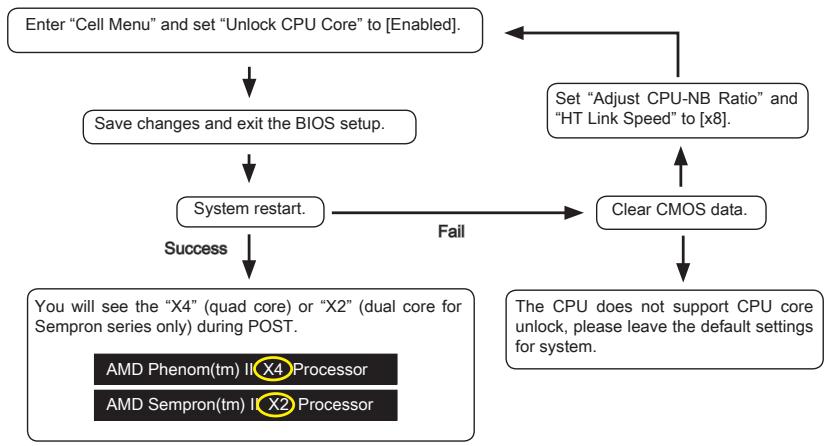

Unlock CPU Core

This item is used to unlock the CPU core. Please refer to the procedures below for CPU core unlocked in BIOS setup.

Important

• This CPU core unlocked behavior depends on the CPU ability/ characteristic, and it is not guaranteed.
• Depend on CPU's characteristic, once you get instable scenario, please restore the default settings for system.
• You can also check the core numbers in performance tab of Windows task manager.

CPU Core Control

This item allows you to select the number of active processor cores.

OC Genie Lite

Setting this item to [Enabled] allows the system to detect the maximum FSB clock and to overclock automatically. If overclocking fails to run, you can try the lower FSB clock for overclocking successfully.

MEMORY-Z

Press to enter the sub-menu.

DIMM1~4 Memory SPD Information

Press to enter the sub-menu. The sub-menu displays the information of installed memory.

Advance DRAM Configuration

Pressto enter the sub-menu.

DRAM Timing Mode
This field has the capacity to automatically detect all of the DRAM timing.

1T/2TMemory Timing

This item controls the SDRAM command rate. Select [1T] makes SDRAM signal controller to run at 1T (T=clock cycles) rate. Selecting [2T] makes SDRAM signal controller run at 2T rate.
DCT Unganged Mode

This feature is used to Integrate two 64-bit DCTs into a 128-bit interface.

Bank Interleaving

Bank Interleaving is an important parameter for improving overclocking capability of memory. It allows system to access multiple banks simultaneously.
Power Down Enable

This is a memory power-saving technology. When the system does not access memory over a period of time, it will automatically reduce the memory power supply.
MemClk Tristate C3/ATLVID

This setting allows you to enable/disable the MemClk Tristating during C3 and ATLVID.

FSB/DRAM Ratio
This item allows you to select the ratio of FSB/ DRAM.
Adjusted DRAM Frequency (MHz)

It shows the adjusted Memory frequency. Read-only.

HT Link Control

Press to enter the sub-menu.

HT Incoming/Outgoing Link Width

These items allow you to set the Hyper-Transport Link width. Setting to [Auto], the system will detect the HT link width automatically.

HT Link Speed

This item allows you to set the Hyper-Transport Link speed. Setting to [Auto], the system will detect the HT link speed automatically.

Adjusted HT Link Frequency (MHz)
It shows the adjusted HT Link frequency. Read-only.
Adjust PCI-E Frequency (MHz)
This field allows you to select the PCIE frequency (in MHz).

Auto Disable DRAM/PCI Frequency

When set to [Enabled], the system will remove (turn off) clocks from empty DRAM/ PCI slots to minimize the electromagnetic interference (EMI).

• CPU VDD Voltage (V)/ CPU-NB VDD Voltage (V)/ CPU Voltage (V)/ CPU-NB Voltage (V)/ CPU PLL Voltage (V)/ CPU DDR-PHY Voltage (V)/ DRAM Voltage (V)/ DDR VTT Voltage (V)/ NB Voltage (V)/ NB PCI-E Voltage (V)/ SB Voltage (V)/ HT Link Voltage (V)

These items are used to adjust the voltage of CPU, Memory and chipset.

Spread Spectrum

When the mainboard's clock generator pulses, the extreme values (spikes) of the pulses create EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by modulating the pulses so that the spikes of the pulses are reduced to flatter curves.

Important

• If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.
• The greater the Spread Spectrum value is, the greater the EMI is reduced, and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.
• Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

Software Information

Take out the Driver/Utility DVD that is included in the mainboard package, and place it into the DVD-ROM drive. The installation will auto-run, simply click the driver or utility and follow the pop-up screen to complete the installation. The Driver/Utility DVD contains the:

• Driver menu : The Driver menu shows the available drivers. Install the driver by your desire and to activate the device.
• Utility menu : The Utility menu shows the software applications that the mainboard supports.

Important

Please visit the MSI website to get the latest drivers and BIOS for better system performance.

Deutsch

870A Fuzion

Power Edition Serie

Spezifikationen

Prozessoren

Frontpanel Anschlüsse: JFP1, JFP2

Press DEL to enter SETUP

Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
H/V Monitor
Green Power
BIOS Setting Password

Cell Menu
N-Flash
Overclocking Profile

Load Fail-Safe Defaults

Load Optimized Defaults

Save 8 Exit Setup

Exit Without Saving

Integrated Peripherals

BIOS Setting Password

Overclocking Profile

Load Optimal Defaults?

[0k]

[Cancel]

Current CPU / DRAM / CPU-NB Frequency

Press to enter the sub-menu. This submenu shows the information of installed CPU.

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Adjusted CPU-NB Frequency (MHz)

Emplacement PCIE (Peripheral Component Interconnect Express)

Emplacement PCI (Peripheral Component Interconnect)

LEDs de phase CPU NB

Press DEL to enter SETUP

Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
H/V Monitor
Green Power
BIOS Setting Password

Cell Menu
M-Flash
Overclocking Profile

Load Fail-Safe Defaults

Load Optimized Defaults

Save 8 Exit Setup

Exit Without Saving

Standard CMOS Features (Fonctions CMOS standard)

Load Optimal Defaults?

[0k]

[Cancel]

CPU Technology Support

Start OC Stepping From (MHz)

HT Incoming/Outgoing Link Width

Pa3MeueHne KOMNoHEtOB CnCTeMHoI PJIaTbI

OTBepCTnIaKpeNJIeHnIa

Ipn yctaHOBKe cncTeHMHO nnTaBt HxKHO BCTaBnTb eB B KOpNc B npaBnJbHOM HanpaBnEHH. Pa3MeueHnA OTBepCtn dnn BnHTOB NOKa3aHb HnKe.

CneyuTe yka3aHnM BblIe yka3aHHo Iy TaHOBKn DepkaTeJIe B npabHbHom MeCTe B Kopnyce N 3atEm BBInHTnte BInTbI Chepe3 OTBepCTNJa Iy BInTOB B DePKaTeJI.

BhimhaHne

Bo n36eKaHne NOBpeKdEHH K CNTeMHoI Pnate, IIObO KoTHaKT MeJy npOBoKamn CnCTeMHoI PnAteI N KopnycOM UIN HeO8aTeIbHbI DePkaTeIb yCTaHOBJIeH B Kopnyce 3anpeuH.
- Y6eIntecb B TOM, UTO Ha CnCTeMHoN PIIaTe NII B KOpNyCe HET HNKaKOrO MetaJIINueCKORO KOMNoHEHTA, KOtOpBI MOKeT Bbl3BaTb 3aKOpaUHBAHne CnCTeMHoN PIIaTe.

CPU (LêntpaJbHbI npoceccop)

Pn yctaHOBKe CPU, uTo6bI y6peey npoecccop ot neperpeBa, He 3a6yDbTe yCTaHOBt npoecccophny KJep. EcnNy Bac HET npoecccopHoro KJepa, nojkayncta, CBxKNTecb C dInepom C cIeblIO npio6peTeHn I erO yCTaHOBKn Do TORO, KaK BkIIOuHTe KOMNbHTep.

1. 3aTeM haxmnte Ha dpyroI kpaI, yTo6bl yCTaHOBnTb paDnAtop Ha y3en KpenJIeHnIy. HauNTe pbUar fHKcaunn I NOHNMIte erO.

1. ПоdkночиTe Ka6eJIb BeHTnIЯTopa CPU K COOTBeTCTByUOuEMy pa3bemy CnCTeMHoI PnAToBl.

BhimhaHne

• FOToRaФИN CnCTeMHOn PnAToB B 3ToM pa3DJIe NpUBeIeHbI TOnbKO IJN DEmOHcTpaCm. BHeuHn BnD BaSei MoDeIi MoKeT OTnUHaTcR O T npUBeIeHHO 3deCb.
• Пи OTcoeHHeHnФИКсPyUоJero pIyAra Heo6xOДmO co6JIoudaTb OcTOPOxHOCtB,Тak KAKpbIyarNoIpyKuHEn I npI OTnyCKaHn OH BepHETcC NcXoJHOneNoIoxKeHne.

NamrTa

CnoTb DIMM nCnoIb3yIOCTa IJy yctAHOBKn MOdyne namrtn. 3a dOnoHnTeJIbHOI HΦopMaqne O COBmecTmblx KOMNoHEHTax ObpaTnTeCb Ha caIT

http://www.msi.com/index.php?func testreport

DDR3

240-koHT, 1.5V

IpaBnla yctaHOBKn moyne namrtn pa60tbI B

ДывханьHom ржимe

B DByxKaHaIbHom pexIme moytn namrtn Moryt nepeDaBaTn npHIMaTb daHHte no 2 uHAm oHOBpeMeHHo. PnncnoJb3ObaHHn DByxKaHaJIbHO r peXIMa npOn3BOJNTeJIbHOCTb cnCTembl NObIaaeTcH. Hxke npuBeJeHb IpabUNa 3aONHeHHN cLOTob namrtn dIpaBoToB v DByxKaHaJIbHOM pexIme.

①

②

BHIMAHIVE

• Moулл DDR3 He B3aHmO3aMeHЯeMbI C MoулЯМN DDR2, И стадг TDR3 He Meet obpaTHNo COBmecTmocn. CneJyET BcERda yctaHaBnBaTb Moулл пamrTt DDR3В pa3bEmbl DDR3 DIMM.
  -Дя pa6obToB b DByXKaHaJIbHOM pexMme y6eJnteCb,чTO B pa3bEmax pa3HbIX KaHaJIIOB y Bac yCTaHOBJIeHb MOdYIu OJHOro TnIa N OJINHaKOBoE MKOCTN.
• UTo6bI CnTeMa 3aRpy3nlaCb, BHaUaJe yCTaHOBtme MoyIn B pa3bEm DIMM1.
• 13-3a cneuФнк paCnpeIeHnIcNCTeMhIx pecypcoB YIncTeA,ObEIM IOCTyHNO nAMrT MoKTe MAKcUmAbHo COCTaBtB 15+ΓБ (Ho He 16ΓБ) npn yctaHOBKe MOdyNei nAMrT 4ΓB B KaKdIb N3 CNOTOB.

YcTaHOBKa MoDyJeI PAmrTn

1. MoDyIi namrTn HmeHOT OndHy npope3b B cpeHneY cactN. MoDyIb BOJETB pa3beM TOnbko pnpipabunbHOJ opnENTaUN.
2. BCTaBbTe MoDyIb B DIMM cnot B BePtnKaJIbHOM HnPaBHeHN. 3aTeM HauKmTe Ha Hero, yTo6bl 30JOnueHbIe KOHTaKbTI rIy6Oko nOrpy3uInc b DIMM cnot. Ecnn MOyIb pAmrTn BCTaBNeH npaBnIbHO, To INaCTIKOBbIe 3aUeJIKN Ha o6oN KOnCuax 3akpoIOTc ABTomaTuYeCKN.
3. BpyuHy u6eIITecb, yTO MOdyIb 3aKpeIJIeN B CnOte DIMM 3aUeIKNaMn c o6eNX CTOpOH.

BhimaHue

30JIOIe KOHTaKtbl eDBA BnHbI, ecNI MOyJIIN nAMrTI npAByIbHO pa3MeIeHbI B DIMM cnote.

Pa3bem NITaHn

24-KoHTaKTbI pa3bem nITaHnA TX: JPWR1

3TOT pa3bem NO3BOJnEET NOKlnHouNTb 24-KoHTaKTbI KOHHeKToP nHTaHnA ATX. IJIra erO noKJIIOUeHnY b6eINTEcB, YTO KOHHeKToP nKOHTaKtbl pa3bema npabuNbHO copneHTnpOBaHbI. 3aTeM NIOTHO BCTaBbTe erO B pa3bem Ha CnCTEmHO nIate.

BbI TAKKe MoKTe NcNoJIb3OBAtB 20-KoHTaKTHbIy ATX 6nok nTahnI. PpN IcNoJIb3OBAHmN 20-KoHTaKTHOro pa3bema, NoJckJIouaYte erO BdoJI KoHTaKToB 1 n 13.

8-KoHTaKThbI pa3bem nHTaHnA TX: JPWR2

3TOT pa3bem nHTaHn IcNoIb3yETcIЯ obecneueHn IITaHn IpOeccopa 12V.

6-KoHTaKTHbI pa3bem nITaHnA TX: JPWR3

3TOT pa3bem nITaHnI NCNoJIb3yETcI dIy o6eNeuHnI nITaHnI BInDeOkaTpbl.

BhIMaHHe

• Y6eINTecb B TOM,чTO BCE pa3bembl NOДКПоуЕbl K NICTOчнКam ПИТАнЯ ATX ДЯ CTa6NJIbHOn pa60TbI CNTeMHOn ПЛATbl.

3aHnaHeJIb

3TN KOHHeKTopbI NcNoJIb3yOTcI dIa NODKnIOUeHnI KHOJOK I INHdIKaTOpOB, paCNOJoxeHHbIX Ha nepeDneI naHEnI Kopnyca. KOHHeKTop JFP1 COOTBeTCTByet pykoBoIDCTBy Intel® Front Panel I/O Connectivity Design.

Pa3bem S/PDIF-Out: JSP1

KhoNka GreenPower: GREEN1

3Ta KhoNka NcNoJIb3YeTcI dIy BkIIOUeHnI/ BblKIIIOUeHnI cyHKuIN LED CnCTeMbI. Ipn Haxatm KhoNkCnCTema nepemHeJET cyHKuINoLED MeKdY BkIIOUeHnEM/ BBKJIIOUeHnEM.

Khonka OC Genie: OC Genie

3Ta KhoNka NcNoIb3yeTc DnA ABToMaTHueCKoro pa3roHa CnCTeMb.I HaKmTe 3Ty KhoNky DnA BKIOUeHnna FyHKUIN OC Genie, Korda CnCTema BbIKNUOeHa. Iocne HaxaTna KhoNka FfIKCNpyETc N 6yEt nOcBceHnca. CnCTema ABToMaTHueCKn ONpeJENT ONtMaaJIbHbIe 3NaHEnna pa3roHa nocLe 3arpy3kn CnCTeMb.I JIra BbIKNUOeHnna FyHKUIN OC Genie, HaxmTe 3Tu KhoNky eEe pa3 nocLe BbIKNUOeHnna CnCTeMb.I POnCBetKa KhoNk N BbIKNUOuHCTcR, IN CnCTema BOCCTaHOBHT npaMeTpbl NO yMOJUahnIO.

BhimaHae

• Пи И спльзовани Функши OC Genie, Искрени pekomehdyeTc установы памгт b DDR3 1333 n Више, n установы луши вентлитор/ кулр дя устенов работыс Фунншим OC Genie.
• Mby He Moxem IpeDcKa3aTb BEnuHny pa3roHa OC Genie n He rapaHTnpyem OTCyTCTBnE BO3MOXhBix NOBpeKdEHH BBy3BaHHbIX nCnONb3OBAHNem OC Genie.
  CyueCTByeT Bo3MOxHOCtB BbIKIIOHTb FyHKUHO OC Genie B HacTroKe BIOS. PekomeHdyetc coXpaHNTb KOHfNrgpaHIO OC Genie B BIOS dJa nCnOlb3ObaHnB 6byduem.
  B3aTb Ha cBoi npCK 3a nCnoJIb3OBAHnE φyHKuN OC Genie. Pa3roH He rapaHTnpyeTcRA MSI.

CLOTbl

Cnot PCIE (Peripheral Component Interconnect Express)

Cnot PCIE noDpeXnBaet KapTb paacuHepnHa nHTepceca PCIE.

BhimaHne

Ipeed yctahOBko nnnn 3BneHennem Kapr pacuHpeHry ybeDntecb, yto Ka6ebnIITAHNn OTKnUoyen OT 3NeKtpnuecko cetn. IpoouTte DOKymeHTaCmHO ha KapTy pacuHpeHry n BblONHnTe Heo6xOIMbIe annpaTHbIe nn nporpaMHbIe yCTAHOBKn dIy daHHo IIaTbI, TaKne KAK nepembyKN, nepeKlnOuateEN nn KOHpyraCNUBIOS.

Cnot PCI (Peripheral Component Interconnect)

Cnot PCI no3bnonraret yctahOBnTB kapTb LAN, SCSI, USB n dpyne dononHntBhble KapTb paacunpeHnra, KOtOpbie COOTBeTCTByIOT cneuФkaun PCl.

32-bit PCI cnot

BhimhaHue

Ipeed yctahOBko nIIN u3BneHHeM Kapr paUIneYb6dntecb, YTO Ka6bIb IITAHnO tKlnouen O TneKtpruecko cTe. PpoTuTE DOKymEnTaunHO Ha KapTy paUIneHn N BblONHte HeoXoDmble annapaTHbe nn nporpaMHbE yCTAHOBKn IaHHo IIaTbI, TaKne KAp NepembyKn, NpeekNoyateu nn KOHpypaunIO BIOS.

MapuTyI3aIyI 3aInpocB npepbIbAHy PCI

IRQ - cokpaeeHne ot interrupt request (line) - linnna 3anpoca npepbBAHn, annapatna JINnna, no KOTOpO yCTPoeCTBa MOryT nocblNaTc rHnA1 npepbBAHn MKNpOpoecccopy. ObuHoe noKlnHoueHne PCI IRQ K KOHTaKTam LInhB1 PCI noka3aHo Hnke:

	Приказ1	Приказ2	Приказ3	Приказ4
PCI сnot1	INT E#	INT F#	INT G#	INT H#

CBeTOBbIe INHdNkAToPbI

Индikatopь Фа3 CPU NB (CPU NB Phase LEDs)

3TN INDnKaTOpbl NOKa3bBAHOT peKIM pa60TbI nCTOuHnKa nITaHnCy CPU-NB. INDopMaunr O COCToRHN INDnKaTOpOB npNBedeHa B Ta6JIne.

BKJIIOUHEI

BbIKHQUEH

1a86kBa COOTBETCTByeT u3roTOBnTeIIO BIOS (A = AMI, W = AWARD n P = PHOENIX).

Cneyuoune 4 ucbpbcooTBeCTbYIOHmOpyMoDJI.

Cnéýuǒaāyú KBa obo3hauaet noctabuŋka yinnceta (I = Intel, N = Nvidia, A = AMD, n V = VIA).

2 cneyuonhe 6kybbl o603naaioT 3ka3uKa MS = ctaHapTbn 3ka3uK.

V1.X COOTBETCTByeT Homepy BepCuN BIOS.

Press DEL to enter SETUP

(HaXmnte DEL nIy BxoJaB SETUP)

Ecni coo6eHHe nCye3I, a Bbl He ycneHn HaxaTb KnaBnUy, nepe3anyCTnte CnCTeMy, BbKlNoYB n ChOBA BKnOuYB nTaNHe, nn Haxab KhoNky RESET. MoXHo, TaKKe, nepe3anyCTntb CnCTeMy, Haxab OndHOBpeMeHHo KnaBnU, , n .

Pexim HactpoiK

BoiIaBpeXIMHactpoiKn, BbIcpa3y yBvIaNTe IlaBHOe MeHIO.

Main Menu (Главhoe мени)

Главhoe MeHIO coDEpXHT CnICOK HAcTpoE, KOTOpBIE Bbl MoKTe N3MeHNT.ДЯ BbIbopa moKHO nCNoJIb3OBAbT KJIaBNIu CO CTpeKNaMn (↑↓).CnpabKa O bblpaHHOH NaCTpoKe OTo6paKaaeTcB HnKHe YactN 3kPaHa.

Повменно

EcnBbObHApYKNTe,TO CnBea OT nyHKTa MeHIO NMeETc 3HaK npaBOr yka3aTeJRA 3To O3NaHaeT HauNue NoDMHeIO, CoepXaIeero DOnONHITeNbHbIe HAcTPOIKN KOTOpBle MOxHObCdeJaTb B 3Tom NyHKTe. NcNoIb3yIte YnpabJIHOUne KlaBnSi (↑ ↓) dIra BB6opa, a 3aTeM haxMtTe YTO6bbl Bb3BaTb NOmHIO. DaIee MoXHO IcNoIb30BaTb UnpabJIHOUne KlaBnSI dIra BBoDa napameTPOB INepemeSeHnRA NO NyHKtAM NoDMHeIO. YTO6bbl BePHyTBcBA RfnaBHOe MeHIO, IpocTo HaxMtTE .

POnpo6Na cnpaBka

B pexime hactpoikn BIOS nmeetc B03MOXHOCTb nonyehnna npdo6ho ncpaBKn. Ee moxho Bbl3BaT b3 JIO6O ro MeHIO npocTbIM HaxaTneM < F1> .B OKHe cnpaBKn 6ydt nepeuNCJIeHb BCE BO3MOXHbIe HactpoiKn B Bbl6paHHOM nyHKTe MeHIO. Haxmnte < Esc> dIra BblKJIUOeHnO kHa cnpaBKn.

The Main Menu (Главhoe мени)

Pn Bxode B pexkIM hactpoKIN BIOS Ha 3kpahe OTo6paxaetcra TnaBHOe MeHIO TnaBHOe MEHIO N03BOJRAET Bb6paTb FyHKmN HactpoKIN N IMeET DBA BapnAHTa BbIXoJa. IJI napeMeueHnI IO NyHKtAM NCNoJIb3yOTcR KNaBUnn CO cTePKAMN nIPOITBepKDeHnI IN BxOda B NOmEHIO.

Standard CMOS Features

Advanced BIOS Features
Integrated Peripherals
Power Management Setup
H/V Monitor
Green Power
BIOS Setting Password

Cell Menu
M-Flash
Overclocking Profile

Load Fail-Safe Defaults

Load Optimized Defaults

Save 8 Exit Setup

Exit Without Saving

Standard CMOS Features (CTaHdapTbHe yHKnm CMOS)
3To MeHIO N03BOJRAET yCTaHOBHTb OCHOBHbI NaPAMeTpbl KOHpNrgpaCmN CnCTeMbI (daTy, Bpemr n T.I.).
Advanced BIOS Features (Дононтелови phukunBIOS)
3To MeHIO NcNoB3yETcA DnI HAcTpoNk CneuaJIbHbIX φYHKU.
Integrated Peripherals (BcTpoEHbIe nepiFepriHbIe yctpoIcTa)
3To MeHIO NcNoJIb3yETcA dIa HAcTpoiKn IapamEtpoB BcTpoeHHbIX nepuΦepnHbIX yCTpoiCTB.
Power Management Setup (Hactpojka ynpablenia nntaHnem)
3To MEHIO NO3BOJAE T3aDaTb npaMeTpbl ynpabNeHnI NITaHHe mCTeMbI.
H/W Monitor (Montop annapathouactn)
3TOT nyHKT OTO6paKaAe COCTOaHHe annapaTHo Yactn PIK.
Green Power
3To MeHIO NcIOnb3yETcTdIpeKIMOB 3HePrc6epeKeHen.

BIOS Setting Password (Парол дocуна К несторкam BIOS)
3To MeHIO nCnOJIb3yETcA, YTO6bl 3aDaTb npoJIb.
Cell Menu (MeHIO y3Ja "Cell")
3To MeHIO NO3BOJARET ynpabJIaTb TaKTOBbIMu YactOTAMN HAnpJxKeHnMn npi pa3roHe CNTEmbl.

M-Flash

IcnoB3yETcA dIa YTeHn/ npoWNBKn BIOS c (B) BHeuHero HakOniTeTn (ToJIbKO FAT/FAT32).

Overclocking Profile

IcnoIb3yeTcI ypaHEnH/ 3arpy3kn npaMeTpoB B/ n3 CMOS BIOS.

Load Fail-Safe Defaults

3To MeHIO NcNoIb3yETcT dnn 3aRpy3Kn 3HaueHnBIOS, yCTaHOBJIeHHbIX npOn3BOIDTeNem dnn CTabNbHOB pa6Otbl CNTEmbl.

Load Optimized Defaults (YcTaHOBnTb ONTmAmNbHbHe NaCTpoKn)

3To MeHIO NcNoJIb3yETcIgI 3aRpy3Kn HAcTpoEKN3rOToBnteIgI ONTmAlbHOI pOnI3BOIDTeNbHOCTNCCTEMHOI PJIaTbl.

Save & Exit Setup (BbIXoI c coxaHeHem HacTpoEk)

3aIncb nImMeHenn B CMOS n BbIXoN n3 peXmHa HactpoiKn.

Exit Without Saving (BbIXoN 6e3 coxpanenHn)

OTMeHa BCex I3MeHeHn I BbIXoI n 3peKIma HAcTpoKI.

B obsem cnyae, haxoJcB b pexKme HacTroKn BIOS, peKomeHdyetc BblOnHnTb cIeDyOuNe deICTBna.

1. Load Optimized Defaults: KnaBnIaMn ynpaBJIeHnra ( ) BbIbepNTe npHKT Load Optimized Defaults n haxmTe , noBvntc cneDyUoee coo6uHeHne:

HaxmTe [Ok], 3aRpy3nTb HacrpoKn no yMOnuHaHIO dIra ONTMaJIbHO npOn3BOUnteJbHOCTN CNTeMbI.

Current CPU / DRAM / CPU-NB Frequency

3Tn nyHkTBI noka3bBAIO T EkyuO yactOTy CPU u ckopocTb namrtn n CPU-NB. ToIbKO dIra YTeHna.

CPU Specifications

HaxmTe ДЯ BXOa B NOmEnIO. B NOmEnIO noka3aHa INHΦopMaζIa O6 yCTaHOBJIeHHOM CPU.

CPU Technology Support

Haxmte ДЯ BXOa B NOmEHBO. B NOmEHNO Koka3aHbI TEXHOJOrn, KOtopbI NOdEprKINBaOTcB yCTaHOBJeHHom CPU.

CPU Feature

HaxmTeДЯ BXOda B IOmEnIO.

AMD Cool'n'Quiet

TexHONorIa Cool'n'Quiet no3BOnJeT aΦΦeKTHBHO dInHAMnueckn n3MeHrTa cAcToTy CPU n 3nepronotpe6bene CnCTembl.

BHIMAHINE

Ytoby6eHntbCByTOM, YTO TexHOnIgna Cool'n'Quiet BkInoueHa npabotaet npabunbHo, Heo6xOdmo:

• 3aɪtni B npɒrρaʊmMy B I O S Setup, n B bɪbpaɪt B Cell Menu. Hauɪnɪte AMD Cool'n'Quiet noɪd Cell Menu, n yctaɪnoBɪte erə B "Enabled".
• B Windows BBbepuTe [Start]->[Settings]->[Control Panel]->[Power Options]. BoiDte B Power Options Properties, BBbepuTe Minimal Power Management B Power schemes.

C1E Support

BkIouHte 3OT nyHKT IЯ cnKHeHn 3HeprOOnTp6neHn CPU, kOrda OH he pa6oTaET. He BCE npOeCCOpbI nOdEepXnBaIoT Enhanced Halt state (C1E).
SVM Support

3TOT nyHKT nCnoJb3yETc dIy BkNIOeHn/ BbIKIOeHn SVM.

AMD Cool'n'Quiet

TexhONorra Cool'n'Quiet no3BOnJrE 3ΦΦeKTHBHO DnHaMnueckn 13MeHrTb YactOTy CPU n 3hepronotpe6IeHne CnCTembl.

C1E Support

BkHouTe 3OT nyKt dIy cHIXeHn 3HepronoTpe6neHn CPU, KOrda OH He pa6oTaet. He BCE npoeccopbI noDepxNBAot Enhanced Halt state (C1E).
Adjust CPU FSB Frequency (MHz)
3TOT nyHKT no3BOJIAET bIbpaTb yactOry FSB npoceccopa (B MfU).
OC Stepping

3TOT nyHKT noRbIeTcnaocne yctaHOBKn YacToTB pa3roHa B "Adjust CPU FSB Frequency (Mf). N noRbIeTcnae duOuIyNnnyKt. OH no3BOJIeT ocUeCTBJIaTb pa3roH 1War 3a WAROM nocne 3aRpy3Kn CnCTeMbbl.

Start OC Stepping From (MHz)

3TOT nyHKT NO3BOJIeT yCTaHOBnTB hauaJIbHoe 3HaueHHe T aKTBOO qacTOtBI (FSB clock). CnCTema 3arpy3ntcra HauaJIbHbIM 3HaueHneM TaKTBOO qacTOtBI (FSB clock), a NOTOM hauHET pa3roHЯrTB cncTeMy c hauaJIbHOrO 3HaueHnIa 3a Iarom yCTaHOBJIeHHbIM B "Adjust CPU FSB Frequency (M_)
OC Step
TOT nyHKT nCOnb3yeTcI dIa 3aDaHnI WaIra pa3roHa TaKTOB YaCTOBy FSB.
OC Step Count Timer

TOT nyHKT nCNOJIb3yETc dIy yCTaHOBK BpeMeHN 3aIepKKKaKdOrO Waara.

Adjust CPU Ratio
3TOT nyHKT nCnOJb3yETcI dIe pErynIpOBKm MHOxNTeI npOceccopa. OH DocTypeH ToIbKO TOrda, KOrDa npOceCCOP NOdEepXINBaET 3Ty dyHKUIO.
Adjusted CPU Frequency (MHz)
3TOT nyHKT noka3bIbaeT kcyuio yactOty CPU. TOnbKO dnyTeHnA.
Adjust CPU-NB Ratio
3TOT nyHKT nCnObl3ayetcI dIe peryIuropBkn yactotb CPU-NB.
Adjusted CPU-NB Frequency (MHz)
3TOT nyHKT noka3bBaet TekyuH yactOty CPU NB. TOnbko dnyaTeHnA.

Unlock CPU Core

Adjusted DRAM Frequency (MHz)

3TOT nyHKT noka3bIbaeT kcyuO yactOtynamrtn.ToIbKO dnyTeHnA.

HT Link Control

HaxmnteДЯ BXOa B NOmEnIO.

HT Incoming/Outgoing Link Width

3TOT nyHKT onpeJeIeT uipnHy BXoJaIe/NcXOJaIe IINH NTpn yCTaHOBKe B [Auto], cNCTema aBTOMaTInueckn onpeJeIeT uipnHy IINHb HT.

HT Link Speed

3TOT nyHKT NOBONJET yCTAHOBITb COKOPCTb nepeaun no sHHe HyperTransport. PnYcTahOBKe B [Auto], cNCTema ABTomatueeCKn ONpeJeTet CKOPoCTb sHnbl HT.

Adjusted HT Link Frequency (MHz)

3TOT nyHKT nokaibBaet TAKTOByo YactOty uINhbl HT. ToIbKO IaYteHna.

Adjust PCI-E Frequency (MHz)

3TOT nyHKT NO3BOJAEYcTaHOBnTB yAcToTy PCIE (BMf).

Auto Disable DRAM/PCI Frequency
При установке 3наченя [Enabled], систema OTKПОЧИТ HeINСПОЛьзУЕмBLE pa3ьЕмbl namгту nPCI, чт по пиведдETК снчжению уровь залктомагнIHbIXnomex (EMI).
- CPU VDD Voltage (V)/ CPU-NB VDD Voltage (V)/ CPU Voltage (V)/ CPU-NB Voltage (V)/ CPU PLL Voltage (V)/ CPU DDR-PHY Voltage (V)/ DRAM Voltage (V)/ DDR VTT Voltage (V)/ NB Voltage (V)/ NB PCI-E Voltage (V)/ SB Voltage (V)/ HT Link Voltage (V)
Tn npNkTbI no3BOJIAOT perynIpOBaTB napanjKeHne CPU, naMaTn, nUnceta.
Spread Spectrum

Tak kak TakTOBbI rHeHApOp CnCTeMHoN IJIaTbI NmNyIbChbI, To erO paBOta BblBaet 3JeKTPomarHHTbIe nomexi - EMI (Electromagnetic Interference). ΦyHKuŋa Spread Spectrum cnHkaet 3tN nomexi, reHepnpy crJaXeHHble nMnyIbCbl.

BhimhaHue

• Ecnn y Bac Het npo6lne m nomexamn, ocTabte 3naeHne [Disabled] (3anpeueho) Дялушew CTabunbHOCTn n pOn3BOaNTenbHOCTn. Ondako, ecnn y Bac BO3NkaOT 3NeKTPomarHHTbIe nomexn, Bbl6epnte Spread Spectrum Дя nx yMeNbSeHnry.
  -ЧмбльшеЗачениSpread Spectrum,temнжсудетуровьлкгомагHTbIXnomex,HOcntema ctaHET Mehee ctabиь窝.Дявьбopa noxodzaero 3auehenia Spread Spectrum,Cbepbtecb co 3auehenmUyobHei 3eKtpomarHHTbIXnomex,yctahOBnEHbX3aHOHaTeNbCTBOM.
• He 3a6ydbTe 3anpeTntb uCnOJb3ObaHne yHKnUu Spread Spectrum, eCnn Bbl "pa3roHaeTe" CnCTeMHyO pNAty. 3To Heo6xOdmo, TaK KaK dAxe He6onbUoJ Dpe6e3r CnHaIOB TaKTOBOrO rHePApota MoKeT npIBeCTn K OTKa3y "pa3orHaHHoro" npouecoppa.

CBeHnO nporpaMMHom oecneueHH

YctahOBtBe B DVD npBOD nck Driver/Utility (DpaBebpb i yTuINtBi) n3 KOMnIeKta nocTbKn CnCTemHOn nPaTbI. ABToMaTnueckn 3aNyCTnTCra IHCTaJIaIaIyra. HaxMITE Ha ha3BaHne dpaBepa/ yTuINtBi n cNeDuYte INcHTpyKzmaM ha 3kpaHe nla 3aBepSeHna IHCTaJIaIaIynu. Dnck Driver/Utility codePknT:

• Driver menu (Ménhó dpaibépoB) - Ipejctabnietnepeyehb doctynbix dpaiéboB. YctahOBiTE dpaiébepbl nnoKJIoueHn Heo6xOIMbIX yCTPOIcTB.
• Utility menu (Meho ytnnt) - Poka3bBAeT ytnntbl, KOTOpIe noDepKnaTOc cnCTemHoi nlaToi.

BhimaHue

Ioxaynuicta, noceitte Be6caT MSI nna onnyeHn cambix HObIX dpaiBepOB IN BIOS, KOtOpblie no3BOJAT ynuuHT npOn3BOUnteHbOCTb CNTeMbI.
