USER MANUAL FD268AP2 SMEG

BEFORE USING THE APPLIANCE General warnings Old and out-of-order fridges Safety warnings Installing and operating your fridge Before Using your Fridge

THE VARIOUS FUNCTION AND POSSIBILITIES Thermostat Setting Warnings for Temperature Settings Accessories Ice tray

ARRANGING FOOD IN THE APPLIANCE Refrigerator Compartment Freezer Compartment

CLEANING AND MAINTENANCE Defrosting Replacing The Light Bulb

SHIPMENT AND REPOSITIONING Repositioning the door

BEFORE CALLING YOUR AFTER SALES SERVICE Tips For Saving Energy

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 27

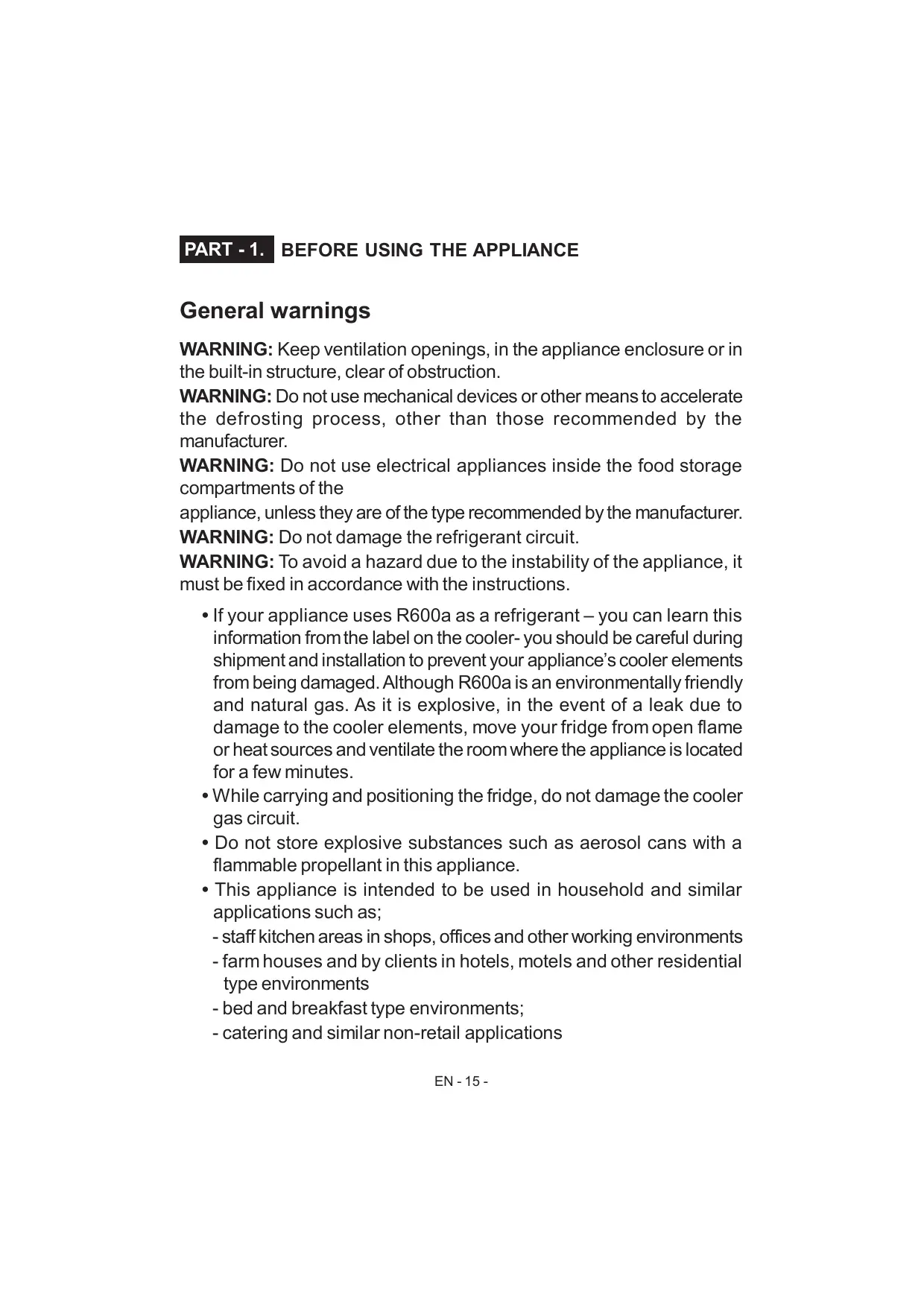

LUE BEFORE USING THE APPLIANCE General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are ofthe type recommended by the manufacturer. WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R600a as a refrigerant — you can learn this

information fromthe label on the cooler- you should be careful during

shipment and installation to prevent your appliance’s cooler elements

from being damaged. Although R600a is an environmentally friendly

and natural gas. As it is explosive, in the event of a leak due to

damage to the cooler elements, move your fridge from open flame

or heat sources and ventilate the room where the appliance is located

While carrying and positioning the fridge, do not damage the cooler

Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

This appliance is intended to be used in household and similar

applications such as;

- Staff kitchen areas in shops, offices and other working environments

- farm houses and by clients in hotels, motels and other residential type environments

- bed and breakfast type environments;

- catering and similar non-retail applications

- Ifthe socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) With reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Aspecially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. lfthere is no such socket in your house, please have it installed by an authorized electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use ofthe appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

- Ifthe supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

+ If your old fridge has a lock, break or remove the lock before discarding it, because

children may get trapped inside it and may cause an accident.

+ Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges. Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings + Do not use multiple receptacles or extension cord. + Do not plug in damaged, torn or old plugs. + Do not pull, bend or damage the cord.

+ This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

+ Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

+ Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

+ Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

+ When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

+ Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!

+ Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

+ Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

+ Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge Before starting to use your fridge, you should pay attention to the following points: + Operating voltage for your fridge is 220-240 V at 50Hz.

+ We do not take the responsibility of the damages that occur due to ungrounded usage.

Place your fridge in a place that it would not be exposed to direct sunlight.

+ Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

Your fridge should never be used outdoors or left under the rain. When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface. Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side. The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

l Before using your fridge, wipe all parts back with warm water r ! Î

added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

+ Install the plastic distance guide (the part with black vanes at the s rear) by turning it 90° as shown in the figure to prevent the = Ï -

condenser from touching the wall. NT Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

A Before Using your Fridge

+ When it is operated for the first time or after transportation, keep

ù your fridge in the upright position for 3 hours and plug it on to Q allow efficient operation. Otherwise, you may damage the

+ Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

PART THE VARIOUS FUNCTION AND POSSIBILITIES Thermostat Setting

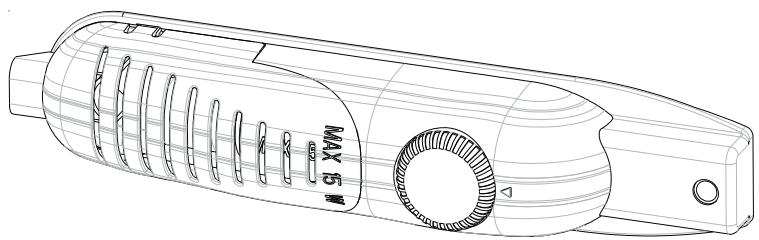

Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment.By rotating the knob from position 1 to 5, colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

+ For short-term storage of food in the freezer compartment, you can set the knob between 1 and 3 position. + For long-term storage of food in the freezer compartment, you can set knop 3-4 position. Note that ; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required,change the temperature setting.

Warnings for Temperature Settings

+ The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required,change the temperature setting.

+ Itis not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.

+ The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.

+ Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

+ A5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

+ Your fridge is designed to operate in the [Climate ambient temperature intervals stated in the standards, according to the climate

Class Ambient Temperature (°C)

class stated in the information label. It is T Between 16 and 43 (©) not recommended that your fridge is ST Between 16 and 38 (°C) operated in the environments which are N Between 16 and 32 (°C) out of the stated temperature intervals in SN Between 10 and 32 (°C)

terms of cooling efficiency.

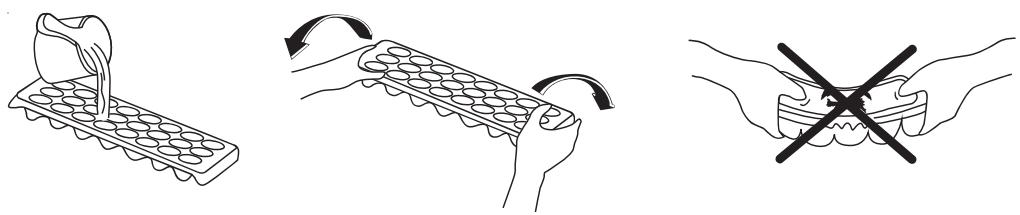

+ Fillthe ice tray with water and place in freezer compartment.

+ After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

PART ARRANGING FOOD IN THE APPLIANCE Refrigerator Compartment

+ To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.

Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.

Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days,in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.

+ You can put the fruits and vegetables into crisper without packing.

+ The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.

+ To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.

Do not put fresh food with frozen on side by side as it can thaw the frozen food. While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you will use in one time.

Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.

Never place warm food in the freezer compartment. As it will disturb the frozen foods. For storing the frozen foods:the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.

Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.

If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

PART CLEANING AND MAINTENANCE

- Make sure to unplug the fridge before starting to clean it.

+ Do not wash your fridge by pouring water onto it.

+ You can wipe the inner and outer sides of your appliance with a (J soft cloth or a sponge using warm and soapy water.

+ Clean the accessories separately with soap and water Do not clean them in the washing machine.

+ Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

+ The condenser (the back part with black wings) should be cleaned using a vacuum cleaner or a dry brush at least once a year. This will help your fridge to operate more efficiently and save energy.

Refrigerator Compartment;

+ Defrosting occurs automatically in refrigerator compartment during operation ; the defrost water is collected by the evaporating tray and evaporates automatically.

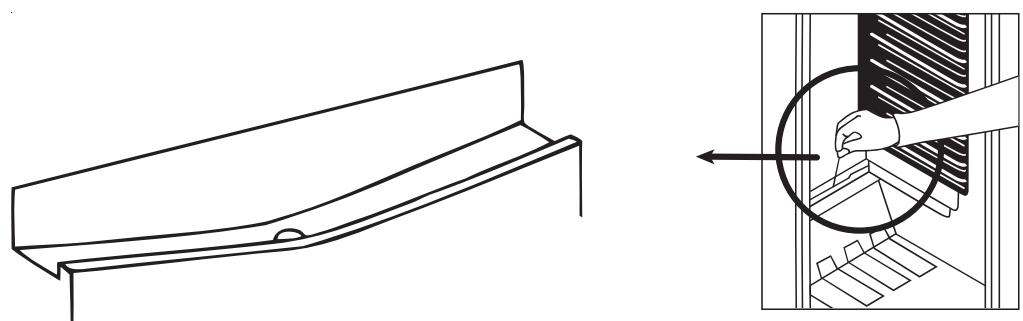

+ The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

+ You can also pour 1/2 glass of the water to drain hole to clean inside.

Freezer Compartment;

The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

+ The day before you defrost, set the thermostat dial to “5” position to freeze the foods completely.

+ During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

+ Set thermostat knob to position “*” or unplug the unit; leave the door open until completely defrosted.

+ To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

+ Dry the inside of the unit carefully and set the thermostat knob to MAX position.

Replacing The Light Bulb

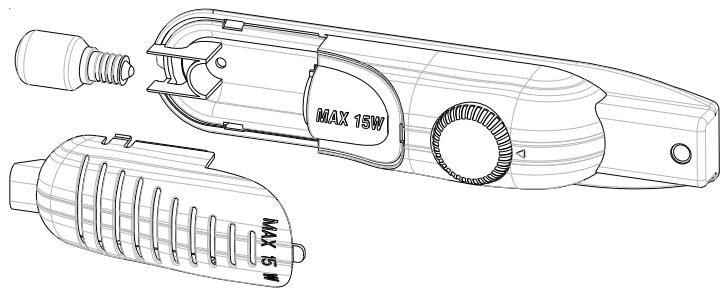

To replace the bulb in freezer and fridge departments; 1- Unplug your fridge. 2- Remove the cover of the box from the claws using a screwdriver. 3- Replace with a bulb of maximum 15 Watts. 4- Install the cover. 5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

PNA SHIPMENT AND REPOSITIONING Transportation and changing of installation position + Original package and foam may be kept for re-transportation (optionally).

+ You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

+ Remove movable parts (shelves, accessories, vegetable bins etc.) or fix (

them into the fridge against shocks using IN bands during re-positioning and transportation.

Carry your fridge in the upright position.

Repositioning the door

+ Itis not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.

+ Itis possible to change the opening direction of the door on models without any handles.

+ Ifthe door opening direction of your fridge may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

PART BEFORE CALLING YOUR AFTER SALES SERVICE If your refrigerator is not working properlyit may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ; Check that ;

+ There is no power ,

+ The general switch in your home is disconnected ,

+ The thermostat setting is on “+” position ,

+ The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ; Check that ;

+ You have not overloaded the appliance ,

+ The doors are closed perfectly ,

-+ There is no dust on the condenser,

+ There is enough place at the rear and side walls.

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

The appliance is well levelled ,

+ Nothing is touching the rear.

+ The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ; Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

+ While power cut, to prevent any compressor problem you should plug out the refrigerator. You should delay plugging in 5 - 10 minutes after you power supply. If you plug out the refrigerator for a reason you should wait at least 5 min to replug. It is important for avoiding damage to refrigerators components.

+ The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.

+ If you will not use your fridge for a long time (e.g. in summer holidays), put the thermostat to “+” position. After defrosting, clean your fridge and leave the door open to prevent humidity and smell.

+ If the problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service.

+ The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

+ The lifetime of your appliance stated and declared by the Department of the Industry (the period for retaining parts required for the proper functioning of the appliance) is 10 years.

Conformity Information

+ Normal Class is defined for the environment temperatures between 16°C and 32°C in accordance with the TS EN ISO 15502 Standards.

+ The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Tips For Saving Energy

1- Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.

2- Allow ward food and drinks to cool down outside the appliance.

3- When thawing frozen food, place it in the refrigerator compartment. The low tem- perature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. [f the frozen food is put out, it causes wastage of energy.

4- When placing, drinks and slops they must be covered. Otherwise humidity in- creases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.

5- When placing food and drinks, open the appliance door as briefly as possible.

6- Keep close the covers of any different temperature compartment in the appliance (crisper, chiller etc ). 7- Door gasket must be clean and pliable. Replace gaskets if worn.

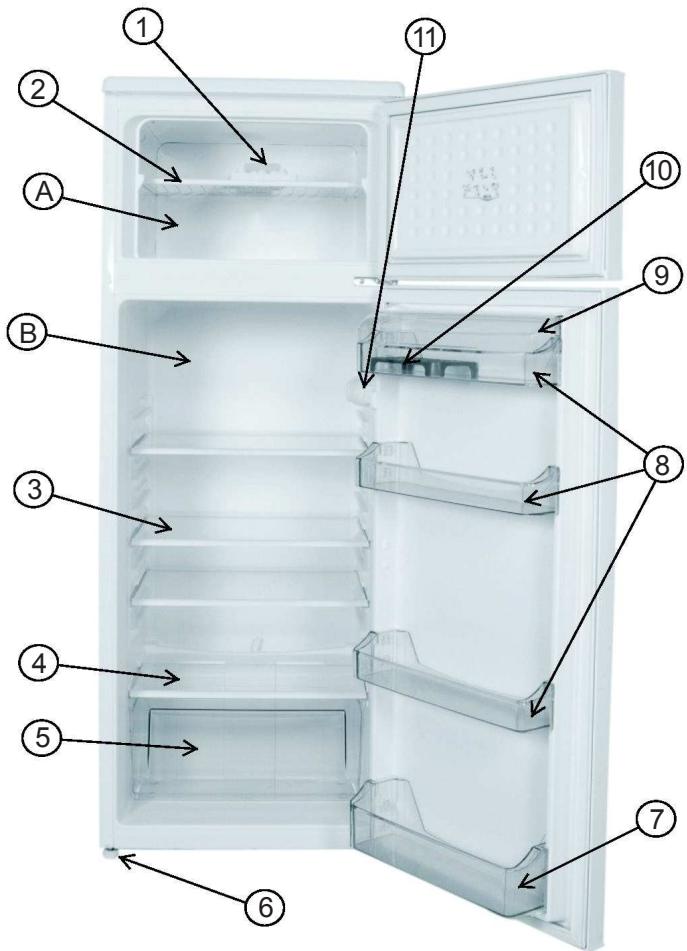

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.
