USER MANUAL CTPS613NX SMEG

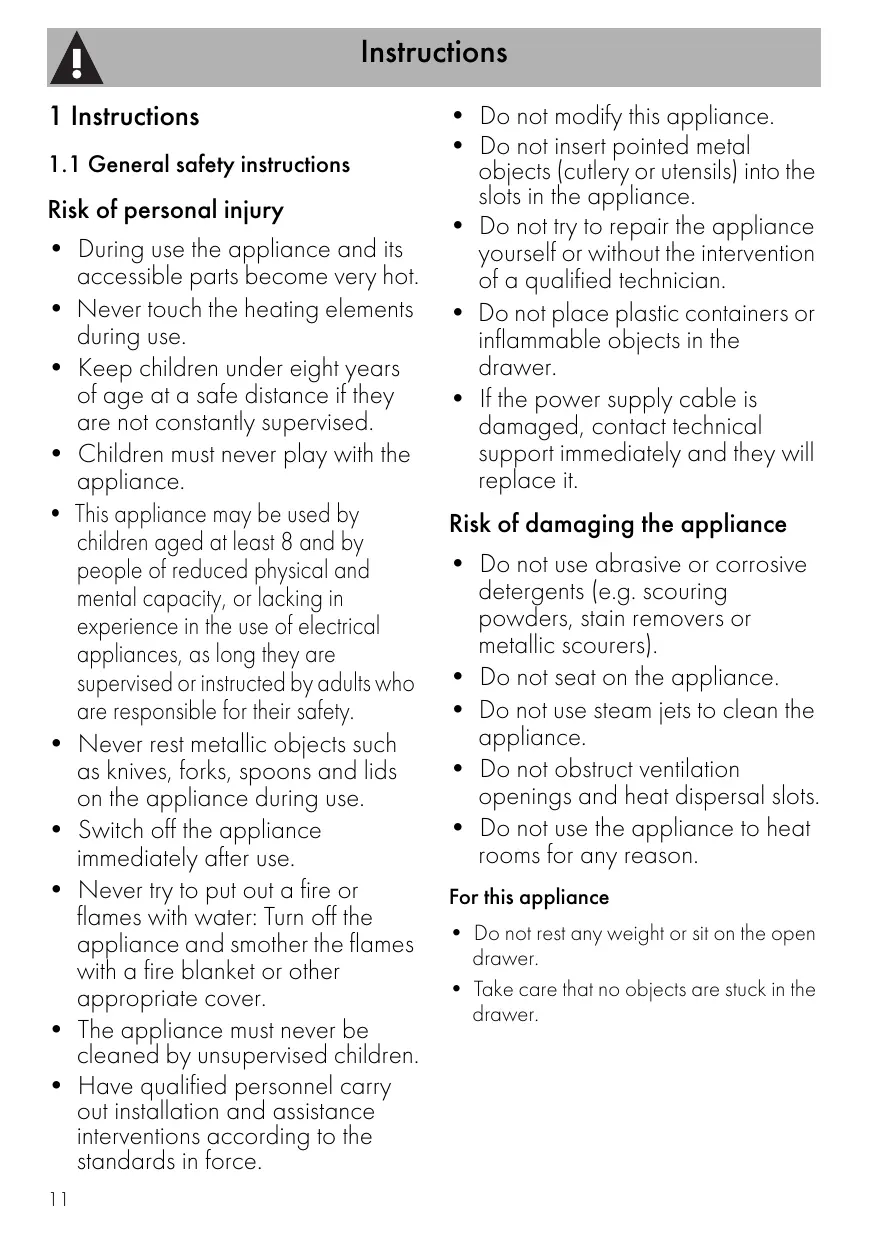

1.1 General safety instructions

Risk of personal injury

During use the appliance and its accessible parts become very hot.

Never touch the heating elements during use.

Keep children under eight years of age at a safe distance if they are not constanily supervised. Children must never play with the appliance.

This appliance may be used by children aged at least 8 and by people of reduced physical and mental capacity, or lacking in experience in the use of electrical appliances, as long they are supervised or instructed by adults who are responsible for their safety. Never rest metallic objects such as knives, forks, spoons and lids on the appliance during use.

Switch off the appliance immediately after use

Never try to put out a fire or flames with water: Turn off the appliance and smother the flames With a fire blanket or other appropriate cover.

The appliance must never be cleaned by unsupervised children Have qualified personnel carry out installation and assistance interventions according to the standards in force.

+_Do not modify this appliance.

+_ Do not insert pointed metal objects (cutlery or utensils] into the slots in the appliance.

+ Do nottry to repair the appliance yourself or without the intervention of a qualified technician

+ Do not place plastic containers or inflammable objects in the drawer.

+_IFthe power supply cable is damaged, contact technical support immediately and they will replace it.

Risk of damaging the appliance

+ Do not use abrasive or corrosive detergents [e.g. scouring powders, stain removers or metallic scourers).

+ Do not seat onthe appliance.

+ Do not use steam jets to clean the appliance.

+_ Do not obstruct ventilation openings and heat dispersal slots.

+ Do not use the appliance to heat rooms for any reason.

+ Do not rest any weight or sit on the open drawer

+ Take care that no objects are stuck in the drawer

1.2 Manufacturer lidbility

The manufaciurer declines all liability for

damage to persons or property caused by:

+_ Use ofthe appliance other than as envisaged;

+ Non-observance ofthe user manual provisions;

Tampering with any part of the appliance; + Use of non-original spare parts.

1.3 Appliance purpose

+_ This appliance is intended for heating food and crockery in the home environment. Every other use is considered improper.

This appliance may be used by children aged at least 8 and by people of reduced physical and mental capacity, or lacking in experience in the use of electrical appliances, provided that they are supervised or instructed by adults who are responsible for their safety.

+_ The appliance is not designed to operate with external timers or with remote-control systems.

1.4 Disposal # This appliance must be disposed of

separately from other waste =) (pireciives 2002/95/EC, 2002/ 96/EC, 2003/108/EC]. The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives. To dispose of the appliance:

+ Cutthe power supply cable and remove it along with the plug.

+_Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste, or return it to the retailer when purchasing an equivalent product, on a one for one basis.

Our appliances are packed in non- polluting and recyclable materials.

+ Deliver the packing materials to the appropriate recycling centre.

1.5 Identification plate

The identification plate bears the technical data, serial number and brand name of the appliance. Do not remove the identification plate for any reason.

1.6 This user manual

We advise you to read this manual carelully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities.

This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the user's reach for the whole working life of the appliance.

For further information on the product: WWW.smeg.com

Read this user manual carelully before using the appliance.

1.7 How to read the user manual

This user manual uses the following reading conventions:

EN General information on this user manual, on safety and final disposal.

IE Description of the appliance and its accessories.

Use RM formation on the use of the appliance and its accessories, cooking advice. Cleaning and maintenance Information for proper cleaning and maintenance of the appliance.

Information for the qualified technician: Installation, operation and inspection.

1. Use instruction sequence.

+ Standalone use instruction.

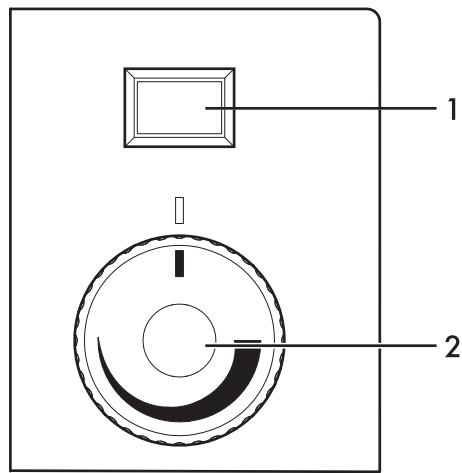

1 Control panel 2 Drawer

Turns the appliance on and off.

Regulates the appliance's temperature.

2.3 Operating principles

The appliance is equipped with a hot-air ventilation system. À fan distributes the heat from the heating element inside the drawer in an optimal manner.

The temperature knob allows you to set and control the correct temperature for the crockery and food placed inside the appliance. The circulating hot air warms the crockery and food quickly and evenly.

A protective grille prevents accidental contact with the heating element and fan. The base ofthe drawer is covered with non- slip material to stop dishes from moving when the drawer is opened or closed.

The overall capacity depends on the dimensions of the crockery used.

As an example, appliances with a 127.5 cm drawer allow the following combinations for 6 place settings:

+ 6x 24 cm diameter dinner plates +_6 x 10 cm diameter soup bowls

+1 x 32 cm diameter bowl

+ 1x 19 cm diameter bowl

+ 1x 17 cm diameter bowl

3 Use 4. Dry the appliance thoroughly. 5. Heat the appliance for at least 2 hours, unloaded and at maximum temperature,

lo remove any manufacturing residue. A 3.3 Using the drawer mn

Turning the drawer on and off 1. Press the ON/OFF switch.

2. Turn the temperature knob to any seting between minimum and maximum.

1. Remove any protective film from the outside or inside She e appliance.

* Preheat the drawer at maximum temperature for 5- 3. Clean the appliance using a damp cloth. 10 minutes

4 Cleaning and maintenance

4.2 Cleaning the appliance

Recommendations for cleaning the drawer

To keep the surfaces in good condition, they should be cleaned regularly after use. Let them cool first.

Avoid letting food residue dry inside the drawer, as this could damage the enamel.

1. Remove the non-slip base. 2. Place some non-abrasive detergent on a

damp cloth and wipe down the surfaces.

3. Rinse thoroughly.

4. Dry with a soft cloth or a microfibre cloth.

Cleaning the non-slip base 1. Remove the non-slip base.

2. Clean it with warm water and non- abrasive detergent.

3. Dwy thoroughly with a soft cloth or a microfibre cloth.

4. Replace the non-slip base in the drawer when pertecily dry. 4.3 What to do if...

Below we provide a list of possible solutions to some operating problems.

Crockery does not heat up: + Check that the appliance is connected to the mains electricity supply.

+ Check that the house's main circuit breaker is on.

Check that the ventilation openings are not blocked.

Check that it is possible to hear the noise of the fan, and contact Technical Support.

+ Leave the crockery in the drawer for longer.

The drawer does not open:

+ Grasp the lower part of the drawer and pull until it releases.

The main switch or main circuit breaker in

the house's consumer unit are repeatedly

triggered [or corresponding fuses blow]:

+_ Call Technical Support or an electrician.

5.1 Electrical connection

Check the grid characteristics against the data indicated on the plate.

The identification plate bearing the technical data, serial number and brand

name is visibly positioned on the appliance.

Do not remove this plate for any reason. The appliance works at 230 V7.

Use the power-supply cable provided with the appliance.

Fit the power line with an omnipolar cireuit breaker in compliance with installation regulations.

The circuit breaker should be located near the appliance and in an easily reachable position.

Connection with plug and socket

Make sure that the plug and socket are of

Avoid using adapters and shunts as these Z could cause overheating and a risk of rm burns.

General instructions

*_ Position the drawer on a stable shelf.

+_ Provide for a separating shelf between the drawer and any other appliances above or below it.

*_The unit in which the drawer is installed must not have a back panel.

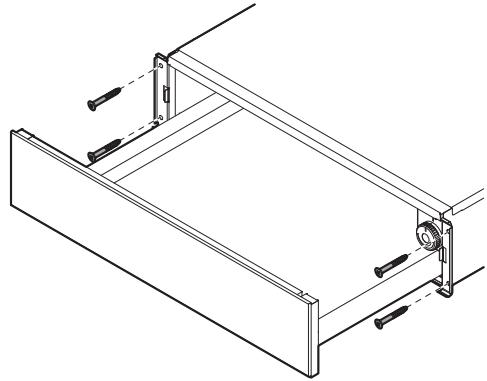

Installing the appliance

1. Centre and line up the drawer in the opening. Ensure that the frame is perfectly flush with the furniture unit.

3. Secure the appliance to the piece of furniture using screws.

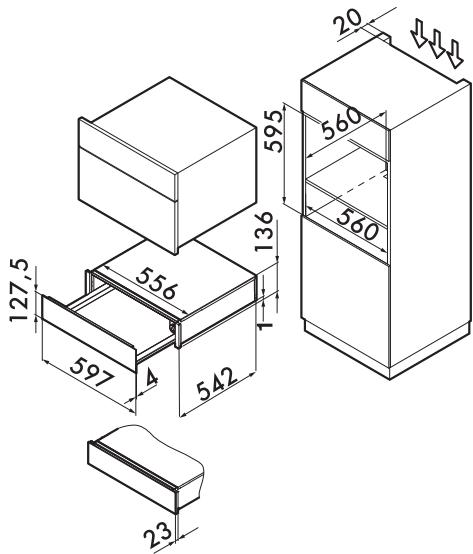

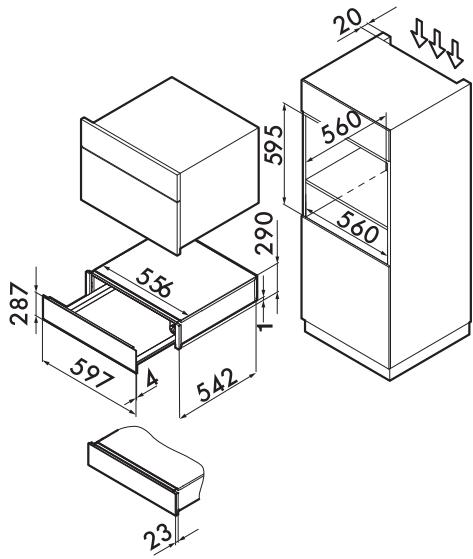

Appliance overall dimensions (mm)
