Product Type	Household Fan
Brand	Cellini
Model	CMF75
Blade Diameter	75 cm
Height	140 cm (max)
Base Diameter	45 cm
Weight	5.2 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	55 W
Speed Settings	3 speeds (low, medium, high)
Oscillation	Automatic 90° oscillation
Remote Control	Included (battery CR2032)
Timer	Up to 7 hours
Material	ABS plastic and metal
Color	White
Noise Level	< 60 dB
Maintenance	Clean with damp cloth; do not use abrasive cleaners
Safety Features	Overheat protection, tip-over switch
Spare Parts Available	Blade, base, remote control, motor
Repairability	Modular design; parts replaceable by user
Certifications	CE, RoHS
Warranty	2 years
Packaging Contents	Fan unit, remote control, user manual

Frequently Asked Questions - CMF75 Cellini

How do I assemble the Cellini CMF75 fan?

Follow the steps in the manual: attach the base, insert the pole, mount the motor housing, and attach the blades. Tighten all screws securely.

Can I use the fan outdoors?

No, the CMF75 is designed for indoor use only. Exposure to moisture may damage the fan.

How do I clean the fan?

Unplug the fan, use a soft damp cloth to wipe the blades and grille. Avoid using water directly on the motor.

Why is the fan making noise?

Check if blades are balanced or if there's loose screws. Also ensure the fan is on a stable surface. If noise persists, contact support.

How do I replace the remote control battery?

Slide open the battery compartment on the remote and replace the CR2032 battery with a new one, ensuring correct polarity.

What is the maximum room size for this fan?

The CMF75 is suitable for rooms up to 25 m². For larger rooms, consider a bigger fan or multiple units.

Does the fan have a timer function?

Yes, you can set the timer from 1 to 7 hours using the remote control. The fan will automatically shut off after the set time.

Can I adjust the fan height?

Yes, the pole is adjustable. Loosen the collar, slide to desired height (max 140 cm), then tighten securely.

What should I do if the fan stops working?

Check the power cord and plug connection. Ensure the fan is not overheated. If still not working, contact Cellini customer service.

Is the fan safe to use around children?

Yes, but always keep the fan out of reach of very young children. Use the tip-over switch feature for added safety.

USER MANUAL CMF75 Cellini

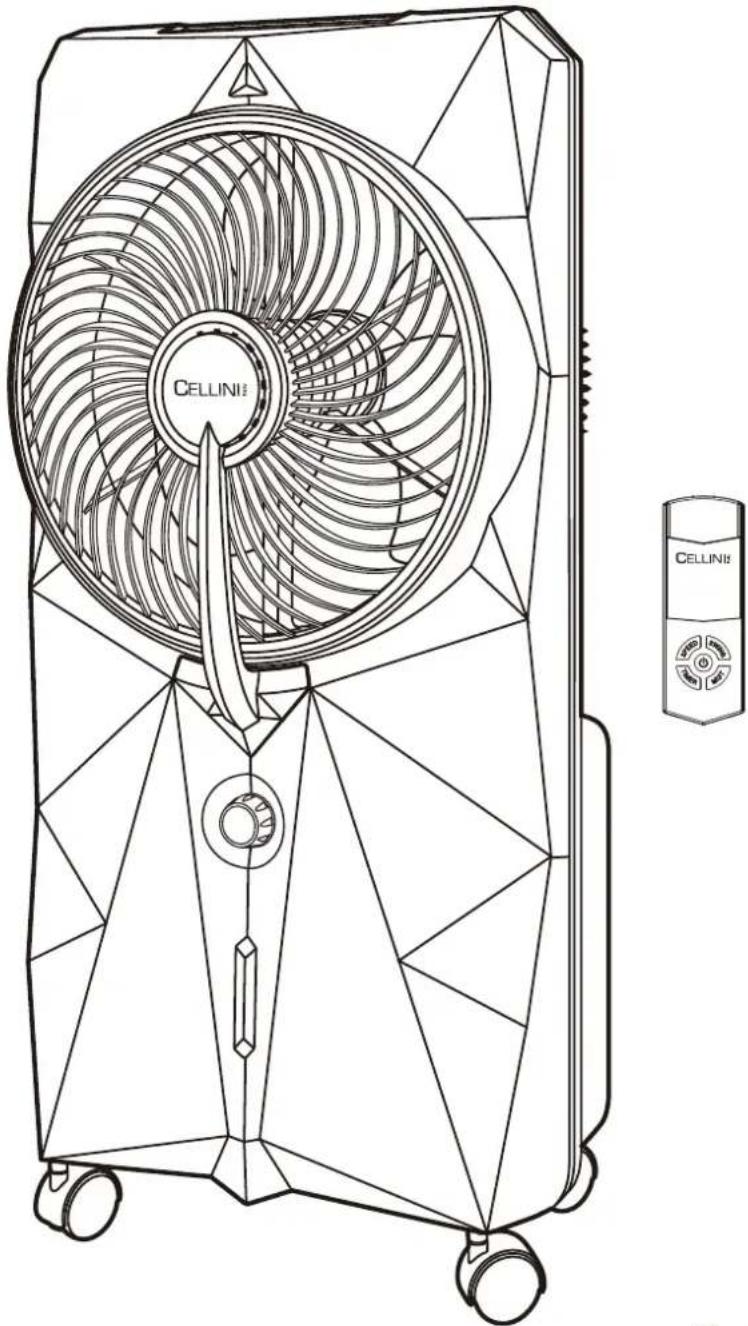

Line drawing of a CELLINI air conditioner fan with visible blades and control panel (no text or symbols on the fan itself)

CE回

FEATURES

1. Remote Controller Sensor
2. Rotary Fan Grille
3. Misting Outlet
4. Misting Volume Control
5. Water Level Indicator
6. Wheel
7. Timer ON Indicator
8. Ionizer ON Indicator
9. Misting ON Indicator
10. Fan Oscillation Indicator

11. Fan Low Speed Indicator

12. Fan Medium Speed Indicator

13. Fan High Speed Indicator
14. Timer Button
15. Ionizer Button
16. Misting ON/OFF Button
17. Timer & Temperature Display
18. Fan Oscillation Button
19. Fan Speed Button
20. Fan Power ON/OFF Button
21. Power ON/OFF Indicator

22. Handle

23. Rear Fan Grille

24. Fan Blade
25. Detachable Water Tank
26. Cord Hook
27. Drain Plug
28. Remote Fan Speed Control Button
29. Remote Timer Button
30. Remote Power ON/OFF Button
31. Remote Misting ON/OFF Button
32. Remote Fan Oscillation Button
33. Remote Battery Flap

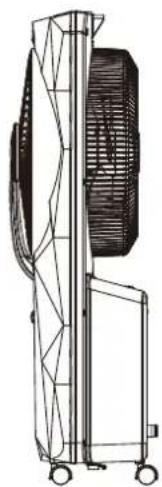

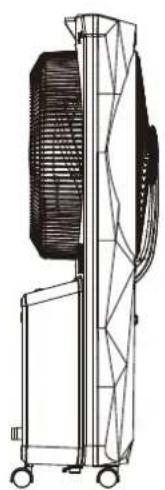

Technical line drawing of a mechanical device with no visible text or symbols

Front View

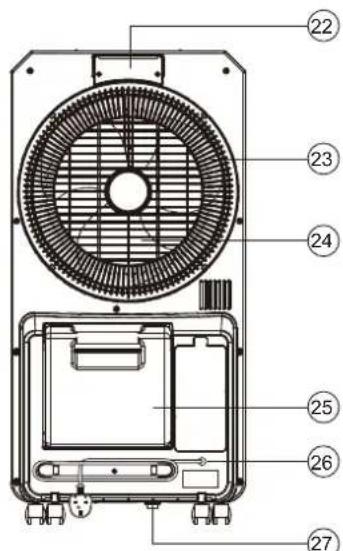

Technical line drawing of a mechanical device with internal components and wheels (no text or symbols)

Back View

Control Panel Top View Base View

Technical line drawing of a vehicle rear view showing roof, grille, and wheels (no text or symbols)

Remote Control Unit

CAUTION: TO PREVENT ELECTRICAL SHOCK OF FIRE HAZARD. DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE OR REMOVE BACK COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated. "Dangerous Voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

PRODUCT INTRODUCTION

Misting Fan is design with digital control system. It has device for storing water. It can lower surrounding temperature, freshen the air with equipped ion humidify the air through the principle of water evaporation. LED panel makes it luxurious and easy to use.

IMPORTANT NOTES

Please read the instruction manual carefully before operating this unit.

1. Make sure that the home power supply consistent with the product before plug in.
2. Switch off and disconnect from the power outlet when not in use or before cleaning.
3. Do not expose the unit to rain and keep out of reach of water on the control panel or LED for proper use.
4. Do not put the fingers or any objects inside the fan grill during operation.
5. Do not operate the unit if there is any damage to the power plug or cord - take unit to our after sales service center for repair, do not attempt to undertake any required repairs yourself.
6. Wipe clean with damp cloth only - do not use any abrasive cleaners.
7. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge unless then have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
8. Do not use the misting function if unit is to be used in a damp space.
9. Do not use the misting mode when water tank is empty; always keep enough water in tank in order for this function to operate, otherwise may cause water pump malfunction.
10. If unit is being stored away for a long period of time without use, empty the water tank before storing or transporting the unit.

HOW TO ASSEMBLE THE WHEELS (SEE DRAWING 1)

1. Attach the four wheels into the unit.
2. Two of the wheels can be locked in position if required.

Technical line drawing of a mechanical assembly with mounting fixtures and a valve (no text or symbols)

DRAWING 1

Make sure that the home power supply is consistent with the product before plug in.

Press the "fan power ON/OFF button" (Feature No. 20) on the control panel or (Feature No.30) on the remote controller to start operation, LED light (Feature No.21) will become illuminated on the control panel. Press the same button to turn off the function.

FAN SPEED OPERATION

Select the required fan speed to Low/Medium/High by press the "Fan Speed Button" (Feature No.19) on the control panel or (Feature No. 28) on the remote control. LED light above selected speed will become illuminated on the control panel.

MISTING OPERATION

1. Ensure the unit is placed on a level surface and unplug from the power and switch off all the function when refilling water.
2. Remove the water tank (Feature No.25) and fill water, but do not fill water over the Marking Line (see drawing 2 below) to ensure water does not overflow.

Illustration of a water dispenser with a faucet and lid (no text or symbols)

DRAWING 2
↑ Marking Line

1. Remove the water tank and fill clean water.

1. Tighten the cover in clockwise direction.

Line drawing of a rectangular device with a handle and a cross symbol below (no text or labels)

1. Turn the water tank upside down to make sure no leakage.

2. Put the water tank back to the unit.

Technical line drawing of a mechanical device with wheels and housing (no text or symbols)

1. Misting function will not operate effectively if water not enough.

2. Connect to the power socket, press fan power ON/OFF button, select the fan speed to start and press "Misting ON/OFF Button" (Feature No.16) on the control panel or (Feature No.31) on the remote controller to switch the misting on or off; illuminated lights on the control panel will indicate the functions currently in operation.

3. Adjust the mist density, turn the "misting volume control"(Feature No.4) clockwise to increase the mist density or anti-clockwise to decrease the mist density, then get an optimum mist performance as required.
4. It may take a minute for a new misting fan to start the misting, it is normal for air to come out of the nozzles before water and the mist.

1. Press the "Fan power ON/OFF" button.

1. Select the Fan Speed to start.

1. Press the "Misting ON/OFF" to start misting.

Line drawing of a hand adjusting a circular mechanical component with a knob (no text or symbols)

1. Adjust the mist density by turning the "Misting volume control" knob.

Warning :

1. Low Water Level Alarm: when water level becomes low, you will hear the "beep" sound and the "Mist Indicator" will flash for a second. At the same time the power of the pump inside the unit will be cut off

to protect the life of the pump.

To stop the alarm, turn off the unit from the power outlet.

Fill the tank with water and turn on the unit again.

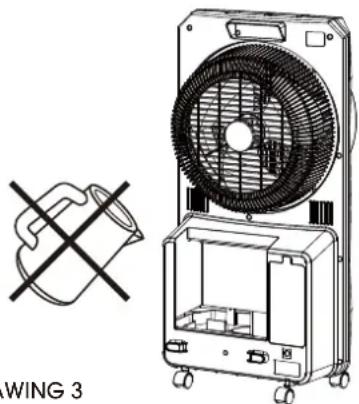

Illustration of a portable air conditioner unit with a cross symbol and label 'WING 3' (no text on device or background)

DRAWING 3

1. DIRECT POUR WATER INTO MIST FAN IS PROHIBITED. (SEE DRAWING 3)

To start 360° air flow direction, press the "Fan Oscillation Button" (Feature No. 18) on the control panel or (Feature No. 32) on the remote controller once; LED light(Feature No.10) will become illuminated on the control panel and the rotary fan grille will begin to rotate, directing air in a full circle. This setting will be memorized and keep unit next operation. Press the same button to turn off the function.

IONIZER OPERATION

Press the "lonizer Button" (Feature No. 15) on the control panel to release the anions. Illuminated light is on the control panel will indicate function is currently in operation. Press the same button to turn the function off.

TIMER OPERATION

1. Press the "Timer Button" (Feature No. 14) on the control panel or (Feature No. 29) on the remote controller to set the countdown timer. The unit will operate with its present settings until the timer counts down.
2. Timer can be set from 1 to 8 hours.
3. Once set, LED display will show the time set.
4. To switch off the timer function and operate the unit continuously, press the timer button until LED display switches off and the LED light on the control panel above timer button LED will also be off.

REMOTE CONTROLLER

1. Open the remote control battery flap (Feature No. 33) and insert 1 piece 3V "CR2032" of Button battery.
2. Remote controller must be aimed at the sensor (Feature No.1) on the front of the appliance, distance within 5 meters, and will not function from beside or behind the appliance.

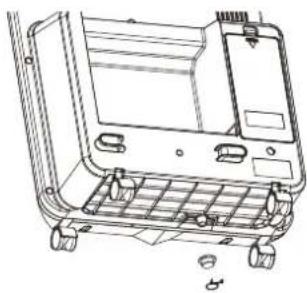

CLEANING AND MAINTENANCE (SEE DRAWING 4)

1. Ensure the unit is switched off and disconnected from a power source before cleaning.
2. Clean outer casing or control panel with a damp cloth only - do not use any abrasive cleaners or harsh chemicals, and ensure the control panel or LED is out of reach of water.
3. Check the condition of misting and water tank before every use.
4. After long time operation with this appliance, the unit may become clogged with dust and dirt, which will greatly affect the performance of the unit.

Sometimes mold and mildew may also occur due to the water tank not regular cleaned, recommend to clean once every two weeks.

1. Remove the drain plug (Feature No.21) and allow the water tank to empty.
2. If the unit is being stored for a long period of time without use, empty the water tank before storing or transporting the un it.

Technical line drawing of a mechanical component with no visible text or symbols

DRAWING 4

TECHNICAL SPECIFICATIONS

Input Voltage ...... AC220-240V 50/60Hz

Input Power....75W

Operating Temperature.... 0°C-45°C

Humidity.... Lower than 90%

Water Tank Capacity 4 Liter

Fan Maximum Air Volume ..... Approx > 300m³/Hour

Fan Maximum Speed....Approx 5.5m/s

Evaporative Contant Of Water ..... Approx 300mL/Hr

Timer Control.... 1-8 Hours

Remote Control Distance.....Approx 5 Meters

Ion Density Approx.... Approx 3 × 10^6 lon/cm ^3

Product Dimension ..... Approx W40 x D25 x H80.6cm

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resourc-

es. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNING:

A. To avoid an electrical shock, please do not open the rear cabinet (rechargeable fan) for repair or cleaning unless qualified person.
B. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
C. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
D. Children should be supervised to ensure that they do not play with the appliance.

CELLINI

Italy

超聲波冷霧電風扇

帶負離子空氣淨化功能

產品型號: CMF75

使用説明書

Line drawing of a CELLINI air fan with visible blades and control panel (no text or symbols on the fan itself)

CE回

功能及名稱簡介（圖解）

Technical line drawing of a mechanical assembly with mounting holes and a central grid structure (no text or symbols)

(圖示一)

風扇操作功能

Technical line drawing of a mechanical device with wheels and internal components (no text or symbols)

4 將水箱放回機身

Line drawing of a hand holding a circular mechanical component with teeth and central hub (no text or symbols)

8 調節霧化強弱

警告：

Line drawing of a multi-free air conditioner unit with fan and wheels (no text or symbols)

(圖示三)

負離子操作

Technical line drawing of a mechanical component with no visible text or symbols

(圖示四)
