USER MANUAL Mania EF3 MARTIN

Black and white Martin lighting fixture with adjustable handle and central lens (no text or symbols visible on body)

Measurements are expressed in millimeters.

Introduction 4

Safety information 4

Unpacking 6

Mania EF3 overview 6

Installation 7

AC power 7

Overhead mounting 8

Operation 10

Setting the trig mode 10

The gobo wheel 11

Focusing the Mania EF3 12

Basic service 13

Cleaning 13

Lamp maintenance 14

Mains fuse 16

Troubleshooting 18

INTRODUCTION

Thank you for selecting a Martin Mania EF3. The Mania EF3 is a pre-programmed/music-activated dynamic lighting fixture that features a motorized rotating reflector with coated mirrors and a motorized rotating wheel with 8 gobos (gobos are outlines or masks placed in a light beam to create different patterns). Six gobos are colored and two are textured effects. The mirrored reflector shoots 18 colored light beams through the gobos for dynamic light effects that can be run constantly or synchronized with a music beat.

SAFETY INFORMATION

Warning! This product is not for household use. It presents risks of lethal or severe injury due to fire and heat, electric shock, and falls.

Read this manual before powering or installing the fixture, follow the safety precautions listed below and observe all warnings in this manual and printed on the fixture. If you have questions about how to operate the fixture safely, please contact a Martin distributor for assistance. Refer any service operation not described in this manual to a qualified technician. Do not modify the fixture or install other than genuine Martin accessories and upgrade kits.

Refer servicing to qualified personnel.

Maximum ambient temperature T_a = 40^(104^) .

See serial label for replacement fuse size and lamp type.

Suitable for mounting on normally flammable surfaces.

Do not look directly into the light.

Risk of fire, electrical shock and burns.

Use only in dry locations.

For indoors use only.

Do NOT block exhaust vents.

Shields, lenses or ultraviolet screens shall be changed if they become visibly damaged to the extent that their effectiveness is impaired, for example, by cracks or deep scratches.

The lamp shall be changed if it becomes damaged or thermally deformed.

If the external power cord of this luminaire is damaged, it shall be replaced by a special cord exclusively available from your Martin dealer.

Avoiding electric shocks

Warning! Always disconnect from mains power before replacing the lamp, fuses, or any part, and when not in use.

• Before operation ensure that factory setting of voltage and frequency match local power supply.
  • Always ground (earth) the fixture electrically.
• Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault protection.
• Do not expose the fixture to rain or moisture.
• Never operate the fixture with missing or damaged lenses and/or covers.

Protecting yourself and others from burns and fire

Warning! Hot lamp. The exterior of the fixture can become hot. Allow to cool for at least 20 minutes before handling or opening.

• Surface temperature under steady state condition = 100°C (212°F).
• Minimum distance to flammable material = 0.3 m (1 ft).
• Minimum distance to illuminated surface 1.0 m (3.3 ft).
• Never attempt to bypass the thermostatic switch or fuses. Always replace defective fuses with ones of the specified type and rating.
• Ensure that the air flow through vents is free and unobstructed.
• Provide a minimum clearance of 0.1 meters (4 inches) around air vents.
• Never place filters or other materials over the lens or in the optical path.
• The exterior of the fixture can become hot. Allow the fixture to cool for at least 20 minutes before handling.
• Do not operate the fixture if the ambient temperature ( T_a ) exceeds 40°C (104°F).
• Do not stare directly into the light.
• Never operate the fixture without all lenses and covers installed: an unshielded lamp emits dangerous UV radiation that can cause burns and eye damage.

Preventing injuries due to falls

• When suspending the fixture above ground level, verify that the structure can hold at least 10 times the weight of all installed devices.
• Verify that all external covers and rigging hardware are securely fastened and use an approved means of secondary attachment such as a safety cable.
• Block access below the work area whenever installing or removing the fixture.

UNPACKING

The packing material is carefully designed to protect the fixture during shipment - always use it to transport the fixture.

The Mania EF3 comes with the following:

• 3-wire IEC power cable
- User manual

MANIA EF3 OVERVIEW

AC POWER

Before operation ensure that factory setting of voltage and frequency match local power supply.

Always ground (earth) the fixture electrically.

Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault protection.

Note: If the external power cord of this luminaire is damaged, it shall be replaced by a special cord exclusively available from your Martin dealer.

Configuring for local mains power

The Mania EF3 has a switch-selectable power supply that can operate in the following voltage ranges at 50-60 Hz:

• 115 - 120 volts (setting 115)
• 220 - 240 volts (setting 230)

Warning Do not operate the fixture on a power supply that falls outside of these ranges.

Select the operating range using the red AC supply switch at the rear of the fixture.

AC supply setting

Top-down schematic of a vehicle chassis showing internal components and structural elements (no text or labels)

Installing a plug on the mains lead

Warning! For protection from dangerous electric shock, the fixture must be grounded (earthed). The AC mains supply shall have overload and ground-fault protection.

Important! Verify that the feed cables are undamaged and rated for the current requirements of all connected devices before use.

The fixture's mains lead may require a grounding-type cord cap that fits your power distribution cable or outlet. Consult a qualified electrician if you have any doubts about proper installation.

Following the cord cap manufacturer's instructions, connect the appropriate wires to ground (earth), live, and neutral. The following table below shows some common wire identification schemes.

Function Wire (EU) Wire (US)

live	brown	black
neutral blue white
ground	yellow/green	green

Applying power

1 Connect the mains power cable to the fixture at the 3-prong IEC male input socket at the rear of the fixture.

2 Turn the lamp on using the power on/off switch.

OVERHEAD MOUNTING

The Mania EF3 is designed to be hung overhead with a clamp (not included).

Warning! Block access below the work area before proceeding.

Always use a secure means of secondary attachment such as a safety wire.

For indoors use only.

To hang the Mania EF3 on an overhead support:

1 Verify that the structure can support at least 10 times the weight of all installed fixtures, clamps, cables, auxiliary equipment, and other items.

2 If hanging the fixture with a rigging clamp, verify that the clamp is undamaged and is designed for the fixture's weight. Bolt the clamp securely to the mounting bracket on the fixture with a grade 8.8 (minimum) M12 bolt and lock nut, or as recommended by the clamp manufacturer, through the clamp hole in the mounting bracket.

3 If permanently installing the fixture, verify that the hardware (not included) and mounting surface can bear at least 10 times the fixture's weight.

4 Working from a stable platform, clamp or fasten the fixture to the structure.

5 Install a safety cable that can hold at least 10 times the weight of the fixture through the safety cable attachment point on the fixture.

6 Loosen the swivel locks, tilt the fixture to the desired angle, and retighten.

7 Verify that the fixture is at least 1 meters (3.3 ft.) from the surface to be illuminated and at least 0.3 meters (1 ft.) from any combustible materials. Verify that the clearance around the air vents is at least 0.1 meters (4 in.).

OPERATION

3

The lamp will light when the power on/off switch at the back of the fixture is turned on.

To achieve optimal results, the use of smoke effects together with your Mania EF3 is recommended.

SETTING THE TRIG MODE

Use the switch on the back of the fixture to set it to Auto or Music trig mode.

Power on/off switch

- In Auto Trig mode, trigger signals are generated randomly. This will result in a dynamic light show that runs constantly and does not require music to trigger it.

- In Music Trig mode, the built-in sensor will generate trigger signals as a result of sounds that it picks up. This will result in a dynamic light show that is synchronized with a music beat.

The Mania EF3 contains the gobo wheel illustrated below.

Circular diagram with eight white geometric shapes and labeled circles A and B, no text or symbols present.

A set of dichroic colored filters is mounted on the gobo wheel. The two open gobo apertures A and B feature textured effects.

Gobo-wheel rotation is activated and deactivated using the gobo-wheel rotation switch:

• The wheel will stop when the switch is set to O.
- In Auto trig mode the wheel will rotate when switch is in position I or II.
- In Music trig mode the wheel will react to the beat of the music in position II, or will spin continuously in position I.

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction (no text or symbols present)

Gobo-wheel rotation switch

Note that it is the whole wheel, and not the individual gobos, that rotates.

FOCUSING THE MANIA EF3

The focus is adjusted using the mechanism next to the lens. This is easiest to do in Music Trig mode while no music is being played. Pull the mechanism out, or push it in, until a sharp image is acquired.

Technical diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

BASIC SERVICE

This chapter describes the maintenance procedures that you can perform yourself.

Warning The exterior of the fixture can become hot. Always disconnect the fixture from AC power and allow to cool for at least 20 minutes before handling or opening.

CLEANING

Regular cleaning of the elements in the optical path, as well as the air vents, is vital to maintaining the operational quality of the Mania EF3.

Important! Excessive dust, smoke fluid, and particulate buildup degrades performance and causes overheating and damage to the fixture that is not covered by the warranty.

Cleaning the air vents

To maintain adequate cooling, dust must be cleaned from the air vents periodically. Remove dust from the air vents with a soft brush, cotton swab, vacuum, or compressed air.

Cleaning optical components

Clean the optical components regularly. The presence of smudges or dust on optical surfaces can reduce the strength of the light output and the quality of the effects.

Use care when cleaning optical components and work in a clean, well lit area. The coated surfaces are fragile and easily scratched. Do not use solvents that can damage plastic or painted surfaces.

1 Disconnect the fixture from power and allow it to cool for 20 minutes.

2 Remove the thumb screw holding the cover in place.

3 Slide the fixture cover open as far as possible (there is a physical stop point that prevents access to the power supply section).

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

4 Vacuum or gently blow away dust and loose particles with compressed air.

5 Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled water. Do not rub the surface: lift the particles off with a soft repeated press.

6 Remove smoke, and other, residues with cotton swabs or unscented tissues moistened with isopropyl alcohol. A commercial glass cleaner may be used, but residues must be removed with distilled water. Clean with a slow circular motion from center to edge. Dry with a clean, soft and lint-free cloth or compressed air.

7 Close the fixture cover and tighten the thumb screw, taking care not to trap any loose wires.

LAMP MAINTENANCE

Warning Isolate electrically before re-lamping. The lamp shall be changed if it becomes damaged or thermally deformed.

Caution Hot lamp.

Only the Philips 12V EFP/8H 100W (type No 6834) lamp is supported (Martin P/N 97000004). These lamps normally last for 800 hours of operation.

Warning Installing any other lamp may damage the fixture!

Installing a lamp in the Mania EF3

1 Disconnect the fixture from power and allow it to cool for 20 minutes.

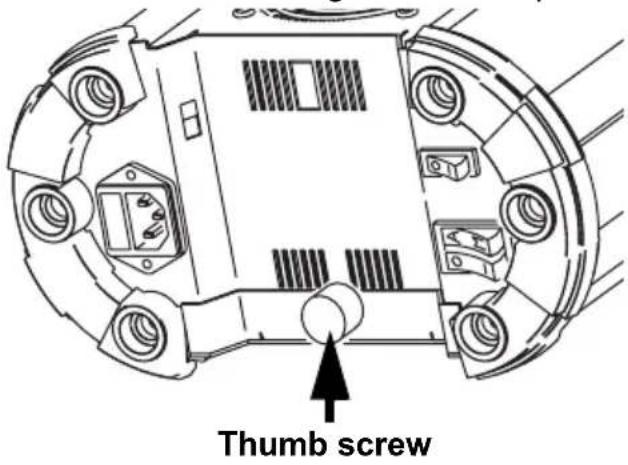

2 Remove the thumb screw holding the cover in place.

Top-down schematic of a vehicle's internal components with no visible text or symbols

Thumb screw

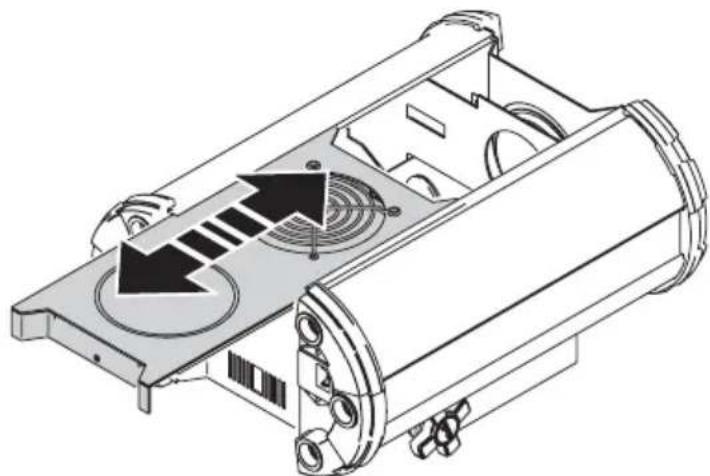

3 Slide the fixture cover open as far as possible (there is a physical stop point that prevents access to the power supply section).

Technical line drawing of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

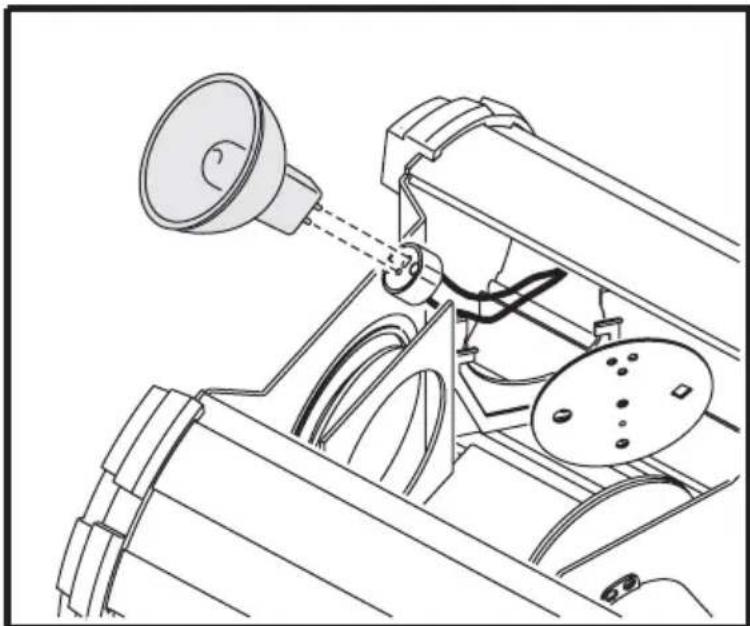

4 Grasp the old lamp by the reflector and slide it carefully out of the lamp holder.

5 Pull the socket off the lamp. Do not pull the wires.

Technical line drawing of a mechanical device with a bell and adjustment lever (no text or symbols)

6 Push the socket fully onto the pins of the new lamp.

7 Clean the glass bulb and reflector with a cloth, particularly if your fingers touched the glass. A clean, lint-free cloth wetted with alcohol is best.

8 Gently push the lamp into the holder until it snaps into place.

9 Close the fixture cover and tighten the thumb screw.

MAINS FUSE

The Mania EF3 uses a time-delay fuse for protection against current overload. An indication that the fuse may have blown is that when power is applied and the lamp is switched on, no light is produced.

If the fuse blows repeatedly, there is a fault with the unit that requires service by a Martin technician.

Never bypass the fuse or replace it with one of another size or rating.

Replacing the main fuse

1 Unplug the mains cable from the input socket.

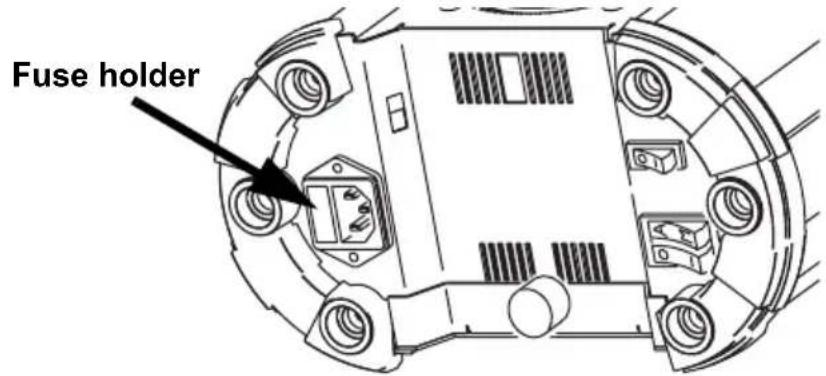

2 Pry open the fuse holder (located next to the mains power connector) with a flat-head screwdriver and remove the fuse.

3 Replace the fuse with one of the same type. The fuse rating is listed on the serial number label and in "Mania EF3 specifications" on page 19.

4 Replace the fuse holder.

TROUBLESHOOTING

problem probable cause(s) suggested remedy
No light No power to the fixture	Check connections
	Blown fuse If power is applied	and the lamp is switched on, but does not light, then check and replace fuse if necessary.
	Burned out lamp Install new lamp
	Fixture too hot Allow to cool	Improve air flow around fixture
No action Sound too low to activate control circuit		Increase volumeMove speakers closer
		Electrical malfunction Refer to a Martin service technician
Fuse blows repeatedly Electrical malfunction Refer to a Martin service technician

MANIA EF3 SPECIFICATIONS

PHYSICAL

Size without mounting bracket (LxWxH). . 312 x 250 x 142mm (12.3 x 9.8 x 14.2in)

Weight 6.5 kg (14.3lb)

CONSTRUCTION

Housing .steel and aluminum

THERMAL

Exterior surface temperature under steady state condition .....100°C (212°F)

Time required to cool before handling .... at least 20 minutes

Maximum ambient temperature ( T_a ) 40°C (104°F)

INSTALLATION

Minimum distance to flammable material 0.3 m (1ft)

Minimum distance to illuminated surface 1.0 m (3.3ft)

Minimum clearance around air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 m (4in)

CONTROL AND PROGRAMMING

Stand-alone triggers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . music or auto

ELECTRICAL

Input 3-prong IEC male socket

AC Power . . switch selectable, operating ranges 115-120 V / 220-240 V, 50-60 Hz

Main fuse 2 AT (time delay),

TYPICAL POWER AND CURRENT

120 V, 50 Hz 115 W, 1.0 A

120 V, 60 Hz ..... 113 W, 0.9 A

230 V, 50 Hz 106 W, 0.5 A

230 V, 60 Hz ..... 105 W, 0.5 A

240 V, 50 Hz ..... 114 W, 0.5 A

240 V, 60 Hz 113 W, 0.5 A

INCLUDED ITEMS - US VERSION

2 m (6.5 ft) US mains cable 18AWG with US male connector (UL approved)

Philips 12V EFP/8H 100W lamp

User manual

INCLUDED ITEMS - NON-US VERSION

3 m (9.8 ft) EU mains cable 3x1.0mm ^2 with Schuko male connector

3 m (9.8 ft) EU mains cable 3x1.0mm ^2 with no male connector

Philips 12V EFP/8H 100W lamp

User manual

ACCESSORIES

Philips 12V EFP/8H 100W lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 97000004

Half-coupler clamp .P/N 91602005

Fuse (2 AT)....P/N 05020009

ORDERING INFORMATION

Mania EF3 non-US version P/N 90430062

Mania EF3 US version....P/N 90430063
